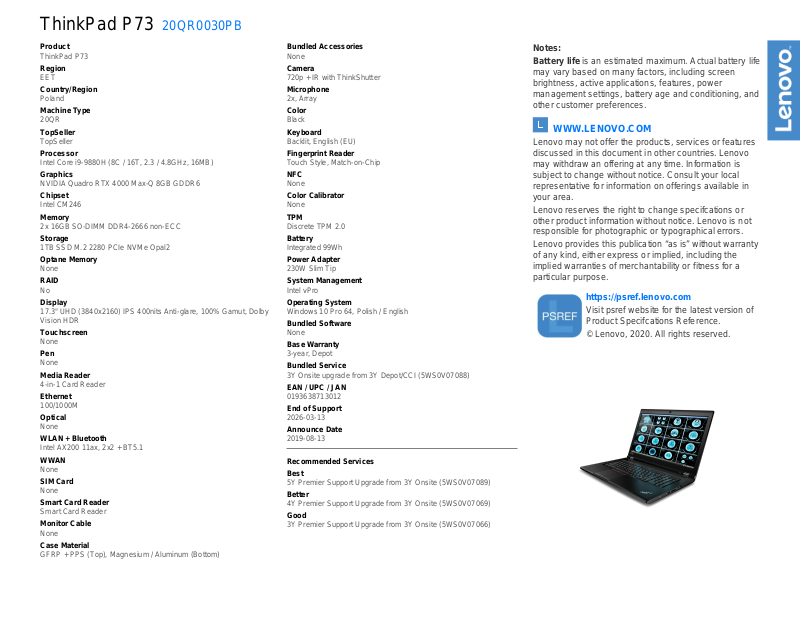

Lenovo 20S00012PB Technical data
ThinkPad P73 20QR0030PB
Product
ThinkPad P73
Region
EET
Country/Region
Poland
Machine Type
20QR
TopSeller
TopSeller
Processor
Intel Core i9-9880H (8C / 16T, 2.3 / 4.8GHz, 16MB)
Graphics
NVIDIA Quadro RTX 4000 Max-Q 8GB GDDR6
Chipset
Intel CM246
Memory
2x 16GB SO-DIMM DDR4-2666 non-ECC
Storage
1TB SSD M.2 2280 PCIe NVMe Opal2
Optane Memory
None
RAID
No
Display
17.3" UHD (3840x2160) IPS 400nits Anti-glare, 100% Gamut, Dolby
Vision HDR
Touchscreen
None
Pen
None
Media Reader
4-in-1 Card Reader
Ethernet
100/1000M
Optical
None
WLAN + Bluetooth
Intel AX200 11ax, 2x2 + BT5.1
WWAN
None
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Case Material
GFRP + PPS (Top), Magnesium / Aluminum (Bottom)
Bundled Accessories
None
Camera
720p + IR with ThinkShutter
Microphone
2x, Array
Color
Black
Keyboard
Backlit, English (EU)
Fingerprint Reader
Touch Style, Match-on-Chip
NFC
None
Color Calibrator
None
TPM
Discrete TPM 2.0
Battery
Integrated 99Wh
Power Adapter
230W Slim Tip
System Management
Intel vPro
Operating System
Windows 10 Pro 64, Polish / English
Bundled Software
None
Base Warranty
3-year, Depot
Bundled Service
3Y Onsite upgrade from 3Y Depot/CCI (5WS0V07088)
EAN / UPC / JAN
0193638713012
End of Support
2026-03-13
Announce Date
2019-08-13
Recommended Services
Best
5Y Premier Support Upgrade from 3Y Onsite (5WS0V07089)
Better
4Y Premier Support Upgrade from 3Y Onsite (5WS0V07069)
Good
3Y Premier Support Upgrade from 3Y Onsite (5WS0V07066)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2020. All rights reserved.

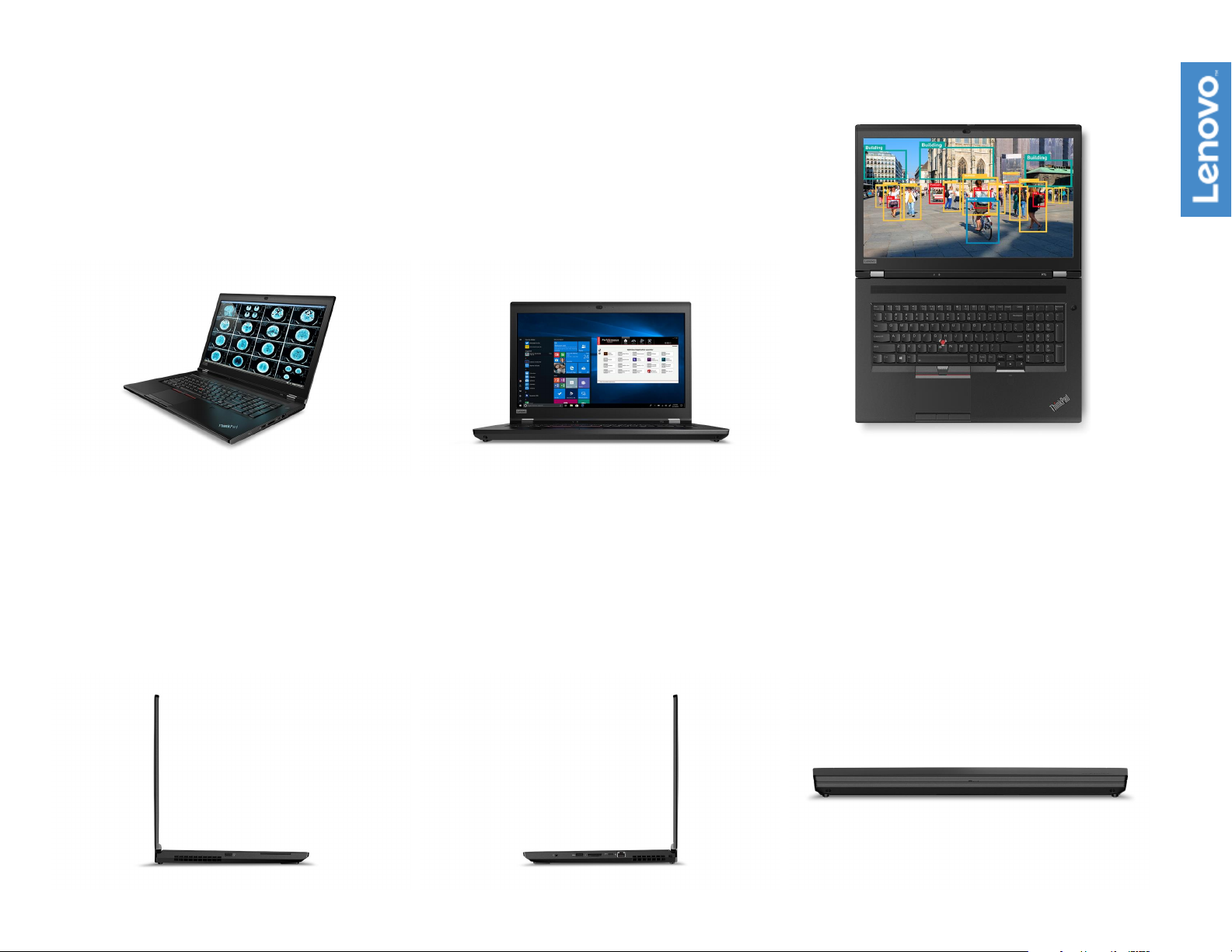

ThinkPad P73 Platform Specifications
Product Specifications Reference (PSREF)
Processor
9th Generation Intel Core i5 / i7 / i9 Processor or Intel Xeon E Processor
Processor
Number
i5-9400H 4 8 2.5 GHz 4.3 GHz 8MB
i7-9750H 6 12 2.6 GHz 4.5 GHz 12MB
i7-9850H 6 12 2.6 GHz 4.6 GHz 12MB
i9-9880H 8 16 2.3 GHz 4.8 GHz 16MB
E-2276M 6 12 2.8 GHz 4.7 GHz 12MB
# of
Cores
# of
Threads
Base
Frequency
Max Turbo
Frequency
Cache
Memory
Types
DDR4-2666
Graphics Intel UHD Graphics 630 or P630 in processor and
NVIDIA Quadro
P620 (4GB GDDR5), T2000 (4GB GDDR5),
RTX 3000 (6GB GDDR6, VR ready), RTX 4000 Max-Q (8GB GDDR6, VR ready),
or RTX 5000 Max-Q (16GB GDDR6, VR ready);
Up to 5 displays with 4 external monitors plus system LCD screen. External monitors supported via USB-C, Thunderbolt, and HDMI
Max resolution: 5K@60Hz (Thunderbolt); 4K@60Hz (USB-C or HDMI)
Chipset
Memory
Mobile Intel CM246 Chipset
128GB max / 2666MHz DDR4 (ECC function supported only on Xeon processor),
dual-channel capable, four DDR4 SO-DIMM sockets
Display
Multi-touch
Pen
Storage
Optane memory
RAID (optional)
Optical
Size Resolution Type Surface Brightness
17.3" FHD (1920x1080) IPS Anti-glare 300 nits 16:9 700:1 72% 160°
UHD (3840x2160)
17.3"
Dolby Vision HDR
IPS Anti-glare 400 nits 16:9 1000:1 100% 170°
None
None
Up to 3 drives (two M.2 SSD and one HDD), supports single sided M.2 2280 drives only
• HDD / SATA 6.0Gb/s, 2.5" wide, 7mm high,
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
Optional: Intel Optane memory, PCIe NVMe, PCIe 3.0 x 2
RAID 0/1 support
None
Aspect
Contrast
Ratio
Ratio
Active Protection System
Ethernet Non-vPro model: Intel Ethernet Connection I219-V (Jacksonville)
vPro model: Intel Ethernet Connection I219-LM (Jacksonville)
WLAN (optional)
Bluetooth (opt)
WWAN
SIM card
Intel Wi-Fi 6 AX200,
Wi-Fi
2x2 802.11ax +
Bluetooth 5.1 wireless, integrated in
None
None
Bluetooth 5.1
Wi-Fi + Bluetooth combo adapter
Processor
Graphics
Intel UHD Graphics
630
Intel UHD Graphics
P630
Color
Viewing
Gamut
Dimensions
Weight
Case color
Case material
Smart card reader
ExpressCard
Media reader
Ports
Monitor cable
(optional)
Bundled Accy
Camera (optional)
Audio support
Angle
Keyboard
UltraNav
Security
Security chip
vPro (optional)
Fingerprint reader
Color calibration
NFC (optional)
Battery
Max battery life
AC adapter
Operating system
WxDxH: 16.38" x 11.06" x 1.02-1.22"; 416mm x 281mm x 25.9-31mm
Starting at 7.5 lb (3.4kg)
Black
Display cover: GFRP + PPS;
Bottom: Magnesium/Aluminum
Optional: Smart card reader
None
4-in-1 reader (MMC, SD, SDHC, SDXC), supports UHS-II SD card
Three USB 3.1 Gen 1 (one Always On),
one USB 3.1 Type-C Gen 1 (with the function of Power Delivery and DisplayPort),
two USB 3.1 Type-C Gen 2 / Thunderbolt 3 (with the function of PD and DP),
HDMI 2.0, Ethernet (RJ-45), headphone / microphone combo jack,
optional smart card reader, 4-in-1 reader (MMC, SD, SDHC, SDXC),
security keyhole
* Power Delivery only supports power-out for charging peripherals
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
HDMI to VGA: Lenovo HDMI to VGA Monitor Adapter
USB-C to VGA: Lenovo USB-C to VGA Adapter
USB-C to DP: Lenovo USB-C to DisplayPort Adapter
None
IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Synaptic CX11880 codec / stereo speakers, 2W x 2 /
dual array far-field microphone, headphone / microphone combo jack,
Dolby Atmos sound system
6-row, spill-resistant, multimedia Fn keys, numeric keypad, LED backlight
3-button TrackPoint pointing device and
3-button Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
Discrete TPM 2.0, TCG Certified
Intel vPro Technology
Touch style match on chip fingerprint reader on the palm rest
Optional: X-Rite Pantone factory color calibration (UHD model only)
Near Field Communication
Integrated Li- Polymer 99Wh battery, supports Rapid Charge (charge up to 80% in
1hr)
MobileMark 2014: 17.2 hr
* Battery life varies significantly with hardware configurations, settings, usage, & other factors
170W or 230W slim tip AC adapter
One of the following, configurable by model:
• Windows 10 Home 64
• Windows 10 Pro 64
• Windows 10 Pro 64 for Workstations
Limited warranty
One of the following, configurable by model:
• 1-year depot repair service
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment
Note: The specifications above may not be available in all regions. Lenovo
EPEAT Silver; ENERGY STAR 7.1; RoHS-compliant
November 2019
