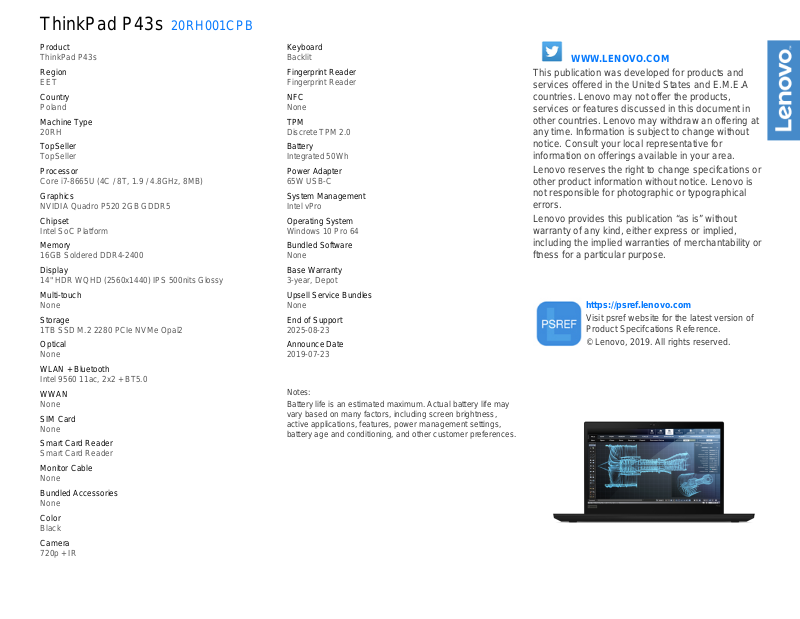

Lenovo 20RH001CPB Technical data
ThinkPad P43s 20RH001CPB
Product
ThinkPad P43s
Region
EET
Country
Poland
Machine Type
20RH
TopSeller
TopSeller
Processor
Core i7-8665U (4C / 8T, 1.9 / 4.8GHz, 8MB)
Graphics
NVIDIA Quadro P520 2GB GDDR5
Chipset
Intel SoC Platform
Memory
16GB Soldered DDR4-2400
Display
14" HDR WQHD (2560x1440) IPS 500nits Glossy
Multi-touch
None
Storage
1TB SSD M.2 2280 PCIe NVMe Opal2
Optical
None
WLAN + Bluetooth
Intel 9560 11ac, 2x2 + BT5.0
WWAN
None
SIM Card
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Bundled Accessories
None
Color
Black
Camera
720p + IR
Keyboard
Backlit
Fingerprint Reader
Fingerprint Reader
NFC
None
TPM
Discrete TPM 2.0
Battery
Integrated 50Wh
Power Adapter
65W USB-C
System Management
Intel vPro
Operating System
Windows 10 Pro 64
Bundled Software
None
Base Warranty
3-year, Depot
Upsell Service Bundles
None
End of Support
2025-08-23
Announce Date
2019-07-23
Notes:
Battery life is an estimated maximum. Actual battery life may
vary based on many factors, including screen brightness,
active applications, features, power management settings,
battery age and conditioning, and other customer preferences.
WWW.LENOVO.COM
This publication was developed for products and
services offered in the United States and E.M.E.A
countries. Lenovo may not offer the products,
services or features discussed in this document in
other countries. Lenovo may withdraw an offering at
any time. Information is subject to change without
notice. Consult your local representative for
information on offerings available in your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is
not responsible for photographic or typographical
errors.
Lenovo provides this publication “as is” without
warranty of any kind, either express or implied,
including the implied warranties of merchantability or
ftness for a particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2019. All rights reserved.

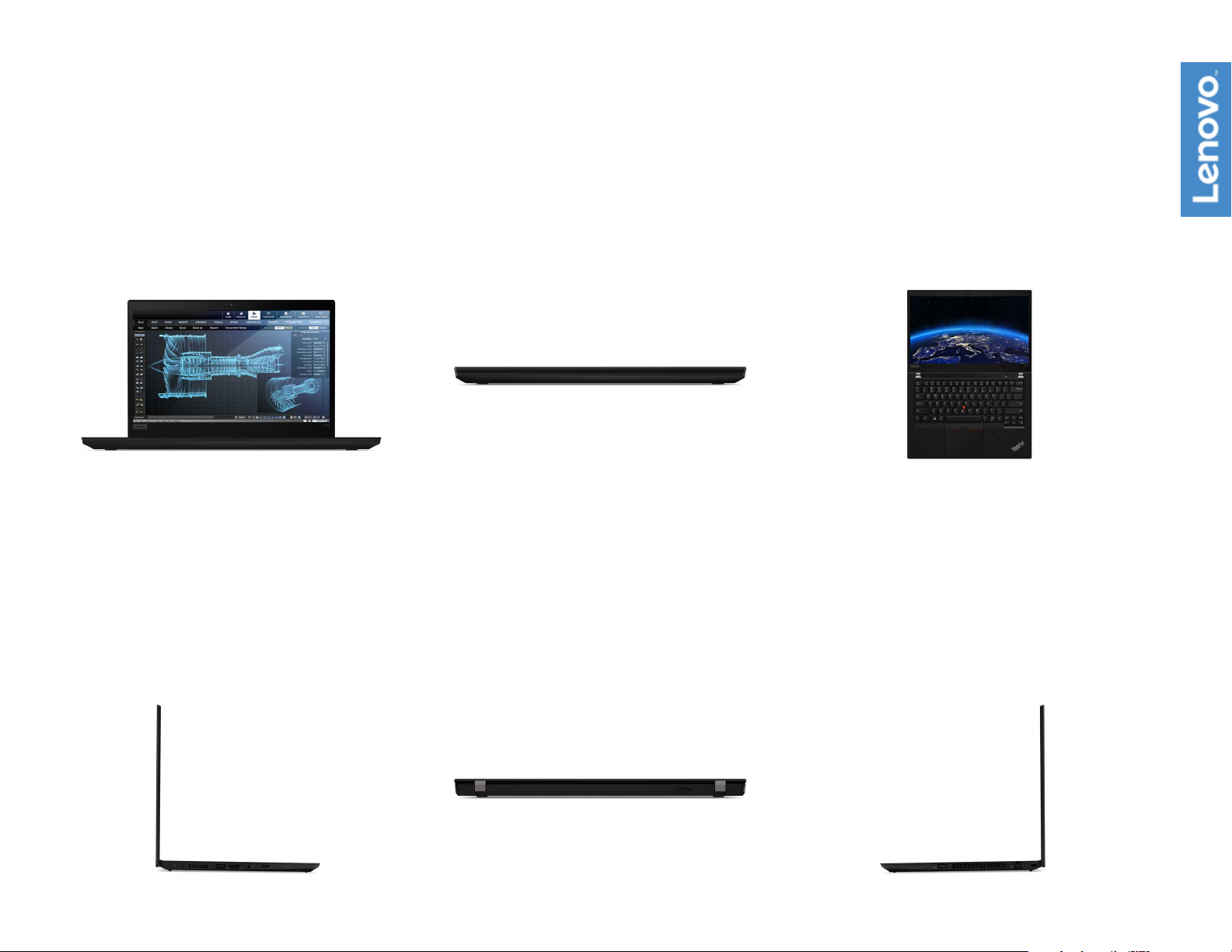

ThinkPad P43s Platform Specifications
Product Specifications Reference (PSREF)
Processor 8th Generation Intel
Processor
Number
i7-8565U
i7-8665U 1.9 GHz 4.8 GHz 8MB
Cores
Graphics Intel UHD Graphics 620 in processor and
NVIDIA Quadro
supports external digital monitor via HDMI or USB Type-C;
supports three independent displays;
Max resolution: 3840x2160@60Hz (USB-C); 3840x2160@30Hz (HDMI)
Chipset
Memory
Display
Multi-touch (opt)
Storage
Intel SoC (System on Chip) platform
48GB max / 2400MHz DDR4, dual-channel capable,
8GB or 16GB memory soldered to systemboard, one DDR4 SO-DIMM socket
* Installed memory is actually 2666MHz but run at 2400MHz due to Intel limitation
Size Resolution Type Surface Brightness
14.0" FHD (1920x1080) IPS Anti-glare
FHD (1920x1080)
14.0"
Low Power
WQHD (2560x1440)
14.0"
Dolby Vision HDR
On-cell touch, supports 10-finger gesture (FHD only)
• M.2 2280 SSD / SATA 6.0Gb/s
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
• M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2
• Intel Optane Memory H10 with Solid State Storage,
M.2 2280, PCIe NVMe 3.0 x 4
Optical
None
Ethernet Non-vPro model: Intel Ethernet Connection I219-V (Jacksonville)
vPro model: Intel Ethernet Connection I219-LM (Jacksonville)
WLAN
Bluetooth
WWAN (optional)
Intel Wireless-AC 9560,
Bluetooth 5.0 wireless, integrated in
One of the following, configurable by model:
• Wireless WAN upgradable
• Integrated Mobile Broadband 4G LTE,
• Integrated Mobile Broadband 4G LTE-A,
SIM card (opt)
* For non-WWAN model, it means the model is NOT WWAN upgradable
Nano-SIM card slot, optional Verizon LTE (US) SIM card
Core i7 Processor
# of
# of
Threads
4 8
Base
Frequency
1.8 GHz 4.6 GHz 8MB
P520, 2GB GDDR5 memory;
IPS Anti-glare 400 nits 16:9 800:1 72% 170°
IPS Glossy 500 nits 16:9 1500:1
Wi-Fi
2x2 802.11ac +
Max Turbo
Frequency
250 nits
(non-touch)
300 nits
(multi-touch)
Cache
Memory
Types
DDR4-2400
Aspect
Contrast
Ratio
16:9 700:1 45% 170°
Ratio
Processor
Graphics
Intel UHD Graphics
Color
Gamut
100%
Adobe
Bluetooth 5.0
Wi-Fi + Bluetooth combo adapter
Fibocom L830-EB, M.2 card (EMEA only)
Fibocom L850-GL, M.2 card
620
Dimensions
Weight
Case color
Case material
Smart card reader
Media reader
Ports
Monitor cable
Viewing
(optional)
Angle
Bundled Accy
Camera (optional)
Audio support
170°
Keyboard
UltraNav
Security
Security chip
System Mgt (opt)
Fingerprint reader
NFC (optional)
Battery
Max battery life
AC adapter
Preload Windows
Limited warranty
WxDxH: 12.95" x 8.94" x 0.70"; 329mm x 227mm x 17.9mm
Models FHD FHD Low Power WQHD
Weight 3.43 lb / 1.55 kg 3.28 lb / 1.49 kg 3.24 lb / 1.47 kg
Black
Display cover: PPS / 50% GF;
Bottom: PA / 50% GF
Optional: Smart card reader
MicroSD card reader
Two USB 3.1 Gen 1 (one Always On),
one USB 3.1 Type-C Gen 1 (with the function of Power Delivery and DisplayPort),
one USB 3.1 Type-C Gen 2 / Thunderbolt 3 (with the function of PD and DP),
HDMI 1.4b, Ethernet (RJ-45), nano-SIM card slot (WWAN models),
headphone / microphone combo jack, optional smart card reader,
microSD card reader, side docking connector, security keyhole
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
HDMI to VGA: Lenovo HDMI to VGA Monitor Adapter
USB-C to VGA: Lenovo USB-C to VGA Adapter
USB-C to HDMI: Lenovo USB-C to HDMI Adapter
USB-C to DP: Lenovo USB-C to DisplayPort Adapter
None
One of the following, configurable by model:
• HD720p camera with ThinkShutter camera privacy, fixed focus
• IR camera and HD720p camera with ThinkShutter camera privacy, fixed focus
HD Audio, Realtek ALC3287 codec /
stereo speakers, 2W x 2, Dolby Audio Premium /
dual array far-field microphone, headphone / microphone combo jack
6-row, spill-resistant, multimedia Fn keys, LED backlight
TrackPoint
pointing device and buttonless Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password, security keyhole
Discrete TPM 2.0, TCG Certified
Intel vPro Technology
Optional: Touch style match on chip fingerprint reader on the palm rest
Near Field Communication
Integrated Li-ion 50Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
MobileMark
* Battery life varies significantly with settings, usage, & other factors
2014: 14.7 hr
65W USB Type-C AC adapter
10 Home 64 or Windows 10 Pro 64
One of the following, configurable by model:
• 1-year depot repair service
• 3-year/1-yr battery depot repair service
• 3-year/1-yr battery limited onsite service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Silver; ENERGY STAR
Note: The specifications above may not be available in all regions. Lenovo
7.1; RoHS-compliant
July 2019
