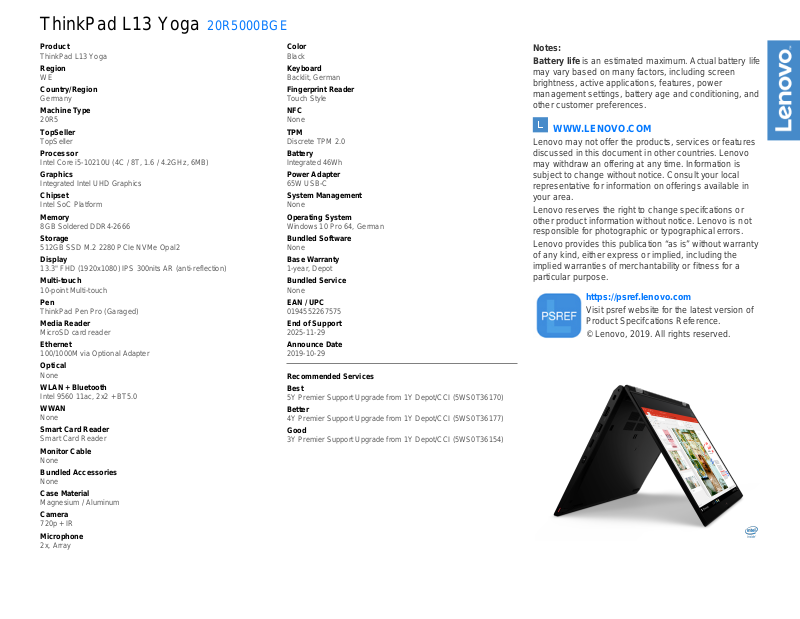

Lenovo 20R5000BPB Technical data
ThinkPad L13 Yoga 20R5000BGE
Product
ThinkPad L13 Yoga
Region
WE
Country/Region
Germany
Machine Type
20R5
TopSeller
TopSeller
Processor
Intel Core i5-10210U (4C / 8T, 1.6 / 4.2GHz, 6MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
8GB Soldered DDR4-2666
Storage
512GB SSD M.2 2280 PCIe NVMe Opal2
Display
13.3" FHD (1920x1080) IPS 300nits AR (anti-reflection)
Multi-touch
10-point Multi-touch
Pen
ThinkPad Pen Pro (Garaged)
Media Reader
MicroSD card reader
Ethernet
100/1000M via Optional Adapter
Optical
None
WLAN + Bluetooth
Intel 9560 11ac, 2x2 + BT5.0
WWAN
None
Smart Card Reader
Smart Card Reader
Monitor Cable
None
Bundled Accessories
None
Case Material
Magnesium / Aluminum
Camera
720p + IR
Microphone
2x, Array
Color
Black
Keyboard
Backlit, German
Fingerprint Reader
Touch Style
NFC
None
TPM
Discrete TPM 2.0
Battery
Integrated 46Wh
Power Adapter
65W USB-C
System Management
None
Operating System
Windows 10 Pro 64, German
Bundled Software
None
Base Warranty
1-year, Depot
Bundled Service
None
EAN / UPC
0194552267575
End of Support
2025-11-29
Announce Date
2019-10-29
Recommended Services
Best
5Y Premier Support Upgrade from 1Y Depot/CCI (5WS0T36170)
Better
4Y Premier Support Upgrade from 1Y Depot/CCI (5WS0T36177)
Good
3Y Premier Support Upgrade from 1Y Depot/CCI (5WS0T36154)
Notes:
Battery life is an estimated maximum. Actual battery life
may vary based on many factors, including screen
brightness, active applications, features, power
management settings, battery age and conditioning, and
other customer preferences.
WWW.LENOVO.COM
Lenovo may not offer the products, services or features
discussed in this document in other countries. Lenovo
may withdraw an offering at any time. Information is
subject to change without notice. Consult your local
representative for information on offerings available in
your area.
Lenovo reserves the right to change specifcations or
other product information without notice. Lenovo is not
responsible for photographic or typographical errors.
Lenovo provides this publication “as is” without warranty
of any kind, either express or implied, including the
implied warranties of merchantability or fitness for a
particular purpose.
https://psref.lenovo.com
Visit psref website for the latest version of
Product Specifcations Reference.
© Lenovo, 2019. All rights reserved.
ThinkPad L13 Yoga Platform Specifications
Product Specifications Reference (PSREF)
Threads
4 8
Core i3 / i5 / i7 Processor
# of
Base
Frequency
1.6 GHz 4.2 GHz 6MB
Max Turbo
Frequency
Cache Memory Types
DDR4-2666 Intel UHDi5-10210U
Processor
Graphics
Processor 10th Generation Intel
Processor
Number
i3-10110U 2 4 2.1 GHz 4.1 GHz 4MB
i7-10510U 1.8 GHz 4.9 GHz 8MB
# of
Cores
Graphics Intel UHD Graphics in processor only;
supports external digital monitor via HDMI or USB Type-C;
supports three independent displays;
Max resolution: 4096x2304@60Hz (USB Type-C); 4096x2160@30Hz (HDMI)
Chipset
Memory
Display
Intel SoC (System on Chip) platform
4GB, 8GB or 16GB / 2400MHz DDR4 / soldered to systemboard, no sockets
13.3" (337.8mm) FHD (1920x1080), LED backlight, IPS, 300 nits,
16:9 aspect ratio, 800:1 contrast ratio, Color Gamut 72%, 170° viewing angle,
AR (anti-reflection)
Multi-touch
capacitive-type multi-touch, supports 10-finger gesture,
could reduce the brightness by up to 10%
Hinge
Convert-mode
Pen
Storage
Yoga hinge, 360 degree
Laptop, tent, stand and tablet
ThinkPad Pen Pro, active pen for multi-touch display, on-board rechargeable
One of the following, configurable by model:
• M.2 2280 SSD / PCIe NVMe, PCIe 3.0 x 4
• M.2 2242 SSD / PCIe NVMe, PCIe 3.0 x 2
Optical
None
Ethernet Gigabit Ethernet via USB-C to Ethernet Adapter Dongle or Mechanical Dock
WLAN +
Bluetooth
One of the following, configurable by model:
• Intel Wireless-AC 9560, Wi-Fi 2x2 802.11ac + Bluetooth 5.0
• Intel Wi-Fi 6 AX201, Wi-Fi 2x2 802.11ax + Bluetooth 5.0, M.2 card
WWAN None
Dimensions
Weight
Case color
Case Material
WxDxH: 12.26" x 8.62" x 0.69"; 311.5mm x 219mm x 17.6mm
Starting at 3.17lb / 1.43kg
Black or silver
Display cover: Magnesium + Aluminum
Bottom: GFRP (Glass Fiber Reinforced Polymer)
Smart card reader
Media reader
Ports
Optional: Smart card reader
MicroSD card reader
Two USB 3.1 Type-A Gen 1 (one Always On),
two USB 3.1 Type-C Gen 1 (with the function of Power Delivery and Display Port),
HDMI 1.4b, microSD card reader,
headphone / microphone combo jack, optional smart card reader,
side docking connector, security keyhole
* Depending on many factors, actual data transfer speed may be lower than theoretical speed
Monitor cable
(optional)
Bundled Accy
(optional)
Note: The specifications above may not be available in all regions.
USB-C to VGA: Lenovo USB-C to VGA Adapter
USB-C to HDMI: Lenovo USB-C to HDMI Adapter
USB-C to DP: Lenovo USB-C to DisplayPort Adapter
USB-C to RJ45: Lenovo USB-C to Ethernet Adapter
USB-C to USB-A: Lenovo USB-C to USB-A Adapter
USB-C to USB-C: Lenovo USB-C to USB-C Cable 2M
Camera
One of the following, configurable by model:
• HD720p camera, with ThinkShutter camera privacy, fixed focus
• IR camera and HD720p camera, with ThinkShutter camera privacy, fixed focus
• World facing camera, 5MP resolution, auto focus (Fingerprint model only)
Audio support
HD Audio, Synaptics CX11880-11Z / stereo speakers, 2W x 2,
Dolby Audio Premium / dual array microphone,
headphone / microphone combo jack
Keyboard
UltraNav
Security
6-row, spill-resistant, multimedia Fn keys, optional LED backlight
TrackPoint pointing device and buttonless Mylar surface multi-touch touchpad
Power-on password, hard disk password, supervisor password,
system management password, security keyhole
Security chip
System Mgt
Fingerprint reader
NFC
Battery
Max battery life
AC adapter
Light sensor
G-sensor
Gyroscope
Preload Windows
Limited warranty
Discrete TPM 2.0 TCG Certified
None
Optional: Touch style match on host fingerprint reader on the palm rest
None
Integrated Li-ion 46Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
with 65W USB Type-C AC adapter
MobileMark
* Battery life varies significantly with settings, usage, & other factors
2014: 12.23 hrs
45W USB Type-C, 65W USB Type-C or 65W Slim USB Type-C AC adapter
None
Ye s
None
10 Pro 64 or Windows 10 Pro in S mode
One of the following, configurable by model:
• 1-year depot repair service
• 1-year depot with 2-year system board service
• 3-year depot repair service
Mil-Spec test MIL-STD-810G military testing
Environment EPEAT Silver; ENERGY STAR
7.1; RoHS-compliant
Lenovo
November 2019
