Content In the box
Headset Setup and Charging
Adjusting headset for your comfort 4
Charging your headset 5
Turning your headset on 5
Bluetooth Hub Setup and Use (for Desk Phone)
Connecting Bluetooth Hub with desk phone and power supply 6
Making a test call on your desk phone to adjust settings 7
Making and ending a call via desk phone 9
Answering an incoming call to desk phone 11
Mobile Phone Setup and Use
Pairing headset to mobile phone 12
Making and ending a call from mobile phone 13
Using Voice Dial 14
Answering an incoming call to mobile phone 14
Quick Reference
Operating the Answer/End button 15
What the lights mean 16
2

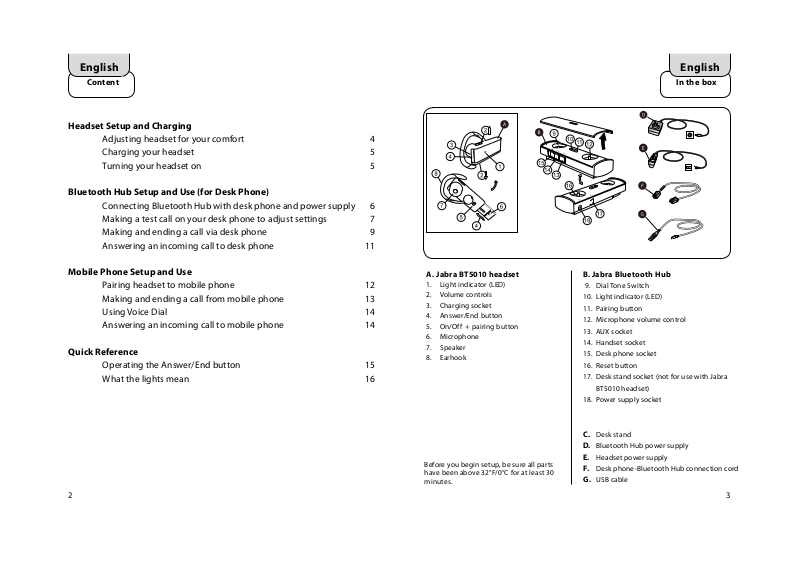

A. Jabra BT5010 headset
1. Light indicator (LED)
2. Volume controls
3. Charging socket
4. Answer/End button
5. On/Off + pairing button
6. Microphone
7. Speaker
8. Earhook
Before you begin setup, be sure all parts
have been above 32°F/0°C for at least 30
minutes.
B. Jabra Bluetooth Hub
9. Dial Tone Switch
10. Light indicator (LED)
11. Pairing button
12. Microphone volume control
13. AUX socket
14. Handset socket
15. Desk phone socket
16. Reset button
17. Desk stand socket (not for use with Jabra
BT5010 headset)
18. Power supply socket
C. Desk stand
D. Bluetooth Hub power supply
E. Headset power supply
F. Desk phone-Bluetooth Hub connection cord
G. USB cable
5
English English
Headset Setup and Charging
Adjusting headset for your comfort
1
c
b
Headset is preset for use on right ear. Switch if necessary.
2
Bend to fit.
Charging your headset
4
a
Charge via PC or Charge directly (handy for travel).
Important: Make sure your headset is
inactive while charging.
5
Red = charging. Green = fully charged (approximately 2 hrs.).
Turning your headset on
3
During a call adjust speaker volume (how others sound to you) on headset.
4
6
Press Headset on/off/pairing button for 1 sec. Blue flash.
7
English English
Bluetooth Hub Setup and Use (for Desk Phone)
Connecting Bluetooth Hub with desk phone and power supply
• If you are using a GN 1000 (remote handset lifter) or an electronic hook switch lifter, please refer to the
user manual on the supplied CD-ROM for instructions.
• If your desk phone has a headset port, see instructions inset.
For desk phones without headset port
1
Disconnect handset from desk phone.
3
Connect desk phone with Bluetooth Hub
using supplied connection cord (F).
2
Connect handset to Bluetooth
Hub.
4
Connect power supply to Bluetooth Hub.
For desk phones with headset port
Making a test call on your desk phone to adjust settings
If your desk phone has an electronic hookswitch lifter, or you are using a GN 1000 (remote
handset lifter), please refer to the User Manual on the supplied CD-ROM for instructions.
1
Place headset on ear.
2
Tap headset Answer/End button.
For desk phones with headset port
3
Lift desk phone handset.
3
Press the appropriate desk phone button
to establish a clear dial tone.
4
1 2
Connect desk phone with Bluetooth Hub
using supplied connection cord (F).
6
6
Connect power supply to Bluetooth Hub.
Listen for dial tone in headset.
To be continued in the next page.
9
English
English
5
If dial tone is missing or unclear, slowly slide the Dial Tone Switch from A – G on the Bluetooth
Hub. Dial Tone Switch is preset to setting A (most commonly used).
6
Dial a friend to test settings.
7
Adjust microphone volume (how your voice
sounds to others) via Bluetooth Hub.
For desk phones with headset port
Making and ending a call via desk phone
If your desk phone has an electronic hookswitch lifter, or you are using a GN 1000 (remote
handset lifter), please refer to the User Manual on the CD-ROM for instructions.
1
Place headset on ear.
3
Lift desk phone handset.
2
Tap headset Answer/End button.
For desk phones with headset port
3
Press the appropriate desk phone button
to establish a clear dial tone.
8
To end call, replace desk phone handset
AND tap headset Answer/End button.
8
8
Press the appropriate button on desk phone
AND tap headset Answer/End button.
4
Dial number.
4
Dial number.
9
11
English
English
5
Begin talking.
6
To end call, replace desk phone handset AND tap headset Answer/End button.
For desk phones with headset port
6
Answering an incoming call to desk phone
If your desk phone has an electronic hookswitch lifter, or you are using a GN 1000 (remote
handset lifter), please refer to the User Manual on the CD-ROM for instructions.
1
Place headset on ear.
3
Lift desk phone handset.
2
Tap headset Answer/End button.
For desk phones with headset port
3
Press the appropriate desk phone button
to establish a clear dial tone.
4
For desk phones with headset port, press the appropriate button on desk phone AND
tap headset Answer/End button.
10
10
Begin talking.
13
English
Mobile Phone Setup and Use
English
Mobile Phone Use
Pairing headset to mobile phone (establishes Bluetooth connection)
1
See your mobile phone User Guide for Bluetooth pairing instructions.
2
Making and ending a call from mobile phone
1
Place headset on ear. Dial number on mobile phone and tap Talk/Yes or similar.
2
Press headset pairing button for 1 sec.
Blue light indicates open for pairing (5 minutes).
12
Begin talking. To end call, press End/No or similar on mobile phone OR tap headset Answer/End
button.
15
English
English
Quick Reference
Using Voice Dial (if your mobile phone supports this feature)
1
Press headset Answer/End button for 1 sec.
2
Hear voice dial signal. (Mobile phone
dependent)
3
Give voice dial command.
Answering an incoming call to mobile phone
1
2
Operating the Answer/End button
How to… Headset Answer/End button action
Make call via desk phone
Make call via mobile phone Voice Dial* Press for 1 sec
Redial last outgoing number* (from mobile phone) Double tap
Answer all calls Tap
End all calls Tap
Reject a call (to your mobile phone) Press for 1 sec
Put a call on hold* Press for 1 sec
Switch between two active calls* Press for 1 sec
End active call when another is on hold*
* If the mobile phone supports this feature
Tap
Tap
Tap headset Answer/End button.
14
Begin talking.
17
English
Quick Reference
What the lights mean
Red Blue Green Red Blue Green
English
Headset
Green steady Charge complete
Blue slow flash Headset on
Blue fast flash Call in progress
Blue steady Headset in pairing mode
Red flash Low battery
Red steady Charge in progress
Range:
Talk time: Up to 10 hours
Standby time: Up to 300 hours
Charge time: Up to 2 hours
Up to 10 meters/33 feet
in line of sight
16
Bluetooth Hub
Green steady Bluetooth Hub on
Blue steady Pairing in progress
Blue flash 10 times Pairing successful
Red flash Bluetooth Hub needs
to be reset
Red steady Reset in progress
