CBX40UHV Variable Speed Air Handler
Home Comfort Systems
CBX40UHV
The quietest and most efficient air handler
you can buy.*
Dave Lennox Signature® Collection Variable Speed Air Handler
Offers greater cooling
™
efficiency when matched with
specific air conditioners or
heat pumps
More efficient operation
reduces electric consumption
and conserves resources
Factory-installed MERV 16
media filter provides healthier
indoor air and reduces the
space required for installation
Emits no ozone into the air
Slow-ramping heating-mode
blower offers greater comfort,
eliminating uncomfortable
“cold blow”
Humidity control maximizes
comfort
SilentComfort™ technology
Innovation never felt so good.
reduces noise
Every air conditioner or heat pump needs an indoor unit to blow
conditioned air through the home, and there are several to choose from.
Typical air handlers simply circulate heated or cooled air through the
air duct system. The CBX40UHV does this plus so much more.
THE QUIETEST AND MOST EFFICIENT AIR HANDLER
YOU CAN BUY.*
In heating mode, the CBX40UHV increases airflow slowly, virtually eliminating
the “cold blow” common with some air handlers. Low-speed operation helps
keep sound to a minimum. What’s more, a built-in filtration system helps clean
the air of allergy-aggravating particles. This innovative air handler delivers
comfort that’s efficient, quiet and healthy—everything you expect from Lennox.
Comfortable
Blowing away the competition
The CBX40UHV slowly ramps up,
instead of starting at full speed, to
allow the coil temperature to get
hot before air exits the registers. By
slowly ramping up the motor, the
heat pump and the electric heat
strips can “pre-heat” to avoid a
drafty feeling in the winter.
Healthy
Helping everyone breathe easier
Featuring a factory-installed MERV 16
filtration system, the CBX40UHV
provides more effective filtration for
ideal air quality and comfort. This
extremely compact air handler is
designed with high-efficiency
filtration in mind to provide an
optimum home environment.
WARRANTY
10-year limited warranty
on covered components.
2
TEMPERATURE SWING
COMPARISON
Single-speed motor
Variable speed motor
* Based on sound pressure levels during operation of CBX40UHV-36 with factory-installed MERV 16
Precision Pleat™ media filter and leading competitive three-ton units at equivalent external static
pressure when set up per Section 4.5.3 of ARI’s test standard. ARI 260-2001; and efficiency (CFM/watt)
ratings established per ARI’s test standard: ANSI/ARI 210/240-2005.
OUTSTANDING FEATURES FOR EXCEPTIONAL QUALITY, COMFORT AND EFFICIENCY
Customized Comfort Network
The CBX40UHV Air Handler
is designed to easily integrate
with other quality Lennox®
products for complete,
continuous comfort. Use it with:
XC21/XP19
The most quiet and efficient
central air conditioner and
heat pump you can buy.**
Harmony III™ Zoning System
Customized temperatures for
room-by-room comfort.
ComfortSense™ 7000 Series
Touchscreen Thermostat
Precision temperature and
humidity control.
Optional Electric Heat – provides
staged heat for even greater comfort.
Corrosion-Resistant Cabinet – offers
long-lasting reliability with a durable,
baked-on finish.
Variable Speed Blower Motor –
allows enhanced humidity control,
improved indoor air quality and
more consistent temperature for
added comfort.
Insulated Blower Compartment –
reduces sound for quiet operation.
Meets Florida standards for less than
2% air leakage from unit.
High-Efficiency Evaporator Coil –
provides excellent heat transfer
and efficiency.
MERV 16 Filtration – the highest-rated
media filter available for residential applications, delivering exceptional particle
filtration for unmatched indoor air quality.
CBX40UHV
The quietest and
most efficient
air handler
you can buy.*
filter replacement for improved air quality.
Antimicrobial Drain Pan – includes
an antimicrobial agent that inhibits mold
and mildew growth. Durable composite
material won’t corrode or rust.
Dave Lennox Signature® Collection CBX40UHV Specifications
CBX40UHV 024 030 036 042 048 060
HxWxD (in.) 55-1/4 x 21-1/4 x 22-5/8 55-1/4 x 21-1/4 x 22-5/8 55-1/4 x 21-1/4 x 22-5/8 62-3/4 x 21-1/4 x 25-5/8 62-3/4 x 21-1/4 x 25-5/8 62-3/4 x 21-1/4 x 25-5/8
HxWxD (mm) 1403 x 540 x 575 1403 x 540 x 575 1403 x 540 x 575 1594 x 540 x 575 1594 x 540 x 575 1594 x 540 x 575
Note: Due to Lennox’ ongoing commitment to quality, all specifications, ratings and dimensions are subject to change without notice.
** A combination of sound ratings established per ARI’s test standard: ARI 270; and efficiency ratings established per ARI’s test standard:
ANSI/ARI 210/240-2005.
Tool-Free Filter Access – allows easy
3

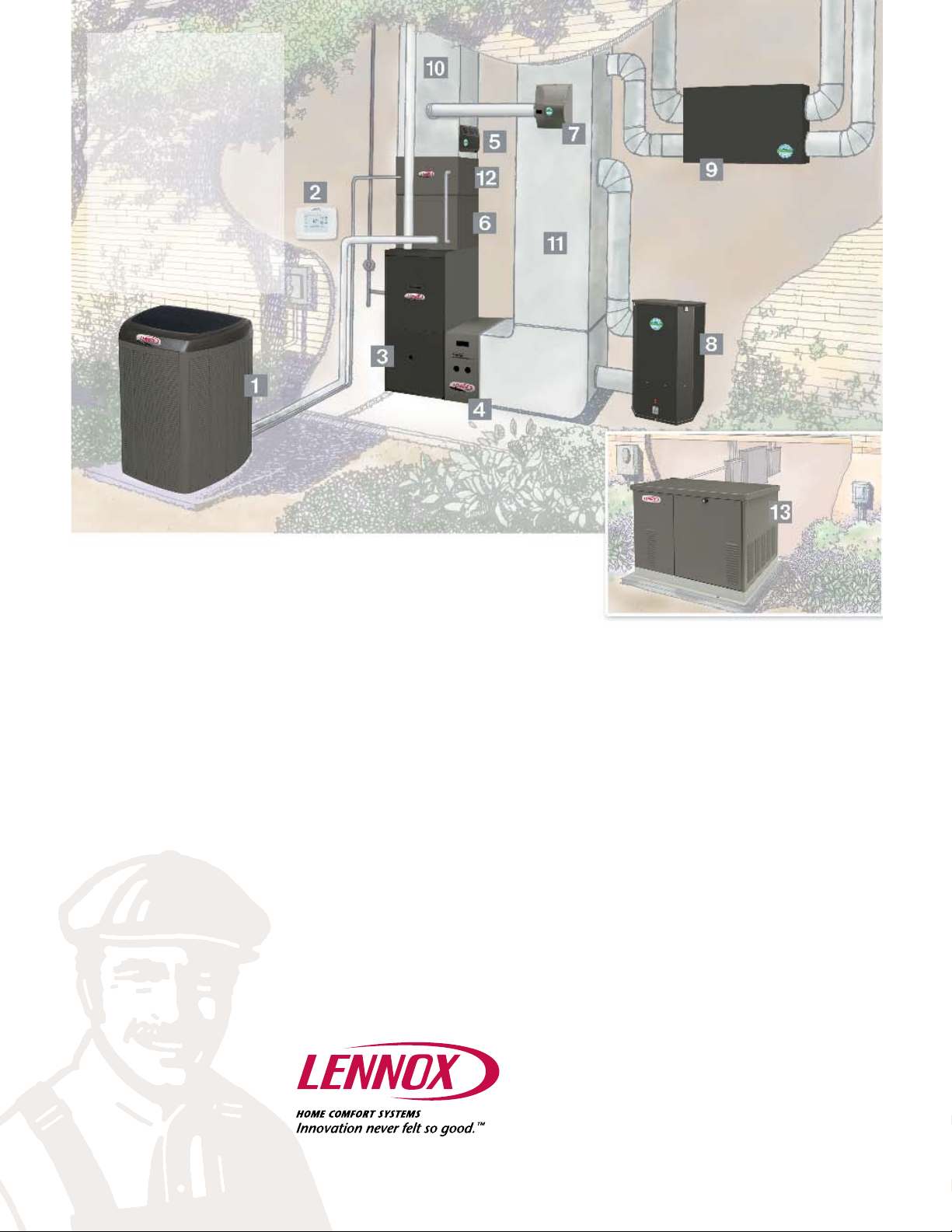

1 Air conditioner or heat pump
2 Thermostat
3 Furnace or air handler
4 Filtration device
5 Germicidal light
6 Indoor coil
7 Humidifier
8 HEPA bypass filtration system
9 Energy recovery ventilator
Supply duct
Return duct
Dehumidifier system
Residential generator
CUSTOMIZE YOUR COMFORT
Lennox® heating, cooling and indoor air quality products are designed to
provide efficient, economical comfort—not only as individual units, but also
together as an integrated system. This combined network of products delivers
on every comfort count, from consistent temperatures and balanced humidity to improved indoor air quality. Lennox
also offers a line of residential generators, which provide safe, reliable standby power in the event of outages.
DEALERS YOU CAN COUNT ON
Choosing the right dealer for your home’s heating, cooling and air quality needs is every bit as important as choosing the
right brand. We think you’ll agree our independent dealers are a big reason you can count on quality customer service
whenever you call. Your Lennox dealer’s dedication to quality shows in his knowledge, training and expertise in designing
the right system for your home, installing it properly and keeping it running perfectly for many years to come.
© Lennox Industries Inc. 2009
Visit us at www.lennox.com, or contact us at 1-800-9-LENNOX.
PC56257(49W47) CBX4 0UHV 1/09
