Access Control
Intelligent Dual Reader Controller
LNL-2220
The LNL-2220 Intelligent Dual Reader Controller (IDRC) by Lenel provides a single board solution
for interfacing one or two doors to an OnGuard system. In addition, other I/O and reader interface
modules can be added on the LNL-2220’s downstream port to expand its capabilities. The
LNL-2220 revolutionizes access control system architecture by allowing Ethernet connection
directly from an entry location to the OnGuard server, while still providing the security, functionality,
and modularity of Lenel’s proven hardware platform. The LNL-2220 is scalable for any access
control application, from the most basic to the most sophisticated. In the event of communication
loss, the LNL-2220 allows nearly all local functionality to continue unimpaired until the server
connection is restored.
Utilizing its native Ethernet communications and an advanced 32-bit processor, the LNL-2220 can
communicate upstream to the host computer through its Ethernet port (with a throughput up to
eight times greater than the fastest serial connections), or at up to 115.2 Kbps using RS-232
communication directly or through an external dial-up modem. The LNL-2220 can store up to
250,000 cardholders in non-volatile flash memory, and supports selective download for larger
cardholder databases. The downstream RS-485 two-wire port can be used to connect up to 32
devices (maximum 64 doors).
Two on-board reader ports support Data1/Data0, Clock/Data, Bioscrypt RS-485 readers and the
bidirectional RS-485 Open Supervised Device Protocol (OSDP) communications. Each LNL-2220
supports up to eight different card formats. The LNL-2220 includes eight inputs that support
normally open, normally closed, supervised, and unsupervised circuits. In addition, four output
relays support fail-safe or fail-secure operation.
Features and Functionality
Controller Functionality
■ On-board Ethernet 10/100Base-T port provides up to 8 times greater throughput than
serial-to-Ethernet converters. DHCP and fixed IP addressing supported.
■ DNS device naming through DHCP extended commands
■ 6 MB of available on-board, non-volatile flash memory
■ Battery-backed, non-volatile storage of 50,000 events
■ Firmware stored in flash memory, background download of firmware updates supported
■ Supports up to 16 different formats (8 card formats and 8 asset formats)
■ Biometric template storage support for Schlage Recognition Systems
■ Direct connection of Bioscrypt RS-485 devices
■ Enhanced anti-passback capabilities
■ Up to 32,000 access level permissions
■ 255 holidays with grouping, 255 timezones, each with 6 intervals
■ Elevator control support for up to 128 floors
■ Individual extended held open and strike times (ADA required)
■ Up to 9-digit user PIN codes
■ 20 status LEDs
■ 2 dedicated inputs for tamper and power failure status
■ 12 or 24 VDC input power
■ Advanced Encryption Standard (AES) 128-bit algorithm for communications
Reader Interface Functionality
■ Supports Data1/Data0, Clock/Data and Lenel OSDP-compatible RS-485 readers and keypads
■ 4 Form-C relay outputs, 5 A at 30 VDC
■ Door contact supervision (open/closed) and REX push-button monitor for each door
■ Strike control and auxiliary output for each door
■ Bicolor reader status LED support plus beeper control, or 2-wire LED support
■ On-board regulator allows 12 VDC reader power from 24 VDC power source
®
, Bioscrypt®, and Identix®.
9
Page 2
OnGuard
Security
Server

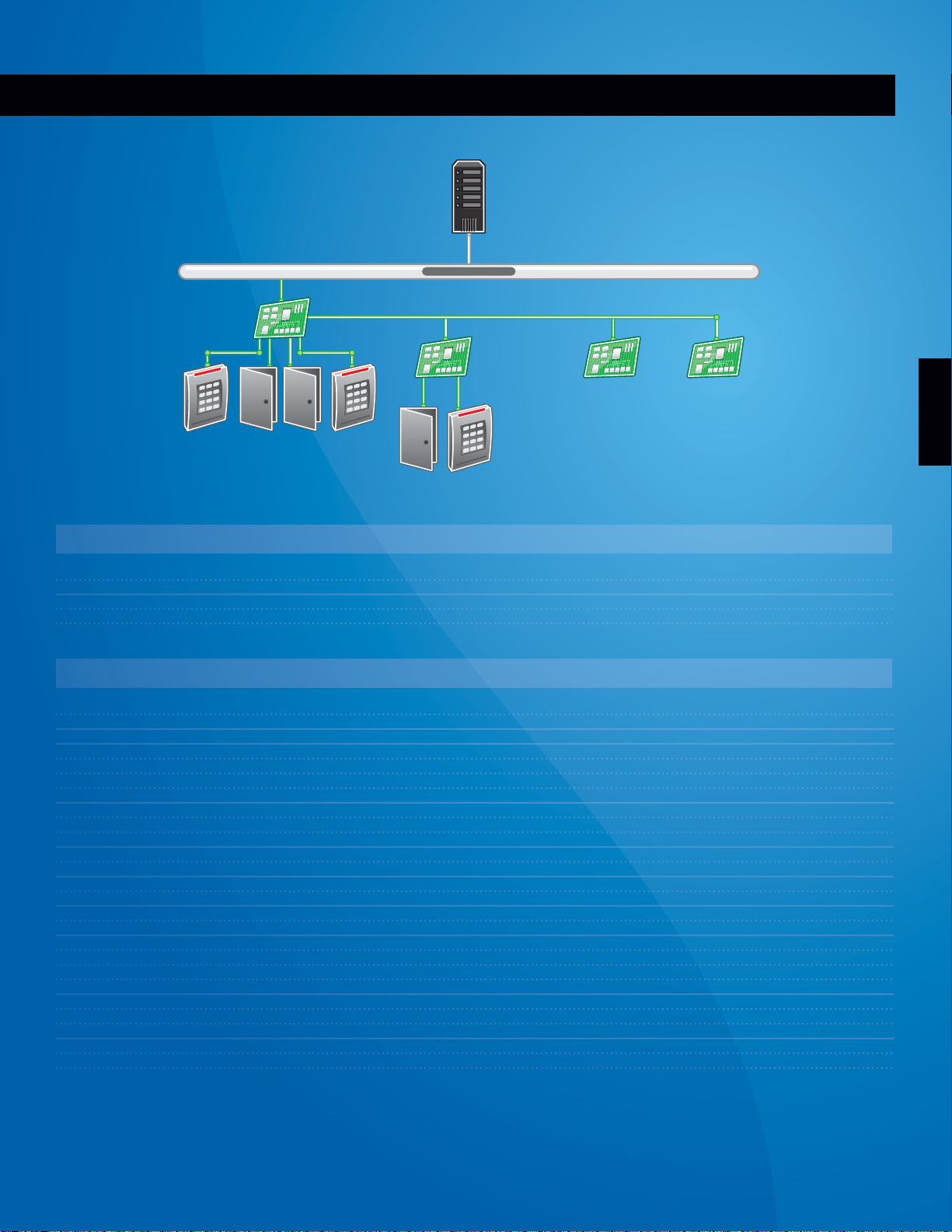

CORPORATE HEADQUARTERS LOCAL AREA NETWORK (TCP/IP)
LNL-2220
LNL-2220
Intelligent
System
Controller
Controller Options
LNL-2220
Dial-Up Modem
LNL-56KEXT
LNL-DC336K
Specifications
Primary Power (DC or AC)
DC input:
Event Memory and Clock Backup
Communication Ports
Primary (Ethernet) Port:
Alternate Upstream Port 1:
Downstream Port 2:
Inputs
Tamper and Power Fail Monitors:
Door position, REX, and AUX:
Outputs
Relay outputs:
Reader Power
DC output:
Reader Port Compatibility
Environmental
Temperature:
Humidity:
Mechanical
Dimensions:
Weight:
Approvals
RS-485 multidrop
LNL-1300
Up to 32 Single Reader
Interface Modules
LNL-1100
Input Control Module
(Up to 16 Inputs per
LNL-1100)
6 MB On-board flash memory available for cardholder & asset database,
50,000 event battery backed RAM for event log
56 K external modem with cables
12 VDC-powered/33.6 K external modem
* The LNL-2220 is for use in low voltage, power-limited, class 2 circuits only.
12 or 24 VDC ± 15%. 500 mA maximum
3 V lithium, type BR2325, BR2330, CR2330
10/100Base-T Ethernet high-speed port
RS-232 9600 to 115.2 Kbps async
RS-485 (2-wire) 9600 to 38.4 Kbps async
Unsupervised, dedicated
8, each programmable as normally open or normally closed, supervised or unsupervised circuits
4 Form-C 5 A at 30 VDC relay outputs: 2 strike, 2 auxiliary
12 VDC, 125 mA regulated when 24 VDC powered, or 12 to 24 VDC 125 mA current limited
Wiegand Data1/Data0, Magnetic Clock/Data, F/2F single-wire protocol, Bioscrypt RS-485,
OSDP (Open Supervised Device Protocol RS-485)
Operating: 32° to 158° F (0° to 70° C)
Storage: -67° to 185° F (-55° to 85° C)
0 to 95% RHNC
6 x 8 x 1 in. (152 x 203 x 25 mm)
9 oz. (255 g) nominal
UL 294 and 1076-listed, CE-marked, ROHS compliant
Advanced Encryption Standard (AES) 128-bit communication algorithm, NIST certification pending
LNL-1200
Output Control Module
(Up to 16 Outputs per
LNL-1200)
Access Control
10
