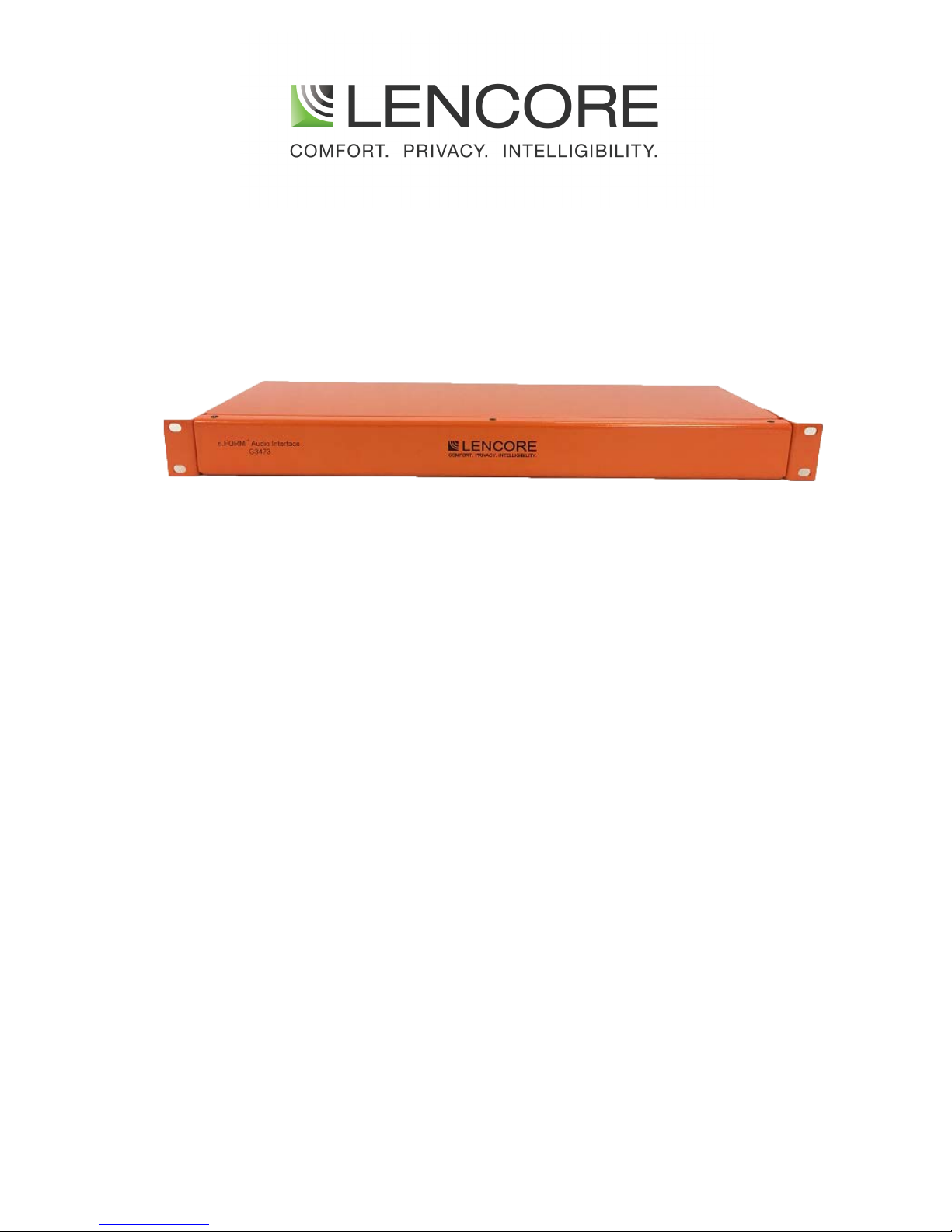

Page 1
TM
n.FORM
Audio
Interface G3473
USER GUIDE
Page 2
table of contents
INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
Inputs/Outputs
Maintenance Procedure
Testing Procedure
1
2
3
4
5
In the event of trouble, please contact:
Name:
Address:
Phone Number:
Page 3
INTRODUCTION
1
Lencore’s n.FORM Audio Interface is used as an audio interface between the n.FORM rack OP and
fire alarm control panel (FACP) or an external devoce with a line level input. It will send an audio
message, page, or tone from the n.FORM rack OP to any FACP that has a line level audio input.
The Audio Interface is a rack mountable unit and is only 1 rack unit in height. The Audio Interface
does not require an external power source.
Setup
Connections to the Audio Interface are simple. One RJ45 cable from any n.FORM rack OP 'B8'
speaker channel to the input of the Audio Interface and one connection (two-wire, 1/8” jack, or
RCA) from the Audio Interface audio output to the FACP or an external device.
Using Sound Manager, adjust the speaker channel’s masking volume 34dB (off). If the source will be
from a page, adjust the audio volume to 34dB (off) and the paging volume to 76dB. If the source will
be from an audio source, adjust the page volume to 34dB (off) and the audio volume to 76dB. A
volume of 76dB will give the Audio Interface a line-level (1Vrms) output.
Page 4
IMPORTANT SAFETY INSTRUCTIONS
2
RISK OF ELECTRIC SHOCK- DO NOT OPEN THE UNIT.
THERE ARE NO SERVICABLE COMPONENTS INSIDE.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
8) Only use attachments/accessories specified by the manufacturer.
9) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
The unit must be installed with an enclosed rack.
Page 5

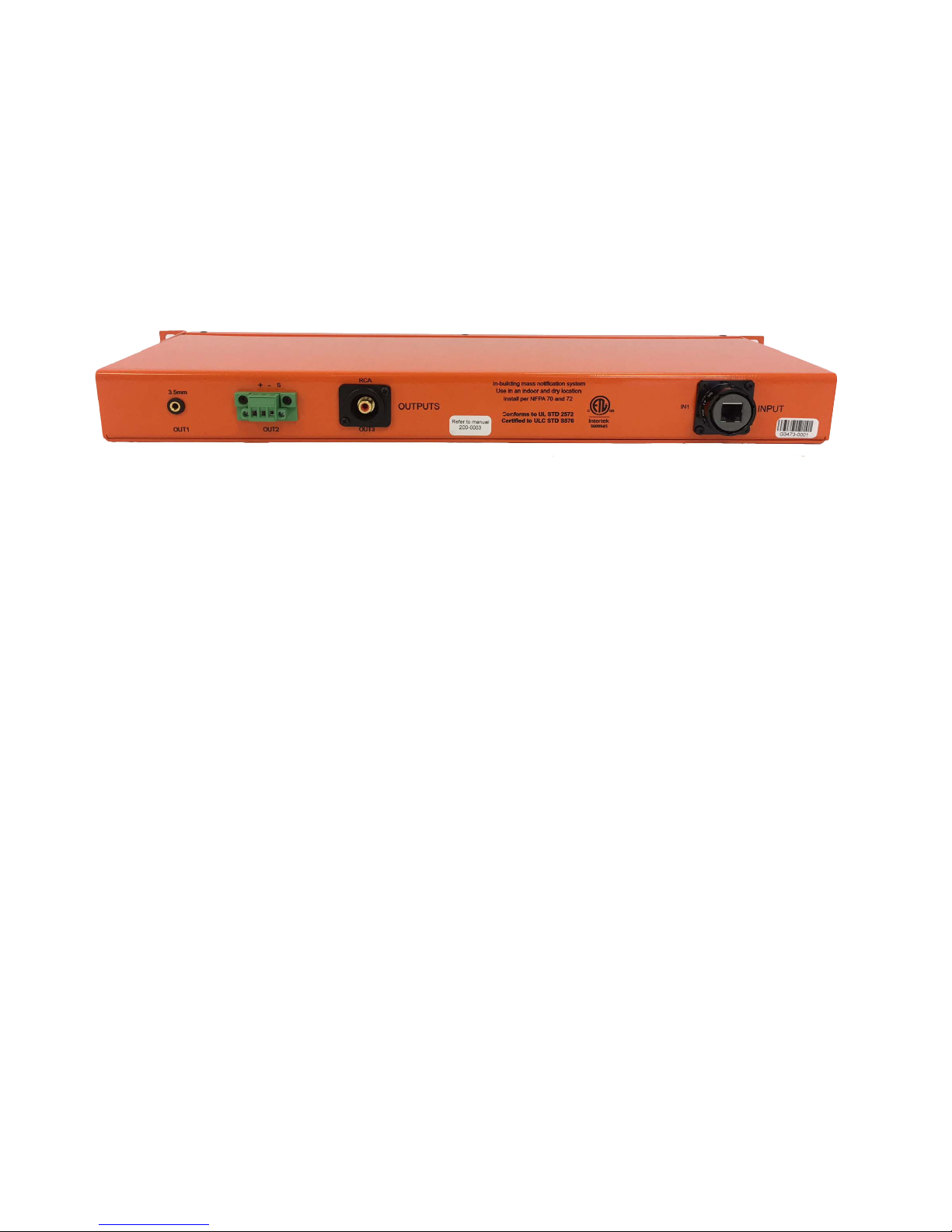

INPUTS/OUTPUTS
3
Audio Outputs to FACP
(supervised)
Input from any n.FORM
Rack Mount OP Speaker
Channel 'B8'
(supervised)
Page 6
Maintenance Procedure
4
Equipment should only be inspected and maintained by qualified trained personnel. These instructions
are meant as a guide to what actions should take place; it is not an instruction on how to complete the
activities.
Maintenance should be performed monthly or more frequently if necessary.
1. Inspect and replace if necessary the cable from the n.FORM rack OP 'B8' speaker channel to
the Audio Interface audio input for exposed wires, torn or worn insulation, or a broken RJ45
head.
2. Inspect and replace if necessary the cable from the Audio Interface audio output to the
FACP or external device for exposed wires or torn or worn insulation.
3. Ensure that all cables and wires are properly seated in their respective connectors.
Page 7
Testing Procedure
5
Equipment should only be tested by qualified trained personnel. These instructions are meant as a
guide to what testing should take place; it is not an instruction on how to complete the testing.
Refer to the Operations, Sound Manager, and Configurator manuals for detailed information.
Testing should be performed monthly or more frequently if necessary.
1. Assure that audio sent to the Audio Interface audio input from the n.FORM rack OP 'B8'
speaker channel is clear and at the proper volume.
2. Assure that audio sent to the FACP or external device from the Audio Interface audio
output is clear and at the proper volume.
Page 8
Revision
Level
Revision
Date
Description of Revision
Revision
Author
M. Cook
M. Cook
A
B
6/10/18 Initial Release
9/18/18 Added various notes for UL864
Page 9
The information contained herein is proprietary to Lencore Acoustics Corp. and copyright protected. No part of this manual
can be copied, used or distributed without prior authorization from Lencore Acoustics Corp. ©Copyright 2018 REV5003-5-18
Lencore Acoustics Corp.
1 Crossways Park Drive West
Woodbury, NY 11797
516-682-9292
www.lencore.com
