Lenco CS-460 User Manual [en, de, fr, es]

CS-460

Instruction Manual

4 IN 1 CAR AUDIO SYSTEM

WITH DVD.JPEG.MP4.MP3.WMA.CD

USB AND SD PLAYER

AM/FM-RDS DIGITAL PLL TUNING RADIO

Remark: Any information subject to change without further notice

www.lenco.eu

Contents

1. Before Operation..................................................................................................................2

1.1 Glossary................................................................................................................. 2

1.2 Precautions.............................................................................................................2

1.3 Maintenance and Cleaning of Discs.......................................................................3

1.4 Battery Information of Remote Control...................................................................3

1.5 Remote Control Description...................................................................................4

1.6 Locations and Names of Controls..........................................................................5

1.7 Description of Rear Cabinet............................ ......................................................6

1.8 Unit Installation......................................................................................................7

2. Common Operation............................................................................................................8

3. Radio Operation................................................................................................................10

4. Basic Disc, USB or SD Operation.....................................................................................12

4.1 Begin Playback.....................................................................................................12

4.2 Pause Playback....................................................................................................13

4.3 Stop Playback ......................................................................................................13

4.4 Select Chapter/Track with UP/DN or >>|/|<< Buttons...........................................13

4.5 Select Chapter/Track with Number Buttons..........................................................13

4.6 Select Chapter/Track with Root/PBC Menu..........................................................13

4.7 Terminate the Playback.........................................................................................14

4.8 Playback with Speed.............................................................................................14

4.9 Playback with Slow Speed....................................................................................14

4.10 Playback with Still Frame.......................................................................................14

4.11 Playback Repeatedly...........................................................................................14

4.11.1 One/All Repeat.................................................................................................15

4.11.2 A-B Repeat..........................................................................................................15

4.12 Playback in Scan Mode.......................................................................................15

4.13 Playback from a specified Chapter/Track or a Specified Time..............................15

4.14 Playback in Random..............................................................................................16

4.15 Playback in Different Angle..................................................................................16

4.16 Playback in Zoom Mode......................................................................................16

4.17 Change Caption Language....................................................................................16

4.18 Change Audio Language.......................................................................................16

4.19 Program Playback...............................................................................................16

4.20 Playback Picture CD in JPEG Format.................................................................17

4.21 Operation about file style of video.......................................................................17

4.22 ESP and Id3 Function..........................................................................................18

4.23 USB and SD Reader Operation..........................................................................18

4.24 DVD System Menu Setup Operation...................................................................18

4.25 Parental Control...................................................................................................22

4.26 Region Code.......................................................................................................23

5. Trouble Shooting..............................................................................................................24

6. Specification.....................................................................................................................25

1. Before Operation

1.1 Glossary

PBC (playback control) It is a kind of signal(menu) recorded in the disc with SVCD or VCD2.0 format used for the playback control. For the discs containing PBC, it can playback interactive software with the menu displayed on TV. And if the disc contain still images, it can playback high definition of still image.

Title Generally, the title is the important part of DVD disc. for example, the theme part of movie is title 1, the part described how to make movie is title 2, the cast is title 3, etc. Every title contain a serial number that is easy to lookup.

Chapter A title can be divided into several blocks, so that every block can be operated as a unit, the unit is called chapter. The chapter contain a unit at least.

Track It is the biggest component of VCD. Generally, every song of karaoke disc is a track.

1.2 Precautions

Safety

1. Power Source: The unit should be connected to power supply only of the type described in the operating instructions or as marked on the unit.

2. The unit is designed for negative terminal of the battery which is connected to the vehicle metal. Please confirm it before installation.

3. Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may overload or burn out the power amplifier.

4. Do not install the detachable panel before connecting the wire.

5. The protective case is to safely keep the front panel(see the photo).

Environment

1. Do not use this unit when water and moisture is near it.

2. If moisture forms inside the Lens, it may not operate properly. To correct this problem, wait about one

hour for the moisture to evaporate.

3. If the car interior is extremely hot, do not use the player until the car has been driven for a while to cool

off the interior.

1.3 Maintenance and Cleaning of Discs

Disc Maintenance

1. To keep the disc clean, handle the disc by its edge, do not touch the disc surface of the play side.

2. Do not stick paper or tape on the disc. If there is glue (or analog) on the disc surface, must wipe it up before

using.

3. Do not expose the disc to direct sunlight, or nearby heat sources such as caliduct, or leave it in a car parked

in direct sunlight where there can be a considerable rise in temperature.

4. Put the disc inside disc case to keep temperature after finishing playback.

Disc Cleaning

1. Before playing, wipe the disc with a clean lint. wipe the disc outwards from the disc center.

2. Do not use petrel, thinner. commercially cleaner or anti-static spray can damage the unit.

+ side up

Fig.1

Fig.2

Fig.3

1.4 Battery Information of the Remote Control

Replace Battery in the Remote Control:

1.Before using the remote control for the first time, pull the insulating sheet out of the remote control as the direction indicated by the arrow.(see fig.1)

2.Press the movable block hold as the direction indicated by the A arrow (See fig.2), then pull the battery holder out of the remote control as the direction indicated by the B arrow(see fig.2).

3.Replace the old battery by a new battery with (+) polarity side upward. (See fig.3).

4.Insert the battery holder to the original position in remote control. (See fig.3).

Note about the Battery of the Remote Control:

1.Improper use of battery may cause overheating or explosion. so that Result in injury or fire .

2.Battery leakage may cause damage to the remote control(Battery Life: 6 months with normal use in normal room temperature).

3.Do not short the battery.

4.Do not throw the battery into the fire.

5.To avoid the risk of accident, keep the battery out of reach of children.

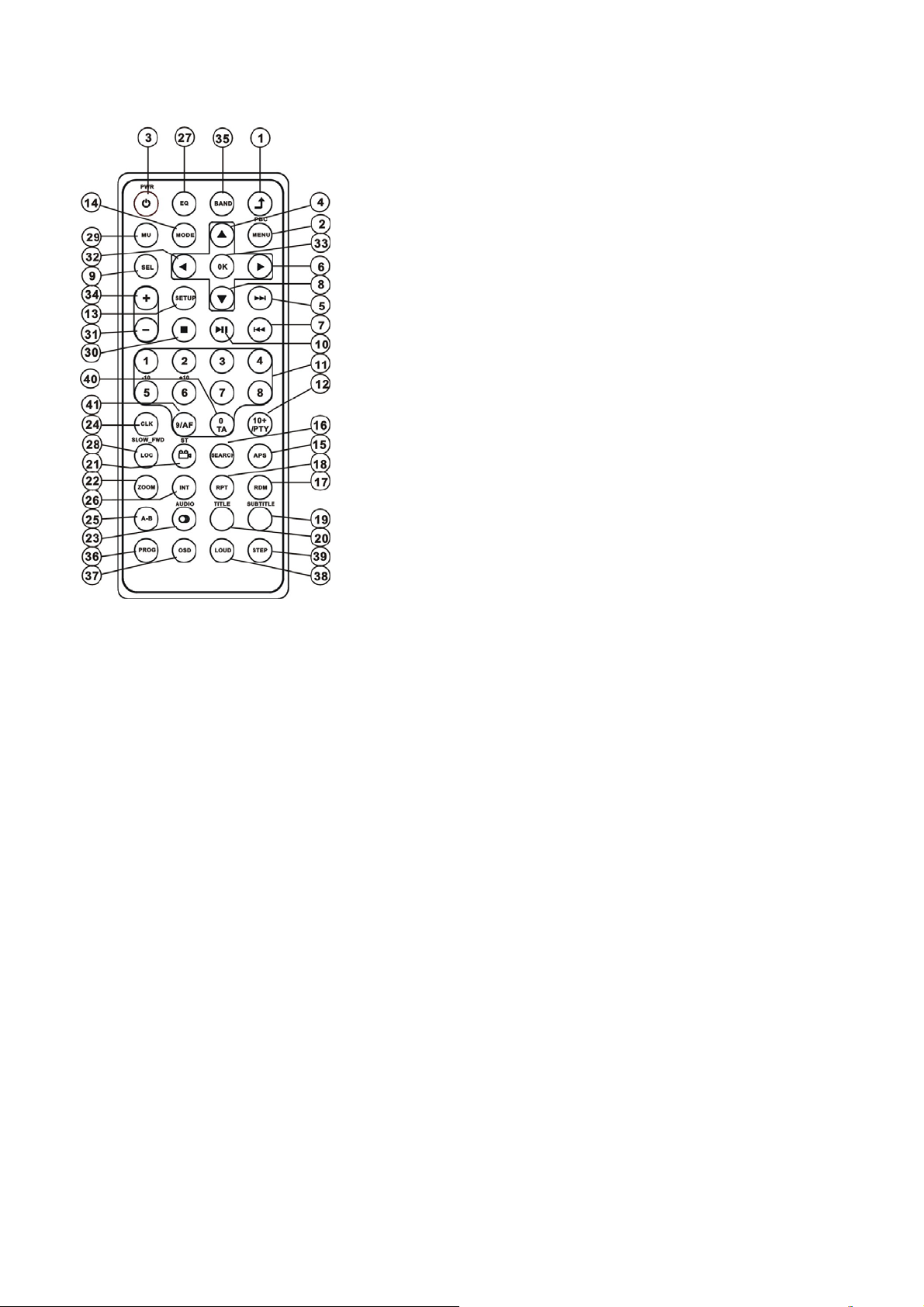

1.5The Remote Control Description

16. SEARCH BUTTON

1. BACK BUTTON

2. MENU/PBC BUTTON

3. POWER BUTTON

4. ^ BUTTON

5. >>| BUTTON

6. > BUTTON

7. |<< BUTTON

8. v BUTTON

9. SEL BUTTON

10. PLAY/PAUSE BUTTON

11. NUMBER(0~9,+10

-10) BUTTONS

12. 10+/PTY BUTTON

13. SETUP BUTTON

14. MODE BUTTON

15. APS BUTTON

29. MUTE BUTTON

17. RDM BUTTON

18. RPT BUTTON

19. SUBTITLE BUTTON

20. TITLE BUTTON

21. VIEW-ANGLE/ST BUTTON

22. ZOOM BUTTON

23. AUDIO BUTTON

24. CLK BUTTON

25. A-B BUTTON

26. INT BUTTON

27. EQ/OPEN BUTTON

28. LOC/SLOW-FWD BUTTON

30. STOP BUTTON

31. VOLUME- BUTTON

32. < BUTTON

33. OK BUTTON

34. VOLUME+ BUTTON

35. BAND BUTTON

36. PROG BUTTON

37. OSD BUTTON

38. LOUD BUTTON

39. STEP BUTTON

40. TA BUTTON

41. AF BUTTON

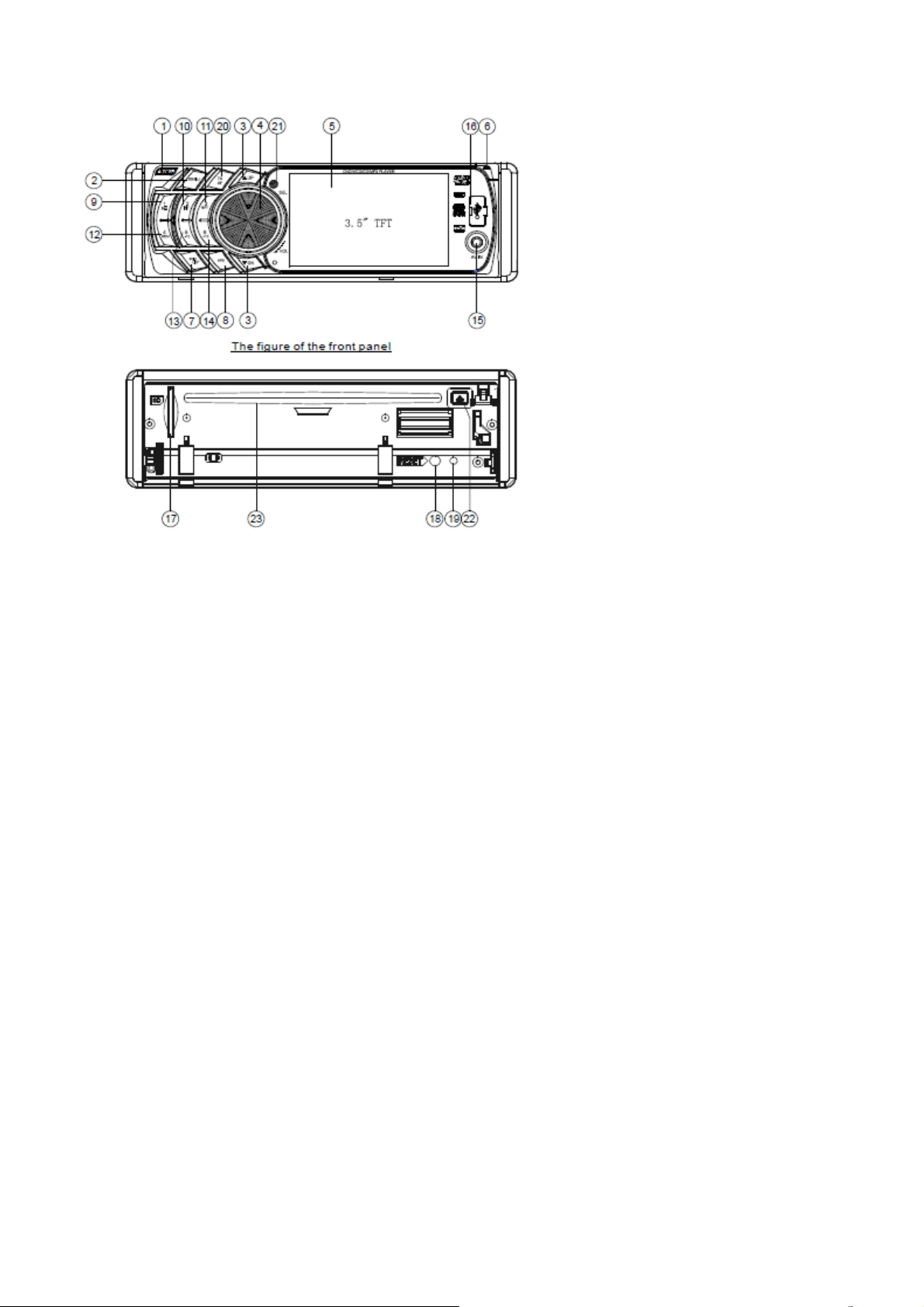

1.6 The Locations and Names of Controls on or in the unit

The Front Panel

The Front Facet after removing the front panel

1. POWER/MUTE BUTTON

2. MENU BUTTON

3. UP / DN BUTTONS

4. SEL/VOL BUTTON

5. LCD

6. REL BUTTON

9. 1/PLAY/PAUSE BUTTON

10. 2/INT BUTTON

11. 3/RPT BUTTON

12. 4/RDM BUTTON

13. 5/-10 BUTTON

14. 6/+10 BUTTON

17. Card slot

18. RESET BUTTON

19. LED indicator

20. TA/AF BUTTON

21. IR Remote Sensor

22. EJECT BUTTON

23. DISC SLOT

7. BAND/LIST BUTTON

8. APS BUTTON

15. AV IN JACK

16. USB JACK

1.7 Description of Rear Cabinet

Note: 1. After connecting the Parking Line ,the video on the monitor of the front panel will be displayed only

when the hand brake is on.

2.Use the clip end of a Ground Line provided by manufacturer to connect the Fixing Screw Bolt, use another end of the Ground Line to connect the negative pole of the power source. Otherwise, the video on screen maybe flashing.

Description of Connecting the Parking Brake Line to the Parking Brake System Built in the Car

The Description of the Fixed ISO Female Connector

CONNECTOR A

4. Memory +12V

5. Auto Antenna

7. 12V (To Ignition Key)

8. GROUND

CONNECTOR B

1. Rear Right Speaker (+)

2. Rear Right Speaker (-)

3. Front Right Speaker (+)

4. Front Right Speaker (-)

5. Front Left Speaker (+)

6. Front Left Speaker (-)

7. Rear Left Speaker (+)

8. Rear Left Speaker (-)

1.8 UNIT INSTALLATION

2. Common Operation

1. To turn on/off the unit

Under power off mode, press the POWER button to turn on the unit.

Under power on mode, press and hold the POWER button on the front panel or briefly

press the POWER button on the remote controller to turn off the unit.

2. To select function mode

Press the MENU button to turn to mode select, then rotate VOL knob to select TUNER,

DISC(After inserting a disc), USB(After inserting a USB storage), Card(After inserting a SD card), or AUX mode.

After selecting ,press SEL to confirm and turn to your selection.

3. To adjust sound level

Rotate the VOL knob on the front panel or press the + or - button on the remote controller to

directly adjust the volume level.

4. To mute sound

Press the MUTE button on the remote controller to turn on/off MUTE mode. Briefly pressing the POWER button on the front panel also can turn on/off MUTE mode.

In MUTE mode, the MUTE mode can be released by pressing the following buttons: MUTE,

VOL or +/-, SEL, MODE.

5. To display and adjust the clock time

Press the CLK button to display clock time on the monitor of the front panel. To adjust the time, please turn to setup mode time setting.

6. To select a preset EQ mode

Press the EQ button to select the preset music equalizer curves: POP, ROCK, CLAS, EQ

OFF .

The sound effect will be changed.

7. To remove the front panel

Press the REL button on the front panel to detach the front panel from the unit, then you can

remove the front panel.

8. To turn on/off LOUDNESS mode

Press the LOUD button to turn on/off LOUDNESS mode.

When turning on LOUDNESS mode, it will enhance bass level immediately when the bass

is not enough.

9. To reset the unit

when the display is incorrect, or the function buttons are not effective or sound is distorted,

press the REL button to detach the front panel from the unit and remove it, then use the sharp end of a thing to press the RESET button, which will reset to factory default, and re-instate the correct functions.

10. To adjust sound modes

To adjust the sound modes, briefly and repeatedly press the SEL button on the front panel to

select one of the sound modes such as : VOL, BAS (without preset EQ), TRE (without preset EQ), BAL, FAD and EQ.

Note: this function except in play mode select.

11. Return control

Press the

button or MENU button to up to the previous menu.

12. To do setup

In setup mode, select the GENERAL, CLOCK, AUDIO, VIDEO, RADIO as follow:

GENERAL SETUP Logo: this function allows to choose the starting screen. Beep: Choose the buttons' sound on/off.

CLOCK SETUP Clock mode: Select 24 HOUR or 12 HOUR. Clock time: Adjust the clock.

AUDIO SETUP MBP: Choose between MBP LEFT/RIGHT/OFF. Loud: Choose between Loudness ON/OFF. EQ: Choose between the different types of EQ.

VIDEO SETUP Brightness Contrast Saturation Hue Standard Video

RADIO SETUP Radio region: choose the radio zone. RDS setting: ON/OFF

3. Radio Operation

1. BAND BUTTON

Press the BAND button on the front panel to select your desired radio band of FM1, FM2, FM3, AM1 and AM2, and the selected band will be displayed on the monitor of the front panel, press 1-6 buttons to select your favour.

Radio i nterf ace-1

Press and hold this button again to select RDS function such as : PTY, AF, TA, ST, LOC, LOUD by rotate VOL knob.

2. TUNE/SEEK UP/DOWN BUTTONS

1) Press and hold the UP/ DN button to automatically search up/

down for a available station from the current frequency.

Radio i nterf ace-2

2) Briefly press the UP / DN button to manually search up or down with step by step for your desired station from the current frequency.

3. APS BUTTON

1) When press and hold the APS button, the radio searches from the lowest frequency and checks the signal strength level until 1 cycle search is finished. And then the 6 strongest stations are preset to the corresponding preset number memory bank. The AS operation is implemented in each bank of the selected band. When the AS operation is finished, the radio executes the preset scan, and after preset scanning for one cycle, it will stop scanning and broadcasting the No.1 station for Fm1. (It can store 3x6 stations for FM and 2x6 stations for AM in all)

2) When press the APS button briefly on the front panel or the remote control, the radio searches for each preset station from the M1. When the field strength level is more than the threshold level of the stop level, the radio holds at that preset number for few seconds with releasing mute, and then searches again. After finishing a circle of searching, it will stop searching on the M1.

NOTE: In FM band, FM1,FM2,FM3 is checked one at a time. In AM band, Am1, Am2 is checked one at a time.

4. PRESET STATION [ 1-6 ] BUTTONS

1) To memorize the current frequency on the current band, press and hold any one of the six Number buttons (1-6) .

2) To recall the memory station on the current band, press one of the Number buttons [1-6] .

5. STEREO/MONO BUTTON Press the ST button on the remote control to select the STEREO or MONO sound mode for FM band.

6. LOC BUTTON

1) When the signal of the distance radio station are very weak and the receiving effect is bad during tuning, check whether there is the word LOC on LCD. If there is the word LOC

on LCD, press this button to turn off the LOC function, then tune again for the distance radio

station;

2) When the signals from the local radio stations are too strong, this could lead to interference.

press this button to turn on the LOC function, and the LOC icon will be lit up on the LCD. Re-tune for the local station required.

7. PTY (PROGRAM TYPE) BUTTON Press the PTY button shortly to select one of the following mode: PTY MUSIC group- - PTY SPEECH group- - PTY OFF When PTY group is on, press the VOL+ or VOL- button on the remote controller or rotate the VOL knob on the front panel to select one of PTY programs:

<-->NEWS<-->AFFAIRS<-->INFO<-->SPORT<-->EDUCATE <-->DRAMA<-->CULTURE <-->SCIENCE<--> VARIED<-->WEATHER<--> FINANCE<-->CHILDREN<-->SOCIAL<-->RELIGION<-->PHONE IN<--> TRAVEL<-->LEISURE<-->DOCUMENT< -->PTY NONE<-->POP M< --> ROCK M<-->EASY M<-->LIGHT M<--> CLASSICS<-->OTHER M<--> JAZZ<-->COUNTRY<-->NATION M<-->OLDIES<-->FOLK M<--> When PTY group is on, pressing the 6 number buttons also can select one of PTY programs

as above.

After selecting one of the PTY programs, it will display SEEK PTY and automatically search

for the station of the PTY program. If the station of the PTY program does not exist, it will display PTY NONE and then return back to the normal station.

8. AF [ALTERNATIVE FREQUENCIES] BUTTON Press and hold the TA/AF button, the AF switching mode is selected and the state of the AF

switching mode is displayed by AF segment in display. Segment off: AF switching mode off. Segment on: AF switching mode on, and has RDS information. Segment flashing: AF switching mode on, but RDS information is not received yet.

When the AF switching mode is selected, the radio checks the signal strength of the AF all

the time. The interval of checking time of each AFs depends on the signal strength of the

current station, from a few minute for the strong station to a few seconds for the weak station.

Every time that a new AF is stronger than the current station, it switches over to that

frequency for very short time, and the NEW FREQUENCY is displayed for 1-2 seconds.

Because the mute time of the AF switching or the checking time is very short, it is

almost inaudible in case of normal program. (When AF flash on LCD, it will search for the

stronger RDS station. If AF and TP flash on LCD, it can only search for the traffic

announcement station). In FM mode, when AF is on, SEEK, (SCAN), AUTO-MEMORY function can only receive and

save the RDS program.

9. TA [TRAFFIC ANNOUNCEMENT] BUTTON Press the TA/AF button shortly to turn on TA search mode. When traffic announcement is transmitted:

1).If the unit is in Disc Play mode, it will switch to radio mode temporarily.

2).Temporarily switch over to an EON linked station when EON detects a traffic

announcement on that other program, and TA, TP will be displayed on LCD * TA interruption function: The current traffic announcement is cancelled by pressing TA button shortly. * When TA is on, SEEK, (SCAN), AUTO MEMORY function can be received or saved only when traffic program identification code has been received.

4. Basic Disc, USB or SD Operation

4.1 Begin playback

1. Press the POWER button briefly to turn on the DVD player. After turning on the DVD player, please turn on the monitor, and ensure that the video

output of the monitor is the video input from the DVD player connected with the monitor.

? Common Question Q: There is not anything is displayed on TV screen when the DVD player is turned on.

How to solve the problem?

A: Ensure that the TV was set to right video input(not TV channel); for example,

if you make VIDEO1 INPUT of TV and DVD player connected with each other, then you need set TV to VIDEO1.

2. Press the RELEASE button to detach the front panel from the unit.

3. Insert a disc into the DISC SLOT(Label surface up), then flip up the front panel till

hearing a clip.

NOTE

1. For some discs that are seriously scratched or poor manufacturing or recording quality,

it may not play.

2. If the player can not read disc under normal condition, please try to eject and reload

the disc again.

3. Remark:

1) In addition to normal CD and DVD, this unit supports to play CD-R, CD-R/W, DVD-R and

DVD-R/W as well; however, depending on the conditions of the recording equipment, recording program or the disc itself, some CD-R, CD-R/W, DVD-R or DVD-R/W may not play.

2) When dealing with CD-R, CD-R/W, DVD-R or DVD-R/W recording, too high recording speed may result in poor signal quality and therefore, it is recommendable to select as lower as possible recording speed.

4. Play USB & Card

Insert an USB or SD Card into their slots respectively, then the root menu will be displayed

on the monitor and it will play audio file automatically if the USB or SD Card include audio files.

Press OSD on the remote to turn on function select.

:select to pause playback.

: select to stop playback .

: select one of them can select next or previous chapter/track.

: Same as the REPEAT button on the remote control.

: To select RDM on/off.

: To select audio language.

: To select LOUD on/off.

4.2 Pause Playback

When playing DVD/VCD/CD/MP3/WMA discs, press the

PAUSE button on IR remote control to pause the playback, press the PLAY button to resume normal playback.

4.3 Stop Playback

When playing DVD/VCD/MP3/WMA/CD discs, press the STOP button once to pause

the playback, then press the PLAY button to resume the normal playback; press the STOP button twice to stop the playback, then press the PLAY button to start playback from the beginning of the first chapter/track.

4.4 Select Chapter/Track with UP/DN or >>| / |<< Button

Press the UP/DN button on the front panel or the >>| / |<< button on the remote control

during playback to select the next or last chapter/track to playback.

Note: Press the UP/DN or the >>|/|<< button multiple times to advance multiple chapters/tracks forward or backward.

4.5 Select Chapter/Track with Number Buttons

When playing DVD/VCD(PBC OFF)/MP3/WMA/CD discs, press one of the 1~9 to directly

select and play the 1st to 9th track / chapter.

If you want to play the track/chapter with serial number bigger than 9, For example 1,

to play the 35th track/chapter,just press 3 and then press 5 on the remote.

For example 2, to play the 107 track/chapter, just press 1 and press 0 and then press 7 on

the remote.

Note: pressing and holding the +10 or -10 buttons will allow you to play the next 10 or last

10 chapter/track(only for MP3/WMA).

4.6 Select Chapter/Track with Root/PBC Menu (If the used disc includes root/PBC menu)

When playing DVD discs:

1. Press the TITLE button on the remote control to display the title list.

2. Press the direction buttons to select your desired title, and then press the OK or PLAY button to open the root menu of the selected title.

3. Press the direction buttons to select your desired chapter, finally press the OK or PLAY button to play the selected chapter.

During playback, pressing the MENU button can directly display the root menu of the

title that is playing.

In VCD mode

1. When starting to turn on the PBC function, it will play from the beginning of the disc till it display the PBC menu on TV screen if the disc include the PBC menu.

2. Press the number buttons to select your desired track to play.

In MP3/WMA mode

1. The root menu is displayed on the monitor screen all the time(and the TITLE or MENU button is not available).

2. Press the direction buttons to select your desired FOLDER, then press the OK or PLAY button to open the FOLDER, and then press the direction buttons to select your desired file, finally press the OK button to play the selected file.

In CD mode, the TITLE, PBC, MENU buttons are disabled.

4.7 Terminate Playback

1. Press the RELEASE button to detach the front panel from the unit, then press the EJECT button to eject disc, and then remove the disc and flip up the front panel till hearing a clip.

2. Press and hold the POWER button on the front panel or briefly press the POWER button on the remote controller to turn off the DVD player.

4.8 Playback with Speed

During normal playback, press and hold the UP/DN button on the front panel or the

>>|/|<< button on the remote controller continuously to fast forwards or backwards at the following speeds: x2, x4, x8, x20, normal.

During speed playback, press the PLAY button to resume normal playback.

4.9 Playback with Slow Speed

During playback , press the SLOW_FWD button to execute the Slow Forward function.

With each consecutive pressing of the SLOW_FWD button, the playback speed decreases.

The speed levels in Slow Forward as follows: x1/2,x1/3,x1/4,x1/5,x1/6,x1/7,normal.

During slow forward, press the PLAY button to resume normal playback. The function is only for video.

4.10 Playback with still frame

If the unit is currently running DVD/VCD disc, press the STEP button consecutively to

display the still frame forward with step by step.

Press the PLAY button to resume normal playback.

4.11 Playback Repeatedly

4.11.1 ONE/ALL Repeat

1. In the mode of DVD disc playback:

Press the RPT button to select REP CHAPTER, REP TITLE, REP ALL or REP OFF.

2. In the mode of VCD(PBC OFF)/CD disc playback:

press the RPT button to select REP ONE, REP ALL or OFF. When it is in the state of PBC ON, during VCD disc playing, the RPT button are not available.

3. In the mode of MP3/WMA disc playback:

Press the RPT button to select REP ONE, REP DIR, REP ALL or OFF.

4.11.2 A-B Repeat

Press the A-B button if you want to repeat a specific segment on a disc that you define:

1. Press the A-B button at a point (A) where you want it to be the start point of the repeat segment.Press the A-B button again at a point (B) where you want it to be the terminal point of the repeat segment. Then it will play the segment repeatedly.

2. To cancel the A-B repeat mode and resume normal playback, press the A-B button for the third time.

Note: During VCD/MP3/WMA/CD playback, points A and B must be within the same track. During DVD playback, points A and B can be selected from different chapters.

4.12 Playback in Scan Mode

1. When playing VCD(PBC OFF)/CD discs, press the INT button to play the previous 10 seconds part of each track on the disc. Press the INT button again to resume normal playback.

2. When playing DVD/MP3/WMA discs, the INT button is not available.

4.13 Playback from a specified chapter/track or a specified time

1. When playing DVD discs, press the SEARCH button to display a interface and highlight

the title item, then use the number buttons to input the serial number of the title; use the direction buttons to highlight the chapter item, then use the number buttons to input the serial number of the chapter; you can still use the direction buttons to highlight the time item, then use the number buttons to input the desired time to start playback; finally press the OK or PLAY button to play the selected chapter or play from the selected time.

2. When playing VCD/MP3/WMA/CD discs, press the SEARCH button to display a interface

and highlight the track item, then use the number buttons to input the serial number of the track; you can still use the direction buttons to highlight the time item, then use the number buttons to input the desired time to start playback; finally press the OK or PLAY button to play the selected track or play from the selected time.

4.14 Playback in Random

When playing DVD/VCD(PBC OFF)/MP3/WMA/CD discs, press the RDM button to switch

between RANDOM (ON)/RANDOM OFF. When in RANDOM (ON) mode, it will play in random.

4.15 Playback in Different Angle

1. When playing VCD/MP3/WMA/CD discs, the ANGLE button on the IR remote

control is not available.

2. When playing DVD discs, press the ANGLE button repeatedly on the IR remote control to

view in different angle.(This function is only for the DVD discs with ANGLE function)

4.16 Playback in Zoom Mode

In DVD/VCD mode, during playback, press the ZOOM button continuously to enlarge a

certain area of the images on the screen with these multiples:

ZOOMx2,ZOOMx3,ZOOMx4,ZOOMx1/2,ZOOMx1/3,ZOOMx1/4,ZOOM OFF. Press one of the ^/v/>/< buttons to select the area you want to enlarge.

4.17 Change Caption Language

When playing DVD discs, press the SUBTITLE button repeatedly to select the language of the caption or turn off the caption.(depend on the disc used.)

When playing VCD/MP3/WMA/CD discs, the button is not available.

4.18 Change Audio Language

1. When playing DVD discs, press the AUDIO button repeatedly on the IR

remote control to select the desired language type(depend on the disc used)

2. When playing VCD discs, press the AUDIO button repeatedly to select the

sound mode of the MONO L, MONO R, and Stereo, no language function.

3. When playing CD/WMA/MP3 discs, the AUDIO button is invalid.

4.19 Program Playback

It allows you to enter the order in which you want some chapters/tracks in DVD/VCD/MP3/WMA/CD disc to play. 1 During playback, press the PROG button to enter a program interface as follows:

2 Use the direction buttons to move cursor onto the desired place for inputting

the sequence number. 3 Use the number button to input desired sequence number of title/chapter/ track with desired sequence. 4 Use the direction button to move cursor onto Play item, then press the OK button to play the programmed titles/chapters/tracks in programmed order; only pressing the PLAY button also can play the programmed titles/chapters /tracks in programmed order. * To exit program playback, firstly press the STOP button, then press the PLAY button to enter sequence playback; or press the PROG button twice again. * To remove the all programmed sequence numbers, move the cursor onto Clear item, then press the OK button. * To change the programmed sequence, move the cursor onto the item you want to change, input the desired sequence number. * During VCD playback, if it is in PBC ON mode, at the same time of entering the state of program playback, it turns off PBC mode.

4.20 Playback Picture CD in JPEG Format

1. The root menu is displayed on the monitor when

beginning to switch on DISC mode. At the time, it plays MP3/WMA file.(the TITLE or MENU button is not available). In the root menu, the left file sort icon is for MP3/WMA file; the middle file sort icon is for VIDEO file; the right file sort icon is for JPG file. If one of these 3 file sort does not exist, you

USB interface

can not move cursor onto the file sort icon.

2. When displaying the root menu, press the direction buttons to select your desired FOLDER,

file or file sort icon, then press the OK or PLAY button to open the FOLDER, or play the selected file, or play only this sort of file.

When displaying the root menu, you can also use the number buttons to select the serial

number of the file and play the file. When you select a JPEG file sort icon, press the ^ or > button to select the first JPEG file, then press the v button to select the desired JPEG file, finally press the OK or PLAY/PAUSE button to display the JPEG picture in full screen from the selected JPEG picture.

3. During JPEG playback, press one of the >/</^/v buttons to change the angle

of viewing picture that is displaying as follows: >: 90 deg cw; <: 90deg ccw; ^:UP<-->DOWN; v: LEFT<-->RIGHT During JPEG playback, press the PROG button to change the mode of refresh picture. During JPEG playback, press the STOP button to stop playing and return to the root menu. * During JPEG playback, the following buttons are not available: SLOW-FWD, SUBTITLE, TITLE, ANGLE, STEP, AUDIO, RDM, INT and A-B. * In JPEG mode, the other operations are same as ones in MP3/WMA mode.

4.21 Operation about file style of video

1. The root menu is displayed on TV when beginning to switch on DISC mode, then

it will automatically play the first file. During playback, press the STOP button to stop playing and return to the root menu.

2. When displaying the root menu, press the direction buttons to select your desired

FOLDER or file, then press the OK or PLAY button to open the FOLDER, or play the selected file. When displaying the root menu, you can also use the number buttons to select the

serial number of the file and play the file. * The ANGLE, PROG, RDM, INT and TITLE/PBC button are not valid. * The other functions are same as ones in DVD disc; but the RPT function is same as one in MP3/WMA.

4.22 ESP and Id3 Function

There is ESP function for all formats of discs.

In MP3/WMA mode, during playback, the information of the file name, folder name, song s title, artist and album will be scrolling on the LCD display.

As long as the current playing MP3 music contains relevant Id3 tag information in version

1.0/2.0 format, the 3 items underlined above will be scrolling on the LCD display; otherwise, they will not.

4.23 USB and SD Reader Operation

Power on the DVD player, then insert the USB storage or SD Card (firstly flip down the front

panel), and then the monitor will display the root menu of the USB storage or SD Card. All the operations are same as ones of the corresponding format. When you want to pull out the Card, firstly push it, and then pull it out.

4.24 DVD System Menu Setup Operation

1. Press the SETUP button on the remote controller to access the DVD System Menu on the monitor.

2. There are 6 setup pages in all for the System Menu. Press the > or < button to select an desired setup page.

3. Press the ^ or v button to select an setup item in the selected setup page.

4. Press the > button to enter the setup item. Then press the v or ^ button to select a desired mode of the setup item, finally press the OK button to confirm it. * Press the < button to return to the upper level. * Press the SETUP button again or use the direction buttons to highlight the item of the EXIT SETUP and then press the OK button to exit the System Menu.

For the DVD System Menu, there are 6 setup pages in all. They display as follows:

4.24.1 SYSTEM SETUP

TV TYPE The setup item is for matching TV screen size. 4:3 PS: Choose the item when connecting a TV set with 4:3 screen. When playing the pictures with 16:9 size, the left and right parts of the video will be cut out, and display in full screen. 4:3 LB: Choose the item when connecting a TV set with 4:3 screen. When playing the pictures with 16:9 size, the top and bottom parts of the TV screen will be

turned into a black square respectively. 16:9: Choose the item when connecting a TV set with 16:9 wide screen.

PASSWORD This setup item is for locking or unlocking the rating level of the Parental Control. The defaulted state is locked. The defaulted password is 0000. You can set a new password that you like: Select the PASSWORD item and then press the > button to enter it, then input the original password 0000, and then press the OK button to unlock it. Press the > button to enter it again, then input a new password that you like and then press the OK button to make it effective. Before the other persons see the Manual, you should get the password in mind and cut out the part of PASSWORD in the Manual.

RATING The item is for setting a new rating level of the Parental Control.

1. Select the PASSWORD item and then press the > button to enter it, then input the password mentioned above, and then press the OK button to unlock the setting of the rating level of the Parental Control.

2. Select the RATING item and then press the > button to enter it, then use the direction

buttons to select your desired rating level, then press the OK button to confirm.

3. Select the PASSWORD item again and then press the > button to enter it, then input the

password, and then press the OK button to lock the new setting of the rating level of the Parental Control.

DEFAULT This item is for making all setup items change back to original status.

4.24.2 LANGUAGE SETUP

OSD LANGUAGE This item is for selecting the language of the SYSTEM MENU and all operating prompt interface displayed during playback.

AUDIO LANG This item is for selecting a audio language.

SUBTITLE LANG This item is for selecting a subtitle language.

MENU LANG This item is for selecting a disc menu language.

4.24.3 AUDIO SETUP

KEY It is for selecting your desired basic music tone(from low to high).

4.24.4 VIDEO SETUP

BRIGHTNESS It is for adjusting the brightness of the video output.

CONTRAST It is for adjusting the contrast of the video output.

HUE It is for adjusting the hue of the video output.

SATURATION It is for adjusting the saturation of the video output.

SHARPNESS It is for adjusting the sharpness of the video output.

4.24.5 SPEAKER SETUP

DOWNMIX It is for selecting your desired sound effect when there is no center speaker and subwoofer. There are 3 modes: LT/RT, STEREO, VSS. LT/RT: When playing a disc with PRO LOGIC Dolby stereo effect, choose the item, so it will output audio signal with vivid theatre effect. STEREO: If you choose the item, when outputting audio signal with 5.1 channels, it will output the left and right channels of signal ; when outputting audio signal

with 2 channels, it will output the common 2 channels of stereo signal. VSS: If you choose the item, when playing a disc recorded with 5.1 channels, the main channel speakers can output audio signal with VSS effect.

4.24.6 DIGITAL SETUP

OP MODE It is for selecting audio output mode.

DYNAMIC RANGE After selecting the compression mode of LINE OUT, set the item, so you can adjust the linear compression ratio. If you set it to be FULL, the Peak-to-Peak value of the audio signal is the minimum; if you set it to be OFF, the Peak-to-Peak value is the maximum.

DUAL MONO It is for selecting a desired audio output mode for the left and right ways of signal. It is mainly for Karaoke of Ac3. There are 4 modes in all as follows: STEREO, MONO L, MONO R, MIX MONO.

4.25 The Parental Control

Q:After inserting DVD disc into disc compartment, it will appear a dialogue window that asks me to

input a password of 4 digit. Why ?

A:This is because the disc movie you are playing was rated with the Parental Control, and the current

rating level of DVD player is lower than one of the current discs. You must input the password and enter it to access the Parental Control setup menu. Then you my set an equal or higher rating level than one of current discs, allowing you to play the disc.

! NOTE

z If you have not changed the password, the factory preset password for the DVD player will be empty.

So that you should input a desired password and input it again to verify it to enter the Parental Control setup menu.

z For the rating level setup of Parental Control of the DVD player, please refer to the relative

content of LOCK setup menu for details.

Accessories: Parental Control

The Parental Control function of a DVD player can control the playback of the movie rated level in a disc.

You can set the DVD player(include software player in PC) to be a certain rating level with SETUP MENU on the screen. If the rating level set in the disc is higher than one set in the DVD player, the DVD player can not playback the disc. Sometimes the Parental Control sequences in some discs are different

from each other. The rating level setup can be protected by the password. Therefore, if you select Unlock

item, the Parental Control function will be invalid, the content of disc will be played totally.

The disc movie can be designed as that the DVD player will playback the different version of content of a

same movie according to the different rating level set by Parental Control. Depending on the DVD feature of seamless switching described above, the scenes that are not fitting for children will be cleared or replaced by the other fitting scene automatically.

All rating levels of Parental Control are as follows:

Unlock 1 Kid Safe 2 G 3 PG 4 PG 13 5 PG R 6 R 7 NC 17

8 Adult

4.26 The Region Code

Q: REGION ERROR displayed after inserting disc into disc compartment. Why ?

A: Because the DVD player and disc has respective region codes. If the region codes do not match,

the DVD player can not play the disc.

Appendix: The region code of DVD:

The Motion Picture Association of America (MPAA) divided the world into 6 regions,

and named every region a code . The region codes and the countries or areas represented by the region codes as follows:

Region 1: America, Canada, East-Pacific Inlands;

Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East;

Region 3: South-east Asian countries include Taiwan, Hong Kong, South Korea, Thailand, indonesia, etc.;

Region 4: Australia, New Zealand, Central South America, South Pacific Inlands;

Region 5: Russia, Mongolia, Indian Peninsula, Middle Asia, East Europe, North Korea, North Africa, North-west Asia etc.;

Region 6: China mainland.

Only the discs produced by the 8 biggest filmmaking companies of America assign region codes. The DVD movie discs not produced by the 8 biggest filmmaking companies of America were not restricted by the rule of region code. Generally, they are called Free Region Code discs or Full Region discs. The 8 biggest film making companies of America are as follows:

1. Warner Bros;

2. Columbia;

3. 20thCenturyFOX;

4. Paramount;

5. Universal;

6. UA(United Artist);

7. MGM(Metro Dogwyn Mayer);

8. Walt Disney

5. Trouble Shooting

Please read the user s manual carefully before using the DVD player. If you have any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can not remove the trouble after using all the suggestions, please contact the company or the technical service center authorized by us. For the sake of your safety, please do not open the cover and repair the player by yourself, if that, it may cause electric shock.

NO PICTURE, SOUND AND INDICATION * Ensure that the power switch is on. * Ensure that the wall inlet is ok. * Ensure that the power cord is not damaged or the fuse is not blown. * Ensure that the power plug is connected to the inlet tightly.

NO SOUND BUT PICTURE OK * Ensure that the player s audio output has a good connection with TV s audio input. * Check whether the audio connector is damaged. * Check whether you have turned down the volume. * Ensure that you have set the right AUDIO setup of the player. * Ensure that the audio is not under mute.

NO PICTURE BUT SOUND OK * Ensure that the player s video output has a good connection with TV s video input. * Ensure that you have turned your TV to the AV input channel connecting to your player. * Check whether the video connector is damaged. * Ensure that you have set the right VIDEO settings of the player.

BLACK AND WHITE PICTURE OR SCREEN ROLLING * Ensure that you have set the right TV SYSTEM (e.g. PAL, NTSC) setting.

FLAWS OF PICTURE OR SOUND * Check whether the setting of AUDIO is right. * Check whether the disc is scratched or stained. * Check whether the AV connector and the output terminal is stained. * Check whether there is condensation inside the Lens. If so, leave the player off for an hour or so, then try again. * Check whether the installation angle is less than 30.

DISPLAY NO DISC OR BAD DISC * Ensure that you have put the disc on the tray. * Check whether the disc is put in the reverse side. * Check whether the disc is distorted. * Check whether the disc is stained or scratched badly. * Ensure that the disc format is compatible to the player. * Ensure that the temperature inside the car is not too high. If so, cool off until the ambient temperature returns to normal. * Replace another disc to insert it into the disc compartment.

REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK * Check the batteries of remote control and make sure that they are not flat. * Direct the remote control to the IR sensor of the player. * Check whether there are some obstacles between the remote control and IR sensor.

SOME FUNCTION BUTTONS DO NOT WORK * Turn off the power, then turn on again. * Reset the unit to zero, then turn on again. * Remove the front panel from the unit, then install it again and then turn on again.

THE RADIO DOES NOT WORK * Check whether the antenna cable is connected firmly. Or manually tune for a station.

6. Specification

General Specification

Power Supply Requirement.................................................................................DC 12V

Maximum Power Output......................................................................................4 x25W

Dimensions(w x h x d)........................................................................178 x 50 x 165mm

DVD Deck Specification

Format.................................................................DVD/VCD/JPEG/MP4/MP3/WMA/CD

Video System.......................................................................................................NTSC

Loading System....................................................................................... Auto Loading

Mounting Angle...............................................................................................0 to +/-30

Video Specification

Video Type.................................................................................................16:9 and 4:3

Video Output level...................................................................Composite:1.0± 0.2Vp-p

Load impedance: 75 ohms

Horizontal Resolution..............................................................................................600

Audio Specification

Audio Output(Analog audio)..................................................................2.0+0-1.0Vrms

Frequency Response.....................................................20Hz ~ 20KHz(at 1KHz 0 dB)

S/N Ratio(Audio).......................................................................≥90dB(at 1KHz 0 dB)

Separation...........................................................................................................50dB

Radio Specification

FM Section

Frequency range.......................................................................87.5MHz - 108.0MHz

Usable sensitivity..................................................................................................3uV

I.F Frequency...............................................................................................10.7MHz

AM Section

Frequency....................................................................................522KHz - 1620KHz

Formats for media player:

Video: Picture: Audio: MPEG-1 JPEG MP2 MPEG-2 MP3 Xvid WMA MP4 AAC VCD AC3 SVCD CDDA DVD-Video HDCD/CD-G

CS-460

Bedienungsanleitung

4-IN-1 AUDIOSYSTEM FÜR AUTOS

UNTERSTÜTZT DVD, JPEG, MP4, MP3, WMA, CD

USB UND SD

AM/FM-RDS PLL DIGITALES RADIO

Hinweis: Informationen unterliegen unangekündigten Änderungen.

www.lenco.eu

Inhalt

1. Vor dem Gebrauch......................................................................................................28

1.1 Glossar..................................................................................................................... 28

1.2 Sicherheitsvorkehrungen...........................................................................................28

1.3 Reinigung und Pflege von Discs................................................................................29

1.4 Batterie der Fernbedienung.......................................................................................29

1.5 Übersicht der Fernbedienung.....................................................................................30

1.6 Tasten und Funktionen...............................................................................................31

1.7 Rückseite des Geräts............................ ....................................................................32

1.8 Installation des Geräts................................................................................................33

2. Allgemeiner Betrieb.......................................................................................................34

3. Radiobetrieb..................................................................................................................36

4. Funktionen für Discs, USB oder SD..............................................................................38

4.1 Wiedergabe starten.....................................................................................................38

4.2 Wiedergabe unterbrechen...........................................................................................39

4.3 Wiedergabe beenden .................................................................................................39

4.4 Kapitel/Tracks mit HOCH/RUNTER oder >>|/|<< auswählen......................................39

4.5 Kapitel/Tracks mit den Nummerntasten auswählen....................................................39

4.6 Kapitel/Tracks über das Root-/PBC-Menü auswählen................................................39

4.7 Wiedergabe beenden...................................................................................................40

4.8 Suchlauf........................................................................................................................40

4.9 Wiedergabe in Zeitlupe.................................................................................................40

4.10 Wiedergabe von Standbildern.....................................................................................40

4.11 Wiederholte Wiedergabe.............................................................................................40

4.11.1 Einen/Alle wiederholen.............................................................................................40

4.11.2 Abschnittswiederholung A-B.....................................................................................41

4.12 Wiedergabe während des Scans.................................................................................41

4.13 Wiedergabe ab einem/r bestimmten Kapitel/Track/Stelle............................................41

4.14 Willkürliche Wiedergabe..............................................................................................42

4.15 Unterschiedliche Wiedergabewinkel............................................................................42

4.16 Zoom-Funktion............................................................................................................42

4.17 Untertitelsprache einstellen.........................................................................................42

4.18 Audiosprache einstellen..............................................................................................42

4.19Programmierte Wiedergabe........................................................................................42

4.20 Wiedergabe von CD mit JPEG-Bildern.......................................................................43

4.21 Funktionen der Videowiedergabe................................................................................44

4.22 ESP- und ID3-Funktion................................................................................................44

4.23 USB und SD................................................................................................................44

4.24 Setup über das DVD System-Menü............................................................................44

4.25 Elternsicherung............................................................................................................48

4.26 Regionalcode...............................................................................................................49

5. Störbehebung...................................................................................................................50

6. Technische Daten.............................................................................................................51

1. Vor dem Gebrauch

1.1 Glossar PBC (Playback Control) Es handelt sich um ein Signal (Menü), dass im Format SVCD oder VCD2.0 für die Wiedergabesteuerung auf eine Disc aufgezeichnet wird. Discs mit PBC können interaktive Software abspielen; das Menü wird auf dem Bildschirm angezeigt. Falls eine Disc Fotos enthält, können diese als High Definition Fotos wiedergegeben werden.. Titel Allgemein gesagt ist der Titel ein wichtiger Teil einer DVD. Die Melodie, zum Beispiel, ist Teil 1 des Films, der Abschnitt, in dem die Entstehung des Films beschrieben wird, Teil 2, der Vorspann Teil 3, usw. Jeder Teil verfügt über eine Titelnummer, die einfach eingeschaltet werden kann. Kapitel Ein Titel kann in mehrere Abschnitte unterteilt werden, die als Einheit verwendet werden können. Solch eine Einheit wird Kapitel genannt. Das Kapitel enthält ebenfalls mindestens eine Untereinheit, einen sogenannten Track. Track Tracks sind der größte Teil einer VCD. Bei einer Karaoke-Disc ist jeder Song ein Track.

1.2 Sicherheitsvorkehrungen

Sicherheit

1. Stromversorgung: Schließen Sie das Gerät nur an eine Stromversorgung an, die mit den Angaben in diesem Handbuch bzw. auf dem Typenschild des Geräts übereinstimmt.

2. Das Gerät ist bestimmt für den negativen Anschluss der Batterie, die an den Erde-Anschluss des Fahrzeugs angeschlossen wird. Bitte versichern Sie sich vor der Installation.

3. Stellen Sie sicher, dass sich die Lautsprecherkabel beim Einschalten des Geräts nicht gegenseitig kurzschließen. Anderenfalls könnte es zur Überlastung kommen oder der Verstärker durchbrennen.

4. Installieren Sie das abnehmbare Panel erst nachdem Sie alle Kabel angeschlossen haben.

Umwelt

1. Verwenden Sie das Gerät nicht in der Nähe von Wasser oder Nässe.

2. Wenn im Inneren der Linse Feuchtigkeit entsteht, funktioniert die Linse möglicherweise nicht ordnungsgemäß. Warten Sie ungefähr eine Stunde, bis die Feuchtigkeit verflogen und das Problem behoben ist.

3. Falls es im Auto sehr heiß ist, verwenden Sie das Gerät nicht, sondern fahren Sie erst einmal eine Weile, bis sich die Innentemperatur abgekühlt hat.

1.3 Reinigung und Pflege von Discs

Pflege

1. Halten Sie Discs an den Kanten, damit die Discs nicht schmutzig werden. Berühren Sie nicht die Oberfläche der abzuspielenden Seite.

2. Befestigen Sie kein Papier oder Klebeband auf der Disc. Falls sich Kleber (oder Verunreinigungen) auf der Oberfläche befindet, muss dies vor dem Gebrauch abgewischt werden.

3. Schützen Sie Discs vor direkter Sonneneinstrahlung oder Wärmequellen wie Abzügen. Lassen Sie Discs nicht in Autos, die in der Sonne geparkt werden, oder an anderen Orten, wo die Temperatur erheblich ansteigen könnte.

4. Bewahren Sie Discs nach dem Gebrauch in deren Schutzhülle auf, um die Temperatur konstant zu halten. Wischen Sie die Disc vor der Wiedergabe mit einem sauberen, fusselfreien Tuch ab. Wischen Sie von der Mitte nach außen.

Reinigung von Discs Verwenden Sie weder Benzin noch Verdünner, herkömmliche Reiniger oder antistatische Sprays für Langspielplatten aus Kunststoff zum Reinigen von Discs.

1.4 Batterie der Fernbedienung Batterie der Fernbedienung wechseln

1. Ziehen Sie vor dem erstmaligen Gebrauch der Fernbedienung die Schutzfolie gemäß den Pfeilmarkierungen aus der Fernbedienung heraus (Abb. 1)

2. Drücken Sie gemäß der Pfeilmarkierung auf die Verriegelung (Abb. 2) und ziehen Sie dann die Batteriehalterung gemäß der Pfeilmarkierung B aus der Fernbedienung heraus (Abb. 2).

3. Ersetzen Sie die alte durch eine neue Batterie; legen Sie die Batterie mit der positiven Seite (+) nach oben gerichtet ein (Abb. 3).

4. Schieben Sie die Batteriehalterung zur Ausgangsposition zurück (Abb. 3).

Hinweise zur Batterie der Fernbedienung

1. Der unsachgemäße Gebrauch von Batterien kann Überhitzung oder Explosionen

verursachen, mit Verletzungen oder Feuer als Folge.

2. Auslaufende Batterien können die Fernbedienung beschädigen (Nutzungsdauer der Batterie:

6 Monate bei normaler Raumtemperatur).

3. Schließen Sie Batterien nicht kurz.

4. Batterien nicht ins Feuer werfen.

5. Bewahren Sie Batterien für Kinder unzugänglich auf, um Unfälle zu vermeiden.

1.5 Übersicht der Fernbedienung

+ 99 hidden pages
