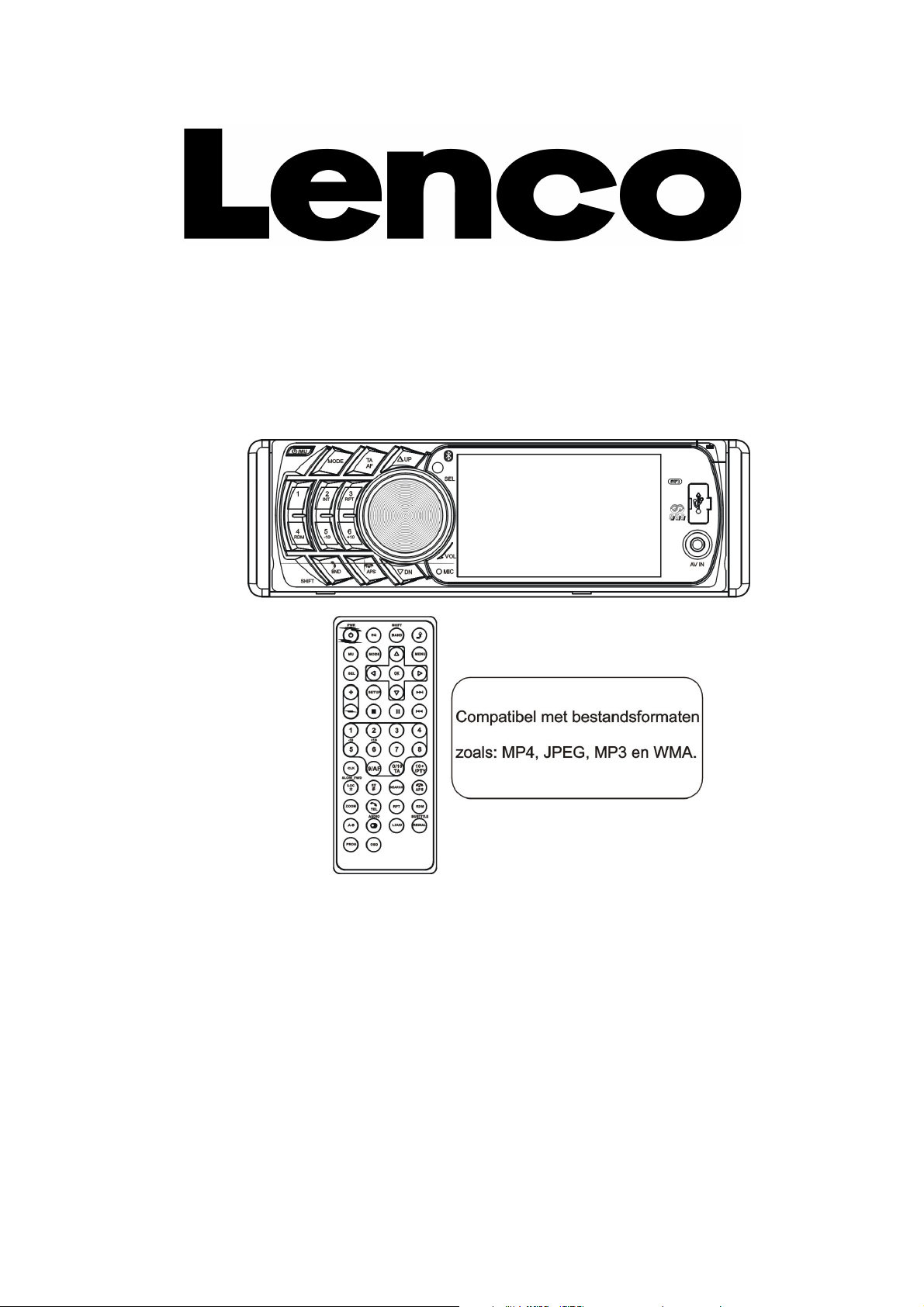

Lenco CS-440 BT User Manual [en, de, fr, es]

Compatible to these Formats

SEA R CH

LOUD

AV IN

CS-440 BT

Instruction Manual

/MU

MODE

2 3

RPT

INT

RDM5-106+10

BND APS

SHIFT

SLOW_FWD

TA AF

PWR

MU MODE

SEL

SET UP

1 273

+10-10

5 6

CLK

9/A F

LOC

ZOOM

TEL

AUDIO

A-B

PROG

OSD

SHIFT

BAN D

0/10

SEL

VOL

10 +

/P TY

APS

RDM

SUBTITLE

REDIAL

MIC

of Files Such As: MP4, JPEG,

MP3, WMA .

RPT

Remark: Any information subject to change without further notice

4 IN 1 CAR AUDIO SYSTEM

WITH CARD/USB/BT/RADIO

www.lenco.eu

Contents

1. Before Operation......................................................................................................2

1.1 Precautions.................................................................................................2

1.2 Battery Information of Remote Control........................................................2

1.3 The Remote Control Description.................................................................3

1.4 Locations and Names of the Controls.........................................................4

1.5 Description of the Rear Cabinet....................... ..........................................5

1.6 Unit Installation............................................................................................6

2. Common Operation...................................................................................................7

3. Radio Operation........................................................................................................9

4. USB and MMC/SD Operation................................................................................11

4.1 Pause Playback............................................................................................11

4.2 Stop Playback ..............................................................................................11

4.3 Select Chapter/Track with UP/DN Buttons...................................................11

4.4 Select Chapter/Track with Number Buttons..................................................11

4.5 Select Chapter/Track with Root Menu..........................................................12

4.6 Playback with Speed.....................................................................................12

4.7 Playback with Slow Speed............................................................................13

4.8 Playback Repeatedly..................................................................................13

4.8.1 One/All Repeat..........................................................................................13

4.8.2 A-B Repeat................................................................................................13

4.9 Playback from a specified Chapter/Track or a Specified Time.....................13

4.10 Playback in Random.....................................................................................13

4.11 Zoom Video/image......................................................................................13

4.12 Change Caption Language.........................................................................14

4.13 Look over Playback Status..........................................................................14

4.14 Program Playback.......................................................................................14

4.15 Id3 Function................................................................................................14

4.16 System Menu Setup Operation..................................................................15

5. BLUE TOOTH HANDFREE SYSTEM......................................................................18

6. Trouble Shooting.......................................................................................................19

7. Specification..............................................................................................................20

Fig.3

+ side up

1. Before Operation

1.1 Precautions

1. Read through this instruction manual before installation and use.

2. Clear the panel and case with soft dry cloth only, do not apply any kind of thinner, alcohol or sprays.

3. The apparatus shall not be exposed to dripping or splashing .

1.2 Battery Information of the Remote Control

Replace Battery in the Remote Control:

Fig.1

Fig.2

1.Before using the remote control for the first time, pull the insulating sheet out of the remote control as the direction indicated by the arrow.(see fig.1)

2.Press the movable block hold as the direction indicated by the A arrow (See fig.2), then pull the battery holder out of the remote

control as the direction indicated by the B arrow(see fig.2).

3.Replace the old battery by a new battery with (+) polarity side upward. (See fig.3).

4.Insert the battery holder to the original position in remote control. (See fig.3).

Note about the Battery of the Remote Control:

1.Improper use of battery may cause overheating or explosion. so that Result in injury or fire .

2.Battery leakage may cause damage to the remote control(Battery Life: 6 months with normal use in normal room temperature).

3.Do not short the battery.

4.Do not throw the battery into the fire.

5.To avoid the risk of accident, keep the battery out of reach of children.

1.3 The Remote Control Description

SUBTI TLE

SEA RC H

LOUD

ZOOM

RPT

SLOW_FWD

9/AF

0/10

+10

AP S

RDM

/PTY

SHIFT

ME NU

REDIAL

PWR

BAN D

1. BACK OFF BUTTON

2. MENU BUTTON

MU MO DE

SE L

SE TUP

3. POWER BUTTON

4. ^ BUTTON

5. >>| BUTTON

6. > BUTTON

7. |<< BUTTON

-10

5 6

CLK

LOC

A-B

TEL

AUDIO

8. v BUTTON

10+

9. SEL BUTTON

10. PLAY/PAUSE BUTTON

11. NUMBER(0~10,+10

-10) BUTTONS

12. 10+/PTY BUTTON

13. SETUP BUTTON

PROG

OSD

14. MODE BUTTON

16. SEARCH BUTTON

17. RDM BUTTON

18. RPT BUTTON

19. SUBTITLE/REDIAL BUTTON

20. LOUD BUTTON

21. ST/# BUTTON

22. ZOOM BUTTON

23. AUDIO BUTTON

24. CLK BUTTON

25. A-B BUTTON

26. TEL BUTTON

27. EQ BUTTON

15. APS/HANG UP BUTTON

28.LOC/SLOW-FWD/* BUTTON

29. MUTE BUTTON

30. STOP BUTTON

31. VOLUME- BUTTON

32. < BUTTON

33. OK BUTTON

34. VOLUME+ BUTTON

35. BAND/SHIFT BUTTON

36. PROG BUTTON

37. OSD BUTTON

38. AF BUTTON

39. TA BUTTON

1.4 Locations and Names of the Controls

The figure of the Unit Chassis Facet After removing the Front Panel

181917

AV IN

310 11

3 22

SEL

VOL

MIC

/MU

RDM5-106+10

SHIFT

MODE

RPT

INT

BND APS

20 21

TA AF

713 14

The figure of the front panel

1.POWER/MUTE BUTTON

2. MODE BUTTON

3. UP / DN BUTTONS

4. SEL/VOL BUTTON

5. LCD

6. REL BUTTON

7. BAND BUTTON

8. APS BUTTON

9.1/PLAY/PAUSE BUTTON

10. 2/INT BUTTON

11. 3/RPT BUTTON

12. 4/RDM BUTTON

13. 5/-10 BUTTON

14. 6/+10 BUTTON

15. AV IN JACK

16. USB JACK

17. Card slot

18. RESET BUTTON

19. LED indicator

20. TA/AF BUTTON

21. IR Remote Sensor

22. Microphone

1.5 Description of the Rear Cabinet

Note: 1. after connecting the Parking Line, the video on the small monitor of the front panel will be display only after braking

the car.

2. Use the clip end of a Ground Line provided by manufacturer to connect the Fixing Screw Bolt, use another end of the Ground Line to connect the negative pole of the power source. Otherwise, the video on screen maybe flashes.

Connecting the parking brake line to the parking brake system built in the car

The Description of the Fixed ISO Female Connector

CONNECTOR A

4. Memory +12V

5. Auto Antenna

7. 12V (To Ignition Key)

8. GROUND

CONNECTOR B

1. Rear Right Speaker (+)

2. Rear Right Speaker (-)

3. Front Right Speaker (+)

4. Front Right Speaker (-)

5. Front Left Speaker (+)

6. Front Left Speaker (-)

7. Rear Left Speaker (+)

8. Rear Left Speaker (-)

1.6 UNIT INSTALLATION

2. Common Operation

1. To turn on/off the unit

Under power off mode, press the POWER button to turn on the unit.

Under power on mode, press and hold the POWER button on the front panel or briefly press the POWER button on the remote control to turn off the unit.

2. To select function mode

Press the MODE button to select TUNER, USB (After inserting

a USB storage), Card(After inserting a MMC or SD card) AUX or BLUETOOTH mode.

Press and hold the BAND button to turn on shift then rotate the

VOL knob and the UP/DOWN to select function mode; you can also use the direction buttons to select function mode and

press OK to confirm. During playing , select the to up to the main Menu.

Mode Menu

Press and hold the MODE button the display can be turned off

but the unit keeps working, when we press whatever button it returns on.

3. To adjust sound level

Rotate the VOL knob or press or hold the + or - button to directly adjust the volume level.

4. To mute sound

Press the MUTE button on remote control to turn on/off MUTE mode. Briefly pressing the POWER button on the front panel also can turn on/off MUTE mode.

In MUTE mode, the MUTE mode can be released by pressing the following knob/buttons: VOL, + , - and SEL.

5. To display and adjust the time

Press the CLK button to display time on the small monitor of the front panel. Press and hold the CLK button and then rotate the VOL knob or press the + or - button to adjust the time. You can also adjust time in SETUP mode.

6. To select a preset EQ mode

Press the EQ button to select the preset music equalizer curves: FLAT, CLASSIC, ROCK, POP, EQ OFF .

The sound effect will be changed.

7. To remove the front panel

Press the REL button on the front panel to detach the front panel from the unit, then you can remove the

front panel.

8. To turn on/off LOUDNESS mode

Press the LOUD button to turn on/off LOUDNESS mode. When turning on LOUDNESS mode, it will enhance bass level immediately when the bass is not enough.

9. Return control

Press the button to up to the previous menu, press menu to up to the previous menu till to the main

menu.

10. To reset the unit

When the display is incorrect, or the function buttons are not effective or sound is distorted, press the

REL button to detach the front panel from the unit and remove it, then use the sharp end of a thing to press the RESET button, which will reset to factory default, and re-instate the correct functions.

11. To adjust sound modes

To adjust the sound modes, briefly and repeatedly press the SEL button on the front panel to select one

of the sound modes such as : VOL, BAS(without preset EQ), TRE (without preset EQ), BAL, FAD, then rotate VOL knob or press the + or - button to adjust level.

12. To do setup

In setup mode, select the GENERAL, TIME, AUDIO, VIDEO, RADIO as follow:

GENERAL SETUP

Wallpaper: this function allows to choose the display background. Logo: this function allows to choose the starting screen. Beep: choose the buttons' sound on/off

CLOCK SETUP Clock time: adjust the clock.

AUDIO SETUP Loud: choose between Loudness ON/OFF. EQ: choose between the different types of EQ.

VIDEO SETUP

Brightness Contrast Saturation Hue

RADIO SETUP Radio region: choose the radio zone. RDS setting: ON/OFF

Note: Press and hold the BAND to turn on SHIFT to do select all

the functionby the rotate VOL, after selecting, press the SEL to confirm, or you can also use the direction buttons to do selecting.

GENERAL SETUP

CLOCK SETUP

AUDIO SETUP

VIDEO SETUP

RADIO SETUP

3. Radio Operation

1. BAND BUTTON

In RADIO mode, press the BAND button on the remote control or on the front panel to select your desired radio band of FM1, FM2, FM3, AM1 and AM2, and the selected band will be displayed on the small monitor of the front panel.

2. TUNE/SEEK UP/DOWN BUTTONS

In RADIO mode:

RADIO interface

1) Press and hold the UP/DN button to automatically search

up/down for a available station from the current frequency.

2) Briefly press the UP/DN button to manually search up or down

with step by step for your desired station from the current frequency.

3. APS BUTTON

In RADIO mode:

1) When pressing and holding the APS button, the radio searches

from the lowest frequency and checks the signal strength level

AUDIO & VIDEO SETUP inter face

until 1 cycle search is finished. And then the 6 strongest stations are preset to the corresponding preset number memory bank. The AS operation is implemented in each bank of the selected band. When the AS operation is finished, the radio executes the preset scan, and after preset scanning for one cycle, it will stop scanning and broadcasting the No.1 station for FM1.(It can store 3x6 stations for FM and 2x6 stations for AM in all)

2) When briefly pressing the APS button on the front panel or the remote control, the radio searches

for each preset station from the M1. When the field strength level is more than the threshold level of the stop level, the radio holds at that preset number for few seconds with releasing mute, and then searches again. After finishing a circle of searching, it will stop searching on the M1.

NOTE: In FM band, FM1,FM2,FM3 is checked one at a time. In AM band, Am1, Am2 is checked one at a time.

4. PRESET STATION [ 1-6 ] BUTTONS

1) To memorize the current frequency on the current band, press and hold any one of the six

Number buttons (1-6) .

2) To recall the memory station on the current band, press one of the Number buttons [1-6] .

5. STEREO/MONO BUTTON

Press the ST button on the remote control to select the STEREO or MONO sound mode for FM band.

6. LOC BUTTON

1) When the signal of the distance radio station are very weak and the receiving effect is bad during

tuning, check whether there is the word LOC on LCD. If there is the word LOC on LCD, press this button to turn off the LOC function, then tune again for the distance radio station;

2) When the signals from the local radio stations are too strong, this could lead to interference.

press this button to turn on the LOC function, and the LOC icon will be lit up on the LCD. Re-tune for the local station required.

7. PTY (PROGRAM TYPE) BUTTON

Press the PTY button shortly to select one of the following mode: PTY MUSIC group- - PTY SPEECH group- - PTY OFF When PTY group is on, rotate the VOL knob or press the + or the - button to select one of PTY programs:

<-->NEWS<-->AFFAIRS<-->INFO<-->SPORT <-->EDUCATE<-->DRAMA<-->CULTURE <-->SCIENCE<--> VARIED<--> WEATHER<-->FINANCE<-->CHILDREN<-->SOCIAL<-->RELIGION<--> PHONE IN<-->TRAVEL<-->LEISURE<-->DOCUMENT< -->PTY NONE<-->

POP M< -->ROCK M<-->EASY M<-->LIGHT M<--> CLASSICS<-->OTHER M<-->JAZZ<-->COUNTRY<-->NATION M<-->OLDIES<-->FOLK M<--> When PTY group is on, pressing the 6 number buttons also can select one of PTY programs as above. After selecting one of the PTY programs, it will display SEEK PTY and automatically search for the

station of the PTY program. If the station of the PTY program does not exist, it will display PTY NONE

and then return back to the normal station.

8. AF [ALTERNATIVE FREQUENCIES] BUTTON When pressing the AF button briefly, the AF switching mode is selected and the state of the AF switching

mode is displayed by AF segment in display. Segment off: AF switching mode off. Segment on: AF switching mode on, and has RDS information. Segment flashing: AF switching mode on, but RDS information is not received yet.

When the AF switching mode is selected, the radio checks the signal strength of the AF all the time.

The interval of checking time of each AFs depends on the signal strength of the current station, from a

few minute for the strong station to a few seconds for the weak station. Every time that a new AF is stronger than the current station, it switches over to that frequency for very short time, and the NEW

FREQUENCY is displayed for 1-2 second. Because the mute time of the AF switching or the checking

time is very short, it is almost inaudible in case of normal program. (When AF flash on LCD, it will

search for the stronger RDS station. If AF and TP flash on LCD, it can only search for the traffic

announcement station). In FM mode, when AF is on, SEEK, (SCAN), AUTO-MEMORY function can only receive and save the

RDS program.

9. TA [TRAFFIC ANNOUNCEMENT] BUTTON Press the TA button shortly to turn on TA search mode. When traffic announcement is transmitted:

1).If the unit is in media Play mode, it will switch to radio mode temporarily.

2).Temporarily switch over to a station which is broadcasting traffic announcement , and TA, TP will be

displayed on LCD * TA interruption function: The current traffic announcement is cancelled by pressing TA button briefly. * When TA is on, SEEK, (SCAN), AUTO MEMORY function can be received or saved only when traffic

program identification code has been received.

4. USB and MMC/SD Operation

Insert an USB or MMC/SD Card into their slots respectively, then the root menu will be displayed on the

monitor and it will play audio file automatically if the USB or MMC/SD Card include audio files.

During playback, press the STOP button twice to stop playback, then pull the USB out of the USB socket;

or push the card and then pull it out of the card slot.

Press and hold BAND to turn on SHIFT.

: select to pause playback.

: select to stop playback .

:select one of them can switch on between the speed levels

USB/ CA RD INTERFACE

of fast backward or forward. (Except image mode.)

: select one of them can select next or previous chapter/track.

: select to turn volume up and down.

: select to turn the selecting page up and down.

: select to RDM play mode as the remote control. (Only for music mode.)

: To select audio language.

: Same as the PRG button on the remote control.

(Follow the instruction in page 16.)

: Same as the A-B button on the remote control.

: Same as the REPEAT button on the remote control.

: Same as the SUBTITLE button on the remote control.

: To select the track/chapter from 1-9 and then select OK

to play your selecting.

: During playback, press the ZOOM button

and then tap one of them are same as the

direction buttons on the Remote Control. (Except music & image mode.);During playback, press one of them to change the playback angle. (Only for image mode.)

Root int erface for MUSIC

Ke yboard interfac e-1

Ke yboard interfac e-2

Same as the ZOOM button on the remote control.

Ke yboard interfac e-3

: Select to play step by step, select >II to turn to normal play.

: To select the track/chapter from0-9 and then select OK to play your selecting.

Note: During playback, press and hold the -10,+10 to select the previous or next folder to be play. If there has only one folder, these buttons are invalidation

4.1 Pause Playback

When playing MP4/JPEG/MP3/WMA files, press the PAUSE button to pause the playback,

press the PLAY button to resume normal playback.

4.2 Stop Playback

In MP3/WMA mode, press the STOP button once to pause the playback, then press the PLAY/PAUSE

button to resume the normal playback(play from the point playing just now); press the STOP button twice to full stop the playback, then press the PLAY/PAUSE button to start playback from the first track.

In MP4/JPEG mode, during playback, pressing the STOP button can return back to root menu.

4.3 Select Chapter/Track with the UP / DN Button

In MP4/JPEG/MP3/WMA mode, during playback, Press the UP/DN button to select next or

last chapter/track to playback.

NOTE: Pressing the UP/DN button multiple times can advance multiple chapters/tracks forward or backward.

4.4 Select Chapter/Track with the Number Buttons

When playing MP4/JPEG/MP3/WMA files, press one of the 1~9 and the 0/10 number buttons to directly

select and play the 1st to 10th track /chapter (the 0/10 button is used as the 10 button).

If you want to play the track/chapter with serial number bigger than 10, use the 10+, 1~9 and 0/10

button. For example 1, to play the 13th track/chapter, firstly press the 10+ button once, then press the 3 button. For example 2, to play the 34th track/chapter, firstly press the 10+ button for 3 times, then press the 4 button.(the 0/10 button is used as the 0 button) Note: pressing and holding the +10 or -10 buttons will allow you to play the next 10 or last 10 chapter/track(only for MP3/WMA).

4.5 Select Chapter/Track with Root Menu

In MP3/WMA mode, during playback, the root menu is displayed on the monitor all the time. In

MP4/JPEG mode, during playback, pressing the STOP button can return back to the root menu.

In the bottom of the root menu, the left file sort icon is for audio files; the middle file sort icon is for image

files; the right file sort icon is for video Files. If one of the 3 sorts of files does not exist, you can not move cursor onto the file sort icon.

When displaying the root menu, press the direction buttons to select your desired folder, file or file sort

icon, then press the OK or PLAY button to open the selected folder, or play the selected file, or display only the sort of files.

When displaying the root menu, you can also use the number buttons to select the serial number of the

file and play the file.

During JPEG playback, press one of the direction (>/</^/v) buttons to change the angle of viewing

picture that is displaying as follows:

>: 90 deg cw; <: 90deg ccw; ^:UP<-->DOWN; v: LEFT<-->RIGHT

4.6 Playback with Speed

In MP4/MP3/WMA mode, during playback, long press the UP or DN button continuously to fast play

forwards or backwards at the multiple speeds such as: x2, x4, x8, x20, normal.

During speed playback, press the PLAY/PAUSE button to resume normal playback. In JPEG mode, no function of speed playback.

4.7 Playback with Slow Speed

During MP4 playback , press the SLOW_FWD button to execute the Slow Forward function. With each consecutive pressing of the SLOW_FWD button, the playback speed decreases.

The speed levels in Slow Forward as follows: x1/2,x1/3,x1/4,x1/5,x1/6,x1/7,normal.

During slow forward, press the PLAY button to resume normal playback. The function is only for video.

4.8 Playback Repeatedly

4.8.1 ONE/ALL Repeat

In MP4/JPEG/MP3/WMA mode, press the RPT button to select REP ONE, REP DIR, REP ALL or OFF.

4.8.2 A-B Repeat

In MP4/MP3/WMA mode, during playback, press the A-B button if you want to repeat a specific

segment that you define:

1. Press the A-B button at a point (A) where you want it to be the start point of the repeat segment. Press the A-B button again at a point (B) where you want it to be the terminal point of the repeat segment. Then it will play the segment repeatedly.

2. To cancel A-B repeat mode and resume normal playback, press the A-B button for the third time.

In JPEG mode, no A-B Repeat function.

4.9 Play from a specified chapter/track or a specified time

In MP4/JPEG/MP3/WMA mode, press the SEARCH button to display a interface and highlight the track

item, then use the number buttons to input the serial number of the track;

you can still use the direction buttons to highlight the time item, then use the number buttons to input the

desired time to start playback(invalid for JPEG);

finally press the OK button to play the selected track or play from the selected time.

4.10 Playback in Random

In MP3/WMA mode, press the RDM button to switch between Random ON/OFF. When in Random

mode, it will play in random.

In MP4/JPEG mode, the RDM button is invalid.

4.11 Zoom Video/Image

In MP4/JPEG mode, during playback, press the ZOOM button continuously to enlarge or minify videos

or image at the following multiples: 2x, 4x, 8x, 1/2x, 1/4x, 1/8x, OFF.

After enlarging or minifying videos or image, press one of the ^/v/>/< buttons to select the area you

want to view.

In MP3/WMA mode, the ZOOM button is invalid.

4.12 Change Caption Language

In MP4 mode, during playback, press the SUBTITLE button repeatedly to select the language of the

caption or turn off the caption.(depend on the file played)

In JPEG/MP3/WMA mode, the SUBTITLE button is invalid.

4.13 Look over Playback Information

1. In MP4/MP3/WMA mode, press the OSD button repeatedly to turn on/off the playback information.

When it is on, it will display the information such as: Track serial number, Track elapsed time, Track remained time, etc.

2. In JPEG mode, press the OSD button to display or disappear the Track serial number.

4.14 Program Playback

It allows you to enter the order in which you want some chapters/tracks in MP3/WMA mode to play.

1 During playback, press the PROG button to enter a program interface as follows:

2 Use the direction buttons to move cursor onto the desired place for inputting the sequence number.

3 Use the number button to input desired sequence number of title/chapter/track with desired sequence.

4 Use the direction button to move cursor onto Play item, then press the OK button to play the

programmed titles/chapters/tracks in programmed order; only pressing the PLAY button also can play the programmed titles/chapters/tracks in programmed order.

* To exit program playback, firstly press the STOP button, then press the PLAY button to enter sequence

playback; or press the PROG button twice again.

* To remove the all programmed sequence numbers, move the cursor onto Clear item, then press the

OK button.

* To change the programmed sequence, move the cursor onto the item you want to change, input the

desired sequence number.

* During JPEG playback, press the PROG button to change the mode of refresh picture.

4.15 Id3 Function

In MP3/WMA mode, during playback, the information of the file name, folder name, song s title, artist

and album will be scrolling on the LCD display.

As long as the current playing Mp3 music contains relevant Id3 tag information in version 1.0/2.0 format,

the 3 items underlined above will be scrolling on the LCD display; otherwise, they will not.

4.16 System Menu Setup Operation

1. Press the SETUP button on the remote controller to access the System Menu on the monitor.

2. There are 6 setup pages in all for the System Menu. Press the > or < button to select an desired

setup page.

3. Press the ^ or v button to select an setup item in the selected setup page.

4. Press the > button to enter the setup item. Then press the v or ^ button to select a desired mode

of the setup item, finally press the OK button to confirm it.

* Press the < button to return to the upper level.

* Press the SETUP button again to exit the System Menu.

For the System Menu, there are 6 setup pages in all. They display as follows:

4.16.1 SYSTEM SETUP

TV TYPE

The setup item is for matching TV screen size.

4:3 PS: Choose the item when connecting a TV set with 4:3 screen. When playing the pictures with 16:9 size,

the left and right parts of the video will be cut out, and display in full screen.

4:3 LB: Choose the item when connecting a TV set with 4:3 screen. When playing the pictures with 16:9 size,

the top and bottom parts of the TV screen will be turned into a black square respectively.

16:9: Choose the item when connecting a TV set with 16:9 wide screen.

DEFAULT

This item is for making all setup items change back to original status.

4.16.2 LANGUAGE SETUP

OSD LANGUAGE

This item is for selecting the language of the SYSTEM MENU and all operating prompt interface

displayed during playback.

AUDIO LANG

This item is for selecting a audio language.

SUBTITLE LANG

This item is for selecting a subtitle language.

MENU LANG

This item is for selecting a menu language.

4.16.3 AUDIO SETUP

KEY

It is for selecting your desired basic music tone(from low to high).

4.16.4 VIDEO SETUP

BRIGHTNESS

It is for adjusting the brightness of the video output.

CONTRAST

It is for adjusting the contrast of the video output.

SATURATION

It is for adjusting the saturation of the video output.

HUE

It is for adjusting the hue of the video output.

4.16.5 SPEAKER SETUP

DOWNMIX It is for selecting your desired sound effect when there is no center speaker and subwoofer. There are 3 modes: LT/RT, STEREO, VSS.

LT/RT: When playing a media with PRO LOGIC Dolby stereo effect, choose the item, so it will

output audio signal with vivid theatre effect.

STEREO: If you choose the item, when outputting audio signal with 5.1 channels, it will output the

left and right channels of signal ; when outputting audio signal with 2 channels, it will output the common 2 channels of stereo signal.

VSS: If you choose the item, when playing a media recorded with 5.1 channels, the main channel speakers can output audio signal with VSS effect.

4.16.6 DIGITAL SETUP

OP MODE

It is for selecting audio output mode

DYNAMIC RANGE

After selecting the compression mode of LINE OUT, set the item, so you can adjust the linear compression ratio. If you set it to be FULL, the Peak-to-Peak value of the audio signal is the minimum; if you set it to be OFF, the Peak-to-Peak value is the maximum.

DUAL MONO

It is for selecting a desired audio output mode for the left and right ways of signal. It is mainly for Karaoke of Ac3. There are 4 modes in all as follows: STEREO, MONO L, MONO R, MIX MONO.

5. BLUE TOOTH HANDFREE SYSTEM

1. Enter Bluetooth mode

When you use MODE button or Mode Menu to enter Bluetooth mode, it will display Bluetooth interface as right.

Press and hold the BAND button to turn on shift then to do select.

2. Pairing and connection

Bluetoot h interface

1) Turn on the Bluetooth mode of the mobile phone;

2) Select the item of Finding the Bluetooth Device and enter it.

After finishing the finding, it will show the name of the Bluetooth Device if finding a Bluetooth Device.

Select it and enter it, then it will show a interface that ask

you to input a password, input the password 0000 and then enter it.

Then it will tell you pair OK.

3) For some mobile phones, they can automatically connect with the

BT device of the car audio system after pairing is ok; for some

NOTE interface

mobile phones, they need to select the paired BT device and press the CONNECTION button. When connection is ok, the LCD of the car audio system will show LINK OK.

* when pairing is failed, press and hold the PAIR button on the remote control to enter pairing mode,

then the LCD will display PAIR START, then pair and connect with mobile phone again.

3. Use the mobile phone to do connection or disconnection

In the connection status, find the paired and connected Bluetooth Device, then press the disconnection

button to do disconnection;

In the disconnection status, find the paired and disconnected Bluetooth Device, then press the

connection button to do connection.

4. In the connection status: the audio of mobile phone transfers to the car audio system whenever

a dialling takes place or receiving a call.

5. Dialling when in connection status

5.1 Dial with the mobile phone directly.

5.2 Dial with remote control with the following procedures:

(1) Input telephone number with number buttons 0-9

* Press CLEAR button briefly to cancel the wrongly input number if necessary

(2) Press TEL briefly to execute the dialling.

5.3 To redial the last phone number dialled

Press REDIAL button briefly or tap the icon to validate the last phone number.

6. Accept/Reject/End Call

6.1 When ringing, press TEL button briefly to accept the call;

6.2 When ringing, press HANGUP button briefly to reject the call;

6.3 When talking, press HANGUP button briefly to end the call.

Note: During ringing, the phone number appears.

6. Trouble Shooting

Please read the user manual carefully before using the this player. If you have any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can not remove the trouble after using all the suggestions, please contact the company or the technical service centre authorized by us. For the sake of your safety, please do not open the cover and repair the player by yourself, if that, it may cause electric shock.

NO PICTURE, SOUND AND INDICATION * Ensure that the power cord is not damaged or the fuse is not blown.

NO SOUND BUT HAVE PICTURE * Ensure that the player’s audio output has a good connection . * Check whether you have turned down the volume. * Ensure that you have set the right AUDIO setup of the player. * Ensure that the audio is not under mute.

NO PICTURE BUT HAVE SOUND * Ensure that the player’s video output has a good connection with monitor’s video input. * Check whether the video connector is damaged. * Ensure that you have set the right VIDEO settings of the player.

FLAWS OF PICTURE OR SOUND * Check whether the setting of AUDIO is right.

REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK * Check the batteries of remote control and make sure that they are to be powerful and good conductivity. * Direct the remote control to the IR sensor of the player. * Check whether there are some obstacles between the remote control and IR sensor.

SOME FUNCTION BUTTONS DO NOT WORK * Turn off the power, then turn on again. * Reset the unit to zero, then turn on again. * Remove the front panel from the unit, then install it again and then turn on again.

THE RADIO DOES NOT WORK * Check whether the antenna cable is connected firmly. Or manually tune for a station.

7. Specification

General Specification

Power Supply Requirement..................................................DC 12V

Maximum Power Output.......................................................4 x 25W

Dimensions(w x h x d)..........................................................178 x 50 x 110mm

USB/CARD Specification

Format....................................................................................MP4/JPEG/MP3/WMA

Output Video System.............................................................NTSC/PAL/AUTO

Audio System.........................................................................24 bit/96KHz

Video Specification

Video Type.............................................................................16:9 and 4:3

Video Output level..................................................................Composite:1.0± 0.2Vp-p

Load impedance: 75 ohms

Audio Specification

Audio Output(Analog audio)...................................................1200mV +/-300

Frequency Response.............................................................20Hz ~ 20KHz(at 1KHz 0 dB)

S/N Ratio(Audio).....................................................................≥90dB(at 1KHz 0 dB)

Separation...............................................................................50dB

Radio Specification

FM Section

Frequency range......................................................................87.5MHz - 108.0MHz

Usable sensitivity......................................................................3uV

I.F Frequency............................................................................10.7MHz

AM Section

Frequency..................................................................................522KHz - 1620KHz

Formats for media player:

Video: Picture: Audio: MPEG-1 JPEG MP3 MPEG-2 WMA Xvid ACC MP4 AC3

CS-440BT

Benutzerhandbuch

4-IN-1 AUTORADIO

MIT KARTE/USB/BT/RADIO

Hinweis: Informationen unterliegen unangekündigten Änderungen

Inhalt

1. Vor der Inbetriebnahme.........................................................................................23

1.1 Sicherheitsvorschriften.............................................................................23

1.2 Batterie der Fernbedienung.....................................................................23

1.3 Fernbedienung........................................................................................24

1.4 Bedienelemente und Funktionen.............................................................25

1.5 Rückseite....................... .........................................................................26

1.6 Installation................................................................................................27

2. Allgemeine Funktionen..........................................................................................28

3. Radiobetrieb..........................................................................................................30

4. USB- und MMC/SD-Wiedergabe........................................................................32

4.1 Pause........................................................................................................33

4.2 Stopp.........................................................................................................33

4.3 Kapitel/Titel mit Pfeiltasten UP/DN auswählen..........................................33

4.4 Kapitel/Titel mit den Nummerntasten auswählen......................................34

4.5 Kapitel/Titel über das Hauptmenü auswählen...........................................34

4.6 Schnelle Wiedergabe................................................................................34

4.7 Langsame Wiedergabe.............................................................................34

4.8 Wiederholte Wiedergabe.........................................................................34

4.8.1 Einen/Alle wiederholen...........................................................................34

4.8.2 Abschnittswiederholung A-B...................................................................34

4.9 Wiedergabe ab einem bestimmten Kapitel/Titel oder Zeitpunkt................35

4.10 Willkürliche Wiedergabe.............................................................................35

4.11 Video/Bild zoomen...................................................................................35

4.12 Untertitelsprache......................................................................................35

4.13 Wiedergabeinformationen anzeigen........................................................35

4.14 Programmierte Wiedergabe.....................................................................36

4.15 ID3-Funktion.............................................................................................36

4.16 Setup des System-Menüs........................................................................36

5. BLUETOOTH FREISPRECHANLAGE...................................................................40

6. Problembeseitigung................................................................................................42

7. Technische Daten....................................................................................................43

1. Vor der Inbetriebnahme

1.1 Sicherheitsvorschriften

1. Lesen Sie dieses Benutzerhandbuch vor der Installation und dem Gebrauch durch.

2. Reinigen Sie Bedienfeld und Gehäuse nur mit einem weichen, trocknen Tuch; keinen Verdünner, Alkohol oder Sprays verwenden.

3. Das Gerät vor Tropf- und Spritzwasser schützen.

1.2 Batterie der Fernbedienung

Batterie der Fernbedienung austauschen

1. Ziehen Sie vor dem erstmaligen Gebrauch der Fernbedienung die Schutzfolie gemäß der Pfeilmarkierung aus der Fernbedienung heraus (siehe Abb. 1).

2. Drücken Sie gemäß der Pfeilmarkierung A auf die Halterung (siehe Abb. 2); ziehen Sie dann die Halterung gemäß der Pfeilmarkierung B aus der Fernbedienung heraus (siehe Abb. 2).

3. Ersetzen Sie die alte Batterie und legen Sie die neue Batterie mit der (+) Markierung nach oben gerichtet ein

(siehe Abb. 3).

4. Schieben Sie die Batteriehalterung zurück in die Fernbedienung zur Ausgangsposition (siehe Abb. 3).

Hinweis zur Batterie der Fernbedienung:

1. Ein unsachgemäßer Gebrauch der Batterie kann zu Überhitzung oder Explosionen führen und dadurch

Verletzungen oder Brände verursachen.

2. Die Fernbedienung kann beschädigt werden, wenn die Batterie ausläuft (Lebensdauer der Batterie: 6 Monate bei normalem Gebrauch und normaler Raumtemperatur).

3. Batterie nicht kurzschließen.

4. Batterie nicht ins Feuer werfen.

5. Batterie von Kindern fernhalten, um Unfälle zu vermeiden.

1.3 Fernbedienung

16. SEARCH

17. RDM

18. RPT

19. SUBTITLE/REDIAL

20. LOUD

21. ST/#

22. ZOOM

23. AUDIO

24. CLK

25. A-B

26. TEL

27. EQ

1. ZURÜCK

2. MENU

3. POWER

4. PFEILTASTE ^

5. >>|

6. PFEILTASTE >

7. |<<

8. PFEILTASTE v

9. SEL

10. PLAY/PAUSE

11. NUMMERNTASTEN (0~10,+10, -10)

12. 10+/PTY

13. SETUP

14. MODE

15. APS/HANGUP

28. LOC/SLOW-FWD/*

29. MUTE

30. STOP

31. VOLUME-

32. PFEILTASTE <

33. OK

34. VOLUME+

35. BAND/SHIFT

36. PROG

37. OSD

38. AF

39. TA

1.4 Tasten und Funktionen

Abbildung der Frontplatte

Abbildung des Gehäuses nach Abnahme der Frontplatte

1. POWER/MUTE

2. MODE

3. PFEILTASTEN UP/DN

4. SEL/VOL

5. LCD

6. REL

7. BAND

8. APS

9.1/PLAY/PAUSE

10. 2/INT

11. 3/RPT

12. 4/RDM

13. 5/-10

14. 6/+10

15. AV-IN BUCHSE

16. USB-PORT

17. Kartenschlitz

18. RESET

19. LED-Kontrollleuchte

20. TA/AF

21. IR-Fernsensor

22. Mikrofon

1.5 Rückseite

RÜCKLEITUNG

GRÜN

RÜCKFAHRKAMERA

Hinweis: 1. Wenn die Parkleitung angeschlossen ist, erscheint nach dem Bremsen das Video auf dem kleinen Bildschirm des

vorderen Bedienfelds.

2. Verbinden Sie die Klemme eines vom Hersteller mitgelieferten Erdungskabels mit der Befestigungsschraube;

verbinden Sie das andere Ende des Erdungskabels mit dem negativen Pol des Netzes. Anderenfalls blinkt das Video möglicherweise auf dem Bildschirm.

Anschluss der Parkleitung an die Handbremse im Auto

Integrierte ISO-Buchse

ANSCHLUSS A

4. Speicher +12V

5. Autoantenne

7. 12V (zur Zündung)

8. ERDUNG

ANSCHLUSS B

1. Rechter Lautsprecher, hinten (+)

2. Rechter Lautsprecher, hinten (-)

3. Rechter Lautsprecher, vorn (+)

4. Rechter Lautsprecher, vorn (-)

5. Linker Lautsprecher, vorn (+)

6. Linker Lautsprecher, vorn (-)

7. Linker Lautsprecher, hinten (+)

8. Linker Lautsprecher, hinten (-)

Damit Discs nicht springen

oder anhalten, befestigen Sie

den Metallbügel an das an

der Autokarosserie befestigte

BEFESTIGEN SIE DAS

TALLGESTELL AN

AUFHÄNGERN DES

UM DAS GEHÄUSE AUS DEM VERSCHIEBBAREN

METALLGESTELL HERAUSZUZIEHEN, SCHIEBEN SIE

DAS LINKE UND RECHTE SCHLÜSSELSCHILD IN DIE

1.6 INSTALLATION

INSTALLATIONSANLEITUNGEN

Dies ist eine diebstahlsichere Installation. Das Gehäuse hat ein verschiebbares Metallgestell. Nehmen Sie die Anschlüsse ans Netz, der Lautsprecher und der Antenne gemäß den Anleitungen vor; installieren Sie dann gemäß der Abbildung das Metallgestell im Auto.

METALLBÜGEL

Metall

GEHÄUSE DES GERÄTS

PLASTIKVERKLEIDUNG

ARMATURENBRETT

VERSCHIEBBARES METALLGESTELL

BEIDEN SEITEN DES GEHÄUSES

SD/MMC-KARTE

ME DEN ENTPSRECHENDEN

GESTELLS.

FRONTPLATTE

2. Allgemeine Funktionen

1. Gerät ein-/ausschalten

Wenn das Gerät aus ist, drücken Sie die Taste POWER, um das Gerät einzuschalten.

Wenn das Gerät an ist, halten Sie POWER an der Frontplatte gedrückt oder drücken Sie kurz die Taste

POWER auf der Fernbedienung, um das Gerät auszuschalten.

2. Einen Betriebsmodus einstellen

Wählen Sie durch Drücken der Taste MODE den Modus TUNER, USB

(nach Anschluss eines USB-Geräts),Card (nach Anschluss einer MMC- oder SD-Karte), AUX oder BLUETOOTH.

Halten Sie die Taste BAND gedrückt, um Shift zu aktivieren; wählen Sie

durch Drehen des Lautstärkereglers oder mit den Pfeiltasten UP/DOWN einen Betriebsmodus. Sie können einen Betriebsmodus auch mit den Pfeiltasten einstellen und mit OK bestätigen.

Wählen Sie während der Wiedergabe , um zum Hauptmenü zurückzukehren.

Halten Sie die Taste MODE gedrückt, um das Display auszuschalten; das Gerät bleibt eingeschaltet.

Drücken Sie eine beliebige Taste zum Einschalten des Displays.

3. Lautstärke einstellen

Drehen Sie den Lautstärkeregler VOL oder drücken Sie die Tasten + oder - (oder gedrückt halten) zum

Einstellen der Lautstärke.

4. Ton ausstellen

Drücken Sie die Taste MUTE auf der Fernbedienung, um den Modus MUTE ein-/auszustellen. Wenn Sie die Taste POWER an der Frontplatte kurz drücken, können Sie MUTE ebenfalls ein-/ausstellen. Deaktivieren Sie MUTE mit folgenden Reglern/Tasten: VOL, + , - und SEL.

5. Uhrzeit anzeigen und einstellen

Drücken Sie CLK, um die Uhrzeit auf dem kleinen Bildschirm der Frontplatte anzuzeigen. Halten Sie CLK gedrückt und stellen Sie dann die Uhrzeit durch Drehen des Lautstärkereglers VOL oder mit

den Tasten + und - ein.

Die Uhrzeit kann auch im Modus SETUP eingestellt werden.

6. Equalizer auswählen

Drücken Sie die Taste EQ, um einen voreingestellten Equalizer auszuwählen: FLAT, CLASSIC, ROCK, POP,

EQ OFF. Der Toneffekt wird geändert.

7. Frontplatte abnehmen

Drücken Sie die Taste REL an der Frontplatte, um die Frontplatte zu lösen und vom Gerät abzunehmen.

8. LOUDNESS ein-/ausschalten

Drücken Sie die Taste LOUD, um den Modus LOUDNESS ein- oder auszuschalten. Im Modus LOUDNESS wird der Bass, falls er nicht ausreichend ist, erhöht.

9. Zurück-Taste

Drücken Sie die Taste , um zum vorhergehenden Menü zurückzukehren. Drücken Sie die Menü-Taste

solange, bis Sie zum Hauptmenü zurückgekehrt sind.

10. Gerät zurücksetzen

Wenn die Displayanzeigen falsch sind, die Funktionstasten nicht funktionieren oder der Ton gestört ist,

drücken Sie REL, um die Frontplatte abzunehmen, und drücken Sie dann mit einem zugespitzten Gegenstand die Taste RESET, um die Werkseinstellungen und alle Funktionen wiederherzustellen.

11. Tonmodus ändern

Drücken Sie wiederholt die Taste SEL, um einen der folgenden Tonmodi einzustellen: VOL, BAS (ohne

EQ), TRE (ohne EQ), BAL, FAD ; stellen Sie die Werte mit dem Lautstärkeregler VOL oder den Tasten + und - ein.

12. Setup

Im Modus Setup können Sie Einstellungen an folgenden Optionen

vornehmen: GENERAL, TIME, AUDIO, VIDEO, RADIO:

GENERAL SETUP Wallpaper: Einstellungen für den Hindergrund des Bildschirms vornehmen. Logo: Anfangsanzeige auswählen. Beep: Tastenton ein-/ausschalten.

CLOCK SETUP Clock time: Uhrzeit einstellen.

AUDIO SETUP Loud: Loudness EIN/AUS stellen. EQ: Auswahl unterschiedlicher Equalizer.

VIDEO SETUP Helligkeit Kontrast Sättigung Farbe

RADIO SETUP Radio region: Radiozone auswählen. RDS setting: EIN/AUS

Hinweis: Halten Sie die Taste BAND gedrückt, um SHIFT zu aktivieren; wählen

Sie mit dem Lautstärkeregler VOL eine Funktion. Bestätigen Sie Ihre

Auswahl mit SEL. Sie können die Auswahl auch mit den Pfeiltasten vornehmen.

+ 83 hidden pages
