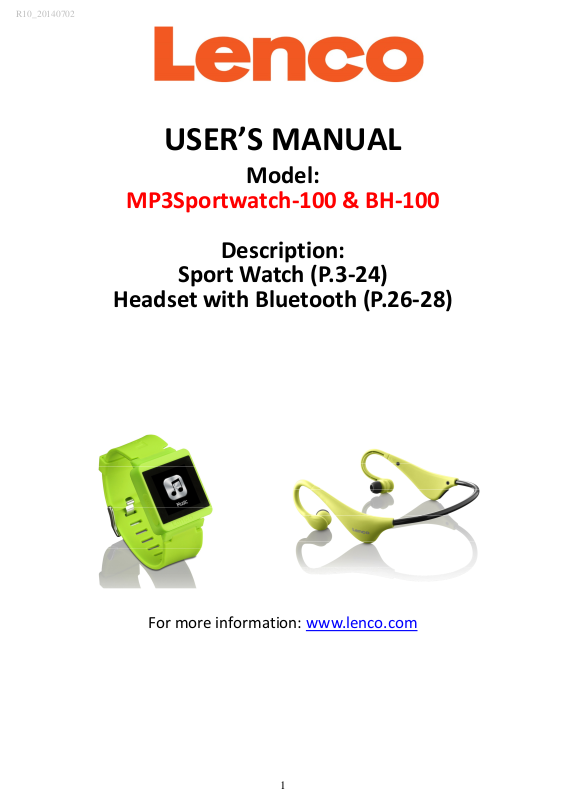

USER’S MANUAL

Model:

MP3Sportwatch-100 & BH-100

Description:

Sport Watch (P.3-24)

Headset with Bluetooth (P.26-28)

For more information: www.lenco.com

R10_20140702

WARNING:

When participating in the traffic listening to a

potential dangers such as approaching cars.

WARNING:

To prevent possible hearing damage, do not listen at

Cautions

• Do not place naked flames, such as lighted candles on or near the product.

• Do not place objects filled with liquids, such as vases on or near the product.

• Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.

• Do not use this product with wet hands.

• Do not clean this product with water or other liquids.

• Do not block or cover the slots and holes in the product.

• Do not push foreign objects into the slots or holes in the product.

• Do not attempt to open this product yourself. There are no user

serviceable parts inside.

• Do not allow children access to plastic bags.

Safety Warnings

• Before using this product, read and follow all warnings and instructions.

• This product is not intended for use by young children. Young children

should be properly supervised.

• This product is intended for household use only and not for commercial or industrial use.

• Do not expose to dripping or splashing.

• No naked flame sources, such as lighted candles, should be placed on the

product.

• Ventilation should not be impeded by covering ventilation openings with items such as newspapers, table cloths, curtains and the like.

• Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

We, suggest retaining the packaging in case for future transport of the product.

If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators).

personal music player can make the listener less aware of

high volume levels for long periods.

R10_20140702

tem

Description

1 TFT With Touch Function

Capacitive Touch Panel

Button

For Volume Up / Value

Button

For Volume down / Value

Button

For Power On/Off, Mode, Reset

5 3.5mm Earphone Jack

For Earphone Set

6 Micro USB Port

For PC Connection / Charge

7 Splash Proof Cover

8 Clip

A. Get to know the controls on Player

B. About Player Battery

Player has an internal, non–user-replaceable battery. For best results, the first time you use player, let it charge for about 2 ~ 3 hours or until the battery status icon in the “Connect” screen shows that the battery is in full.

Battery is full

Note: Player may continue use battery power after it’s been turned off. For maintain the battery life and performance, if unit isn’t used for a while, the battery need to be recharged, recharging the battery at least once per month.

1. Charging the Battery:

You can charge the player battery in two ways:

 Connect player to your computer. Or,  Use the USB power charger. (not included)

2. Connection and Charging:

R10_20140702

 Once you have connected player with computer / power charger, then you

will see the “PC Connection” or “Battery Charging” screen appear for view;

PC Connection Battery Charging

 For PC connection screen: the player is connecting with computer for

data’s transfer and the battery is charging in background.  For Battery Charging screen: the energy level is running in battery icon,

the battery is in charging. The energy level will show full when the battery

is fully charged.

In Charging

Important: The battery does not charge when your computer is in sleep. The USB port on most keyboards does not provide enough power to charge the player. Connect player to a USB 2.0 port on your computer only to prevent charge problem.

C. Connecting and Disconnecting Player

1. To Connecting Player:

 To connect player to your computer, plug the connector of USB Cable into

a USB port on your computer, and connect the other end to player, then

the computer will detect and install the driver automatically. Once the

installation is complete the player will be displayed in“My Computer”

or for MAC users on the desktop.  The player is ready for media files transfer with your computer and the

battery is charging when “PC Connection” screen is showing.  Now you can transfer the media files by using the computer mouse use

drag and place, or copy and paste, in between the player and your

computer.

2. To Disconnecting Player:

It’s important not to disconnect player while it’s syncing or transferring files. Eject the player before disconnect it.  To eject player, press the M button, the “PC Connect” screen will eject and

switch to “Battery Charging” screen.  Press the M button once again to switch to “Main Menu” screen for

function operation mode.  And now is safe to disconnect the player with your computer. Unplug the

USB cable from the player.

R10_20140702

Item

Touch Function

Function Description

1 Slide

to up on screen

List / Page Up, Vol. /

Value

2 Slide

to down on screen

List / Page Up, Vol. / Value

3 Slide

to left on screen

Move Next, Call folder / file list (if have),

4 Slide

to right on screen

Move Back, E

xit to Previous interface

/ Menu

5 Tap the item / icon/ on screen

Open, Enter,

Select, Play/Pause,

6 Tap and hold file / item on screen

Delete (if applicable)

Tap this icon

From play to pause

Tap this icon

From pause to play

Tap this icon

Back

Tap and hold this icon

Fast

Backward

Tap this icon

Tap and

hold this icon

Fast

Forward

Item

Key Function

Function Description

Press this button

Volume / Value

Press and hold this button

Volume / Value

continually

Press this button

Volume / Value

Press and hold this button

Volume / Value

continually

Press this button

Wake up from clock / Clock, Interface display

Press and hold this button

Power On / Off

Press and hold 10s~ 12s

Reset the Player

 Or, if you’re using a Windows PC, you can also eject player in My Computer

or by clicking the “Safely Remove Hardware” icon in the Windows system

tray, select the correspondence name of USB Device and choose “Stop” >

choose “Confirm” > choose “Confirm” follow by the pop-up windows

you’re your computer.  Or, if you’re using a Mac, you can also eject player by dragging the player

icon on the desktop to the Trash.  Disconnect the USB cable from the player and computer, simply remove

it.  If you accidentally disconnect player without ejecting it, reconnect it to

your computer and sync again. However, some media file may loss.

D. General Touch and Key Function Table:

E. Getting Start the Player

1. Power ON / OFF the Player

 To power “ON” the player, press and hold the button for 2 ~ 3

seconds and you will see any one of the Main Menu “Bluetooth / Music /

Video / Pedometer / Picture / Explorer / Setup” will appear on TFT after

the Loading/Opening screen have displayed.  To power “OFF” the Player, press and hold the button for 2 ~ 3

R10_20140702

seconds.

“Main Menu” screens

F. Use Setup Menu

You might need to set date & time or change some default setting as you desired in setup menu before you start to use the player.  To go into setup menu, from main menu, choose “Setup” by slide to left /

right on screen, then tap the “Setup” menu icon, a “Settings” list appears

to use;

Page 1 Page 2 Page 3

Note:

 To move list’s item up or down, slide to “Up / Down” on screen.  To go back to previous menu, slide to right on screen.

1. Time

 Tap the “Time” item to set date and time, a time set interface appear to

set;

If tap

 Set year for example, tap the “Year” box and it will highlighted in red color.

Then press / button.

R10_20140702

 Tap / icon or tap the rest items “Month / Day / Hour / Minute /

Second” box, to adjusting them to current date and time by the same

methods.  Tap icon to confirm those adjusted values. If not, the date and time will

not store after you have exited.

2. Clock Style

 Tap the “Clock Style” > tap “Digit Clock” or “Analog Clock” display which

you like.

“Digit Clock” Display “Analog Clock” Display

3. Music

 Tap the “Music” item > tap “Repeat Mode / Play Mode / EQ Select”, a

submenu list appear to choose;

a. Music Repeat Mode:

 Tap “Repeat Mode” > Tap “Repeat One / Folder Repeat / All Repeat”

which you desired.

b. Music Play Mode:  Tap “Play Mode” > Tap “Order / Shuffle” which you desired. c. Music EQ Select:

 Tap “EQ Select” > Tap “Normal / Rock / Pop / Classic / Bass / Jazz” which

you desired.

4. Picture Settings

 Tap the “Picture Settings” item > tap “Auto Play Time”, a submenu list

appear to choose;

 Then, tap “2s / 4s / 6s / 8s / 10s” > which you desired.

5. Display (also touch screen lock)

 Tap the “Display” item > tap “Blight Time (backlight time) / Lum

(Luminance) ”, a submenu list appear to choose; a. Blight Time:

 Then, tap “Blight Time” > tap “5s / 10s / 15s / 20s / 30s / Always On” >

which you desired. (Factory defaulted at 15s)  Besides, the touch screen will be locked at every time the backlight goes

to “Off” according to the time from 5 ~ 30 seconds what you selected.  If “Always On” chosen, the backlight will not go dark and the screen lock

will not activate. However, battery energy will running empty fast

depending on which operation mode is in running.

b. Blight Time:  Tap “Lum” > tap “1 / 2 / 3 / 4 / 5” bright level which you desired.

R10_20140702

6. Power Off

 Tap the “Power Off” item > tap “OFF / 10 / 15 / 30 / 60 / 120 Minutes”

which you desired;

 Choose “OFF” to disable the sleep timer function.  Choose “10 ~ 120 minutes” time to enable the sleep timer function, the

Player will be turned power to “OFF” according to the selected time.

7. Language:

This player can use difference OSD languages.

 Tap the “Language” item > tap which language as you desired.

8. Step Profile (for Pedometer)

 Tap the “Step Profile” item > tap “Weight / Step Size/Height” which you

desired, a submenu list appear to choose;

a. Weight:  Tap the “Weight” item > tap “30kg ~ 39kg / 40kg ~ 49kg / 50kg ~ 59kg /

60kg ~ 69kg / 70Kg ~ 79kg / 80kg ~ 89kg / 90kg ~ 99kg / 100kg ~ 109kg /

110kg ~ 109kg / 110kg ~ 119kg / 120kg ~ 129kg / 130kg ~ 139kg / 140kg

~ 150kg” which you desired. b. Step Size:  Tap the “Step Size” item > tap “30cm ~ 39cm / 40cm ~ 49cm / 50cm ~

59cm / 60cm ~ 69cm / 70cm ~ 79cm / 80cm ~ 89cm / 90cm ~ 99cm /

100cm ~ 119cm / 120cm ~ 129cm / 130cm ~ 139cm / 140cm ~ 149cm /

150cm ~ 159cm / 160cm ~ 169cm / 170cm ~ 179cm / 180cm ~ 189cm

190cm ~ 200cm” which you desired. c. Height:  Tap the “Height” item > tap “100cm ~ 109cm / 110cm ~ 119cm / 120cm ~

129cm / 130cm ~ 139cm / 140cm ~ 149cm / 150cm ~ 159cm / 160cm ~

169cm / 170cm ~ 179cm / 180cm ~ 189cm / 190cm ~ 199cm / 200cm ~

209cm / 210cm ~ 219cm / 220cm ~ 229cm / 230cm ~ 240cm” which you

desired.

9. System

 Tap the “System” item > tap “About / Default Set” which you desired; a. About:

 Tap the “About” item, wait for seconds, the player information; such as,

firmware version and date created, used memory and remaining memory

space available will appear to view.

b. Default:  Tap the “Default Set” item, wait for seconds, a dialog box with warning

“Restorable?” appear to confirm;

 Tap “Yes” to confirm and the above mentioned settings to be restored back

to factory default settings.

 Tap “No” to abort.

G. Use Music Menu

R10_20140702

You can use this music player to playback with almost full format of music file of audio coding. To open the music player in Main Menu:  From main menu, choose “Music” by slide to left / right on screen, then

tap the “Music” menu icon, a “Music Now Playing” interface appears to

use and a music file is starting to automatically;

1. Play / Pause Music

 In music now playing interface;  Tap icon to pause the playing music.  Tap icon for play the music from pause.

2. Play Next / Previous file

 Tap icon to play next file.  Tap icon to play previous file.

3. Play Fast-forward / Fast-backward

 Tap and hold icon to play fast-forward.  Tap and hold icon to play fast-backward.

4. Adjust volume level

 In Music Now Playing interface, press or pressing the / button to

decrease / Increase the volume level.

 In dark screen mode, the / button is only allow to adjust the

volume up to default level. Press button to unlock the touch screen to countinue for increase the volume if you want.

For hearing protection; a display warning pop-up on TFT screen when every time you increase the volume level and reach to the default setting level which may exceed 85dB. Tap the relevant showing icon on screen to accept the warning and enter/continue into the volume control for increase the level and until to maximum.

5. Lyric Display

This player supports “*.LRC” lyric files and lyrics can synchronous displayed while playing music if you music file has lyric file included together.  Make sure the music file name and “*.LRC” file name must be same and

upload into player together.  When the playing music included with lyrics file, then the lyrics display

mode will switched on automatically and the lyrics will display at the music now playing interface as follow show:

R10_20140702

6. To Call Out Music File List

 In Music Now Playing interface, slide to left on screen, a “Music File” list

appear to use;  Then slide to up or down on screen to page up/down the list for select the

desired music which you want to play.  Tap the desired music name’s file to choose and start the play.

H. Use Video Menu

 From main menu, choose the “Video” by slide to left / right on screen,

then tap the “Video” menu icon, a “Video File” list interface appears to

use;

 In video file list interface, slide to up or down on screen to page up/down

the list for folder and file selection. (Make sure you know which folder(s)

are contains supported “AVI” video file. If not, no video file will show out

when you entered the selected folder)  Slide to right on screen to go back to previous list, or slide to up / down on

screen to move up or down the list when necessary.

 Once files are located, tap the desired file to start the play, a “Video Now

Playing” interface appear and the video is in playing.

 The video now playing interface will close in 6 seconds and it will appear

again each time you tap the screen.

1. Play / Pause Video

R10_20140702

 In video playing mode;  Tap the center of screen to pause the playing video. Also, the Video Now

Playing interface is appearing.  Tap the center of screen to play the video file from pause.

2. Play Next / Previous file and Fast-forward / Fast-backward

 Call out the video now playing interface. Then;  Tap icon to play next file.  Tap icon to play previous file.  Tap and hold icon to play fast-forward.  Tap and hold icon to play fast-backward.

3. Adjust volume level

 In video playing mode, press or pressing the / button to decrease

/ Increase the volume level.

4. Stop and Exit from Playing

 In video playing mode;  Slide to right on screen to stop the playing video and the screen will switch

back to video file list interface.  Slide to right on screen again to switch back to main menu.

I. Video file conversion

The Player supports video file in “AVI” format (max. 128x128, 15fps). If

your video file is different or you found format error, convert it to the correct format through the included “AVI Video convert Tool” as follows:

1. What format files can be converted by the AVI Video Converter:

This tool can converted the video files of the following formats:

 AVI  MP4  RM / RMVB  WMV  MPEG  ASF  MKV

(Choose MKV file in File Type box instead of choose All file, since all file is not included MKV inside)

 DAT (VCD)  VOB (DVD)

Important: For Video Conversion, please make sure you have installed Microsoft DirectX 9.0 or above. When to convert Real Media, QuickTime,

R10_20140702

MPEG format video files, please install related DirectShow filter at first. Otherwise, AVI Converter cannot work normally. For Media Manager in Windows XP and Windows 2003, please make sure you have installed Microsoft Media Player 10.0 or above, and Microsoft .NET framework 3.0.

2. Program installation and use

 The AVI Video Convert Tool is stored on the device’s memory, or on the

provided CD, in a folder named “UTILITIES > Video Conversion Software”. Download it onto your computer for copy, and then install this tool on computer directly.

 Open the “Video Conversion Software” folder, select and double click the

“Setup.exe” (Example: Nano 1.1.x Setup.exe (or higher)) to run the setup

program. And then follow the instructions appears on screen to install the program into your computer.

 After installation is completed, select and double click the “AVI Converter”

icon, the following program window will appear on the computer screen:

 Click “Add” button, and the following additional dialog box will appear:

R10_20140702

 Make sure resolution of AVI is selected to “128x128”, if not, click on the

button at right and change it to 128x128”.

 The Quality of AVI in Setting is defaulted at “High”. You can change it, by

click on the button at right, to “High / Normal / Low” if you want.

 The Aspect Ratio of AVI in Setting is defaulted at “Full”. You can change it,

by click on the button at right, to “Full / 4:3 / 16:9” if you want.

 Choose the location or folder where to save the converted AVI files, click

the “Target File Path” button (the button right next at the item). A dialog box will appear, choose your desired location or folder and then click “OK” to complete the changes.

 Choose the folder and file where the original video file are, click the

“Source File” button (the button right next at the item). A dialog box will appear, choose your desired folder and file, and then double click the selected file, or click “Open” to complete the select.

 Click “Save” and then “Close” button to confirm, the additional dialog box

will closed and then you will see the selected source file is appeared in the program window.

 Click “Convert Now” button to start the video conversion. The conversion

is in progress and you will see the status of percentage is showing on the program window.

 Click “Del” button to delete the selected source file from the program

window.

 Click “Close” button to exit the program after you have finished the

conversion.

 And now the converted AVI file(s) is ready to transfer, you can simply copy

and place those converted AVI files to the Player.

Attention:

For running this program in Window 8 PC, please change the properties of Run Compatibility settings by the following method after installed this Video

R10_20140702

Conversion Software before use it.

 Move the mouse allow on this program icon which in desktop, then right

click mouse button, a “dialog window” pop up for use;

 In Compatibility mode window, click the box of “Run this program in

compatibility” for and chose “Window 7”;  In Settings window, click the box of “Run this program as an

administrator”;

 Then select Apply and OK to confirm and exit from dialog window.

J. Use Pedometer Menu

Before you start to use the pedometer interface, make sure you have set

the “Step Profile” at Setup menu’s item “F.8.” which mentioned above in Setup menu.

1. Setup your Step profile:

 Open the “Setup” menu > tap “Step Profile” > “Weight / Step Size / Height”

and input the following:

a. Weight:

 According to your known personal weight, tap the suitable range

(example: 70 ~ 80Kg) and store into setup menu by tap on it item.

b. Step Size (Stride length):

 According to your known personal step size, tap the suitable range

(choose 80 ~ 89cm example refer to “Stride Length Measurement” as illustrated below) and store into setup menu by tap on it item.

Example for Step Size measurement

R10_20140702

- Walk / Run 10 steps with your normal stride as illustrated below;

- Measure the distance from START to END in centimeter (cm). Then

calculate your stride length by dividing the total distance by 10. Example:

- Total distance = 800 cm;

- 800 cm ÷ 10 steps = 80 cm (average per stride).

c. Height:

 According to your known personal height, tap the suitable range

(example: 180 ~ 189cm) and store into setup menu by tap on it item.

2. Setup your Step mode:

 Open the “Pedometer” menu, a “Pedometer” interface appear > then

slide to left on screen to call up the submenu, the item’s “History / Walk /

Running” appear to choose;

 Then, tap the “Walk” or “Running” mode which you going for the

pedometer count as you desired and the screen will switch back to

pedometer interface. Now, the pedometer function is ready to start.  To check the current step mode, slide to left on screen to call up the

submenu again, the current step mode is marked with the icon.

3. Start Pedometer Counts Function

 In Pedometer interface, tap the

icon to enter and start pedometer

counts function when settings are completed, the pedometer counts

R10_20140702

Place the

player

Waist

band

Place the

player

in your pocket

pants, to prevent sitting on it.

display is appearing and time is start running, from “00:00:00”.  At same time pedometer sensor is starting to counts your move. Now you

can start the walk or running as you chosen.  Those wanted information; such as: Steps, distance, calorie burned and

Speed (average speed per Hour), are showing on pedometer counts

display screen for view.

4. Stop Pedometer Counts Function & Save Record

 In Pedometer interface, tap the icon to stop and reset the pedometer

counts function. All the values on items are reset to “0” and the “Stop”

icon is switched back to “Start” for next count if you want.  At the same time, the pedometer counts record is saved with file name

“YY.MM.DD_HH.MM” (the date & time to stop pedometer counts) in

history menu for you look up later. And, maximum 20 records are allowed

to storing in memory. Moreover, the new records will overwrite the old

Records automatically if it over 20.

5. View History Records and Delete Record

a. To View History Record:

 In Pedometer interface, slide to left on screen to call up submenu > then

tap “History” to look up your pedometer counts record(s), a history list

appear to choose;  The file record number from “01 ~ 20” with name “YY.MM.DD_HH.MM”

will show in list. To move record’s item up or down, slide to “Up / Down”

on screen.  Tap the wanted record name to enter the history display to view the

pedometer counts record. (01 is newly record)  Slide to right on screen to back previous menu, and tap the item on screen

to enter the items or menus as desired.

b. To delete the unwanted History record:

 In history list interface, tap and hold on item which you want to delete,

then a warning dialog box with “Del” appear to confirm;

 Tap “Yes” to confirm. Or, tap “No” to abort. c. Attaching the player for pedometer

 Put the unit on your waistband and adjust it to

comfortable position.

 Do not place the unit in the back pocket of your

R10_20140702



Close the

zipper / button of your pocket (if

Hanging the

player

from your neck

Place the

player

Watch

band

The unit may not count steps correctly in the following conditions:

The unit is not positioned correctly.

The unit moves loosely.

bag (not in a horizontal or vertical position).

available) to prevent the unit from dropping.

 Attach a secure lanyard or string to the unit.

(not provided)

 Place the lanyard around your neck and hang

the unit as illustrated.

NOTE: Make sure the lanyard / string is correctly sized to easily remove the unit from around your neck. If used hanging around neck, the lanyard / string can cause strangulation. Do not place the unit with lanyard / string around a child’s neck.

 If you want the player as watch’s pedometer,

please note the following:

 To correctly calculating the number of steps, the

player must be worn on the hand by use the watchband (provided), put Player’s back cling to your skin, and let your arm swing freely.

 The built-in sensors will detect the movement of

your arm to determine if you are running or walking. Therefore, often to watch the pedometer record or clock time may affect the pedometer counts detects while you are in walking or running, please keep your arm movement in natural swing.

 When the front of the main unit is placed in the

angle of less than 60° or horizontal to the ground.

NOTE: The unit can count steps even if it is slanted or placed upside-down, or if the main unit is perpendicular to the ground.

 When the unit is loose or flat in your pocket or

R10_20140702



When the unit swings from your belt, the top of

Up and down movement.

Walking at an inconsistent stride.

Vibrations from a

moving vehicle.

your pants or a bag.

 Standing up and/or sitting down movement.  Playing sports other than walking.  Ascending or descending movement at stairs or

in a steep slope.

 When you shuffle or wear sandals.  Starting and stopping or other forms of

inconsistent walking.

 Walking extremely slowly.

 Such as riding a bicycle, automobile, train or

bus.

K. Use Picture Menu

 From main menu, choose the “Picture” by slide to left / right on screen,

then tap the “Picture” menu icon, a “Picture File” list interface appears to

use;

 In picture file list interface, slide to up or down on screen to page up/down

the list for folder and file selection. (Make sure you know which folder(s)

R10_20140702

are contains supported picture files. If not, no picture file will show out

when you entered the selected folder)  Slide to right on screen to go back to previous list, or slide to up / down on

screen to move up or down the list when necessary.  Once files are located, tap the desired file to start the play, a Picture Now

Playing interface appear and the picture is displaying.

1. Play Next / Previous file

 In picture now playing mode;  Slide to up on screen to play next file.  Slide to down play previous file.

2. Play / Stop Slide Show Function

 In picture now playing mode;  Tap the center of screen to start the play for slide show, and the picture

will change to next automatically. (Refer to the “Auto Play Time” of picture

settings which set in Setup menu)  Tap the center of screen again to stop the slide show.

3. Exit from Playing

 In picture now playing mode;  Slide to right on screen to stop the play and the screen will switch back to

Picture file list interface.  Slide to right on screen again to switch back to main menu.

L. Use Explorer Menu

The Explorer function allows you to select and direct play those media files

in Player’s root directory and in your created folder(s). To do this:  From main menu, choose the “Explorer” by slide to left / right on screen,

then tap the “Explorer” menu icon, a “Folders and or Files” list interface

appears to use;

Show icon = music file, icon = video file, icon = picture file.

 In list interface, slide to up or down on screen to page up/down the list for

folder and file selection. Then tap the desired folder name to enter and

view the file(s).  In file’s list screen, slide to right on screen to exit to previous list for

selection, or tap the desired file to start the play.  One desired file is chosen, the file will play automatically by the relevant

interface program.

R10_20140702

 In Now Playing interface, press or pressing the function’s key and or tap

the relevant icons, or slide to Up / Down / Left / Right on screen for the

wanted function. (refer to item D above mentioned functions for reference)

M. Use Bluetooth Menu

 In music playing mode (playing a music), then go to Bluetooth menu, tap

it to enter into Bluetooth interface.

1. Turn ON and OFF the Bluetooth Function:

 Tap the “OFF” icon on screen, the Bluetooth is turning into “ON” and a

message “Please wait …!” pop up on screen. For few seconds, a “Paired”

interface show “ON” will appear to use;

 To turn “OFF” the Bluetooth Function, tap the “ON” icon.

2. Search and Pair with Bluetooth receiver device:

 Before pairing, please make sure your Bluetooth Receiver Device supports

Bluetooth A2DP profile.

 Keep the device in 1 meter of your Bluetooth receiver device.  Switch on your Bluetooth receiver device and enable it to searching /

pairing mode.  Then, in Paired interface, tap “Scan” icon or slide to left on screen, to start

the scanning function, for approximately 10 ~ 30 seconds; an “Available”

list with found device’s name will appear to choose for pairing.  Tap the wanted “Device Name” in list on screen for pairing, page up the

device name list for looking your desired name of device when necessary,

wait for few seconds both device should be paired, the current playing

music will play automatically from your Bluetooth receiver device, and a

Bluetooth icon “ “is displaying at the right side of chosen device item in

list. Both devices are paired.

3. Change playing music file:

 In Bluetooth transmitting mode, exit and go into Music Now Playing

interface for change the playing file if necessary.

 In Music Now Playing interface, tap / icon for changing play file.  Tap / icon for pause or play the music.

4. Disconnect with Connected Bluetooth device:

 In Paired interface, tap the item of connected device name in list, a dialog

box “Disconnect?” appear to confirm. Tap “Yes” icon to confirm, or “No” to abort.

5. Unpair with Connected Bluetooth device:

 In Paired interface, tap and hold the item of connected device name in list,

a dialog box “Unpair?” appear to confirm. Tap “Yes” icon to confirm, or “No” to abort.

Bluetooth Function Limitation:

1. Due to the resources control, when you turn the player into Bluetooth audio transmitting mode, the Video, Picture, Explorer menu etc… cannot be used.

R10_20140702

2. EQ will lock as default effect even you want to change it.

3. Every time power Off the device, Bluetooth will be turned Off for energy saving. If you want it again, turn On the Bluetooth function after power On the device.

N. Clock and Interface Display:

This Player can turn to clock watch style if install it into the watchband (provided). Furthermore, the device will display clock’s time as priority, you can simply:  Press or pressing the button to switch over in the clock and interface

display if you want when the Player is in operation mode.  If the Player is in dark screen mode (touch screen locked), press once the

button to wake up it from dark and the touch screen is unlocked at the

same time.  Then press the button again, or tap the center on screen, to enter into

main menu or current interface display which in using.

Note:

1. Recommended to turn OFF the Player when you not use it for saving the

battery energy, because the player still using certain battery energy if it still in operation and or dark mode.

2. For Clock display with power saving mode, In battery fully charged, the

battery can last for 40 ~ 48 hour then the device will turn to Off automatically and running for clock backup mode (the clock running in background).

3. When turn to clock backup mode, the battery can last for more than 3

weeks. You need to recharge the battery within this period for maintain the battery energy.

O. Reset Device

In some circumstances, the device may encounter dead halt during use.

Reset Player by the following method:  Press and hold the button for 10 ~ 12 seconds, the device will switch

to “OFF” from hanging screen if it is in operation mode, the player is reset.

Then again, press and hold the button for 2 ~ 3 seconds to turn “ON”

the Player for operation.  The reset function will working only when the device is in hanging. The

button normally working as power ON and OFF function if you press and it

for some seconds.

Important: Do not reset the device if it is proper working.

R10_20140702

Unit can

not

turn ON

* Check battery is it charged with enough energy.

* Player cannot turn On if Battery energy is too low.

No sound is heard

Check

whether Volume is set “0” and connect the

not corrupted.

Characters in LCD

are corrupt

Check whether the right language has been

selected.

Download of media

Check whether USB cable is damaged and is

Check whether the player’s memory is in full.

Bluetooth

can’t pair

Bluetooth

receiver

Make sure Bluetooth

receiver supports A2DP.

connection distance in 5

– 10 meters.

Install

P. Install / Remove with Watchband

Remove

Q. Splashproof Handling:

4. The Sport Watch can handle a brief jet of water on its surface (IPX4 Splash

Proof). However, it should never be operated under running water and under no circumstance it should never be fully immersed in water. Make sure that the splash proof Rubber Seal Cover it tightens closed at the right position.

5. Always wipe the Sport Watch surface thoroughly if it becomes wet with

moisture or water splashes. This will help to prevent the internal parts of the unit from entry of water and possible moisture damage.

R. Trouble Shooting

from headphone.

headphone plugs firmly. *Check whether the headphone plug is dirty. *Corrupted MP3 may make a static noise and the sound may cut off. Make sure that the music files are

files fails.

connected properly. *Check whether driver is installed correctly.

and connect to a

*Make sure Bluetooth receiver is placed within

R10_20140702

device

*Make sure Blu

etooth

receiver has already entered

into pairing mode.

Where can I find

updates &

download?

Check for latest Software update at

http://www.lenco.com/support/firmware/

Dimension

mm (H) x

40.3 mm (W) x

18.0

(D)

Weight

26g

LCD

1.41 inches

, Resolution

(RGB)

128

PC connection

USB

2.0

Earphone Impedance

32 Ohm

Internal Memory

See carton

or giftbox

Lithium

3.7V,

Max. Play Time:

saving mode.

Specification

V2.1

+ EDR

Frequency

2.402 GHz

~ 2.480

GHz

Profile

A2DP, AVRCP

RF Transmit Power

Class II

Transmission

Supported Audio only

Connection Distance

In 10 meters (open area)

Earphone Output

2mW

x 2

at 32

Ohm

Frequency Responses

100

Hz to 20

KHz

SNR

> 70dB

MP3,

WMA

32Kbps

–

320kbps

MP1, MP2,

APE,

FLAC, WAV,

Movie Format

AVI

Max. 128x128 15fps

(

Need

video

conversion

)

Sensor

3 Axis Accelerometer

Display

Steps Record, Distance,

Burned and Time used

S. Frequently Asked Question

T. Specification

Battery

Bluetooth

Audio

 10~12 Hours for music at power saving mode.  4~5 Hours for movie.  5~6 Hours for Bluetooth Transmission at

power saving mode.

 40 ~ 48 Hours for Clock display at power

Music Format

Pedometer

Average Speed, Calories

R10_20140702

(by calculation)

Picture Format

JPEG, BMP

Water Resistance

IPX

4 (

Splash Proof

)

Operating Temperature

0 to 40

Operating System

Window 2000/XP/Vista

/Win7. Or,

Mac 9.2

and

above

℃

U. Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual

R10_20140702

①

HEADSET OVERVIEW

Power switch

②

Volume up & Next song

③

Volume down & Previous song

④

Microphone

⑤

LED Indicator Light

⑥

Charging socket

OPENNING INSTRUCTIONS

Charging the headset

1.Your headset uses a rechargeable built-in battery,make sure the headset is

fully charged before using it for the first tim.

2.Connect the USB cable to the charging socket,the headset can be charged.

3.During charging,the LED indicator light remains red,when charging

completed,it turns to blue.

Turning the headset on

1.Press the power switch button for 3seconds in shutdown mode,the blue

indicator light flashes 5 times and you will hear prompt tone.

Turning the headset off

1.Press the power switch button for 5seconds in standby mode,the blue

indicator light flashes 5 times rapidly and you will hear prompt tone.

Pairing and Connecting the headset with a phone

1. Press and hold the power switch button about 7-9 seconds until you see

the blue and red indicator light flashes rapidly and continually by turns,then release the button.

2. Activate the Bluetooth feature on your phone and search for the headset.

3. Select the headset (Lenco BH-100 ) from the list of devices found by your

phone.

4. When pairing successfully,the indicator light will stop flashing,the blue

indicator light flashes once every 3 seconds in standby mode.

Reconnecting the headset with a phone

1.Your headset will attempt to reconnect automatically each time you turn it

on,but this feature may be unavailable on some devices,you can try to reconnect from paired devices on phone.

Answering a call

R10_20140702

1.Short press the power switch button to answer a call when you hear

incoming call tones.

2.When you are listening to music,the music stops during a call.

Ending a call

1.Short press the power switch button to end a call.

Rejecting a call

1.Press the power switch button for 2 seconds to reject a call when a call

comes in.

Redialing the latest call

1.Short press the power switch button for 2 times continually, and then it will make a call to the latest number you dialed.

Volume Control

1.Long press the volume up or down button to adjust the volume.

2.You will hear a beep when volume level of the headset reaches its’ highest level.

Play or Pause music

1.Press the power switch button to select play/pause the song

Previous or Next song

1.Short press and then release the previous/next song button to select previous/next song.

2.While playing the song, 'Short press and release' the previous song button only go to the beginning of the current song, then 'Short press and release' button again to go to the previous song.

TECHNICAL SPECIFICATIONS

R10_20140702

ITEM

SPECIFICATIONS

Driver Unit

10 mm

Impedance

16 O

hms

Frequency Response

20 Hz to

20KHz

S/N

88±

5dB

Rated Power

3 mW

Max. output Power

30 mW

Max.Input Power

30 mW

Operating voltage range

3.0V

4.2V

Battery

Lithium 3.7V,

100m

Bluetooth

Version

Bluetooth v3.0 EDR class 2

Mic Sensitivity

-42 ±3dB

Operating range

up to 33 feet(10 meters)

Standby time

up to 160 hours

Talk/Play time

about 4 hours

Charging time

1.5 hours

WARNING:

When participating in the traffic listening to a

potential dangers such as approaching cars.

WARNING:

To prevent possible hearing damage, do not listen

* Depending on the phone type and usage, the actual time may vary.

personal music player can make the listener less aware of

at high volume levels for long periods.

This product operates at 2400 - 2483.5 MHz and is designated only to be used inside a normal household environment. This product is suited for this purpose within all EU counties.

Hereby, STL Group BV, Ankerkade 20 NL 5928 PL Venlo, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at

https://lencosupport.zendesk.com/forums/22413161-CE-Documents

R10_20140702

Service and support

For information: www.lenco.com For support: http://lencosupport.zendesk.com

Lenco helpdesk:

Germany 0900-1520530 (Local charges) The Netherlands 0900-23553626 (Local charges + 1ct p/min) Belgium 02-6200115 (Local charges) France 03-81484280 (Local charges)

The helpdesk is accessible from Monday till Friday from 9 AM till 6 PM. When contacting Lenco, you will always be asked for the model and serial number of your product. The serial number can be found on the back of the device. Please write down the serial number below:

Model: MP3 Sportwatch-100 Serial number:_________________________________

Model: BH-100 Serial number:_________________________________

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. The declaration of conformity may be consulted at

https://lencosupport.zendesk.com/forums/22413161-CE-Documents

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve

R10_20140702

Lenco BH-100 User's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
