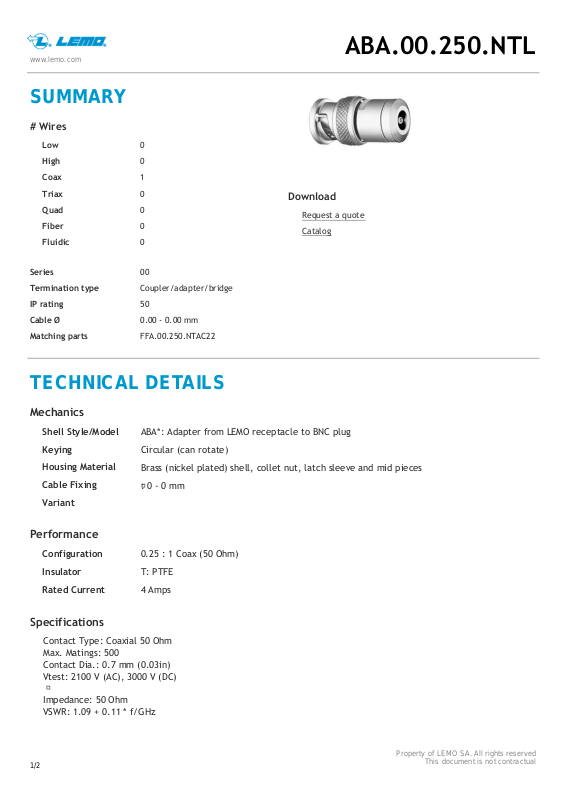

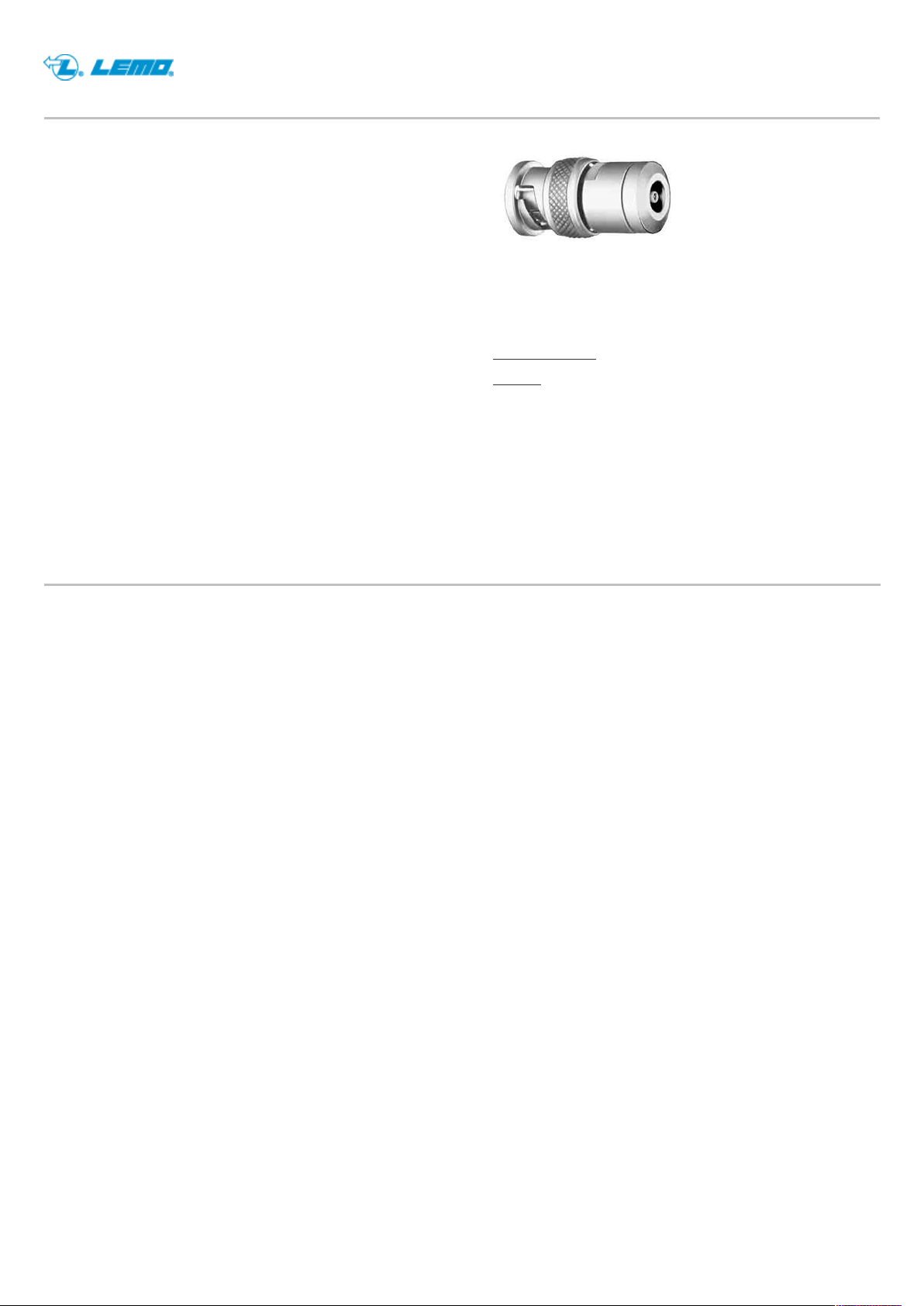

SUMMARY
# Wires
ABA.00.250.NTL
Low
High
Coax
Triax
Quad 0
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
0
0
1
0
0
0
00
Coupler/adapter/bridge
50
0.00 - 0.00 mm
FFA.00.250.NTAC22
TECHNICAL DETAILS
Mechanics
Download
Request a quote
Catalog
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
ABA*: Adapter from LEMO receptacle to BNC plug
Circular (can rotate)
Brass (nickel plated) shell, collet nut, latch sleeve and mid pieces
: 0 - 0 mm
Performance
Configuration
Insulator
Rated Current
0.25 : 1 Coax (50 Ohm)
T: PTFE
4 Amps
Specifications
Contact Type: Coaxial 50 Ohm
Max. Matings: 500
Contact Dia.: 0.7 mm (0.03in)
Vtest: 2100 V (AC), 3000 V (DC)
Impedance: 50 Ohm
VSWR: 1.09 + 0.11 * f/GHz
1/2
Property of LEMO SA. All rights reserved
This document is not contractual
Page 2
Others
Endurance (Shell): 5000 mating cycles
F ret (min): 100 N
IP Rating: 50

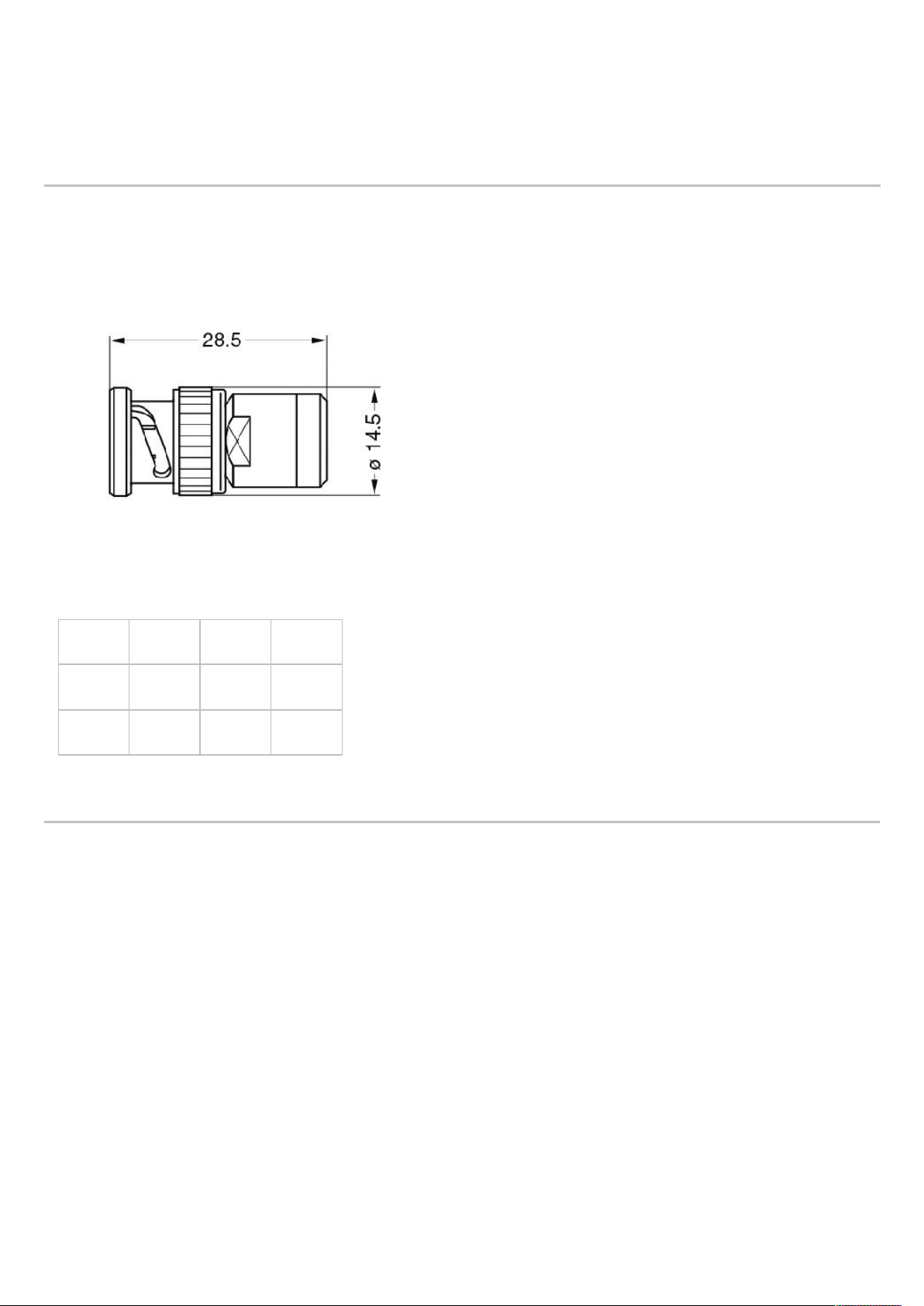

DRAWINGS
Draws
Dimensions
A L Weight
mm. 14.5 28.5 18.7
in. 0,57 1,12 0,74
RECOMMENDED BY LEMO
Tools
None
Cables
2/2
Property of LEMO SA. All rights reserved
This document is not contractual
