LEGRAND MicroRex D21 Plus User Manual

0 6 12 16 24

2 41

N 292555/00

Technical data

4126 31 4126 32 4126 33
047 61 6047 60 047 63

Supply voltage: 230V 50/60Hz 120V 50/60Hz 24V AC/DC
Effective power consumption: Approx. 1 W
Contact rating: 1 changeover contact 16A 250V~µ cos ϕ = 1
Parallel compensation: 600W max. 70µF
Accuracy: ~ 0,1 s / day
single strand multi strand
Terminal capacity:



1,5...4 mm2 1,5...2,5 mm

2

Programmes : 56
Battery reserve: 5 years
Storage ambient: -20°C to +60°C
Working ambient: -20°C to +55°C
IP: 20

General information

• Start-up: after applying the supply voltage, the time switch
starts automatically with the last selected function. The relay
position is set by the current program.

• Battery backup

- Backlighting not active

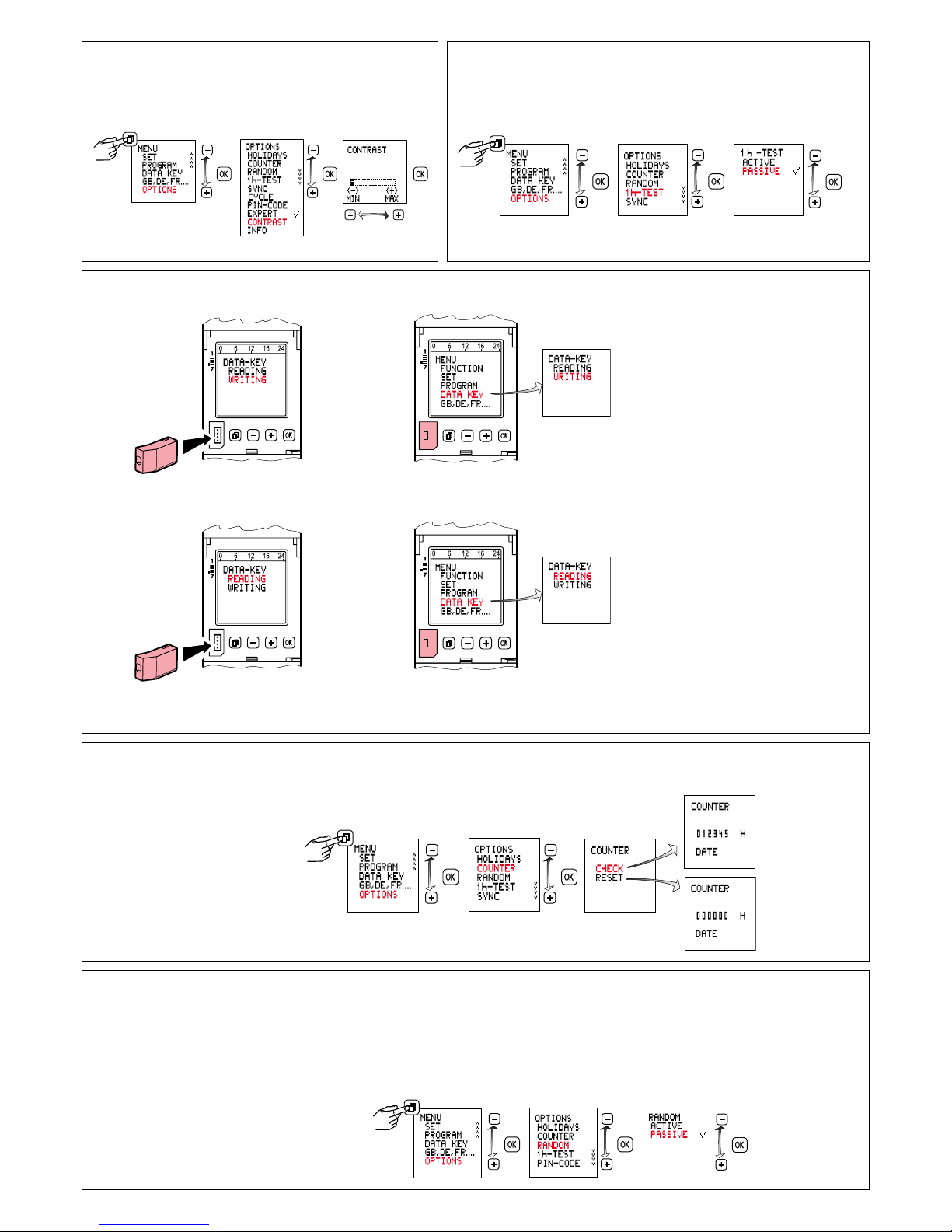

- Data key READ/WRITE only via the menu

Set language

A

Day, Time, Date

Switch status

Function

Receptacle for

data key

Overview of programmed
switching times for the week.
Resolution 0.5h

Select menu, back to main menu,
Hold down > 1s = operating display

Confirm selection or load parameters

Select menu options or set parameters

Overview

Time switch
D21 - 1-channel
4 126 31 / 32 / 33 - 047 61 / 63 / 6047 60

®

!

Safety notes

This product should be installed in line with installation rules, preferably by a qualified electrician. Incorrect installation and use can lead to risk
of electric shock or fire. Before carrying out the installation read the instructions and take account of the product’s specific mounting location. Do not open
up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired
exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement
and guarantees. Use only Legrand brand accessories.
The device contains a LiMnO2 primary cell. When the product reaches the end of its life, this cell must be correctly removed and disposed of in accordance with
national legislation and the requirements of environmental protection.

GB

Operating principle: Typ 1.B. S. T.
IEC/EN 60730-1, IEC/EN 60730-2-7
Operation in a normal environment
Montage: in distribution panel, Degree of contamination: 2
Switch output, potential-free

a











dc

b

g

This symbol indicates that the
selection is active.

* Only available in EXPERT mode.

2000 W

1000 W

2000 VA

600 W 70µF

+

c

R

2000 W

+

2000 W

2000 W

+

3680 W

Reset

Warning!

The memory will be cleared,
and all set data will be lost.

Hold down

for more than 3 seconds and at

the same time press and release

.

The language, time, date, summertime/winter­time and
switching times will have to be re-entered.

Modes

• Auto - Automatic operation

• Constant ON

• Constant OFF

• Extra

The switch status imposed by the
program is inverted (manual override).
With the next effective switch command,
the time switch resumes control of on/off
switching.

4

Set time/date, summertime/wintertime

2

Summertime: ± 1 hour
Europe: Factory set
SPECIAL: The switchover to/from

summertime can be freely programmed by entering a start date and
end date and is then executed each year on the same day of the
week, e.g. Sunday

3

Programming

A program consists of an ON time, OFF time and associated on and off days.
Programs with predefined on/off days (Mon to Sun, Mon to Fri and Sat and Sun): for these programs, you only need to set the switching times.
With the „INDIVIDUAL” option, you can allocate switching times to specific days of your choice.
The programs of a channel are combined with a logical OR.

*

*

CHRONO = All switch commands are executed in chronological order in a week
INPUT = Programs are executed in the order in which they are entered

Set MON and TUES
as on/off days
