Must Be Paired With Another SensaSwitch or SensaDimmer For Multi-Way Use
Size Face: 2x2 Module
A
Size Backbody: 3x2 Module
3rd Party Compliance: cULus LISTED
MATERIAL SEE NOTE

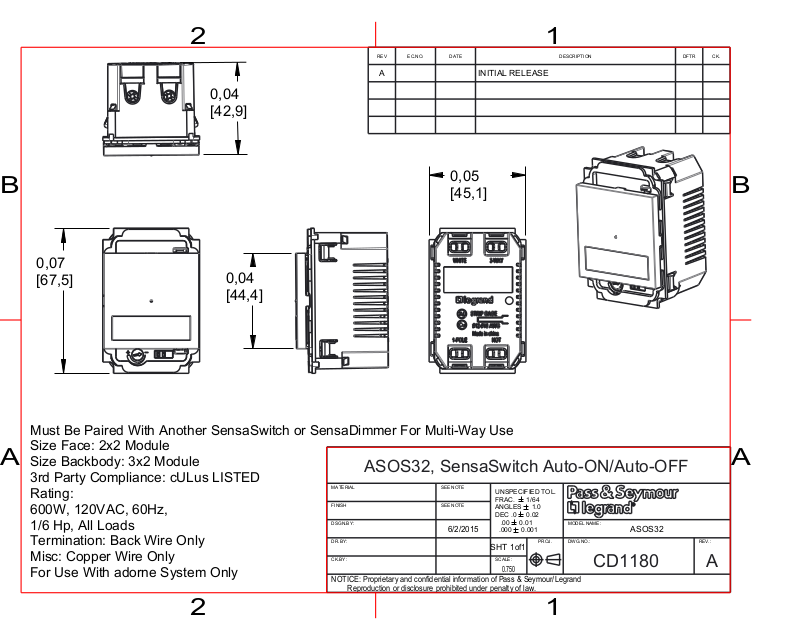

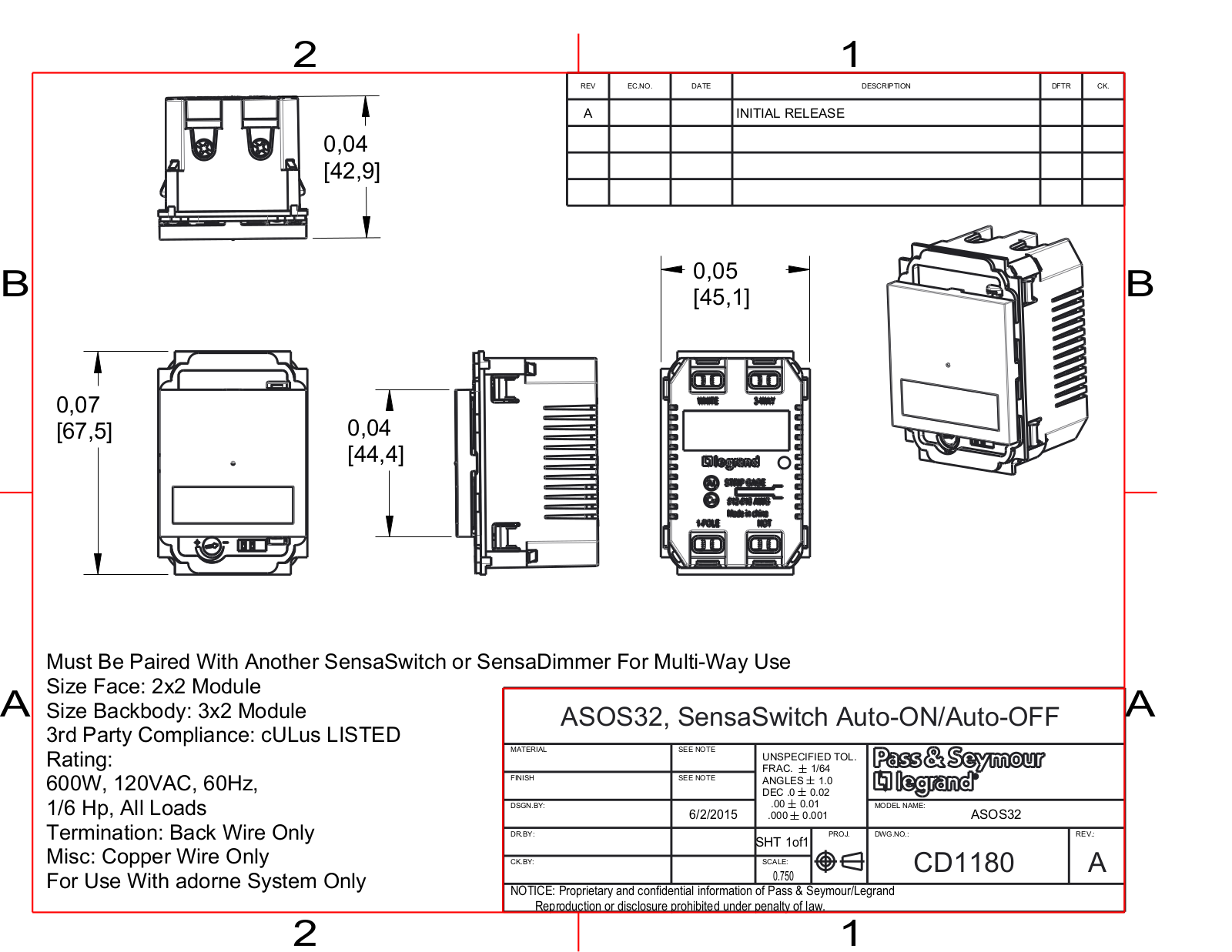

ASOS32, SensaSwitch Auto-ON/Auto-OFF
Rating:
600W, 120VAC, 60Hz,
1/6 Hp, All Loads
Termination: Back Wire Only
Misc: Copper Wire Only
For Use With adorne System Only
FINISH SEE NOTE
DSGN.BY:
DR.BY:
CK.BY: SCALE:
NOTICE: Proprietary and confidential information of Pass & Seymour/Legrand
Reproduction or disclosure prohibited under penalty of law.
2 1
6/2/2015
UNSPECIFIED TOL.
FRAC. 1/64
ANGLES 1.0
DEC .0 0.02
.00 0.01
.000 0.001
SHT
0.750
PROJ. DWG.NO.: REV.:
1of1
MODEL NAME:
ASOS32
CD1180 A
