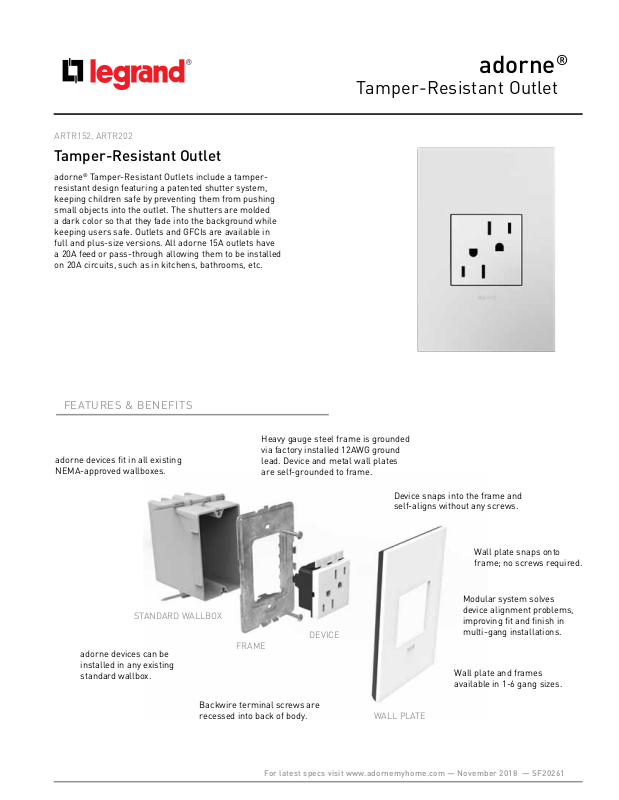

Page 1
ARTR152, ARTR202
Tamper-Resistant Outlet
adorne® Tamper-Resistant Outlets include a tamperresistant design featuring a patented shutter system,
keeping children safe by preventing them from pushing
small objects into the outlet. The shutters are molded
a dark color so that they fade into the background while
keeping users safe. Outlets and GFCIs are available in
full and plus-size versions. All adorne 15A outlets have
a 20A feed or pass-through allowing them to be installed
on 20A circuits, such as in kitchens, bathrooms, etc.
adorne
Tamper-Resistant Outlet
®
FEATURES & BENEFITS
adorne devices fit in all existing
NEMA-approved wallboxes.
STANDARD WALLBOX
adorne devices can be
installed in any existing
standard wallbox.
Heavy gauge steel frame is grounded
via factory installed 12AWG ground
lead. Device and metal wall plates
are self-grounded to frame.
DEVICE
FRAME
Device snaps into the frame and
self-aligns without any screws.
Wall plate snaps onto
frame; no screws required.
Modular system solves
device alignment problems,
improving fit and finish in
multi-gang installations.
Wall plate and frames
available in 1-6 gang sizes.
Backwire terminal screws are
recessed into back of body.
For latest specs visit www.adornemyhome.com — November 2018 — SF20261
WALL PLATE
Page 2
adorne
Tamper-Resistant Outlet
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION RATING NEMA COMPLIANCE COLORS COO
ARTR152M4 2-Module Tamper-Resistant Outlet 15A, 125V 5-15R Magnesium China
ARTR152W4 2-Module Tamper-Resistant Outlet 15A, 125V 5-15R White China
ARTR152G4 2-Module Tamper-Resistant Outlet 15A, 125V 5-15R Graphite China
ARTR202M4 2-Module Tamper-Resistant Outlet 20A, 125V 5-20R Magnesium China
ARTR202W4 2-Module Tamper-Resistant Outlet 20A, 125V 5-20R White China
ARTR202G4 2-Module Tamper-Resistant Outlet 20A, 125V 5-20R Graphite China
VERTICAL MARKETS
®
· Residential
· Hospitality
· Luxury Office
· Light Commercial
COMPLEMENTARY PRODUCTS
adorne® also offers Paddle Style Dimmers and Fan Control Devices
to pair with our Paddle Style Switches for an overall, aesthetically
pleasing and multi-functional installation.
adorne® Wall Plates provide the perfect complement to adorne
Switches, Dimmers, Outlets, and Accessories. The collection includes
a variety of finishes, from metals to leather and wood, as well as
plastic plates that are available in contemporary and classic colors.
Each wall plate is packaged with a metal frame to enable easy
installation when paired with a device. All plates are screwless and
simply snap onto the included metal frame.
All adorne wall plates are UL and ETL-approved.
2-Module
Paddle Dimmer
2-Module
Paddle Fan
Speed Control
1-Module
Paddle Switch
For latest specs visit www.adornemyhome.com — June 2019 — SF20261R1
Page 3
adorne
Tamper-Resistant Outlet
®
TECHNICAL SPECIFICATIONS
3rd Party Compliance
cULus Listed, File Number E140596, Standard UL498,
Performance
ELECTRICAL
Dielectric Voltage Withstands 1500V minimum
Maximum Working Voltage 125VAC
Current Rated 15A interrupting at full-rated current
Temperature Rise 30°C Maximum at full-rated current
MECHANICAL
Back Wire With internal pressure plates, #8-32 screw
Terminal Accommodations #14AWG-#12AWG
ENVIRONMENTAL
Flammability UL94 V2
1.77"
[45mm]
1.77"
[45mm]
Materials
Face Polycarbonate Terminal Brass
Back Body Polycarbonate Termination
Contacts Silver
Warranty
Limited Lifetime Warranty
Steel Plated
Scews
1.38"
1.77"
1.77"
For latest specs visit www.adornemyhome.com — June 2019 — SF20261R1
Page 4
FOLLOW US
COMPLEMENTARY DEVICES & ACCESSORIES
sofTap™
Switches & Dimmers – designed with
an innovative micro-movement that
turns lights on and off with just a soft
“tap” of the finger.
SensaSwitch™
Switches & Dimmers – Sensor turns
lights on when you enter a room and
off when you leave. (Also available in
Manual-ON/Auto-OFF format.)
Whisper™
Switches & Dimmers – A smart design
that features elegant lines and a quiet,
fluid motion.
Touch™
Switches & Dimmers – A stunning
translucent face works just like an
®
iPhone
the circle to turn lights on and off.
— simply touch your finger on
Wave™
Switches – Smart technology combined
with sleek, modern design. Simply
wave your hand to turn lights on and
off.
Push™
Switches – A tactile, finger-sized
impression lets you turn lights on and
off with a simple push-button motion.
Tamper-Resistant Outlets/
Tamper-Resistant GFCI Outlets
USB Charging Outlets
Paddle™
Switches, Dimmers & Fan Speed
Controls – A wide, graceful curve
works with a simple up-and-down
motion, allowing you to turn lights
on and off with ease.
PLUS: Compatible Wall Plates, Accent Lights, Locator Lights, Under-Cabinet Lighting System
