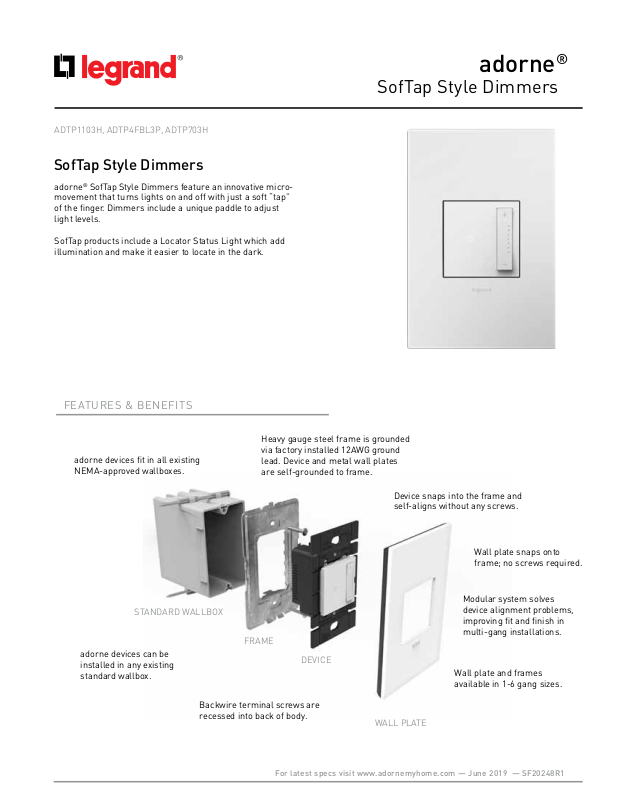

ADTP1103H, ADTP4FBL3P, ADTP703H
SofTap Style Dimmers
adorne® SofTap Style Dimmers feature an innovative micromovement that turns lights on and off with just a soft “tap”
of the finger. Dimmers include a unique paddle to adjust
light levels.
SofTap products include a Locator Status Light which add
illumination and make it easier to locate in the dark.
adorne
SofTap Style Dimmers
®
FEATURES & BENEFITS
adorne devices fit in all existing
NEMA-approved wallboxes.
STANDARD WALLBOX
adorne devices can be
installed in any existing
standard wallbox.
Heavy gauge steel frame is grounded
via factory installed 12AWG ground
lead. Device and metal wall plates
are self-grounded to frame.
Device snaps into the frame and
self-aligns without any screws.
Wall plate snaps onto
frame; no screws required.
Modular system solves
device alignment problems,
improving fit and finish in
multi-gang installations.
FRAME
DEVICE
Wall plate and frames
available in 1-6 gang sizes.
Backwire terminal screws are
recessed into back of body.
For latest specs visit www.adornemyhome.com — June 2019 — SF20248R1
WALL PLATE
adorne
SofTap Style Dimmers
ORDERING INFORMATION
CATALOG NUMBER DESCRIPTION RATING COMPATIBLE LOADS COMPLIANCE COLORS COO
ADTP1103HM4 Single-Pole/ 3-Way 2-Wire 1100W Incandescent, Halogen Magnesium China
ADTP1103HW4 Single-Pole/ 3-Way 2-Wire 1100W Incandescent, Halogen White China
ADTP4FBL3PM2 Single-Pole/ 3-Way 0-10V 0-10V Light Fixtures Magnesium China
ADTP4FBL3PW2 Single-Pole/ 3-Way 0-10V 0-10V Light Fixtures White China
ADTP4FBL3PG4 Single-Pole/ 3-Way 0-10V 0-10V Light Fixtures Graphite China
ADTP703HM4 Single-Pole/ 3-Way 2-Wire 700W Incandescent, Halogen Magnesium China
ADTP703HW4 Single-Pole/ 3-Way 2-Wire 700W Incandescent, Halogen White China
COMPLEMENTARY PRODUCTS
®
adorne® also offers Paddle Style Dimmers and Fan Control
Devices to pair with our Paddle Style Switches for an overall,
aesthetically pleasing and multi-functional installation.
adorne® Wall Plates provide the perfect complement to
adorne Switches, Dimmers, Outlets, and Accessories.
The collection includes a variety of finishes, from metals
to leather and wood, as well as plastic plates that are
available in contemporary and classic colors.
Each wall plate is packaged with a metal frame to enable
easy installation when paired with a device. All plates are
screwless and simply snap onto the included metal frame.
All adorne wall plates are UL and ETL-approved.
VERTICAL MARKETS
· Residential
· Hospitality
· Luxury Office
· Light Commercial
2-Module
Paddle Dimmer
2-Module
Paddle Fan
Speed Control
1-Module
Paddle Switch
2SF20248R1 — June 2019 — For latest specs visit www.adornemyhome.com
adorne
SofTap Style Dimmers
®
TECHNICAL SPECIFICATIONS
3rd Party Compliance
cULus Listed, UL1472, File E95219
Performance
ELECTRICAL
Supply Voltage 120 VAC
Ratings 700W-1100W Incandescent/Halogen/MLV
Frequency 60Hz
Installation Single Pole or 3-Way
MECHANICAL
Enclosure Material Polycarbonate
ENVIRONMENTAL
Application Indoor Use Only
1.77"
[45mm]
1.77"
[45mm]
Materials
Paddle Polycarbonate Terminal Brass
Back Body Polycarbonate Termination
Contacts Silver
Warranty
Lifetime Limited Warranty
4.19"
Steel Plated
Scews
1.77"
1.24"
3 For latest specs visit www.adornemyhome.com — June 2019 — SF20248R1
