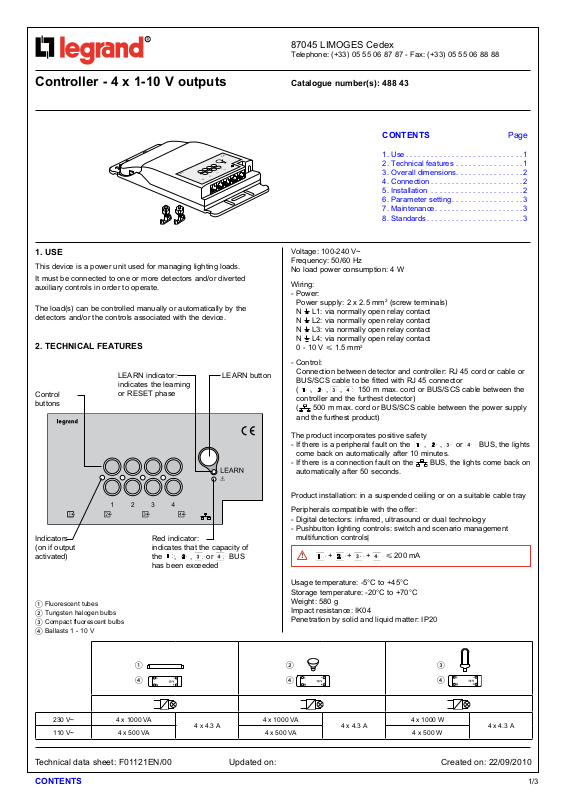

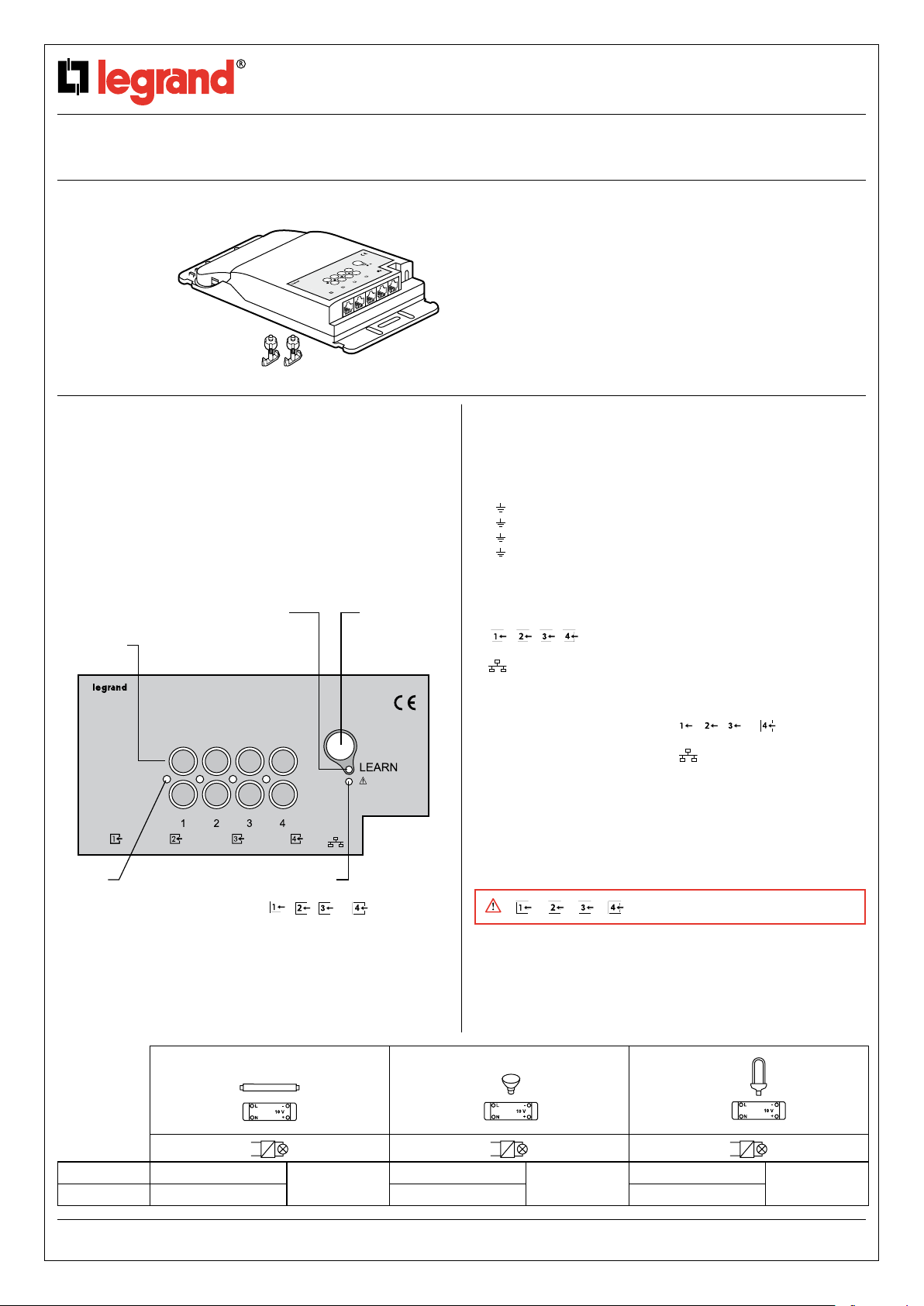

Page 1
87045 LIMOGES Cedex
1 2 3 4
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Controller - 4 x 1-10 V outputs
1. USE
This device is a power unit used for managing lighting loads.
It must be connected to one or more detectors and/or diverted
auxiliary controls in order to operate.
The load(s) can be controlled manually or automatically by the
detectors and/or the controls associated with the device.
2. TECHNICAL FEATURES
Control
buttons
LEARN indicator:
indicates the learning
or RESET phase
LEARN button
Catalogue number(s): 488 43
CONTENTS Page
1. Use............................1
2. Technical features ................1
3. Overall dimensions................2
4. Connection ......................2
5. Installation ......................2
6. Parameter setting .................3
7. Maintenance.....................3
8. Standards .......................3
Voltage: 100-240 V~
Frequency: 50/60 Hz
No load power consumption: 4 W
Wiring:
- Power:
Power supply: 2 x 2.5 mm
N L1: via normally open relay contact
N L2: via normally open relay contact
N L3: via normally open relay contact
N L4: via normally open relay contact
0 - 10 V 1.5 mm
- Control:
Connection between detector and controller: RJ 45 cord or cable or
BUS/SCS cable to be fitted with RJ 45 connector
( , , , 150 m max. cord or BUS/SCS cable between the
controller and the furthest detector)
( 500 m max. cord or BUS/SCS cable between the power supply
and the furthest product)
2
2
(screw terminals)
Indicators
(on if output
activated)
Fluorescent tubes
1
2 Tungsten halogen bulbs
3 Compact fluorescent bulbs
4 Ballasts 1 - 10 V
Red indicator:
indicates that the capacity of
the , , or BUS
has been exceeded
4
The product incorporates positive safety
- If there is a peripheral fault on the
, , or BUS, the lights
come back on automatically after 10 minutes.
- If there is a connection fault on the
BUS, the lights come back on
automatically after 50 seconds.
Product installation: in a suspended ceiling or on a suitable cable tray
Peripherals compatible with the offer:
- Digital detectors: infrared, ultrasound or dual technology
- Pushbutton lighting controls: switch and scenario management
multifunction controls|
+ + + 200 mA
Usage temperature: -5°C to +45°C
Storage temperature: -20°C to +70°C
Weight: 580 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP20
31 2
4 4
230 V~ 4 x 1000 VA
110 V~ 4 x 500 VA 4 x 500 VA 4 x 500 W
Technical data sheet: F01121EN/00
4 x 4.3 A
Updated on: Created on: 22/09/2010
4 x 1000 VA
4 x 4.3 A
CONTENTS
4 x 1000 W
4 x 4.3 A
1/3

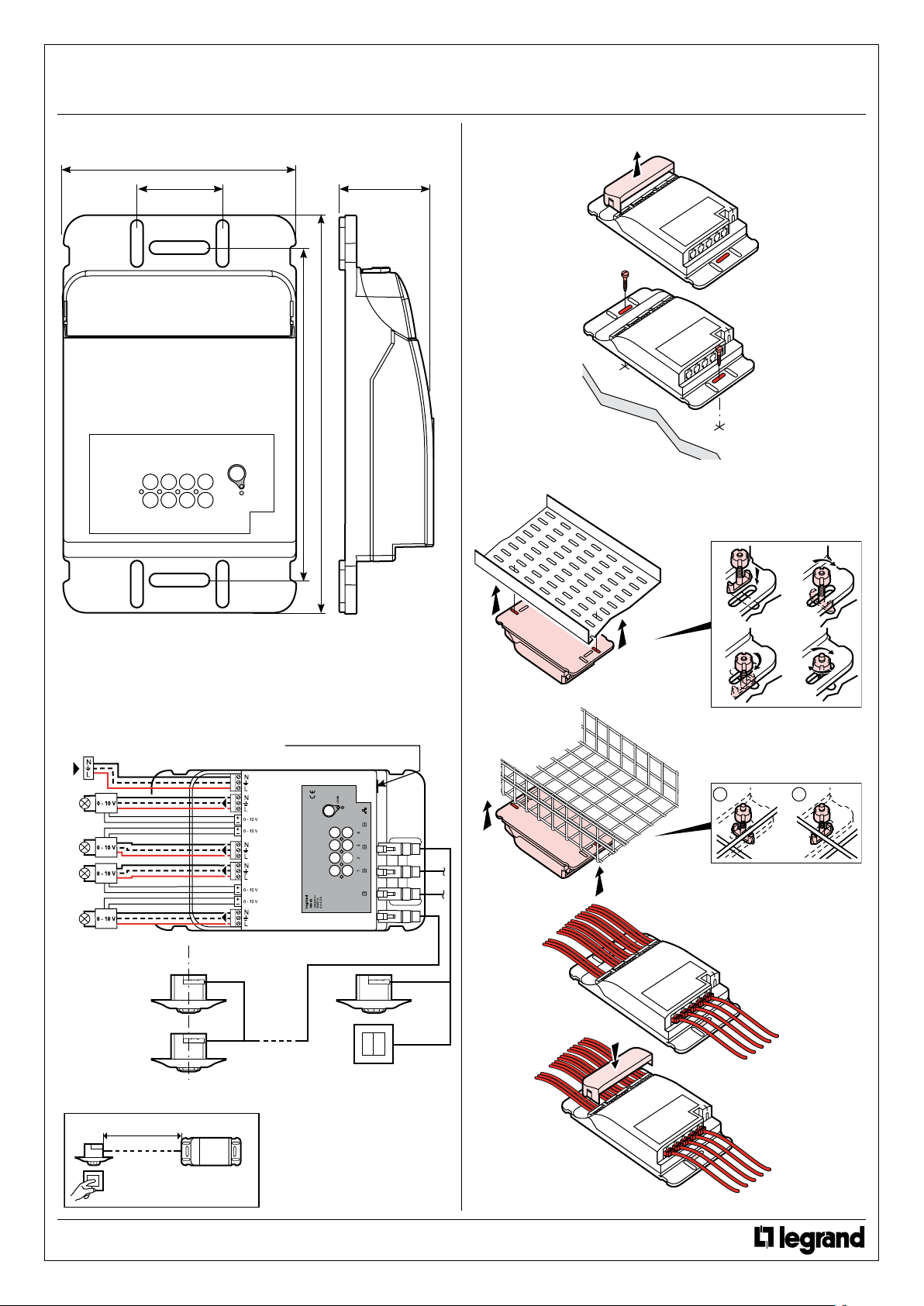

Page 2
Controller - 4 x 1-10 V outputs
Catalogue number(s): 488 43
3. OVERALL DIMENSIONS
147
50
240
275
5. INSTALLATION
1
50
Mounting
On cable tray
2
2
1
1/4
2
4. CONNECTION
All the wiring must be carried out with the mains power off.
SCS BUS RJ 45 connection
L4
L3
L2
L1
4
3
2
1
2
3
3
1/4
A
4
B
L max = 150 m
4
Technical data sheet: F01121EN/00 Updated on: Created on: 22/09/2010
CONTENTS
2/3
Page 3
Controller - 4 x 1-10 V outputs
6. PARAMETER SETTING
NB: All the wiring must be carried out with the mains power off.
Switching the controller on generates an automatic configuration: the
compatible peripheral(s) and the controller recognise one other on
their
The parameters of the installation can be set using configuration tools
Cat. No. 882 35 or Cat. No. 882 30.
Consult the relevant technical data sheets for detailed parameter
setting of digital detectors that are compatible with the offer.
7. MAINTENANCE
Do not use: acetone, tar-removing cleaning agents or
trichloroethylene.
Maintenance with the following products: - Hexane (En 60669-1)
, , and BUSES.
Note: All technical information is available at
www.legrandoc.com
- Methylated spirit
- Soapy water
- Diluted ammonia
- Bleach diluted to 10%
- Window-cleaning products
Catalogue number(s): 488 43
ATTENTION: An initial test is required for the use of other special
maintenance products.
8. STANDARDS
Directive: CE
Installation standards: NFC 15-100
Product standards: IEC 60669-2-1
Environmental standards:
- EU Directive 2002/96/EC:
WEEE (Waste Electrical and Electronic Equipment)
- EU Directive 2002/95/EC:
RoHS (Restriction of Hazardous Substances)
- Regulations: ERP (public buildings)
ERT (workplace buildings)
IGH (high-rise buildings)
Technical data sheet: F01121EN/00 Updated on: Created on: 22/09/2010
CONTENTS
3/3
