LEGRAND 4 360 61, 4 306 60, 4 306 41 User Manual

USER MANUAL

LE04749AA

• IP Modular camera 3 MP

4 306 61

2

Indice

1 Accessories ........................................................................................................................... 4

2 General Introduction ................................................................................................................ 5

2.1 Overview ........................................................................................................................................................5

2.2 Feature ........................................................................................................................................................5

2.3 Specications ........................................................................................................................................................6

3 Framework ........................................................................................................................... 12

3.1 Rear Panel ........................................................................................................................................................12

3.2 SidePanel ........................................................................................................................................................14

3.3 Front Panel ........................................................................................................................................................14

4 Installation ........................................................................................................................... 15

4.1 Lens Installation ..................................................................................................................................................15

5 Quick Conguration Tool ........................................................................................................................ 18

5.1 First Connection .................................................................................................................................. 18

6 Connecting to a Device and Opening the Web Application ............................................................. 26

6.1 PC Conguration .................................................................................................................................26

6.2 Connection with the Search Tool ..................................................................................................... 27

6.3 Connection with Internet Explorer ..................................................................................................28

6.4 Login ........................................................................................................................................ 28

7 Main Interface Introduction ................................................................................................................... 30

7.1 Log in ........................................................................................................................................ 30

7.2 Monitor Channel Menu Tree .......................................................................................................... 31

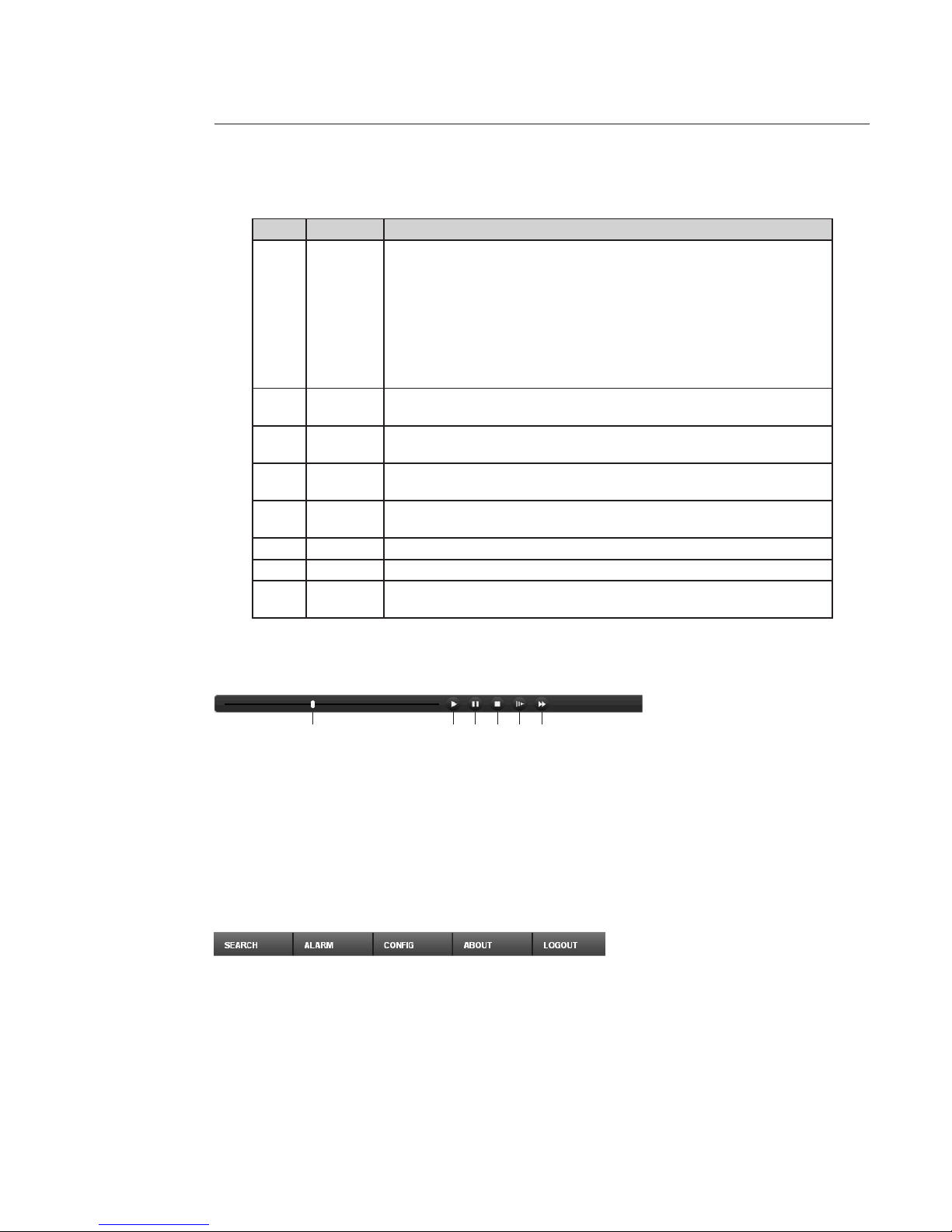

7.3 System Menu ....................................................................................................................................... 32

7.4 Monitor Window Switch .................................................................................................................... 33

7.5 Preview Window Switch .................................................................................................................... 33

7.6 PTZ Control ........................................................................................................................................ 33

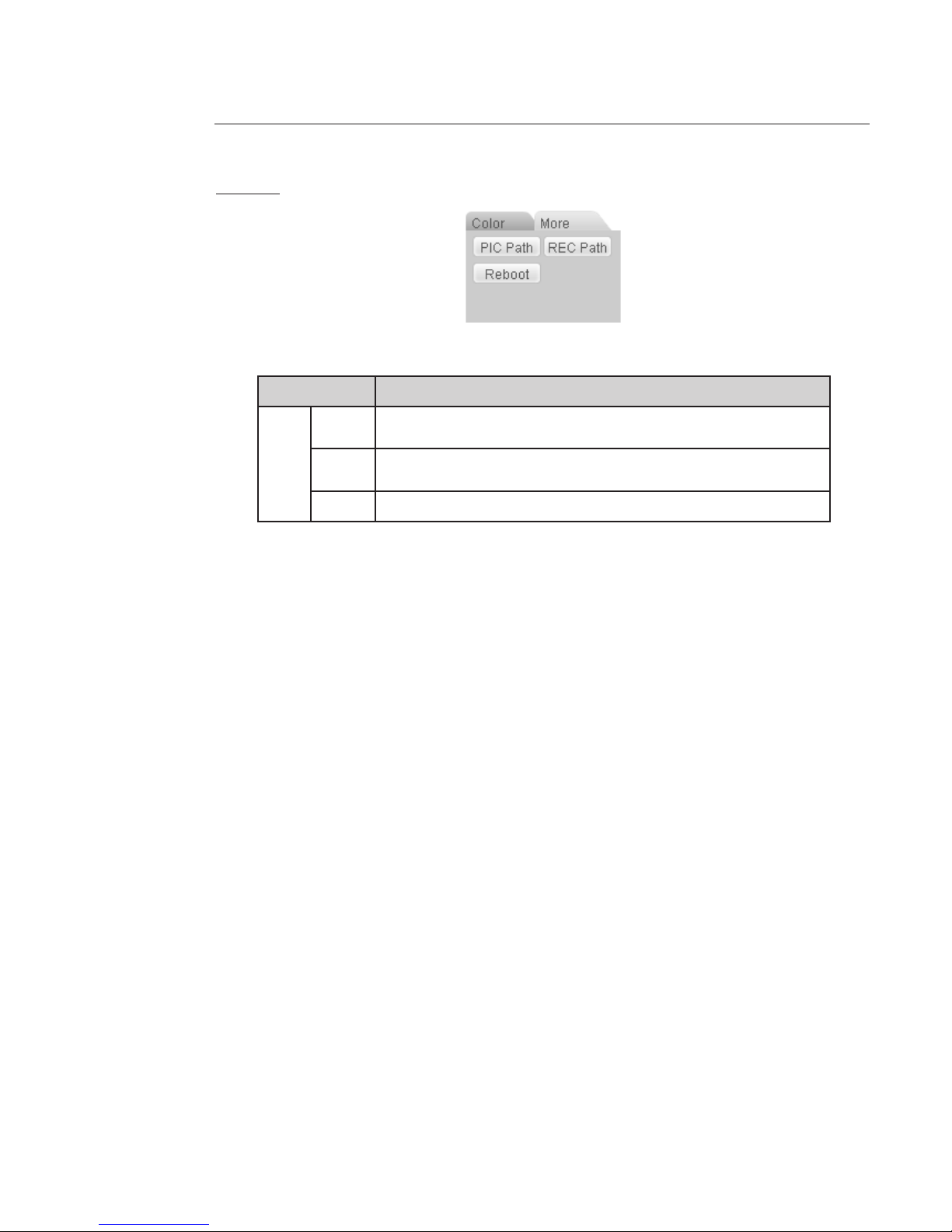

7.7 Color and More Setup ........................................................................................................................ 33

3

8 Congure ........................................................................................................................... 35

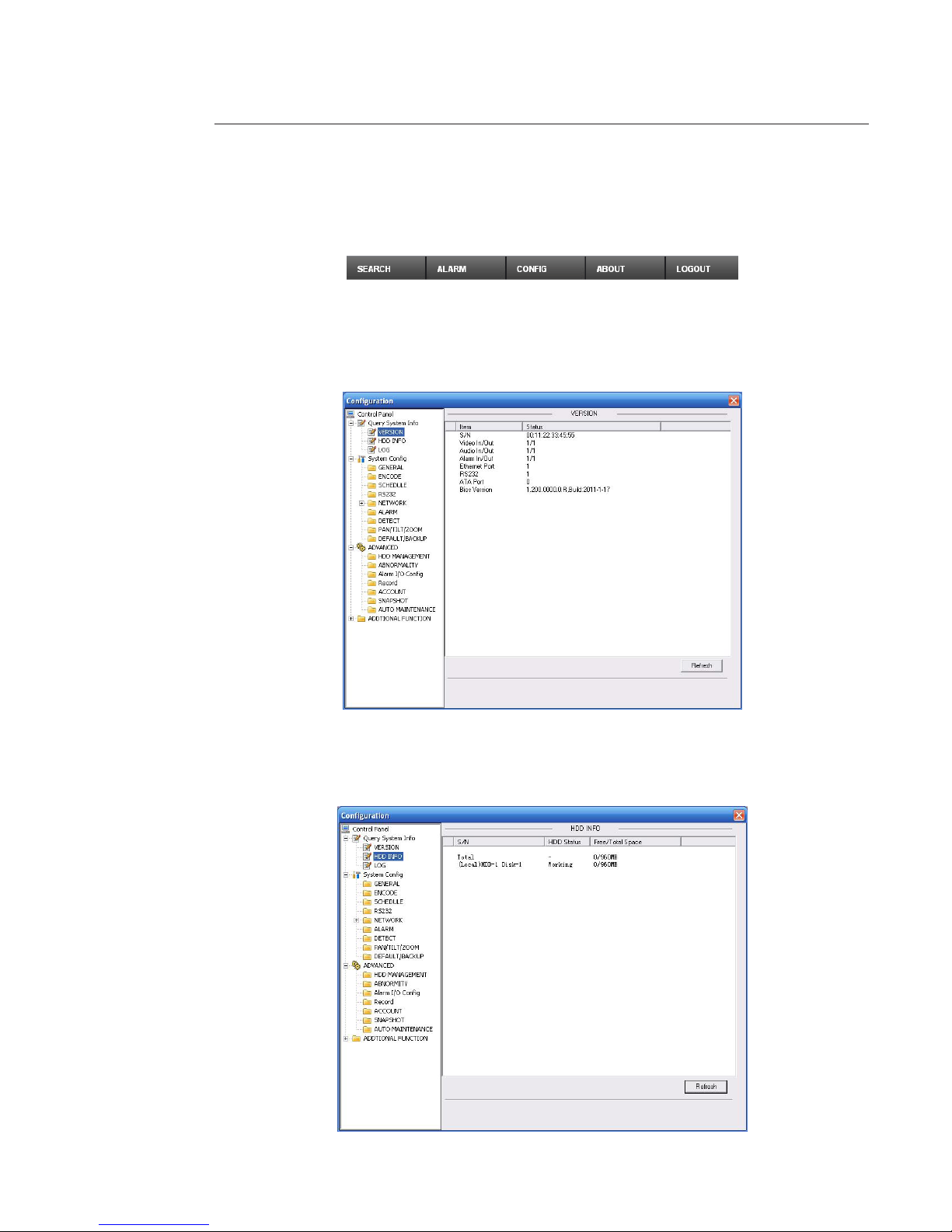

8.1 System Information ...............................................................................................................................................35

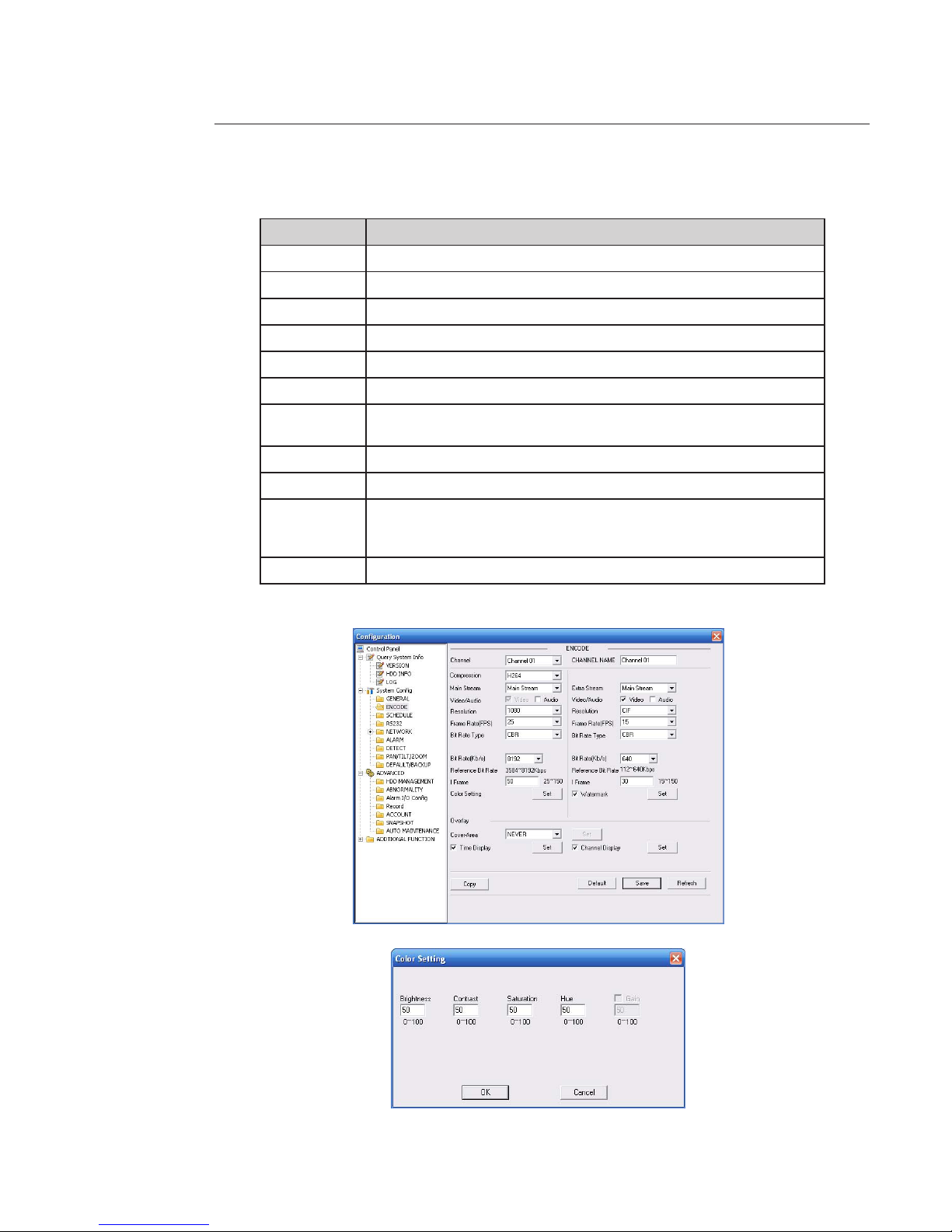

8.2 System Conguration ...........................................................................................................................................37

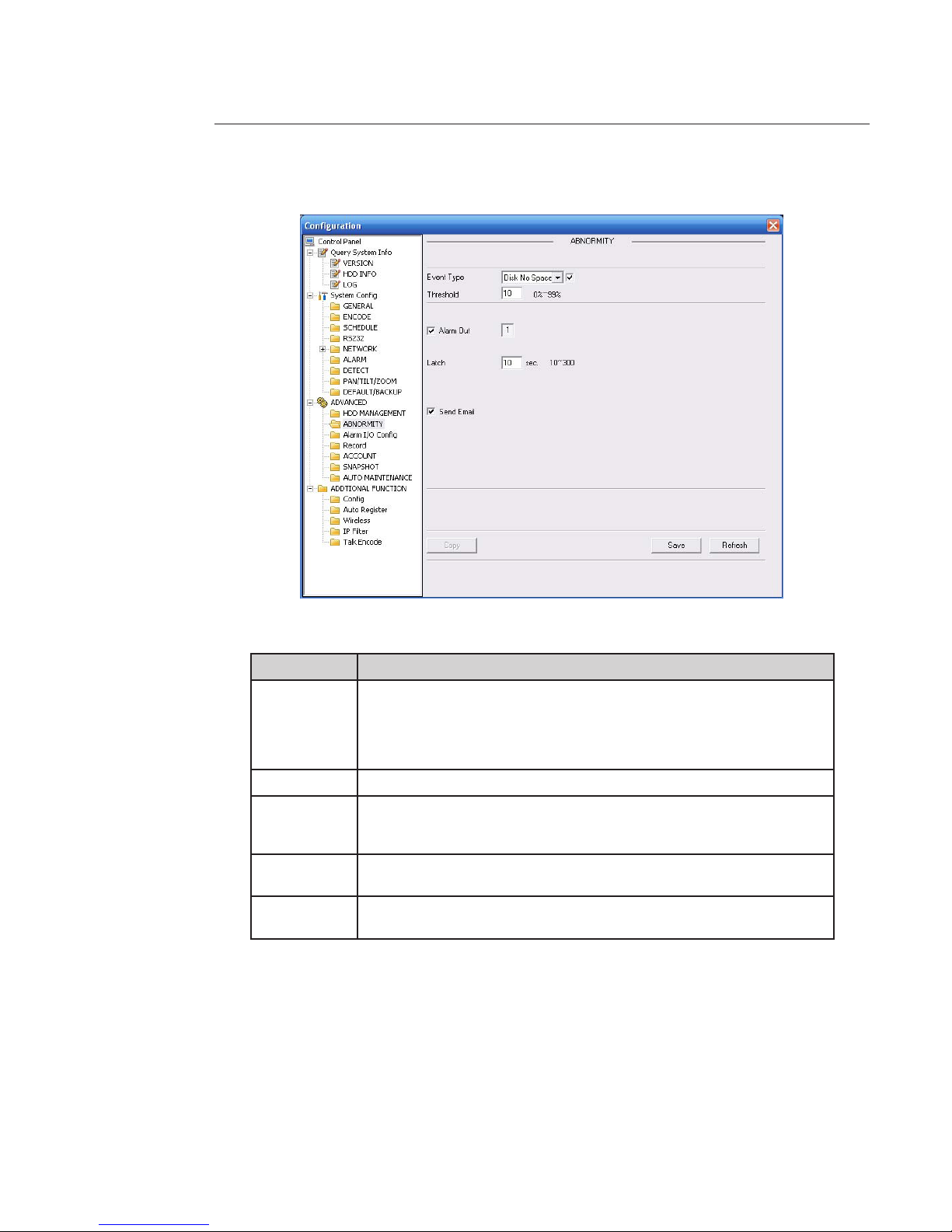

8.3 Advanced ........................................................................................................................................................53

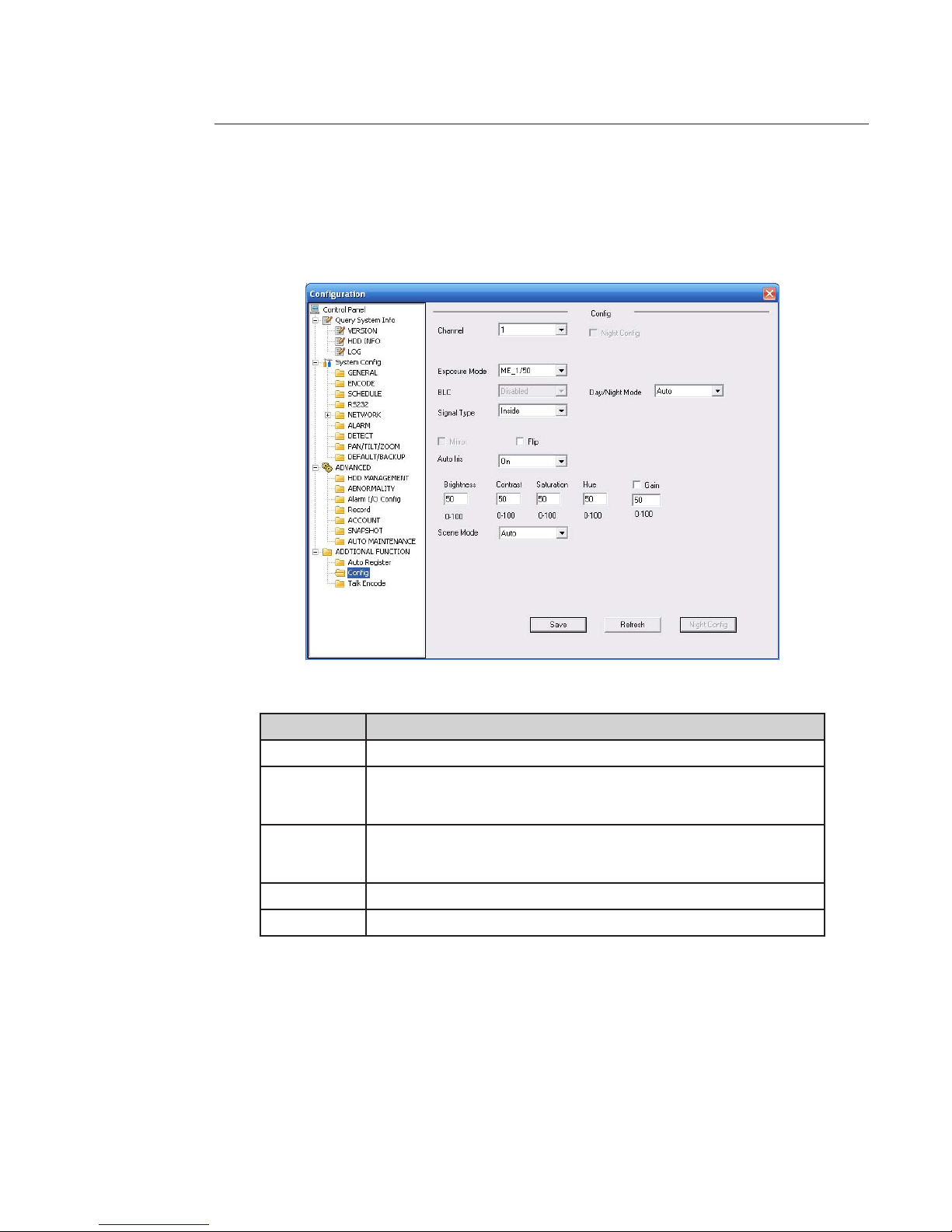

8.4 Additional Function ...............................................................................................................................................59

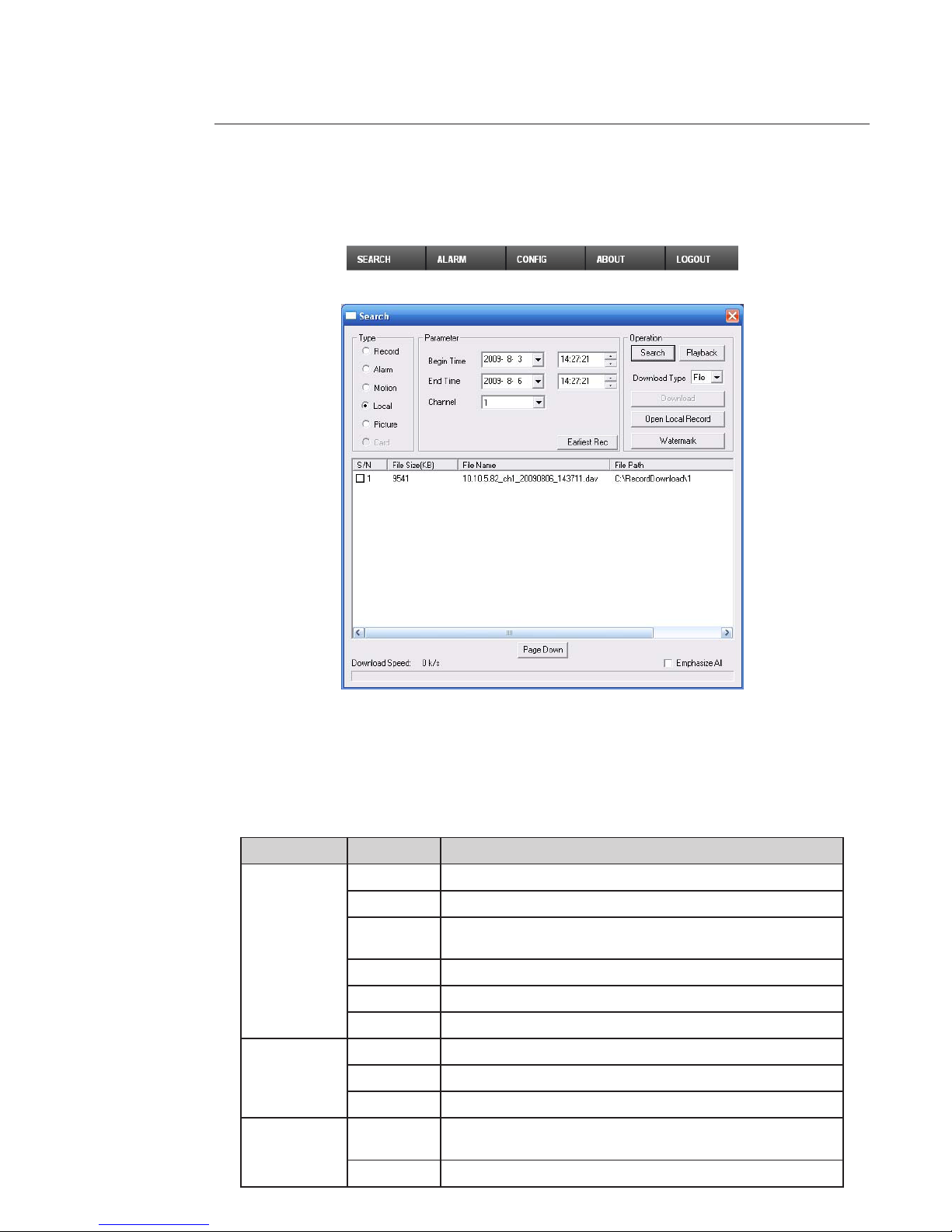

9 Search ........................................................................................................................... 62

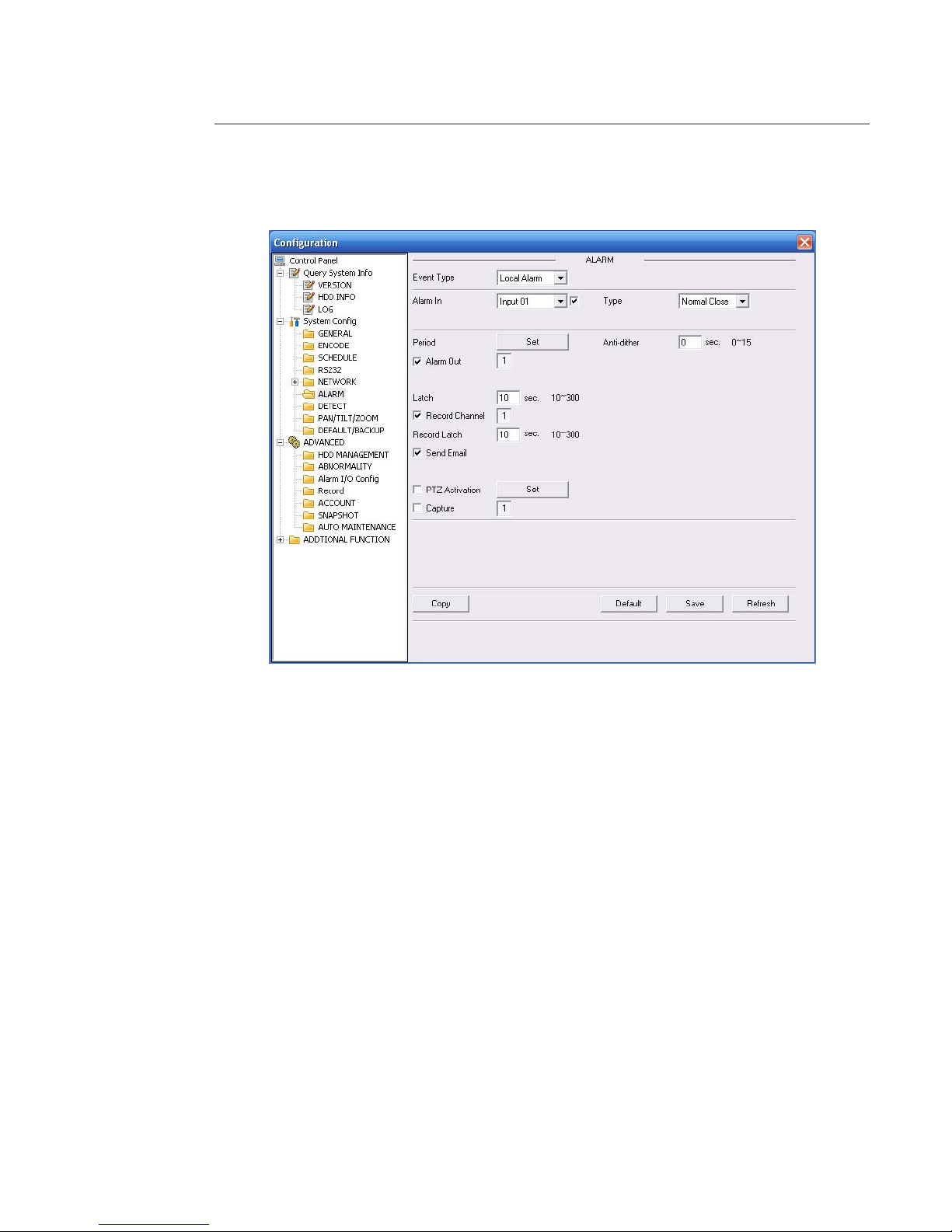

10 Alarm ........................................................................................................................... 64

11 About ........................................................................................................................... 65

12 Log out ........................................................................................................................... 66

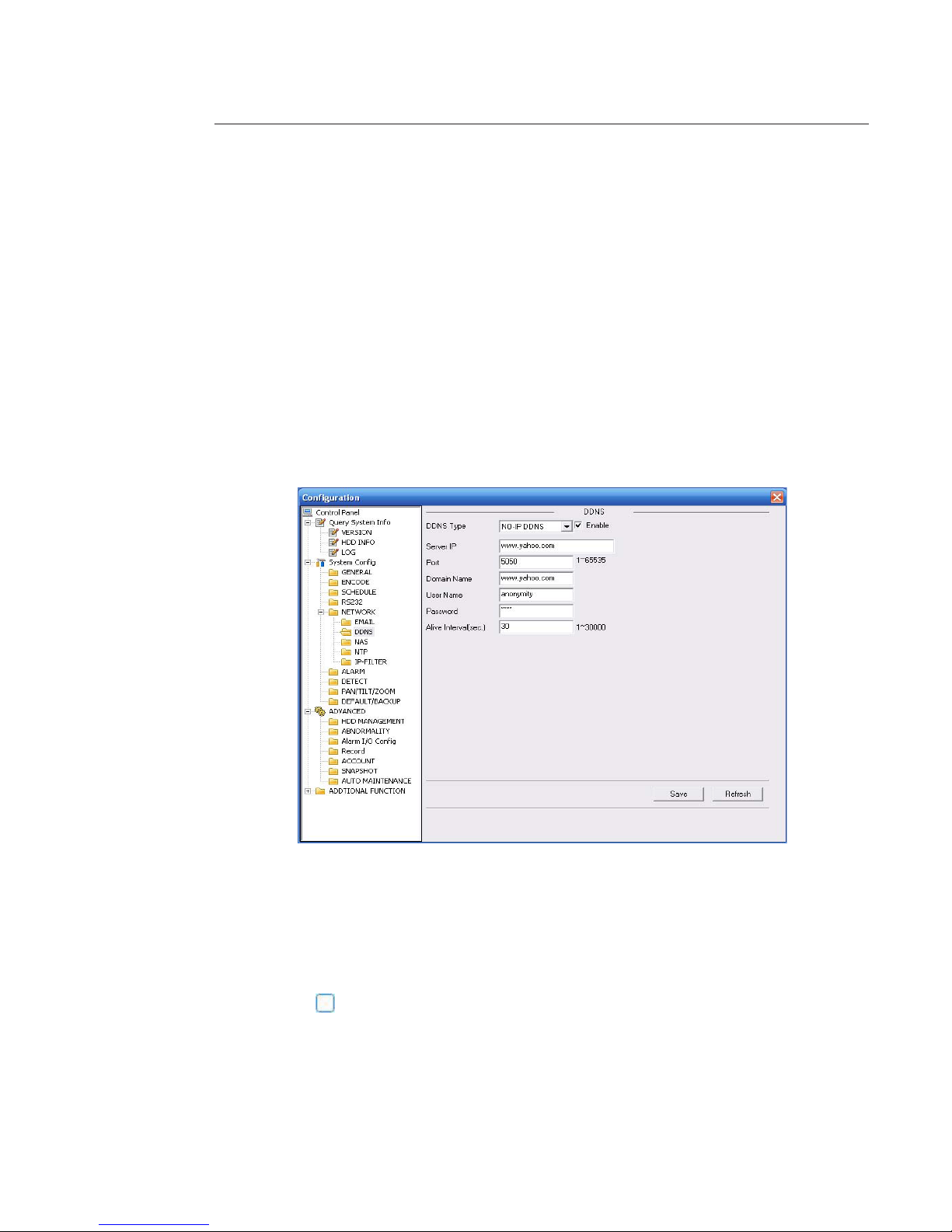

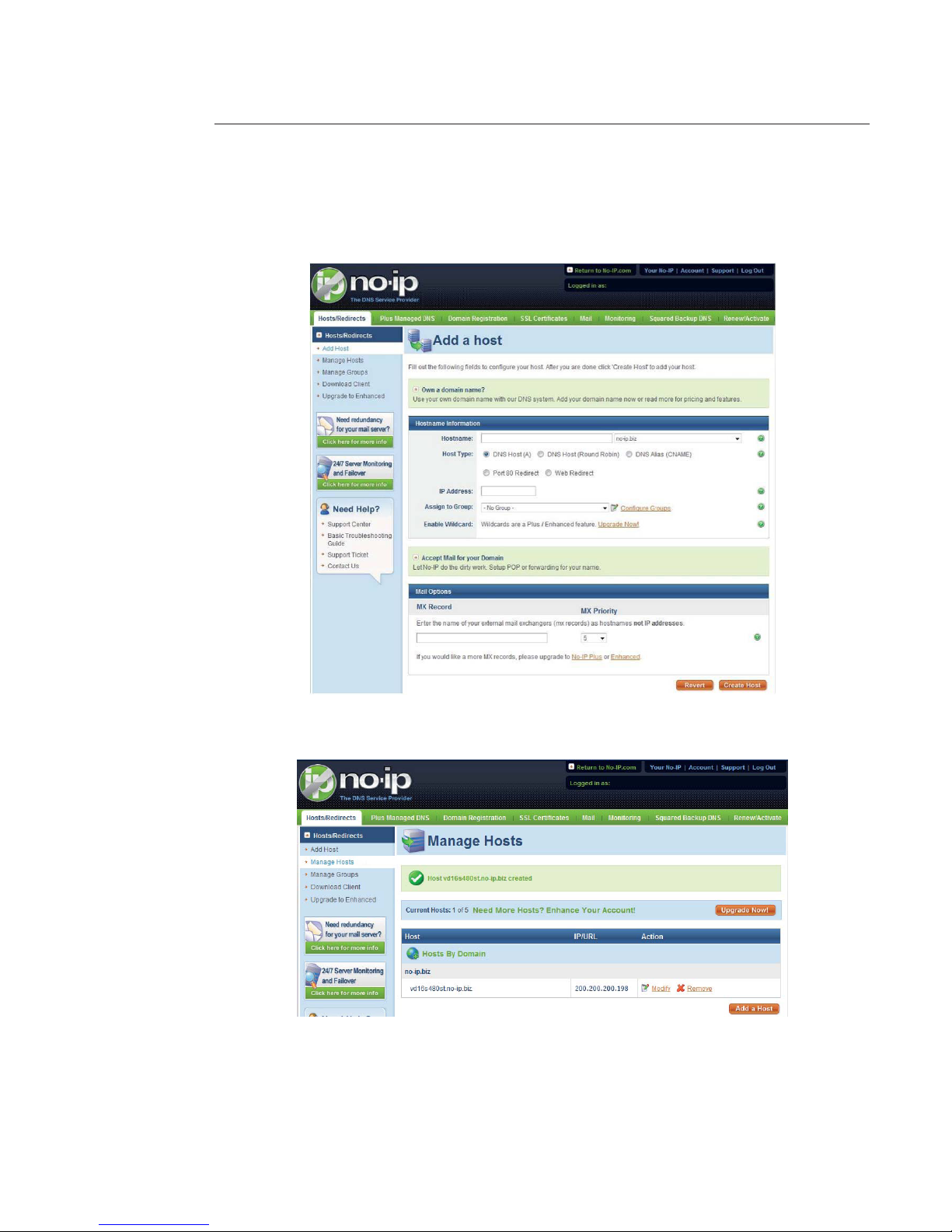

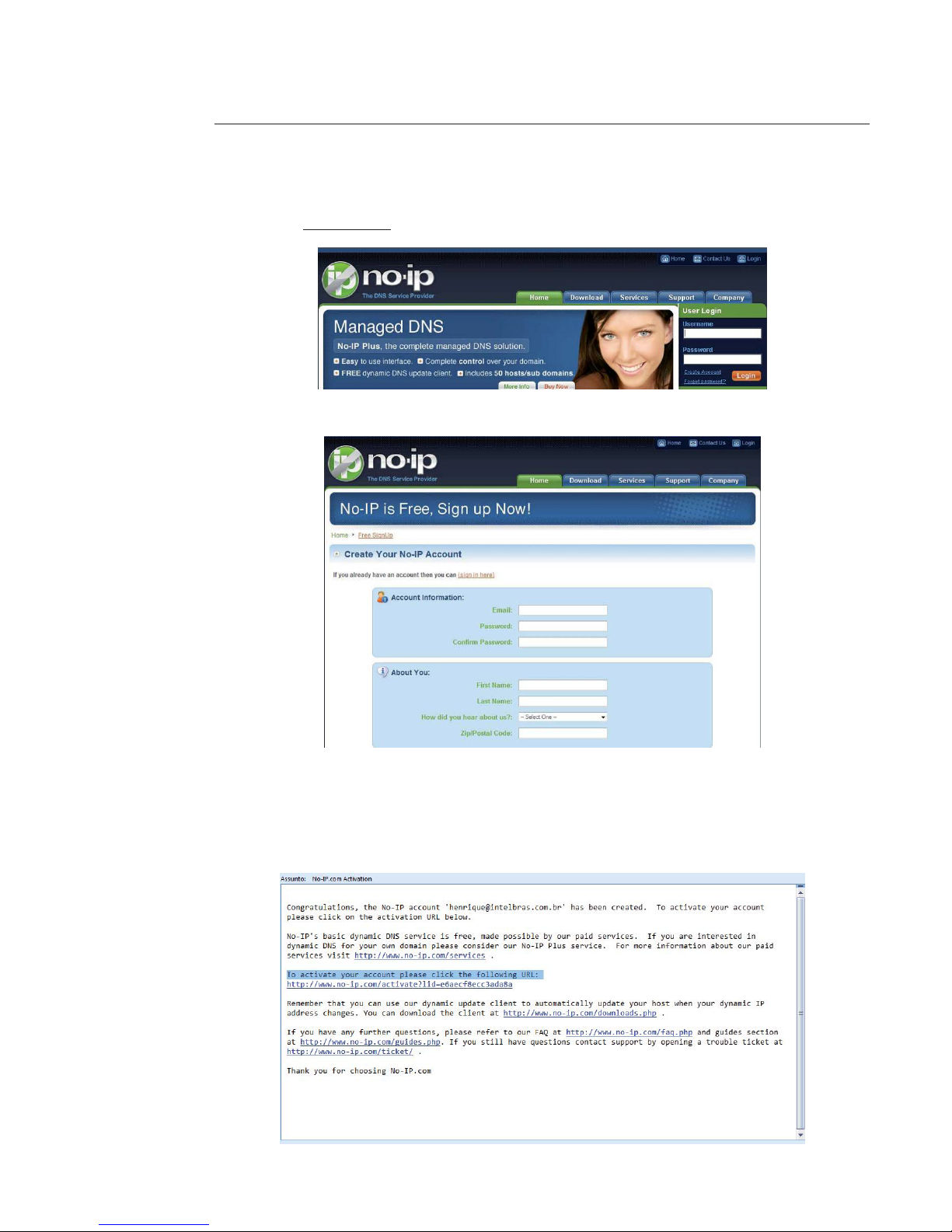

Annex 1: No-IP DDNS .................................................................................................................................... 67

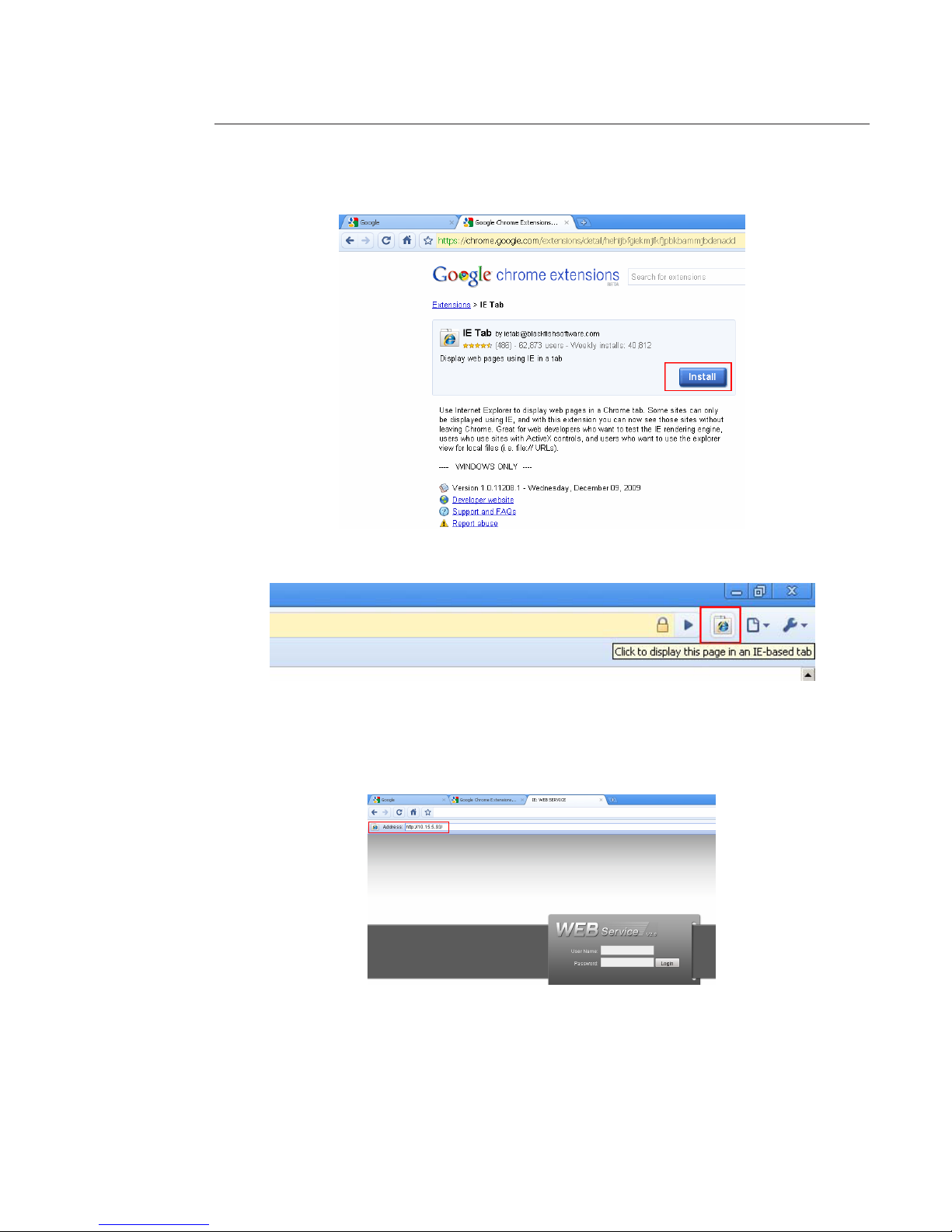

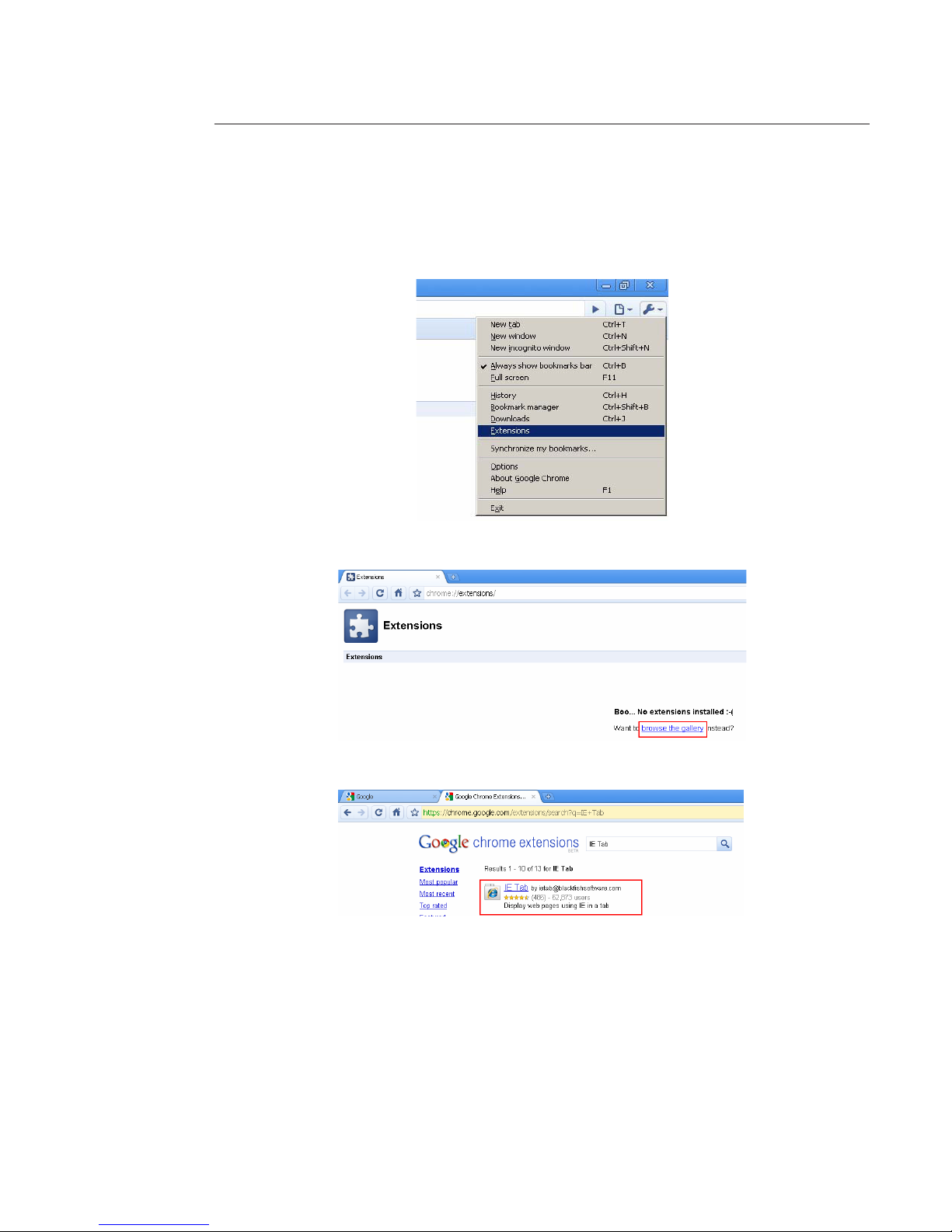

Annex 2: Using Google Chrome .................................................................................................................. 73

Annex 3: Using Firefox .................................................................................................................................. 75

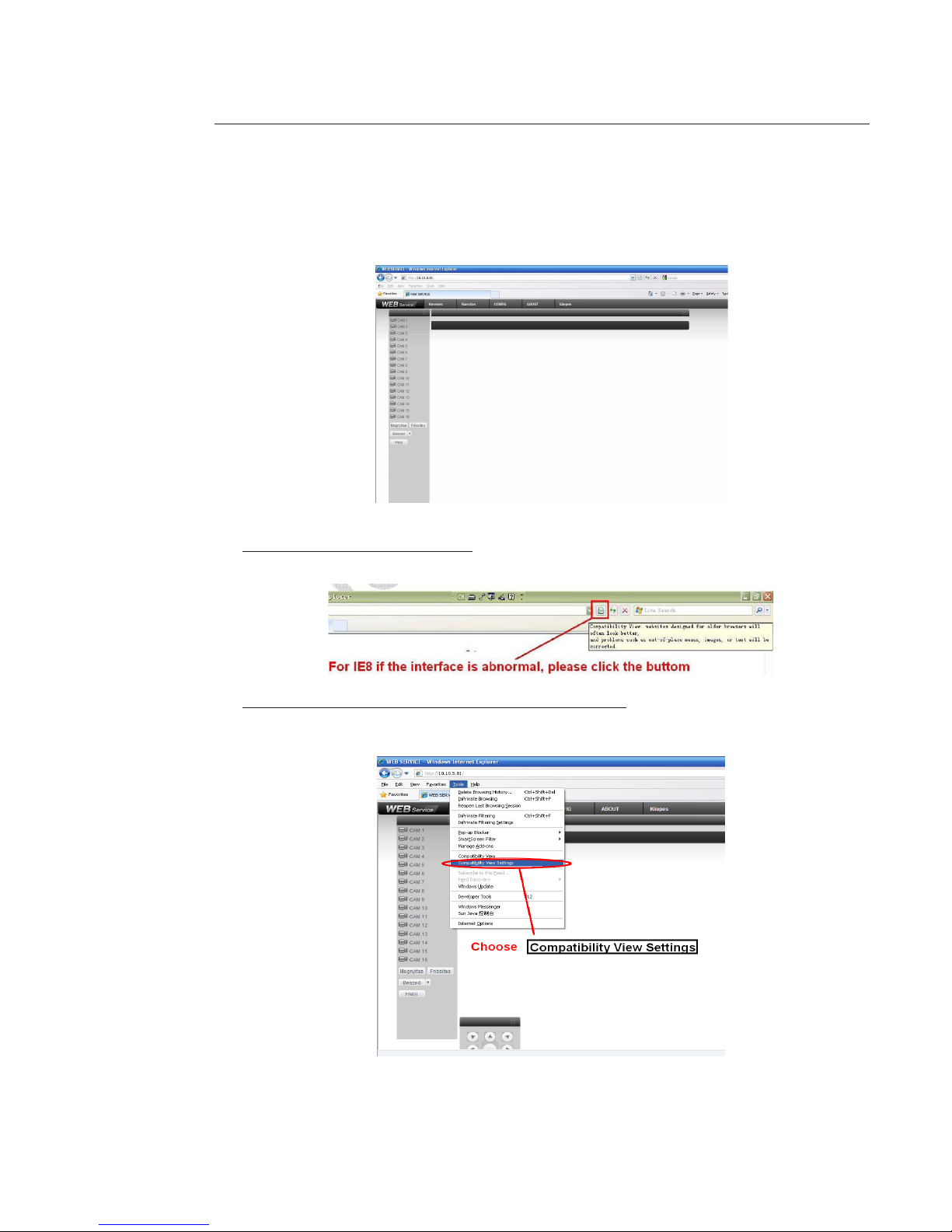

Annex 4: Using IE8 ........................................................................................................................................ 77

Annex 5: Email Function ...............................................................................................................................80

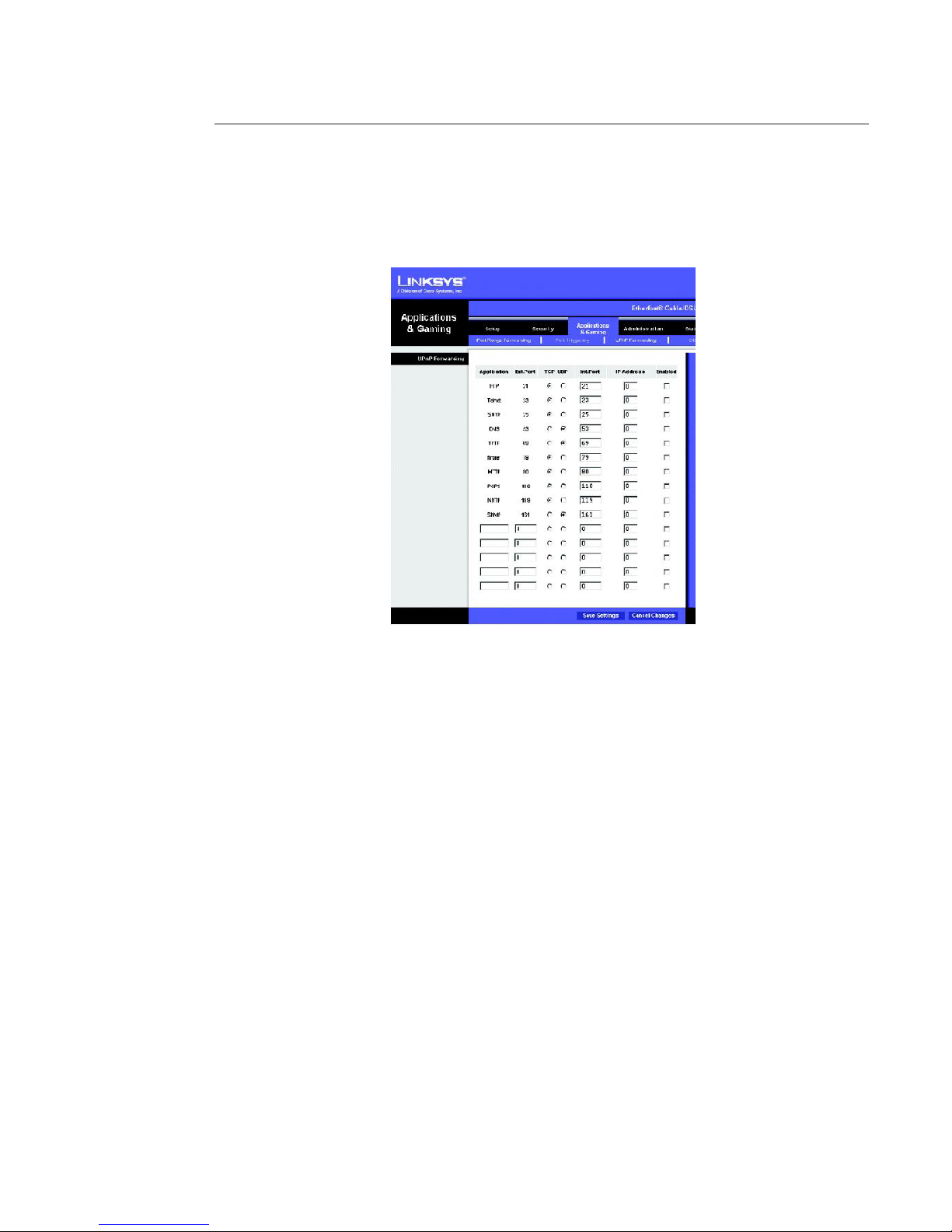

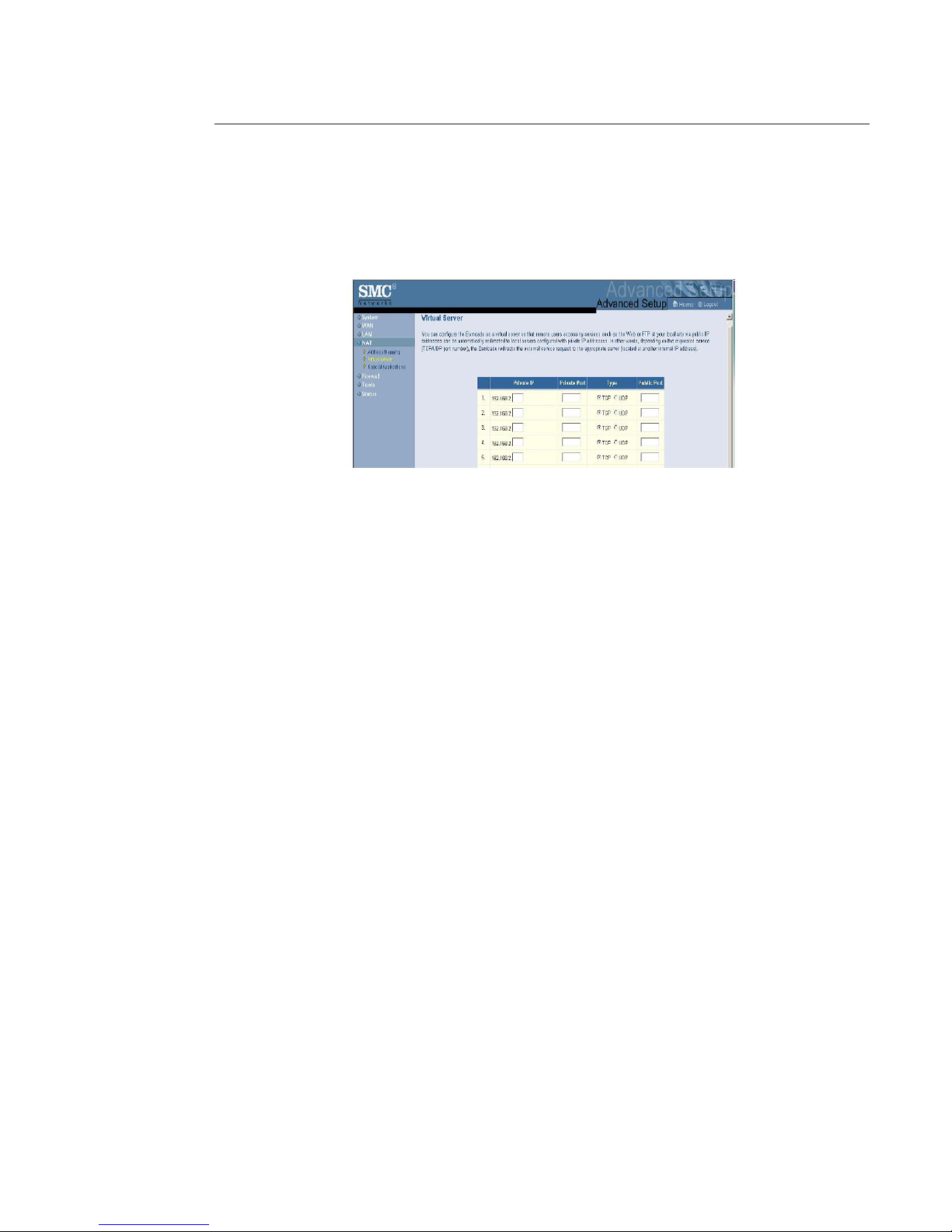

Annex 6: Routers conguration .................................................................................................................. 83

4

1 Accessories

Name Qty

IP Camera 1

C/CS adapter 1

Quick Start Guide 1

CD 1

12V power adapter 1

5

2 General Introduction

2.1 Overview

This device integrates traditional camera and network video technology. It adopts audio video data collection, transmission
and storage. It can connect to the network directly without any auxiliary device.

This device uses standard H.264 video compression technology which maximally guarantees the video quality.

It can be used alone or used in a network area. When it is used lonely, it can be connected to the network and used from
a network client-end.

2.2 Features

User Management

Dierent user rights for each group, one user belongs to one group.
The user right can not exceed the group right.

Data Transmission Support cable network data transmission via Ethernet.

Storage Function

Support central server backup function in accordance with conguration and setup
in alarm or schedule setting.
Support record via Web and the recorded le are stored in the client-end PC.
Support local SD card hot swap.

Alarm Function

Real-time respond to local alarm input and video detection as user pre-dened
activation setup and exert audio prompt(allow user to pre-record audio le).
Realize real-time video detect such as motion detect, camera masking and video
loss.

Network Monitor

Supports one-channel audio/video data transmit to network terminal
Max supports 10 connections.
Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP and etc.
Support web access, widely used in WAN.

Network Management

Conguration and management via Ethernet.
Support device management via web.
Support various network protocols.

Peripheral Equipment

Support peripheral equipment connection via the RS232 port.
Support serial port (RS232/RS485) transparent data transmission.

Power External power adapter. Support DC 12V/AC 24V power supply.

PoE

Support Power over Ethernet (PoE). Conform to the IEEE802.3af standard.
Connect the device to the switch or the router that supports PoE function to realize
the network power supply.
To guarantee proper performance, make sure the power source can supply at least
10W power.

Assistant Function

Day/Night mode auto switch (ICR switch.)
Support system resource information and running status real-time display.
Support log function.

6

2.3 Specications

2.3.1 Performance

Please refer to the following sheet for IPC performance specication.

Model

Parameter

Ref. 4 360 61

System

Main Processor TI Da vinci high performance DSP

OS Embedded LINUX

System resources

Support real-time network, local record, and remote operation at the same
time.

User Interface Remote operation interface such as WEB or VMS.

System status SD card status, bit stream statistics, log ,software version ,online user

Video parameter

Image Sensor 1/2.7-inch CMOS 3 Mega Pixels SONY Exmor.

Pixel 2048 (H) *1536 (V)

Day/Night Mode Mecanichal IR-CUT lter.

Auto iris Yes

Gain Control Fixed/Auto

White Balance Manual/Auto

Electronic Shutter Manual/Auto (It ranges from 1/50 to 1/10000)

Video Compression Standard H.264

Video Frame Rate

PAL: Main stream (2048*1536@15fps) extra stream,(D1@12fps)
Main stream (1920*1080@25fps) extra stream (D1@12fps)

Video Bit Rate 160k~8Mbps. Support customized setup.

Video Flip Does not support mirror. Support ip function.

Video Quality 1~6 level (The 6th level has the highest quality)

Snapshot Max 1f/s snapshot. File extension is JPEG

Privacy Mask Each channel supports max 4 privacy zones

Video Setup Support parameter setup such as brightness, contrast, etc.

Video information Channel title, time title, video loss, motion detect, privacy mask.

Lens Interface C/CS (adapter provided).

Audio

Audio Input 3,5 mm Jack in.

Audio Output 3,5 mm Jack out.

Audio Bit Rate 8 kbps.

Audio Compression Standard G711a/G711u/PCM.

Video

Motion Detect

396 (18*22) detection zones: sensitivity level ranges from 1 to 6
(the 6th level has the highest sensitivity).
Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.

Video Loss

Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.

Privacy mask

Sensitivity level ranges from 1 to 6. Each sensitivity level is the percentage
of the privacy mask zone.
Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.

7

Model

Parameter

Ref. 4 360 61

Alarm Input 2-channel input 1-channel output (NO-NC).

Record and

Backup

Record Priority Manual>Alarm >Motion detect>Schedule.

Record Search Mode

Support local data search via time/date, event type (alarm, motion detect,
external alarm) and le type (record/image).

Local Storage Support local SD card hot swap.

Storage Management Support display local storage status.

Network

Network Protocol

HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS,
PPPoE.

Remote Operation

Monitor, playback, system setup, le download, log information,
maintenance , upgrade, etc.

AUX

Interface

Video Output Analog video output BNC port.

Network Interface 10/100 Base-T Ethernet.

General Parameter

Power Support AC24V/DC12V power. Support PoE.

Power Consumption <10W.

Working Temperature -10 ~ +55°C.

Working Humidify 10% ~ 90%.

Dimensions 70 * 63.2 * 149.5 mm.

Weight 650 g.

8

2.3.2 Factory Default Setup

Please refer to the following sheet for factory default setup information.

Function conguration type Item Name Default setup

General Setup

Date format Y-M-D

DST Disable by default

Date separator ‘ _ ’

Time format 24H

Language English

When HDD is full Overwrite

Record duration 8 min

Device No. 8

Video type PAL

Encode Setup

Main stream

Channel Channel01

Compression

H.264

Enable audio and video

General bit stream Main stream

Resolution 1080P

Frame rate 25

Bit stream control VBR

Bit stream value 8192

I frame interval control 50

Extra stream

Extension stream Main stream

Audio/Video enable Disable audio and video

Resolution D1

Frame rate 25

Bit stream control CBR

Bit stream value 2048

I frame interval control 50

Image color

Brightness: 50

Contrast: 50

Saturation: 50

Hue: 50

Watermark

Enable
Stream type: All
Type: Character

Character: Digital CCTV

Privacy Mask Never

Time title Enable. OSD transparent (read-only):0

Channel title Enable. OSD transparent (read-only):0

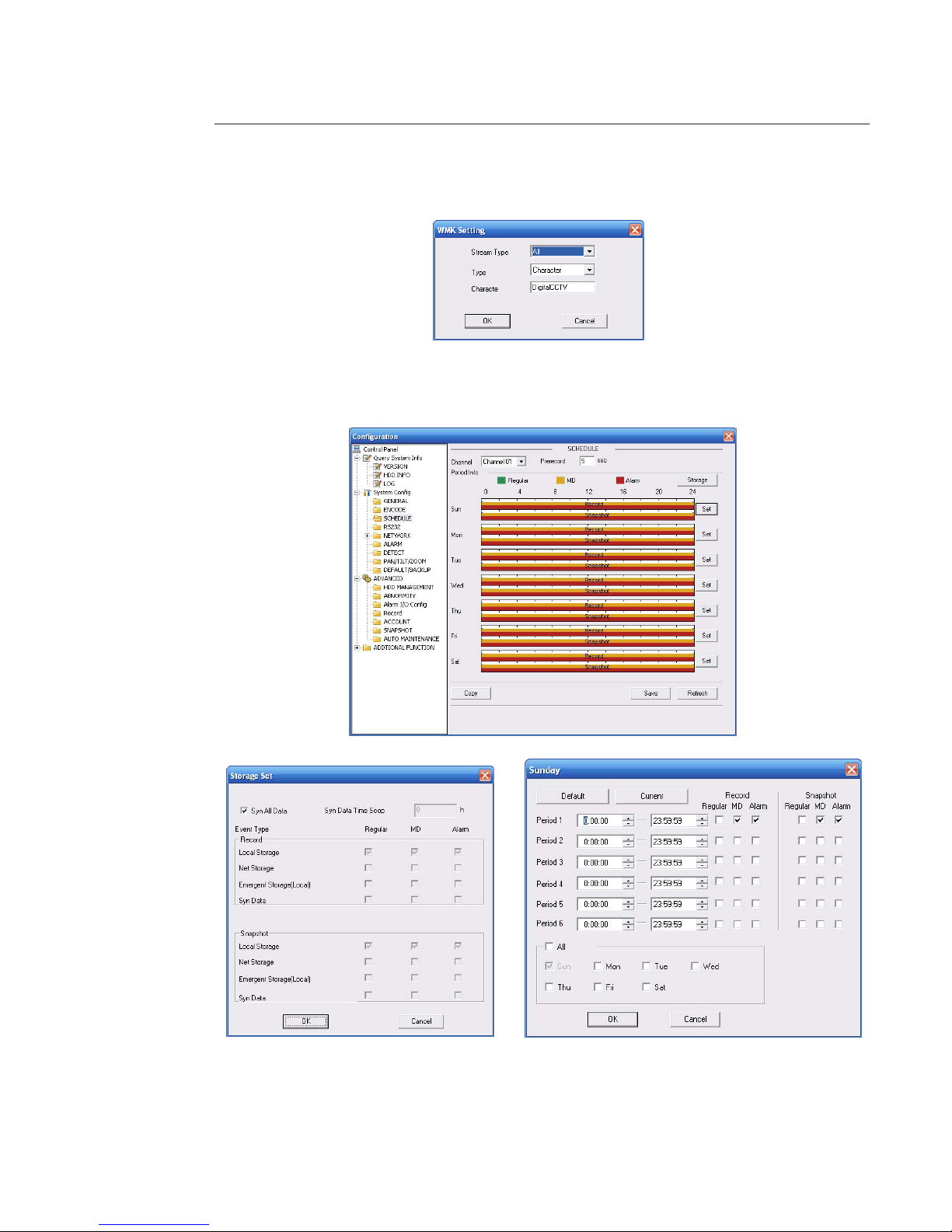

Schedule setup

Channel Ch01

Pre-record 1 second

Time Setup

Start time 0:00:00

End-time 23:59:59

Record

Period 1 : Enable motion detection/

alarm

9

Function conguration type Item Name Default setup

Record setup Time Setup

Snapshot

Period 1 : Enable motion detection/
alarm

Week Sunday

COM Setup

Option COM01

Function Console

Data bit 8

Stop bit 1

Baud rate 115200

Parity None

Network setup

Ethernet Port 01

DHCP Disable

IP address 192.168.1.108

Subnet mask 255.255.0.0

Gateway 192.168.0.1

Device name Device factory default name

TCP port 37777

HTTP port 80

UDP port 37778

Max connection 4

Network transmission QoS Disable

Remote host Multiple broadcast group

IP address 239.255.42.42

Port 36666

Email setup Disable

Multiple DDNs Disable

NAS setup Disable

NTP setup Disable

Alarm server Disable

Alarm setup

Event type Local alarm

Alarm input Input 01, disable

Type Normal open

Period Setup

Period: Start time 0:00:00
End time:23:59:59
Period 1:enable Week: Sunday

Anti-dither 0 second

Alarm output Disable

Alarm latch 10 seconds

Record channel 1, enable

Record latch 10 seconds

Send email Enable

PTZ activation

Disable
Event type: never
Address: 0

Capture Disable

10

Function conguration type Item Name Default setup

Video detection

Event type Motion detection

Channel Ch01, Disable

Sensitivity 3

Time period setup

Period:
Start time 0:00:00
End time:23:59:59
Period 1:enable
Week: Sunday

Anti-dither 5 seconds

Alarm output Disable

Alarm latch 10 seconds

Record channel Disable

Record latch 10 seconds

Send email Disable

PTZ activation

Event type: Never
Address: 0
Disable

Capture Disable

PTZ Setup

Channel Ch01

Protocol DH-SD1

Address 1

Baud rate 9600

Data bit 8

Stop bit 1

Parity None

Default and Backup

All Disable

General Disable

Encode Disable

Schedule Disable

RS232 Disable

Network Disable

Alarm Disable

Video detection Disable

Maintain Disable

Camera Disable

Channel No. Disable

Advanced

Abnormity

Even Type No disk, Disable

Alarm Output Disable

Alarm Latch 10 seconds

Send email Disable

User account

admin/admin (reusable)
888888/888888(reusable)
666666/666666(reusable)
default

Snapshot Channel Ch01

11

Function conguration type Item Name Default setup

Advanced

Snapshot

Snapshot mode Snapshot_Timing

Frame rate 1f/s

Resolution 1080P

Quality 80%

Auto maintain

Auto reboot 2.00 each day

Auto delete old
les

Never

Camera cong

Channel 1

Exposure Mode Auto

Night Vision Auto

Backlight Compensation N/A

Auto Iris On

Scene Mode Auto

Signal Type Inside

Mirror N/A

Rotate Support

Auto Registration

SN 1

IP 0.0.0.0

Port 7000

DNS Setup

DNS 8.8.8.8

Alternative DNS 8.8.8.8

12

3 Framework

3.1 Rear Panel

The rear panel is shown as below.

Refer to the following sheet for detailed information.

Interface Name Connector Function

VIDEO OUT Video output port BNC Output analog video signal.

AC 24V/ DC 12V Power port

Power port.
Input 12V DC or 24V AC.

STATUS

Indicatin Light

Red light

System boot up: red light is on
Safe mode: red light ashes
System upgrades: red light ashes
System resets: red light ashes.

Green light

Normal working status: green light
is on.
Display record status: if recording
green light ashes.

Yellow light

Wireless data transmission: yellow
light ashes.
Detect the wireless device: yellow
light is on.

3G/WIFI port

Current series does not support this
function right now.

IN Alarm input port I/O port

Alarm input port 1.
Receive the signal from external
alarm device.

NO

C

1-ch alarm output

Alarm output port.
Send alarm signal to alarm device.
NO: Normal open alarm output port.
C: Alarm output common port.

G GND Alarm input ground port.

A RS485 port RS485- port.

B RS485 port RS485+port.

13

Interface Name Connector Function

RX RS232 port RS232 RX port (receive).

TX RS232 TX port (send).

G GND RS232 Ground port.

NA

C

D/N Switch Port

Connect this port to manage ICR
switch external input.

RESET RESET button

Restore factory default setup.
When system is running normally
(power indication light is red), press
the RESET button for at least 5 s,
system will restore factory default
setup.

AUDIO OUT Audio output port

Audio output

3.5mm Jack port.

Output audio port.

AUDIO IN Audio input port

Audio input

3.5mm Jack port.

Input audio port.

LAN Network port Ethernet port

Connect standard Ethernet cable.
Support PoE function.

SD SD card port

Connect SD card.

Note:
When you install the SD card:

make sure current card is not in write
mode then you can install it to the
camera.
When you remove the SD card:
make sure current card is not in write
mode.
Otherwise it may result in data loss
or card damage. Before hot swap,
please stop record operation.

GND

Make sure the device is securely
connected to earth.

14

3.2 Side Panel

The side panel is shown as below.

3.3 Front panel

The front panel is shown as below.

15

4 Installation

4.1 Lens Installation

4.1.1 Install Auto iris Lens

Follow the steps listed below for auto iris lens installation.

1- Remove the sensor protection cap of the device, and then line up the lens to the proper installation position.
Turn clockwise until the lens is xed rmly.
2- Insert the lens cable socket to the auto lens connector in the side panel.
3- When it is ∞, you can turn the adjust screw to adjust the focus circle to adjust the focal distance.

4.1.2 Install Manual Lens

Install C type lens

- Remove the sensor protection cap; use the cross-head screwdriver to remove the screw near the focal circle.

- Turn counter clockwise to move the focal circle out for several millimeters.

- Focus manually.

- Use the cross-head screwdriver to x the screw back rmly. Secure the focal circle.

- Install the C/CS adapter to the camera.

- Line up lens to the proper installation. Turn clockwise to x the lens rmly.

Install CS type lens

- Remove the sensor protection cap; use the cross-head screwdriver to remove the screw near the focal circle.
Turn counter clockwise to move the focal circle to the end and now you can focus manually.

- Use the cross-head screwdriver to x the screw back rmly. Secure the focal circle.

- Line up lens to the proper installation. Turn clockwise to x the lens rmly.

16

4.1.3 Remove Lens

Follow the steps listed below to remove lens.

1- Turn the lens counter clockwise and then remove it from the camera.
2- Unplug the auto lens cable socket from the auto lens connector.
3- If there is no lens, put the sensor protection cap back to protect the sensor.

4.1.4 SD Card Installation

Follow the steps listed below to install SD card.

1- Use the screwdriver to loosen the SD card protection screw in the rear panel, and remove the SD card

protection cap from the camera.
2- Install the SD card to the camera according to the proper installation position.
3- Put the SD card protection cap back.
4- Use the screwdriver to x the SD card protection cap screw rmly to secure the SD card protection cap in the

camera.

17

4.1.5 Remove SD card

Follow the steps listed below to remove SD card.

1- Use the screwdriver to loosen the screw of SD card protection cap in the rear panel. Remove the cap from the camera.
2- Follow the SD card direction to remove the SD card.
3- Insert the SD card protection cap.
4- Use the screwdriver to x the screw to secure the protection cap.

4.1.6 I/O Port

1

2

1 Install Cable

Follow the steps listed below to install the cable.

- Use the small slotted screwdriver to press the corresponding button of cable groove.

- Insert the cable into the groove and then release the screwdriver.

2 Remove Cable

Follow the steps listed below to remove the cable.

- Use the small slotted screwdriver to press the corresponding button of cable groove.

- Remove the cable out of the groove and then release the screwdriver.

18

5 Quick Conguration Tool

The quick conguration tool allows you to search for a device's IP address, even if it is in another segment (cameras, DVR,
NVR, encoders and decoders) and to modify it. The conguration tool is available on the CD supplied with the product.
It also allows the software to be upgraded or certain parameters to be modied.
This tool is used to connect to devices with an IP address in the same segment only.

5.1. First Connection

5. 1.1 Connection with the conguration tool (to change the IP address or upgrade a device's internal software)

To open the software, double click the "CongTool.exe" icon on the CD supplied with the product.

To search for devices connected to the network:

- Click the "Refresh" button; the tool will search for devices connected to the network and display it in the form of a list.

Description

1

Number

2

Device IP address

3

Device TCP port

4

Device subnet mask

5

Device default gateway

6

Device MAC address

7

Refresh the list

8

Access to the camera's network conguration menu

9

Disconnection from the camera's network conguration menu

1

2

3

4 5

6

7

8

9

19

To connect to a device and open the web application:

- Highlight it (single click in the list).

- Right click the highlighted line.

- Click on "Open Device Web".

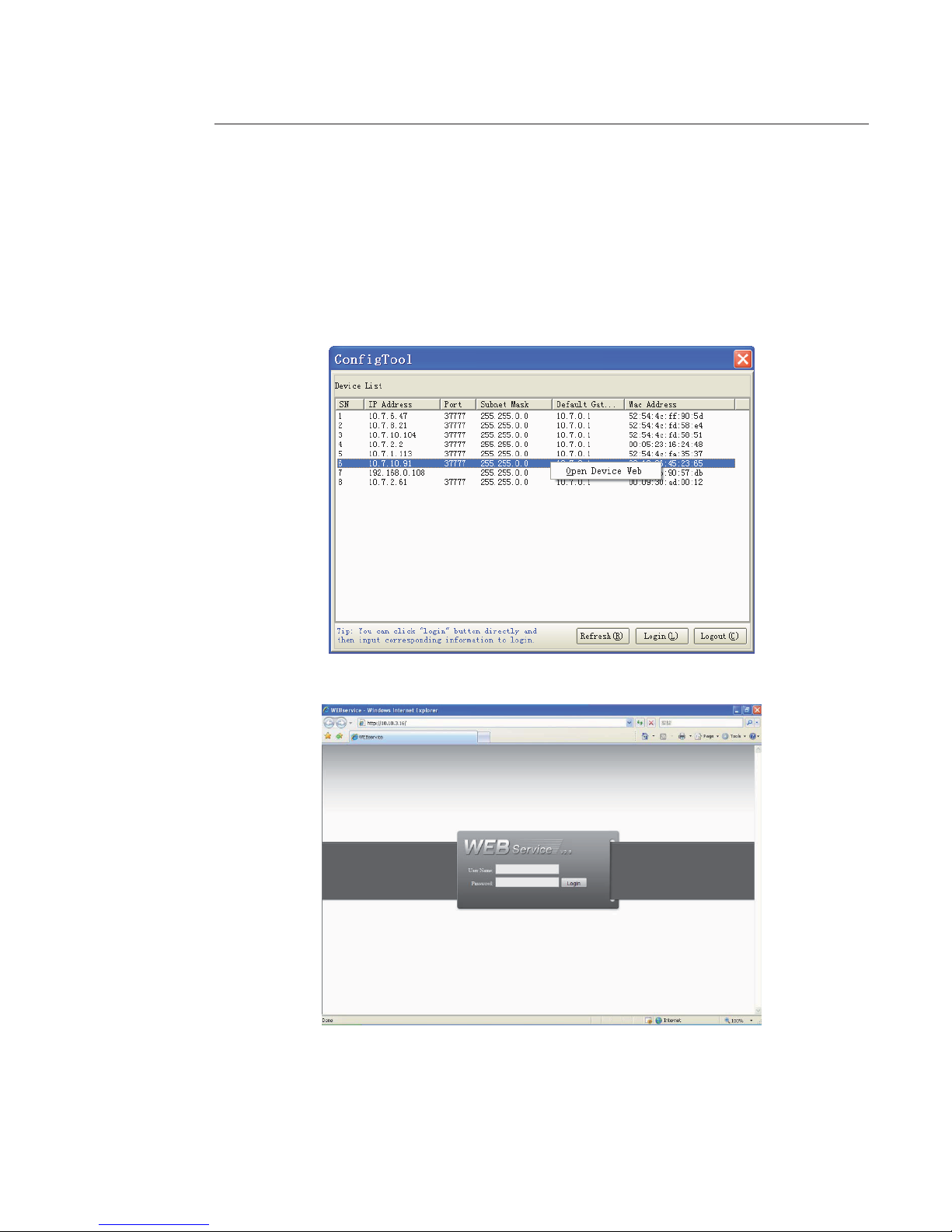

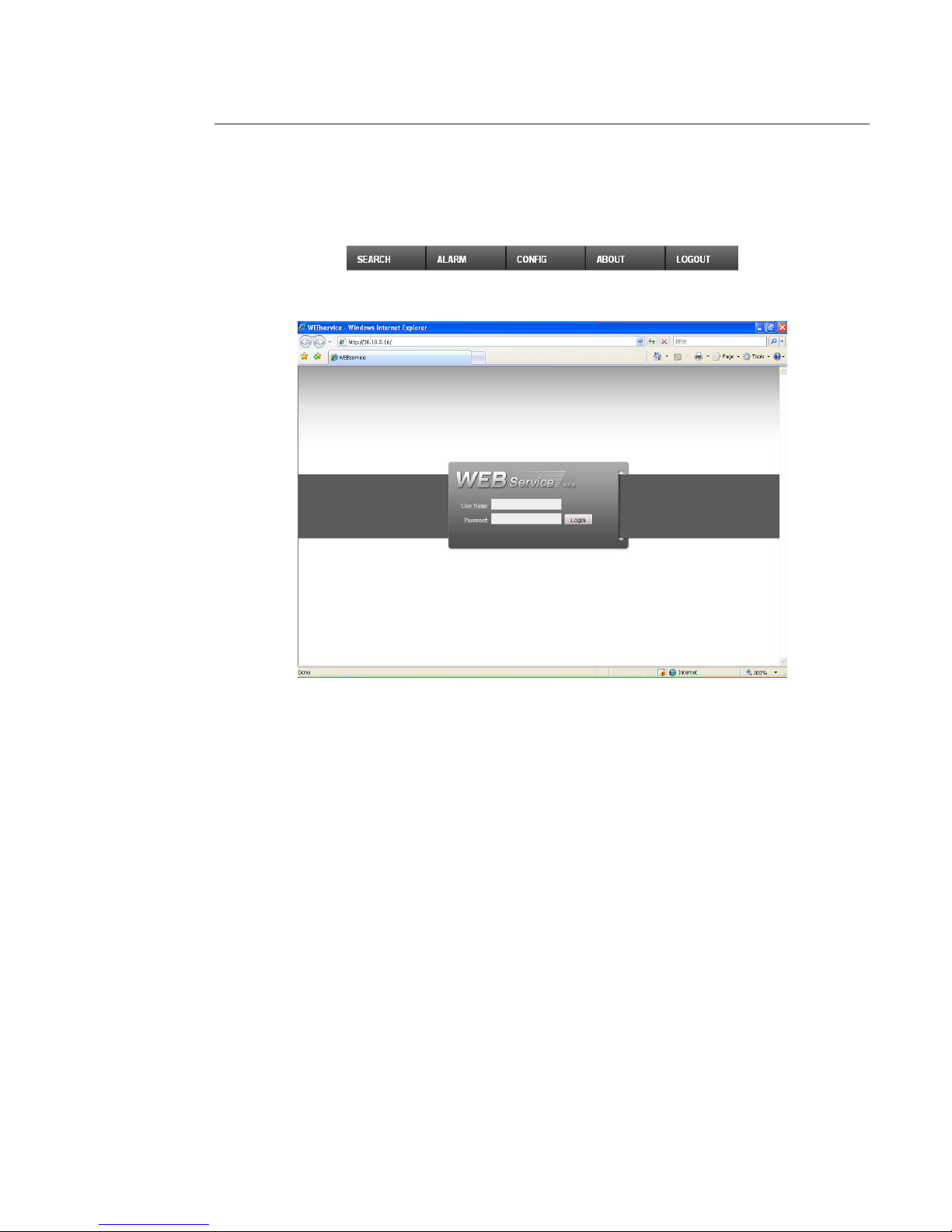

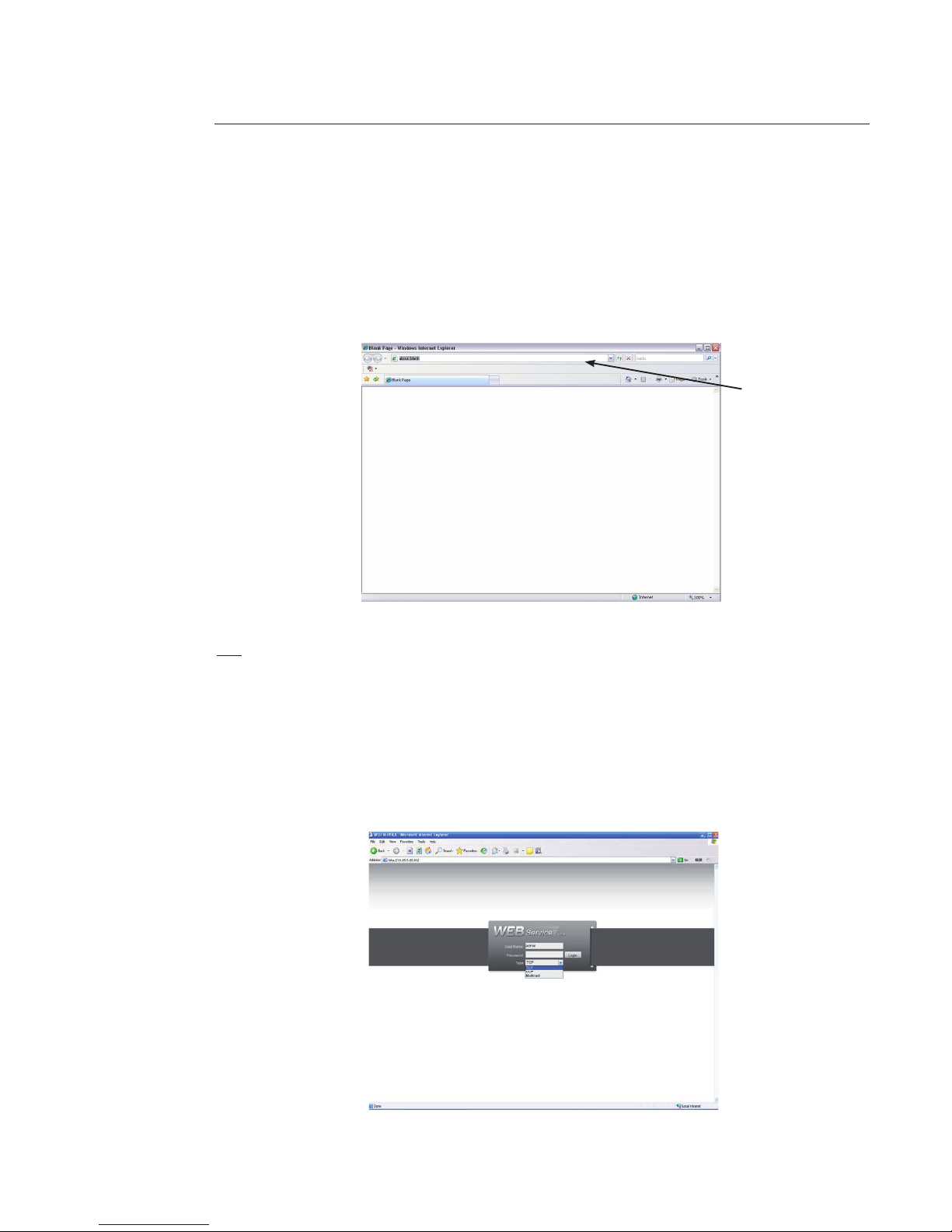

- The following web page opens:

If the connection fails:

- either the camera does not have an IP address in the same segment as the PC (see chapter 5.1.2 to change it),

- or the Internet Explorer security parameters are not set correctly (see chapter 6 to change them).

20

5. 1.2 Connection with the conguration tool (to change the IP address or upgrade a device’s internal software)

To search for devices connected to the network:

- Click the «Refresh» button; the tool will search for devices connected to the network and display them in the form of a
list (see chapter 5.1.1 for details of the interface).

To connect to a device:

- Highlight it (single click in the list).

- Click on button 8 (or double click on the highlighted line).

- The following window opens:

Function Note

IP address Device IP address

User name Device user name

Password Device password

Port Device TCP port

Login Connection

Cancel Cancel

Click "Login" once the information has been entered.

If the following screen appears, this means that the device address is not in the same IP addresses segment as the PC on
which the conguration tool is currently running. It will therefore not be possible to connect.



- Manually modify the IP address by entering the desired new address.

- Click OK to save the new address in the device.

21

- Restart the procedure. The following window should open:

- Click Login to access the parameter modications.

Function Note

Enable DHCP Enable or disable the DHCP function

IP address Device IP address

Subnet mask Device subnet mask

Gateway Device default gateway

MAC address Device MAC address

Save Save

Return Return to the search interface

22

5.1.3 PPPoE

Select "PPPoE" on the right-hand side of the interface:

Function Note

Enable PPPOE Enable or disable the PPPoE function

User name PPPOE user name

Password PPPOE password

IP address Device IP address in the WAN

Save Save

Return Return to the search interface

- Click the "System Information" tab on the right.

23

5.1.4 System

Select "System Information" on the right-hand side of the interface.

Function Note

SN Device serial number

Software version Device software version

Device name Model name

Synchronization

with PC

Synchronisation of the device date and time with the date and time on the PC.
Click "Sync" to synchronise, then "Save" to save the date and time.

PC date PC date

PC time PC time

Manual Setup

Manual setup of the device date and time.
Enter the desired date and time.
Click "Sync" to synchronise, then "Save" to save the date and time.

Date Date

Time Time

Sync Synchronise

Save Save

Return Return to the search interface

- By way of example, enter a camera name in the "Device Name" eld.

- Check that “Synchronization with PC” is selected, so that the date and time are synchronised with the PC.

- Check that the date and time are correct. If not, click “Sync(S)”.

24

5.1.5 System Upgrade

Select "System Upgrade" on the right-hand side of the interface.

Function Note

Upgrade le/Open Click here to select the upgrade le.

Current progress/Upgrade Click here to start the upgrade procedure.

Return Return to search interface

Steps for updating the device's internal software

- Click on the "Open" button and select the *.bin internal software le.

- When the le has been added, click the "Upgrade" button; the le is then transmitted to the device.

25

- Once the le has been transferred, the device upgrades automatically.

- Once the device has been upgraded, the following dialogue box opens:

- Click OK to nish the procedure.

26

6 Connecting to a Device and Opening the Web Application

6.1 PC Conguration

This device supports Web access and management via PC.

Web includes several modules including monitor channel list, record search, alarm setup, system conguration,
PTZ control, monitor window, etc.

The system pops up warning information to ask whether you wish to install the control webrec.cab or not.
Click OK; the system can automatically install the control.

When the system is upgrading, it can overwrite the previous Web application too.

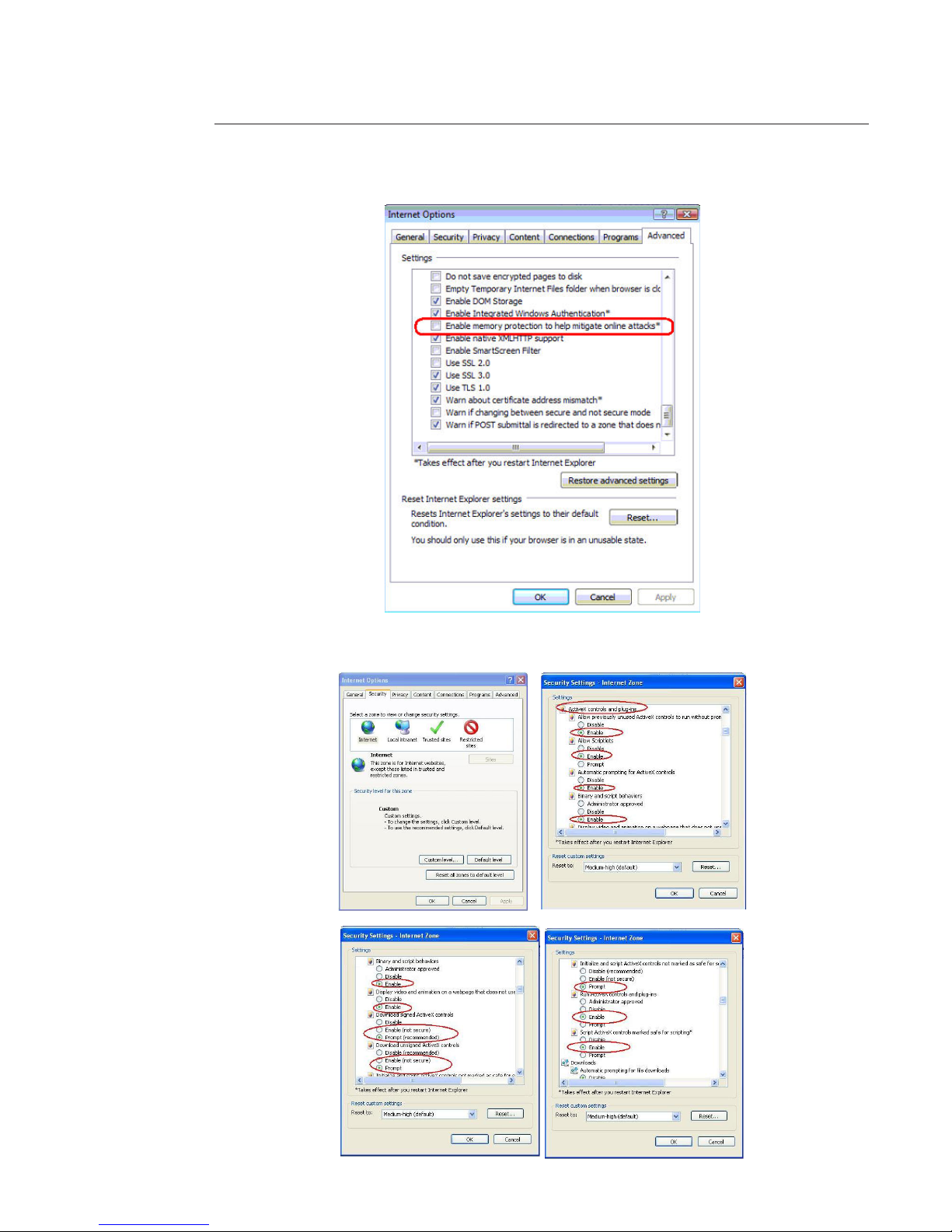

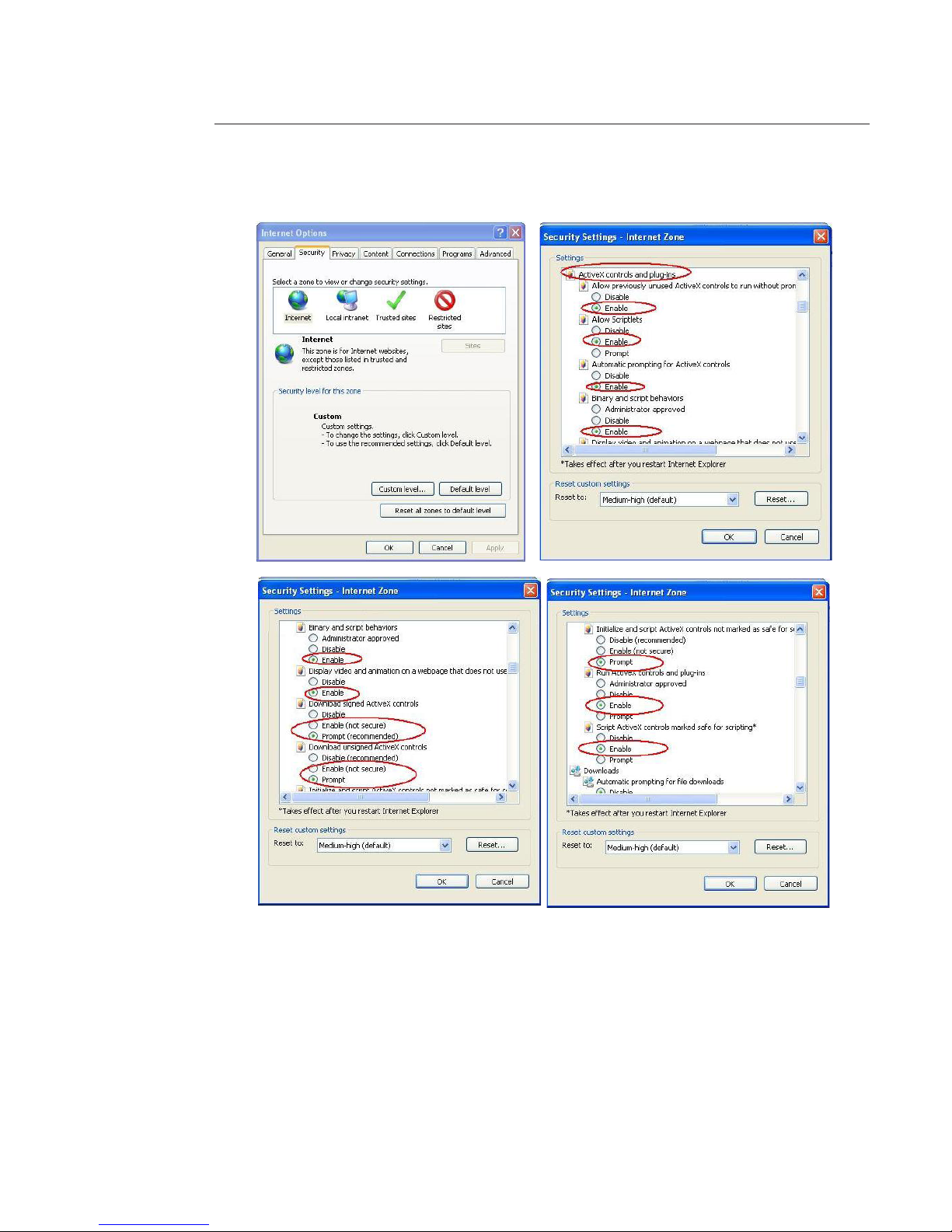

If you cannot download the ActiveX le, check whether you have installed the plug-in to disable the control download.
Alternatively you can lower the IE security level.
