Legrand 363511 User Manual
BTICINO > Door entry system > Audio and Video kits > Video kits
GENERAL CATALOGUE

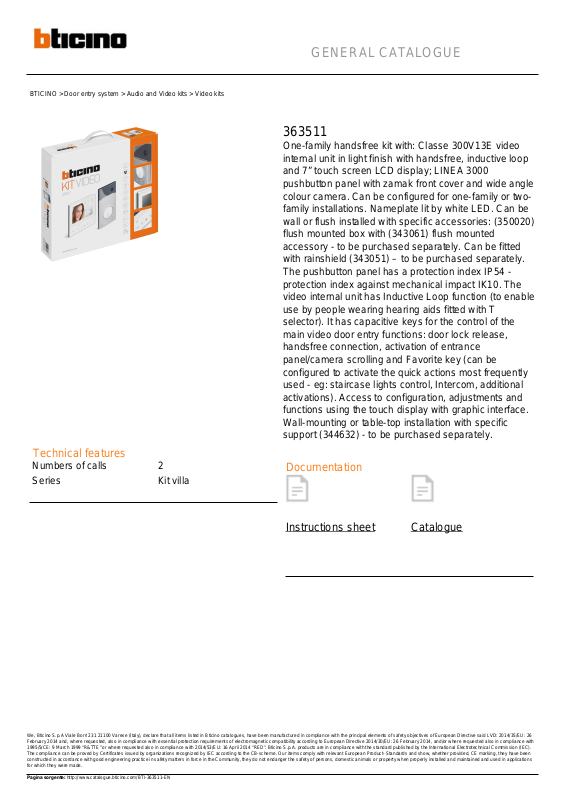

363511
One-family handsfree kit with: Classe 300V13E video
internal unit in light finish with handsfree, inductive loop
and 7” touch screen LCD display; LINEA 3000
pushbutton panel with zamak front cover and wide angle
colour camera. Can be configured for one-family or twofamily installations. Nameplate lit by white LED. Can be
wall or flush installed with specific accessories: (350020)
flush mounted box with (343061) flush mounted
accessory - to be purchased separately. Can be fitted
with rainshield (343051) – to be purchased separately.
The pushbutton panel has a protection index IP54 protection index against mechanical impact IK10. The
video internal unit has Inductive Loop function (to enable
use by people wearing hearing aids fitted with T
selector). It has capacitive keys for the control of the
main video door entry functions: door lock release,
handsfree connection, activation of entrance
panel/camera scrolling and Favorite key (can be
configured to activate the quick actions most frequently
used - eg: staircase lights control, Intercom, additional
activations). Access to configuration, adjustments and
functions using the touch display with graphic interface.
Wall-mounting or table-top installation with specific
support (344632) - to be purchased separately.
Technical features
Numbers of calls 2
Series Kit villa
Documentation
Instructions sheet Catalogue
We, Bticino S.p.A Viale Borri 231 21100 Varese (Italy), declare that all items listed in Bticino catalogues, have been manufactured in compliance with the principal elements of safety objectives of European Directive said LVD: 2014/35/EU: 26
February 2014 and, where requested, also in compliance with essential protection requirements of electromagnetic compatibility according to European Directive 2014/30/EU: 26 February 2014, and/or where requested also in compliance with
1995/5/CE: 9 March 1999 “R&TTE” or where requested also in compliance with 2014/53/EU: 16 April 2014 “RED”. Bticino S.p.A. products are in compliance with the standard published by the International Electrotechnical Commission (IEC).
The compliance can be proved by Certificates issued by organizations recognized by IEC according to the CB-scheme. Our items comply with relevant European Product- Standards and show, whether provided, CE marking, they have been
constructed in accordance with good engineering practice in safety matters in force in the Community, they do not endanger the safety of persons, domestic animals or property when properly installed and maintained and used in applications
for which they were made.
