Legrand 2HUB User Manual

Legrand/Wiremold electrical systems conform to and should be properly
grounded in compliance with requirements of the current National
Electrical Code or codes administered by local authorities.

All electrical products may present a possible shock or fire
hazard if improperly installed or used. Legrand/Wiremold electrical
products may bear the mark of a Nationally Recognized Testing
Laboratory (NRTL) and should be installed in conformance with current
local and/or the National Electrical Code.

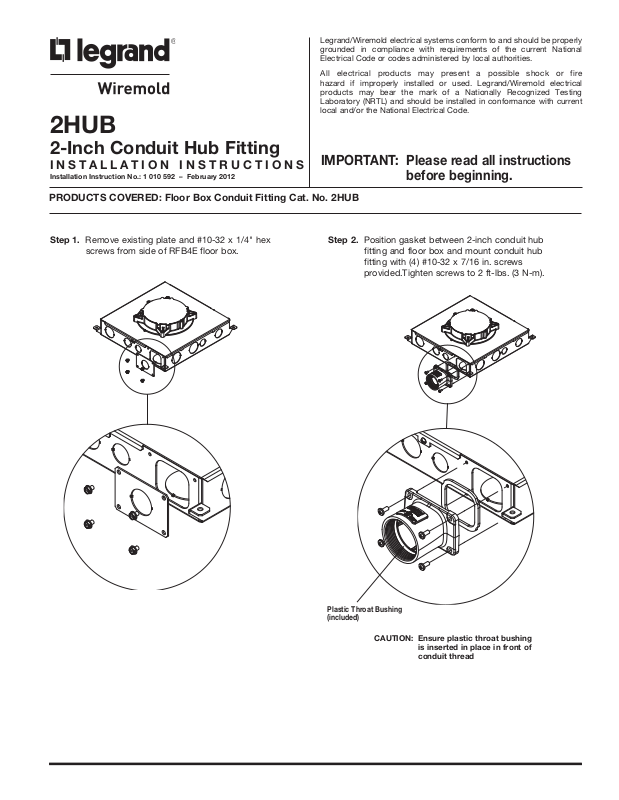

2HUB

2-Inch Conduit Hub Fitting

I N S T A L L A T I O N I N S T R U C T I O N S

nstallation Instruction No.: 1 010 592 – February 2012

I

PRODUCTS COVERED: Floor Box Conduit Fitting Cat. No. 2HUB

IMPORTANT: Please read all instructions

before beginning.

Step 1. Remove existing plate and #10-32 x 1/4" hex

screws from side of RFB4E floor box.

Step 2. Position gasket between 2-inch conduit hub

fitting and floor box and mount conduit hub
fitting with (4) #10-32 x 7/16 in. screws
provided.Tighten screws to 2 ft-lbs. (3 N-m).

Plastic Throat Bushing
(included)

CAUTION: Ensure plastic throat bushing

is inserted in place in front of
conduit thread

Step 3. Place label next to “Volume Marking” in front of

compartment where the 2HUB has been installed.

2HUB

CONDUIT

FITTING
INSTALLED
MAX. WIRE

SIZE: 4AWG

© Copyright 2012 Legrand/Wiremold All Rights Reserved

WIREMOLD

U.S. and International:

60 Woodlawn Street • West Hartford, CT 06110
1-800-621-0049 • FAX [phone] • Outside U.S.: 860-233-6251

Canada:

570 Applewood Crescent • Vaughan, Ontario L4K 4B4
1-800-723-5175 • FAX [phone]

1 010 592 0212
