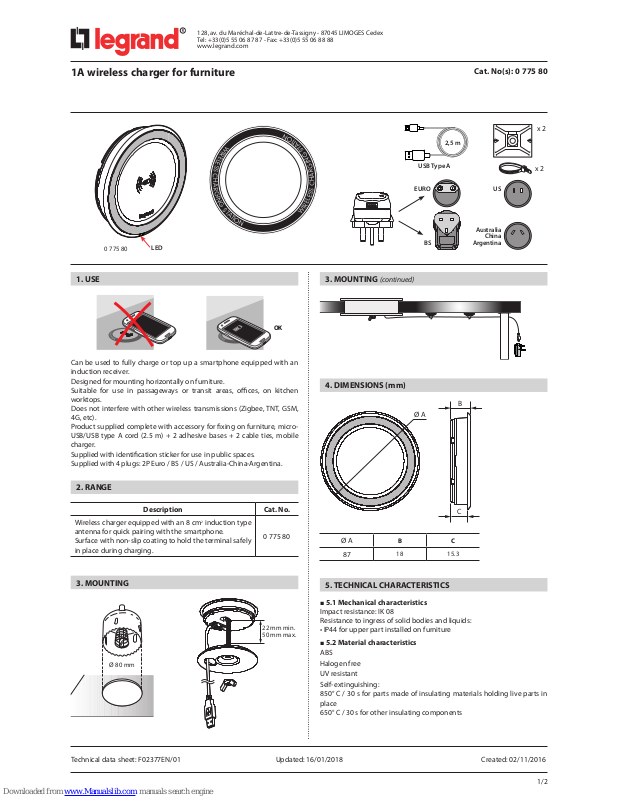

Page 1
Cat. No(s): 0 775 80
Technical data sheet: F02377EN/01 Updated: 16/01/2018 Created: 02/11/2016
1/2
1A wireless charger for furniture
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
3. MOUNTING (continued)
4. DIMENSIONS (mm)
5. TECHNICAL CHARACTERISTICS
5.1 Mechanical characteristics
Impact resistance: IK 08
Resistance to ingress of solid bodies and liquids:
• IP44 for upper part installed on furniture
5.2 Material characteristics
ABS
Halogen free
UV resistant
Self-extinguishing:
850° C / 30 s for parts made of insulating materials holding live parts in
place
650° C / 30 s for other insulating components
1. USE
Can be used to fully charge or top up a smartphone equipped with an
induction receiver.
Designed for mounting horizontally on furniture.
Suitable for use in passageways or transit areas, oces, on kitchen
worktops.
Does not interfere with other wireless transmissions (Zigbee, TNT, GSM,
4G, etc).
Product supplied complete with accessory for xing on furniture, microUSB/USB type A cord (2.5 m) + 2 adhesive bases + 2 cable ties, mobile
charger.
Supplied with identication sticker for use in public spaces.
Supplied with 4 plugs: 2P Euro / BS / US / Australia-China-Argentina.
2. RANGE
3. MOUNTING
OK
Ø A
B
C
Description Cat. No.
Wireless charger equipped with an 8 cm
2
induction type
antenna for quick pairing with the smartphone.
Surface with non-slip coating to hold the terminal safely
in place during charging.
0 775 80
0 775 80
USB Type A
x 2
x 2
22 mm min.
50 mm max.
Ø 80 mm
W
I
R
E
L
E
S
S
C
H
A
R
G
I
N
G
S
T
A
T
I
O
N
W
I
R
E
L
E
S
S
C
H
A
R
G
I
N
G
S
T
A
T
I
O
N
EURO
BS
US
Australia
China
Argentina
Ø A
B C
87
18 15.3
LED
2,5 m
Page 2
2/2
Cat. No(s): 0 775 80
1A wireless charger for furniture
Technical data sheet: F02377EN/01 Updated: 16/01/2018 Created: 02/11/2016
WPC QI
5. TECHNICAL CHARACTERISTICS (continued)
5.3 Electrical characteristics
5.4 Average charging time for a smartphone equipped with an
induction receiver
- 80 % charge < 2 hrs
- 100 0% charge < 2 hrs 45
5.5 Climate characteristics
Storage temperature: - 20°C to + 70°C
Operating temperature: 0°C to + 45°C
6. STANDARDS AND APPROVALS
EN 62479
ICNIRP
Nominal input voltage 110 - 230 V~
Nominal output voltage 5 V
Frequency 50 - 60 Hz
Maximum input current 150 mA (ac)
Maximum output current 1000 mA (dc)
Standby consumption < 0.07 W
Energy eciency > 85 %
Protection class II - Low voltage
