Legamaster e-Board Quick User Manual

Quick user guide e-Board Interactive

INTRODUCTION:

HOW DOES IT WORK?

The e-Board Interactive is a white board with a mat, enamel
steel surface. This matte surface has the important
advantage of not reflecting a ‘Hotspot’ when projecting on
the board with a beamer. The board has a scratch resistant
enamel projection surface

One sensor is integrated in the board which captures the
ultrasonic signals of the included stylus pen. With this pen
your board can function as a computer. That is the
functionality basis.

Besides there is a software included to make a virtual
school/whiteboard. This way you can make notes on the
board like your used to with a classic school board. You can
even save and spread out these notes. Meanwhile you can
project images on your virtual school board during lessons
to visualize the topic.

This software also has the possibility to control PowerPoint
presentations directly (underline, highlight, include texts and
symbols, draw, emphasize etc., etc).

All software your mouse can control, can also be controlled
by the stylus pen. The pen actually replaces the computer
mouse.

THE ADVANTAGES

• Control your laptop/pc on the board.

• Optimal use of the possibilities on your

laptop/pc on large screens in the
classroom (possible to work in all kind
of programs)

• Inexhaustible source for educational
material through the Internet :
websites, software, film clips, music,
images, presentations etc

• Save and spread out your lessons
(share them with colleagues, publish
on the Internet, print out etc)

• Easily exchange educational material
and documentations among each
other.

• Simply move objects on the screen.

• Dynamic and interactive lessons

whereby the motivation and attention
of your students increase.

• Simple visualisation of educational
material.

Index:

1. Explanation of the Stylus pen

2. Tool palettes

3. Scrapbook palette

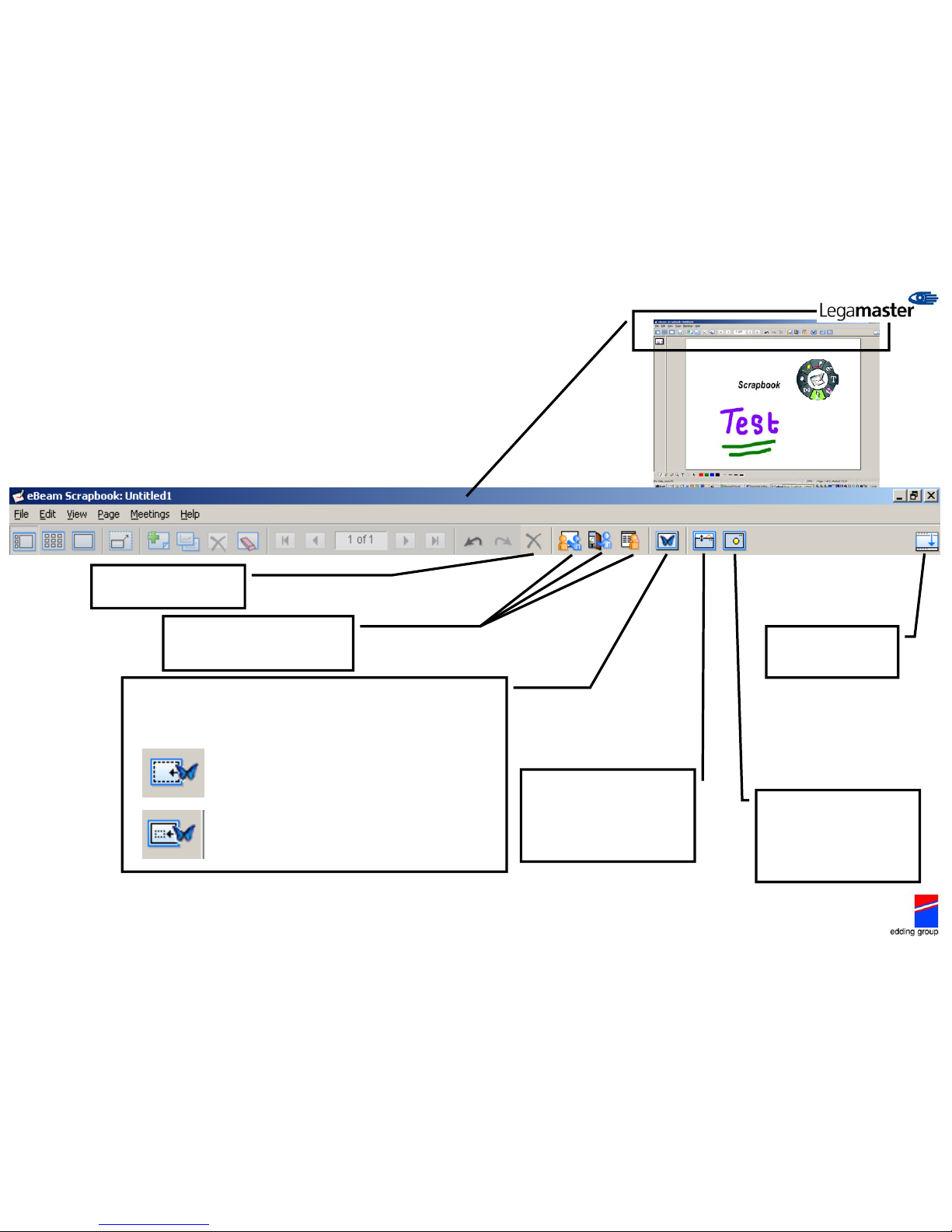

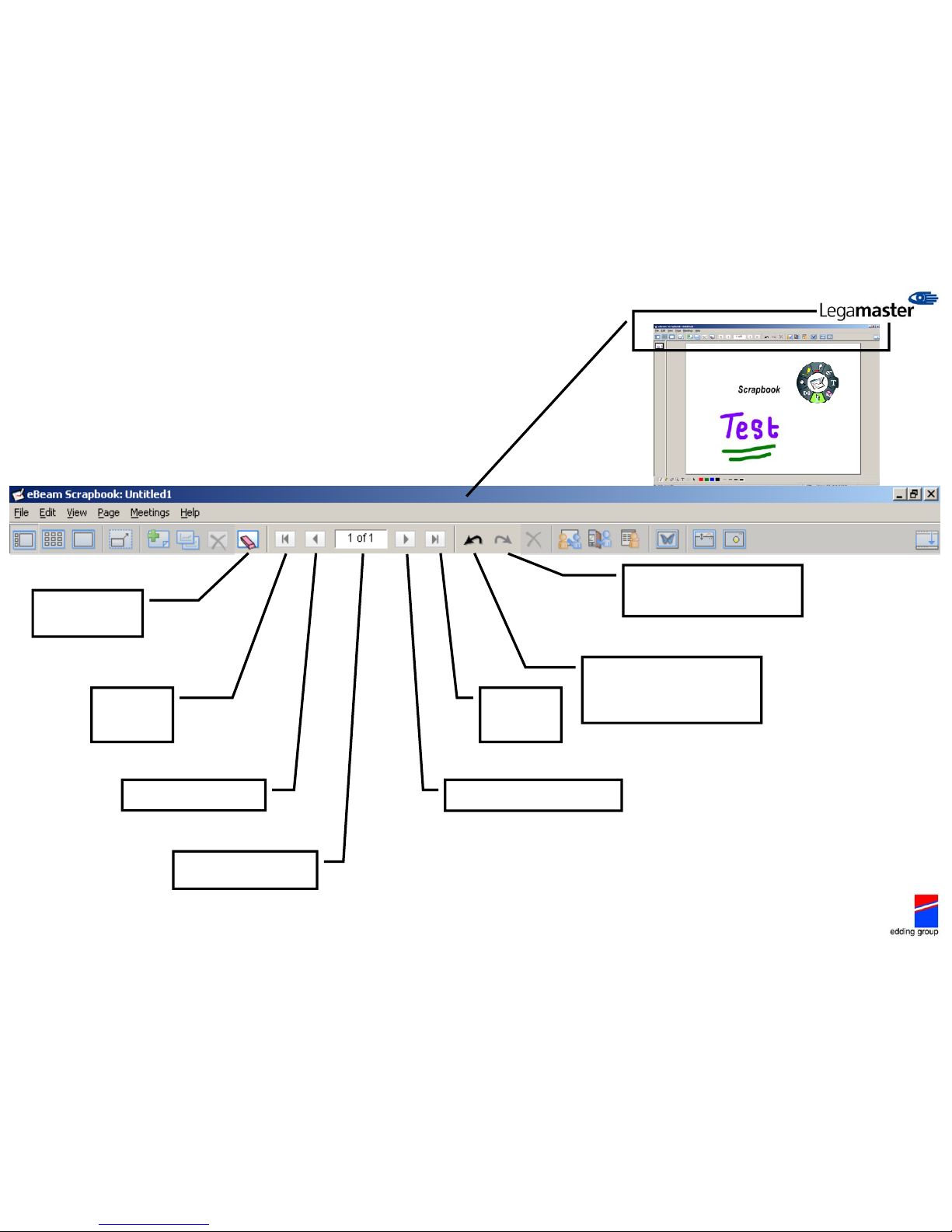

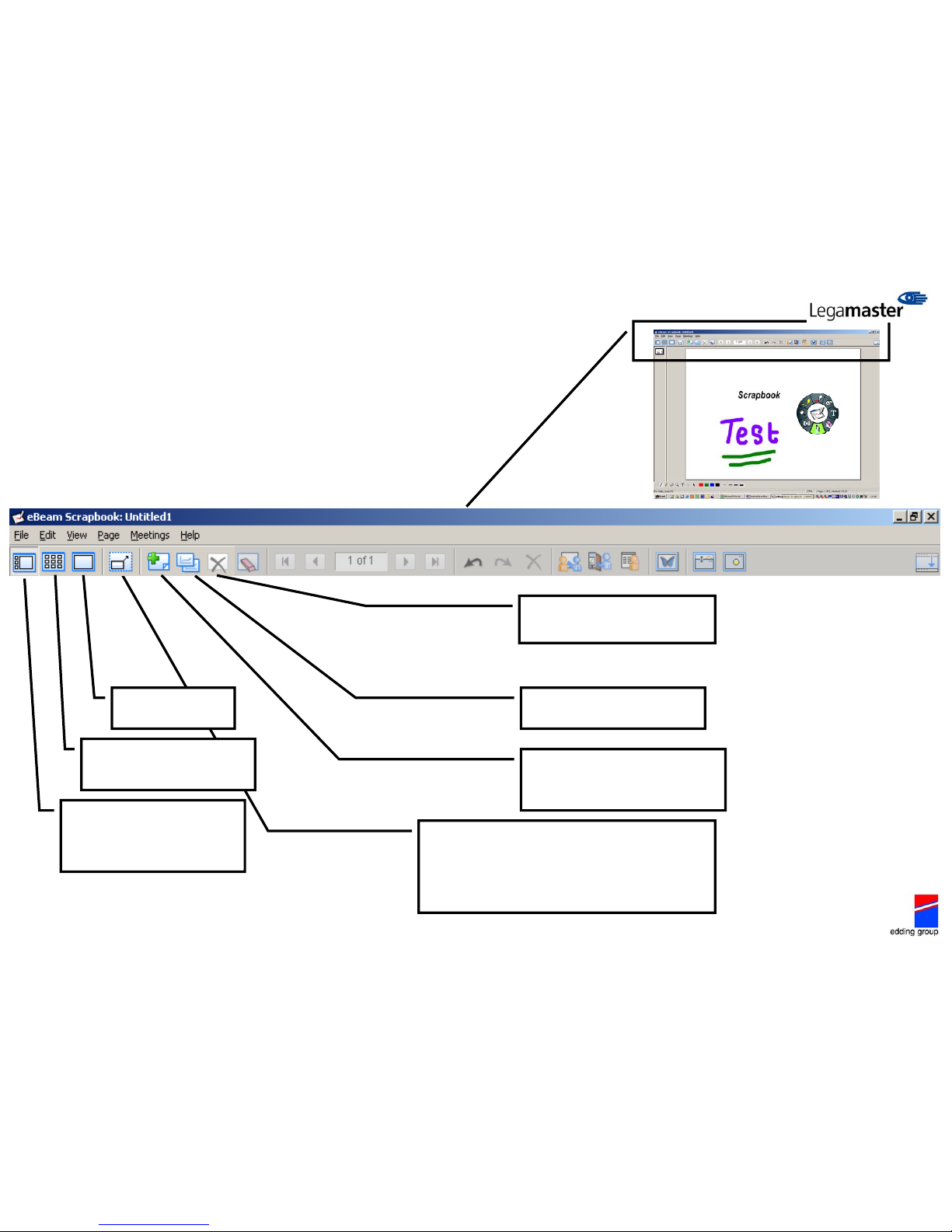

4. Scrapbook menu

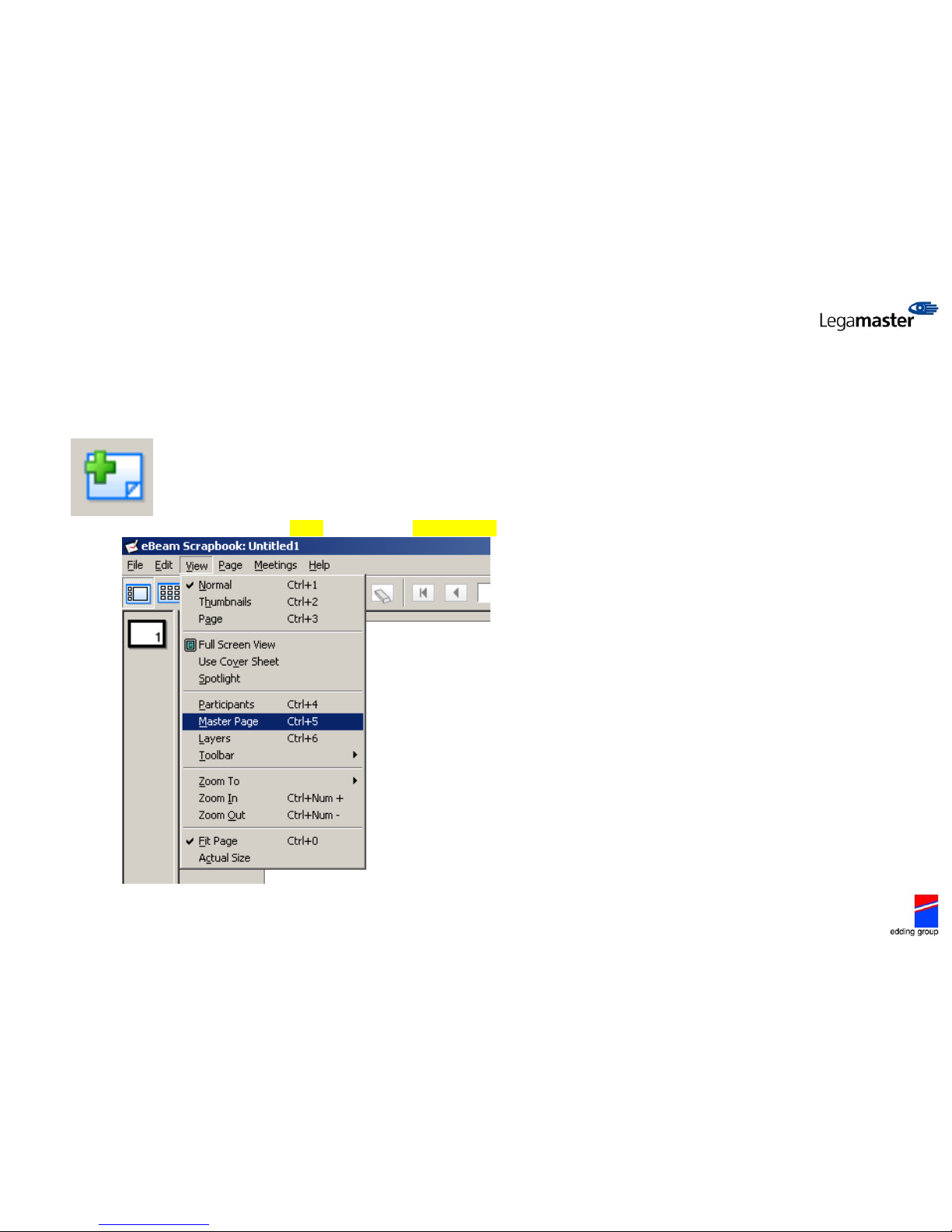

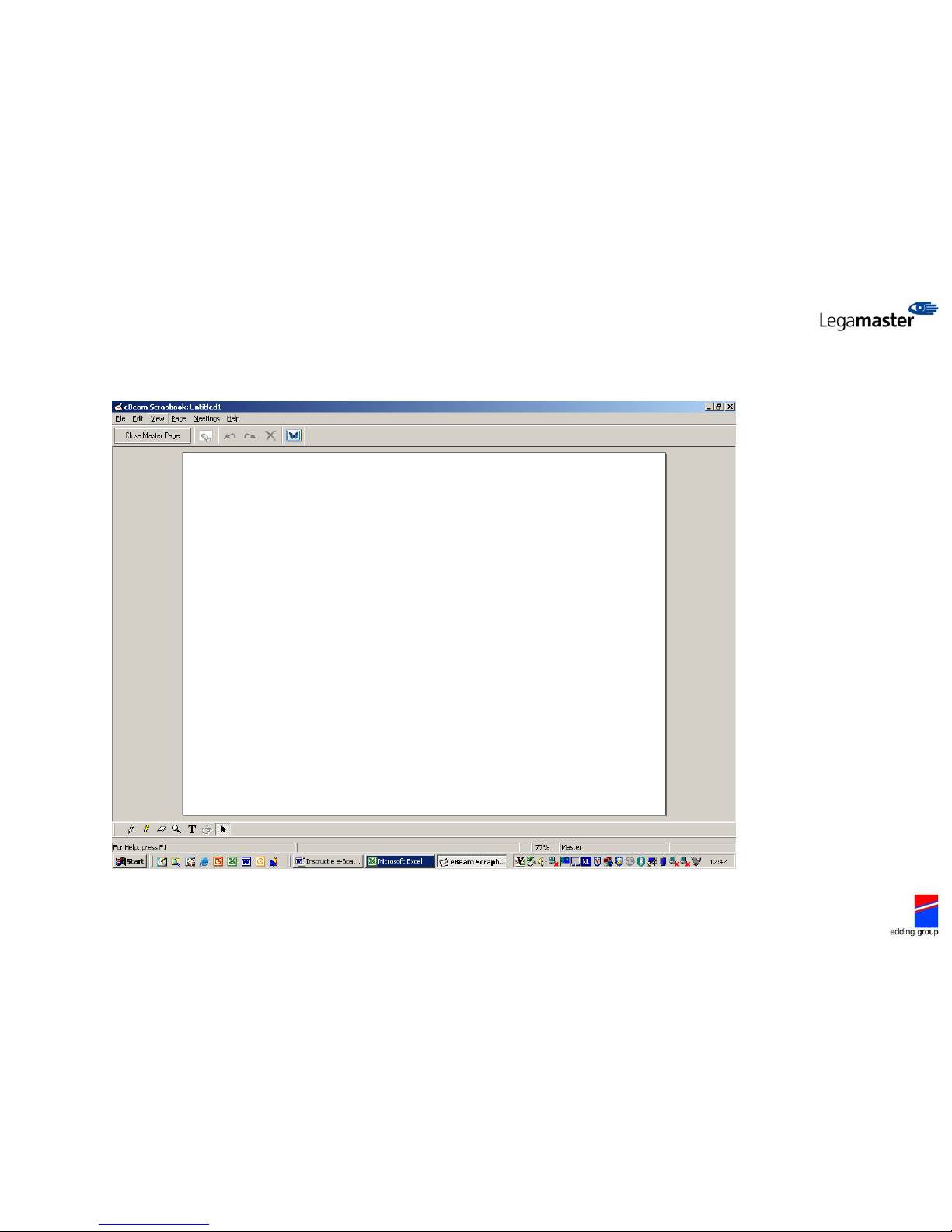

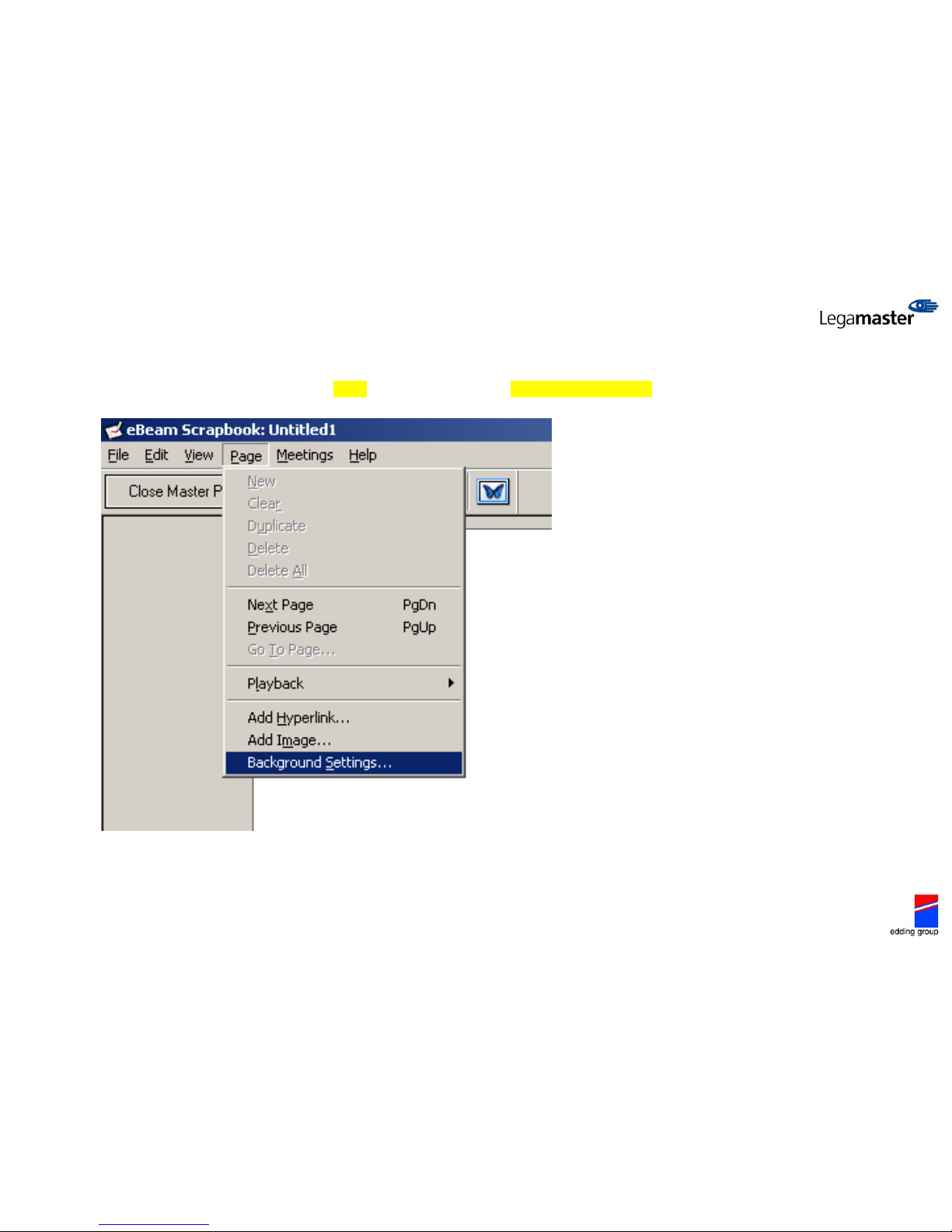

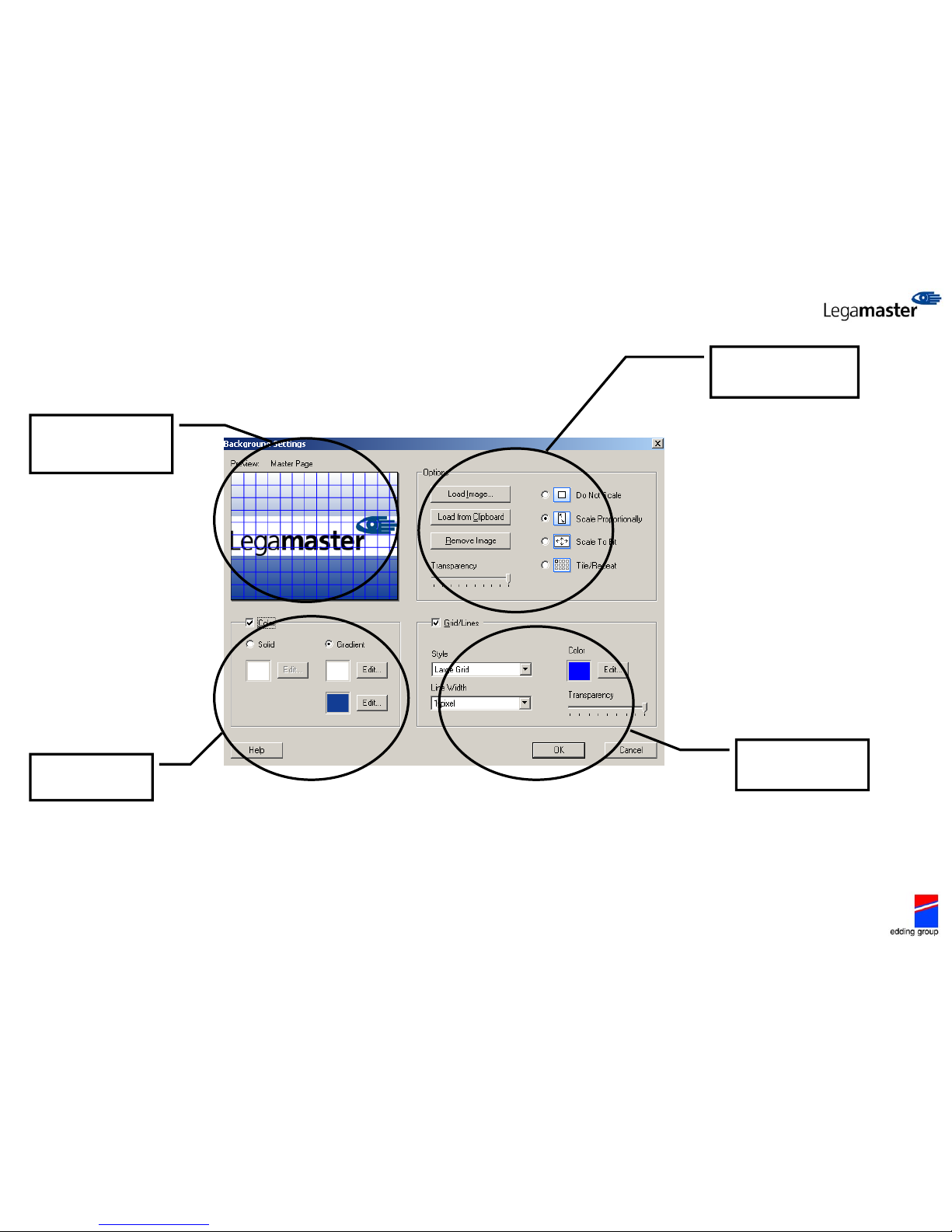

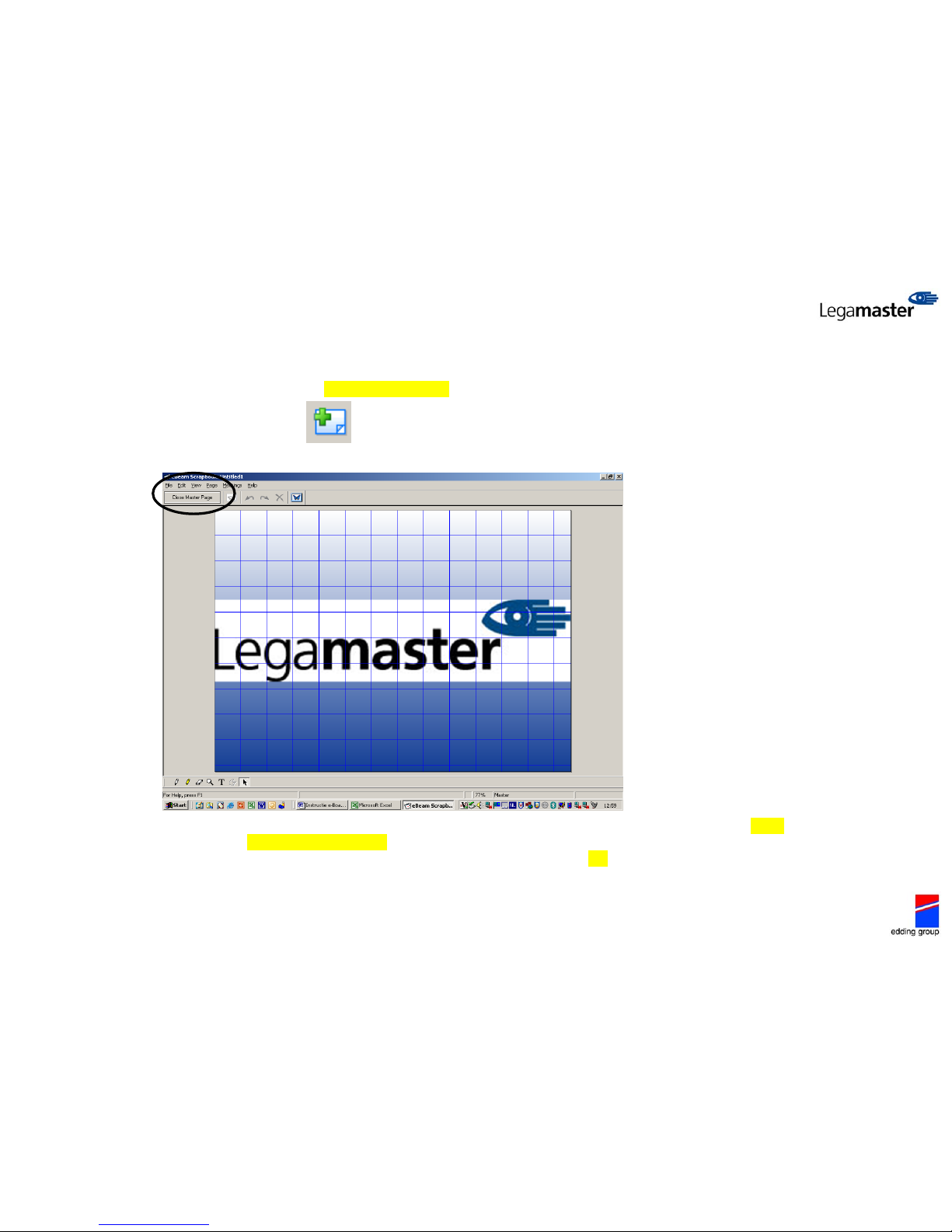

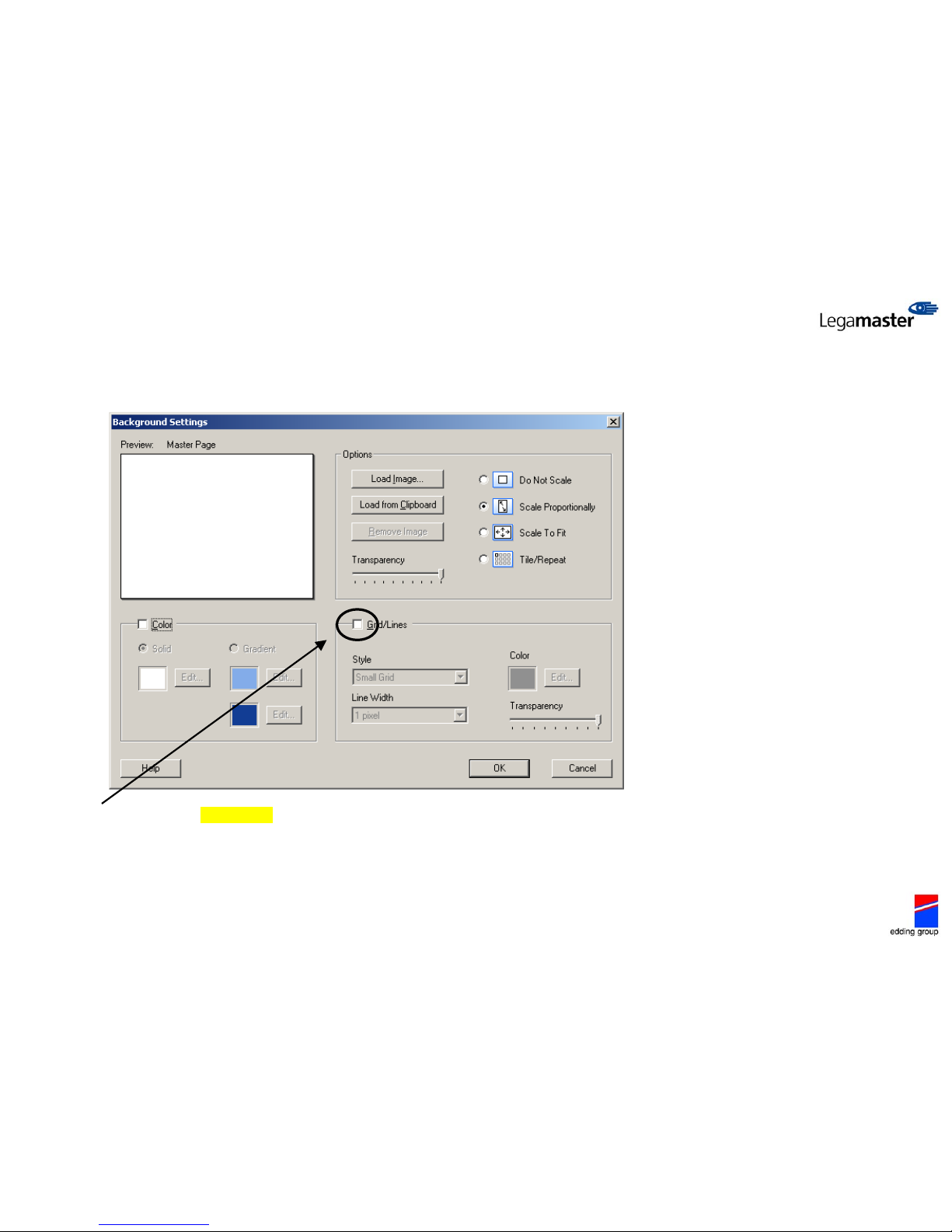

7. Scrapbook Master page

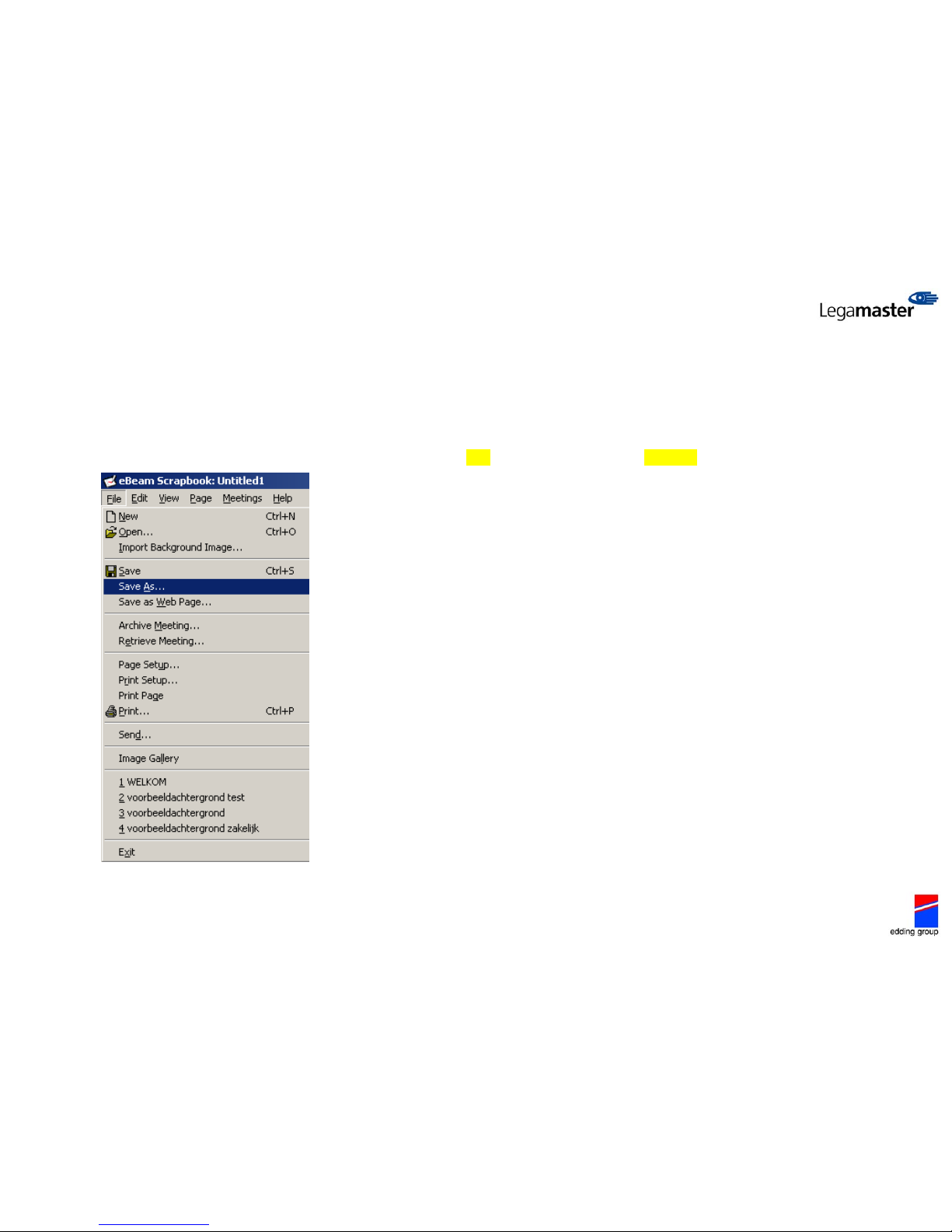

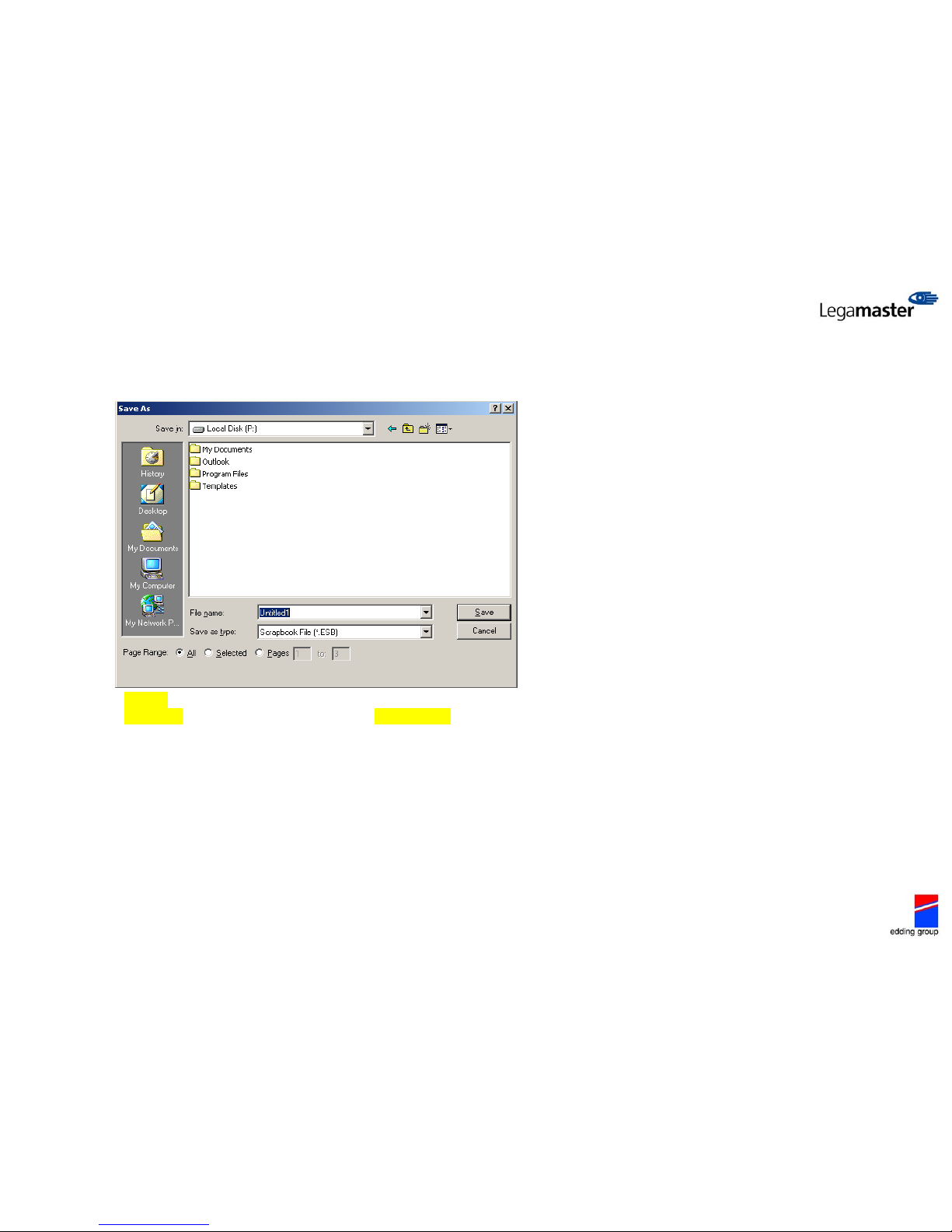

13. Scrapbook save pages

15. Desktop palette

16. PowerPoint palette

17. Notepad palette

e-Beam interactive Styluspen

Small button: use this button to let

the tool palette appear or disappear .

Twist off cap: twist this cap off to
exchange the batteries (penlight AA)

Pen point: can be used as a left mouse click

[1]

e-Beam interactive Tool Palette

NOTEPAD PALETTE

This palette appears on
screen when you want to
make notes about your
desktop or other Windows
program (Word, Excel,
Internet etc.

)

The interactive palette knows
4 different lay-outs.
These differ per program you
wish to use.
The different lay-outs appear
automatically.

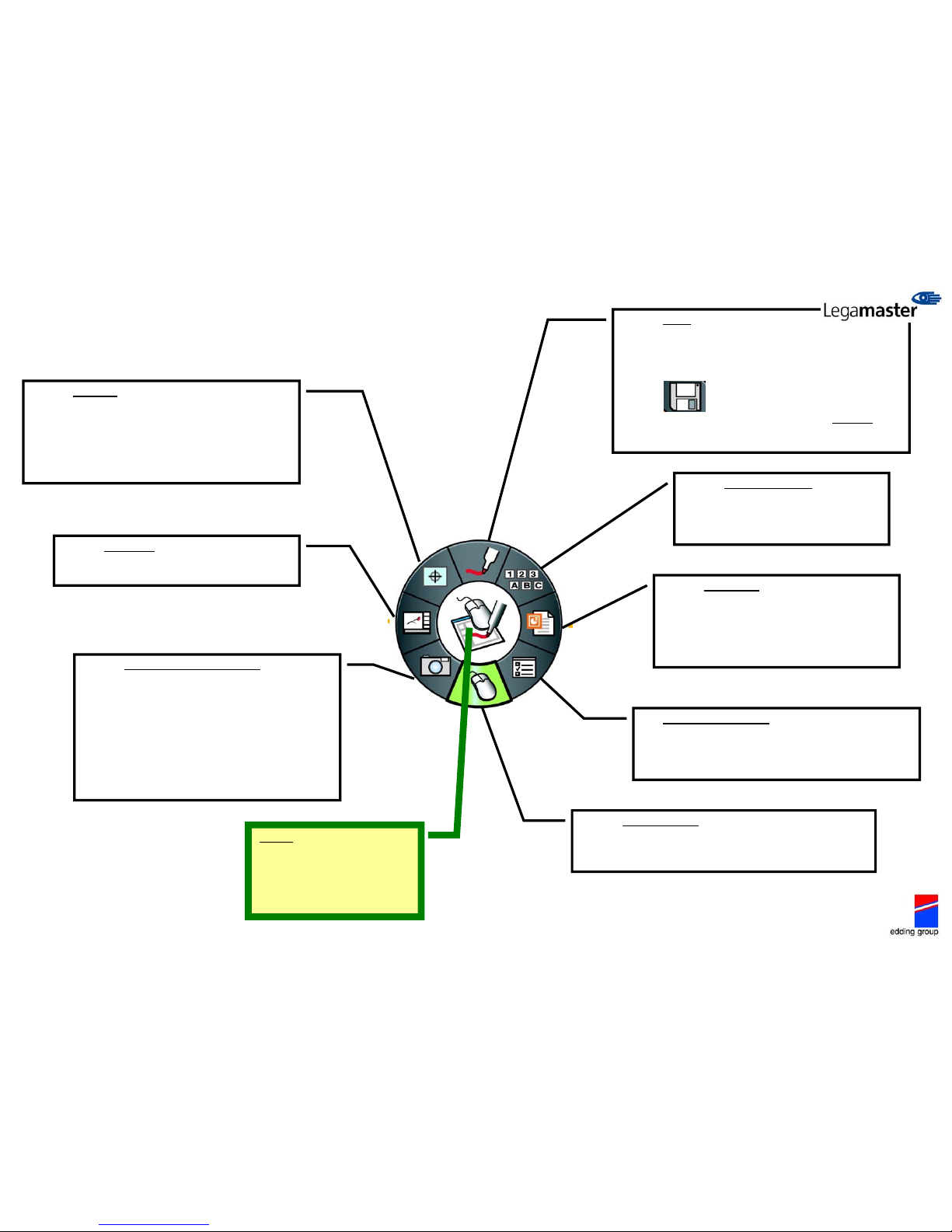

2) DESKTOP PALETTE

This palette appears on the
screen when your mouse stands
on your computers desktop.

3) POWERPOINT PALETTE

This palette appears on the
screen when you start up
PowerPoint.

1) SCRAPBOOK PALETTE

This palette appears on the
screen when you start up the
Scrapbook program (virtual
whi

h

l

r

.

[2]

V

[3]

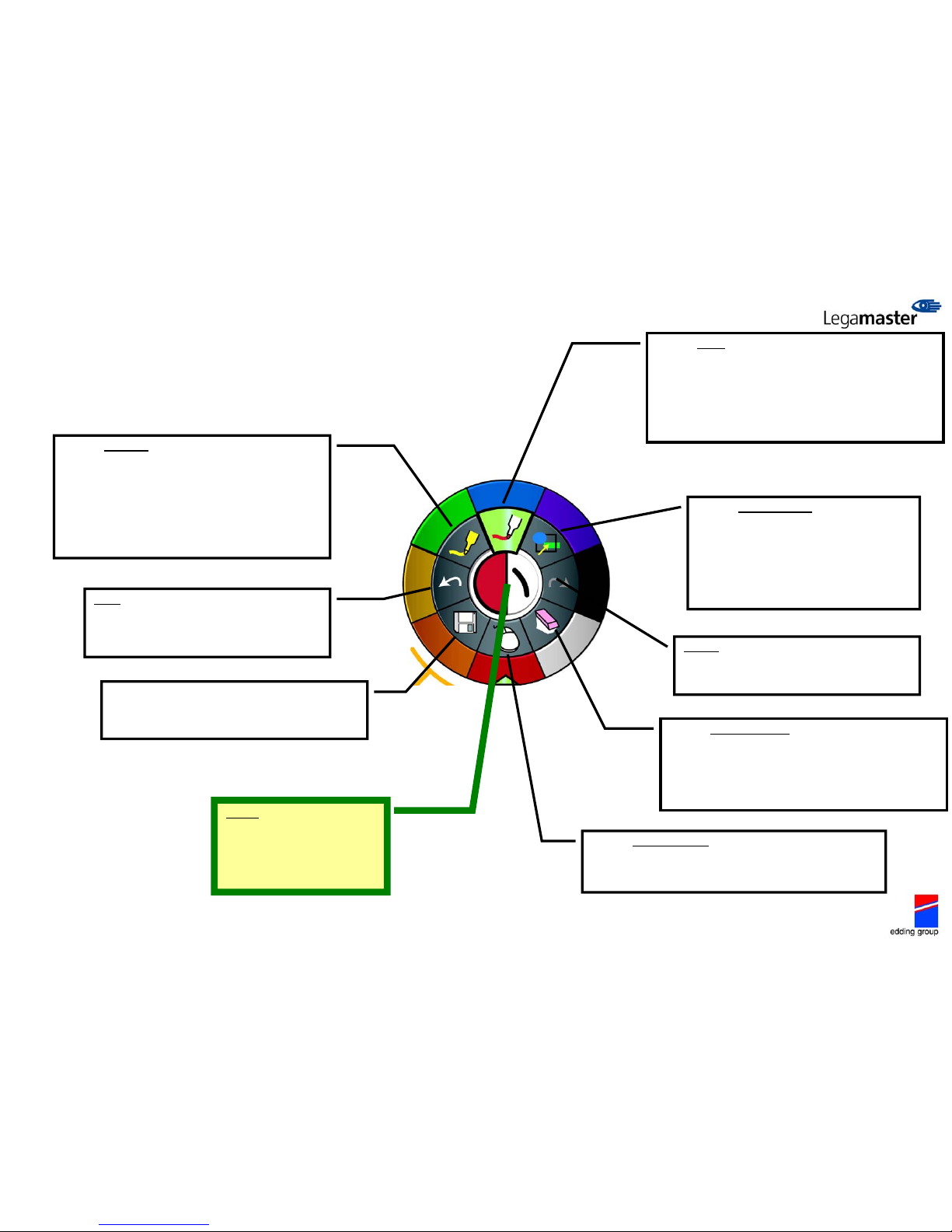

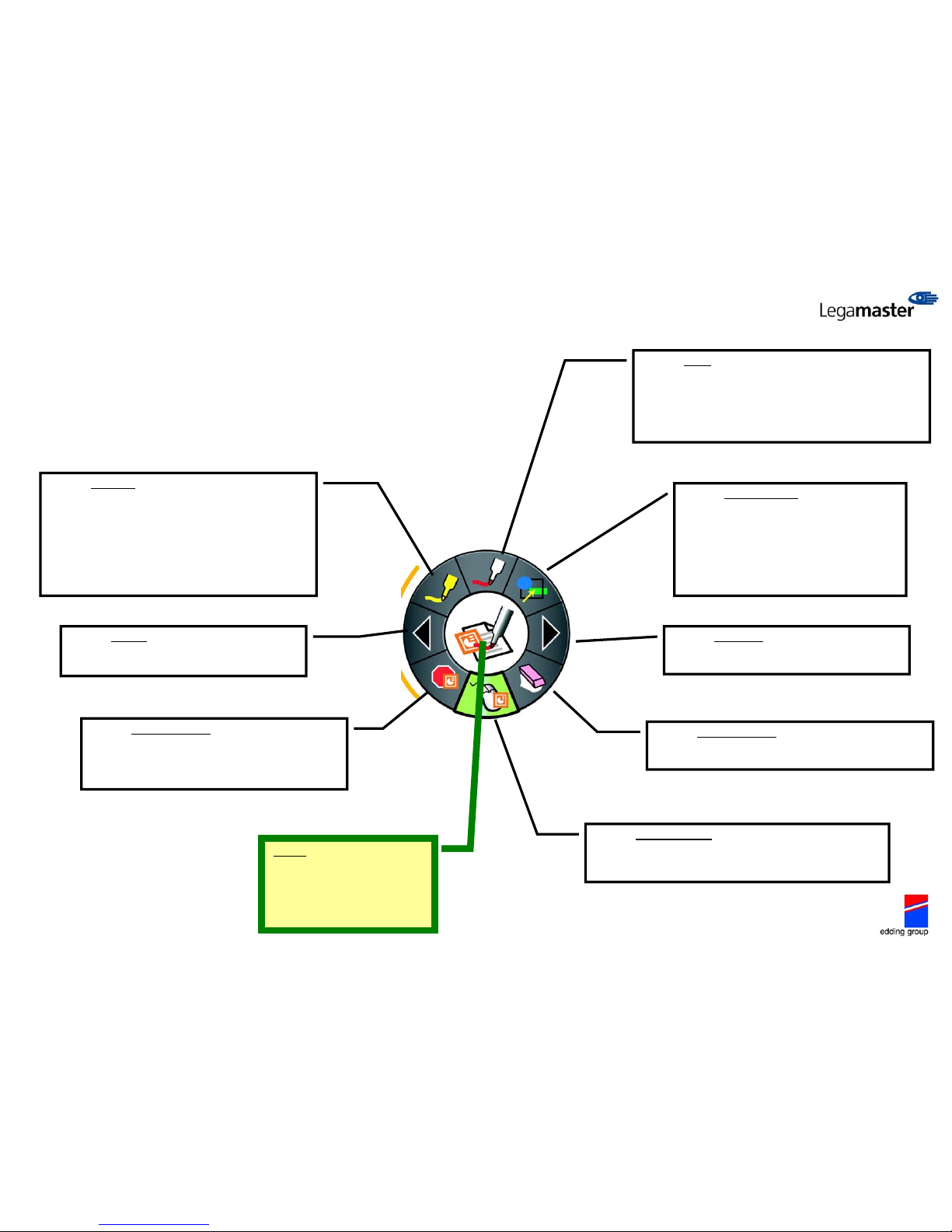

1) SCRAPBOOK PALETTE

This palette appears on the screen when you start up
the Scrapbook program (virtual white/school board).

Write.

• Click this icon with the stylus pen and you can write with
the stylus pen.

• In the middle (left) of the palette you can click on a color.
A ring of colors will surround the palette. Choose the color
in which you want to write by clicking with the pen point.

• In the middle (ri

g

ht) of the palette you can click on the line
and a palette with different thickness of lines appears.
Choose a line by clicking with the pen point

Participation function.

• When you share the scrapbook
session via Internet, through this
function the other party can
participate in the same session.

Text frame.

• Click this icon with the stylus pen and then
click on any position in your scrapbook.

• A text frame appears. Type the desired text
with your computer or click on the keyboard
icon (on the lower right) to let an onscreen
keyboard appear. This can be used with the
stylus pen.

• Click on the middle of the palette for font,
letter size, color, underline, bold, etc.
changes.

ERASER function.

• Click this icon with the stylus pen to use the eraser.

• Click on the middle of the palette to change the line

thickness. (a ring will surround the palette with
different eraser sizes) This eraser is meant for the small
corrections in your handwritten text of drawing.

Snapshot (foto of the screen).

• Click this icon with the stylus pen (outside your
scrapbook) to make a print screen.

• Two possibilities: 1) a “photo” of the whole screen
at that moment or 2) a “photo” of a part of the
screen (when choosing this option frame the part
of the screen you want to capture). After both
options, the print screen will be loaded in your
srapbook as an ima

g

e. This image can be enlarged,
moved, shrunk, rotated etc. (Handy for example
when using pictures from the Internet.)

Middle.

Each icon that you click, new icons
will appear in the middle of the
palette, which can be used to adapt
the properties of this function. (For
example: color, line thickness, letter
type, etc.)

Magnifying glass.

• Click this icon with the stylus pen to zoom in
or out in your scrapbook.

• A ring will surround the palette with zoom
possibilities: enlarge from 1 to 500% or click
the – or + sign with the pen.

Highlight.

• Click this icon with the stylus pen and the written
texts will be highlighted.

• In the middle (left) of the palette you can click on a
color. A ring of colors will surround the palette.
Choose the color in which you want to highlight by
clicking with the pen point.

• In the middle (right) of the palette you can click on
the line and a palette with different thickness of lines
appears. Choose a line by clicking with the pen point.

MOUSE function.

• Click this icon with the stylus pen for a Mouse function on
the stylus pen.

• With the Mouse function you can click icons to for example
draw a frame around handwritten text or drawing. This
drawed frame can be enlarged, moved, shrunk or rotated

• This function can also be used in combination with the
second cross in the upper panel,
to erase an object at once.
