PRODUCT INFORMATION PACKET
Model No: B199750.00
Catalog No: B199750.00
40 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 286TSC Frame, ODP
Three Phase ODP Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4
Product Information Packet: Model No: B199750.00, Catalog No:B199750.00 40 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 286TSC
Frame, ODP
Nameplate Specifications
Output HP 30 Hp Output KW 30 kW
Frequency 60 Hz Voltage 230/460 V
Current 93.0/46.5 A Speed 2965 rpm
Service Factor 1.15 Phase 3
Efficiency 92.4 % Power Factor 87
Duty CONTINUOUS Insulation Class F7
Design Code B KVA Code F
Frame 286TSC Enclosure DP
Thermal Protection NOT Ambient Temperature 40 °C
Drive End Bearing Size 6211 Opp Drive End Bearing Size 6211
UL C - LE,SP-UL REC INS,CONST CSA Y
CE Y IP Code 22
Technical Specifications
Electrical Type Squirrel Cage Inverter Rated Starting Method LINE OR INVERTER
Poles 2 Rotation REV
Resistance Main .2468 Ohms Mounting RIGID
Motor Orientation HORIZONTAL Drive End Bearing BALL
Opp Drive End Bearing BALL Frame Material ROLLED STEEL
Shaft Type TS Overall Length 25.72 in
Frame Length 13.97 in Shaft Diameter 1 5/8 in
Shaft Extension 3.25 in Assembly/Box Mounting F1/F2 CAPABLE

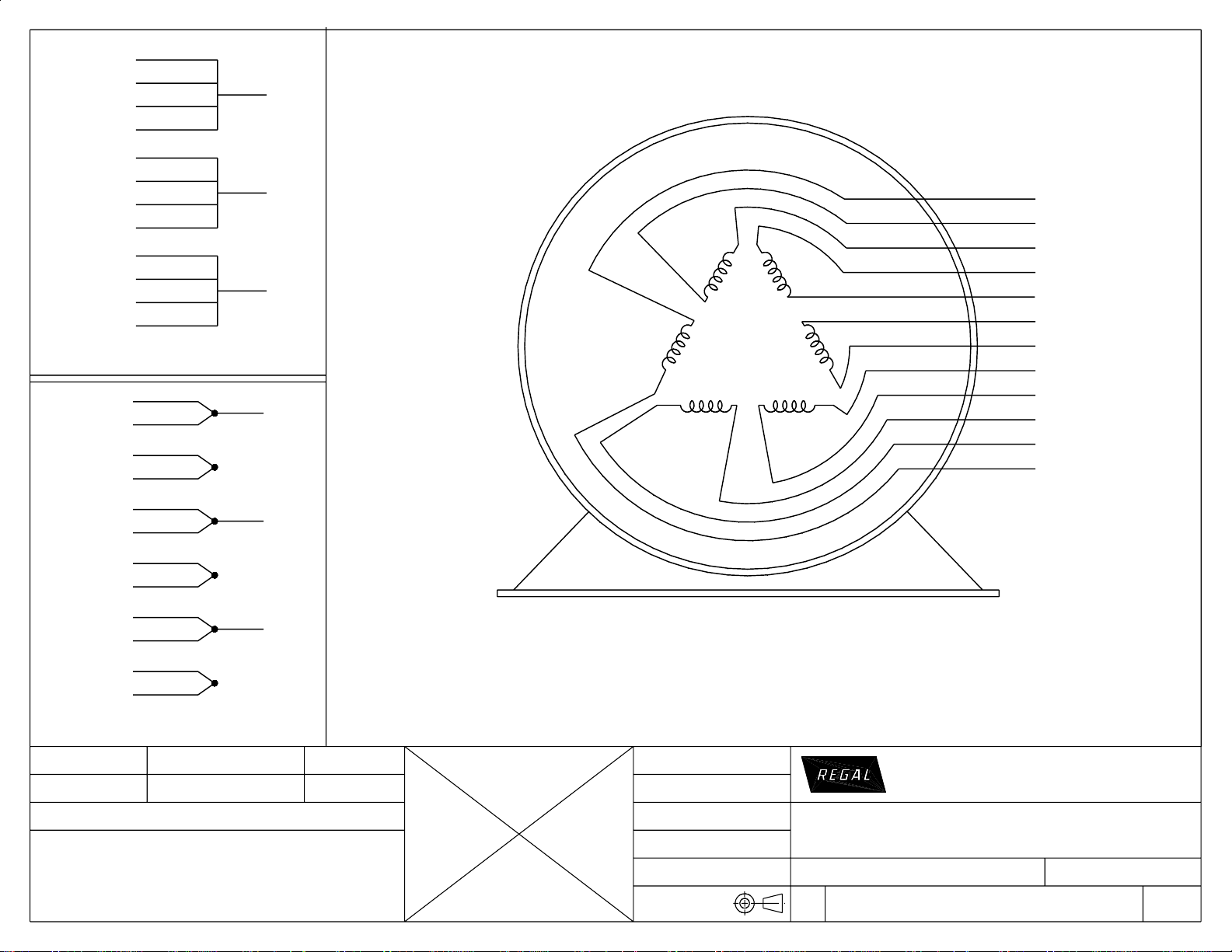

Connection Drawing EE7308AA Outline Drawing SS620710
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:20/05/2020
