Leeson B199731.00 Product Information Packet
PRODUCT INFORMATION PACKET
Model No: B199731.00
Catalog No: B199731.00
200 HP General Purpose Motor, 3 phase, 3600 RPM, 460 V, 444TS Frame, ODP Three Phase ODP Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies. ©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 4
Product Information Packet: Model No: B199731.00, Catalog No:B199731.00 200 HP General Purpose Motor, 3 phase, 3600 RPM, 460 V, 444TS Frame, ODP
Nameplate Specifications
Output HP |
200 Hp |
Output KW |
149.0 kW |
Frequency |
60 Hz |
Voltage |
460 V |
|
|
|
|
Current |
215.0 A |
Speed |
3582 rpm |
|
|
|
|
Service Factor |
1.15 |
Phase |
3 |
|
|
|
|
Efficiency |
95 % |
Power Factor |
91 |
|
|
|
|
Duty |
Continuous |
Insulation Class |
F |
|
|
|
|
Design Code |
B |
KVA Code |
G |
|
|
|
|
Frame |
444TS |
Enclosure |
Drip Proof |
|
|
|
|
Thermal Protection |
No |
Ambient Temperature |
40 °C |
|
|
|
|
Drive End Bearing Size |
6314 |
Opp Drive End Bearing Size |
6314 |
|
|
|
|
UL |
Recognized |
CSA |
Y |
|
|
|
|
CE |
Y |
IP Code |
22 |
|
|
|
|
Technical Specifications
Electrical Type |
Squirrel Cage Inverter Rated |
Starting Method |

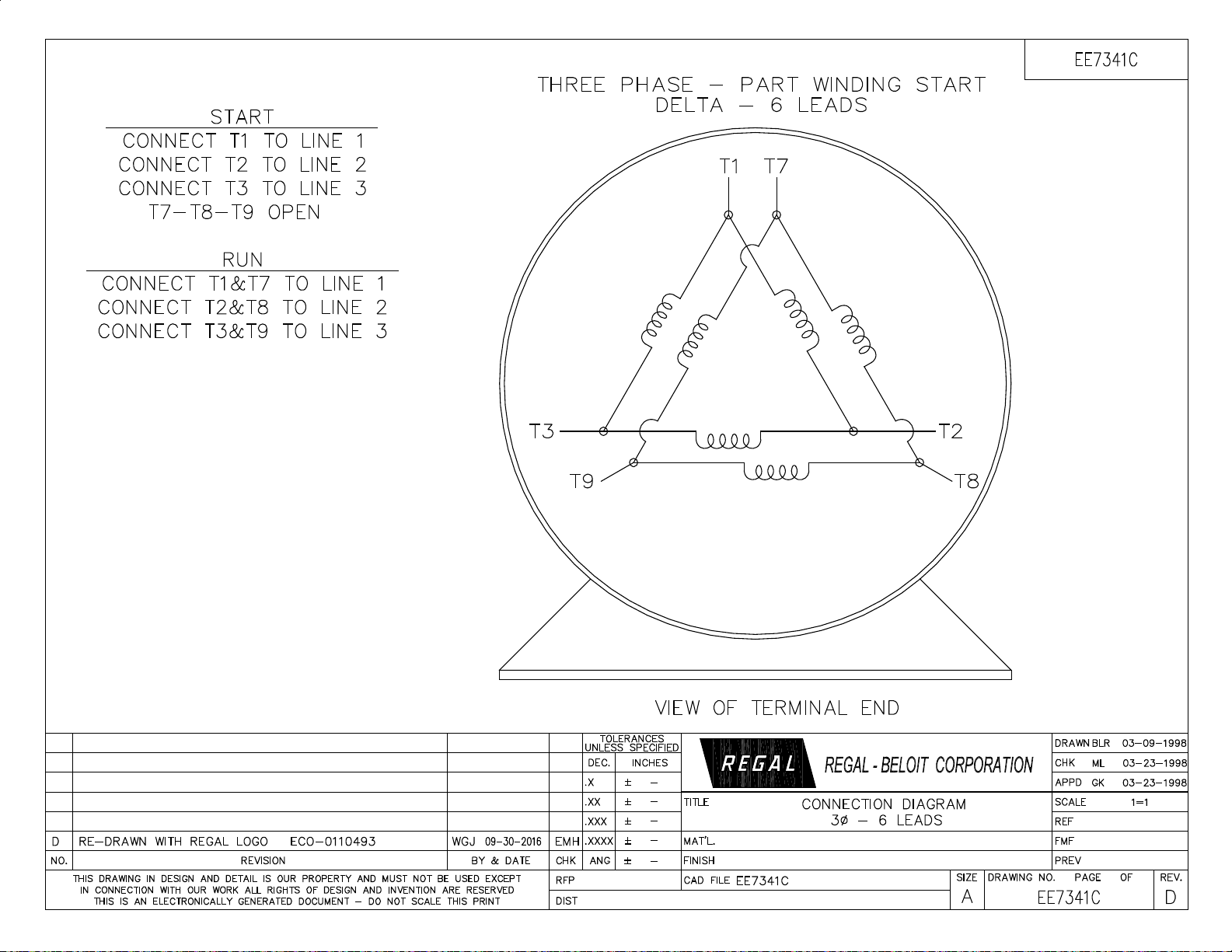

Part Wdg Start Or Inverter |
Poles |
2 |
Rotation |
Reversible |
|
|
|
|
Resistance Main |
.019 Ohms |
Mounting |
Rigid base |
|
|
|
|
Motor Orientation |
Horizontal |
Drive End Bearing |
Ball |
|
|
|
|
Opp Drive End Bearing |
Ball |
Frame Material |
Cast Iron |
|
|
|
|
Shaft Type |
TS |
Overall Length |
40.83 in |
|
|
|
|
Frame Length |
25.98 in |
Shaft Diameter |
2.375 in |
|
|
|
|
Shaft Extension |
4.75 in |
Assembly/Box Mounting |
F1/F2 CAPABLE |
|
|
|
|
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019
2 of 4
