Leeson B199699.00 Product Information Packet
PRODUCT INFORMATION PACKET
Model No: B199699.00
Catalog No: B199699.00
15 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 254T Frame, ODP Three Phase ODP Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies. ©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 4
Product Information Packet: Model No: B199699.00, Catalog No:B199699.00 15 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 254T Frame, ODP
Nameplate Specifications
Output HP |
15 Hp |
Output KW |
11.2 kW |
Frequency |
60 Hz |
Voltage |
230/460 V |
|
|
|
|
Current |
36.5/18.3 A |
Speed |
1774 rpm |
|
|
|
|
Service Factor |
1.15 |
Phase |
3 |
|
|
|
|
Efficiency |
93 % |
Power Factor |
81 |
|
|
|
|
Duty |
Continuous |
Insulation Class |
F |
|
|
|
|
Design Code |
B |
KVA Code |
G |
|
|
|
|
Frame |
254T |
Enclosure |
Drip Proof |
|
|
|
|
Thermal Protection |
No |
Ambient Temperature |
40 °C |
|
|
|
|
Drive End Bearing Size |
6309 |
Opp Drive End Bearing Size |
6208 |
|
|
|
|
UL |
Recognized |
CSA |
Y |
|
|
|
|
CE |
Y |
IP Code |
22 |
|
|
|
|
Technical Specifications
Electrical Type |
Squirrel Cage Inverter Rated |
Starting Method |
Line Or Inverter |
Poles |
4 |
Rotation |
Reversible |
|
|
|
|
Resistance Main |
.6729 Ohms |
Mounting |
Rigid Base |
|
|
|
|
Motor Orientation |
Horizontal |
Drive End Bearing |
Ball |
|
|
|
|
Opp Drive End Bearing |
Ball |
Frame Material |
Rolled Steel |
|
|
|
|
Shaft Type |
T |
Overall Length |
22.64 in |
|
|
|
|
Frame Length |
10.62 in |
Shaft Diameter |
1.625 in |
|
|
|
|
Shaft Extension |
4 in |
Assembly/Box Mounting |
F1/F2 CAPABLE |
|
|
|
|

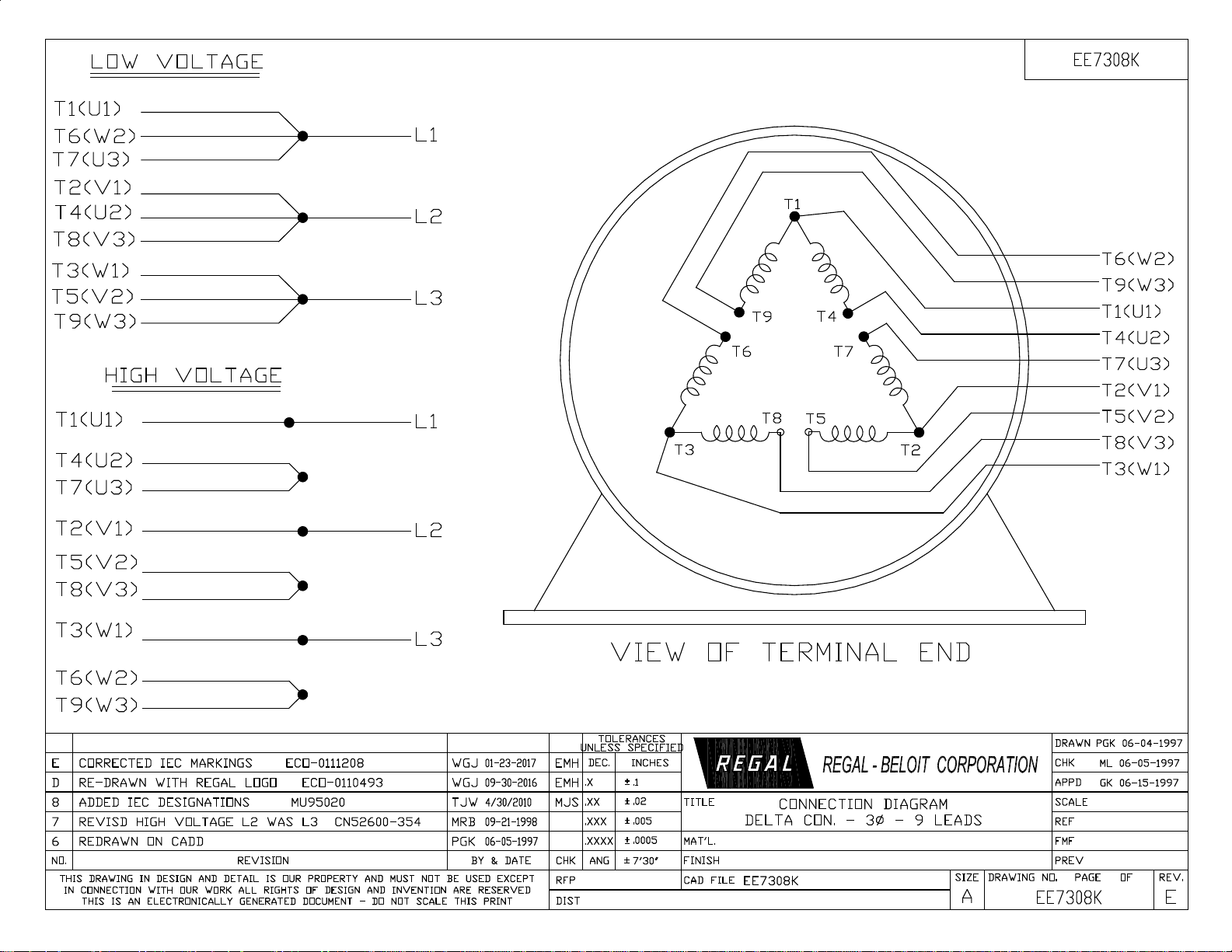

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019
