LeeBoy 400T, 400 User Manual

Operations, Service, and Parts Manual

400 T

LeeBoy Model 400 & 400T Rollers

Manual No. 1012791-01

This manual applies to

Serial Number 400-41197

and above

400

LeeBoy Model 400 & 400T Rollersii

Thumb Index

Safety

Information and Specifications

Component Location

Operation

Maintenance

1
2
3
4
5

Schematics

Illustrated Parts List (IPL)

6
7

DISCLAIMER AND COPYRIGHT

Disclaimer:

All information, illustrations and specications in this manual are based on the latest information available at the time
of publishing. The illustrations used in this manual are intended as representative reference views only. Moreover,
because of our continuous product improvement policy, we may modify information, illustrations and/or specications
to explain and/or exemplify a product, service or maintenance improvement. We reserve the right to make any
change at any time without notice. VT LeeBoy, Inc., VT LeeBoy, LeeBoy, and Rosco are all the same entity and are
used interchangeably.

©2015 VT LeeBoy, Inc.

LeeBoy reserves all copyright and other rights in this manual and the manual’s content. No part of this manual may
be reproduced or used in any way without the written permission of LeeBoy, except as necessary to operate LeeBoy
equipment.

California Proposition 65 WARNING

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth
defects, and other reproductive harm.

Battery posts, terminals and other related accessories contain lead and lead compounds, chemicals known to the
State of California to cause cancer and other reproductive harm. Wash hands after handling.

LeeBoy Model 400 & 400T Rollersiv

TABLE OF CONTENTS

Page

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Pre-Operation Hazard . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Safety Label Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Safety Decals Care . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Machine Specic Precautions . . . . . . . . . . . . . . . . . . . . . . . 1-8

Hot Material Precautions . . . . . . . . . . . . . . . . . . . . . . . 1-8

Hydraulic Systems Precautions . . . . . . . . . . . . . . . . . . . 1-8

Refueling Precautions . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Battery Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Tire Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Starting and Stopping Precautions . . . . . . . . . . . . . . . . . . 1-10

Parking Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Operating Precautions . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Storage Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Maintenance Precautions . . . . . . . . . . . . . . . . . . . . . . 1-11

Information and Specications . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Limited Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Record of Ownership . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Specications Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Torque Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Standard Inch Fasteners . . . . . . . . . . . . . . . . . . . . . . . 2-6

Metric Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

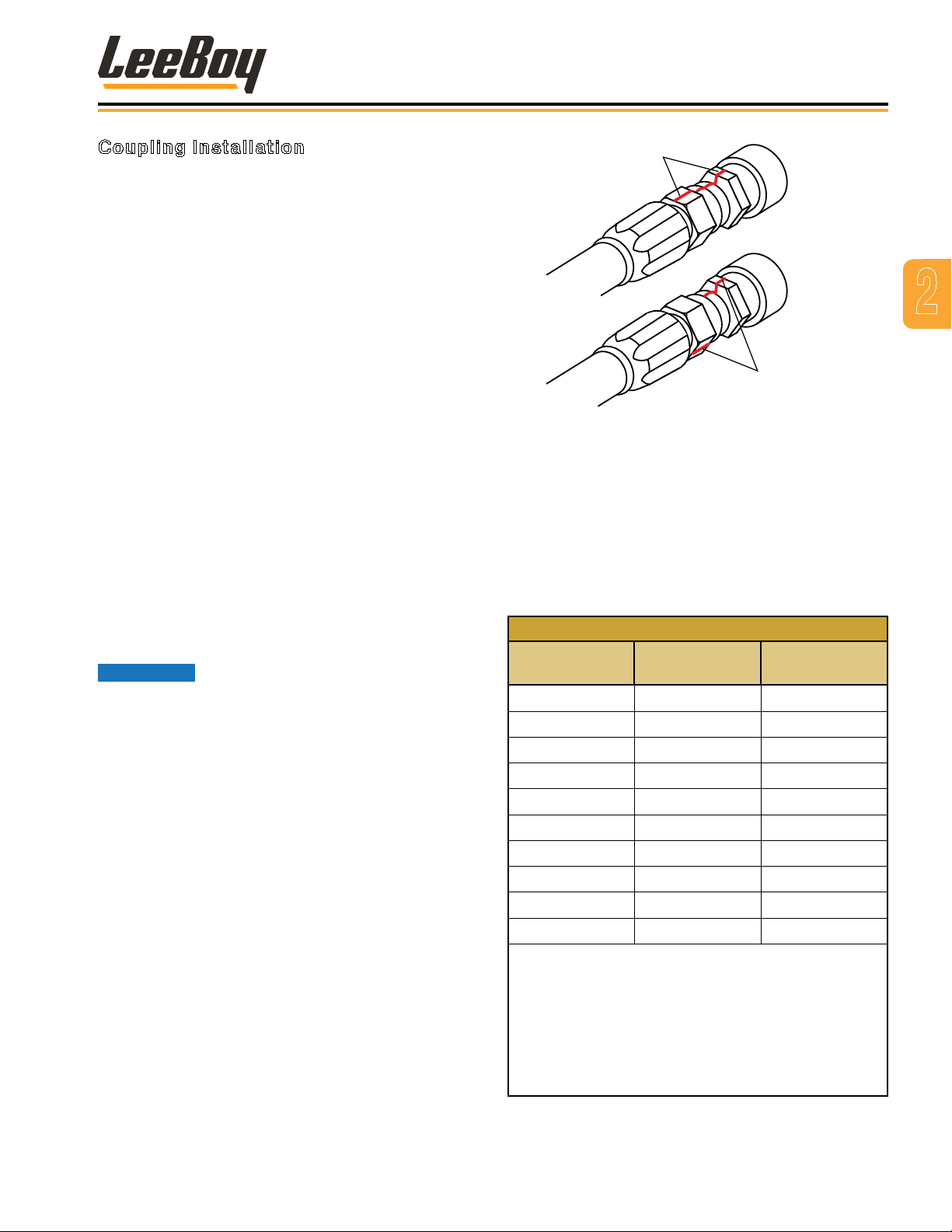

Hydraulic Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Determining Proper Torque . . . . . . . . . . . . . . . . . . . . . 2-8

LeeBoy Model 400 & 400T Rollers v

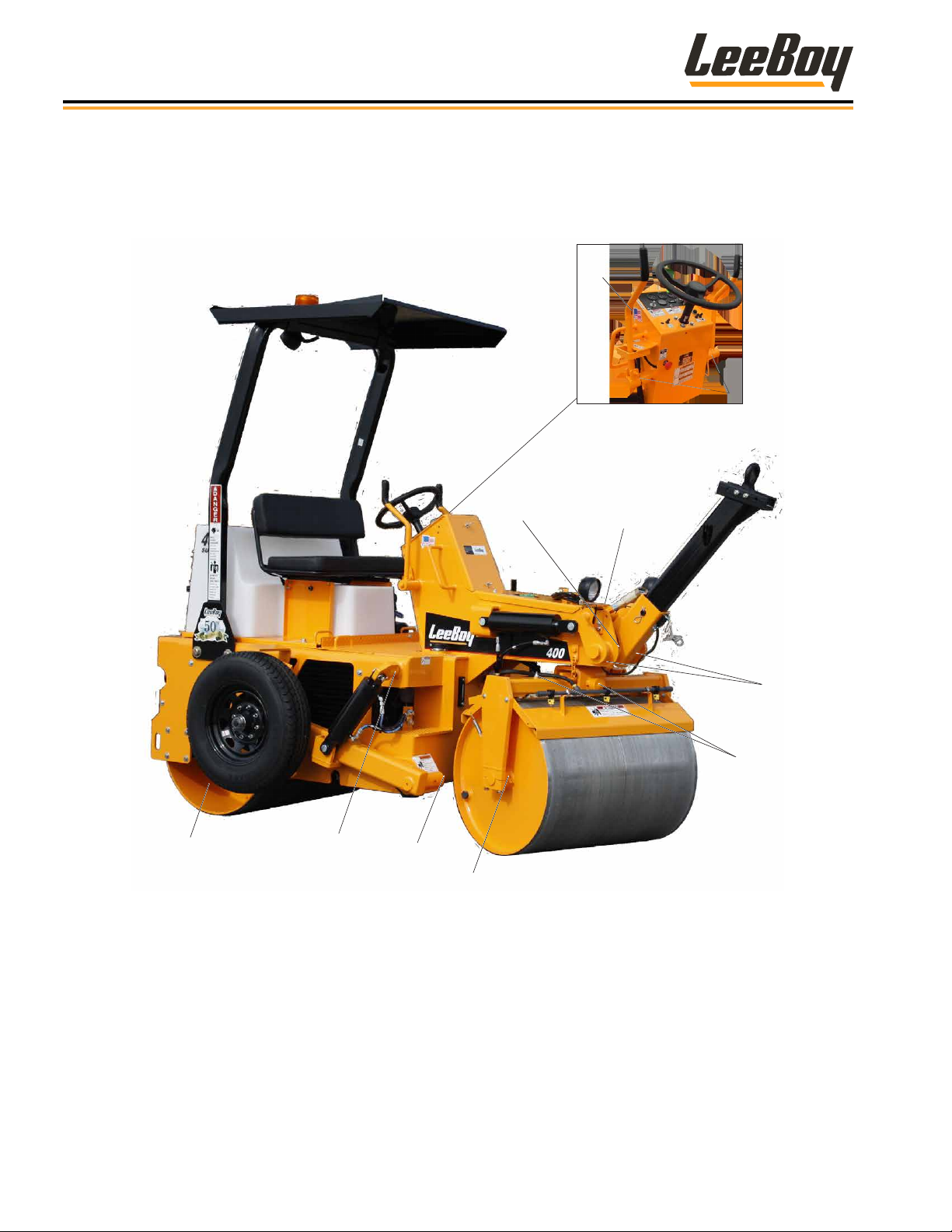

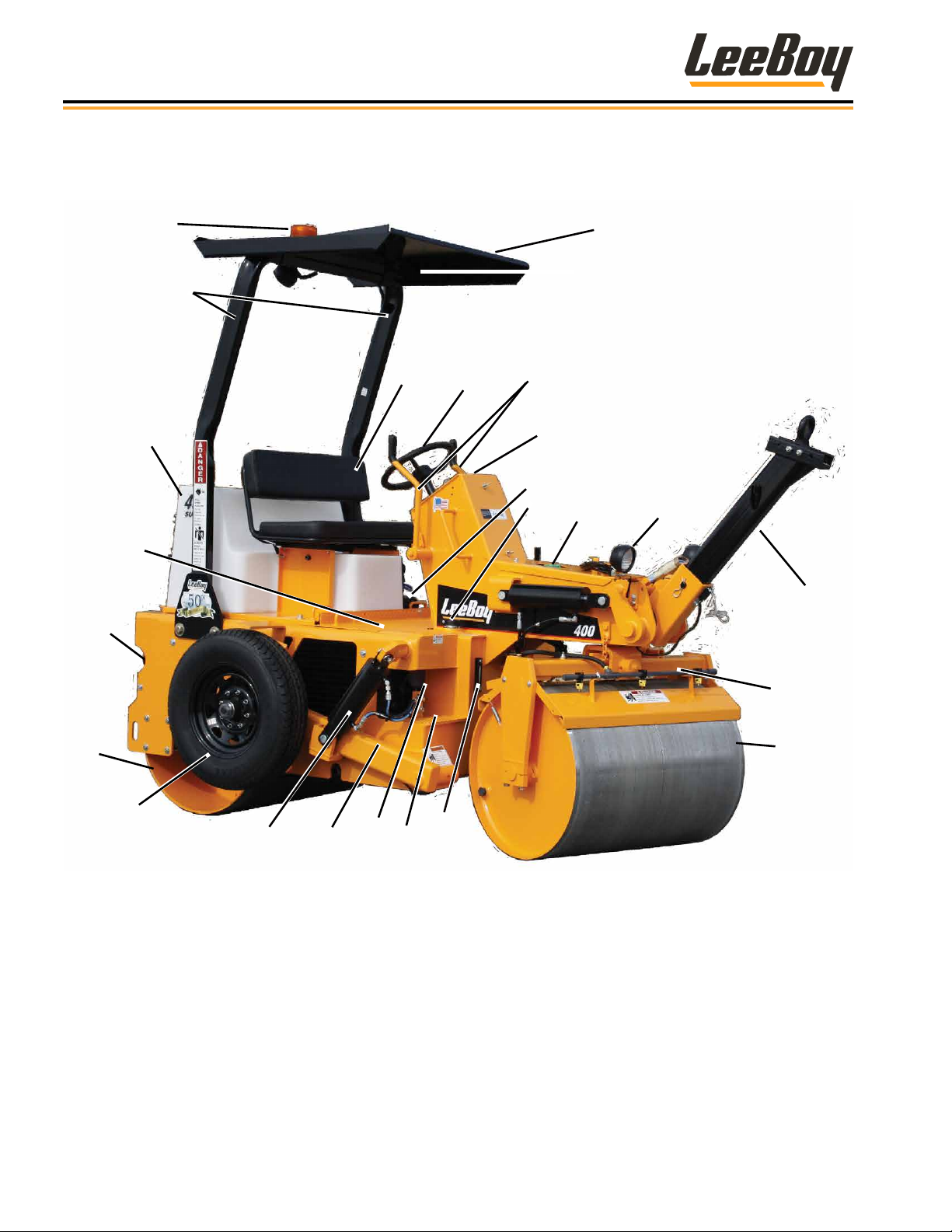

Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

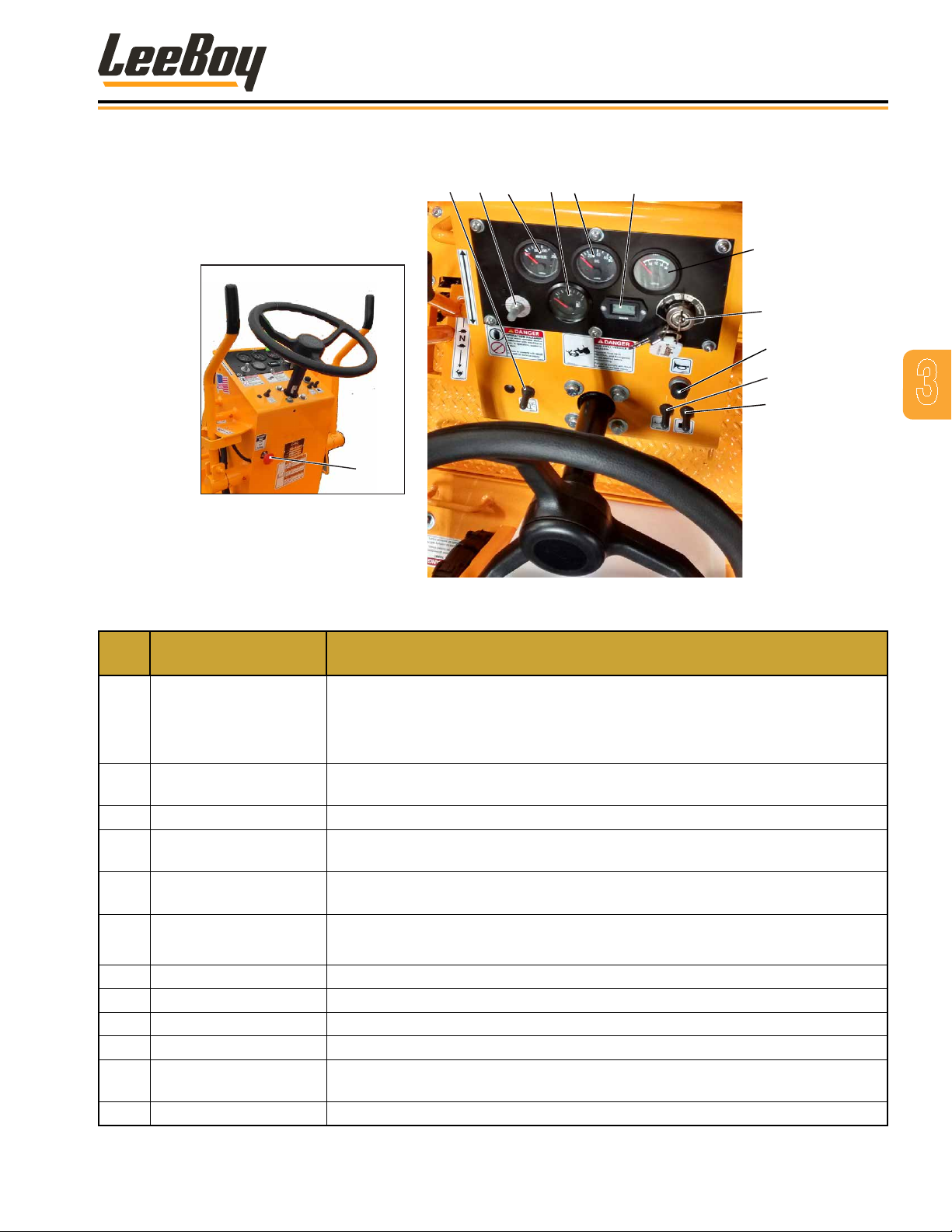

Operator’s Control Console . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Location of Operation Panels and Controls . . . . . . . . . . . . . . . . . 3-4

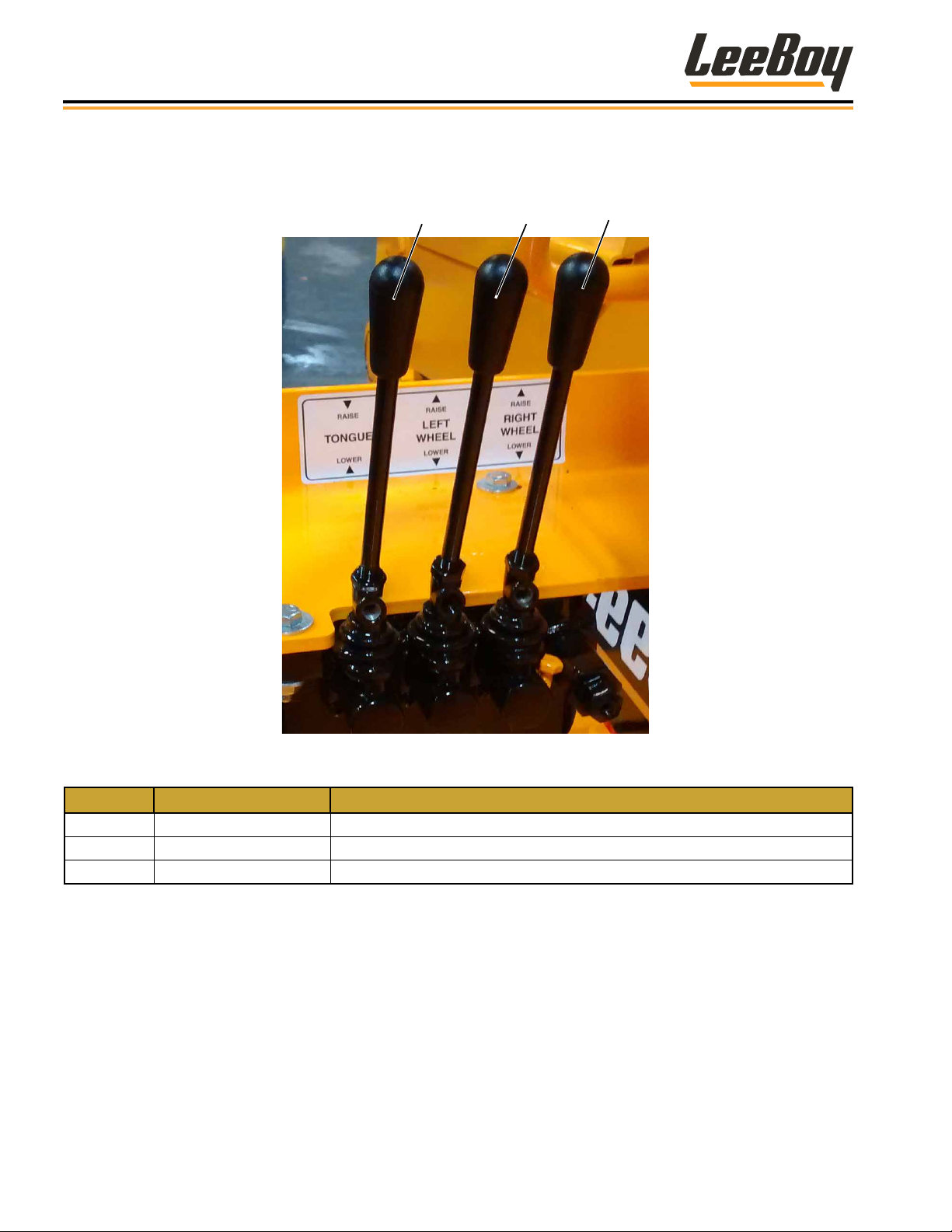

Hydraulic Levers (400T ONLY) . . . . . . . . . . . . . . . . . . . . . . . 3-6

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Operating Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Parking Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Receiving the Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Preliminary Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

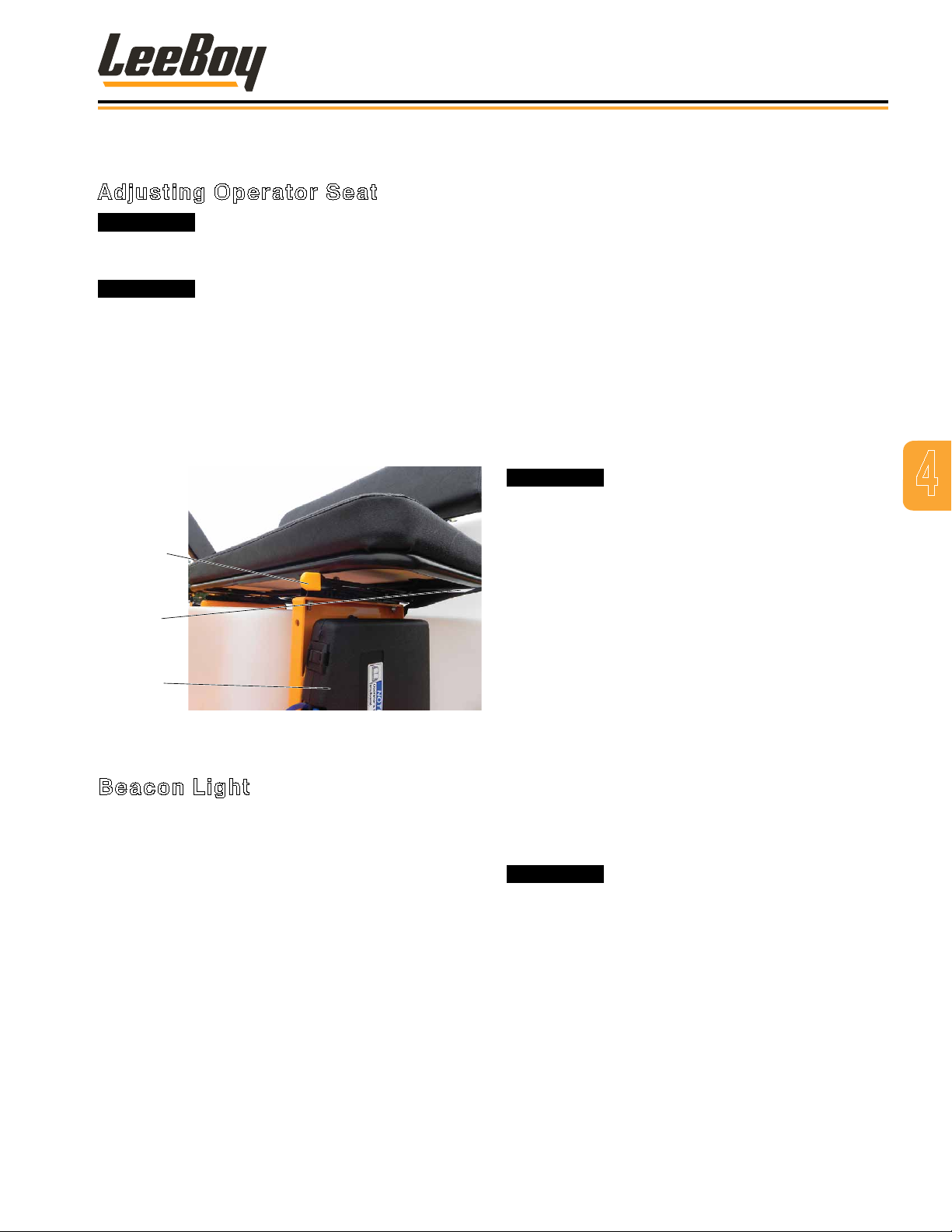

Adjusting Operator Seat . . . . . . . . . . . . . . . . . . . . . . . 4-5

Beacon Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Pre-Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Engine Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Engine Warm-Up . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Cold Weather Engine Warm-Up . . . . . . . . . . . . . . . . . . . 4-6

Directional Control . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

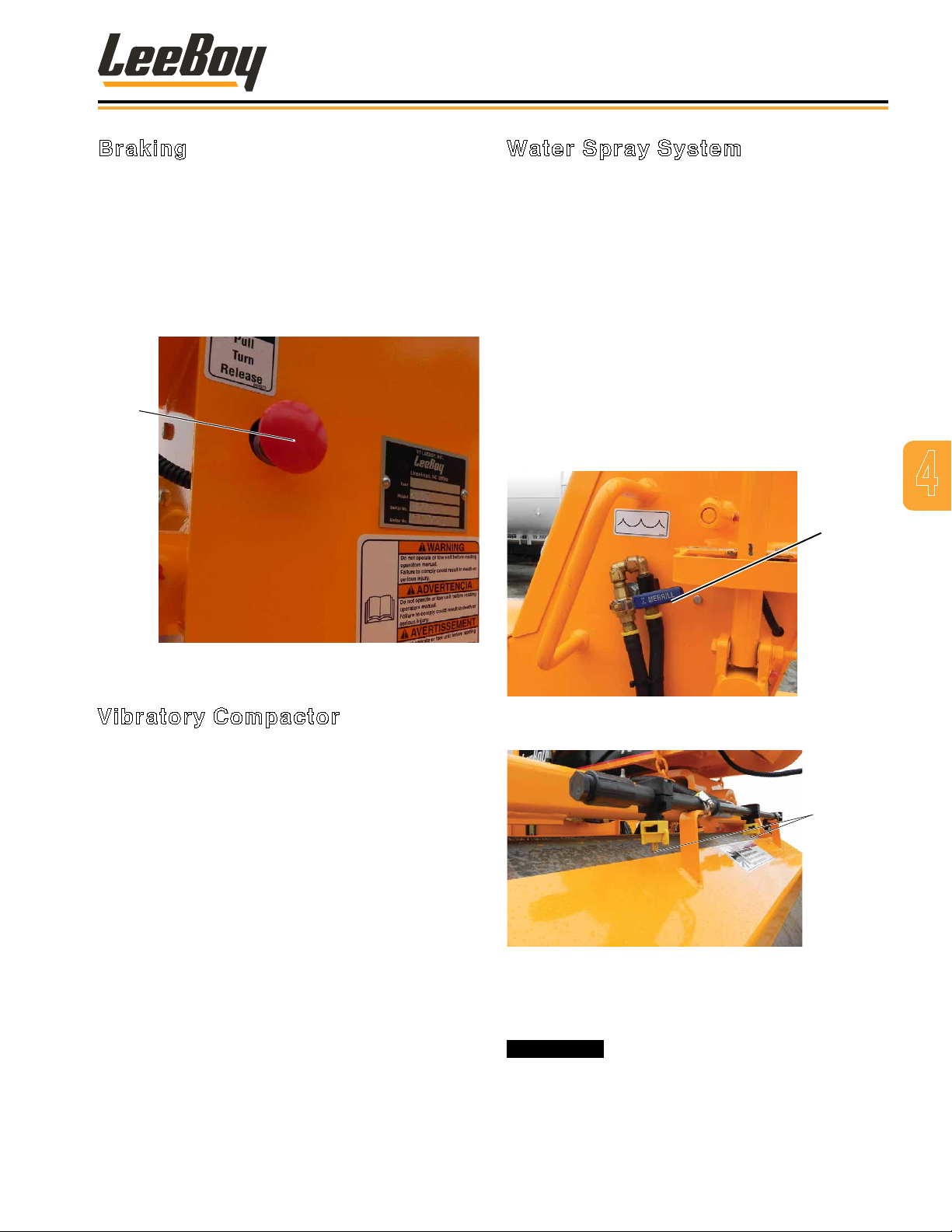

Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Vibratory Compactor . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Water Spray System . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Principles of Compaction . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Rolling Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Rolling Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Rolling Thick Lifts . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Rolling Thin Lifts . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Parking the Machine . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Transporting the Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

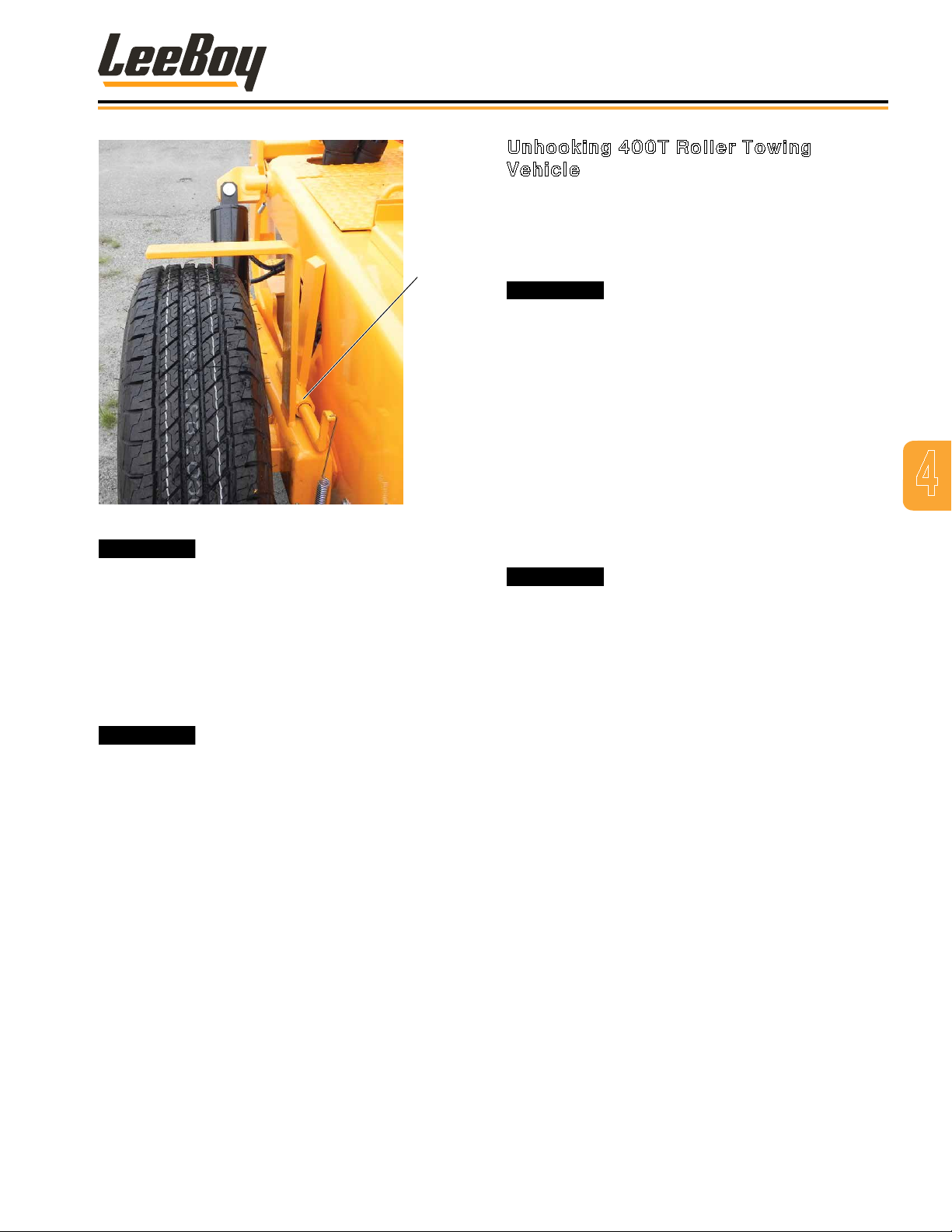

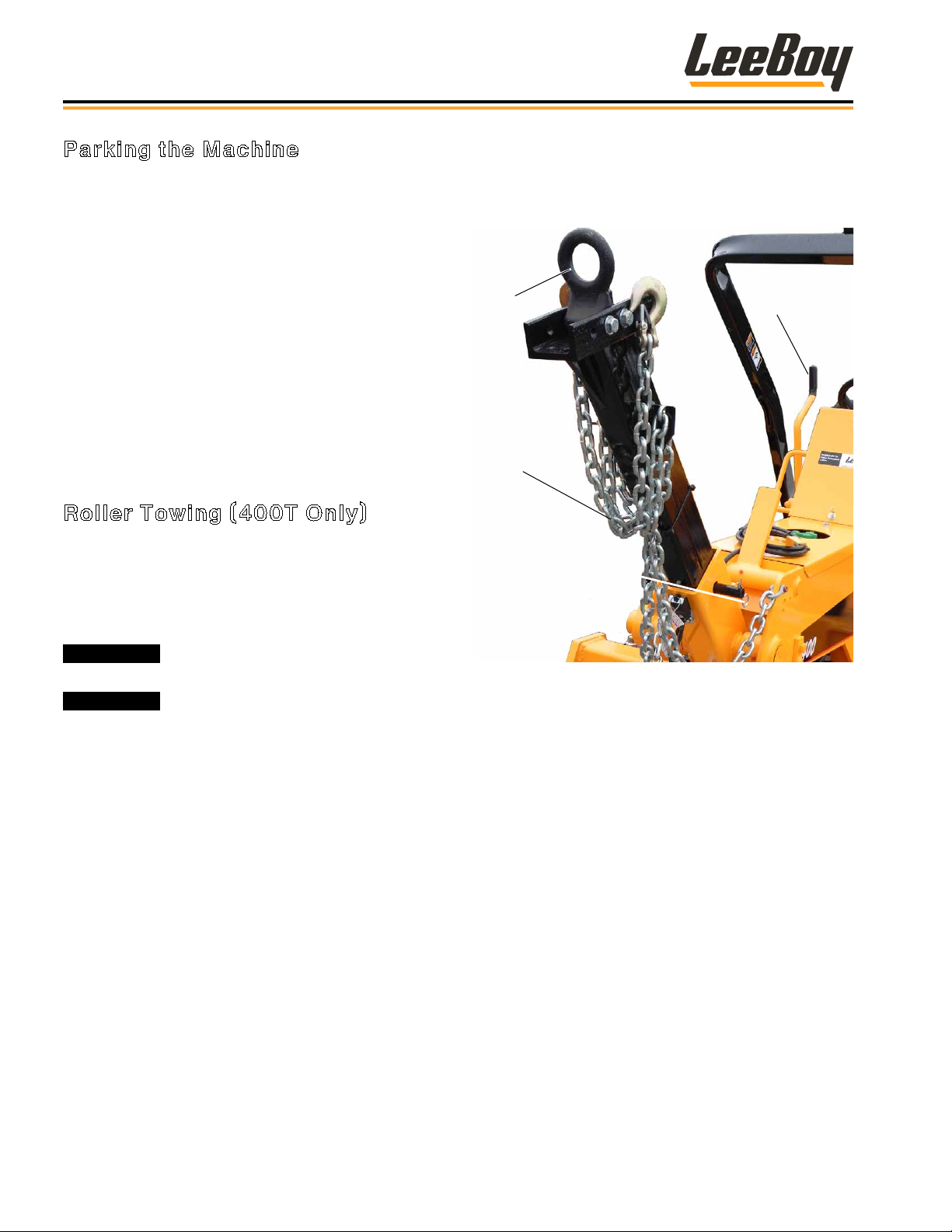

Roller Towing (400T Only) . . . . . . . . . . . . . . . . . . . . . . 4-10

Transporting Via Flatbed . . . . . . . . . . . . . . . . . . . . . . 4-12

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Lubrication Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Preparing Machine for Maintenance . . . . . . . . . . . . . . . . . 5-6

10-Hour or Daily Routine Maintenance . . . . . . . . . . . . . . . . 5-6

vi

LeeBoy Model 400 & 400T Rollers

50-Hour or Weekly Routine Maintenance . . . . . . . . . . . . . . 5-6

100-Hour or Monthly Routine Maintenance . . . . . . . . . . . . . . 5-6

250-Hour or Quarterly Routine Maintenance . . . . . . . . . . . . . 5-6

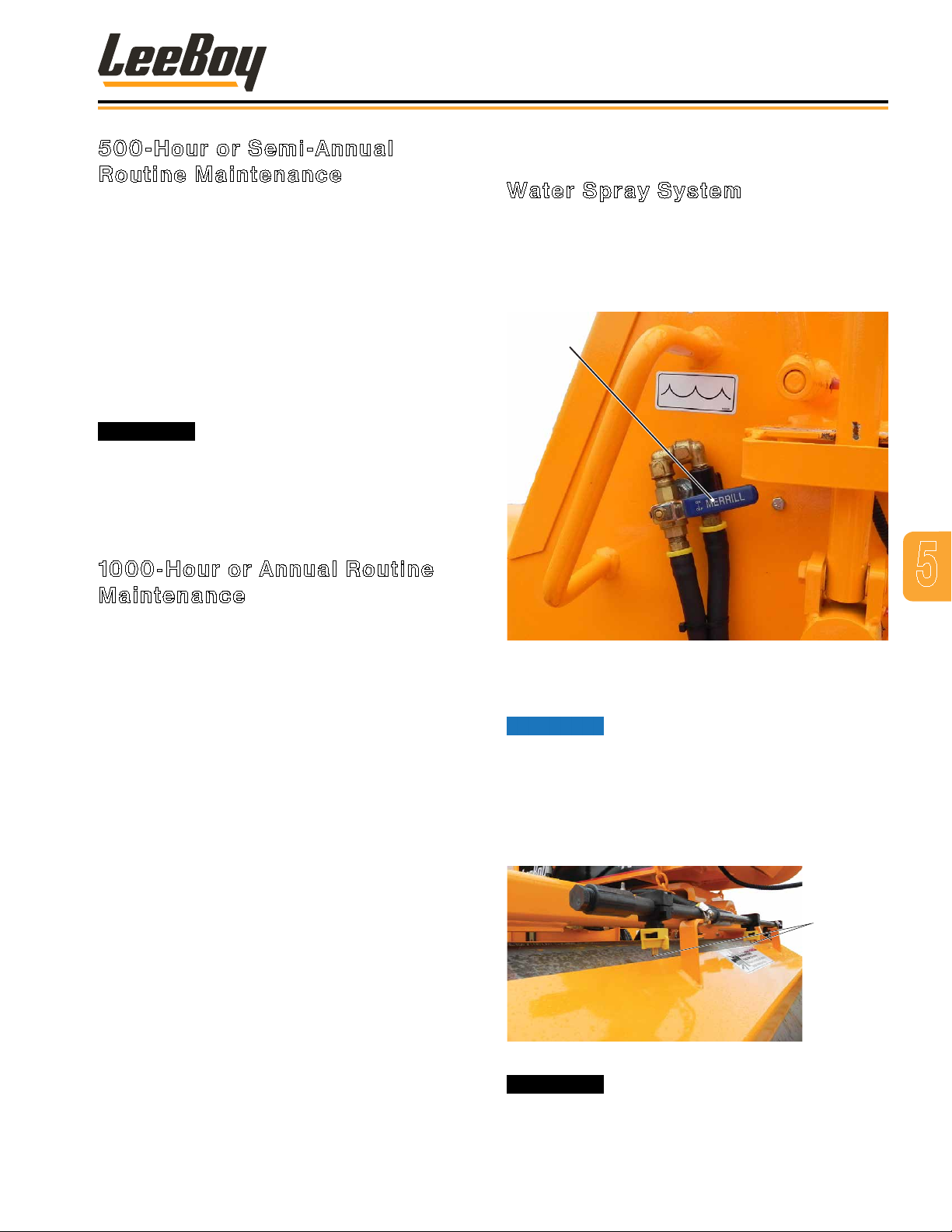

500-Hour or Semi-Annual Routine Maintenance . . . . . . . . . . . 5-7

1000-Hour or Annual Routine Maintenance . . . . . . . . . . . . . 5-7

Maintenance Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Water Spray System . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

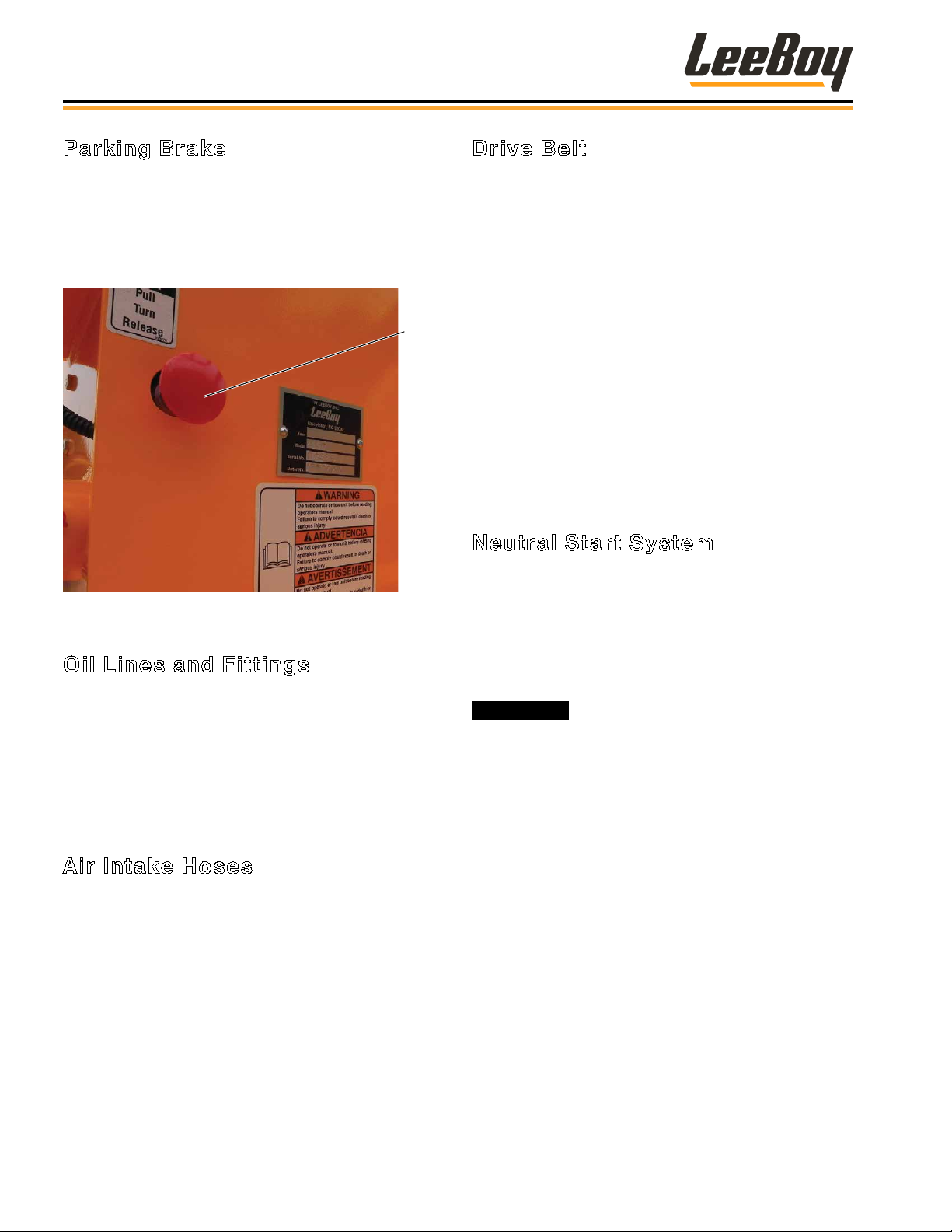

Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Oil Lines and Fittings . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Air Intake Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Neutral Start System . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

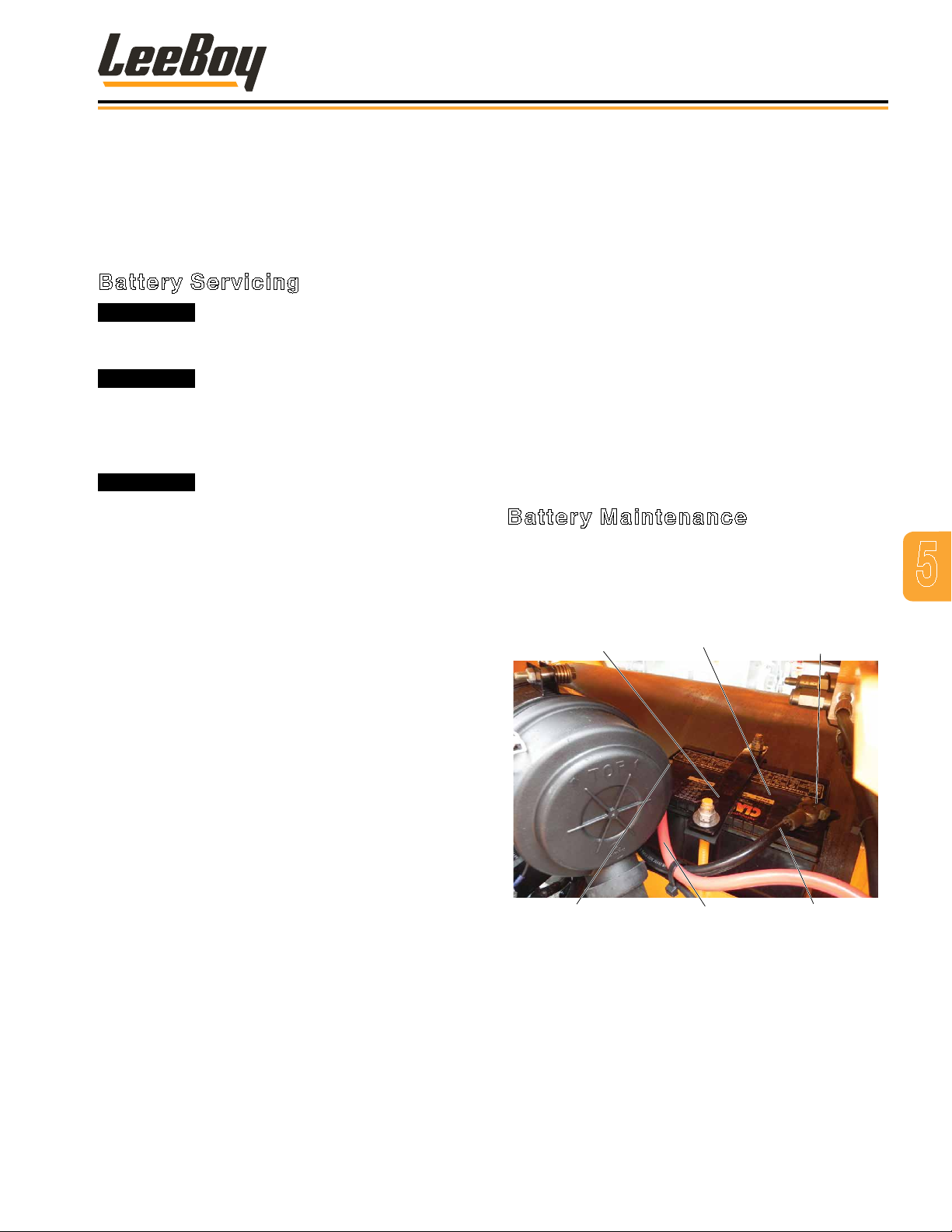

Battery Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Battery Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Check Battery Electrolyte Level . . . . . . . . . . . . . . . . . . . 5-10

Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Cold Weather Starting . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Fuses And Circuit Breakers . . . . . . . . . . . . . . . . . . . . . 5-10

Tire Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

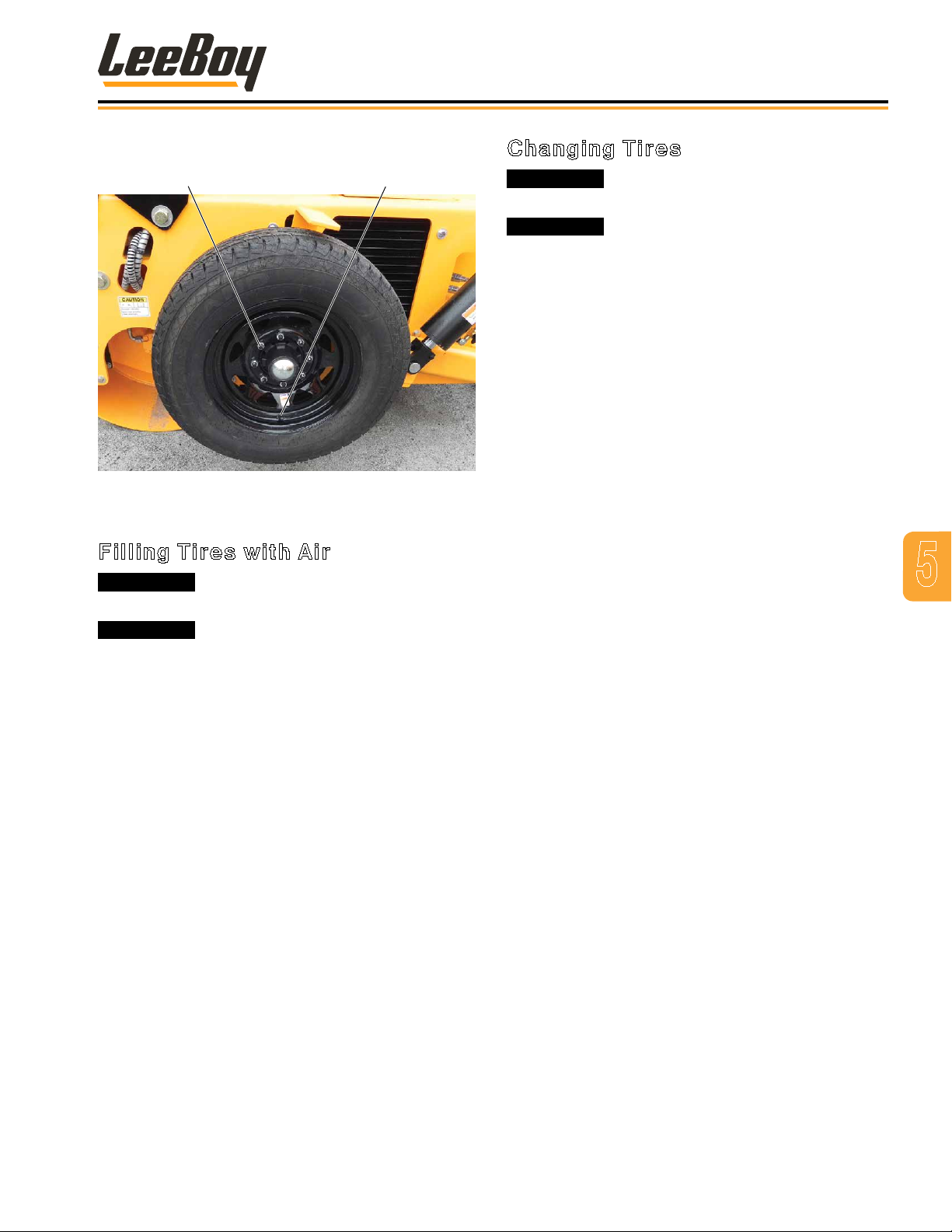

Filling Tires with Air . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Changing Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Engine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

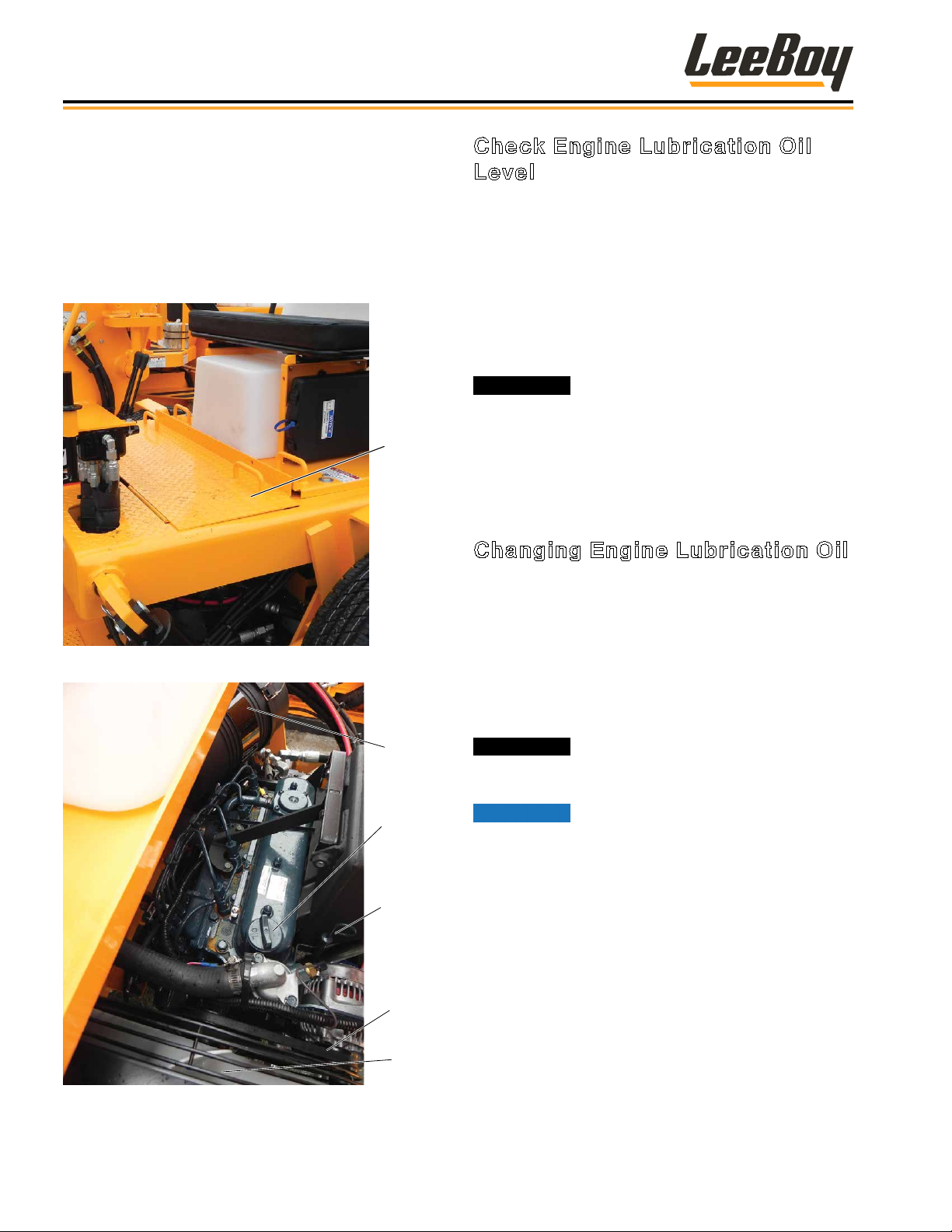

Check Engine Lubrication Oil Level . . . . . . . . . . . . . . . . . 5-12

Changing Engine Lubrication Oil . . . . . . . . . . . . . . . . . . . 5-12

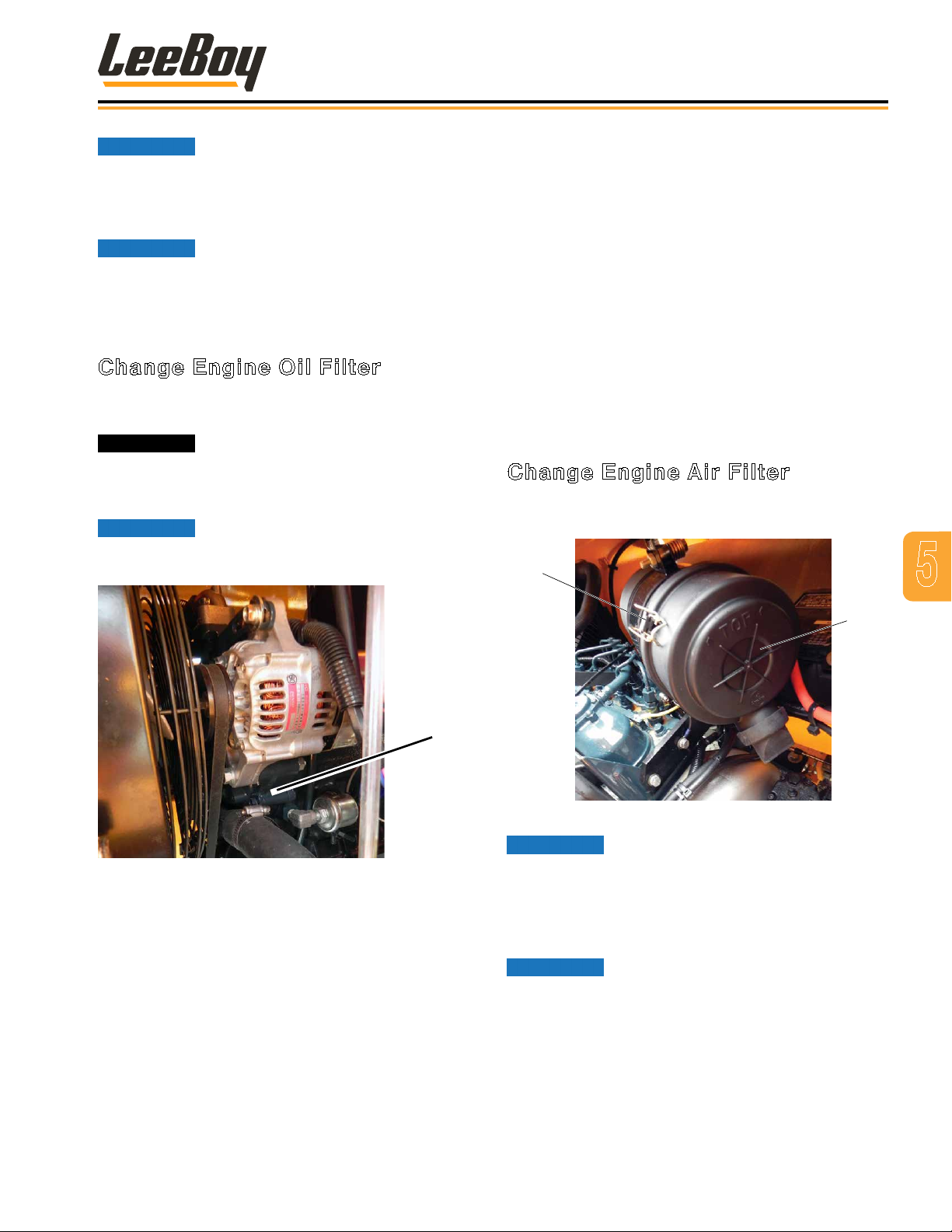

Change Engine Oil Filter . . . . . . . . . . . . . . . . . . . . . . . 5-13

Change Engine Air Filter . . . . . . . . . . . . . . . . . . . . . . . 5-13

Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

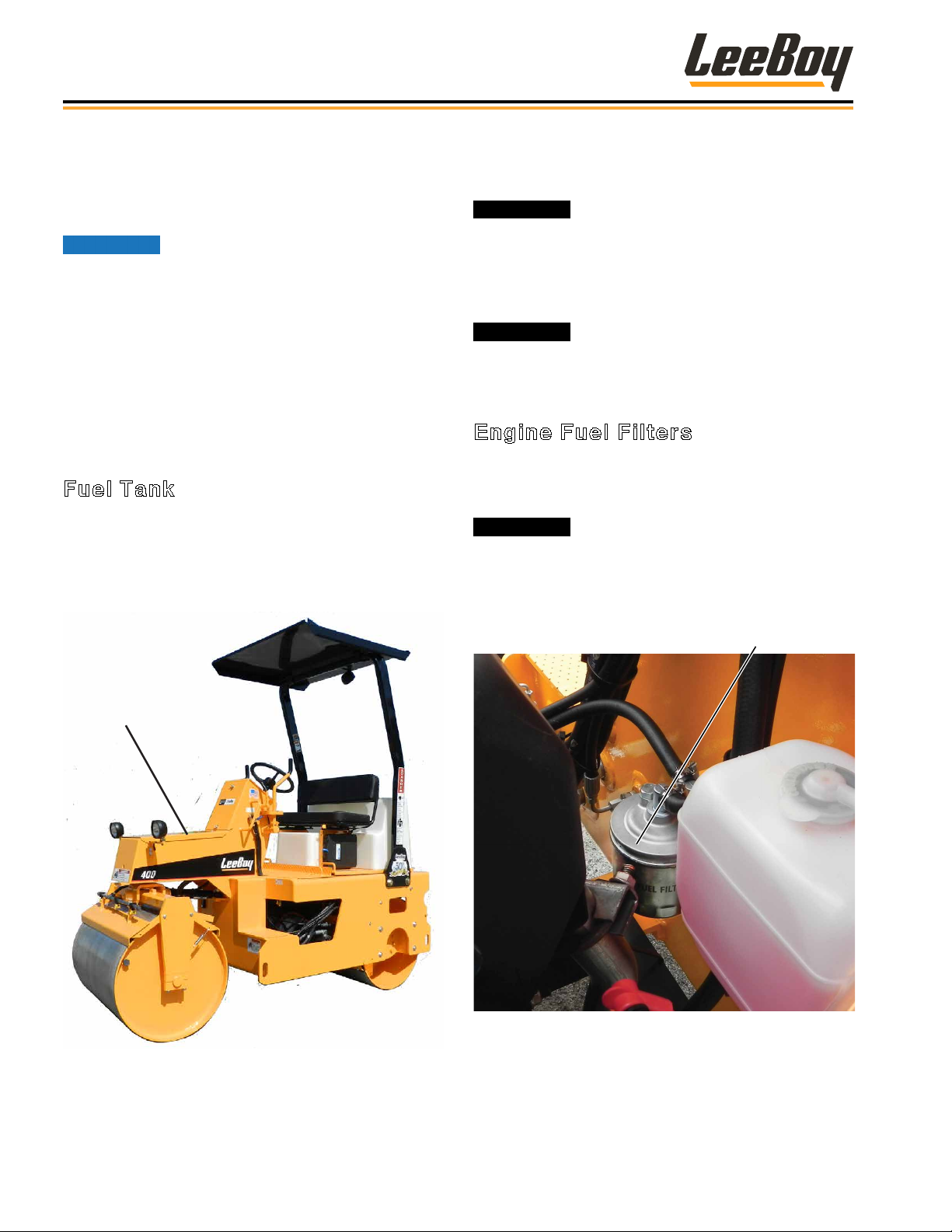

Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Engine Fuel Filters . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

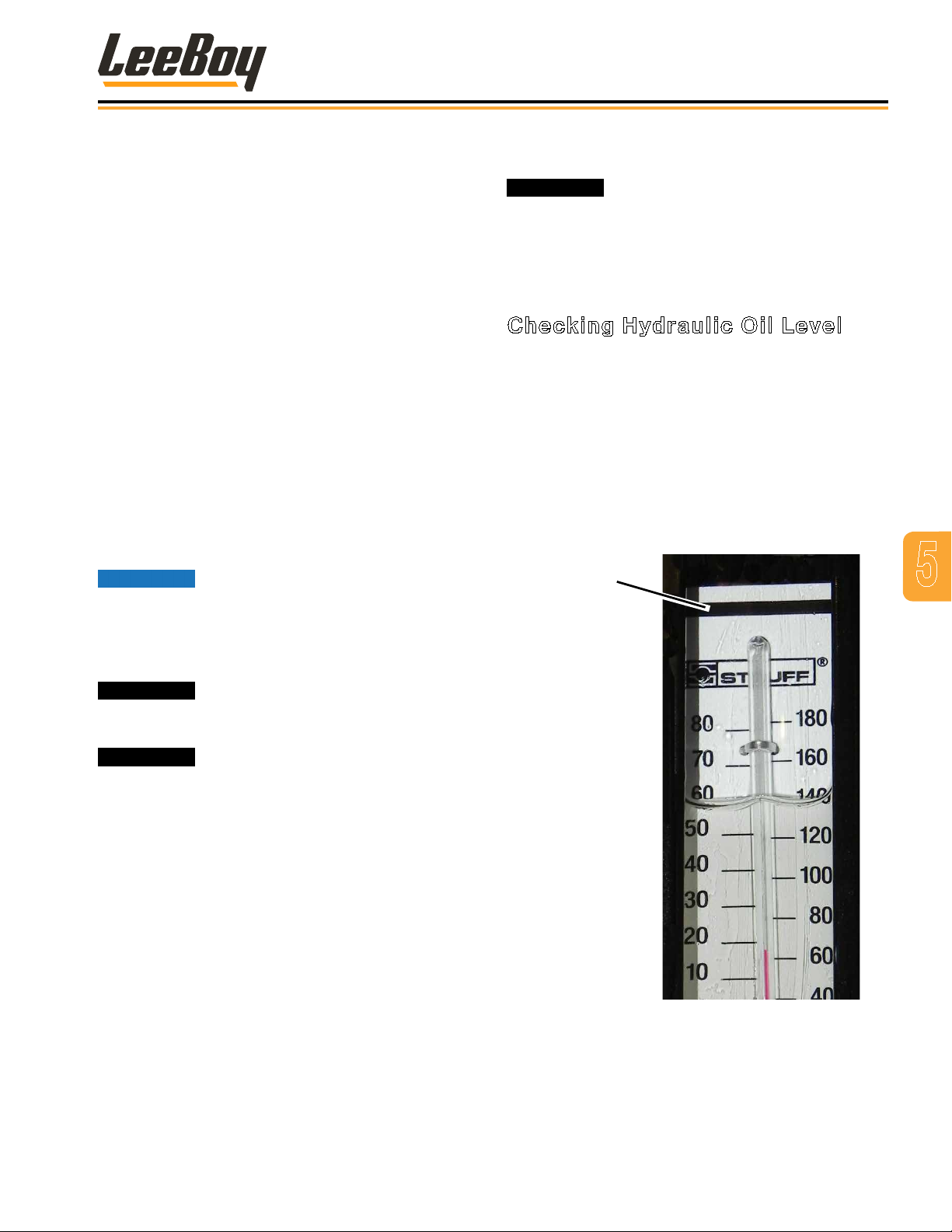

Checking Hydraulic Oil Level . . . . . . . . . . . . . . . . . . . . 5-15

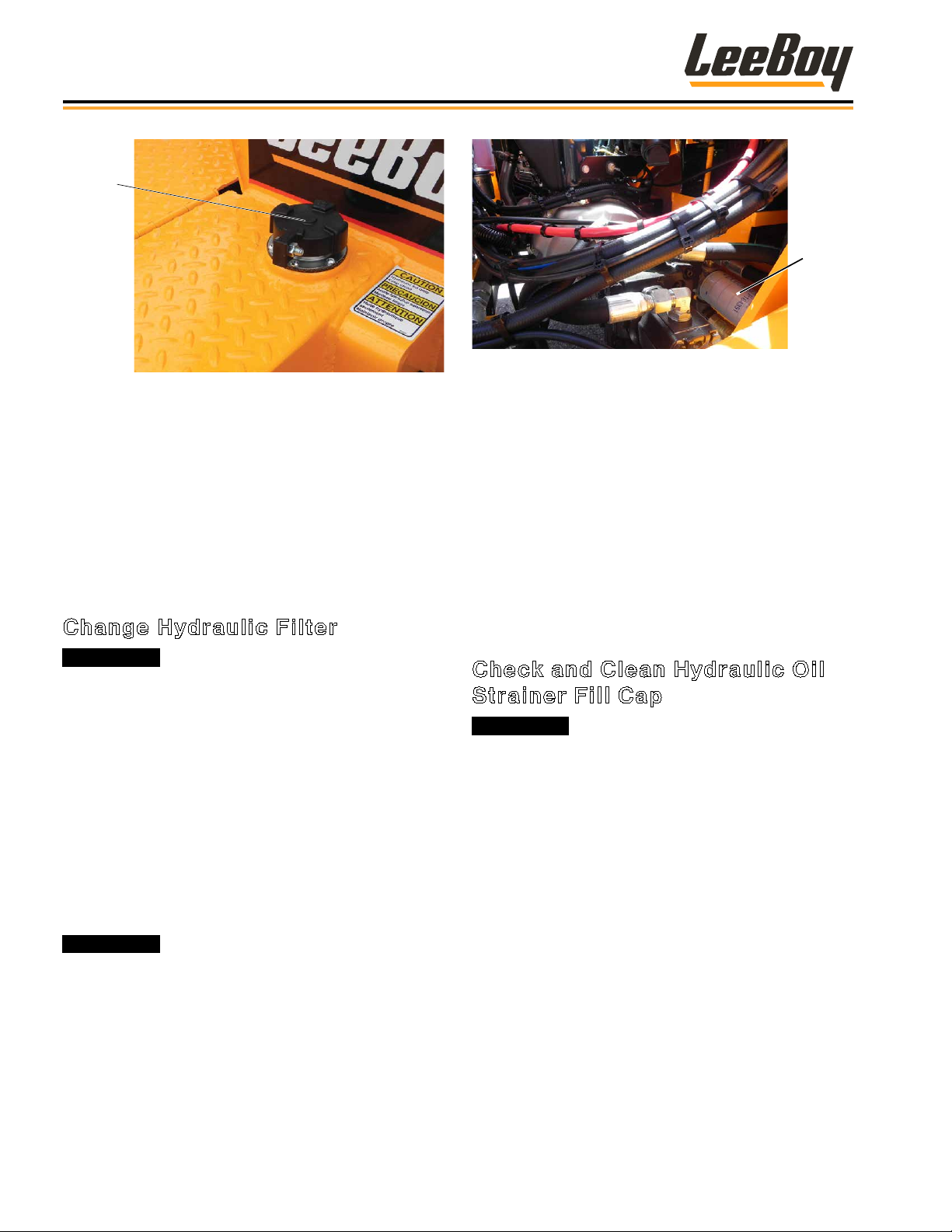

Change Hydraulic Filter . . . . . . . . . . . . . . . . . . . . . . . 5-16

Check and Clean Hydraulic Oil Strainer Fill Cap . . . . . . . . . . . 5-16

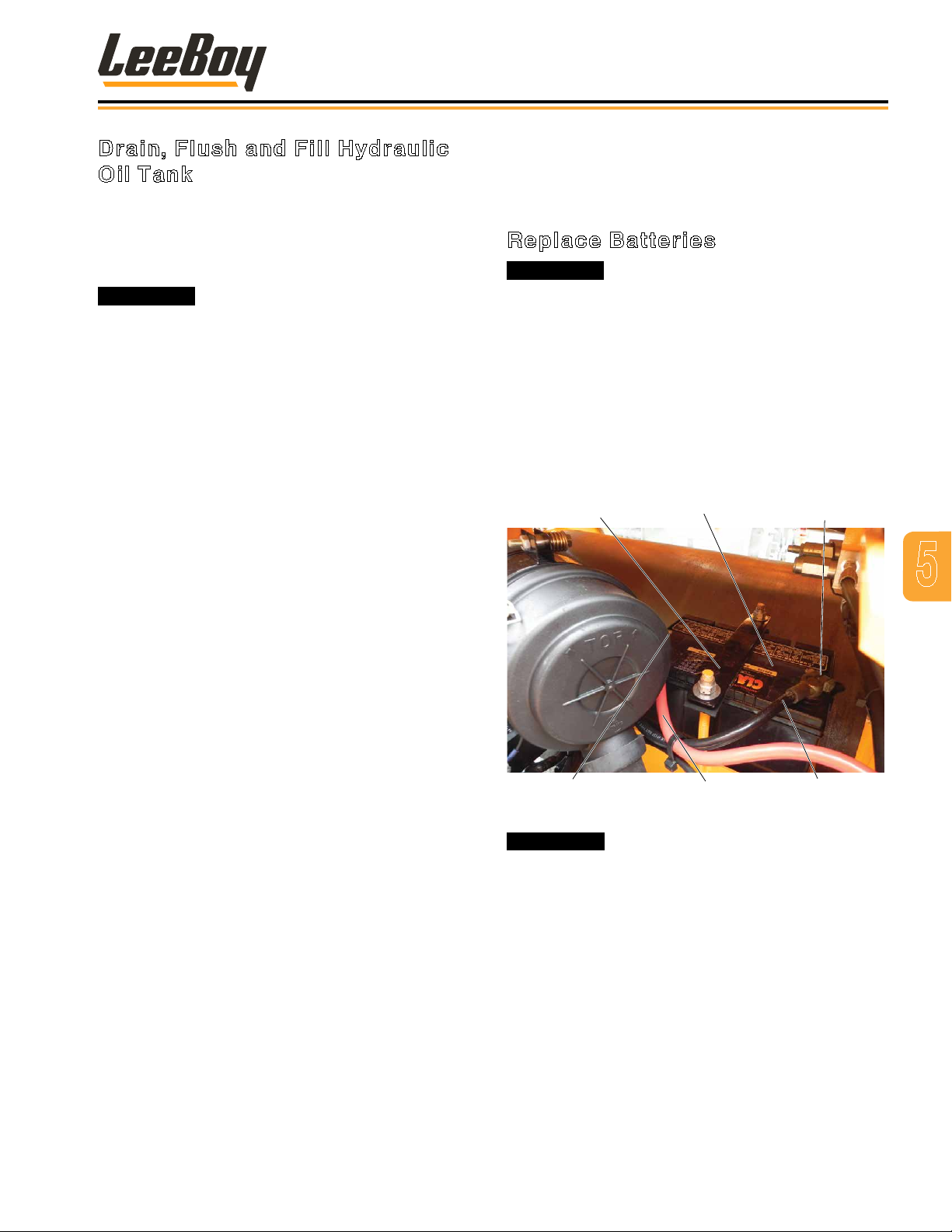

Drain, Flush and Fill Hydraulic Oil Tank . . . . . . . . . . . . . . . . 5-17

Component Replacement Procedures . . . . . . . . . . . . . . . . . . . 5-17

LeeBoy Model 400 & 400T Rollers

vii

Introduction

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20

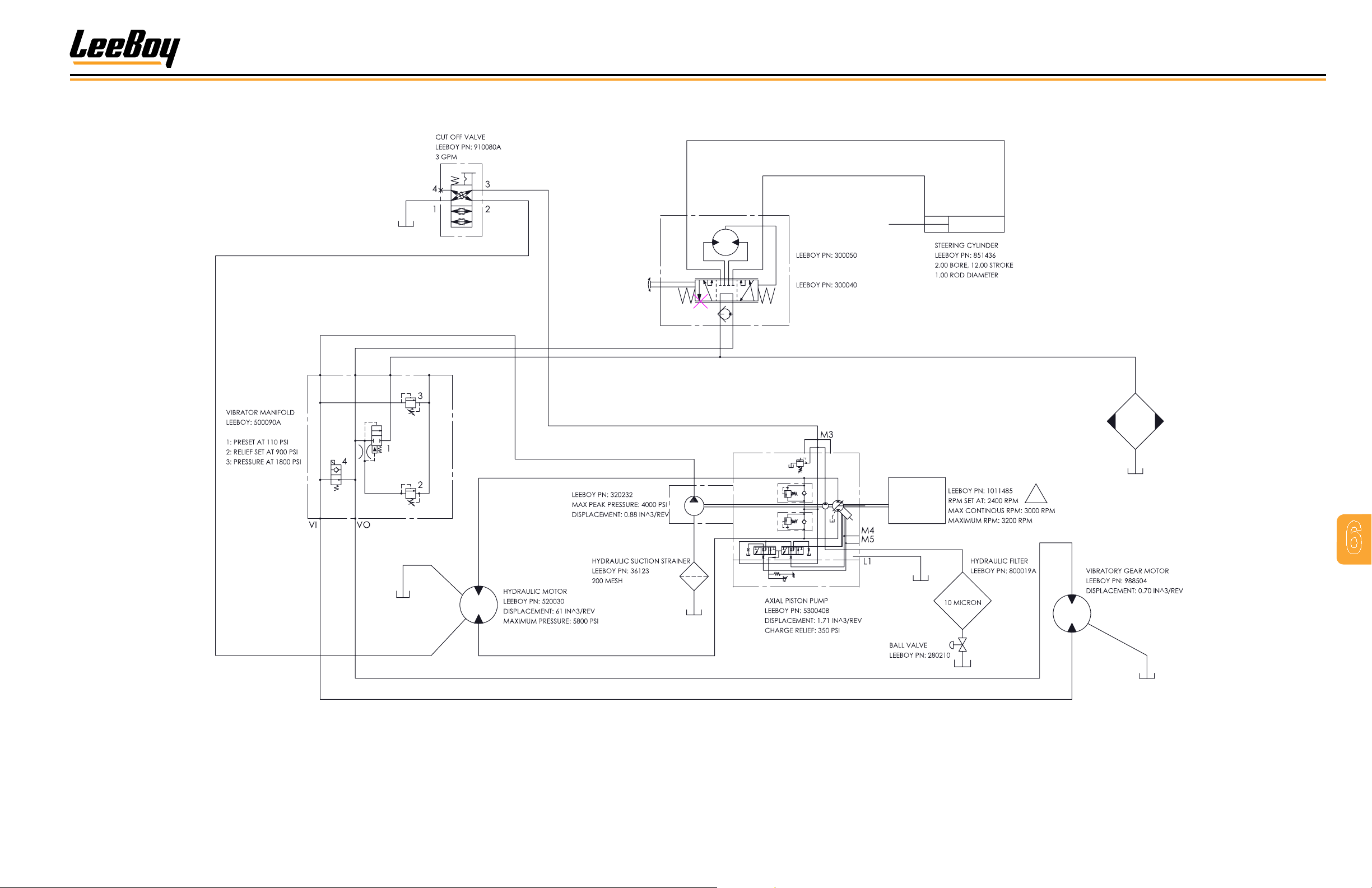

Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

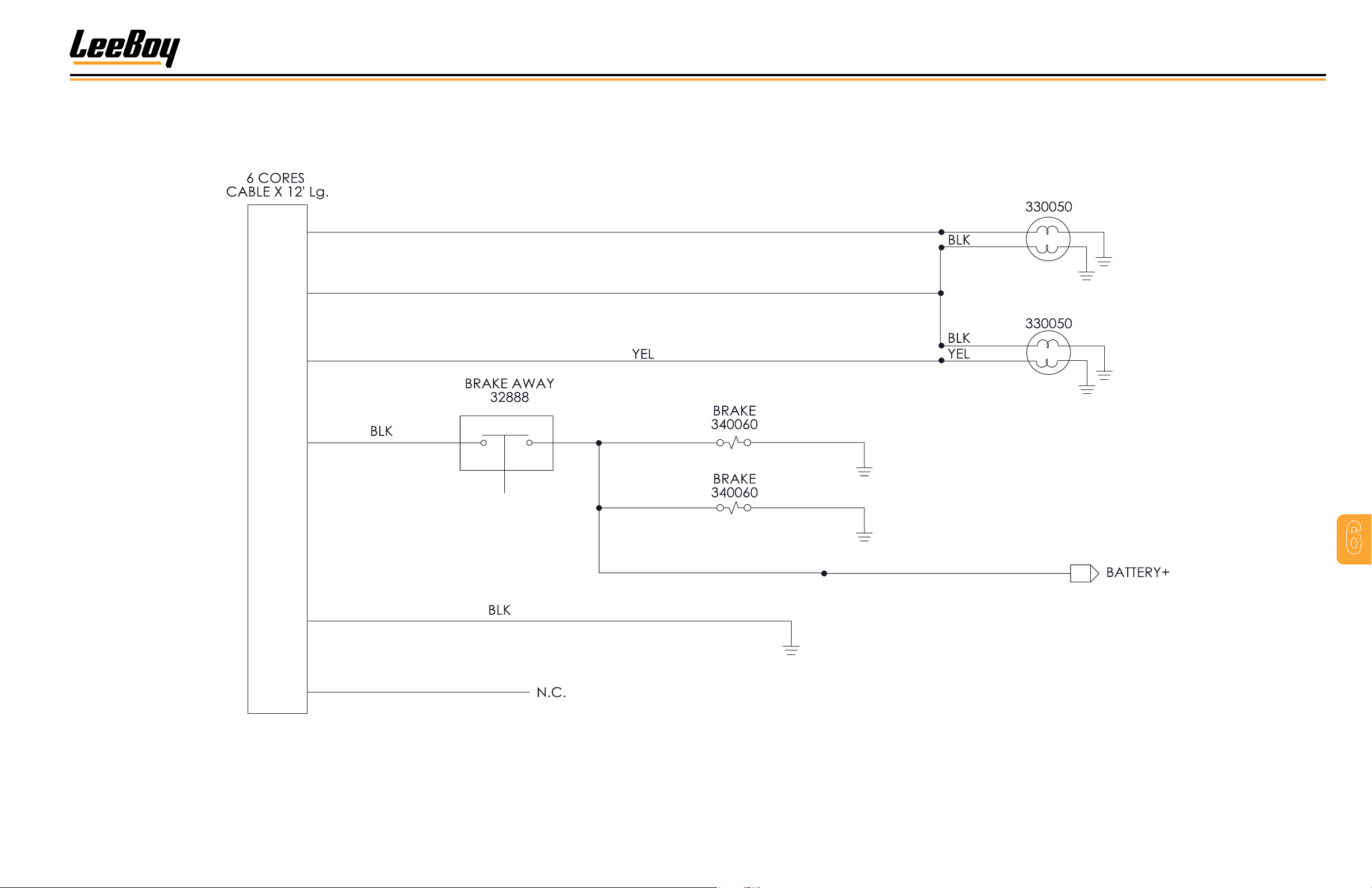

Electrical Schematic, Tow Pak, 400T . . . . . . . . . . . . . . . . . . . . 6-3

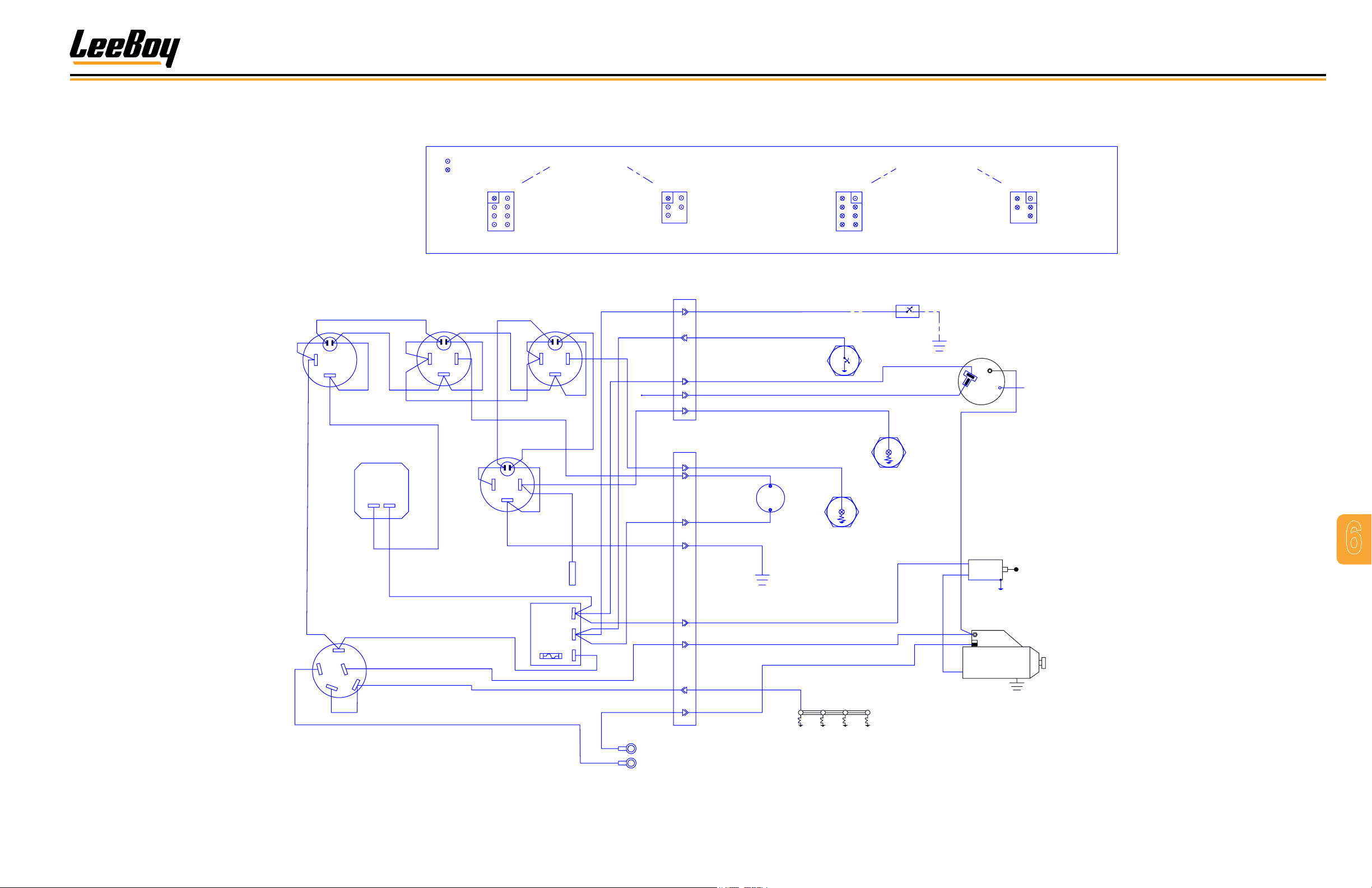

Panel, Gauges, Kubota, 400 . . . . . . . . . . . . . . . . . . . . . . . . 6-5

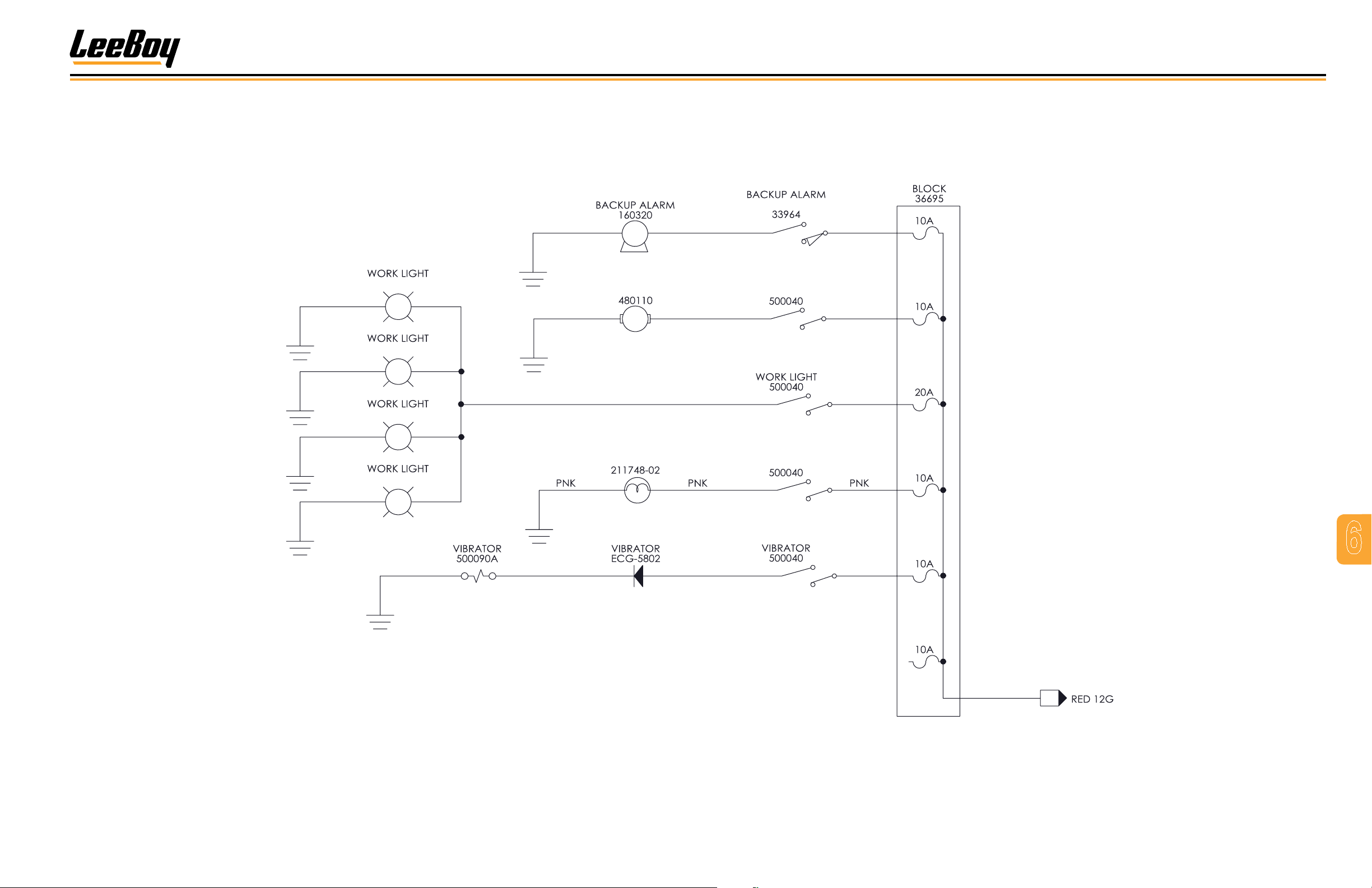

Electrical Schematic, Option, 400 / 400T . . . . . . . . . . . . . . . . . . 6-7

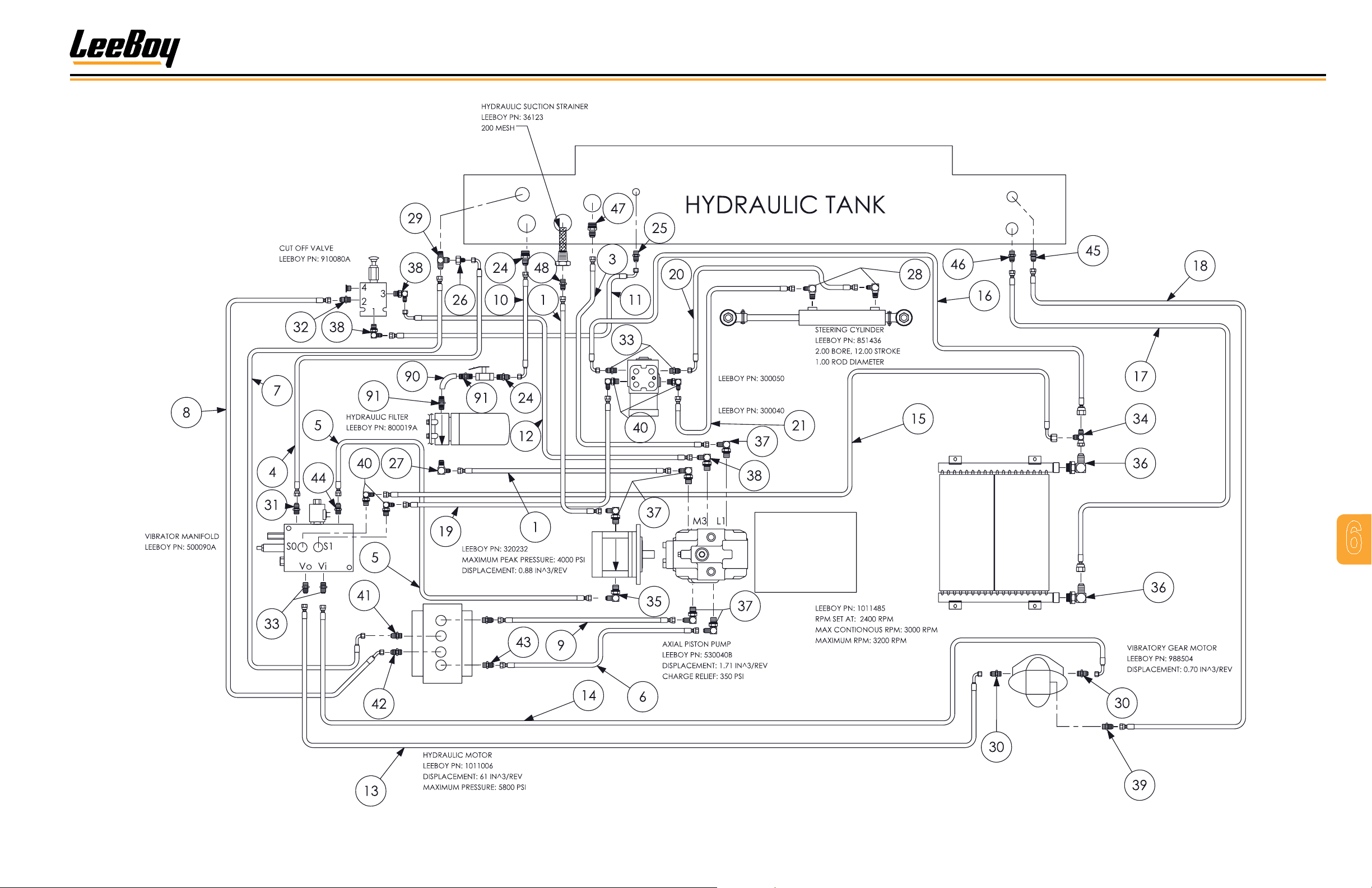

Hydraulic Hose Layout, 400, 1 of 2 . . . . . . . . . . . . . . . . . . . . . 6-9

Hydraulic Hose Layout, 400, 2 of 2 . . . . . . . . . . . . . . . . . . . . . 6-11

Illustrated Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

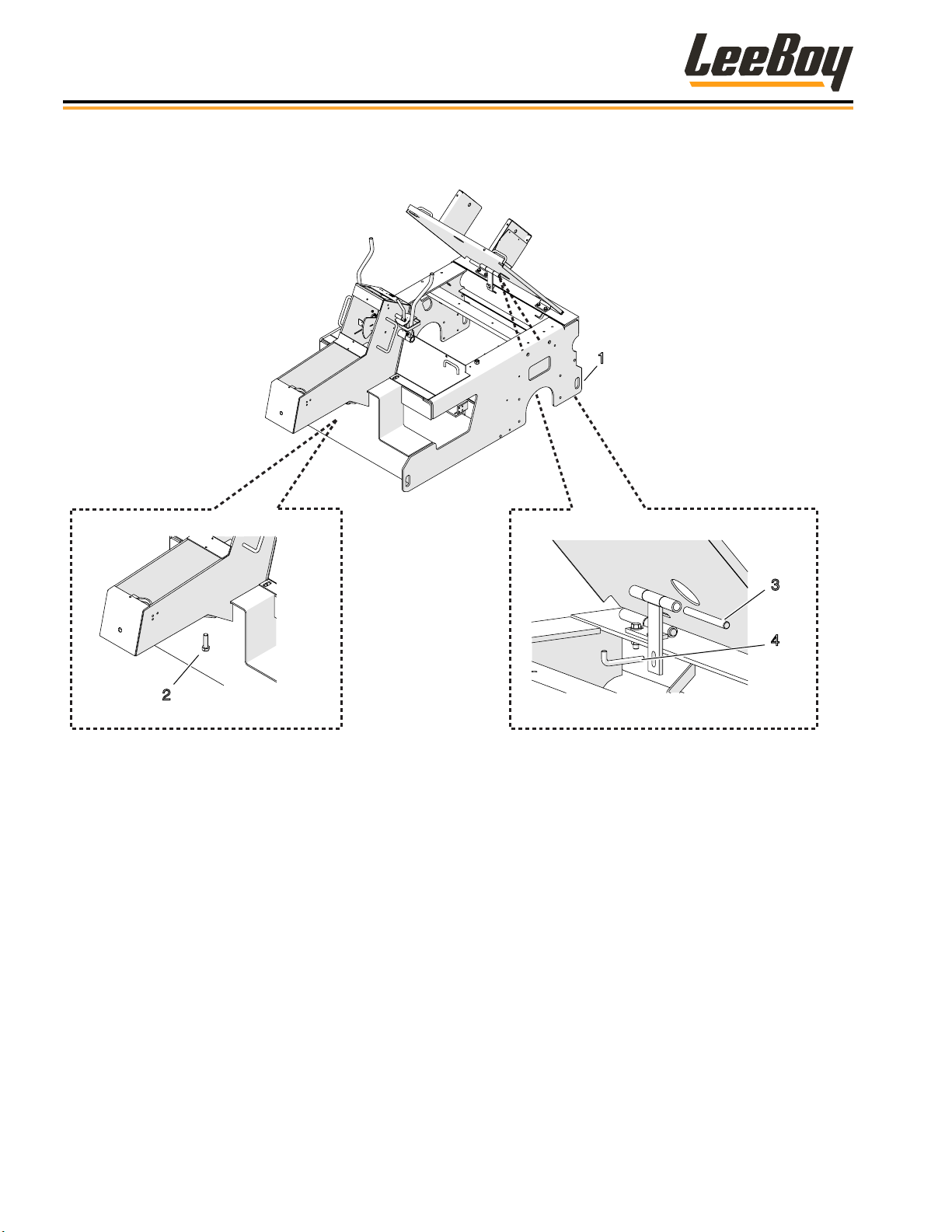

400 Main Frame Assembly, 1 of 2 . . . . . . . . . . . . . . . . . . . . . 7-4

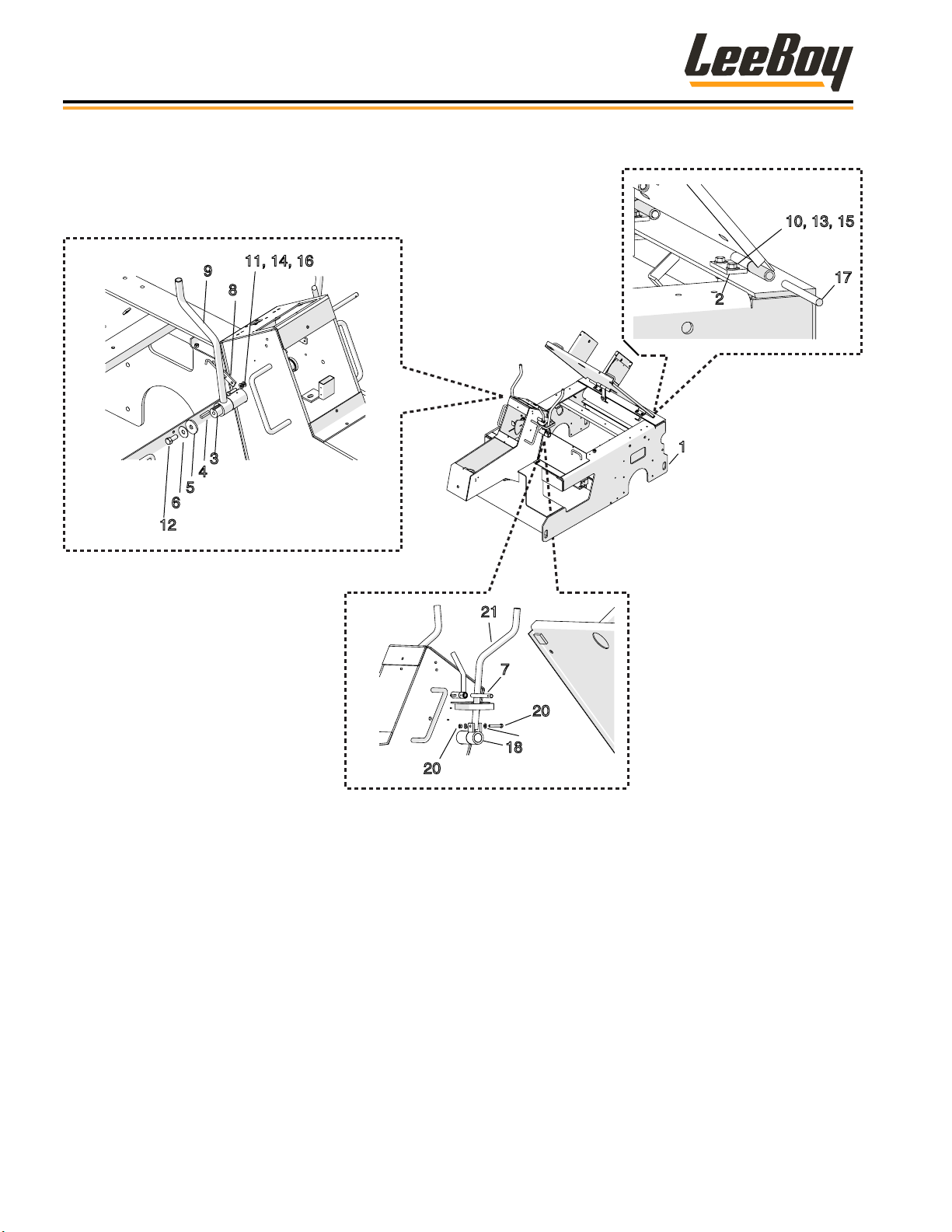

400 Main Frame Assembly, 2 of 2 . . . . . . . . . . . . . . . . . . . . . 7-6

Replace Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17

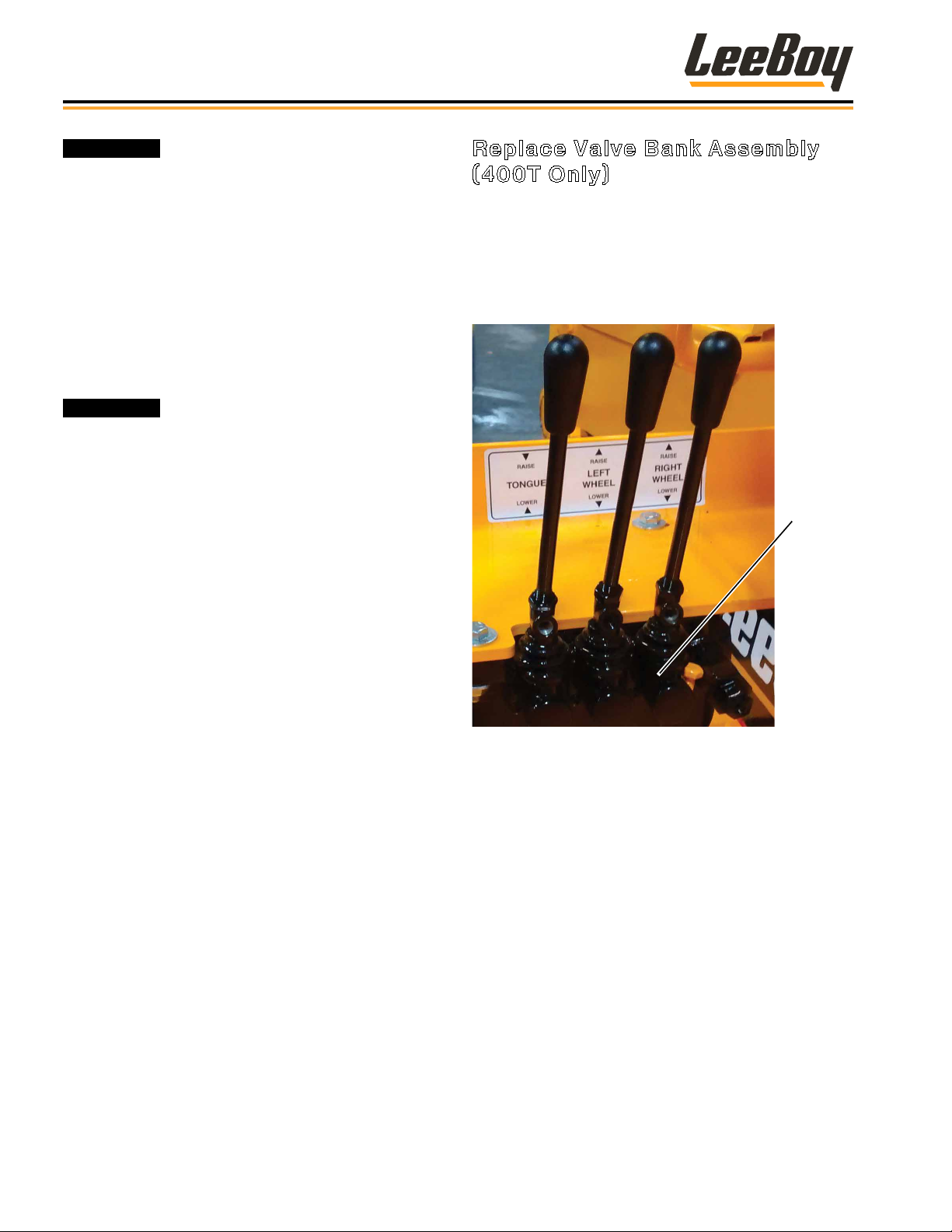

Replace Valve Bank Assembly (400T Only) . . . . . . . . . . . . . . 5-18

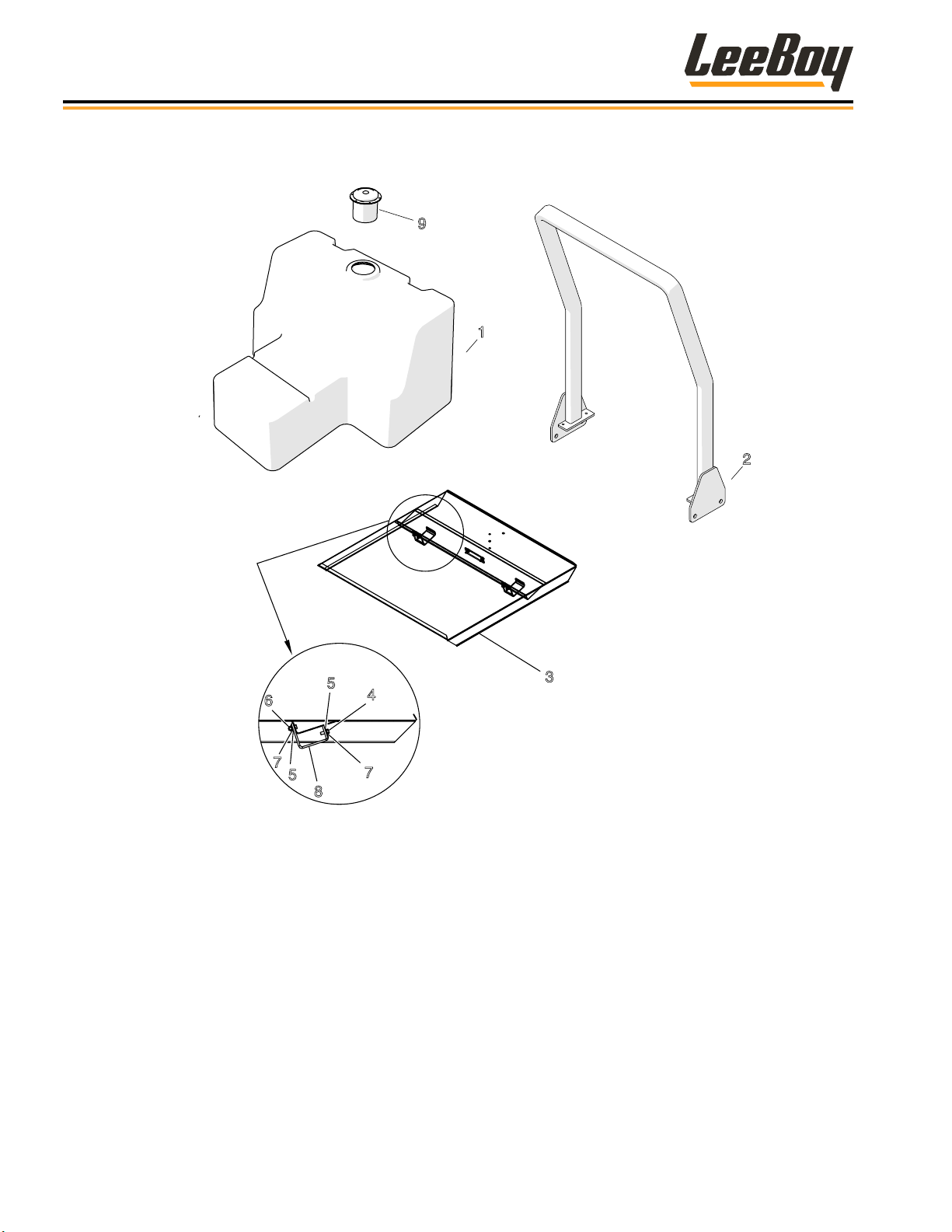

Water Tank and Rollbar Groups . . . . . . . . . . . . . . . . . . . . . . 7-8

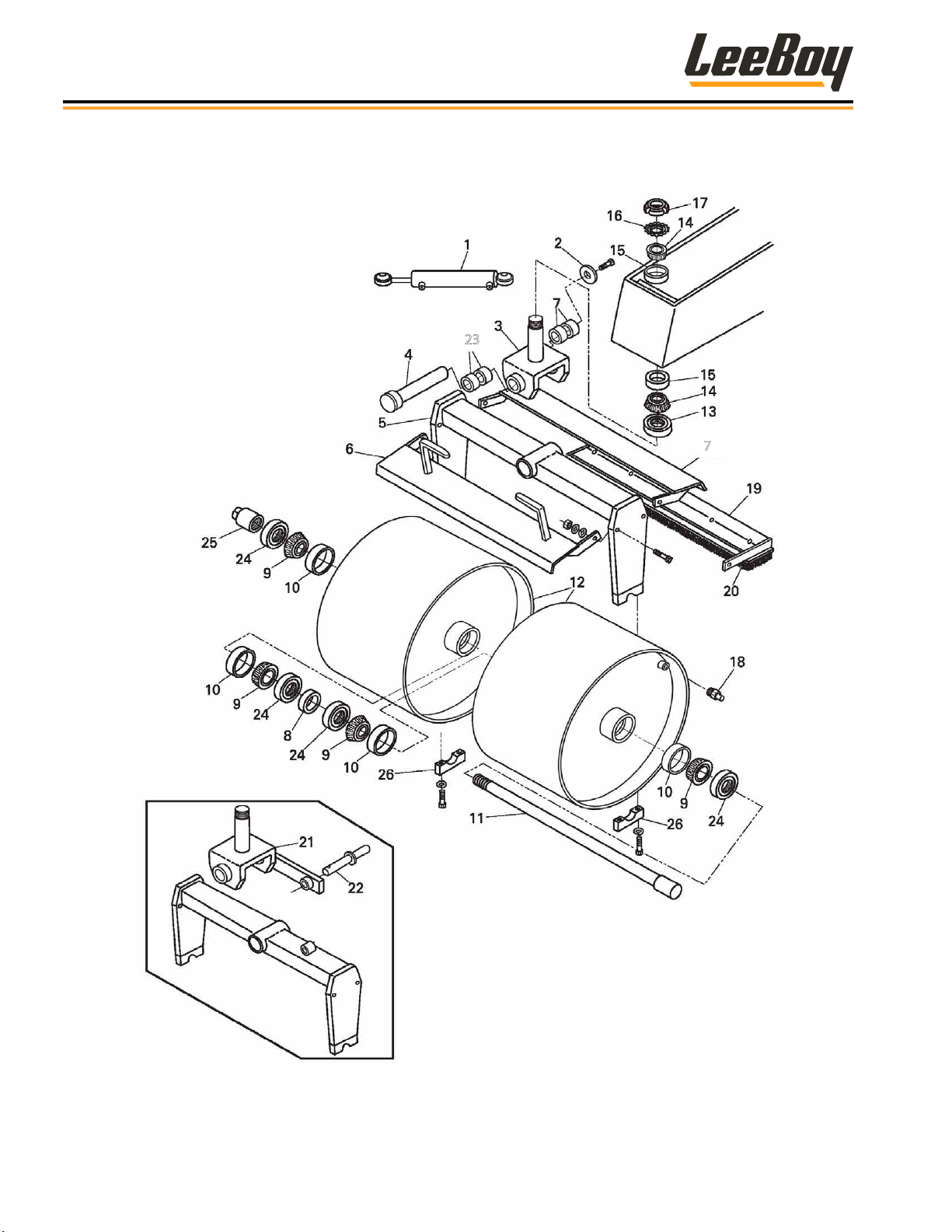

Front Drum and Yoke Assembly . . . . . . . . . . . . . . . . . . . . . . 7-10

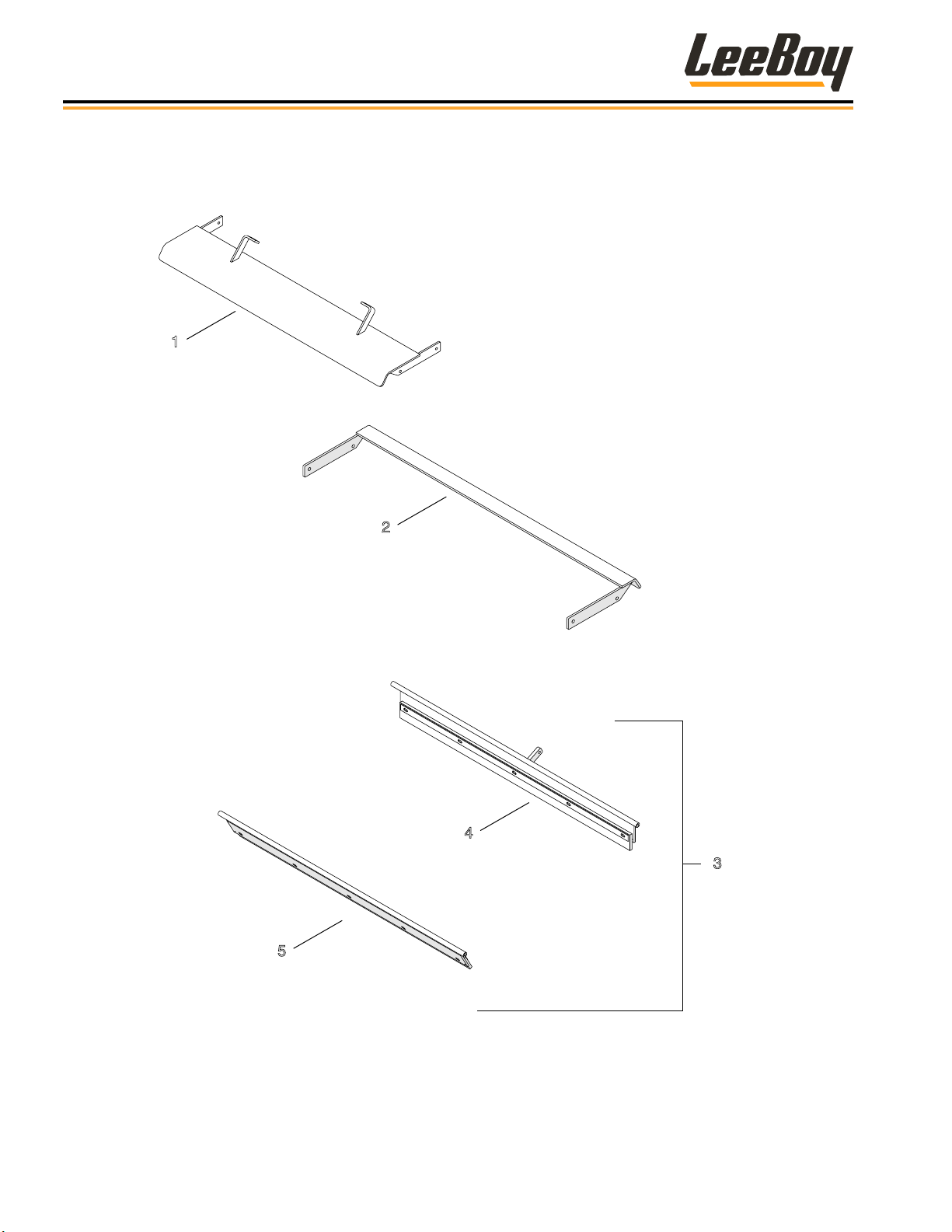

Front Wiper, Front Inner Wiper, and Rear Wiper, 400 / 400T . . . . . . . . 7-12

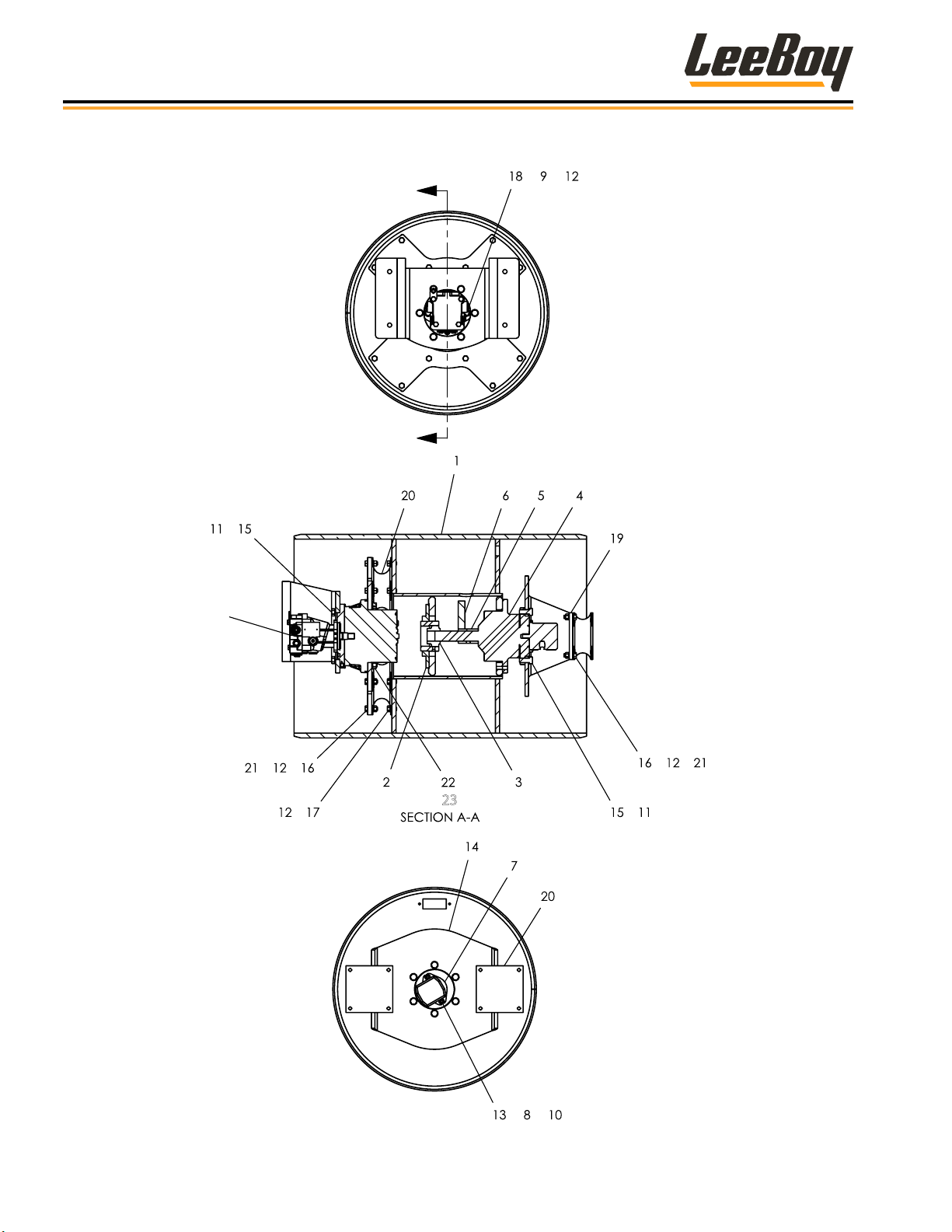

Rear Drum Assembly, Cut-Section . . . . . . . . . . . . . . . . . . . . . 7-14

Water System Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16

Fuel System Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

Steering and Drive Control Assembly . . . . . . . . . . . . . . . . . . . 7-20

Seat Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

Engine Group, 1 of 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24

Engine Group, 2 of 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26

25 HP, Tier4F, Engine, Kubota . . . . . . . . . . . . . . . . . . . . . . . 7-28

Battery Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30

400 and 400T Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . 7-32

Sign (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34

400T Main Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . 7-36

Tow/Lift Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38

400T Towing Safety Pin and Pintle Eye . . . . . . . . . . . . . . . . . . . 7-40

viii

Wheel Hub and Brake Assembly . . . . . . . . . . . . . . . . . . . . . . 7-42

Valve Bank Assembly (400T Only) . . . . . . . . . . . . . . . . . . . . . 7-44

Alphabetical Parts Index (API) . . . . . . . . . . . . . . . . . . . . . . . 7-46

LeeBoy Model 400 & 400T Rollers

INTRODUCTION

Thank you for purchasing the 400 or the 400T Roller.
We wish you many years of safe and efcient operation
of your roller.

READ THIS MANUAL PRIOR TO OPERATING the unit.
This manual is an important part of the roller and should
be kept with the roller at all times in the dedicated
storage container on the roller. Even though you may
be familiar with similar equipment, you MUST read and
understand this manual before operating this roller.
Reading the manual will help you and others avoid
injury and prevent damage to the roller. If this manual
becomes lost or damaged, contact your authorized

LeeBoy Dealer immediately to order a replacement

(Contact Information on Page 2-3).
This manual is intended as a guide for the safe and

efcient use of the roller. This manual contains

procedures for proper operation and maintenance of

the roller. This manual contains information that was
available at the time of printing and is subject to change
without notice.

This manual should be used along with all related
supplemental books, engine and transmission manuals,
and parts books. Related Service Bulletins may be
issued later that provide information regarding any
recent changes.

If any questions arise concerning this publication or
others, contact your local LeeBoy Dealer for the latest
available information.

LeeBoy Model 400 & 400T Rollers

ix

NOTES

x

LeeBoy Model 400 & 400T Rollers

Section 1

SAFETY

Page

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Pre-Operation Hazard . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Safety Label Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Safety Decals Care . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Machine Specic Precautions . . . . . . . . . . . . . . . . . . . . . . . 1-8

Hot Material Precautions . . . . . . . . . . . . . . . . . . . . . . . 1-8

Hydraulic Systems Precautions . . . . . . . . . . . . . . . . . . . 1-8

Refueling Precautions . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Battery Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Tire Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Starting and Stopping Precautions . . . . . . . . . . . . . . . . . . 1-10

Parking Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Operating Precautions . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Storage Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Maintenance Precautions . . . . . . . . . . . . . . . . . . . . . . 1-11

LeeBoy Model 400 & 400T Rollers

1-1

Safety

NOTES

LeeBoy Model 400 & 400T Rollers1-2

Safety

This manual provides important information to familiarize
you with safe operating and maintenance procedures.
Even though you may be familiar with similar equipment,
you MUST read and understand this manual before
operating the LeeBoy Model 400 or 400T Roller and
follow its instructions when operating the machine.

Safety is everyone’s business and our top concern.
Knowing the guidelines covered in this section will help
ensure your safety, the safety of those around you,
proper machine operation.

Keep safety labels in good condition. If safety
labels become missing or damaged, replace them
immediately. Replacement safety labels are available
from your authorized dealer. .

LOOK FOR THESE SYMBOLS THROUGHOUT

THIS MANUAL. THESE ITEMS ARE EXTREMELY

IMPORTANT FOR THE SAFETY OF YOU AND

YOUR COWORKERS. READ AND UNDERSTAND

THOROUGHLY. HEED THE WARNINGS AND

FOLLOW THE INSTRUCTIONS.

Indicates a hazardous situation which,

if not avoided, will result in death or serious injury.

Indicates a hazardous situation which,

if not avoided, could result in death or serious injury.

Indicates a hazardous situation which,
if not avoided, could result in minor or moderate
injury.

Indicates a situation which can cause
damage to the equipment, personal property and/
or the environment, or cause the LeeBoy Model 400
and 400T to operate improperly.

1

NOTE: Indicates a procedure, practice or condition

that should be followed in order for the roller
components to function properly.

LeeBoy Model 400 & 400T Rollers 1-3

Safety

SAFETY PRECAUTIONS

Pre-Operation Hazard

Read and understand this Operation Manual
before operating or servicing the engine to
ensure that safe operating practices and
maintenance procedures are followed.

• Never permit anyone to service or operate the LeeBoy
machine without proper training.

The safety messages that follow have WARNING
level hazards.

Crush Hazard

Keep bystanders away from work area before and
during operation.

• Safety signs and labels are additional reminders for
safe operating and maintenance techniques.

• Contact LeeBoy or an authorized LeeBoy Dealer for
additional training.

• Make sure you are aware of all laws and regulations
that are in effect for the location in which the roller is
operated.

• Make sure you have all necessary licenses to operate
the roller.

Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.

Electrocution Hazard

If your machine comes into contact with electric
power lines, observe the following:

• Stay in the operators seat.

• Warn other workers to stay away and do not touch any

control or any part of the machine.

• If contact can be broken, drive the machine away from
the danger zone.

• If contact cannot be broken, stay in the operators seat
until told that power is off.

Modification Hazard

Never modify the LeeBoy machine without written
consent of LeeBoy. Any modication can affect the safe
operation of the roller and may cause personal injury or
death.

Exposure Hazard

Always wear personal protective equipment,
including appropriate clothing, gloves, work
shoes, and protection for eyes and ears, as
required by the task at hand.

Explosion Hazard

While the engine is running or the battery is
charging, hydrogen gas is being produced
and can be easily ignited. Keep the area
around the battery well-ventilated and keep
sparks, open ame, and any other form of
ignition out of the area.

• Always disconnect the negative (-) battery cable
before servicing the roller.

• Do not start the engine by shorting the starter circuit
or any other starting method not stated in this manual.
Only use the starting procedure as described in this

manual on Page 4-6 to start the engine.

• Failure to observe these directions could result in

electrocution or death.

Suffocation Hazard

Never operate the internal combustion engine
on this machine in an enclosed area with poor
ventilation. Ensure proper ventillation to

reduce risk of carbon monoxide poisoning or death.

Fire and Explosion Hazard

• Diesel fuel is ammable and explosive under certain

conditions.

• Never use a shop rag to catch fuel.

• Wipe up all spills immediately.

• Never refuel with the engine running.

LeeBoy Model 400 & 400T Rollers1-4

Safety

• Store any containers containing fuel in a well­ventilated area away from any combustibles or
sources of ignition.

Fire Hazard

Be sure appropriate safety equipment is

available. Ensure all re extinguishers are
checked periodically for proper operation.

• Keep a charged re extinguisher within reach when
working in an environment where a re may occur.

• Always read and follow safety-related precautions
found on containers of hazardous substances
like parts cleaners, primers, sealants and sealant
removers.

• Undersized wiring systems can cause electrical res.

Exhaust Hazard

All internal combustion engines create
carbon monoxide gas during operation and

special precautions are required to avoid

carbon monoxide poisoning:

• Never block windows, vents or other means of
ventilation.

• Verify that all guards and covers are properly attached
before starting the engine. Do not start the engine if
any guards or covers are not properly installed on the
roller.

• If you must run the engine during maintenance
procedures, make sure you have a helper to keep
bystanders clear of the roller and make observations
of moving parts as requested by the operator.

• Always turn the start switch to the OFF position after
operation is complete and remove the key from the
switch. Keep the key in your possession when the
roller is not operating.

• Attach a “Do Not Operate” tag near the key switch
while performing maintenance on the equipment.

• Never operate the engine while wearing a headset to
listen to music or radio because it will be difcult to
hear the warning signals.

• Always start the engine and operate the controls while
seated in the operators seat.

Alcohol and Drug Hazard

Never operate the machine while under the
inuence of alcohol, drugs, or when ill.

1

• Always ensure that all connections are tightened to
specications after repair is made to the exhaust
system.

Entanglement/Sever Hazard

Verify there are no people, obstacles or
other equipment near the machine before
starting the engine. Sound the horn as a
warning before starting the engine.

If the engine must be serviced while it is operating,
remove all jewelry and tie back long hair before
operating or servicing the machine.

• Keep hands, other body parts, and clothing away

from moving/rotating parts.

• Always stop the engine before beginning service.
Before maintenance, remove negative battery cable
from battery post to ensure vehicle is not operated
during maintenance.

Piercing Hazard

High-pressure hydraulic uid or fuel can
penetrate your skin and result in serious
injury. Avoid skin contact with high-pressure

hydraulic uid or diesel fuel spray caused by
a hydraulic or fuel system leak such as a broken
hydraulic hose or fuel injection line.

• If you are exposed to high-pressure hydraulic uid or

fuel spray, obtain prompt medical treatment.

• Never check for a hydraulic uid or fuel leak with your

hands. Always use a piece of wood or cardboard.
Have your authorized LeeBoy Dealer or distributor
repair the damaged parts.

LeeBoy Model 400 & 400T Rollers 1-5

Safety

Flying Object Hazard

Always wear eye protection when cleaning
the LeeBoy Model 400 or 400T Roller
with compressed air or high-pressure
water. Dust, ying debris, compressed air,
pressurized water or steam may cause eye
injury.

Coolant Hazard

Wear eye protection and rubber gloves
when handling engine coolant.

• If contact with the eyes occurs, ush eyes with clean
water for 15 minutes.

• If contact with skin occurs, wash immediately with
soap and clean water.

Burn Hazard

Some of the machine’s surfaces become
very hot during operation and shortly after
shutdown.

The safety messages that follow have NOTICE level
hazards.

• Any part found defective during inspection or does not
satisfy the proper standard or limit must be replaced.

• Always tighten components to the specied torque.
Loose parts can cause damage to the LeeBoy
machine or cause it to operate improperly.

• Only use replacement parts approved by LeeBoy.
Other replacement parts may affect warranty
coverage.

Follow the guidelines of the EPA or
other governmental agencies for the
proper disposal of hazardous materials
such as engine oil, diesel fuel, and
engine coolant. Consult the local
authorities or reclamation facility.

• Dispose of hazardous materials in accordance with
all applicable laws and regulations. Never dispose of
hazardous materials by dumping them into a sewer, on
the ground, or into groundwater or waterways.

• Keep hands and other body parts away from hot
machine surfaces.

• Handle hot components with heat-resistant gloves.

The safety messages that follow have CAUTION level
hazards.

Poor Lighting Hazard

• Ensure that the work area is adequately illuminated.

• Always install wire cages on portable safety lights.

Tool Hazard

Always use tools appropriate for the task at hand and
use the correct size tool for loosening or tightening
LeeBoy machine parts.

• Clean all accumulated dirt and debris away from the
body of the roller and its components before you
inspect the roller or perform preventive maintenance
procedures or repairs. Operating a roller with
accumulated dirt and debris will cause premature
wear of roller components. Accumulated dirt and
debris also hinders effective roller inspection.

• Retrieve any tools or parts that may have dropped
inside of the roller to avoid improper roller operation.

• If any alert indicator illuminates during roller operation,
stop the engine immediately. Determine the cause
and repair the problem before continuing to operate
the roller.

LeeBoy Model 400 & 400T Rollers1-6

(Under water tank)

565 9

D ANG E R

or roll over p ote ti on, tank

MUS T be bolte d down .

Fa ilur e to co mply wil l re su lt in
deat h or s erio us in j r y.

1010489

PINCH POINT

PUNTO DE APRIETE

POINT DE PINCEMENT

DA NG E R
P EL IG R O
DA NG E R

D

856542

DA NG E R

FLAMMABLE – KEEP CLEAN

856529

CRUSH HAZARD!

K eep cle ar of m ach ine.
Fa ilur e to co mply wil l re su lt in
dea th or s eri ous in jury.

D ANG E R

1011475

WAR NI NG

DO NOT TOW OVER 45 MPH.

DO NOT TOW OVER 45 MPH.

856558-01

RUN-AWAY VEHICLE
HAZARD!

Machine mu st be i n
NEUT R AL an d E mer gen cy
Brak e a pplie d be fore
dismou nting .

Failur e to co mply wil l re su lt
in death or s erio us inj ury.

DAN GE R

856539

Do not oper ate or tow u nit b efor e re adi ng
operato rs ma nual .
Failu re to c omply c ould re su lt in dea th o r
serio us in jury.

WA R NING

No us ar ni r emol ca r la má quin a s in ante s hab er
leído el ma nual del ope rad or.

Si no s e c umpl e c on es ta d isp os ici ón, s e pu ede
caus ar la m uerte o les ion es gra ves .

AD VE R TE N CIA

Ne pas fa ire fon ctio nner ni rem orqu er l a
machin e av ant de lire le manu el d ’op érati ons .

Le non -res pe ct d e c ette règl e ri sq ue d ’en traîn er
des bl es su res g rav es , v oire mor telle s.

AV ER T IS S EM EN T

856446

Hydr aul ic oil only
Ke ep c lea n

Huil e hy dra uliq ue
se ulem ent
Main tenir pro pre

P RE C A UC ION

ATT E NT ION

Ac eite hidr áuli co s olam ente
Mante ner limp io

C AU TIO N

856526

DO NOT s tand or s tep h ere
when mac hin e is movi ng.
Fai lure to com ply will
res ult in d eath or s erio us
injur y.

D ANG E R

856528

WA R NING

RUN-AWAY
VEHICLE
HAZARD!

DO NOT
attemp t to
dis co nnec t
roll er f rom
hitc h wh en
tow w heel s are
on g rou nd.

Fai lure to
com ply cou ld
res ult in d eath
or s er iou s
injur y.

(On engine)

Safety

SAFETY LABEL LOCATIONS

If your LeeBoy machine has been repainted, it is
extremely important that all decals referring to
CAUTION, WARNING, and DANGER be replaced in their
proper locations. The illustrations on this page will aid
you in determining the proper locations. For additional
help, refer to Section 7, Illustrated Parts List.

A description of location is provided below for each
safety label. For additional instructions, contact your
dealer.

NOTE: It is the responsibility of the owner and

operator to make sure that all safety labels
are readable and located on roller as
designated by LeeBoy.

1

Figure 1-1. Safety Labels and Safety Label Locations

LeeBoy Model 400 & 400T Rollers 1-7

Safety

Safety Decals Care

• Keep safety decals and signs clean and legible at all
times.

• Become familiar with the content and position of each
safety decal. Decals include important information.

• Replace decals and signs that are missing or become
illegible.

• When replacing parts that display a safety decal,
ensure the new part is also tted with the correct
safety decal.

• Obtain safety decals or signs from your authorized
LeeBoy dealer when needed.

Decal Installation (Sticker Type)

1. Be sure the installation area is clean and dry. Use

hot, soapy water to clean the surface where decal
will be applied. Thoroughly dry.

2. Measure and determine decal positioning before

removing the decal paper backing.

3. Remove the smallest adhesive backing of the split-

backing paper.

4. Align decal over the specied area and carefully

press exposed portion into place.

5. Slowly remove the remaining backing and carefully

smooth the remaining portion of the decal into place.

6. Small air pockets can be pierced with a pin and

smoothed using a piece of the decal backing.

MACHINE SPECIFIC PRECAUTIONS

Hot Material Precautions

• Wear protective gear for face, hands and feet when
operating the roller.

• Allow machine to cool before repairing or performing
maintenance on working components.

If hot asphalt touches skin, ush area

immediately with cold water. DO NOT apply ice
to the affected area. DO NOT attempt to remove
asphalt cement with products containing solvents or
ammonia. Get medical attention as soon as possible.

DO NOT remove radiator cap, drain

plugs, and service grease ttings or pressure taps

when engine is hot. Add coolant to the radiator and
perform other services only when the engine is
stopped and fully cooled.

Hydraulic Systems Precautions

• Make sure all components are in good working
condition. Replace any worn, cut, abraded, attened
or crimped hoses and metal lines.

DO NOT attempt makeshift repairs
using tape, clamps or cements. The hydraulic
system operates under extremely high pressure and
such repairs could cause serious injury.

Decal Installation (Top Protected)

1. Be sure the installation area is clean and dry. Use
hot, soapy water to clean the surface where decal
will be applied. Leave wet.

2. Measure and determine decal positioning. Remove
protective backing and soak the decal in clean,
soapy water before application. (This will help to
alleviate air bubbles when applying the decal.)

3. Smooth the decal into place with a squeegee and
check for air bubbles.

4. Small air pockets can be pierced with a pin and
smoothed using a piece of the decal backing.

5. When the decal is completely smooth, carefully
remove the top paper.

Wear proper hand and eye protection
when searching for a high pressure leak. Use a
piece of wood or cardboard as a back stop (instead
of hands) to isolate and identify leaks. Pressurized

hydraulic uid or oil has sufcient force when it

escapes to penetrate the skin, which could cause
serious personal injury. Ensure pressure is relieved
before disconnecting line, hoses and valves.

If injured by concentrated high

pressure steam or hydraulic uid, seek medical

attention immediately. Serious infections or

toxic reactions can develop from hydraulic uid

penetrating the skin’s surface.

LeeBoy Model 400 & 400T Rollers1-8

Safety

Refueling Precautions

• Fuel is highly ammable and should be handled with
care. Death or serious injury can occur due to an
explosion or re.

• When refueling, keep the hose nozzle or the funnel
in contact with the metal of the fuel tank to avoid the
possibility of an electrical spark lighting the fuel.
Maintain control of ller nozzle.

• DO NOT ll tank to capacity. Allow room for expansion
to reduce the risk of fuel expanding and spilling from
the tank.

• DO NOT overll the fuel tank as overow creates a re
hazard when spilled onto hot components.

DO NOT smoke when refueling and

never refuel when the engine is running.

• Tighten fuel cap securely. Should fuel cap be lost,
only replace it with an original manufacturer-approved
cap. Pressurization of the tank may result from use of
non-approved cap.

• Prevent res by keeping the machine clean of
accumulated debris, grease and spilled fuel.

• Use the correct fuel grade for the operating season.

Battery Precautions

Keep all sparks and ames away from

batteries. Gas emitted by electrolytes is explosive.

Acid propelled by an explosion can
cause blindness if it comes into contact with eyes.
ALWAYS wear safety glasses when working near
batteries.

• If you come into contact with battery electrolyte

solution, wash off immediately. Chemicals can cause
burns.

Tire Precautions

DO NOT mount or demount tires
without proper training. A violent explosion can
occur.

Follow all procedures and safety instructions. Wall
charts containing mounting and demounting instructions
for all rims are available through the United States
Department of Transportation (DOT), Washington, D.C.

When in doubt, contact a qualied

tire dealer or repair service to perform required tire
maintenance.

Inspection

• Clean rims and repaint to stop detrimental effects of

corrosion and facilitate checking and tire mounting.

• Be very careful to clean all dirt and rust from rims.

This is important for securing rims into the proper
position.

• Check rim components periodically for cracks.

Replace all cracked, badly worn, severely rusted, and
otherwise damaged components with new parts of the
same size and type. If you are not sure about proper
mating of tire and wheel parts, consult a wheel and rim
expert.

DO NOT attempt to rework, weld,
heat, or braze any rim components that are cracked,
broken or damaged. Replace damaged components
with new parts of the same size and type. Mixing
parts of one type with those of another is potentially
dangerous.

DO NOT reinate a at tire without
rst inspecting the tire, tube, ap, rim, and wheel

assembly for damage. Be sure parts are secured

before ination.

1

• Always disconnect the battery ground cable before
working on the electrical system to avoid injury from
sparks or short circuit.

• To avoid electrolyte loss, DO NOT tip batteries more
than 45 degrees.

• Use jumper cables ONLY as prescribed on Page
5-11. Improper use can result in battery explosion or

unexpected roller motion.

LeeBoy Model 400 & 400T Rollers 1-9

Demounting

• Do not attempt to demount a tire unless you have the
proper equipment and experience to do the job.

• Remove valve core to exhaust all air from tire.
ALWAYS exhaust all air from tire prior to removing
rim components or wheel components (such as nuts
or rim clamps). Check the valve stem by running a
piece of wire through the stem to make sure it is not
plugged.

Safety

Mounting and Inflation

• DO NOT inate a tire before all components are in
the proper position. Place tire in a safety cage and
inate to approximately 10 psi. Recheck components
for proper assembly. If improperly assembled, deate
and correct.

• Never hammer on a tire/rim assembly that is not fully
deated. If assembly is proper at 10 psi, continue to
inate to fully seat the tire beads, then completely
deate the tire to prevent localized overstretching
of the tube. Reinate to recommended operating
pressure.

• NEVER sit on or stand in front of a tire/rim assembly
during ination. Use a clip-on chuck and make sure
ination hose is long enough to stand to the side of the
tire while inating.

• DO NOT hammer components with steel hammers.
Use rubber, lead, plastic or brass-faced mallets to tap
components together.

Operation

DO NOT inate tires beyond the maximum
recommended ination pressure.

NEVER run a vehicle one single tire of a dual assembly
as the carrying capacity is dangerously exceeded and
can result in damage to the rim and tire

Mismatched rim parts are dangerous

and can cause severe injury.

• Latch seat belt (if equipped) and adjust to t snugly.

• Only start and operate the machine from the

operator’s seat. DO NOT bypass paver/nisher‘s
neutral-start system. If the system malfunctions, it
must be repaired.

enclosed area without proper ventillation. Exhaust
gasses are odorless and deadly.

DO NOT operate the engine in an

Parking Precautions

• Park roller on level ground whenever possible. On
grades, park machine with wheels securely blocked.
Always apply parking brake.

• Before leaving operator’s station:

1. Place left drive handle in neutral.

2. Turn off all accessories.

3. Set emergency brake.

4. Shut off engine.

• Always remove ignition key when leaving roller parked
or unattended.

Operating Precautions

• Always comply with local regulations regarding
moving equipment on public roads and highways.

Starting and Stopping Precautions

• Check all around the roller to make sure there are no
people working on the machine or in the path of the
machine before starting. DO NOT start until area is
clear. Death or serious injury can occur to bystanders
from being crushed under a moving machine.

Check brakes, steering and other
control devices in accordance with instructions
before starting. Be sure emergency brake is applied
and the left Drive Throttle is in neutral.

• Know and use the hand signals required for a
particular job. Know who has the responsibility for
signaling.

• Make sure all lights and reectors comply with state
and local regulations. Keep them clean and in good
working order so they can be seen clearly by all trafc.

DO NOT stand between the equipment

and the truck while the truck is being coupled with

the paver/nisher. Death or serious injury can result

from being crushed between the two machines. DO
NOT ride on attachments.

LeeBoy Model 400 & 400T Rollers1-10

Safety

Some work situations require more
attention to stopping distances, particularly when
going downhill. Steeper grades require longer
stopping distances. Familiarize yourself with
these variables so you can anticipate when longer
stopping distances are required.

• Check all gauges and warning instruments for proper

operation. If malfunctions are found, shut down the
machine and report the problem for resolution. If the
failure causes loss of steering control, loss of brake
control or loss of engine power, stop roller motion
as quickly as possible. Apply emergency brake and
keep the machine securely parked until the failure is
corrected or the machine can be safely towed.

• Drive the machine with care. Make sure speed is

compatible with conditions. Use caution on rough
ground, slopes and while turning.

• Be alert for hazards and obstructions such as ditches,

trees, cliffs, overhead power lines, and areas where
there is danger of a slide.

• Be aware and understand the job site trafc ow

patterns.

• Obey agmen, road signs and signals.

• Watch for bystanders. Never allow anyone to be

under the machine during operation. Never allow
anyone to reach into the machine during use.

• Operator must know how to use signaling devices

while on the road with the machine. Operator must
also understand which circumstances require use of
each light signal.

• When required, provide an escort for roading.

• DO NOT tow the Model 400 roller, except to remove

from road or load on a trailer. The Model 400T is
equipped for towing.

Maintenance Precautions

• DO NOT attempt repairs unless trained to do so.

Refer to manuals and experienced repair personnel

for help.

• Before conducting maintenance, securely block the
machine and any components that may fall. Block
any working components to prevent unexpected
movement while repairs are being made.

• Always wear safety glasses and other required safety
equipment when servicing or making repairs.

• Disconnect battery before working on the electrical
system.

• Avoid lubrication or mechanical adjustments while
the roller is in motion or while engine is operating. If
lubrication or mechanical adjustment is necessary:

1. Place left drive handle control in neutral.

2. Apply emergency brake.

3. Shut off engine.

4. Place equipment in a safe position.

5. Use extreme caution.

• Never make repairs on pressurized components such
as uid lines, the gas system or mechanical items until
the pressure has been relieved.

• When inating tires, use a self-attaching ination
chuck with remote shut-off.

• When servicing or replacing hardened pins, use a
brass drift or other suitable material between the
hammer and pin.

• Keep brake and steering systems in good operating
condition.

• Refer to Section 5, Maintenance, for more detailed

information.

1

Storage Precautions

• Store roller in an area away from human activity.

• Do not permit children to play on or around the stored

machine. Serious injury or death can occur from
improper/unauthorized use of the machine.

• Make sure the unit is stored on a surface that is rm,
level, and free of debris.

• Store the machine inside a building or cover securely
with a weatherproof tarpaulin.

LeeBoy Model 400 & 400T Rollers 1-11

Safety

NOTES

LeeBoy Model 400 & 400T Rollers1-12

Section 2

INFORMATION AND SPECIFICATIONS

Page

Limited Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Record of Ownership . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Specications Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Torque Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Standard Inch Fasteners . . . . . . . . . . . . . . . . . . . . . . . 2-6

Metric Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Hydraulic Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Determining Proper Torque . . . . . . . . . . . . . . . . . . . . . 2-8

LeeBoy Model 400 & 400T Rollers

2-1

Information and Specications

LIMITED WARRANTY POLICY

Warranty

Subject to the limitations, exclusions, and claims procedures set
forth herein, VT LeeBoy, Inc. warrants [to the rst retail purchaser]
that this product will be free from substantial defects in materials
and workmanship during the warranty period.

If a defect in material or workmanship is found, your authorized
LeeBoy Dealer is to be notied during the warranty period.
LeeBoy and its authorized Dealer will repair or replace any part or
component of the unit or part that fails to conform to the warranty
during the warranty period.

The warranty period will begin on the initial start-up, training and
delivery of the unit by the Dealer to the customer, and will expire
after twelve (12) months following the delivery of the product to the
rst retail purchaser. (See Dealer for additional warranty.)

Manufacturers’ Warranties: Engines are warranted by their
manufacturers and may have warranty coverage that differs from
that of LeeBoy. LeeBoy does not warrant any engine.

Replacement parts furnished by LeeBoy are covered for the
remainder of the warranty period applicable to the unit or
component in which such parts are installed.

LeeBoy has the right to repair any component or part before
replacing it with a new one.

All new replacement parts purchased by a LeeBoy Dealer will carry
a six-month warranty.

This Limited Warranty is governed by the laws of the State of North
Carolina.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU

OF ALL OTHER EXPRESSED, STATUTORY AND IMPLIED

WARRANTIES APPLICABLE TO UNITS, ENGINES, OR PARTS

INCLUDING WITHOUT LIMITATION, ALL IMPLIED WARRANTIES

OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE

OR PURPOSE OR AGAINST INFRINGEMENT.

Items Not Covered

LeeBoy is not responsible for the following:
All used units or used parts of any kind.
Repairs due to normal wear and tear or brought about by abuse or

lack of maintenance of the Machine.
Attachments not manufactured or installed by LeeBoy.
Liability for incidental or consequential damages of any type

including, but not limited to, lost prots or expenses of acquiring
replacement equipment.

Limitations

VT LeeBoy , Inc. has no obligation for:
Any defects caused by misuse, misapplication, negligence, accident,

or failure to maintain or use in accordance with the most current
operating instructions.

Unauthorized alterations.
Defects or failures caused by any replacement parts or attachments

not manufactured by or approved by LeeBoy.
Failure to conduct normal maintenance and operating service

including, without limitation, providing lubricants, coolant, fuel, tune­ups, inspections, or adjustments.

Unreasonable delay, as established by LeeBoy, in making the
applicable units or parts available upon notication of a service notice
ordered by same.

Warranty Responsibility: The warranty responsibility on all engines
rests with the manufacturer of the engine.

Warranty and Parts Support: LeeBoy may have support agreements
with some engine manufacturers for warranty and parts support.
However, LeeBoy does not warrant the engine.

This Limited Warranty sets forth your sole remedy in connection
with the sale or use of the LeeBoy product covered by this Limited
Warranty.

This Limited Warranty extends only to the rst retail purchaser, and is
not transferable.

In the event any portion of this Limited Warranty shall be determined
to be invalid under any applicable law, such provision shall be deemed
null and void and the remainder of the Limited Warranty shall continue
in full force and effect.

Other Limitations

IN NO EVENT, WHETHER AS A RESULT OF BREACH OF CONTRACT
OR WARRANTY OR ALLEGED NEGLIGENCE OR LIABILITY WITHOUT
FAULT, SHALL LEEBOY BE LIABLE FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION,
LOSS OF PROFIT OR REVENUE, COST OF CAPITAL, COST
OF SUBSTITUTED EQUIPMENT, FACILITIES OR SERVICES,
DOWNTIME COSTS, LABOR COSTS OR CLAIMS OF CUSTOMERS,
PURCHASERS OR LESSEES FOR SUCH DAMAGES. IN NO EVENT
WILL WARRANTY COMPENSATION, OR OTHER DAMAGES
AVAILABLE FROM LEEBOY EXCEED THE PURCHASE PRICE OF
THE PRODUCT.

LeeBoy Model 400 & 400T Rollers2-2

CONTACT INFORMATION

Figure 3-1

Information and Specications

For information regarding parts and repairs about
your LeeBoy product, contact your authorized LeeBoy
dealer. If your dealer is unable to resolve the problem,
contact LeeBoy directly.

Sales Representative:

Dealership Name:

Dealership Address:

Dealership Phone:

RECORD OF OWNERSHIP

Please complete the following information to use if you
need to contact LeeBoy for service, parts or literature:

Roller Model Number:

Roller Serial Number:

Date of Purchase:

Record dealer information in the space provided.
For additional information about LeeBoy, please visit:

www.leeboy.com.

2

NAMEPLATE

The nameplate contains the specic model and serial
number used to identify the components for parts or
service information. Look in the engine owner’s manual
to nd the specic location of the engine nameplate for
your engine.

Figure 2-1. Nameplate Location

LeeBoy Model 400 & 400T Rollers 2-3

6 ft 6 in

4 ft 2 in

400

400

400T

400T

9 ft 2 in

400 / 400T

12 ft 8 in

9 ft 6 in

Information and Specications

SPECIFICATIONS CHARTS

LeeBoy authorized components. Section 7, IPL, for

The specications provided in this section are
applicable to the LeeBoy Model 400 and 400T Roller.

Table 2-1. Machine Dimensions

ITEM SPECIFICATION

Model 400 400T

Overall Length 9’ 6” (2.896 m) 12’ 8” (3.86 m)
Overall Height 9’ 2” (2.794 m) 9’ 2” (2.794 m)
Overall Width (Static/Loaded 4’ 2” (1.27 m) 6’ 6” (1.981 m)
Overall Weight 5640 lb (2558 kg) 6760 lbs. (3066 kg)

Wheelbase 6’6” (1.981 m) 6’6” (1.981 m)
Front Drum Width 40” (1016 mm) 40” (1016 mm)
Rear Drum Width 44” (1117.6 mm) 44” (1117.6 mm)

part numbers associated with the Model 400 and
Model 400T assemblies.

Replace original equipment only with

Figure 2-2. Machine Dimensions

LeeBoy Model 400 & 400T Rollers2-4

Information and Specications

Table 2-2. Engine Specications

ITEM SPECIFICATION

Model: Kubota V1505-E4B Tier 4

Horsepower

Displacement

Table 2-3. Electrical Specications

ITEM SPECIFICATION

Batteries 12 Vdc
Cold Cranking Amps (CCA) 835 CCA
System Voltage 12 Vdc

Table 2-4. Steering Specications

ITEM SPECIFICATION

Steering Hydraulic
Inside Turning Radius 14 ft 6 in (4.5 m)

24.8 HP @ 3000 RPM
(18.5 kW)

91.41 cubic inches
(1.498 L)

Table 2-6. Fuel and Lubricant Specications

ITEM SPECIFICATION

Engine Oil 15W-40
Hydraulic Oil 5W20 AWAT OIL

Coolant

Fuel Diesel

Grease

Table 2-7. Machine System Capacity Specications

ITEM SPECIFICATION

Fuel 8 gal (30.3 L)
Engine Lubrication Oil 1.59 gal (6.01 L)
Engine Coolant 1.28 gal (4.8 L)
Hydraulic Oil Reservoir 27 gal (102.20 L).
Water Tank 80 gal (302.83 L)

Table 2-8. Machine-Specic Specications

Ethylene/Glycol or Propylene

Glycol

Shell Avania EP Grease or

Equivalent

2

Table 2-5. Hydraulic Specications

ITEM SPECIFICATION

Function Pump 2100 psi (Relief)
Drive Motor 5800 psi (Relief)
Operating Pressure 5800 psi (Relief)
Hydraulic Filters Remote Pressure Filter

Oil Cooler

Ground Speed 0 - 5 mph (0 - 8 kph)

Radiator/Oil Cooler,
Engine Fan Cooling

ITEM SPECIFICATION

Calculated Maximum
Gradeability

Vibrator Vibrations Per
Minute (vpm)

Vibrator Centrifugal
Force

21.5%

2600 vpm

2814 lb (1276 kg)

LeeBoy Model 400 & 400T Rollers 2-5

Information and Specications

TORQUE SPECIFICATIONS

The following tables list torque values for standard
hardware. This is a guide for average application
involving typical stresses and machined surfaces.
Values are based upon physical limitations of clean,
plated and lubricated hardware. Under more extreme

conditions, individual torque value should be followed.
Conversion formulas are provided below:

Conversion Formula

ft-lb to N•m [ft-lb]*1.3558 = [N•m)
ft-lb to in-lb [ft-lb]*12 = [in-lb]
N•m to in-lb [N•m]*8.8508 = [in-lb]

Standard Inch Fasteners

Table 2-9. Torque Specications For Standard Inch Fasteners

CAPSCREWS: SAE GRADE 5 CAPSCREWS: SAE GRADE 8

SIZE THREAD

1/4 20 UNC 8 6 11 8 12 9 16 12

28 UNF 10 7 14 9 14 10 19 14

5/16 18 UNC 17 13 23 18 25 18 34 24

24 UNF 19 15 26 20 27 20 37 27

3/8 16 UNC 31 23 42 31 44 33 60 45

24 UNF 35 26 47 35 49 37 66 50

7/16 14 UNC 49 37 66 50 70 52 95 71

20 UNF 55 41 75 56 78 58 106 79

1/2 13 UNC 75 57 102 77 106 80 144 108

20 UNF 85 64 115 87 120 90 163 122

9/16 12 UNC 109 82 148 111 154 115 209 156

18 UNF 121 91 164 123 171 128 232 174

5/8 11 UNC 150 113 203 153 212 159 287 216

18 UNF 170 127 230 172 240 180 325 244

3/4 10 UNC 267 200 362 271 376 282 510 382

16 UNF 297 223 403 302 420 315 569 427

7/8 9 UNC 429 322 582 437 606 455 822 617

14 UNF 474 355 643 481 669 502 907 681

1 8 UNC 644 483 873 655 909 681 1232 923

14 UNF 722 542 979 735 1020 765 1383 1037

1-1/4 7 UNC 1121 840 1520 1139 1817 1363 2464 1848

12 UNF 1241 930 1683 1261 2012 1509 2728 2046

1-1/2 6 UNC 1950 1462 2644 1982 3162 2371 4287 3215

12 UNF 2194 1645 2975 2230 3557 2668 4823 3617

TORQUE (ft lb) TORQUE N•m TORQUE (ft lb) TORQUE N•m

Dry Lubed Dry Lubed Dry Lubed Dry Lubed

LeeBoy Model 400 & 400T Rollers2-6

Information and Specications

Metric Fasteners

Table 2-10. Torque Specications for Metric Fasteners

CLASS 8.8 [GRADE 5 EQUIVALENT] CLASS 10.9 [GRADE 8 EQUIVALENT]

NOMINAL SIZE

AND PITCH

M4 x 0.7 2 2 3 2 3 2 4 3
M5 x 0.8 5 3 7 4 7 5 9 7

M6 x 1 8 6 11 8 11 8 15 11

M8 x 1.25 19 14 26 19 27 20 37 27
M10 x 1.5 37 28 50 38 53 40 72 54
M12 x 1.75 65 49 88 66 93 70 126 95

M14 x 2 104 78 141 106 148 111 201 150
M16 x 2 161 121 218 164 230 173 312 235

M18 x 2.5 222 167 301 226 318 239 431 324
M20 x 2.5 314 236 426 320 449 337 609 457
M22 x 2.5 428 321 580 435 613 460 831 624

M24 x 3 543 407 736 552 777 582 1053 789
M27 x 3 796 597 1079 809 1139 854 1544 1158
M30 x 3.5 1079 809 1463 1097 1544 1158 2093 1570

TORQUE (ft lb) TORQUE N•m TORQUE (ft lb) TORQUE N•m

Dry Lubed Dry Lubed Dry Lubed Dry Lubed

2

Hydraulic Fittings

Tightening Flare-Type Tube Fittings

1. Check the are and are seat for defects that might
cause leakage.

2. Align tube with tting before tightening.

3. Lubricate connection.

4. Hand tighten swivel nut until snug.

5. To prevent twisting the tube(s), use two wrenches.
Place one wrench on the connector body and
tighten the swivel nut with the second to the torque
shown in Table 2-11.

NOTE: The torque values shown are based upon

lubricated connections.

Table 2-11. Torque Specications for Steel Flare

Type Tube Fittings

TUBE SIZE

OUTER

DIAMETER

(IN) (IN) (LB FT) (N•m)

3/16 7/16 8 11

1/4 9/16 12 16

5/16 5/8 16 22

3/8 11/16 23 31

1/2 7/8 38 52
5/8 1 54 73
3/4 1 1/4 75 102
7/8 1 3/8 83 113

NUT SIZE

ACROSS

FLATS

TORQUE VALUE

LeeBoy Model 400 & 400T Rollers 2-7

LA

L

E

LA

LH

Information and Specications

Determining Proper Torque

The only reliable method of creating a consistently
leak-free and long-lasting connection is to ensure the
coupling is brought to the proper torque. Using a torque
wrench with crowfoot is the best method, but the ats
method can be used if a torque wrench is not available.

The most straightforward method of determining the
correct torque setting is to multiply the desired torque
by the length of the wrench from the center of the handle
to the center of the drive (L); divided by the length of the
wrench from the center of the handle to the crowfoot
center (LA) as shown below:

L

Figure 2-3. Torque Wrench - Crowfoot

The minimum torque values are
adequate for sealing most applications. Maximum
torque values should never be exceeded.

There are several methods of determining the correct
setting on the torque wrench when using a crowfoot. All
of the methods involve making the setting proportional
to the effective change in length of the wrench multiplied
by the desired nal torque. The equations and
illustration below describe proper measurements. (Use

LEGEND under Figure 2-4)

Equations

• Torque setting if the crowfoot is placed in line with

respect to the wrench:

TS = TD * L / LA

OR

TS = TD * L / (L+E)

• Torque setting if the crowfoot is placed at 90° with

respect to the wrench

TS = TD * L / LH

OR

Figure 2-4. Measurements Needed

LEGEND

L = Distance from center of torque wrench handle to the
center of socket drive

E = Distance from center of socket drive to the center of
crowfoot

LA = Distance from center of torque wrench handle to
the center of crowfoot

LH = Distance from center of torque wrench handle to
the center of crowfoot, when mounted at 90°

TD = Desired torque at the tting
TS = Torque setting indicated on wrench

TS = TD * L / √(L2 + E2)

• To estimate the crowfoot size (E)
E = Drive Size * 0.5 + Distance between Drive and

Open End + Wrench Size * 0.5774

LeeBoy Model 400 & 400T Rollers2-8

Coupling Installation

Mark Line on Nut

Use the following steps for proper coupling installation:

1. Determine the correct torque value for your
coupling.

NOTE: Only use the torque values specied from

the manufacturer. DO NOT use SAE torque
recommendations.

2. Ensure the seal face and threads are clean and in
good condition. O-Rings should be lubricated with
light oil, but threads should be completely dry unless
making pipe thread connections (interference seal).

NOTE: Attach the male end of the hose onto the

equipment rst since it may be necessary to

rotate the entire hose assembly to tighten
the male threads. Then route the hose into
position while avoiding twisting the hose.

3. Tighten the connection (by hand), bringing the seal
face into contact and rotating the nut until it stops.

4. Mark a line across the coupling nut and backup hex
for the ats method verication of coupling torque
(Figure 2-12).

5. Apply a wrench to the backup hex to prevent the
coupling and hose from moving while tightening the
nut with a torque wrench.

Failure to retain the backup hex during
installation will also result in additional clamp load
force that could cause damage to the seal face.

NOTE: The coupling nut must be in motion for an

accurate torque reading. If the nut is stopped

before nal torque value is achieved, it must

be loosened and retightened until the torque
is attained while the nut is in motion.

If a torque wrench cannot t into the coupling area or if
it is unavailable, the ats method may be used to ensure
that the coupling is properly tightened, as shown in
Figure 2-5:

Information and Specications

Example 2 Flats

difference

Figure 2-5. Flats Method Tightening

NOTE: The mark placed on the nut and backup hex

after tightening by hand should rotate during

nal tightening according to the table below.

(Figure 2-12) The nut and backup hex can
then be marked to indicate if the coupling
loosens over time.

Table 2-12. Flats Method Values for Selected

Terminations

FLATS METHOD VALUES

Termination

Type

JIC -4 1.5 - 1.75
JIC -6 1.0 - 1.5
JIC -8 1.5 - 1.75
JIC -10 1.0 - 1.5
JIC -12 1.0 - 1.5
JIC -16 .75 - 1.0
JIC -20 .75 - 1.0
JIC -24 .75 - 1.0
JIC -32 .75 - 1.0
JIS -4 .5 - 1.5

1. Seal faces must be in contact with the tting fully
tightened by hand before marking ats.

Dash Size Flats

2

2. The ats method is most accurate for the rst
assembly cycle. For multiple disassembly and
assembly cycles, torque values are more reliable.

3. Tightening two (2) ats or more may damage seal
faces.

LeeBoy Model 400 & 400T Rollers 2-9

Information and Specications

Table 2-13. Torque Specications For US Style Coupling Terminations

JIC, SAE 45°, ORFS, O-RING BOSS, GATES ADAPTERLESS AND MEGASEAL

JIC 37°, SAE 45°

DASH

SIZE

-3 8 10

-4 10 11 5 6 10 12 14 16 14 16

-5 13 15 7 9 18 20

-6 17 19 12 15 18 20 24 26 24 26

-8 34 38 20 24 32 40 37 44 50 60

-10 50 56 34 40 46 56 50 60 72 80

-12 70 78 53 60 65 80 75 83 125 135

-14 65 80 160 180

-16 94 104 74 82 92 105 111 125 200 220

-20 124 138 75 83 125 140 133 152 210 280

-24 156 173 79 87 150 180 156 184 270 360

-32 219 243 158 175

& Mega-Seal

(Steel)

Min Max Min Max Min Max Min Max Min Max

JIC 37°, SAE 45°

& Mega-Seal

(Brass)

Flat Face O-Ring

Seal (Steel)

SAE O-Ring Boss

(Steel) & Gates

Adapterless

≤ 4000 PSI

SAE O-Ring Boss

(Steel) & Gates

Adapterless

> 4000 PSI

Table 2-14. Torque Specications for DIN 24, DIN 60,

and Inverted Cone Style Coupling Terminations

DIN 24, DIN 60, AND INVERTED CONE

Size (mm) Torque (lb ft)

Light

Series

Tube OD

6 7 15

8 15 26

10 8 18 30

12 10 22 33

14 12 26 37

15 14 30 52

18 20 44 74

22 25 59 89

28 30 74 111

35 133 184

42 148 221

Heavy

Series

Tube OD

16 30 52

38 74 162

Min Max

Table 2-15. Torque Specications for 4-Bolt

Flange Connections

4-BOLT FLANGES

Dash Size Bolt Size (in) Torque (lb ft)

-8 0.31 17

-12 0.38 26

-16 0.44 43

-20 0.50 65

-24 0.63 130

-32 0.75 220

1. Align faces and tighten bolts (by hand) before
applying nal torque in a pattern. The seal faces
must be parallel with an even bolt tension to seal
properly.

2. Torque values apply to bolts that are plated or
coated in light engine oil.

3. Before assembly, lubricate O-Ring with light oil
(SAE 10W or 20W).

LeeBoy Model 400 & 400T Rollers2-10

Information and Specications

Table 2-16. Torque Specications for NPTF Dry Seal

Pipe Threads

NPTF

Dash Size Max Torque (ft-lb)

-2 20

-4 25

-6 35

-8 45

-12 55

-16 65

-20 80

-24 95

-32 120

1. The torque values obtained from tightening pipe
threads can vary considerably depending upon
thread condition. Adequate sealing can occur at
values much lower than the maximum values listed
above. Only enough torque to achieve adequate
sealing should be used.

2. When using a male tapered pipe thread with a
female straight or parallel pipe thread, maximum
values are 50% of those listed in the table above.

Table 2-17. Torque Specications for BSP 30°

Inverted Cone and JIS Coupling Terminations

BSP 30° INVERTED CONE AND JIS

Torque (ft-lb)

Dash Size

Min Max

-2 7 9

-4 11 18

-6 19 28

-8 30 36

-10 37 44

-12 50 60

-16 79 95

-20 127 152

-24 167 190

-32 262 314

2

3. If thread sealant is used, maximum values shown
should be decreased by 25%.

LeeBoy Model 400 & 400T Rollers 2-11

Information and Specications

NOTES

LeeBoy Model 400 & 400T Rollers2-12

Section 3

COMPONENT LOCATION

Page

Component Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Operator’s Control Console . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Location of Operation Panels and Controls . . . . . . . . . . . . . . . . . 3-4

Hydraulic Levers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

LeeBoy Model 400 & 400T Rollers

3-1

Component Location

NOTES

LeeBoy Model 400 & 400T Rollers3-2

OPERATOR’S CONTROL CONSOLE

Component Location

9

11

12

Figure 3-1. Operator’s Control Panel

7

2

4

8

6

1

3

10

5

3

ITEM

NO.

1 Ignition Switch

2

3 Horn (OPTION) Sounds horn.

4

5

6 Gauge

7 Fuel Gauge (OPTION) Displays fuel level in the fuel tank.
8 Digital Usage Display Shows the total number of hours the machine has been in use.
9 Beacon Light This toggle switch turns the warning light on top of the canopy OFF and ON.

10 Water Sprayer Switch Controls the water spray nodules.

11

12 Parking Brake Button Pull out and turn to apply or disengage parking brake.

CONTROL NAME FUNCTION

Controls starting, running and shutting down machine. To start machine, insert
key and turn key clockwise to the START position.

To shut down machine, turn key counterclockwise to the OFF position and
remove key.

Temperature Gauge
(OPTION)

Oil Pressure Gauge
(OPTION)

Vibratory Rear Roller
Switch

Safety Start Button
(OPTION)

Displays engine coolant temperature.

Displays engine oil pressure in pounds per square inch (PSI).

This toggle switch controls the vibratory roller on the rear of the machine.

STANDARD: Four (4) warning light clusters.
(OPTION) This gauge informs the operator of the current battery voltage.

Allows the operator to safely start the engine with low oil pressure.

LeeBoy Model 400 & 400T Rollers 3-3

24

17

14

23

11

18

21

1

3

2

20

4

5

8

22

12

7

6

15

10

13

16

19

9

Component Location

LOCATION OF OPERATION PANELS AND CONTROLS

Figure 3-2. Location of Operation Panels and Controls

LeeBoy Model 400 & 400T Rollers3-4

Component Location

Table 3-1. Location of Operation Panels and Controls

ITEM

NO.

1

2

3 Step (Left and Right Side) Used to enter and exit the operator station.

4 Fuel Tank Compartment Location for lling diesel fuel.

5 Work Light (OPTION) Used to illuminate in front of the machine during operation.

6

7 Steering Wheel Steers machine.

8 Operator’s Control Panel

9 Tow Bar (400T Only) Towing bar (Optional) available only on the Model 400T.
10 Hydraulic CYLINDER Used to lift/lower the tow wheels for towing purposes.

11 Operator’s Seat Operator’s seat for controlling machine operation.

12

13 Operator Manual Location for this manual.
14 Tow Leg (400T Only)

15

16

17 Water Reservoir/Fill Cap

18

19 Canopy (Optional) Protects operator from sunlight, falling debris and light rain.

20 Front Roller Used for asphalt compaction and steering.

21 Rear Roller Used for asphalt compaction.

22 Water Line/Spray Sprays machine with water when engaged.
23 Tail Lights (400T Only) Tail light illuminates for towing.
24 Beacon Light Safety ashing light.

* Throttle (Not Shown)

CONTROL NAME FUNCTION

Engine and Battery
Access Compartment

Hydraulic Oil Reservoir
Tank Access

Forward/Neutral/Reverse
(FNR) Lever

ROPS (Roll Over
Protection System) Bar

Hydraulic Oil Level/
Temperature Gauge

Hydraulic Supply Line
Gate Valves Access

Retractable Wheels
(400T Only)

Used to access engine and battery. Located on right side of the roller.

Used to access hydraulic oil reservoir. Located on the right side of the roller
below the air cleaner.

Controls forward and reverse operation and variable speed of the traction
pump.

Group includes the Ignition Switch, THe Digital Usage Display, the Warning
Light, the Water Sprayer Switch, as well as the Wait to Start Switch.

Safety bar.

Used to tow the roller.

Gauge that shows ll level and temperature of hydraulic oil.

Used to turn on and off hydraulic supply lines.

Cools the drum to prevent asphalt from sticking to the drum surface during
operation.

Used for towing the machine.

Used to increase/decrease the throttle on the engine. Located on the left-side
of the steering column.

3

LeeBoy Model 400 & 400T Rollers 3-5

3

Component Location

HYDRAULIC LEVERS (400T ONLY)

1

2

Figure 3-3. Hydraulic Levers

ITEM NO. CONTROL NAME FUNCTION

1 Tongue Lever Raises and lowers tongue.
2 Left Wheel Lever Raises and lowers left wheel.
3 Right Wheel Lever Raises and lowers right wheel.

LeeBoy Model 400 & 400T Rollers3-6

Section 4

OPERATION

Page

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Operating Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Parking Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Receiving the Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Preliminary Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Adjusting Operator Seat . . . . . . . . . . . . . . . . . . . . . . . 4-5

Beacon Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Pre-Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Engine Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Engine Warm-Up . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Cold Weather Engine Warm-Up . . . . . . . . . . . . . . . . . . . 4-6

Directional Control . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Vibratory Compactor . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Water Spray System . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Parking the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Transporting the Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Roller Towing (400T Only) . . . . . . . . . . . . . . . . . . . . . . 4-8

Transporting Via Flatbed . . . . . . . . . . . . . . . . . . . . . . 4-10

LeeBoy Model 400 & 400T Rollers

4-1

Operation

NOTES

LeeBoy Model 400 & 400T Rollers4-2

Operation

GENERAL INFORMATION

This section provides the Operating instructions for the
LeeBoy Model 400 and 400T Rollers. It is important to
read, understand and follow all precautions, operating
instructions, and warnings in this manual before starting
and operating the machine.

Failure to observe the operating
precautions and warning instructions provided in
this manual can cause serious injury or death. Only
authorized personnel who are trained in machine
operation, mechanical characteristics and safe
operation in varying terrain should operate the Model
400 and 400T Rollers.

The machine should be kept in good
mechanical condition at all times.

DO NOT operate a machine needing
repair. Be sure to place an information tag on the
instrument panel clearly stating “DO NOT OPERATE”
and remove key on a machine needing repair. Repair
all damage promptly as even minor damage can
result in major system failures.

DO NOT start or operate the Model
400 or 400T Roller before reading, understanding,
and following all information given in this section and
shown on the machine. The operator must read and
understand the function of all controls, indicators
and gauges before starting the engine. Serious
injury or death can result if these procedures are not
followed.

OPERATING SAFETY

• ALWAYS wear OSHA-required safety equipment
when operating the roller.

• ALWAYS fasten your seatbelt when in the operator’s
seat while operating the equipment.

• ALWAYS make sure no person or object is in your line
of travel BEFORE starting.

• Work SLOWLY in tight areas.

• DO NOT run engine in a closed building for long

periods of time.

• AVOID steep hills and sharp turns if possible.

• REDUCE speed before turning.

• ALWAYS look BEFORE changing your direction of

travel.

• DO NOT leave the engine running without the operator
present.

• DO NOT start engine by “shorting” across starter
terminals. Machine will start in gear if normal circuitry
is bypassed.

• NEVER start engine while standing on the ground.
Start engine only from operator’s seat, with forward/
neutral/reverse (FNR) lever in NEUTRAL.

• Ensure water tank support is bolted down during
operation.

• Check the parking brake button to make sure it is
operating properly.

4

LeeBoy Model 400 & 400T Rollers 4-3

Operation

Parking Safety

• ALWAYS park the roller on solid, level ground. If this
is not possible, park the roller at a right angle to the
slope.

• ALWAYS engage emergency brake when parking or
leaving the machine unattended.

• USE proper ags, barriers and warning devices,
especially when parking in areas of trafc.

Maintenance Safety

• NEVER work on the roller while the engine is running.

• NEVER ll the fuel tank while the engine is running.

• DO NOT change the engine governor settings.

• ALWAYS replace damaged or lost decals.

• DISCONNECT battery cables when working on the

electrical system or welding.

• If the battery needs a charge, be sure the battery
charger is OFF when making connections.

• BE SURE the correct battery polarity is observed
[negative (-) to negative (-) and positive (+) to positive
(+)], when connecting a battery charger or jumper
cable.

• DO NOT use hands to nd hydraulic leaks. High
pressure uid can penetrate the skin, causing severe
injury.

• DO NOT service or repair the machine in a raised
position unless supported by approved jacks and jack
stands.

RECEIVING THE ROLLER

The LeeBoy Model 400 and 400T rollers are thoroughly
inspected at the factory before shipping. However, road
hazards or other incidents may occur during transport
that result in damage. Inspect the machine as outlined
below and perform necessary repairs before placing the
machine in service:

1. Check the engine oil level as shown in the Engine
Operator’s Manual.

2. Check the fuel tank, cooling system, engine oil,
and hydraulic reservoir for proper levels and
contaminants. If contaminants are suspected, ush
and ll the system.

3. On the Roller, check all chains.

4. Check inside of the water tank for contaminants or
objects that could be harmful to the water system.
Ensure water ows freely from sprayer.

5. Check for fuel, oil, water and hydraulic leaks.

6. Check all hydraulic functions. Any repairs and
adjustments should be performed by a qualied
mechanic or consult your authorized LeeBoy dealer.

7. Check the vibrator to ensure it stops while the
machine is in neutral.

8. Check for missing parts. If parts are missing or
motor roller is damaged, consult your authorized
LeeBoy dealer.

9. Check the Emergency Brake to ensure it is
operating properly.

10. Check the seat belt.

LeeBoy Model 400 & 400T Rollers4-4

Operation

PRELIMINARY PROCEDURES

Adjusting Operator Seat

Adjust and fasten the seat belt before
operating the roller. NEVER operate the machine
without wearing seat belt.

Do not attempt to adjust the seat while
the roller is moving.

The seat can be adjusted for individual comfort. The
seat position lever allows the operator to move the seat
forward and backward for easy access to the steering
wheel and hydraulic controls. The seat belt provides
safe operator retention if the machine is involved in an
accident or rollover incident. Adjust the seat belt for
comfortable machine operation.

Seat

Adjustment

Lever

Seat Belt

PRE-START

Always check the following items before starting the
machine:

• Inspect machine for any malfunctioning, broken or
missing parts. Promptly repair before operating.

• Check hydraulic hoses for wear and leaks. Replace if
damaged.

• Ensure all instructional and safety decals are in place

and legible. These decals are very important for
operator safety. Read and follow all instructions on
decals.

• Check engine oil, coolant and hydraulic oil levels. Fill
to the correct level if needed.

• Check for fuel level and rell if needed.

Fill the fuel tank with the engine off.

NEVER ll fuel tank near an open ame or when

smoking.

• Check for frayed or worn electrical wires and loose or
corroded connectors.

• Check tires for air pressure, wear, cuts and damage.
Inspect wheels for loose, damaged or missing
hardware.

4

Operator’s

Manual

Storage

Figure 4-1. Operator’s Seat

Beacon Light

The beacon light switch on the control panel operates
the ashing safety light on top of the roll bar or optional
canopy. This light warns trafc of slow-moving
equipment.

• To turn ON beacon light, push two-way beacon switch
UP.

• To turn OFF beacon light, push two-way beacon
switch DOWN.

• Check levers for freedom of movement. Be sure
operator’s area is free of debris.

• Check steps and supports for damage. Repair if
necessary.

• Check for missing parts. If parts are missing or motor
roller is damaged, consult your authorized LeeBoy
dealer.

• Check protective devices, ROPS (Roll-Over
Protection System), canopy, shields and seat belt for
wear or damage.

If protective devices are damaged, do

not use roller until proper repairs are made.

• Check for water leaks and inside water tank for
contaminants or objects that could harm the water
system.

LeeBoy Model 400 & 400T Rollers 4-5

Operation

MACHINE OPERATION

NOTE: Refer to the engine manufacturer’s operation

and maintenance manual for instructions

when starting engine for the rst time. Follow

engine manufacturer’s recommendations for
fuel and oil.

Engine Start-Up

The Directional Control (FNR) lever
must be set in the NEUTRAL position before starting
engine.

DO NOT operate the starter longer
than 20 seconds. If the engine does not start, allow
the starter to cool for two to three minutes.

1. Set throttle to full open which is toward the front of

the roller.

2. Insert key into ignition switch and turn clockwise

to the START position. Release key when engine
starts.

3. Let engine idle for 30 seconds, then set the desired

throttle speed.

4. Check indicator and gauge operation.

5. Return to neutral position and turn ignition key

counterclockwise to shut down engine.

Cold Weather Engine Warm-Up

In cold weather, keep the fuel tank

lled to reduce the chances for condensation and
corrosion. Do not ll the fuel tank to capacity. Leave

room for fuel expansion.

In cold weather, it is extremely
important to allow the engine and hydraulic oil to
warm up before activating components.

• Run engine for ve minutes.

• Operate each of the hydraulic functions before

moving machine.

Directional Control

The LeeBoy Model 400 and 400T Rollers are
designed to operate from forward to reverse with
a single drive lever. There are, however, two drive
levers: one on each side of the steering column.

These levers are inter-connected and arranged in this
manner for the operator’s convenience.

• Move lever from NEUTRAL (N) to FORWARD (F)

position to move roller forward. Move lever backward
from NEUTRAL (N) to REVERSE (R) position to move
roller backwards.

• Move lever further away from NEUTRAL (N) position

to increase ground speed. Move lever closer to
NEUTRAL (N) position to decrease ground speed.

Engine Warm-Up

Allow engine and hydraulic oil to warm

up before activating components.

1. Start engine and let it idle for several minutes. Do
not accelerate rapidly during warm-up.

2. Operate the engine at less-than-normal loads and
speeds until engine reaches normal operating
temperatures.

Running the engine at high RPMs will

shorten its useful life.

NOTE: See engine manufacturer’s operation and

maintenance manual for more information.

When operating on an incline, the
roller may start to pull downward. Increase the
throttle setting, move drive lever towards NEUTRAL,
or a combination of the two, will counteract the pull.

LeeBoy Model 400 & 400T Rollers4-6

Water Spray

Operation

Braking

Braking is accomplished by bringing the drive lever to
the NEUTRAL position.

If a loss of hydraulic pressure occurs, the roller can be
stopped with the Parking Brake button:

• Place drive lever in NEUTRAL (center position).

• Pull Parking Brake button.

Parking

Brake

Button

Water Spray System

The water spray system is designed to provide an even
spray across the surface of each roller drum, ensuring
an even amount of water is on the drum during the rolling
process.

To operate the water spray system:

1. Turn water spray valve to OPEN. The water spray
valve is located on the left side of the console.

(Figure 4-3)

2. Turn on pump (switch is on the operator’s console).

3. Spray down the front and rear drum using spray
nozzle. (Figure 4-4)

4. Shut off water spray valve by turning valve to SHUT.

5. Close the water spray valve.

4

Valve

Figure 4-2. Parking Brake Button

Vibratory Compactor

The vibratory compactor drum provides the roller with
additional compaction. (The non-towable roller weight
is 5,640 pounds [2,558 kg] static, while the static weight
of the towable roller is 6,760 pounds [3066 kg]).

The force of compaction will increase by 2,800 pounds
[1,270 kg] the vibrator is engaged.

To start the vibrator:

1. Tum the vibrator switch to ON.

2. Move the roller forward or in reverse to start
vibrator.

3. When the drive lever is in the NEUTRAL position,
vibration will automatically stop. Vibration will begin
again when the drive lever is engaged.

4. When nished with compaction, tum the vibrator
switch to OFF.

Figure 4-3. Water Spray Valve

Spray

Nozzles

Figure 4-4. Spray Nozzles

NOTE: To prevent water freezing in tank during cold
weather, drain the water system by opening the valve
below the pump.

Never operate the roller while the

water tank is raised.

LeeBoy Model 400 & 400T Rollers 4-7

Operation

Parking the Machine

Before leaving the operator’s seat, perform the following
procedures:

1. Park machine on a level surface and set park brake.

2. Return drive lever to the neutral (center) position.

3. Idle engine for three to ve minutes at 1/2 speed
(RPM).

4. Turn the ignition switch key counterclockwise to the
OFF position and remove the key.

A fail-safe hydraulic emergency brake, mounted
underneath the stearing wheel on the steering column,
uses a knob to disengage the emergency brake.

TRANSPORTING THE ROLLER

Roller Towing (400T Only)

The Model 400T is equipped with a tow package so the
roller can be towed to and from job sites. The following
procedures must be followed to ensure safe towing.

6. Dismount roller and secure safety latches on pintle
hook.

7. Attach safety chains to structural member on rear of
towing vehicle.

1

2

3

Read the following procedures very carefully and follow
the step-by-step instructions.

Before towing the roller, check state,

federal and local laws that apply.

Wheels must be blocked from moving

while preparing machine for towing.

To tow the 400T Roller:

1. The vehicle towing the roller should be large
enough to handle the weight of the roller in all
driving situations.

NOTE: The pintle hook on the rear of the towing

vehicle should be from 26 to 32 inches high
from the ground.

2. Park the towing vehicle on a level surface and
secure by engaging the parking brake.

3. Block wheels in both directions.

4. Move roller into position behind truck. Using tongue
cylinder valve lever and roller drive lever, engage
eyelet on tongue to the pintle hook on towing
vehicle. (Page 3-6)

Figure 4-5. Maneuvering Tongue to Towing Vehicle

1 - Eyelet on Tongue

2 - Safety Chains

3 - Roller Drive Lever

8. From the operator’s seat, use tongue cylinder valve
lever and extend tongue cylinder to full extension.
This will lift front drum off the surface.

NOTE: The front roller drums should be a minimum

of six inches off the ground (for towing).

9. Now use tow wheel cylinder valve lever and extend
towing wheels to full extension. This will lift the rear
drum off the surface.

10. While the roller is in this position, dismount and
engage towing wheel lock on both sides of the
roller, rotate tongue support latch into position, and
insert yoke lock pin on yoke.

5. After engaging the pintle hook on towing vehicle, put
drive lever in the NEUTRAL position. (Figure 4-5)

LeeBoy Model 400 & 400T Rollers4-8

Tow Wheel

Lock

Figure 4-6. Tow Wheel Lock

Never exceed 45 MPH while towing the
roller. use reduced or lower speed when towing over
slippery or uneven surface.

11. From the operator’s seat, turn OFF roller engine.

SLOWLY release pressure on towing wheel
extension cylinders and lower roller until wheel
locks are in the lock position. Now slowly release
pressure on tongue extension cylinder until tongue
support latch is in positive lock position.

Check safety chains, tow wheel tongue
support latch and yoke lock pin to ensure that these
devices are in the proper position BEFORE towing.

Operation

Unhooking 400T Roller Towing
Vehicle

To unhook the 400T Roller from the towing vehicle:

1. Park towing vehicle and roller on level surface.
Secure towing vehicle by blocking wheels in both
directions.

Raise the 400T wheels with rear drum
on the ground before unhooking tongue from the
towing vehicle.

2. Sitting in the operator’s seat, start the roller and

extend the towing wheels until towing wheel locks
are out of the lock position.

3. Extend tongue cylinder, lift tongue until tongue

support latch is clear from stop.

4. Dismount and move towing wheel lock, tongue

support latch, and yoke pin lock out of the way to
prevent interference during lowering.

5. Put yoke locking pin into stow position and secure

with the hitch pin.

Improper towing methods and
equipment can result in severe personal injury or
death.

6. Remove and store safety chains.

7. Disengage pintle hook safety devices.

8. From the operator’s seat, activate lever for towing

wheels and lower rear drum to the surface.

9. Continue activating lever until towing wheels are in

the full UP position.

10. Using tongue extension lever, lower the front drum

to the surface.

4

11. Using the drive lever, move roller forward or

backward as necessary, to release the pressure on
the eyelet in pintle hook.

12. Raise the tongue extension slightly; then, back the

roller up to disengage.

13. Restore tongue to full back position.

LeeBoy Model 400 & 400T Rollers 4-9

Operation

Transporting Via Flatbed

When transporting the roller, use a at bed vehicle that
is large enough to handle the roller during all driving
conditions and situations.

Use extreme caution when driving

from one surface level or incline to another.

To transport the roller:

1. Park transport vehicle on level surface.

2. Secure transport vehicle by engaging parking brake
and blocking wheels in both directions.

3. Load roller onto the at bed vehicle.

4. Block roller drums to prevent roller from rolling
forward or backwards.

5. Secure the roller to the atbed vehicle with chains
that have adequate strength to secure the roller
during transport.

LeeBoy Model 400 & 400T Rollers4-10

Section 5

MAINTENANCE

Page

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

Lubrication Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Preparing Machine for Maintenance . . . . . . . . . . . . . . . . . 5-6

10-Hour or Daily Routine Maintenance . . . . . . . . . . . . . . . . 5-6

50-Hour or Weekly Routine Maintenance . . . . . . . . . . . . . . 5-6

100-Hour or Monthly Routine Maintenance . . . . . . . . . . . . . . 5-6

250-Hour or Quarterly Routine Maintenance . . . . . . . . . . . . . 5-6

500-Hour or Semi-Annual Routine Maintenance . . . . . . . . . . . 5-7

1000-Hour or Annual Routine Maintenance . . . . . . . . . . . . . 5-7

Maintenance Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Water Spray System . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Oil Lines and Fittings . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Air Intake Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Drive Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Neutral Start System . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Electrical System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Battery Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Battery Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Check Battery Electrolyte Level . . . . . . . . . . . . . . . . . . . 5-10

Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Cold Weather Starting . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Fuses And Circuit Breakers . . . . . . . . . . . . . . . . . . . . . 5-10

LeeBoy Model 400 & 400T Rollers

5-1

Maintenance

Tire Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Engine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

Filling Tires with Air . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Changing Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Check Engine Lubrication Oil Level . . . . . . . . . . . . . . . . . 5-12

Changing Engine Lubrication Oil . . . . . . . . . . . . . . . . . . . 5-12

Change Engine Oil Filter . . . . . . . . . . . . . . . . . . . . . . . 5-13

Change Engine Air Filter . . . . . . . . . . . . . . . . . . . . . . . 5-13

Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Engine Fuel Filters . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Checking Hydraulic Oil Level . . . . . . . . . . . . . . . . . . . . 5-15

Change Hydraulic Filter . . . . . . . . . . . . . . . . . . . . . . . 5-16

Check and Clean Hydraulic Oil Strainer Fill Cap . . . . . . . . . . . 5-16

Drain, Flush and Fill Hydraulic Oil Reservoir . . . . . . . . . . . . . 5-17

Component Replacement Procedures . . . . . . . . . . . . . . . . . . . 5-17

Replace Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17

Replace Valve Bank Assembly (400T Only) . . . . . . . . . . . . . . 5-18

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20

LeeBoy Model 400 & 400T Rollers5-2

Maintenance

GENERAL INFORMATION

This section gives the necessary procedures for
routine and general maintenance on the Model 400 and
400T Rollers. Follow all Maintenance Schedules and
Maintenance Procedures to maintain the machine in top
operating condition.

Maintenance must be a planned program that
includes periodic machine inspection and lubrication
procedures. The rst and most important requirement
for satisfactory paver performance is a clean machine.
The operator should inspect the machine daily for

Table 5-1. Periodic Maintenance Schedule

SYSTEM ITEM

worn or damaged parts--replace or repair promptly to
prevent damage to other areas of the machine. Daily
inspections should include checking for loose bolts,
uid leaks, worn or damaged hoses, and debris or dirt

accumulations to prevent potential service or safety

problems.
The maintenance program must be done based on the

machine “Operating Hours” recorded on the hour meter
or based on the “Periodic Schedule,’’ which is typically
done at the following time intervals:

Daily, Weekly, Monthly, Quarterly, Semi-Annually and
Yearly

Daily

Every 10 Hours

Weekly

Every 50 Hours

Monthly

Every 100 Hours

Quarterly

Every 250 Hours

Semi-Annually

Every 500 Hours

Every 1000 Hours

Annually

5

Roller Lubricate drum bearings. X

Check oil level. X
Replace oil lter. X

Hydraulic

Engine

Electrical

Engine Air
Cleaner

Fuel

Cooling

Replace oil. X
Check/replace oil suction lter. X
Replace strainer ll cap. X
Inspect belts, replace if needed. X
Inspect air intake hoses and clamps. X
Inspect alternator and connections. X
Replace engine oil and oil lter cartridge. X
Check oil level - change at initial 50 hours. X
Check all wiring connections. X
Service battery. X
Check/clean air cleaner element. X
Replace air cleaner element. X

Replace fuel lter. X
Inspect fuel system hoses and clamps. X
Check coolant level, rell if needed. X
Inspect coolant hoses and clamps. X

LeeBoy Model 400 & 400T Rollers 5-3

Maintenance

LUBRICATION POINTS

Proper lubrication is necessary to maintain the machine
at top efciency. Lubrication points are shown in the

following gure. Lubricate these ttings every 40 hours
for optimum performance.

NOTE: Grease with Shell Avania EP Grease or

equivalent.

7

8

1

2

3

4

10

9

6

5

Figure 5-1. Lubrication Points

LeeBoy Model 400 & 400T Rollers5-4

Table 5-2. Lubrication Chart

Maintenance

ITEM

NO.

1 Yoke Vertical Pin Housing 40 Hrs
2 Tongue Support Latch, Pivot Housing 40 Hrs
3 Towbar Pin Housing, (2) 40 Hrs
4 Center Pin on Yoke Housing, Both Sides 40 Hrs
5 Front Drum, Both Sides 40 Hrs
6 Main Pivot on Tow Wheel Support, Both Sides 40 Hrs
7 Throttle Lever Housing 40 Hrs
8 Forward/Neutral/Reverse Lever Housing, Both Sides of Console 40 Hrs
9 Tow Wheel Cylinder Support, Both Sides 40 Hrs

10 Vibrator (See “Lubrication of Torque Hub” for more information) 40 Hrs

NOTE: Grease with Shell Avania EP Grease or Equivalent

DESCRIPTION AND LOCATION INTERVAL

MAINTENANCE SCHEDULE

Before performing any maintenance procedures on the
LeeBoy Model 400 and 400T Rollers, review Safety in

Section 1.

Tool Hazard! ALWAYS use tools
appropriate for the task at hand and use the correct
sized tool for loosening or tightening screed parts.

Burn Hazard! ALWAYS handle hot
components with heat-resistant gloves.

Anytime the machine has been repainted or the decals
have been removed, damaged, worn and illegible, a new
set of decals should be ordered and re-installed for
safe operation (see Safety Labels in Section 1).

Changing oil and cleaning the LeeBoy
Model 400 and 400T Rollers should only be done in
a designated area where the the oil and chemicals
can be contained. These by-products should
be discarded in accordance with environmental
regulations.

5

This section gives the necessary procedures for routine
and general maintenance on the LeeBoy Model 400 and
400T Rollers. Follow all maintenance schedules and
procedures to maintain the machine in top operating
order. The Maintenance Schedule on Page 5-3 lists
the recommended time intervals between maintenance
inspections and lubrication procedures (Pages 5-4 and
5-5).

The “Hour” and “Periodic” time periods list most service
intervals. The maintenance schedule begins with
10-hour (daily) maintenance intervals and continues
through the 1000-hour (annual) maintenance schedule
intervals.

Preventive maintenance on the roller will provide
years of trouble-free operation. Adjustments can
be performed in the eld with ordinary tools. Engine
preventive maintenance, other than oil, air and fuel
lter changes, is not covered in this section. Refer
to the Engine Operator’s Manual for engine service
information.

LeeBoy Model 400 & 400T Rollers 5-5

NOTE: When performing any routine maintenance

such as 50, 100, 250, 500 and 1000 hours,
always include previous routine maintenance
hours in the higher hourly schedule.

NOTE: If the machine is operated more than 10

hours per day, follow the “Hour” schedule. If
the roller is operated less than 10 hours per
day, follow the “Periodic” schedules.

Maintenance

Preparing Machine for Maintenance

When performing maintenance, perform the following
steps before leaving the operator’s position, unless the
maintenance procedure instructs otherwise.

1. Park the roller on a at, even surface.

2. Place drive lever in NEUTRAL.

3. Apply Emergency Brake.

4. Run engine at 1/2 speed (RPM) for three to ve
minutes.

5. Reduce engine speed (RPM) to slow idle.

6. Place ignition switch in the OFF position.

If maintenance must be performed with

engine running, do not leave machine unattended.

10-Hour or Daily Routine Maintenance

50-Hour or Weekly Routine Maintenance

1. Check the oil and lubricate the required parts.
(Pages 5-4 and 5-5)

2. Check all battery connections and remove any
corrosion. (Check cables daily.)

3. Perform 50-hour and weekly engine preventative
maintenance as described in the Engine Operator’s
Manual.

100-Hour or Monthly Routine Maintenance

1. Check air lters. Clean or replace if required. (Page
5-13)

2. Lubricate the required parts. (Page 5-4 and 5-5)

3. Perform 100-hour or monthly engine preventative
maintenance as described in the Engine Operator’s
Manual.

1. Check the fuel level. Keep the fuel tank full to
prevent condensation. Fill at end of day.

2. Perform engine preventative maintenance as
described in your Engine Operator’s Manual.
Engine preventative maintenance should always
begin with an engine oil check.

3. Check the hydraulic oil level and ll as required.

4. Lubricate the required parts. (Pages 5-4 and 5-5)

5. Check for damaged, loose or missing decals.
Replace decals as needed.

6. Check lights bulbs and replace bulbs if needed.

7. Check battery cables and connections.

8. Check coolant level. Fill as needed.

9. Check for loose, damaged, missing or corroded
parts. Repair or replace promptly.

10. Check tires and wheels for correct air pressure,
cuts, bubbles, damaged rims or missing lug bolts.

11. Check the Emergency Brake to ensure proper
operation.

250-Hour or Quarterly Routine Maintenance

1. Check battery electrolyte level (Page 5-10). Check
battery terminals for corrosion. Check all battery
connections and remove any corrosion.

Do not smoke when checking
battery electrolyte level as the fumes can explode.
Electrolyte is an acid that can burn if it contacts skin

or eyes. If contact is made, ush area immediately

with water.

2. Change engine oil and replace oil lter (Page 5-13).
To assure complete removal of contaminants in the
oil, perform the oil change while engine is warm.

3. Replace engine air lter. (Page 5-13)

4. Perform the 250-hour preventative maintenance as
described in the Engine Operator’s Manual.

LeeBoy Model 400 & 400T Rollers5-6

Spray

Nozzles

Maintenance

500-Hour or Semi-Annual Routine Maintenance

1. Change fuel lters.

2. Change hydraulic charge lter. (Page 5-15)

3. Check fuses. Replace if needed. (Page 5-10)

4. Check Neutral Start system and repair if needed.

5. Check Emergency Brake operation.

6. Check oil lines and ttings for leakage or damage
and replace parts as required.

7. Perform the 500-hour preventative maintenance as
described in the Engine Operator’s Manual.

Hydraulic oil under pressure can
cause serious personal injury. Check for oil leaks
with a piece of cardboard. Do not expose hands to
possible high-pressure oil. Shut down engine before

attempting to tighten oil lines and ttings.

1000-Hour or Annual Routine Maintenance

MAINTENANCE ADJUSTMENTS

Water Spray System

1. Check the water tank level. Fill if necessary.

2. Locate the water energizing switch on console and
position switch to ON.

3. Open the Shut Off Valve. (Figure 5-2)

Shut-Off

Valve

5

1. Check air intake hoses for damage and replace if
necessary. (Page 5-8)

2. Clean and check hydraulic oil strainer ll cap. (Page

5-16)

Figure 5-2. Shut-Off Valve

4. With drive levers in NEUTRAL, check spray patterns
on both front and rear drums.

If the spray pattern needs adjustment,
turn plastic twist-locks to loosen. Use a screwdriver
to direct the spray from the three nozzles so it
completely moisten an area across the drum.

5. To secure, hold the screwdriver so that the spray

nozzle will not turn and tighten the plastic twist-lock.

(Figure 5-4)

Figure 5-3. Spray Nozzles

Durlng cold weather drain water

LeeBoy Model 400 & 400T Rollers 5-7

reservoir to prevent freezing.

king

Maintenance

Parking Brake

Routinely check the Parking Brake button to ensure it is
functioning properly:

1. Pull Parking Brake button (Figure 5-4).

2. If the brake is functioning correctly, the machine will
not move.

Par

Brake

Button

Figure 5-4. Parking Brake Button

Drive Belt

Belt drive systems are equipped with automatic (spring)
belt tensioners cannot be adjusted or repaired. The
automatic belt tensioner is designed to maintain proper
belt tension over the life of the belt. If the tensioner
spring tension is not within specications, replace the
tensioner assembly.

NOTE: Refer to the Engine Operator’s Manual for

more detailed information.

1. Refer to Preparing Machine for Maintenance on
Page 5-6 and park machine.

2. Inspect the belt frequently. Replace if stretched,
cracked or worn.

3. Check belt tension. See the Engine Operator’s
Manual for tension specications.

4. If belt is not within specications, replace it promptly.

Neutral Start System

1. Place drive lever in the FORWARD or REVERSE
position.

2. Turn ignition switch key clockwise to the START
position. Engine should not start in gear.

Oil Lines and Fittings

1. Refer to Preparing Machine for Maintenance on
Page 5-6 and park machine.

2. Check the machine for indications of oil leakage
around oil lines, hoses and ttings.

3. Tighten ttings as necessary. Replace damaged or
worn hoses and ttings promptly.

Air Intake Hoses

1. Refer to Preparing Machine for Maintenance on
Page 5-6 and park machine.

2. Check air intake hoses from the engine to the
air cleaner assembly, and from the air cleaner
assembly to the precleaner.

3. Check for cracked, dry rotted, loose, worn or
damaged hoses, tubes and clamps.

4. Tighten, repair or replace parts as needed.

3. Repeat test with the direction lever in the opposite
direction. Engine should not start in gear.

DO NOT operate machine if the starter
cranks engine with the direction lever in gear. See
local dealer for neutral start system troubleshooting
and repair.

4. Place the direction lever in NEUTRAL and turn

ignition switch key clockwise to the START position.
Starter should crank engine.

LeeBoy Model 400 & 400T Rollers5-8

Maintenance

ELECTRICAL SYSTEM

The electrical system is a 12-volt negative ground
system. The battery is located on the right side of the
operator’s platform behind the disconnect switch.

Battery Servicing

Batteries contain sulfuric acid that

produces explosive gases. DO NOT allow ames or

sparks near the battery as serious injury can result.

Always wear safety goggles and

protective clothing when servicing the battery.

In case of acid contact with skin or eyes, ush

immediately with water for a minimum of 15 minutes
and get prompt medical attention.

When servicing batteries, ALWAYS

disconnect the negative (-) (ground) cable rst and

connect it last. Generally, if the negative cable is
grounded during removal, sparks will not occur.
If the positive cable is grounded during removal,
sparks will occur and could ignite explosive gases.

NOTE: The electrical system is a negative ground

system. Connect the positive (+) cable to the
positive (+) post of both batteries. Connect
the ground (-) cable to the negative (-) post of
both batteries.

2. DO NOT attempt to polarize alternator.

3. Make sure alternator wires are correctly connected
before connecting battery terminals.

4. DO NOT ground alternator output terminal.

5. DO NOT disconnect or connect alternator wires
while batteries are connected or while alternator is
operating.

6. Connect batteries or booster battery in the correct
polarity [positive (+) to positive (+), negative (-) to
negative (-)].

7. DO NOT disconnect batteries when engine is
running and alternator is charging.

8. Disconnect battery cables before connecting
battery charger to batteries. Charge batteries
separately.

Battery Maintenance

Perform maintenance on the battery as follows:

1. Disconnect battery clamps, disconnecting the black
(grounded) clamp rst.

Hold Down Bar

Battery

Negative Terminal

5

NOTE: When replacing the batteries, discard the old

batteries properly.

Be sure the terminals and battery posts are thoroughly
cleaned and that battery cable terminals are tight.
Dirty or loose connections can create high electrical
resistance and permit arcing.

Keep the battery clean by washing it off whenever dirt
build-up is excessive. If corrosion is present around
terminal connections, remove them and wash with an
ammonia solution or a solution consisting of 1/4 pound
(0.11 kg) baking soda and one quart of warm water.

Make certain the vent caps are tight to prevent solution
from entering the cells. After cleaning, pour clean water
over the battery and surrounding area to wash the
solution away. Check vent cap breather openings to
make sure they are open.

When batteries are connected, follow these rules:

1. Disconnect negative (-) battery cable when working
on or near the alternator.

Positive Terminal

Figure 5-5. Battery Components

2. Clean terminals with a stiff brush or battery service
tool. (Figure 5-6)

3. Apply grease at the base of the battery terminals to
prevent gas from escaping.

4. Install and tighten battery clamps, connecting the
black (grounded) clamp last.

Positive Cable

Negative Cable

LeeBoy Model 400 & 400T Rollers 5-9

Maintenance

Check Battery Electrolyte Level

NOTE: If water is added to batteries during freezing

weather the battery must be charged imme­diately to prevent freezing. Charge battery
using a battery charger or by running the
engine.

1. If using serviceable batteries, ll each cell to
specied range with distilled water. DO NOT overll.

2. Check battery charge and charging rate.

3. Shut down machine by turning ignition switch key
counterclockwise to the OFF position.

4. Using a multimeter, check the battery charge by
placing the positive (red) multimeter lead on the
positive (+) battery terminal, and the negative (black)
multimeter lead on the grounded (-) battery terminal.
With the multimeter set at the 12 Vdc setting, the
battery should show a charge of at least 12 volts. If
not, charge the battery or perform a load test.

5. Start the engine. From the operator’s seat, check
the battery charge level. The multimeter should
read at least 13.5 volts. If the multimeter does
not indicate minimum charge, check the machine
charging system.

Cold Weather Starting

Be sure to keep the battery fully
charged during cold weather to keep it from freezing.
Freezing weather has little effect on a fully charged
battery.

If a booster battery is necessary for cold weather
starting:

1. Connect one end of the rst jumper cable to the

positive (+) terminal of the dead battery and the
other end to the positive (+) terminal of the booster
battery.

2. Connect one end of the second jumper cable to the

negative (-) terminal of the booster battery and the
other end to the frame of the machine with the dead
battery.

Fuses And Circuit Breakers

The fuse block is mounted inside the instrument control
panel to the left of the operator’s seat. The blade­type fuse color codes are listed in Table 5-3. Circuit
breakers are mounted on the back of the ignition control
panel.

Alternator

The alternator supplies electrical current for charging
the battery to supply power to the electronic controls.
The built-in regulator in the alternator controls the
voltage output. If for any reason the wires must be
disconnected from the alternator, mark them so that
they can be reconnected properly.

Use the following precautions to prevent damage to the
alternator and/or regulator:

• An alternator should never be polarized. Never
ground any alternator terminals or circuits.

• Always disconnect the battery before disconnecting
or connecting the alternator. Never disconnect the
alternator while operating. Be certain the wiring is
properly connected before connecting the battery.

Replace fuses and circuit breakers
with correct amperage to prevent damage from
system overload.

When a circuit breaker opens due to short circuit or
overloading, turn off lights and place ignition switch
in the OFF position. Wait one minute before starting
machine or turning on lights. The circuit breaker will
automatically reset. If the circuit breaker continues to
trip (open), check the electrical system for short circuits
and defective components. Replace the circuit breaker
if necessary.

Table 5-3. Blade Type Fuse Color Codes

AMPERAGE RATING COLOR

1 Black
3 Violet
4 Pink
5 Tan

7 1/2 Brown

10 Red
15 Light Blue
20 Yellow
25 Natural (White)

30 Light Green

LeeBoy Model 400 & 400T Rollers5-10

Valve Stem

Wheel Lug Nuts (8)

Maintenance

TIRE MAINTENANCE

Figure 5-6. Tire Lug Nuts and Valve

Filling Tires with Air

Explosive separation of a tire and rim

parts can cause serious injury or death.

Changing Tires

Explosive separation of a tire and rim

parts can cause serious injury or death.

Never cut or weld on inated tire/rim

assembly. Heat from welding can cause an increase
in pressure and may result in tire explosion.

1. Loosen, but do not remove, the wheel lug nuts.

(Figure 5-6)

2. Raise towable leg.

3. Remove lug nuts and tire.

4. Install replacement tire on the machine;.

5. Tighten every other lug nut alternately in a star
pattern.

5

assembly. Heat from welding can cause an increase
in pressure and may result in tire explosion.

• Use proper tire mounting equipment and experienced
personnel for tire repair service.

• Carefully inspect any tire and rim assembly for
damage before inating tire. Contact a qualied repair
service if needed.

NOTE: Use a tire pressure gauge with 1-PSI (.07 bar,

NOTE: Limit air pressure to the proper level.

1. Install lock on air chuck or stand-off gauge on valve

2. Turn on air supply. Stand to one side of the tire

3. After proper ination (the recommended pressure is

Never cut or weld on inated tire/rim

6.9 kPa) graduations.

stem.

during ination.

40 PSI), release chuck or stand off gauge.

LeeBoy Model 400 & 400T Rollers 5-11

Maintenance

ENGINE MAINTENANCE

The following engine maintenance information will
cover engine general maintenance procedures that are
most often required. For specic, engine maintenance
information, see the Engine Operator’s Manual.

You can access the engine via the Engine Access
Panel. (Figure 5-7)

Engine
Access
Panel

Check Engine Lubrication Oil Level

The engine lubrication oil must be kept at a level above
the ADD mark, but not above the FULL mark, on the
engine lubrication oil dipstick.

To accurately check the engine lubrication oil level:

1. Park the roller on a level surface and stop the
engine.

2. Clean around the engine lubrication oil dipstick
before removing it from the engine. (Figure 5-8)

Stop the engine before checking the
engine lubrication oil level as hot oil can be thrown,
causing serious injury.

3. Wait ve minutes after engine shutdown before

removing the dipstick from the engine and checking
the oil level.

Changing Engine Lubrication Oil

The engine oil must be changed according to the
intervals given in the Engine Operator’s Manual.

Figure 5-7. Engine Access Panel

Air

Filter

Oil Fill
Cap

Engine

Oil

Dipstick

Fan
Belt

Fan

Figure 5-8. Engine Maintenance Components

NOTE: The color of the engine lubrication oil can-

not be used as an indication of the need for
an oil change. Using an engine lubrication
oil “analysis service” is the only alternate
reason for not following the required engine
lubrication oil change schedule.

DO NOT change the engine lubrication
oil when the engine and lubrication oil are hot. Hot
oil can cause serious injury.

DO NOT change the engine lubrication
oil while the engine is running as serious damage or
engine failure can occur.

While the engine is warm, proceed as follows:

1. Clean the area around the engine lubrication oil

drain.

2. Place a container that has sufcient capacity to hold

the drained oil directly under the engine lubrication
oil drain plug.

3. Carefully remove the engine lubrication oil drain

plug.

4. Clean, install and carefully tighten the lubrication oil

drain plug.

LeeBoy Model 400 & 400T Rollers5-12

Cleaner

Maintenance

DO NOT overtighten the drain plug.

5. Fill the engine at the oil ll cap with 15 quarts (14.2

liters) of oil. (Figure 5-8)

6. Reinsert the engine lubrication oil dipstick.

DO NOT start the engine before

changing the engine lubrication oil lter. Follow the

procedures listed here and in the Engine Operator’s
Manual.

Change Engine Oil Filter

The engine lubrication oil lter must be changed when

the engine lubrication oil is changed. (Figure 5-9)

DO NOT change the engine lubrication
oil when the engine and lubrication oil are hot.
Change when warm only. Hot oil can cause serious
injury.

DO NOT change the engine lubrication

oil lter with the engine running. Serious engine

damage or failure can occur.

NOTE: Be sure the used rubber gasket is removed

and discarded with the lter element.

NOTE: Comply with environmental laws by properly

discarding used oil.

4. Wipe the inside area of the lubrication oil lter head

using a clean, lint-free cloth.

5. Put clean engine lubrication oil on the rubber gasket

area of the new lter element. Fill the new lter

element with the new oil.

6. Install the new lter element onto the lter head.

Carefully tighten the lter element (by hand only).

NOTE: Tighten the lter element as directed by the

lter manufacturer.

Change Engine Air Filter

The engine inlet air lter assembly uses a replaceable
lter element. (Figure 5-10)

Air Filter

Access

5

Oil

Filter

Figure 5-9. Engine Oil Filter Location

After the engine lubrication oil has been changed,
proceed as follows:

1. Wipe the area around the engine lubrication oil lter

element and its mounting base with a clean cloth.

2. Place a container under the lter element.

3. Use a lter removal wrench to loosen and remove

the lter element by turning it in a counterclockwise
direction. Drain and discard the removed lter

element.

Air

Cover

Figure 5-10. Engine Air Filter Location

The air lter element should be

replaced every 100 hours of normal paver operation

or monthly. Replace the air lter element more

often for a paver that is operated under more severe
conditions. NEVER operate the engine without an air
cleaner element installed.

DO NOT service the air cleaner

element while the engine is running.

Use the following procedures to service the air cleaner
element:

1. Remove the back cover on air breather housing.

2. Remove the air lter outer element.

LeeBoy Model 400 & 400T Rollers 5-13

Fuel Filter

Maintenance

3. Remove the air lter inner element.

4. Clean the inside of the air cleaner housing with a
clean, lint-free cloth.

5. Discard lters properly.

Severe engine damage can occur

if engine is operated without air lter properly

installed.

6. Carefully install the new air lter elements into the
housing.

7. Install the rear covers.

8. Start the engine, checking that it runs smoothly.

FUEL SYSTEM

Fuel Tank

The fuel level is indicated on the fuel gauge located
on the dashboard, and indicates the amount of fuel in
the tank. The green fuel cap for lling the machine with
diesel fuel is located on the front part of the machine.

(Figure 5-11)

NOTE: Fill the tank to FULL before the roller is

stored overnight to reduce moisture accumu­lation in the tank from condensation.

The operator should NEVER be on the

roller while fuel is being added. NO SMOKING while

lling the fuel tank as all fuels for internal combustion
engines are ammable. Fill the fuel tank only in a

designated area where there is good ventilation and

a re extinguisher available.

NEVER ll the tank, check fuel level

or check for fuel leaks near an open ame or near

equipment that can create sparks.

Engine Fuel Filters

The fuel lter elements must be replaced as directed in
the Engine Operator’s Manual. (Figure 5-12) Replace
the fuel lters using the following general procedure:

Diesel fuel is very ammable. Use

extra caution and DO NOT spill fuel. DO NOT change

the fuel lter while the roller is running. DO NOT
change the fuel lter in an area near an open ame.
DO NOT smoke while changing the fuel lter.

Fuel Cap

Figure 5-12. Engine Fuel Filter Location

Figure 5-11. Fuel Cap Location

LeeBoy Model 400 & 400T Rollers5-14

Maintenance

To change the fuel lter:

1. Stop the engine.

2. Put a container under fuel lters before removing
the lter elements.

NOTE: Consider the environment when discarding

used lters and do so according to safe and

lawful practices.

3. Wipe the area around the fuel lter elements and
element mounting heads using a clean, lint-free
cloth.

4. Use a lter removal wrench to loosen and remove
fuel lter elements by turning in a clockwise
direction. Drain and discard the removed elements.

5. Wipe the inside area of the lter heads with a clean,
lint-free cloth. Fill the new fuel lter elements
completely with clean fuel.

6. Put clean fuel onto the element rubber gaskets.

7. Install the new fuel lter elements onto the lter
heads. Carefully tighten the elements (by hand only).

Tighten the fuel strainers or the fuel

lter elements as directed on the lter element by
the lter manufacturer. DO NOT overtighten the fuel
lter elements onto the lter heads.

HYDRAULIC SYSTEM

Hydraulic oil under pressure can
cause serious personal injury. Check for oil leaks
with a piece of cardboard. DO NOT expose hands
to possible high-pressure oil. Turn off the engine

before attempting to tighten oil lines and ttings.

Checking Hydraulic Oil Level

1. Park machine on level surface and turn off.

2. Make sure all cylinders are retracted.

3. Wait 10 minutes for oil to drain after engine has been

shut down.

4. Check hydraulic oil level using the sight gauge

located on the right side of the machine. (Figure
5-13). The hydraulic oil level should be in the upper
half of the sight gauge, but never above the upper
black ll line.

Hydraulic Oil

Fill Line

5

8. Start the engine and check for ANY fuel leaks.

STOP the engine immediately if any
fuel leakage is noted. DO NOT start the engine until
the leakage problem is corrected.

NEVER loosen a fuel injector line as
contents are under high pressure. DO NOT try to
bleed air by loosening injector lines.

Figure 5-13. Hydraulic Oil Level Sight Gauge

LeeBoy Model 400 & 400T Rollers 5-15

Hydraulic

Filter

Maintenance

Hydraulic

Oil Strainer

Fill Cap

Figure 5-14. Hydraulic Oil Strainer Fill Cap

5. If needed, add hydraulic oil at the hydraulic oil
strainer ll cap. (Figure 5-14)

6. Check the hydrualic oil level at the sight gauge to
assure oil level reaches the black ll line. (Figure

5-13)

7. DO NOT overll the tank. Leave approximately one
inch (25mm) of space for expansion of hot oil.

8. Clean any spilled oil with a clean cloth.

Change Hydraulic Filter

Burn Injury Hazard! Hot hydraulic

oil can burn upon contact with the skin. Change

hydraulic charge lter while system is warm, not hot.

Avoid contact with hot hydraulic oil. Failure to obey
this warning could result in serious injury.

1. Refer to Preparing Machine for Maintenance on
Page 5-6 and park machine.

2. Allow the engine to cool completely.

3. Open the access panel on oor of the operator’s
station to access the hydraulic oil tank.

4. Close the hydraulic oil tank supply line gate valves
located on the hydraulic tank by turning the valve
handles counterclockwise.

DO NOT start machine while the
hydraulic oil tank supply line gate vales are closed.
Starting the engine will damage the hydraulic pump.

Figure 5-15. Hydraulic Filter

5. Turn the hydraulic oil lter counterclockwise to
remove. (Figure 5-15)

6. Clean the mounting surface and remove any loose
lter seals.

7. Install the new lter, turning it clockwise until the seal
contacts the mounting surface. Tighten the lter 1/2
to 3/4 additional turns.

8. Open hydraulic tank supply line gate valves by
turning the valve handles clockwise.

9. Start engine and check for leaks. Tighten lter if
necessary.

Check and Clean Hydraulic Oil Strainer Fill Cap

Wear eye protection and chemical
resistant gloves when using solvent for cleaning
purposes. Some solvents can cause skin irritation
and eye damage.

1. Remove hydraulic oil tank strainer ll cap (Figure

5-14) by turning counterclockwise and inspect for

damage. Check strainer cap for dirt and clogging.

2. Using solvent, clean the strainer ll cap thoroughly

and dry with compressed air.

3. Check the strainer ll cap for free air ow. Replace if

necessary.

4. Reinstall hydraulic oil strainer ll cap by turning

clockwise.

LeeBoy Model 400 & 400T Rollers5-16

Battery

Maintenance

Drain, Flush and Fill Hydraulic
Oil Tank

1. Refer to Preparing Machine for Maintenance on
Page 5-6 and park machine.

2. Close the hydraulic tank supply line gate valves by
turning the valve handle counterclockwise.

DO NOT start machine while the
hydraulic oil tank supply line gate vales are closed.
Starting the engine will damage the hydraulic pump.

3. Remove the hydraulic oil strainer ll cap so air

ventilation assists drainage of oil.

4. Remove the drain plug and drain the hydraulic oil

into a suitable container. Dispose of oil properly.

5. Flush hydraulic tank completely.

6. Check the hydraulic suction strainer in bottom of the

hydraulic oil tank. Refer to Section 6, Page 6-9.

7. Reinstall drain plug.

8. Replace the hydraulic oil lter. (Figure 5-15)

9. Fill hydraulic oil tank to the proper level.

COMPONENT REPLACEMENT PROCEDURES

Replace Batteries

Batteries create explosive gases

when charging. DO NOT expose these gases to

sparks or open ame during maintenance. Always

perform battery service in a well-ventilated area or
outside. Serious injury can occur from exploding
batteries.

1. Remove seat.

2. Remove the black ground (-) cable from the
negative (-) battery terminal, followed by the red (+)
cable from the positive (+) battery terminal. (Figure

5-16)

Hold Down Bar

Negative Terminal

5

10. Reinstall the strainer ll cap.

11. Open hydraulic tank supply line gate valves by
turning valve clockwise.

12. Start engine and operate hydraulic control levers
several times.

13. Check the hydraulic oil sight gauge and add more
oil if necessary.

Positive Terminal

Figure 5-16. 12-Volt Battery System

If the negative cable is grounded
during removal, sparks will not occur. If the positive
cable is grounded during removal, sparks will occur
and could ignite explosive gases.

3. Remove the hold down bar. (Figure 5-16)

4. Inspect the batteries for cracks, wear and damage

that could result in leaks.

5. Carefully remove the batteries from the battery

plate, noting battery position during removal.

Positive Cable

Negative Cable

LeeBoy Model 400 & 400T Rollers 5-17

Maintenance

DO NOT dry batteries using
compressed air. Allow the batteries and surrounding
area to dry. Battery acid can cause severe injury if
blown into the face or other areas of the body. If injury
occurs, seek medical attention immediately. Flush
eyes and skin for 30 minutes with clean water.

6. Make sure the battery cells are sealed. Clean the

batteries, battery tray, cables, and brackets with
baking soda and warm water. Allow to air dry.

7. Place the batteries in proper position in the battery tray.

8. Install hold down bar. Tighten bar to retain battery,

but not so tight as to damage battery.

When installing batteries, always

install the positive cable rst followed by the

negative cable. Reversed polarity can damage the
electrical system.

9. Install red (+) battery cable to the positive (+) battery

terminal. (Figure 5-16)

10. Install the black (-) battery cable to the negative (-)

battery terminal. (Figure 5-16).

11. Reattach the battery box cover and rehook battery

box locks.

Replace Valve Bank Assembly (400T Only)

1. Refer to Section 7 (Illustrated Parts List), Page
7-44, for a complete breakdown of the valve

assembly parts.

2. Thoroughly clean the control valve and surrounding
area, especially around the hydraulic hoses and
ttings.

Valve Bank

Assembly

Figure 5-17. Valve Bank Assembly Location

3. Tag and disconnect hydraulic hoses. Immediately
plug the hoses and control valve ports to prevent
contamination of the hydraulic system.

4. Support the control valve and remove the control
valve mounting bolts and washers.

5. Remove the control valve assembly.

6. Inspect the control valve levers and linkages for

LeeBoy Model 400 & 400T Rollers5-18

Maintenance

wear and damage. Replace levers and linkages if
necessary.

7. Remove control levers and linkage.

8. Inspect hydraulic ttings for wear and damage.
Replace if necessary. Remove ttings for
installation in replacement valve.

9. Install ttings into the replacement valve.

10. Reinsert control valve and secure with mounting
bolts and washers.

11. While supporting valve and using tags created
during removal, connect hydraulic hoses to ttings.

12. Install control levers and linkage.

13. Start engine and check operation. Repair leaks if
necessary.

STORAGE

This section contains instructions to prepare the
machine for long-term storage and monthly inspections
needed during storage.

1. Inspect the machine thoroughly and repair worn or
damaged parts.

2. Retract all hydraulic cylinders, if possible.

3. Shut down engine and remove ignition key.

4. Remove alternator belt.

5. Check air lter restriction gauge. Clean the air
cleaner assembly and replace air lter elements if
restricted.

6. Clean the machine. Paint chipped or rusty areas to
prevent further rusting. Replace worn or damaged
decals.

7. Cover seat with plastic.

8. Place a “DO NOT OPERATE” tag on the steering
wheel.

9. Coat exposed cylinder rods with rust inhibitor.

NOTE: Some rust inhibitors can destroy painted

surfaces. DO NOT use.

5

10. Lubricate all grease points. (Pages 5-4 and 5-5)

11. Check engine oil level and ll if necessary.

12. Check hydraulic oil sight gauge and ll if necessary.

13. Perform specic gravity test on engine coolant.
Drain and replace or ll coolant reservoir to prevent
freeze damage, if needed.

14. If possible, raise and support machine with tires off
the ground or park machine on a hard surface to
prevent tires from freezing to ground.

15. Store machine in a dry, protected area. If stored
outside, cover with waterproof material.

LeeBoy Model 400 & 400T Rollers 5-19

Maintenance

TROUBLESHOOTING

The troubleshooting chart below identies the most
common symptoms of failure. Use this chart to help
identify the failed component.

Table 5-4. Troubleshooting Chart

SYMPTOM CAUSE REMEDY

Engine will not turn over. Electrical issue (i.e., faulty wiring).

Engine will not start. See Engine Manual. See Engine Operator’s Manual.

No water in machine.
Water ow is restricted.
Water pump isnot working properly.

Water system will not operate.

water pump electrical connections
are faulty.

NOTE: The following troubleshooting solutions

include common problems encountered with
diesel engines. For additional information
and troubleshooting procedures, see the
Engine Manufacturer’s Manual.

Check battery.
Check ignition switch.
Check neutral safety switch.
Check starter solenoid.
Check engine ground.

Check water level.
Check strainer under the tank.
Check nozzle strainer.
Check water pump:

• Check pump switch.

Forward/Reverse Lever will not
stay in position or is too tight.

Difculty with steering while
vibrator is in operation.

Vibrator will not operate. Electrical issue.

Lack of grease.
Improper adjustment.

Vibrator bearings worn or damaged.

Lack of hydraulic pressure.

Mechanical issue with motor.

• Check hot wire to pump.

• Check ground to pump.

Grease.
Adjust friction nut at bottom of left lever.

Check hydraulic system.
Replace bearings.

Check neutral safety switch to make
certain power is reaching the vibratory
valve.

Unfasten pressure line to vibrator motor
and attach the pressure guage. Start
engine. Pressure should immediately
reect 1800 - 2000 psi on the gauge
when vibrator is engaged. Turn off
engine.

Unbolt hydraulic motor from the drum.
Refasten pressure line. Start engine
to see if motor is operating. Turn off
engine.

Check if vibrator shaft turns freely. If the
shaft turns freely, the motor needs to be
replaced.

NOTE: Shaft is heavier on one side
than the other.

LeeBoy Model 400 & 400T Rollers5-20

SYMPTOM CAUSE REMEDY

Vibrator will not operate.

Roller does not move.

Bad bearings, broken housing or
broken shaft.

Parking brake engaged.
Hydraulic pumpor drive motor worn or

damaged.

Maintenance

Remove vibratory mechanism from the
drum.

Disengage parking brake button.
Replace damaged component.

5

LeeBoy Model 400 & 400T Rollers 5-21

Maintenance

NOTES

LeeBoy Model 400 & 400T Rollers5-22

Section 6

SCHEMATICS

Page

Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Electrical Schematic, Option, 400 / 400T . . . . . . . . . . . . . . . . . . 6-3

Electrical Schematic, Tow Pak, 400T . . . . . . . . . . . . . . . . . . . . 6-5

Panel, Gauges, Kubota, 400 . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Hydraulic Hose Layout, 400, 1 of 2 . . . . . . . . . . . . . . . . . . . . . 6-9

Hydraulic Hose Layout, 400, 2 of 2 . . . . . . . . . . . . . . . . . . . . . 6-11

LeeBoy Model 400 & 400T Rollers

6-1

NOTES

LeeBoy Model 400 & 400T Rollers6-2

ELECTRICAL SCHEMATIC, TOW PAK, 400T

Schematics

RIGHT TAIL LIGHT

GRN

BRN

BLU

BLU

BLU

RED

BRN

LEFT TAIL LIGHT

BRN

RIGHT

BLU

LEFT

BLU

76

RED

A

RED

Figure 6-1. Electrical Schematic for Tow Pak (400T only)

LeeBoy Model 400 & 400T Rollers 6-3

Schematics

NOTES

LeeBoy Model 400 & 400T Rollers6-4

PANEL, GAUGES, KUBOTA, 400

Schematics

VOLTMETER

RED 20G

RED 14G

IGNITION

SWITCH

MALE PIN
FEMALE SOCKET

YELLOW 10G

BLUE 14G

BROWN 14G

PURPLE 14G

RED 20G

RED 20G

+

_

BLK 20GBLK 20G

RED 20G

BLK 20G

OIL

PRESSURE

+

_

BLK 20G

S

BLACK 14G
YELLOW 14G
GREY/RED 14G

RED 10G

RED 20G

BLU 14G

PANEL SIDE

WATER

TEMPERATURE

+

S

_

BLK 20G

PINK 14G

ORG/WHT 14G

ORANGE 14G

ORN/WHT 14G

RED/WHT 14G

ORN 14G

PNK 14G

N.C.

YEL/BLK 14G

WIRE HARNESS PLUG LEGENG

RED/WHT 14G
YEL/BLK 14G

5-POSITION
CONNECTOR

ORN/WHT 14G

RED/WHT 14G

ORN 14G

PNK 14G

YEL/BLK 14G

BLACK 14G

YELLOW 14G

GREY/RED 14G

RED 10G

ENGINE SIDE

YELLOW 10G
BLUE 14G
BROWN 14G
PURPLE 14G

HYDRAULIC TEMPERATURE

SWITCH (OPTIONAL)

TEMPERATURE

SWITCH

RED/WHT 14G

YEL/BLK 14G

ALTERNATOR

B+

TACH WIRE
(OPTIONAL)

PINK 14G
ORG/WHT 14G
ORANGE 14G

8-POSITION

50

AC

30

19 17

YEL 10G

HOUR

METER

_

BLK

+

RED 12G

RED 10G

YEL 10G

PRP 14G

FUEL

GAUGE

+

RED 14G

MURPHY 117PH

RELAY

BLK

S

YEL/BLK 14G

_

BLK

BLK

SFE14A

FUSE

YEL/BLK 14G

C

S

GRY/RED 14G

B

GRY/RED 14G

BRN 14G

BLU 14G

YEL 14G

RED 10G

YEL 10G

PRP 14G

CONNECTOR

BRN 14G

BLU 14G

GRY/RED 14G

BLK 14G

YEL 16G

RED 10G

YEL 10G

PRP 14G

G

WK

OIL PRESSURE

SENDER/SWITCH

ENGINE BLOCK

GROUND

GLOW PLUGS

TEMPERATURE

SENDER

FUEL LEVEL

SENDER

WHT 16G

RED 10G

FUEL

SOLENOID

HOLD

PULL

B+

STARTER

76

CASE GND

NEUTRAL

SAFETY

SWITCH

#10 RING

TERMINALS

Figure 6-2. Schematic for Kubota Panel Gauges

LeeBoy Model 400 & 400T Rollers 6-5

Schematics

NOTES

LeeBoy Model 400 & 400T Rollers6-6

ELECTRICAL SCHEMATIC, OPTION, 400 / 400T

Schematics

FUSE

LIMIT SWITCH

BLU

BLU

BLU

BLU

1012563

W

1012563

W

1012563

W

1012563

W

ORN

RED

BLU

WATER

PUMP

M

BLU

BEACON LIGHT

DIODE

ORNORN

SWITCH

WATER PUMP

REDRED

SWITCH

SWITCH

BEACON LIGHT

SWITCH

76

BRNBRN

BRN

BRN

Figure 6-3. Electrical Schematic for Options

LeeBoy Model 400 & 400T Rollers 6-7

Schematics

NOTES

LeeBoy Model 400 & 400T Rollers6-8

HYDRAULIC HOSE LAYOUT, 400, 1 OF 2

Schematics

A

B

D

C

E

F

G

R

STEERING UNIT

STEERING COLUMN

L

T

P

GEAR PUMP

S

76

M

B

A

R

D

B

L

Figure 6-4. Hose Layout for 400 Hydraulics (1 of 2)

ENGINE

L

R

D

LeeBoy Model 400 & 400T Rollers 6-9

Schematics

NOTES

LeeBoy Model 400 & 400T Rollers6-10

HYDRAULIC HOSE LAYOUT, 400, 2 OF 2

Schematics

L

T

IN

SI

SO

T

A

GEAR PUMP

B

R

STEERING UINT

STEERING COLUMN

P

OIL

COOLER

ENGINE

M3

M

S

B

76

L

D

B

R

FILTER

L

D

R

Figure 6-5. Hose Layout for 400 Hydraulics (2 of 2)

LeeBoy Model 400 & 400T Rollers 6-11

Schematics

NOTES

LeeBoy Model 400 & 400T Rollers6-12

Section 7

ILLUSTRATED PARTS LIST

Page

Illustrated Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

400 Main Frame Assembly, 1 of 2 . . . . . . . . . . . . . . . . . . . . . 7-4

400 Main Frame Assembly, 2 of 2 . . . . . . . . . . . . . . . . . . . . . 7-6

Water Tank and Rollbar Groups . . . . . . . . . . . . . . . . . . . . . . 7-8

Front Drum and Yoke Assembly . . . . . . . . . . . . . . . . . . . . . . 7-10

Front Wiper, Front Inner Wiper, and Rear Wiper, 400 / 400T . . . . . . . . 7-12

Rear Drum Assembly, Cut-Section . . . . . . . . . . . . . . . . . . . . . 7-14

Water System Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16

Fuel System Group . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-18

Steering and Drive Control Assembly . . . . . . . . . . . . . . . . . . .7-20

Seat Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

Engine Group, 1 of 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-24

Engine Group, 2 of 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26

25 HP, Tier4F, Engine, Kubota . . . . . . . . . . . . . . . . . . . . . . . 7-28

Battery Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30

400 and 400T Miscellaneous . . . . . . . . . . . . . . . . . . . . . . .7-32

Sign (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34

400T Main Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . 7-36

Tow/Lift Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38

400T Towing Safety Pin and Pintle Eye . . . . . . . . . . . . . . . . . . . 7-40

Wheel Hub and Brake Assembly . . . . . . . . . . . . . . . . . . . . . . 7-42

Valve Bank Assembly (400T Only) . . . . . . . . . . . . . . . . . . . . . 7-44

Alphabetical Parts Index (API) . . . . . . . . . . . . . . . . . . . . . . .7-46

LeeBoy Model 400 & 400T Rollers

7-1

Illustrated Parts List

NOTES

LeeBoy Model 400 & 400T Rollers7-2

QUICK REFERENCE GUIDE

Part Number Description

987715 Optional, Grp., Canopy, 400 Roller
981772 Optional, Coco Mats, 400
985185 Optional, Work Lights, 400

1005444 Optional, Gauge Package

982050 Optional, Vandalism Protection

920235 Optional, Umbrella
982078 Optional, Horn, Rollers

982110 Optional, Slow Moving Sign, Rollers

5MB6H Fire Extinguisher, 5 Lbs.

986598-05SRV Kit, Filter, 400 Series, Kubota

1001911 Optional, W/M, Tongue Ext Drop, 400T
985184 Back Up Alarm, 400

986765 Grill Assembly, 400/420 Kubota

987389 Assembly, Rear Wipe W/O Brkt

987390SRV Assembly, Rear Wipe

1008292SRV Spring, Front Scraper Drum Com

400894 Scraper, Front Inner 400
38778-1 Filter Element, Oil
985909 Filter Element, Air, Primary

985911 Filter Element, Air, Safety

1011485-23 Fuel Filter With Mount

290030 Element, Charge Filter From #400-104

Illustrated Parts List

LeeBoy Model 400 & 400T Rollers 7-3

7

Illustrated Parts List

400 MAIN FRAME ASSEMBLY, 1 OF 2

1

3

4

2

Figure 7-1. 400 Main Frame Assembly, 1 of 2

LeeBoy Model 400 & 400T Rollers7-4

400 Main Frame Assembly, 1 of 2, Parts List

Illustrated Parts List

Item

No.

1 987151 1 Weldment, Frame 400

2 100-16-12-56-5F 1 Cshh, 1-12 X 3.5, Gr5, Ft
3 400793 1 Tank Safety
4 1000281 1 Rnd, .500, Bent, Safety Latch

Part Number Qty. Description Remarks

LeeBoy Model 400 & 400T Rollers 7-5

7

Illustrated Parts List

400 MAIN FRAME ASSEMBLY, 2 OF 2

11, 14, 16

9

8

10, 13, 15

17

2

12

3

4

5

6

21

7

20

18

20

Figure 7-2. 400 Main Frame Assembly, 2 of 2

1

LeeBoy Model 400 & 400T Rollers7-6

400 Main Frame Assembly, 2 of 2, Parts List

Illustrated Parts List

Item

No.

1 987151 1 Weldment, Frame 400
2 989117 2 W/M, Hinge Assembly, Water Tank Plate
3 400762 1 Shaft, Control
4 857137 1 Key Stock

Ref 490092 1 Handle, 400 Lh Drive Assembly

5 490071 1 Spacer
6 490080 1 Washer, Belleville 5/8”
7 400781 1 Threaded Rod & Tube
8 300213 1 Support, Plate Floorboard welded to 300212
9 1009905 1 Lever, Forward/Reverse-Rh welded to 857135

10 100-8-13-32-5 4 Cshh, 1/2-13 X 2, Gr5

11 100-6-16-24-5 1 Cshh, 3/8-16 X 1.5, Gr5
12 102-607-1A 1 Cshh, .625-11 X 1.500, Gr5
13 118-5 4 Washer, Lock, .500
14 300-6 6 Washer, Flat, Sae, 3/8
15 200-8-13-5 4 Nut, Hex, 1/2-13, Gr5
16 116-3 3 Nut, Hex, .375-16
17 858526 1 Rnd, .688 X 8.75, Crs
18 400761 1 Bushing, Drive Handle, Lh, 400 welded to 400764
19 300-6 2 Washer, Flat, Sae, 3/8

20 100-6-16-36-5 1 Cshh, 3/8-16 X 2.25, Gr5

21 1009904 1 Handle, 400 Lh Drive

Part Number Qty. Description Remarks

LeeBoy Model 400 & 400T Rollers 7-7

7

Illustrated Parts List

WATER TANK AND ROLLBAR GROUPS

9

1

2

5

6

7

5

8

Figure 7-3. Water Tank and Rollbar Groups

4

7

3

LeeBoy Model 400 & 400T Rollers7-8

Water Tank and Rollbar Groups Parts List

Illustrated Parts List

Item

No.

1 988558 1 Tank, Water, 80Gal, Poly

2 987507 1 Rollbar, Complete
3 987719 1 Weldment, Canopy
4 100-6-16-16-5F 2 Cshh, 3/8-16 X 1, Gr5, Ft
5 301-6 6 Washer, Flat, Uss, 3/8
6 116-3 4 Nut, Hex, .375-16

7 118-3 6 Washer, Lock, .375
8 987718 2 Clamp, Rops
9 36151 1 Filler, Tank, 4 In, Cap And Strainer

Part Number Qty. Description Remarks

LeeBoy Model 400 & 400T Rollers 7-9

7

23

7

Illustrated Parts List

FRONT DRUM AND YOKE ASSEMBLY

Figure 7-4. Front Drum and Yoke Assembly

LeeBoy Model 400 & 400T Rollers7-10

Front Drum and Yoke Assembly Parts List

Illustrated Parts List

Item

No.
Ref 400877 1 Front End Assembly, 400

1 851436SRV 1 Cyl., Hyd., 2.00 X 12.00 X 1.00 Rod
2 420022 1 Washer, Steering Yoke Pin (400)
3 420032ASRV 1 Steering Yoke, 400 N/S
4 420042SRV 1 Pin, 400 Steering Yoke
5 420043SRV 1 Crossmember, 400 Front End
6 420063SRV 1 Scraper, 400, Front

7 420064SRV 1 Rear Wiper Blade, Front Roller
8 420082ASRV 2 Spacer, Front Axle, 400 N/S
9 210180 4 Bearing Cone

10 210190 4 Bearing Cup

11 420112ASRV 1 Axle, 400, Front Drum N/S

12 420124ASRV 2 Drum, 400, Front, Half W/Bearings
13 210240A 1 Seal, Front Yoke, 400 N/S
14 210180A 2 Bearing Cone
15 210190A 2 Bearing Cup
16 210170A 1 Washer, Lock, ‘Tang’ Style
17 38671 1 Nut, Lock, ‘Tang’ Style
18 420180 2 Pipe, Plug, 1.000 Pvc, Hex
19 857178SRV 1 Bracket, 400 Cocomat Front

20 430160-44 1 Cocoa Mat, 6” X 44” Plastic

Ref 981772 1 Opt,Coco Mats,400

21 420032ASRV 1 Steering Yoke, 400 N/S
22 510041SRV 1 Pin, Towing Tongue Safety
23 210010 2 Bushing, 2.00 Id X 2.50 Od X 1.75Lg
24 210240 4 Seal
25 420211 1 Machined Nut, Front Axle, 400
26 420102A 2 Clamp Assembly, 2 Pc. Split 2 Bolt

Part Number Qty. Description Remarks

7

LeeBoy Model 400 & 400T Rollers 7-11

Illustrated Parts List

FRONT WIPER, FRONT INNER WIPER, AND REAR WIPER, 400 / 400T

1

2

4

3

5

Figure 7-5. Front Wiper, Front Inner Wiper, and Rear Wiper

LeeBoy Model 400 & 400T Rollers7-12

Wiper, Front Inner Wiper, and Rear Wiper Parts List

Illustrated Parts List

Item

No.

1 420063SRV 1 Scraper, 400, Front
2 400894 1 Scraper, Front Inner 400
3 987326 1 Group, Rear Wiper
4 987390SRV 1 Assembly, Rear Wipe
5 987389SRV 1 Assembly, Rear Wipe w/o Brk

Part Number Qty. Description Remarks

LeeBoy Model 400 & 400T Rollers 7-13

7

Illustrated Parts List

REAR DRUM ASSEMBLY, CUT-SECTION

A

A

23

Figure 7-6. Rear Drum Assembly, Cut-Section

LeeBoy Model 400 & 400T Rollers7-14

Rear Drum Assembly Parts List

Illustrated Parts List

Item

No.

1 400887-04 1 Rear Drum, I.d. Machined

2 520280 1 Flange W/Hub,Inner Bearing Support-400
3 520060 1 Bearing, Insert,1.50
4 858248 1 Vibrator Hub/400
5 400595 1 Hub, Counterweight
6 400596 1 Counter Weight, Vibe

7 988504 1 Motor, Hydraulic, Gear, .67Cir

8 300-6 2 Washer, Flat, Sae, 3/8
9 300-8 2 Washer, Flat, Sae, 1/2

10 118-3 2 Washer, Lock, .375

11 118-6 12 Washer, Lock, .562
12 118-5 42 Washer, Lock, .500
13 102-6-16-20-F 2 Cssh, 3/8-16 X 1.25, Ft
14 858312 1 Vibrator Hub To Frame Mount
15 100-10-11-24-8F 12 Cshh, 5/8-11 X 1.5, Gr8, Ft
16 100-8-13-24-5 24 Cshh,1/2-13 X 1.5, Gr5
17 100-8-13-16-5F 16 Cshh, 1/2-13 X 1, Gr5, Ft
18 100-8-13-20-8F 2 Cshh, 1/2-13 X 1.25, Gr8, Ft
19 858309 2 Mount, Motor To Frame (400 W/Poclain)

20 520020A 6 Shear Mount, Frame To Drum

21 200-8-13-5 24 Nut, Hex, 1/2-13, Gr5

22 116-7 9 Nut, Hex, .625-11
23 986811 9 Washer, Lock, .670, Nord Wedge
24 811361 1 Motor, Hyd, Drive, 7000

Part Number Qty. Description Remarks

7

LeeBoy Model 400 & 400T Rollers 7-15

Illustrated Parts List

WATER SYSTEM ASSEMBLY

Figure 7-7. Water System Assembly

LeeBoy Model 400 & 400T Rollers7-16
