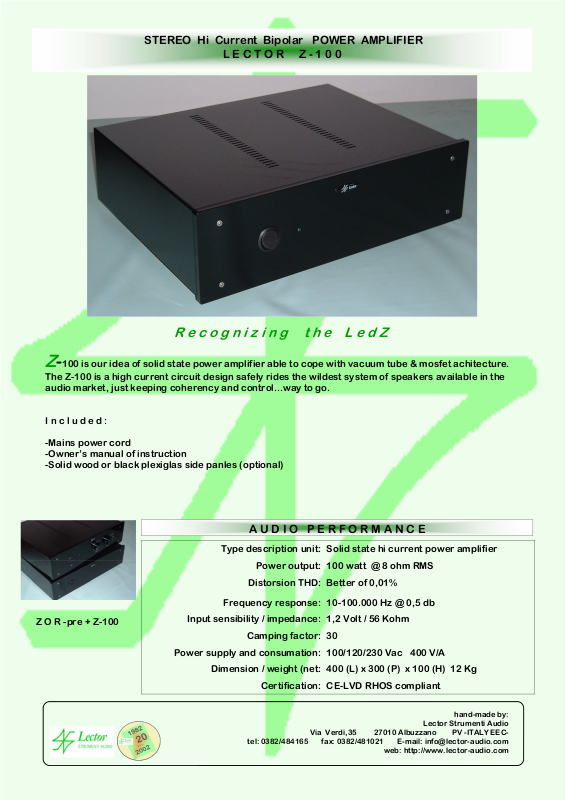

STEREO Hi Current Bipolar POWER AMPLIFIER

L E C T O R Z - 1 0 0

R e c o g n i z i n g t h e L e d Z

Z

-100 is our idea of solid state power amplifier able to cope with vacuum tube & mosfet achitecture.

The Z-100 is a high current circuit design safely rides the wildest system of speakers available in the
audio market, just keeping coherency and control...way to go.

I n c l u d e d :

-Mains power cord

-Owner’s manual of instruction

-Solid wood or black plexiglas side panles (optional)

A U D I O P E R F O R M A N C E

Type description unit: Solid state hi current power amplifier

Power output: 100 watt @ 8 ohm RMS

Distorsion THD: Better of 0,01%

Frequency response: 10-100.000 Hz @ 0,5 db

Z O R -pre + Z-100

Input sensibility / impedance: 1,2 Volt / 56 Kohm

Camping factor: 30

Power supply and consumation: 100/120/230 Vac 400 V/A

Dimension / weight (net: 400 (L) x 300 (P) x 100 (H) 12 Kg

Certification: CE-LVD RHOS compliant

hand-made by:

Lector Strumenti Audio

Via Verdi,35 27010 Albuzzano PV -ITALY EEC-

tel: [phone] fax: [phone] E-mail: [e-mail]

web: http://www.lector-audio.com
