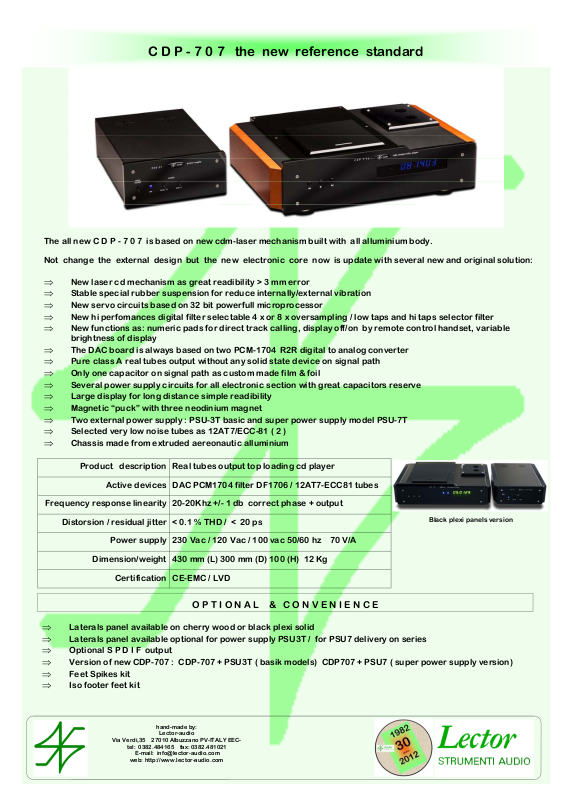

C D P - 7 0 7 the new reference standard
The all new C D P - 7 0 7 is based on new cdm-laser mechanism built with all alluminium body.
Not change the external design but the new electronic core now is update with several new and original solution:
New laser cd mechanism as great readibility > 3 mm error
Stable special rubber suspension for reduce internally/external vibrationNew servo circuits based on 32 bit powerfull microprocessor
New hi perfomances digital filter selectable 4 x or 8 x oversampling / low taps and hi taps selector filter
New functions as: numeric pads for direct track calling, display off/on by remote control handset, variable brightness of display
The DAC board is always based on two PCM-1704 R2R digital to analog converterPure class A real tubes output without any solid state device on signal path
Only one capacitor on signal path as custom made film & foil
Several power supply circuits for all electronic section with great capacitors reserveLarge display for long distance simple readibility
Magnetic “puck” with three neodinium magnet
Two external power supply : PSU-3T basic and super power supply model PSU-7TSelected very low noise tubes as 12AT7/ECC-81 ( 2 )
Chassis made from extruded aereonautic alluminium
Product description |
Real tubes output top loading cd player |
|
|
|
|
|
|
Active devices |
DAC PCM1704 filter DF1706 / 12AT7-ECC81 tubes |
|
|
|
|
|
|
Frequency response linearity |
20-20Khz +/- 1 db correct phase + output |
|
|
|
|
|
Black plexi panels version |
Distorsion / residual jitter |
< 0.1 % THD / < 20 ps |
|
|
|
|
|
|
Power supply |
230 Vac / 120 Vac / 100 vac 50/60 hz |
70 V/A |
|
|
|
|
|
Dimension/weight |
430 mm (L) 300 mm (D) 100 (H) 12 Kg |
|
|
|
|
|
|
Certification |
CE-EMC / LVD |
|
|
|
|
|
|
|
O P T I O N A L & C O N V E N I E N C E |
Laterals panel available on cherry wood or black plexi solid |
|
|
Laterals panel available optional for power supply PSU3T / for PSU7 delivery on series |
|
Optional S P D I F output |
|
Version of new CDP-707 : CDP-707 + PSU3T ( basik models) CDP707 + PSU7 ( super power supply version) |
|
Feet Spikes kit |
|
Iso footer feet kit |
|
hand-made by: |
|
Lector-audio |
|
Via Verdi,35 27010 Albuzzano PV-ITALY EEC- |
|
tel: 0382.484165 fax: 0382.481021 |
|
E-mail: info@lector-audio.com |
|
web: http://www.lector-audio.com |
