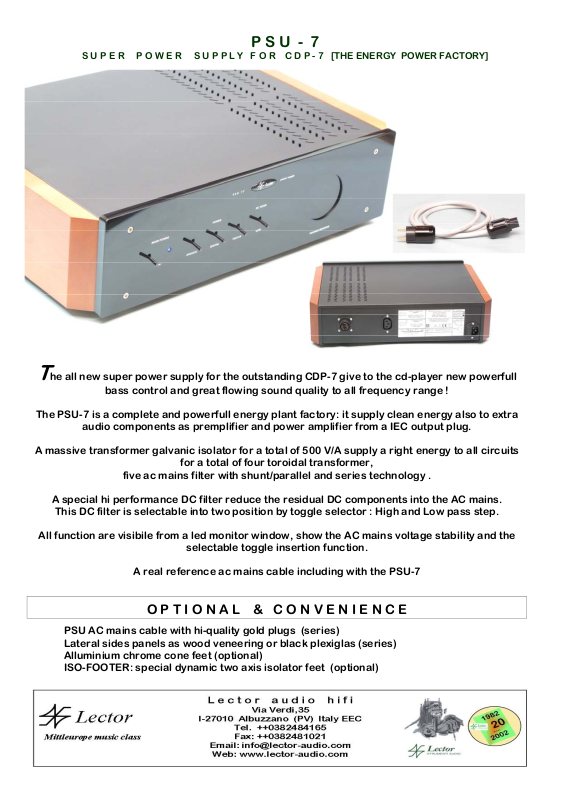

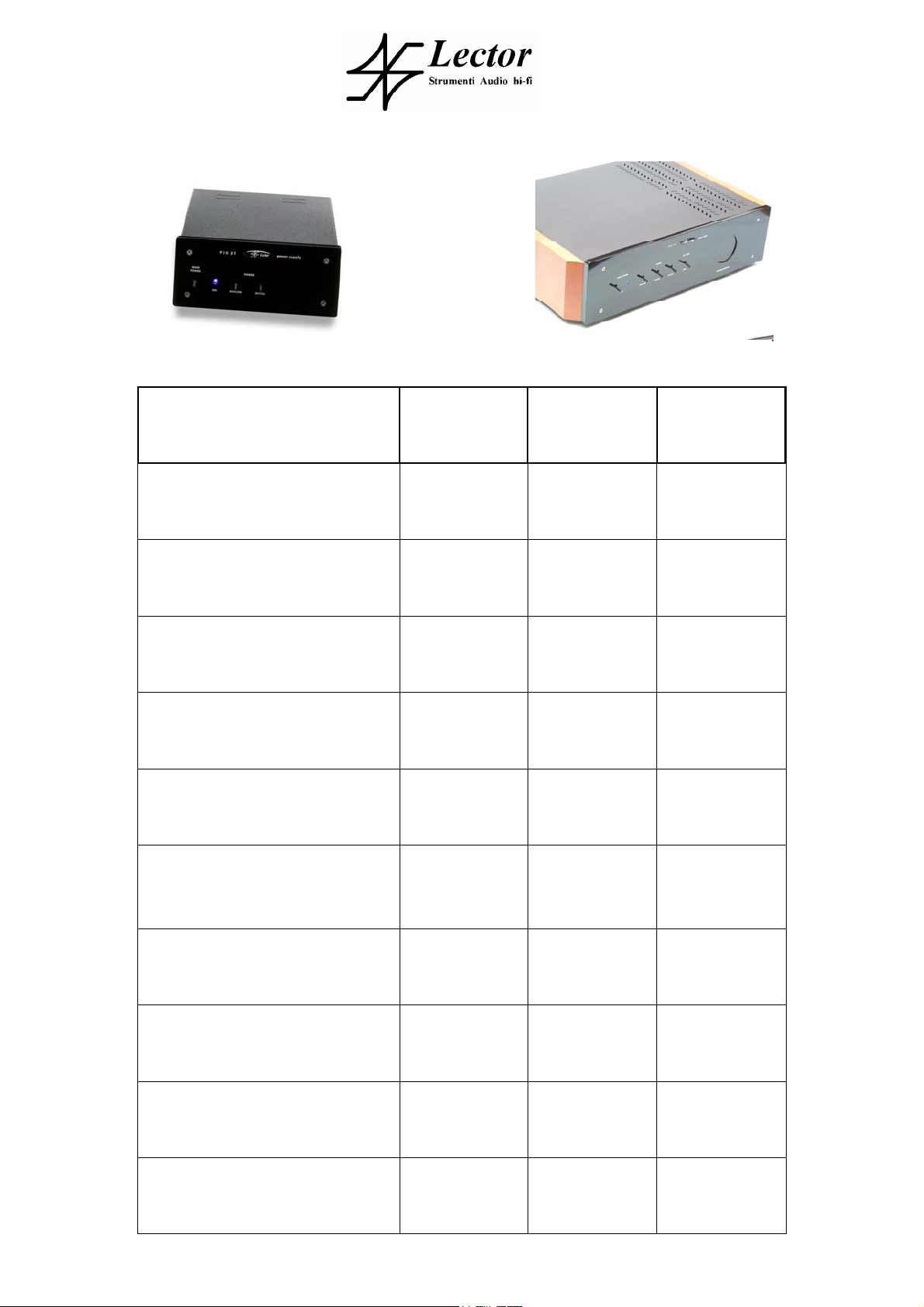

S U P E R P O W E R S U P P L Y F O R C D P - 7 [THE ENERGY POWER FACTORY]

T

he all new super power supply for the outstanding CDP-7 give to the cd-player new powerfull

bass control and great flowing sound quality to all frequency range !

The PSU-7 is a complete and powerfull energy plant factory: it supply clean energy also to extra

audio components as premplifier and power amplifier from a IEC output plug.

A massive transformer galvanic isolator for a total of 500 V/A supply a right energy to all circuits

for a total of four toroidal transformer,

five ac mains filter with shunt/parallel and series technology .

A special hi performance DC filter reduce the residual DC components into the AC mains.

This DC filter is selectable into two position by toggle selector : High and Low pass step.

All function are visibile from a led monitor window, show the AC mains voltage stability and the

selectable toggle insertion function.

A real reference ac mains cable including with the PSU-7

O P T I O N A L & C O N V E N I E N C E

PSU AC mains cable with hi-quality gold plugs (series)
Lateral sides panels as wood veneering or black plexiglas (series)
Alluminium chrome cone feet (optional)
ISO-FOOTER: special dynamic two axis isolator feet (optional)

ALL about PSU-7 CARATTERISTICHE DEL PSU-7
ELECTRICAL PERFORMANCE OF PSU-7

ALL MEASUREMENT @ by LISN and CE instruments laboratory

• Standard version off PSU-7

Type off unit POWER SUPPLY UNIT FOR CDP-7 ONLY
Residual AC noise level Better than 50 uV
Power Transformers 4 power transformer

DC block filter Two levels selectable by >/= 3 V LOW and

Voltage led monitor display 5 led display led voltage monitor for analog

Total command toggle switch 5 toggle commands:

Outputs Multiway connector for CDP7

Power supply available 100/110/230/240 Vac 50/60 Hz 650 V/a
Dimension - external
measurement
Weight 17 Kg net 18 Kg gross
Accessories supply Special Power cable mains / manual

• Optional accessories

Spikes feet mod.SF-3 spikes feet for round foot set of three

I S O - F O O T E R S

1 galvanic isolator 500 V/A

</= 9 V HIGH

quality check

power on main/ analog/digital/heater/dc-filter

IEC output for slave units mains supply

440 x 300 x 100 ( L x P x H) mm

instruction/
Lateral panels wood or black plexiglas

Floating special feet for better performance !

special spring adaptor

made in aereonautic alluminium
