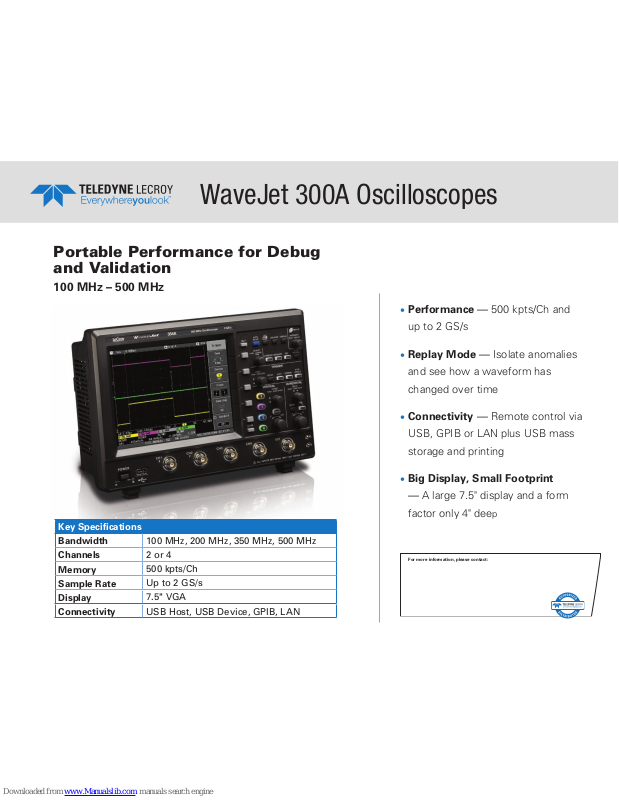

LeCroy WaveJet 300A Specification

•

Performance — 500 kpts/Ch and

up to 2 GS/s

•

Replay Mode — Isolate anomalies

and see how a waveform has

changed over time

•

Connectivity — Remote control via

USB, GPIB or LAN plus USB mass

storage and printing

•

Big Display, Small Footprint

— A large 7.5" display and a form

factor only 4" dee

p

For more information, please contact:

Key Specifications

Bandwidth

100 MHz, 200 MHz, 350 MHz, 500 MHz

Channels

2 or 4

Memory

500 kpts/Ch

Sample Rate

Up to 2 GS/s

Display

7.5" VGA

Connectivity

USB Host, USB Device, GPIB, LAN

Portable Performance for Debug
and Validation

100 MHz – 500 MHz

WaveJet 300A Oscilloscopes

WaveJet 300A Oscilloscopes

WaveJet300A-Fact-Sheet-14jun13

Recommended Probes

Differential

AP031

700 V, 15 MHz High-voltage Differential Probe (÷10, ÷100)

High-Voltage

PPE1.2KV

10:1/100:1 200/300 MHz 50 MΩ High-voltage Probe 600 V/1.2 kV Max. Volt. DC

PPE2KV

100:1 400 MHz 50 MΩ 2 kV High-voltage Probe

PPE4KV

100:1 400 MHz 50 MΩ 4 kV High-voltage Probe

PPE5KV

1000:1 400 MHz 50 MΩ 5 kV High-voltage Probe

PPE6KV

1000:1 400 MHz 50 MΩ 6 kV High-voltage Probe

PPE20KV

1000:1 100 MHz 50 MΩ High-voltage Probe 20 kV Max. Volt. DC + 40 kV

Peak

AC

Go back in time to isolate runts, glitches
or other anomalies with Replay Mode.

Speed up debugging time with 26
automatic measurements plus min/max
statistics.

Perform mathematical analysis and
make measurements on the resulting
math trace.

Turn any PC into a Mixed Signal Oscilloscope
by connecting a Teledyne LeCroy WaveJet and
LogicStudio for up to 4 analog and 16 digital channels.

Included with Standard Configuration

One Passive Probe per Channel

Getting Started Manual

Calibration and Performance Verification
Certificate

3-year Warranty

Multi-language User Interface

Power Cord

Model Bandwidth Channels

Memory

(Per Ch / Interleaved)

Sample Rate

(Per Ch / Interleaved)

WaveJet 312A

100 MHz 2 500 kpts/Ch 1 GS/s

WaveJet 314A

100 MHz 4 500 kpts/Ch 1 GS/s

WaveJet 322A

200 MHz 2 500 kpts/Ch 1 GS/s

WaveJet 324A

200 MHz 4 500 kpts/Ch 1 GS/s

WaveJet 332A

350 MHz 2 500 kpts/Ch 1 GS/s / 2 GS/s

WaveJet 334A

350 MHz 4 500 kpts/Ch 1 GS/s / 2 GS/s

WaveJet 352A

500 MHz 2 500 kpts/Ch 1 GS/s / 2 GS/s

WaveJet 354A

500 MHz 4 500 kpts/Ch 1 GS/s / 2 GS/s

Ordering Information
