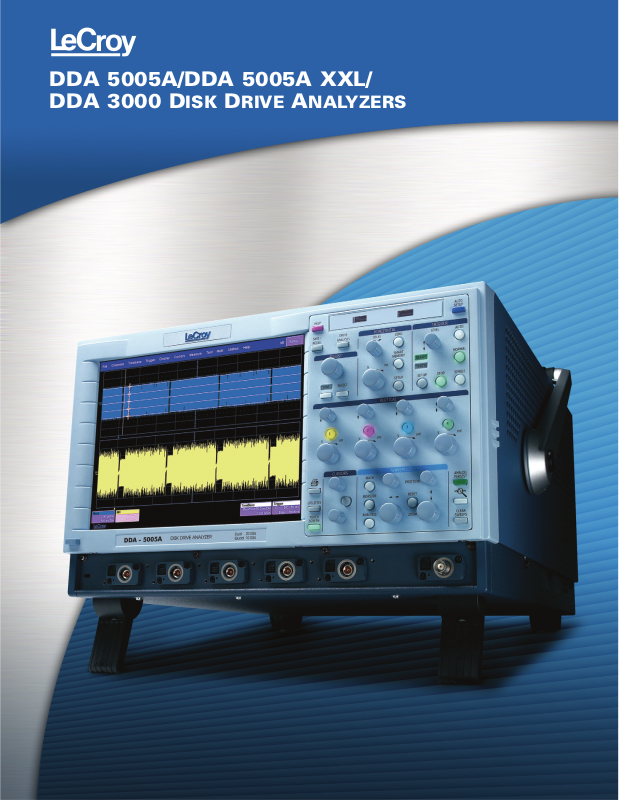

DDA 5005A/DDA 5005A XXL/
DDA 3000 DISK DRIVE ANALYZERS
Maximum Performance
Since their inception, Disk Drive
Analysis (DDA) Series oscilloscopes
have helped data storage design
engineers improve the time to market
of new products and accelerated
understanding and failure analysis on
existing drives. LeCroy continues
that tradition with its powerful Disk
Drive Analysis toolset, enabling you
to capture, view, and analyze the
wave shape of high-speed, complex
drive signals with speed and integrity.
LeCroy’s X-Stream architecture
integrates SiGe “digitizer on a chip“
technology and a specialized high-speed
streaming bus design to transfer
data from the ADC to a proprietary
acquisition memory. The X-Stream
architecture enables disk drive
engineers to quickly, easily, and
accurately measure and analyze
disk drive signals.
The DDA 5005A is designed for signal
fidelity, whole track acqui sition and
analysis for read channel, media noise
analysis, and head para metrics with the
longest acquisition memory standard.
The DDA 3000 provides the same
measurement capability at a lower
bandwidth. This unique product has
the convenience of selectable 50 Ω or
1 MΩ inputs.
Excellence in Head, Disk, Track,
and Noise Analysis
The DDA Series analyzers incorporate
the tools to make you the most
efficient. The standard 100 Mpts of
capture memory in the DDA 3000
(2 channel mode) and DDA 5005A XXL
provides 5 milliseconds of single-shot
20 GS/s capture on two channels,
allowing multiple drive sectors to be
acquired at once.
Long Memory and Flexibility
in Finding Problems
Acquire a head signal up to 5 GHz, and
then QuickZoom it from the front panel.
The DDA copies and expands the drive
signal automatically. Simply scroll
horizontally and vertically to examine
any sector. Multiple zooms let you view
up to eight separate areas of the head
2
Leading Features
• 3 or 5 GHz trigger bandwidth
• 10 GS/s sample rate/channel
• 20 GS/s dual-channel mode
• Up to 100 Mpts in
dual-channel mode
• Intuitive front panel and
touch screen interface
• Zoom and Multi-Zoom
on disk sectors
• One-button access to
Read Channel Emulation,
Servo Analysis, and
Disk Triggers
• Head Equalization,
Channel Emulation, and
SAM Histograms
• Segmented Memory
for sector-by-sector
parametric analysis
• Built-in PWxx, amplitude,
pulse shape, and ACSN
parametric measurements
• Customizable with MATLAB,
Mathcad, Visual Basic, or
Excel scripts
• Flexible connectivity to
networks, peripherals
with 100Base-T Ethernet,
and USB
DDA 5005A/DDA 5005A XXL/DDA 3000
High Fidelity Connection
to the Drive
With the WaveLink®high fre quency
differential probes, design engineers
can measure read channel signals
up to 3 or 5 GHz. The unique
design ensures high impedance
loading across the full bandwidth,
so that you can match the probe
bandwidth to your requirement.
signal; each zoom comes in a distinct
color. You can measure the time
between two events accurately with
horizontal and vertical cursors. Disk
drive parameters let you characterize the
pulse width variation or signal-to-noise
ratio across a selectable region. Failure
Analysis engineers can store and recall
golden waveforms and panel setups to
compare problem drives with the
known good drives. Analog-to-digital
converters running at speeds up to
20 GS/s ensure the right sensitivity
to measure today’s high-speed read
channels. In every DDA, you can run
your customer-developed scripts to
view the captured signal with the filters
matched to your channel and media.
Custom user scripts can be created in
MATLAB, Mathcad, Visual Basic, or
even Excel.
Exceptional Trigger Performance
Disk Triggers allow you to set up a
series of events in the signal that then
cause a trigger. For example, qualify
the signal on the index signal and then
capture all the sectors of information
on the track. As memory is increased
in the DDA, more sectors can be
captured, with up to 50 picosecond/
sample time resolution. Up to 25,000
sectors of data can be gathered with
the DDA 3000 or DDA 5005A XXL.
Natural Graphical Interface
One press of the DDA button takes
you directly to the Disk Drive Analyzer
features. The familiar controls on
the front panel, coupled with a
natural, context-sensitive graphical
user-interface, react quickly to
your commands. Function ality
is exactly where you expect it
to be. If you have questions,
context-sensitive on-line help
gives immediate assistance.
Cursors
Cursors let you measure time and
amplitude points on the disk wave -
forms. You can measure the time
between gate and signal across two
different channels. Different cursor
modes are easily recalled and set.
They are easily accessed from the
front panel or the graphical user
interface. Set up basic time or
amplitude cursors on a single wave -
form, or choose to use independent
cursors on different waveforms.
ProLink
Signal Inputs
(DDA 5005A Analyzer)
ProLink inputs provide a high integrity,
high bandwidth interchangeable
inter face to SMA or BNC cables,
probes, and accessories. ProLink
supports ProBus for direct, automatic
control of LeCroy probes and
acces sories. The optional AP-1M
adapter provides Hi-Z input.
Flexible Connectivity
The DDA Series comes complete
with a 100Base-T/10Base-T Ethernet
connection and a built-in hard drive
for waveform storage. At the press
of a button, you can even e-mail the
measurement result and waveform
display to other engineers or to your
notebook. Attach any USB device for
extended connectivity for network
printing, or for attaching additional
storage or pointing devices.
3
WaveScan Advanced Search
Locate Problems Triggers Won’t Find WaveScan is a powerful tool that provides
the ability to locate unusual events in a single capture, or scan for an event in many
acquisitions over a long period of time using more than 20 different search/scan modes.
WaveScan uses measurement-based scanning modes, like frequency, to show statistical
distribution of events. It overlays events for a quick and simple visual comparison.
4
Specifications
Vertical System DDA 5005A AND DDA 5005A XXL DDA 3000
Analog Bandwidth @ 50 Ω (-3 dB) 5 GHz 3 GHz
Input Channels 4 4
Bandwidth Limiter 20 MHz; 200 MHz; 1 GHz; 3 GHz; 4 GHz 25 MHz, 200 MHz, 1 GHz
Input Impedance 50 Ω ±1.5% 50 Ω or 1 MΩ || 15 pF, 10 MΩ || 11 pF with PP005A probe
Input Coupling DC, GND 1 MΩ: AC, DC, GND; 50 Ω: DC
Maximum Input Voltage 2.5 V
rms
; ±4 V
peak
50 Ω: 5 V
rms
, 1 MΩ: 100 V max. (peak AC: ≤ 5 KHz + DC)
Vertical Resolution 8 bits; up to 11 bits with enhanced resolution (ERES)
Sensitivity 2 mV–1 V/div fully variable 50 Ω: 2 mV–1 V/div fully variable;
1 MΩ: 2 mV–2 V/div fully variable
Offset Range ±750 mV @ 2 mV–194 mV/div 50 Ω: ±700 mV @ 2 mV–4.95 mV/div.
±4 V @ 196 mV–1 V/div ±1.50 V @ 5 mV–100 mV/div.
±10 V @ 102 mV–1 V/div.
1 MΩ: ±700 mV @ 2 mV–4.95 mV/div.
±1.50 V @ 5 mV–100 mV/div.
±20 V @ 102 mV–2 V/div.
DC Gain Accuracy ±1.5% of full scale; ±1% (typical)
Horizontal System
Timebases Internal timebase common to 4 input channels; An external clock may be applied at the auxiliary input
Clock Accuracy ≤ 1 ppm ≤ 5 ppm
Time Interval Accuracy ≤ 0.06/SR + (1 ppm * Reading) ≤ 0.06/SR + (5 ppm * Reading)
External Clock Frequency 30 MHz–2 GHz; 50 Ω impedance; 30 MHz–1 GHz; 50 Ω impedance;
applied at the auxiliary input applied at the auxiliary input
Roll Mode – Operating Range N/A Up to 1000 s/div; lower limit determined by
memory length and sample rate
Acquisition System
Single-Shot Sample Rate/Ch 10 GS/s
2 Channel Max. 20 GS/s
Maximum Trigger Rate 150,000 waveforms/second (in Sequence Mode – up to 4 channels)
Acquisition Memory Max. Length (Mpts) Max. number of Segments;
(2 Ch/4 Ch) Sequence Mode
DDA 3000, DDA 5005A XXL 100M/48M 25,000
DDA 5005A 48M/24M 20,000
Random Interleaved Sampling (RIS) 200 GS/s for repetitive signals, to 20 ps/div. Upper limit determined by sample rate and
memory length settings.
Intersegment Time 6 µs
Acquisition Processing
Averaging Summed or continuous averaging up to 1 million sweeps
Enhanced Resolution (ERES) From 8.5 to 11 bits vertical resolution
Envelope (Extrema) Envelope, linear, floor, or roof; for up to 1 million sweeps
Interpolation Linear or Sin x/x
Triggering System
Modes Normal, Auto, Single, and Stop
Sources Any input channel, External, Ext x 10, Ext/10, or line; slope and level unique to each source (except line trigger)
Coupling DC
Pre-trigger Delay 0–100% of horizontal time scale
5
Triggering System (continued)
Post-trigger Delay 0–10,000 divisions
Hold-off by Time or Events Up to 20 s or from 1 to 99,999,999 events
Internal Trigger Range ±5 div from center
DDA 5005A AND DDA 5005A XXL DDA 3000
Trigger Sensitivity (edge, typical) 3 div < 5 GHz 2 div < 3 GHz
(Ch 1-4 & External) 2 div < 4 GHz 1 div < 2 GHz
1.2 div < 3 GHz
Max. Trigger Frequency, SMART Trigger 750 MHz ≥ 10 mV
External Trigger Input Range Ext ±0.4 V; Ext x 10 ±0.04 V; Ext/10 ±4 V
Basic Triggers
Edge/Slope/Line Triggers when signal meets slope and level condition
SMART Triggers
State or Edge Qualified Triggers on any input source only if a defined state or edge occurred on another input source.
Delay between sources is selectable by time or events
Dropout Triggers if signal drops out for longer than selected time between 2 ns and 20 s
Pattern Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input)
Each source can be high, low, or don’t care. Trigger at start or end of the pattern
SMART Triggers with Exclusion Technology
Glitch Triggers on positive or negative glitches with widths selectable from 600 ps to 20 s or on
intermittent faults
Signal or Pattern Width Triggers on positive or negative pulse widths selectable from 600 ps to 20 s or on
intermittent faults
Signal or Pattern Interval Triggers on intervals selectable between 2 ns and 20 s
Disk Drive Triggers
Sector Triggers on the n’th sector pulse after index. Index and sector pulse polarity and sector pulse
number are selectable
Servo Gate Triggers on the n’th servo gate after index and every m’th thereafter. Index and servo gate
pulse polarity are selectable
PES Trigger Triggers on Position Error Signal (PES) exceeding an adjustable voltage window.
Servo gate can be selected as qualifier
Read Gate Trigger Triggers on any read gate longer than an adjustable Sector ID filed length
Automatic Setup
Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals
Vertical Find Scale Automatically sets the vertical sensitivity and offset for the selected channels to display a
waveform with maximum dynamic range
Probes DDA 5005A AND DDA 5005A XXL DDA 3000
Probes A variety of passive and (2) PP005A passive probes are standard.
active probes are optional A variety of other passive and active probes are available.
Probe System ProLink: Automatically detects and ProBus: Automatically detects
supports a variety of compatible probes; and supports a variety of
Supports SMA or ProBus BNC compatible probes
with ProLink adapters (included)
Scale Factors Automatically or manually selected depending on probe used
Color Waveform Display
Type Color 10.4" flat-panel TFT-LCD with high resolution touch panel
Resolution SVGA; 800 x 600 pixels
Real-time Clock Dates, hours, minutes, seconds displayed with waveform
Number of Traces Display a maximum of eight traces. Simultaneously display channel, zoom, memory,
and math traces
Grid Styles Single, Dual, Quad, Octal, XY, Single + XY, Dual + XY
Waveform Styles Sample dots joined or dots only
Analog Persistence Display
Analog and Color-Graded Persistence Variable saturation levels; stores each trace’s persistence data in memory
Persistence Selections Select Analog or color positive
Trace Selection Activate Analog Persistence on all or any combination of traces
Persistence Aging Time Select from 500 ms to infinity
Sweeps Displayed All accumulated or all accumulated with last trace highlighted
Zoom Expansion Traces
Display up to 4 Zoom and 4 Math/Zoom traces; 8 Math/Zoom traces available with XMAP
(Master Analysis software package)
CPU
Processor Intel®Pentium®4 @ 2.54 GHz (or better), with Microsoft Windows®XP Professional
Processing Memory Up to 2 Gbytes
Internal Waveform Memory
M1, M2, M3, M4 Internal Waveform Memory (Store full-length waveforms with 16 bits/data point)
or store to any number of files limited only by data storage media
Setup Storage
Front Panel and Instrument Status Store to the internal hard drive or to a USB connected peripheral device
Interface
Remote Control Full command set for all front panel controls and internal functions via GPIB or
Ethernet using Windows Automation or LeCroy Remote Command Set
DDA 5005A AND DDA 5005A XXL DDA 3000
GPIB Port (IEEE-488.2) Optional Standard
Ethernet Port 10/100Base-T Ethernet interface
USB Ports 6 USB 2.0 ports (2 on front panel), support MS Windows®compatible devices
External Monitor Port Standard 15-pin D-Type SVGA-compatible
(independent Dual Monitor support
available as an option)
Parallel Port 1 standard
Auxiliary Output
Signal Types Select from calibrator or control signals output on front panel
Calibrator Signal 5 Hz–1 MHz square wave or DC level; 0–0.5 V into 50 Ω (0–1.0 V into 1 MΩ)
Control Signals Trigger ready, trigger out, pass/fail status; TTL logic voltage
Auxiliary Input
Signal Types Select from External Trigger or External Clock input on front panel
General
Auto Calibration Ensures specified DC and timing accuracy is maintained for 1 year minimum
Power Requirements
Voltage 100–240 V
rms
(±10%) at 50 or 60 Hz; 115 V
rms
(±10%) at 400 Hz;
Automatic AC Voltage selection
Max. Power Consumption 650 W/650 VA
Physical Dimensions
Dimensions (HWD) 264 mm x 397 mm x 491 mm; 10.4" x 15.65" x 19.25" (height excludes feet)
Weight 18 kg; 39.5 lbs.
Shipping Weight 24 kg; 53 lbs.
6
Specifications
7
Math Tools
Displays up to eight math function traces (F1-F8); The easy to use graphical
interface simplifies setup of up to two operations on each function trace. Function
traces can be chained together to perform math-on-math. Capabilities include:
FFT includes: power averaging, power density, real and imaginary components,
and frequency domain parameters.
Pass/Fail
Test waveforms by comparing their shape to test templates, and simultaneously
check multiple parameters versus selectable parameter or mask limits. Pass or fail
conditions can initiate actions including document to local or networked files, or
e-mail the image of the failure, save waveforms, or send a GPIB SRQ, or pulse
to trigger another device.
Automated Disk Drive Measurements
absolute value
average (summed)
average (continuous)
difference (-)
differentiate
enhanced resolution
(to 11 bits vertical)
envelope
exp (base e)
exp (base 10)
FFT
floor
identity
integrate
log (base e)
log (base 10)
negate,
product (x)
ratio (/)
reciprocal (invert)
resample (deskew)
rescale (with units)
roof
Sin x/x,
square
square root
sum (+)
histogram
trend (datalog)
Auto-correlation
Environmental
Temperature (Operating) +5 ˚C to +40 ˚C including CD-ROM drives
Temperature (Non-Operating) -20 ˚C to +60 ˚C
Humidity (Operating) 5% to 80% relative humidity (non-condensing) up to +30 ˚C
Upper limit derates to 25% relative humidity (non-condensing) at +40 ˚C
Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F
Altitude (Operating) Up to 10,000 ft. (3,048 m) at or below +25 ˚C
Altitude (Non-Operating) Up to 40,000 ft. (12,192 m)
Random Vibration (Operating) 0.31 g
rms
5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Random Vibration (Non-Operating) 2.4 g
rms
5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
Functional Shock 20 g
peak
, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes,
18 shocks total
Certifications
CE Compliant for Safety and EMC, UL and cUL listed; conforms to EN 61326,
EN 61010-1, UL 3111-1, and CSA C22.2 No. 1010.1
Warranty and Service
3-year warranty; calibration recommended annually. Optional service programs include
extended warranty, upgrades, and calibration services.
TAA
TAA+
TAAPW50
PW50+
PW50Resolution
Overwrite
lbase
lbsep
lmax
lmin
lnum
lpp
ltbe
ltbp
ltmn
ltmx
ltot
ltpt
lttp
ltut
NLTS
ACSN
msnr
rsnr
m_to_r
nbph
nbpw
Standard Automated Measurements
Jitter measurement for parameters including: period, cycle-cycle, frequency,
and edge@lv, with JitterTrack of up to 200 edges.
Advanced Drive Analysis
Capabilities include: Head Filter/ Equalizer Emulation, Channel Emulation,
SAM Histograms, Plot of SAM Values, PES Runout Analysis, Analog
Compare.
Additional waveshape analysis capabilities include: FFT capability with
power averaging, power density, real and imaginary components, and
frequency domain parameters, Parameter Math – add, subtract, multiply, or
divide two different parameters, User-definable parameter measurements,
User-definable math functions.
amplitude
area
base
cycles
cycle std. deviation
cycle mean
cycle median
cycle rms
data
delay
duty cycle
duration
falltime
frequency
first
maximum
mean
minimum,
+ overshoot
- overshoot
peak-to-peak
period
risetime
rms
std. deviation
top
width
last
media
number of points
phase
time @ minimum (min.),
time @ maximum (max.),
Δ delay
Δ time @ level
Δ time @ level from
trigger
Δ time from clock to
data + (setup time)
Δ time from clock to
data – (hold time)
18 Histogram parameters
Ordering Information
1-800-5-LeCroy
www.lecroy.com
DDADSrevA_W1_05June07
Local sales offices are located throughout the world.
To find the most convenient one visit www.lecroy.com
© 2007 by LeCroy Corporation. All rights reserved. Specifications, prices, availability, and delivery subject to change
without notice. Product or brand names are trademarks or requested trademarks of their respective holders.
Description Product Code
4 Ch; 5 GHz; 10 GS/s; 20 GS/s max.; DDA 5005A XXL
100 Mpts Memory (using 1 or 2 Ch)
4 Ch; 5 GHz; 10 GS/s; 20 GS/s max.; DDA 5005A
48 Mpts Memory (using 1 or 2 Ch)
4 Ch; 3 GHz; 10 GS/s; 20 GS/s max.; DDA 3000
100 Mpts Memory (using 1 or 2 Ch)
50 Ω and 1 MΩ Input
Included with Standard Configuration
CD-ROM Drive
÷10, 10 MΩ Passive Probe (Qty 2) (SDA 3000 only) PP005A
ProLink Adatpers (DDA 5005A and DDA 5005A XXL only):
SMA (Qty 4); BNC (Qty 2)
Optical 3-button Wheel Mouse-USB
Getting Started Manual
CD-ROM containing Operator’s Manual,
Remote Control Manual, and Automation Manual
CD-ROMs containing Utility Software and
Norton Antivirus Software (1 year subscription)
Protective Front Cover
Remote Control Manual
Standard Commercial Calibration and Performance Certificate
Standard Ports; 10/100BaseT Ethernet, Parallel,
SVGA Video Output, USB
3-Year Warranty
Software Options
Application Specific Test and Analysis Software Packages
Advanced Optical Recording Measurement AORM
Software Package
8B/10B Decoding and Analysis Software Package SDA-8B10B
Advanced Math and WaveShape Analysis Software Packages
Demodulation Software Package DMOD
Processing Web Editor Software Package XWEB
for Functions and Parameters
Jitter and Timing Analysis Software Package JTA2
Digital Filter Software Package DFP2
Compliance Software Packages
Ethernet Test Software Package ENET
USB 2.0 Compliance Test Software Package USB2
Hardware and Software Option
32 Digital Oscilloscope Mixed Signal Option MS-32-DSA
Hardware Options and Accessories
Internal Graphics Printer WM-GP02
IEEE-488 GPIB Interface (standard in DDA 3000) GPIB-1
Removable Hard Drive Package RHD
(including USB, CD-ROM, and spare hard drive)
Dual Monitor Display DMD-1
Keyboard, USB KYBD-1
Description Product Code
Hardware Options and Accessories
Rackmount Adapter with 25" (64 cm) Slides RMA-25
Rackmount Adapter with 30" (76 cm) Slides RMA-30
Removable Hard Drive Package (includes USB, CD-ROM, WM-RHD
Removable Hard Drive, and Spare Hard Drive)
Additional Removable Hard Drive WM-RHD-02
Soft Carrying Case WM-SCC
Hard Transit Case WM-TC1
Oscilloscope Cart with Additional Shelf and Drawer OC1024
Oscilloscope Cart OC1021
USB 2.0 Testing Compliance Test Fixture TF-USB
Probe and Probe Accessories
Set of 4 ZS1500, 1.5 GHz, 0.9 pF, 1 M
Ω
ZS1500-QUADPAK
High Impedance Active Probe
Set of 4 ZS1000, 1 GHz, 0.9 pF, 1 M
Ω
ZS1000-QUADPAK
High Impedance Active Probe
WaveLink 7.5 GHz, Differential Probe D600A-AT*
Adjustable Tip Module (for DDA 5005A only)
WaveLink 4 GHz, Differential Probe D300A-AT*
Adjustable Tip Module (for DDA 3000 only)
WaveLink 7 GHz, Differential Probe D600ST*
Small Tip Module (for DDA 5005A only)
WaveLink 4 GHz, 5 V Differential Probe D350ST*
Small Tip Module
WaveLink 6 GHz, Differential Positioner D500PT*
Mounted Probe Tip Module
WaveLink ProLink Probe Body (for DDA 5005A only) WL600
WaveLink ProBus Probe Body (for DDA 3000 only) WL300
Optical-to-Electrical Converter, 500–870 nm OE525
ProLink BMA Connector
Optical-to-Electrical Converter, 950–1630 nm OE555
ProLink BMA Connector
1 GHz Active Differential Probe (÷1, ÷10, ÷20) AP034
ProLink-to-SMA Adapter LPA-SMA
ProLink-to-BNC Adapter; 1 each LPA-BNC
Kit of 4 SMA ProLink Adapters with Case LPA-SMA-KIT
Kit of 4 ProLink BNC Adapters with Case LPA-BNC-KIT
1 MΩ Adapter includes PP005A Passive Probe AP-1M
(For DDA 5005A and DDA 5005A XXL only)
*For a complete probe, order a WL300 or WL600 Probe Body with the Probe Tip Module.
Customer Service
LeCroy oscilloscopes and probes are designed, built, and tested to ensure
high reliability. In the unlikely event you experience difficulties, our digital
oscilloscopes are fully warranted for three years and our probes are
warranted for one year.
This warranty includes:
• No charge for return shipping
• Long-term 7-year support
• Upgrade to latest software at no charge
Loading...
