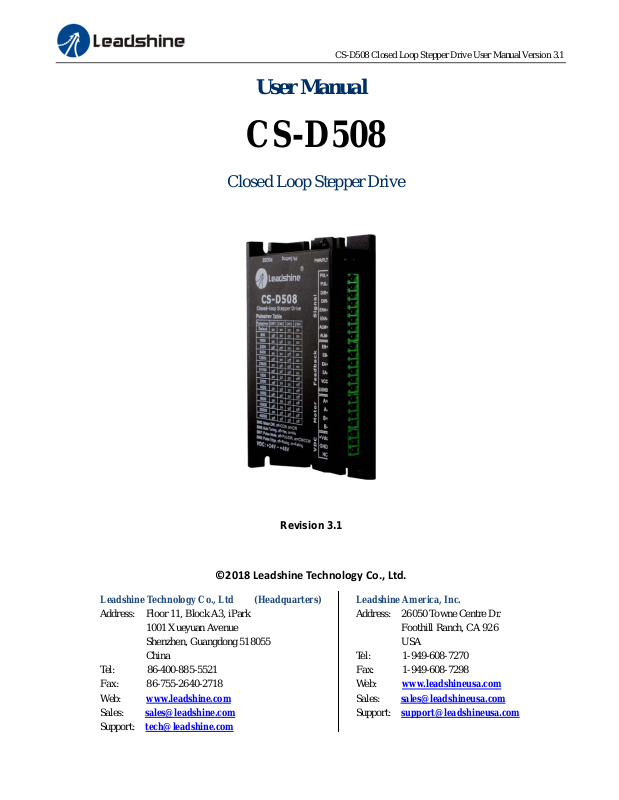

Leadshine Technology Co. CS-D508 User Manual

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

Support: [email protected]

User Manual

CS-D508

Closed Loop Stepper Drive

Revision 3.1

©2018 Leadshine Technology Co., Ltd.

Leadshine Technology Co., Ltd (Headquarters)

Address: Floor 11, Block A3, iPark
1001 Xueyuan Avenue
Shenzhen, Guangdong 518055
China

Tel: [phone]
Fax: [phone]

Web: www.leadshine.com
Sales: [email protected]

Leadshine America, Inc.

Address: 26050 Towne Centre Dr.
Foothill Ranch, CA 926
USA

Tel: [phone]
Fax: [phone]

Web: www.leadshineusa.com

Sales: [email protected]
Support: [email protected]

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

1.0

September, 2017

Initial Release

3.1

October, 2018

Firmware and PC software update to version 3.1

Notice

Read this manual carefully before any assembling and using. Incorrect handling of products in this manual can result in
injury and damage to persons and machinery. Strictly adhere to the technical information regarding installation
requirements.

This manual is not for use or disclosure outside of Leadshine except under permission. All rights are reserved. No part
of this manual shall be reproduced, stored in retrieval form, or transmitted by any means, electronic, mechanical,
photocopying, recording, or otherwise without approval from Leadshine. While every precaution has been taken in the
preparation of the book, Leadshine assumes no responsibility for errors or omissions. Neither is any liability assumed
for damages resulting from the use of the information contained herein.

This document is proprietary information of Leadshine that is furnished for customer use ONLY. Information in this
document is subject to change without notice and does not represent a commitment on the part of Leadshine.
Therefore, information contained in this manual may be updated from time-to-time due to product improvements, etc.,
and may not conform in every respect to former issues.

Record of Revisions

Revision Date Description of Release

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

Table of Cont ent

1. Introduction.................................................................................................................................................................. 1

1.1 Features ................................................................................................................................................................ 1

1.2 Applications ......................................................................................................................................................... 1

2. Specifications ................................................................................................................................................................ 2

2.1 Electrical Specifications ...................................................................................................................................... 2

2.2 Environment ........................................................................................................................................................ 2

2.3 Mechanical Specifications ................................................................................................................................... 3

2.4 Heat Dissipation................................................................................................................................................... 3

3.1 Connector P1 – Control and Digital Output Connections.................................................................................... 4

3.1.1 Pin Assignm ent s of P1 .............................................................................................................................. 4

3.1.2 Typical Control and Fault Output Connections ........................................................................................ 6

3.2 Connector P2 - Encoder Connection.................................................................................................................... 7

3.3 Connector P3 - Motor Connection ....................................................................................................................... 7

3.4 Connector P4 – Power Supply Connection .......................................................................................................... 7

3.5 Connector P5 – RS232 Connection ..................................................................................................................... 8

3.6 LED Light Indication ........................................................................................................................................... 8

4. Motor Selection ............................................................................................................................................................ 8

5. Power Supply Selection ............................................................................................................................................... 8

5.1 Regulated or Unregulated Power Supply ............................................................................................................. 9

5.2 Power Supply Sharing ......................................................................................................................................... 9

5.3 Selecting Supply Voltage ..................................................................................................................................... 9

6. DIP Switch Configurations ......................................................................................................................................... 9

6.1 Microstep Resolution (SW1-SW4) .................................................................................................................... 10

6.2 Other DIP Switch Settings (SW5-SW8) ............................................................................................................ 11

7. T ypical Connection .................................................................................................................................................... 11

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

8. Sequence Chart of Control Signals .......................................................................................................................... 11

9. Fault Protections ........................................................................................................................................................ 12

10. Software Configuration ........................................................................................................................................... 13

11. Accessori es ................................................................................................................................................................ 13

12. T r oublesho oting ....................................................................................................................................................... 14

13. Warra nty .................................................................................................................................................................. 16

Appendix A. Leadshine CS-D508 Compatible Stepper Motors .............................................................................. 17

Appendix B. Leadshine CS-D508 Compatible Power Supplies .............................................................................. 18

Appendix C. Powering a Third Party Motor with CS-D508 ................................................................................... 19

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

1. Introd uction

Leadshine CS-D508 is a closed loop stepper drive designed to solve the loss of step problem in open loop stepper
control systems, thus increase system reliability at minimal cost increase. It implements advanced control algorithm of
Leadshine based on its tens of years’ experience in stepper and servo controls. The CS-D508 is highly reliable and
affordable and performs excellent in many industrial applications such as CNC, medical, electronics, packaging...

The CS-D508 can power 2-phase NEMA 17, 23, and 24 stepper motors with incremental encoders. Compared with
traditional open loop stepper systems, a CS-D508 adopted closed loop step system can eliminate potential loss of step,
make real-time position error correction, and do not need torque reservation (100% torque implementation). Also it can
power the driven stepper motor with reduced heating, lower noise, low vibration…

1.1 Features

 No loss of step
 No torque reservation
 No hunting or overshooting
 No tuning for easy setup
 Capable of powering NEMA 8-34 stepper motors with rotary encoders
 Configurable mode for enhanced performance for applications of extra low speed and fast acceleration
 Configurable digital output for Fault Output, In Position, or Brake Control
 Excellent torque, low noise & vibration, smooth motion
 Step & direction or CW/CCW control modes
 20-50VDC supply voltage, max 8A output current
 Max 200 KHz input frequency
 15 micro step settings of 800-51,200 via DIP switches, or 200-51,200 by software

1.2 Applications

When a CS-D508 closed loop stepper drive is implemented with a compatible stepper motor with encoder, the closed
stepper system can be adopted in many small to median speed applications such as CNC routers, CNC mills, CNC
laser cutters, CNC plasma, lab automation instruments, plotters, medical equipment, electronic equipment, small
packaging machines, etc.

Page | 1

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

2. Specifications

2.1 Electrical Specifications

Parameters Min Typical Max Unit

Output Current 0.5 - 8.0(Peak) A

Operating Voltage 20 24, 36, 48 50 VDC

Logic signal current 7 10 16 mA

Pulse input frequency 0 - 200 kHz

Minimal pulse width 2.5 - - μS

Minimal direction setup 5.0 - - μS

Isolation resistance 500 MΩ

2.2 Environment

Cooling Natural Cooling or Forced Cooling

Operating Environment

Storage T emperat ure

Weight Approx. 280 g (9.9 Oz)

Environment

Ambient T em perature

Humidity

Operating T em perature

Vibration

Avoid dust, oil fog and corrosive gases

0°C － 65°C (32°F - 149°F)

40%RH－90%RH

0°C － 50°C (32°F - 122°F)

10-50Hz / 0.15mm

-20°C － 65°C (-4°F - 149°F)

Page | 2

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

2.3 Mechanical Specifications

(unit: mm [1inch=25.4mm])

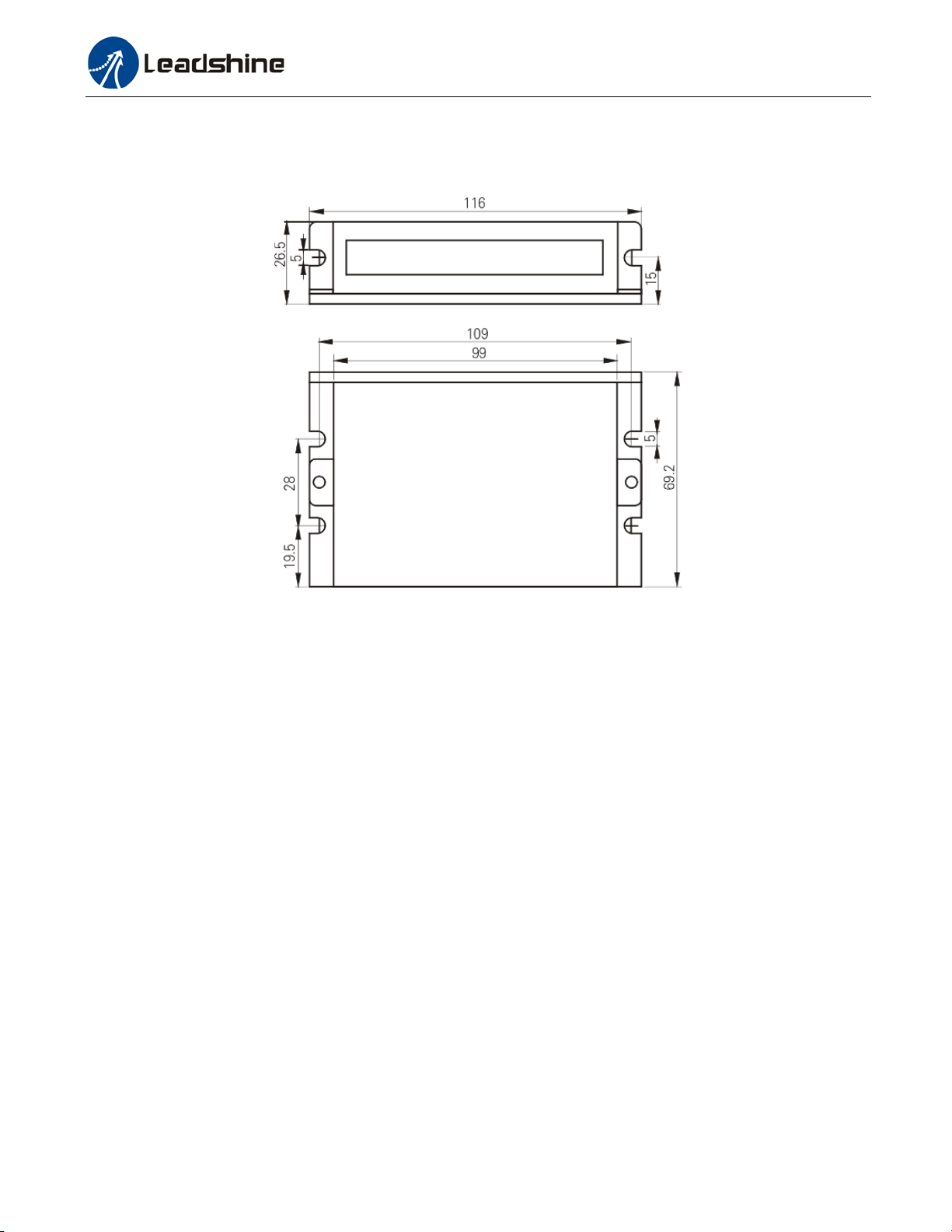

Figure 1: Mechanical specifications

2.4 Heat Dissipation

 CS-D508 reliable working temperature should be no more than 60℃ (140°F)
 It is recommended to mount the drive vertically to maximize heat dissipation. Mount a cooling fan nearby if

necessary.

 If multiple CS-D508 drives are installed, it is suggested to keep a minimal 30mm (12 inches) between two of

them.

Page | 3

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

3. Connections an d L ED Indi cat i on

A CS-D508 closed loop stepper drive has 5 connection blocks from P1 to P5 (see figure 2).

Figure 2: CS-D508 connectors

3.1 Connector P1 – Control and Digital Output Connect ions

3.1.1 Pin Assignm ent s of P1

The P1 connector in Figure 2 are used for connections of input control signals and one configurable digital output.

a) Pinout Definitions

There are 3 control signals for pulse, direction, and enable. See the following table for details.

Pin Name I/O Details

PUL+ I

Pulse signal: (1). In single pulse (pulse & direction) control mode, this input represents pulse
signal. A pulse signal is active at the rising or falling voltage edge (set by DIP switch SW8).
(2). In double-pulse (CW/CCW) control mode (set by DIP switch SW7), this signal input
represents clockwise (CW) pulse, and is active at both high voltage level and low voltage level.

PUL- I

(3). 4.5-24V for voltage HIGH, 0-0.5V for voltage LOW (same for DIR and ENA signals). (4).

Pulse width should be set to 2.5μs or longer.

DIR+ I

Direction signal: (1). In single pulse (step & direction) control mode, this signal’s low and high
voltage levels represent the two directions of motor rotation (e.g. clockwise and

Page | 4

DIR- I

drive. PNP and Differential control signals are on the contrary, namely Low level for enabling.

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

counterclockwise). (2). In double-pulse (CW & CCW) control mode, this signal represents
counterclockwise (CCW) rotation. It is active at both voltage high level and low level. (3).
Minimal DIR signal setup time should be at least 5μs. (4). You can reverse the default rotation
direction by toggling the SW5 DIP switch.

ENA+ I

Enable signal: This signal is used for enabling/disabling the drive. High voltage level of 5-24V
(NPN control signal) for enabli ng the dr iv e and l ow vol tage lev el of 0-0.5VDC for disabling the

ENA- I

By default this signal is left UNCONNECTED & ENABLED.

ALM+ O

Configurable Digital Output Signal: A configurable OC output signal. It takes a sinking or
sourcing 20mA current at 5-24V. It can to be configured as one of the 3 types, FAULT
OUTPUT (default), IN POSITION, or BRAKE CONTROL through Leadshine ProTuner CS-D

ALM- O

software.

Notes: (1) Shielding control signal wires is suggested; (2) to avoid/reduce interference, don’t tie control signal cables
and power wires together.

b) Fault Output, In Position, or Brake control Output Configuration

The digital output on the P1 connector, marked as ALM+ & ALM-, is software configurable (read ProTuner CS-D
software manual). It can be configured as one of the available 3 options – “Fault Output”, “In Position”, and “Brake
Control”. Those 3 options are described as below:

• Fault Output

The FAULT output is the default configuration. It signals a fault condition of CS-D508, including over-voltage,
over-current, or position following error. This output can be used to drive devices such as a relay, a LED, etc.; or as
an input signal for a PLC or I/O devices.
For example, for a multi-axis CNC machine, when one of the axes fails, such a fault output signal can be sent to
the motion controller of the machine and trigger an automatic machine shutdown.

• In Position

Use Leadshine ProTuner for CS-D software to configure this output as an IN POSITION output. In this case a
digital output signal will be sent out, when the targeted position is in the “Target Range” (refer to parameter
Distance to Send "In position" Output Signal in software manual).

• Brake Control

Use Leadshine ProTuner for CS-D software to configure this output as a BRAKE CONTROL output. In this case,
this signal can be used for automatic brake control while system power failure.

Page | 5

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

+24VDC

GND

CS-D508

ALM+

ALM-

Brake

Coil

24VDC

Relay

Controller

Control Signal
Connector

PUL+

1

DIR+

3

PUL-

DIR-

2

4

ENA+

5

ENA-

6

VCC = 5-24V
5V recommended

Step

Direction

Enable

VCC

VCC

VCC

Fault

5V

ALM+

1
2

ALM-

Status Signal
Connector

CS-D508

Controller

Control Signal
Connector

VCC = 5-24V
5V recommended

Fault

5V

ALM+

1
2

ALM-

Status Signal
Connector

CS-D508

PUL+

1

DIR+

3

PUL-

DIR-

2

4

ENA+

5

ENA-

6

5-24V
5V recommended

Step

Direction

Enable

It is recommended to connect a fly-wheel diode in parallel to a 24VDC relay and brake coil connection. Refer to
the following figure for brake connection.

3.1.2 Typical Control and Fault Output Connections

The CS-D508 can accept differential and single-ended control signal inputs (open-collector and PNP outp ut) . A CS­D508 has 3 optically isolated control inputs, PUL, DIR, and ENA. Refer to the following two figures for connections
of open-collector and PNP signals.

Figure 3: Connections to PNP signal Figure 4: Connections to open-collector signal

Page | 6

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

(Common-cathode) (Common-anode)

3.2 Connector P2 - Encoder Connection

The P2 connector in Figure 2 is for encoder signal connection. Refer to the following table for details.

Drive Pin Name Description

EB+

EB-

EA+

EA-

VCC

EGND

Encoder B+ input connection

Encoder B- input connection

Encoder A+ input connection

Encoder A- input connection

Encoder +5V voltage output connection

Power ground connection

Notes: encoder resolution must be 1000-line.

3.3 Connector P3 - Motor Connecti on

The P3 connector in Figure 2 is for motor connection. Refer to the following table for details.

Pin Name Details

A+

A-

Stepper motor A+ connection. Connect motor A+ wire to this pin

Stepper motor A- connection. Connect motor A- wire to this pin

B+

B-

Stepper motor B+ connection. Connect motor B+ wire to this pin

Stepper motor B- connection. Connect motor B- wire to this pin

3.4 Connector P4 – Power Supply Co nnect io n

The P4 connector in Figure 2 is for power supply connection. Refer to the following table for details.

Pin Name Details

+Vdc

GND

Power supply positive connection. 20-50VDC power supply voltage

Power supply ground connection.

Notes: see Appendix B for compatible Leadshine power supplies

Page | 7

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

Pin

NC - Not connected.

GND

GND

Ground.

3.5 Connector P5 – RS232 Connection

The P5 connector in Figure 2 is a RS232 communication port for PC connection. Refer to the following pin definitions.

RS232 Communication Port – RJ11

Name

1

2

3

4

5

6

Notes: RS232 connection of CS-D508 is for tuning purpose only, not for RS232 command controls.

3.6 LED Light Indication

There are two LED lights for CS-D508, one red and one green. The GREEN one is the power indicator which will be
always on generally. The RED one is a protection indicator. It is off always when a CS-D508 operates normally, but
will flash 1, 2 or 7 times in a 5-second period when error protection is enabled. Different number of flashes indicates
different protection type (read Section 9).

+5V O +5V power output.

TxD O RS232 transmit.

RxD I RS232 receive.

NC - Not connected.

4. Motor Selection

The CS-D508 is designed to power 2-phase (or 4-phase 0.9 degree) NEMA 17/23/24 stepper motors under 10000-line
incremental encoders (recommend 1000-line). Leadshine offers many high performance stepper motors compatible
with the CS-D508 which you can find in the Appendix A of this document. The CS-D508 can also power similar
stepper motors with incremental encoders from third-party suppliers.

5. Power Supply Selection

The CS-D508 can power small and medium size closed loop stepper motors (frame size from NEMA17 to 24) from
Leadshine (see Appendix A) or other motor manufacturers. To get good system performance, it is important to select
proper supply voltage and output current. Generally speaking, supply voltage determines the high speed performance
of the motor, while output current determines the output torque of the driven motor (particularly at lower speed).
Higher supply voltage will allow higher motor speed to be achieved, at the price of more noise and heating. If the
motion speed requirement is low, it’s better to use lower supply voltage to decrease noise, heating and improve

Page | 8

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

reliability.

Notes: See Appendix B at the end of this document for Leadshine CS-D508 compatible switching power supplies
specially designed for stepper & servo controls.

5.1 Regulated or Unregulat ed Power Sup ply

Both regulated and unregulated power supplies can be used to supply the drive. However, unregulated power supplies
are preferred due to their ability to withstand current surge and fast response for current change. If you prefer to a
regulated power supply, it is suggested to choose such a power supply specially designed for stepper/servo controls
such as Leadshine RPS series (http://www.leadshine.com/producttypes.aspx?producttype=regulated-switching

). Or, in
the case when only normal switching power supplies are available, it is important to use “OVERSIZE” high current
output rating power supplies (for example, using a 4A power supply for 3A stepper motor) to avoid problems such as
current clamp. On the other hand, if unregulated supply is used, one may use a power supply of lower current rating
than that of motor (typically 50%-70% of motor current). The reason is that the drive draws current from the power
supply capacitor of the unregulated supply only during the ON duration of the PWM cycle, but not during the OFF
duration. Therefore, the average current withdrawn from power supply is considerably less than motor current. For
example, two 3A motors can be well supplied by one power supply of 4A rating.

5.2 Power Supply Sharing

Multiple CS-D508 drives can share one power supply to save space and reduce cost, if that power supply has enough
power capacity. To avoid cross interference, connect each stepper drive directly to the shared power supply separately.
To avoid cross interference, DO NOT daisy-chain connect the power supply input pins of the Drivers. Instead connect
them to power supply separately.

5.3 Selecting Supply Voltage

The CS-D508 is designed to operate within 20-50VDC voltage input. When selecting a power supply, besides voltage
from the power supply power line voltage fluctuation and back EMF voltage generated during motor deceleration
needs also to be taken into account. Ideally it is suggested to use a power supply with the output of 20-48VDC, leaving
room for power line voltage fluctuation and back-EMF.

Higher supply voltage can increase motor torque at higher speeds, thus helpful for avoiding losing steps. However,
higher voltage may cause bigger motor vibration at lower speed, and it may also cause over-voltage protection or even
drive damage. Therefore, it is suggested to choose only sufficiently high supply voltage for intended applications.

6. DIP Switch Configurat ions

The CS-D508 has a built-in 8-bit DIP switch to set microstep resolution, motor direction, auto-tuning switch and so on.

Page | 9

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

Figure 5 DIP switch Setting

6.1 Microstep Resolution (SW1-SW4)

Microstep resolution is set by SW1, 2, 3, 4 of the DIP switches as shown in the following table:

Steps/Revolution SW1 SW2 SW3 SW4

Software Configured (Defaulted to 1600)

800

1600

3200

6400

12800

25600

51200

1000

2000

4000

on on on on

off on on on

on off on on

off off on on

on on off on

off on off on

on off off on

off off off on

on on on off

off on on off

on off on off

5000

8000

10000

20000

40000

off off on off

on on off off

off on off off

on off off off

off off off off

Page | 10

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

GND

A+
A-

+Vdc

Encoder Signal
Connector

1

5
6

Power &
Motor Connector

Controller

Black
Red

Control Signal
Connector

4

PUL+

1

DIR+

3

PUL-

DIR-

2

4

ENA+

5

ENA-

6

5V

Step

Direction

Enable

EA+: BLK EA-: BLU
EB+: YEL EB-: GRN
+5V: RED GND: WHT

Fault

5V

ALM+

1
2

ALM-

Status Signal
Connector

24-48VDC recommended,
leaving rooms for voltage fluctuation
and back EMF of the motor

2

Encoder
Extension Cable*

Encoder
Cable

*must be used

Power
Extension Cable

Power
Cable

3

B+
B-

Yellow/Green

Blue

CS-D508

6.2 Other DIP Switch Settings (SW5-SW8)

Function On Off

SW5

SW6

SW7

SW8

Default Direction

Auto Tuning No Yes

Pulse Model CW/CCW (double pulse) PUL/DIR (single pulse)

Pulse Edge Falling Rising

CW (clockwise) CCW (counterclockwise)

7. Typical Connection

A complete closed loop stepper system should include a stepper motor with encoder, CS-D508 drive, power supply and
controller (pulse generator). A typical connection is illustrated in figure 6.

8. Sequence Chart of Control Signals

In order to avoid some fault operations and deviations, PUL, DIR and ENA should abide by some rules, shown as
following diagram:

Figure 6: Typical connection

Page | 11

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

Priority

0.2S

5S

0.2S

0.3S

5S

0.2S

0.3S

5S

Figure 7: Sequence chart of control signals

Remark:

a) t1: ENA must be ahead of DIR by at least 500ms. Usually, ENA+ and ENA- are NC (not connected). See

“Connector P1 Configurations” for more information.

b) t2: DIR must be ahead of PUL effective edge by 5us to ensure correct direction;
c) t3: Pulse width not less than 2.5us;
d) t4: Low level width not less than 2.5us.

9. Fault Protections

To improve reliability, the drive incorporates some built-in protection features.

1st

2nd

Time(s) of

Blink

1

2

Sequence wave of red LED Description

Over-current protection activated when peak
current exceeds the limit.

Over-voltage protection activated when drive
working voltage is greater than 90VDC

3nd

7

Position following error

Page | 12

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

When above protections are active, the motor shaft will be free or the red LED blinks. Reset the drive by repowering it
to make it function properly after removing above problems.

10. Software Confi guration

The CS-D508 is designed for simple setup and implementation. For most applications no software configuration or
tuning is needed especially when driving Leadshine stepper motors with encoders (see Appendix A). If you want to do
fine tuning or custom configurations such as micro-step, current percentage change…, you can use Leadshine’s free
ProTuner software to make the changes.

1 1. Access ories

If you plan to use the ProTuner software, contact your supplier or Leadshine to purchase the RS232 cable with part
number CABLE-PC
USB to RS232 conversion, contact your supplier or Leadshine for such a cable with part number USB2.0-232 which
has been verified working fine.

for connecting the CS-D508 to a computer with Windows 7/8/10 installed. In the case of using

CABLE-PC USB2.0-232

(RS232 tuning cable) (USB to RS232 Conversion Cable)

Page | 13

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

12. Troubleshoot ing

In the event that your drive doesn’t operate properly, the first step is to identify whether the problem is electrical or
mechanical in nature. The next step is to isolate the system component that is causing the problem. As part of this
process you may have to disconnect the individual components that make up your system and verify that they operate
independently. It is important to document each step in the troubleshooting process. You may need this documentation
to refer back to at a later date, and these details will greatly assist our Technical Support staff in determining the
problem should you need assistance.

Many of the problems that affect motion control systems can be traced to electrical noise, controller software errors, or
mistake in wiring.

Symptoms Possible Problems Solutions

No power Connect power supply correctly

Microstep resolution setting is wrong Setting appropriate microstep

Motor is not rotating

Wrong motor rotation direction

The drive in fault

Fault condition exists Check wiring and restart power

Drive restore factory setting, and keep

The drive is disabled

ENA+, ENA- input signals unconnected.

The Direction signal level is reverse Toggling the SW5 DIP switch

Red light flashes once in a 5-second
period

Red light flashes twice in a 5-second
period

The motor coil may short circuit or exiting
the wrong wiring

The power supply exceeds Max. operation
voltage

If using Leadshine’s motor, refer to motor
Red light flashes 7-times in a 5-second
period

wiring in datasheet;If using 3rd motor,

need to swap the wiring of motor phase

A+ and phase A-

Red light is always on after power on The drive is burned

Ensure the current of control signal is
Control signal is too weak

within 7-16mA

Erratic motor motion

Control signal is interfered

Wrong motor connection

Don’t tie the control signal cable with

power cable together

Refer to user manual of drive and motor

Page | 14

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

datasheet

Something wrong with motor coil Check the motor is normal

Choose another power supply with lager
Current setting is too small

power or increase the output current of

drive

Motor stalls during acceleration

Excessive motor & drive heating

Motor vibration when powe r on

Motor is undersized for the application Choose another motor with higher torque

Acceleration is set too high Reduce the acceleration

Choose another power supply with large
Power supply voltage too low

voltage output

Inadequate heat sinking / cooling Refer to chapter 2.4

Reduce the current value refer to motor
Motor peak current setting is too high

datasheet

Speed loop Kp is too high Reduce the speed loop Kp value

Page | 15

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

13. W arr anty

T welve Month W arranty

Leadshine Technology Co., Ltd. warrants its products against defects in materials and workmanship for a period of 12
months from shipment out of factory. During the warranty period, Leadshine will either, at its option, repair or replace
products which proved to be defective.

Exclusions

The above warranty does not extend to any product damaged by reasons of improper or inadequate handlings by
customer, improper or inadequate customer wirings, unauthorized modification or misuse, or operation beyond the
electrical specifications of the product and/or operation beyond environmental specifications for the product.

Obtaining Warranty Service

To obtain warranty service, please contact your seller to obtain a returned material authorization number (RMA) before
returning product for service.

Shipping Failed Products

If your product fail during the warranty period, please contact your seller for how and where to ship the failed product
for warranty or repair services first, you can also e-mail customer service at [email protected]

to obtain a returned
material authorization number (RMA) before returning product for service. Please include a written description of the
problem along with contact name and address.

Page | 16

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

Appendix A. Leadshine CS-D508 Comp atible Stepper Motors

The following Leadshine stepper motors with 1000-line encoders have been confirmed working with the CS-D508
closed loop stepper drive.

Model

CS-M21702

CS-M21704

CS-M21706

CS-M21708

CS-M22306

CS-M22313

CS-M22323

CS-M22323-S

CS-M22326

CS-M22326-S

Frame Size

(NEMA)

17

Torque

Series

(N.m / Oz-In)

0.2 / 28

Length

Notes

(mm / inch)

56/2.20 -

0.4 / 57 63/2.48 -

0.6 / 85 70/2.76 -

0.8 / 113 83/3.27 -

0.6 / 85 62/2.44 -

1.3 / 184 77/3.03 -

2.3 / 326 97/3.82 -

2.3 / 326 97/3.82 0.25-inch (6.35-mm) shaft

2.6 / 368 105/4.13 -

CS-M

2.6 / 368 105/4.13 0.25-inch (6.35-mm) shaft

CS-M22321-L

CS-M22331-L

CS-M22331-L-S

CS-M22313B

CS-M22323B

CS-M22313WP

CS-M22323WP

23

2.1 / 368 88/3.46 -

3.1 / 439 109/4.29 -

3.1 / 439 109/4.29 -

1.3 / 184 109/4.29 24VDC brake integrated

2.3 / 326 131/5.15 24VDC brake integrated

1.2 / 184 95/3.74 IP65 rated

2.0 / 283 114/4.49 IP65 rated

Note: all above stepper motors are mounted with 1000-line incremental encoders

Page | 17

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

Appendix B. Leadshine CS-D508 Compatible Power Supplies

It is highly suggested to use the following Leadshine power supplies to power CS-D508 to get optimized performance.
Those power supply are specially designed for stepper and servo controls.

Output

Model

RPS2410V20 24

RPS3611V20 36 11 33 85-132 / 176-264

RPS488V20 48 8.3 24.9 85-132 / 176-264

RPS4810V20 48 10.5 31.5 85-132 / 176-264

RPS2410 24 10 12 85-132 / 176-264

RPS369 36 9.7 11 85-132 / 176-264

RPS488 48 7.3 8.5 85-132 / 176-264

RPS4810 48 10.4 12.5 85-132 / 176-264

SPS407 42

Voltage

(VDC)

Series

Model

RPS

Continuous

Current

(A)

10 30 85-132 / 176-264

7.0 9.0 180-240

Max

Current

(A)

Input Voltage

(VAC)

SPS407-L 42 4.7 9.0 90-130

SPS

SPS487 48 7.0 9.0 180-240

SPS487-L 48 3.0 9.0 90-130

Page | 18

CS-D508 Closed Loop Stepper Drive User Manual Version 3.1

Appendix C. Powering a Third Party Motor with CS-D508

To get the best system performance and most convenience for setup, it is highly recommended to choose a Leadshine
closed stepper motor along with the CS-D508 closed loop stepper drive. See Appendix A for frequently used Leadshine
closed loop stepper motors. If you can’t find one meeting your requirements there, contact Leadshine sales by
emailing [email protected] or [email protected]
one already there which can satisfy your application need already.

In the case of powering a third party closed loop stepper motor, pay special attention as described below.

• Your stepper motor must be a 2-phase stepper motor

• Your stepper motor must be mounted with a quadrature rotary encoder with the resolution of 500-5,000 line

(2,000- 20,000 counts).

• When the CS-D508 is first-time powered on after your stepper motor is connected, check the following

possible causes if a position following error (see Section 9 above).

o Confirm both encoder and power cables are connected properly and tightly secured.
o Power off the drive then swap the A+ and A- motor connections to the CS-D508 drive. The reason is

the definitions of your Motor A+ and A- are different from those marked on CS-D508 motor
connection pins (P3 of Figure 2).

. Leadshine offers many other custom models. There may be

If protection error is still seen after the above steps, contact your CS-D508 drive or Leadshine technical
support.

Page | 19
