LEADER LG 38SER03 Instruction Manual

LG 38SER03

ATSC MODULATOR

INSTRUCTION MANUAL

TABLE OF CONTENTS

1. INTRODUCTION ........................................................................................................ 1

1.1 About Licenses

1.2 Not

ations Used in This Manual ............................................................................................... 1

....................................................................................................................... 1

2. SPECIFICATIONS ...................................................................................................... 2

2.1 General

2.2 Features

2.3 S

2.3.1 T

2.3.2 RF Signal Generator

2.3.3 Internal Signal

2.3.4 General S

pecifications.......................................................................................................................... 2

................................................................................................................................... 2

.................................................................................................................................. 2

ransmission Encoder ..................................................................................................... 2

........................................................................................................ 2

.................................................................................................................. 2

pecifications ..................................................................................................... 2

3. DETAILED SETTINGS ............................................................................................... 3

3.1 SOURCE ................................................................................................................................3

3.1.1 Explanation of the SOURCE Screen (When Fixed Pattern is selected)

3.1.2 Explanation of the P

3.1.3 Explanation of the SOURCE Screen (When PN is selected)

3.1.4 Explanation of the SOURCE Screen (When External is selected)

3.1.5 Explanation of the

3.2 CODING

3.3 CHANNEL

3.4 GPIB

3.4.1 List of Program Codes

3.4.2 Program Code Det

3.5 Sample TS

3.5.1 Notes

3.5.2 S

................................................................................................................................. 9

............................................................................................................................. 10

..................................................................................................................................... 15

............................................................................................................................ 21

............................................................................................................................. 21

pecifications................................................................................................................. 22

ATTERN Screen .............................................................................. 5

........................................... 6

TS SETTING screen .......................................................................... 8

................................................................................................... 15

ails ................................................................................................... 18

........................... 4

................................... 7

Index

1. INTRODUCTION

1. INTRODUCTION

Thank you for purchasing this LEADER instrument. To use this instrument safely, read this
instruction manual thoroughly, and make sure that you know how to use the instrument

1.1 About Licenses

1.2 Notations Used in This Manual

properly.

If some point about the operation of this instrument is still unclear after you have read this
instruction manual, refer to the contact information on the back cover of the manual to contact
LEADER, or contact your local LEADER agent.
After you have finished reading this manual, keep it in a convenient place so that you can refer
to it when necessary.

This add-in software's features are only enabled after you enter a correct license key into the
LG 3810 and the license key is authenticated. For details on installing the software, see the
LG 3810 instruction manual.

You can only use the license key for this add-in software on one LG 3810. You cannot install
this software on multiple LG 3810s.

In function key explanations, items enclosed in [] are options, and underlined items are
factory default settings.

1

2. SPECIFICATIONS

2.1 General

This add-in software adds ATSC modulation functionality to the LG 3810.

2.2 Features

This software enables the LG 3810 to modulate signals as outlined in the ATSC standard.

2.3 Specifications

2.3.1 Transmission Encoder

Broadcast System

Digital Terrestrial Television Broadcasting

Transmission Parameters

Carrier Modulation 8VSB

2.3.2 RF Signal Generator

2. SPECIFICATIONS

ATSC (A/53B)

Output Channel (*1)

VHF, UHF Table 3-1 (see section 3.3, “CHANNEL”)

TV Tables 3-2 to 3-5 (see section 3.3, “CHANNEL”)

CA

Output Level

*1 When CW is set, a carrier signal is generated at the 8VSB pilot signal position. Therefore, the

frequency that is displayed on the screen and the frequency that is generated differ by 441 Hz.

-110.0 to +13.0 dBm (50 Ω termination)

2.3.3 Internal Signal

Fixed Pattern (*1) Colorbar, ramp, monoscope

PSI/SI Information Representative terrestrial broadcast values are stored

Video Format (*1)

ATSC 1920×1080i, 1280×720p, 704×480p,

Audio 1 kHz (LR), 400 Hz (LR), 1 kHz (L) + 400 Hz (R)

*1 The fixed patterns and video formats may be changed.

2.3.4 General Specifications

-63.0 to +60.0 dBmV (50 Ω termination)

-3.0 to +120.0 dBμV (50 Ω termination)

for the PAT, PMT, STT, MGT, and TVCT of the ATSC
specification.

704×480i (16:9), 704×480i (4:3)

Environmental Conditions Same as the LG 3810

Contents License key ................................................... 1

Accessories USB memory device (sample TS) ................. 1

Instruction manual ......................................... 1

2

3. DETAILED SETTINGS

For details on the STATUS (top screen), NOISE, LEVEL, BER, UTILITY, and SYSTEM settings,
see the LG 3810 instruction manual.

3.1 SOURCE

Press SOURCE under MENU to display the SOURCE screen.
Depending on the Source setting, the contents of the SOURCE screen differ, as shown
below.
See the following sections for explanations of the different screens. For an explanation of the
settings that are available when you set Source to Internal, see the LG 3810 instruction
manual.

Source = Fixed Pattern Source = PN

3. DETAILED SETTINGS

Source = External

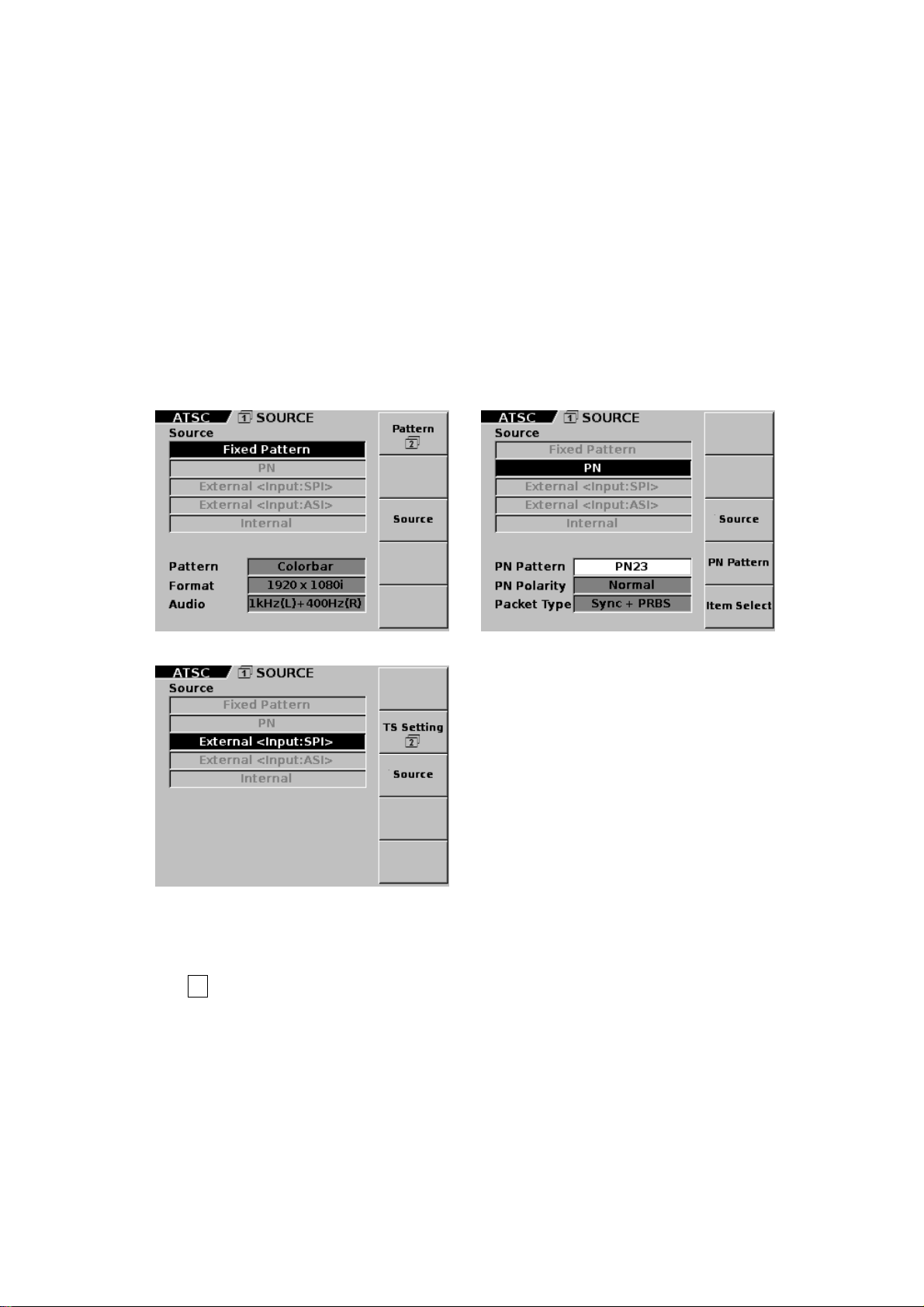

Figure 3-1 SOURCE screen

● Explanation of function keys

• F3 Source

Select the TS input that you want to use.
Fixed Pattern: Videos and audio that are stored in the LG 3810 are

modulated and generated (factory default).
PN: PN23 or PN15 random signals are used.
External<Input:SPI>: The TS that is applied to the rear panel SPI input connector is

used.
External<Input:ASI>: The TS that is applied to the rear panel ASI input connector is

used.

3

3. DETAILED SETTINGS

Internal: A TS from the internal HDD or an external USB device is

used.

Notes regarding switching the source

• When the TS input is switched (between each fixed pattern, PN, SPI, ASI, and

Internal), the receiver lock is released momentarily to reset the encoding circuit.

• The LG 3810 cannot receive data if an external TS (SPI or ASI) is selected and the

TS IN alarm is lit on the top screen or a TS that exceeds the allowable rate for
encoding is applied.

3.1.1 Explanation of the SOURCE Screen (When Fixed Pattern is selected)

Set Source to Fixed Pattern on the SOURCE screen to display the following screen.

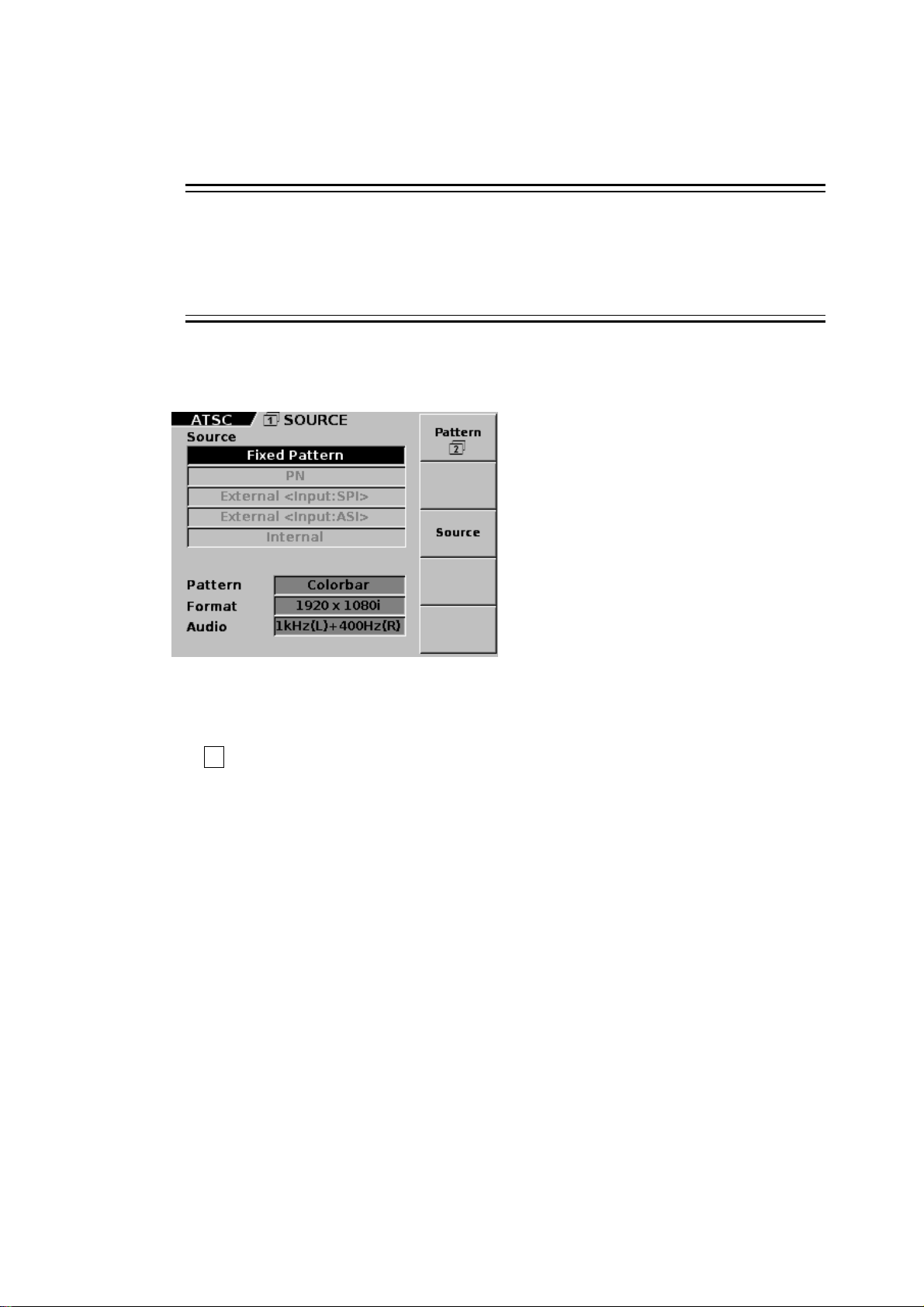

Figure 3-2 SOURCE screen (when Fixed Pattern is selected)

● Explanation of function keys

• F1 Pattern

Press to set the patterns that are stored on the LG 3810.

See section 3.1.2, “Explanation of the PATTERN Screen.”

4

3. DETAILED SETTINGS

3.1.2 Explanation of the PATTERN Screen

On the SOURCE screen, press F1 Pattern to display the PATTERN screen. You can use
this screen to set the video pattern, screen size, and audio pattern. You can specify any
combination of these settings.
F1 Pattern is available when you have set Source to Fixed Pattern on the SOURCE
screen.

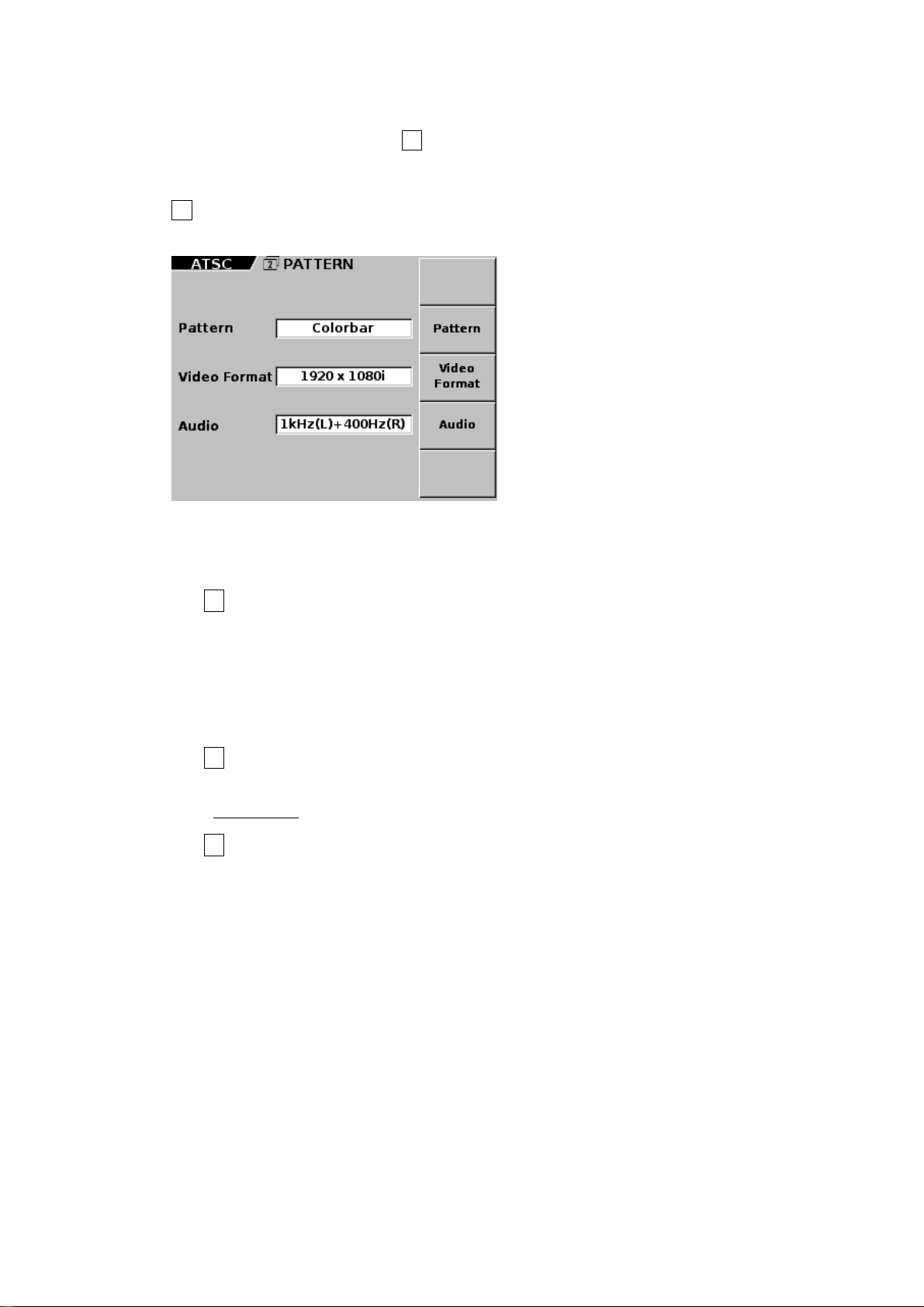

Figure 3-3 PATTERN screen

● Explanation of function keys

• F2 Pattern

Select the video pattern.
Colorbar: An eight-color, full-field color bar is used (factory default).
Ramp: A full-field ramp is used.
Monoscope: A monoscope, which changes between different specific

patterns depending on the screen size, is used.

• F3 Video Format

Select the screen size.
[ 1920×1080i

, 1280×720p, 704×480p, 704×480i (16:9), 704×480i (4:3) ]

• F4 Audio

Select the audio pattern.
1kHz(L,R): A tone signal (left and right both 1 kHz) is used.
400Hz(L,R): A tone signal (left and right both 400 Hz) is used.
1kHz(L)+400Hz(R): A tone signal (left: 1 kHz and right: 400 Hz) is used (factory

default).

5

3. DETAILED SETTINGS

3.1.3 Explanation of the SOURCE Screen (When PN is selected)

Set Source to PN on the SOURCE screen to display the following screen.

Figure 3-4 SOURCE screen (when PN is selected)

● Explanation of function keys

• F4 PN Pattern

Select the PN pattern.
PN23: PN23 (factory default)
PN15: PN15

• F4 PN Polarity

Select the polarity of the random signal.
Inverted: The polarity is inverted.
Normal: Error measurement using a general purpose BER measurement

instrument is possible (factory default).

• F4 Packet Type

Select the packet type.
Sync+PRBS: Sync (47 hex) + 187-byte PN (factory default)
Header+PRBS: Sync (47 hex) + 1FFF (hex) + 10 (hex) + 184-byte PN

• F5 Item Select

Select the item that you want use F4 to set.
Depending on the selected item, the string displayed by F4 changes.
PN Pattern: The PN pattern will be set (factory default).
PN Polarity: The polarity of the random signal will be set.
Packet Type: The packet type will be set.

6

3. DETAILED SETTINGS

3.1.4 Explanation of the SOURCE Screen (When External is selected)

Set Source to External on the SOURCE screen to display the following screen.

Figure 3-5 SOURCE screen (when External is selected)

● Explanation of function keys

• F2 TS Setting

Press to configure the TS input. When Source is set to Internal (only when Format is
set to MPEG-TS), you can also configure the TS input in the same manner.

See section 3.1.5, “Explanation of the TS SETTING screen.”

7

3. DETAILED SETTINGS

3.1.5 Explanation of the TS SETTING screen

On the SOURCE screen, press F2 TS Setting to display the TS SETTING screen. You can
use this screen to set the null packet filter and PCR overwriting.

F2 TS Setting is available when you have set Source to External or Internal (only when
Format is set to MPEG-TS) on the SOURCE screen. When Source is set to Internal and a
TS file is being played back, you cannot switch to the TS SETTING screen.

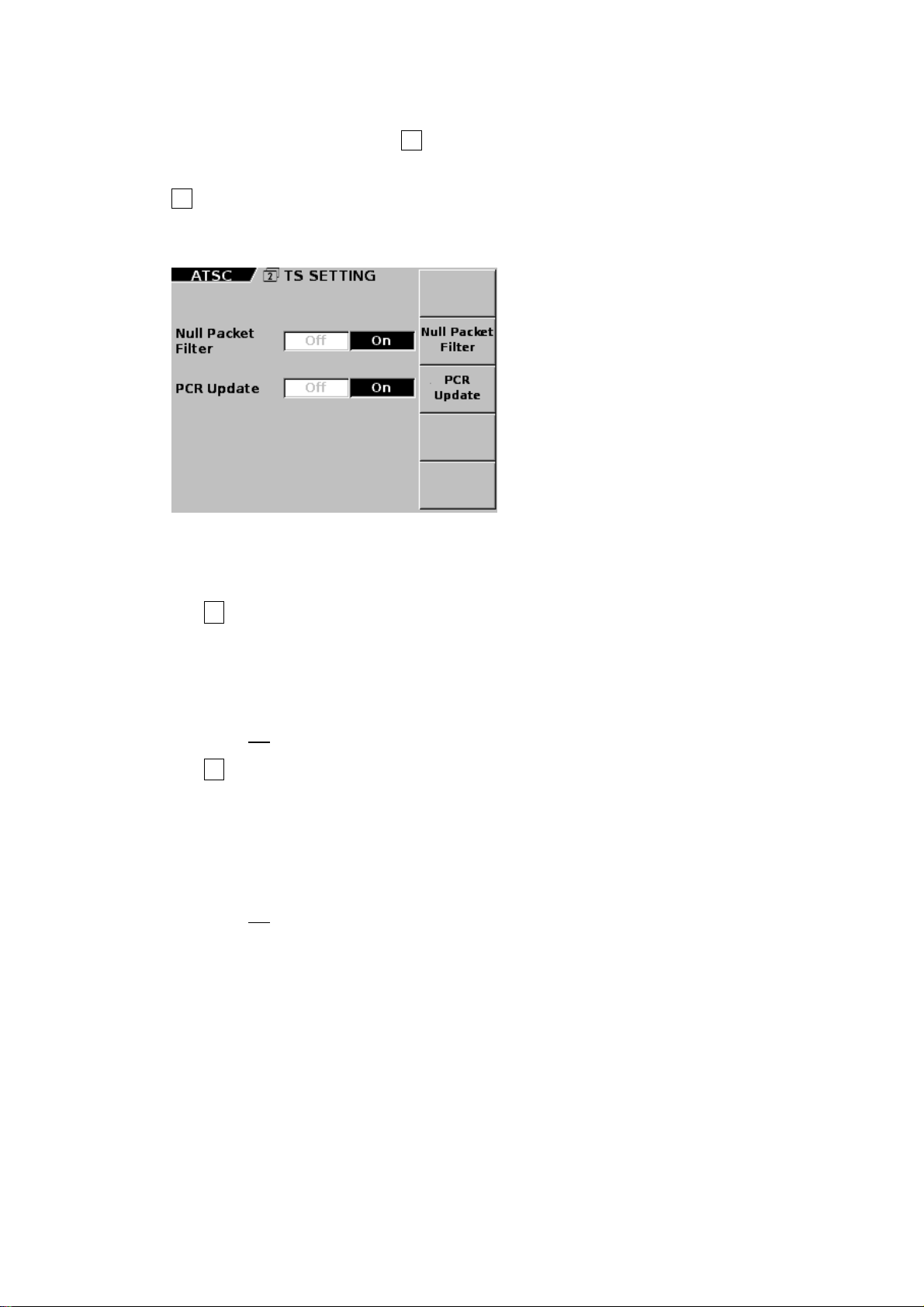

Figure 3-6 TS SETTING screen

● Explanation of function keys

• F2 Null Packet Filter

If you set Null Packet Filter to On, packets that contain the 0x1FFF PID are filtered
from the TS that is applied to the LG 3810. Removing unnecessary null packets
provides you with an increased number of carrier modulation choices. This feature is
not available for broadcast transport streams.
[ Off / On

]

• F3 PCR Update

Converts the external TS to a broadcast TS for broadcast encoding. During this
conversion, because the LG 3810 carries out operations such as rearranging the
packet order and inserting invalid packets, the PCRs must be overwritten. Therefore,
normally set PCR Update to On. For each external TS, the LG 3810 can overwrite up
to 8 types of PCRs. This feature is not available for broadcast transport streams.
[ Off / On

]

8

3.2 CODING

Press CODING under MENU to display the CODING screen. Use this screen to set the
modulation parameter.

Figure 3-7 CODING screen

● Explanation of the CODING screen

3. DETAILED SETTINGS

• Modulation

This displays the carrier modulation method, which is fixed to 8VSB.

● Explanation of function key

• F3 I/Q Swap

Set the IQ inversion.
[ Normal

/ Inverted ]

9

3.3 CHANNEL

The channel tables are shown below.
For an explanation of the CHANNEL screen, see the LG 3810 instruction manual.

Table 3-1 VHF and UHF channel table

CH Frequency

2 57.000

3 63.000

4 69.000

5 79.000

6 85.000

7 177.000

8 183.000

9 189.000

10 195.000

11 201.000

12 207.000

13 213.000

14 473.000

15 479.000

16 485.000

17 491.000

18 497.000

19 503.000

20 509.000

21 515.000

22 521.000

23 527.000

24 533.000

25 539.000

26 545.000

27 551.000

28 557.000

29 563.000

30 569.000

31 575.000

32 581.000

33 587.000

34 593.000

35 599.000

36 605.000

37 611.000

3. DETAILED SETTINGS

No. 1 to 3 USA No. 4 Korea

CH Frequency CH Frequency

38 617.000 74 833.000 2 50.000 46 673.000

39 623.000 75 839.000 3 57.000 47 681.000

40 629.000 76 845.000 4 64.000 48 689.000

41 635.000 77 851.000 5 177.000 49 697.000

42 641.000 78 857.000 6 184.000 50 705.000

43 647.000 79 863.000 7 191.000 51 713.000

44 653.000 80 869.000 8 198.000 52 721.000

45 659.000 81 875.000 9 205.000 53 729.000

46 665.000 82 881.000 10 212.000 54 737.000

47 671.000 83 887.000 11 219.000 55 745.000

48 677.000 12 226.000 56 753.000

49 683.000 21 473.000 57 761.000

50 689.000 22 481.000 58 769.000

51 695.000 23 489.000 59 777.000

52 701.000 24 497.000 60 785.000

53 707.000 25 505.000 61 793.000

54 713.000 26 513.000 62 801.000

55 719.000 27 521.000 63 809.000

56 725.000 28 529.000 64 817.000

57 731.000 29 537.000 65 825.000

58 737.000 30 545.000 66 833.000

59 743.000 31 553.000 67 841.000

60 749.000 32 561.000 68 849.000

61 755.000 33 569.000 69 857.000

62 761.000 34 577.000 70 865.000

63 767.000 35 585.000

64 773.000 36 593.000

65 779.000 37 601.000

66 785.000 38 609.000

67 791.000 39 617.000

68 797.000 40 625.000

69 803.000 41 633.000

70 809.000 42 641.000

71 815.000 43 649.000

72 821.000 44 657.000

73 827.000 45 665.000

CH Frequency CH Frequency

10

3. DETAILED SETTINGS

Table 3-2 CATV (USA STD) channel table

No. 1 USA STD

CH Frequency CH Frequency CH Frequency CH Frequency

C2 57.000 C38 309.000 C79 555.000 C125 801.000

C3 63.000 C39 315.000 C80 561.000 C126 807.000

C4 69.000 C40 321.000 C81 567.000 C127 813.000

C5 79.000 C41 327.000 C82 573.000 C128 819.000

C6 85.000 C42 333.000 C83 579.000 C129 825.000

C95 93.000 C43 339.000 C84 585.000 C130 831.000

C96 99.000 C44 345.000 C85 591.000 C131 837.000

C97 105.000 C45 351.000 C86 597.000 C132 843.000

C98 111.000 C46 357.000 C87 603.000 C133 849.000

C99 117.000 C47 363.000 C88 609.000 C134 855.000

C14 123.000 C48 369.000 C89 615.000 C135 861.000

C15 129.000 C49 375.000 C90 621.000

C16 135.000 C50 381.000 C91 627.000

C17 141.000 C51 387.000 C92 633.000

C18 147.000 C52 393.000 C93 639.000

C19 153.000 C53 399.000 C94 645.000

C20 159.000 C54 405.000 C100 651.000

C21 165.000 C55 411.000 C101 657.000

C22 171.000 C56 417.000 C102 663.000

C7 177.000 C57 423.000 C103 669.000

C8 183.000 C58 429.000 C104 675.000

C9 189.000 C59 435.000 C105 681.000

C10 195.000 C60 441.000 C106 687.000

C11 201.000 C61 447.000 C107 693.000

C12 207.000 C62 453.000 C108 699.000

C13 213.000 C63 459.000 C109 705.000

C23 219.000 C64 465.000 C110 711.000

C24 225.000 C65 471.000 C111 717.000

C25 231.000 C66 477.000 C112 723.000

C26 237.000 C67 483.000 C113 729.000

C27 243.000 C68 489.000 C114 735.000

C28 249.000 C69 495.000 C115 741.000

C29 255.000 C70 501.000 C116 747.000

C30 261.000 C71 507.000 C117 753.000

C31 267.000 C72 513.000 C118 759.000

C32 273.000 C73 519.000 C119 765.000

C33 279.000 C74 525.000 C120 771.000

C34 285.000 C75 531.000 C121 777.000

C35 291.000 C76 537.000 C122 783.000

C36 297.000 C77 543.000 C123 789.000

C37 303.000 C78 549.000 C124 795.000

11

3. DETAILED SETTINGS

Table 3-3 CATV (USA IRC) channel table

No. 2 USA IRC

CH Frequency CH Frequency CH Frequency CH Frequency

C2 57.000 C37 303.000 C78 549.000 C124 795.000

C3 63.000 C38 309.000 C79 555.000 C125 801.000

C4 69.000 C39 315.000 C80 561.000 C126 807.000

C1 75.000 C40 321.000 C81 567.000 C127 813.000

C5 81.000 C41 327.000 C82 573.000 C128 819.000

C6 87.000 C42 333.000 C83 579.000 C129 825.000

C95 93.000 C43 339.000 C84 585.000 C130 831.000

C96 99.000 C44 345.000 C85 591.000 C131 837.000

C97 105.000 C45 351.000 C86 597.000 C132 843.000

C98 111.000 C46 357.000 C87 603.000 C133 849.000

C99 117.000 C47 363.000 C88 609.000 C134 855.000

C14 123.000 C48 369.000 C89 615.000 C135 861.000

C15 129.000 C49 375.000 C90 621.000

C16 135.000 C50 381.000 C91 627.000

C17 141.000 C51 387.000 C92 633.000

C18 147.000 C52 393.000 C93 639.000

C19 153.000 C53 399.000 C94 645.000

C20 159.000 C54 405.000 C100 651.000

C21 165.000 C55 411.000 C101 657.000

C22 171.000 C56 417.000 C102 663.000

C7 177.000 C57 423.000 C103 669.000

C8 183.000 C58 429.000 C104 675.000

C9 189.000 C59 435.000 C105 681.000

C10 195.000 C60 441.000 C106 687.000

C11 201.000 C61 447.000 C107 693.000

C12 207.000 C62 453.000 C108 699.000

C13 213.000 C63 459.000 C109 705.000

C23 219.000 C64 465.000 C110 711.000

C24 225.000 C65 471.000 C111 717.000

C25 231.000 C66 477.000 C112 723.000

C26 237.000 C67 483.000 C113 729.000

C27 243.000 C68 489.000 C114 735.000

C28 249.000 C69 495.000 C115 741.000

C29 255.000 C70 501.000 C116 747.000

C30 261.000 C71 507.000 C117 753.000

C31 267.000 C72 513.000 C118 759.000

C32 273.000 C73 519.000 C119 765.000

C33 279.000 C74 525.000 C120 771.000

C34 285.000 C75 531.000 C121 777.000

C35 291.000 C76 537.000 C122 783.000

C36 297.000 C77 543.000 C123 789.000

12

3. DETAILED SETTINGS

Table 3-4 CATV (USA HRC) channel table

No. 3 USA HRC

CH Frequency CH Frequency CH Frequency CH Frequency

C2 55.750 C37 301.750 C78 547.750 C124 793.750

C3 61.750 C38 307.750 C79 553.750 C125 799.750

C4 67.750 C39 313.750 C80 559.750 C126 805.750

C1 73.750 C40 319.750 C81 565.750 C127 811.750

C5 79.750 C41 325.750 C82 571.750 C128 817.750

C6 85.750 C42 331.750 C83 577.750 C129 823.750

C95 91.750 C43 337.750 C84 583.750 C130 829.750

C96 97.750 C44 343.750 C85 589.750 C131 835.750

C97 103.750 C45 349.750 C86 595.750 C132 841.750

C98 109.750 C46 355.750 C87 601.750 C133 847.750

C99 115.750 C47 361.750 C88 607.750 C134 853.750

C14 121.750 C48 367.750 C89 613.750 C135 859.750

C15 127.750 C49 373.750 C90 619.750

C16 133.750 C50 379.750 C91 625.750

C17 139.750 C51 385.750 C92 631.750

C18 145.750 C52 391.750 C93 637.750

C19 151.750 C53 397.750 C94 643.750

C20 157.750 C54 403.750 C100 649.750

C21 163.750 C55 409.750 C101 655.750

C22 169.750 C56 415.750 C102 661.750

C7 175.750 C57 421.750 C103 667.750

C8 181.750 C58 427.750 C104 673.750

C9 187.750 C59 433.750 C105 679.750

C10 193.750 C60 439.750 C106 685.750

C11 199.750 C61 445.750 C107 691.750

C12 205.750 C62 451.750 C108 697.750

C13 211.750 C63 457.750 C109 703.750

C23 217.750 C64 463.750 C110 709.750

C24 223.750 C65 469.750 C111 715.750

C25 229.750 C66 475.750 C112 721.750

C26 235.750 C67 481.750 C113 727.750

C27 241.750 C68 487.750 C114 733.750

C28 247.750 C69 493.750 C115 739.750

C29 253.750 C70 499.750 C116 745.750

C30 259.750 C71 505.750 C117 751.750

C31 265.750 C72 511.750 C118 757.750

C32 271.750 C73 517.750 C119 763.750

C33 277.750 C74 523.750 C120 769.750

C34 283.750 C75 529.750 C121 775.750

C35 289.750 C76 535.750 C122 781.750

C36 295.750 C77 541.750 C123 787.750

13

3. DETAILED SETTINGS

Table 3-5 CATV (Korea) channel table

No. 4 Korea

CH Frequency CH Frequency

C1 107.000 C22 313.000

C2 114.000 C23 321.000

C3 121.000 C24 329.000

C4 128.000 C25 337.000

C5 135.000 C26 345.000

C6 142.000 C27 353.000

C7 149.000 C28 361.000

C8 156.000 C29 369.000

C9 163.000 C30 377.000

C10 170.000 C31 385.000

C11 233.000 C32 393.000

C12 240.000 C33 401.000

C13 247.000 C34 409.000

C14 254.000 C35 417.000

C15 261.000 C36 425.000

C16 268.000 C37 433.000

C17 275.000 C38 441.000

C18 282.000 C39 449.000

C19 289.000 C40 457.000

C20 296.000 C41 465.000

C21 305.000

Channel table specifications

• When you load channel table data from the UTILITY screen, load files that conform to the
following specifications. For other channel table specifications, see the LG 3810
Instruction Manual.
Table No. 1 /lg3810/ser03/channel/CH_0001.dat
Table No. 2 /lg3810/ser03/channel/CH_0002.dat
Table No. 3 /lg3810/ser03/channel/CH_0003.dat
Table No. 4 /lg3810/ser03/channel/CH_0004.dat
Table No. 5 /lg3810/ser03/channel/CH_0005.dat

14

3.4 GPIB

For details on using GPIB to control the LG 3810, see the LG 3810 instruction manual.

3.4.1 List of Program Codes

Table 3-6 List of setting codes

No. Header Data Description Unit

2 TS

10 LA n 0 to 1 Sets the IQ SWAP setting -

13 CO n 0 or 1 Sets the C/N addition setting -

14 CN i 0.0 to 40.0 Sets the C/N value dB

15 CU - - Increments the C/N value -

16 CD - - Decrements the C/N value -

17 CL n 0 to 2 Sets the C/N value step -

18 BO n 0 or 1 Sets the BER measurement -

21 BU ne 0.00E-0 to 9.99E-1 Sets the BER upper limit -

22 BL ne 0.00E-0 to 9.99E-1 Sets the BER lower limit -

23 BI i 0.1 to 86400.0 Sets the BER measurement cycle Seconds

24 BH t 00H00M00.1S to

26 BF n 0 or 1 Sets the BER measurement mode -

27 BS - - Resets the BER measurement -

30 CH n 2 to 83

31 RF i 30.000 to 960.000 Sets the RF frequency MHz

32 FU - - Increments the frequency -

33 FD - - Decrements the frequency -

34 DF n 0 to 5 Sets the frequency step -

35 LM i -110.0 to 13.0 Sets the output level dBm

36 LV i -3.0 to 120.0 Sets the output level dBμV

37 LW i -63.0 to 60.0 Sets the output level dBmV

38 DU - - Increments the output level -

39 DD - - Decrements the output level -

40 DL n 0 to 2 Sets the output level step -

41 CK n 0 or 1 Sets the reference signal -

42 ST n 0 to 99 Saves the specified preset -

43 RC n 0 to 99 Loads the specified preset -

44 RU - - Increments the address -

45 RD - - Decrements the address -

46 RR - - Returns the preset number to the start address -

47 GR n 0 to 9 Sets the group -

n 0 to 5 Sets the TS input -

p 0 to 2 Sets the PN pattern, drive that is used, or the

q 0 to 4 Sets the PN polarity or the screen size -

r 0 to 2 Sets the PN packet type or the audio pattern -

3. DETAILED SETTINGS

24H00M00.0S

C1 to C135

pattern

Sets the BER measurement cycle -

Sets the RF channel (The channel value

follows the specified channel table.)

-

-

15

3. DETAILED SETTINGS

No. Header Data Description Unit

48 GS

49 CW n 0 or 1 Sets the modulation -

50 RO n 0 or 1 Sets the RF output -

51 IP n 0 or 1 Sets the TS playback -

53 IR i 0.200000 to

54 IS t 000H00M00.0S to

55 IE t 000H00M00.0S to

56 IB n 0 to 1 Sets the range playback -

57 IL n 0 to 1 Sets the loop playback -

58 IM n 0 to 1 Sets the RAM playback -

63 AL n 0 to 1 Sets status screen display updating -

64 SS n 1 to 5 Sets the broadcast system -

65 HDW c ENABLE or DISABLE Sets the HDD write mode -

66 FSV c ENABLE or DISABLE Sets the file server -

67 NAM a Up to 16 characters

68 WGP a Up to 16 characters

n 0 to 9 Sets the group -

p 0 to 98 Sets the start address -

q 1 to 99 Sets the stop address -

Sets the TS bitrate Mbps

40.000000

Sets the playback start time -

999H59M59.9S

CLR

Sets the playback stop time -

999H59M59.9S

CLR

Sets the file server name -

in ASCII code

Sets the workgroup name -

in ASCII code

16

3. DETAILED SETTINGS

Table 3-7 List of query codes

No. Header Data Description Response

2 TS ? Queries the TS input n,p,q,r

10 LA ? Queries the modulation parameter n

13 CO ? Queries the C/N addition setting n

14 CN ? Queries the C/N value i

17 CL ? Queries the C/N value step n

18 BO ? Queries the BER measurement n

19 BR ? Queries the BER value ne

20 BJ ? Queries the BER test result n

21 BU ? Queries the BER upper limit ne

22 BL ? Queries the BER lower limit ne

23 BI ? Queries the BER measurement cycle (seconds) i

24 BH ? Queries the BER measurement cycle (time) t

26 BF ? Queries the BER measurement mode n

28 BT ? Queries the BER calculation period t

29 BW ? Queries the number of BER error bits n

30 CH ? Queries the RF channel n

31 RF ? Queries the RF frequency i

34 DF ? Queries the frequency step n

35 LM ? Queries the output level in dBm i

36 LV ? Queries the output level in dBμV i

37 LW ? Queries the output level in dBmV i

40 DL ? Queries the output level step n

41 CK ? Queries the reference signal n

47 GR ? Queries the group n

48 GS n, ? Queries the start and stop addresses n,p,q

49 CW ? Queries the modulation n

50 RO ? Queries the RF output n

51 IP ? Queries the TS playback n

52 II ? Queries the TS file information n,p,t

53 IR ? Queries the TS bitrate i

54 IS ? Queries the playback start time t

55 IE ? Queries the playback stop time t

56 IB ? Queries the range playback setting n

57 IL ? Queries the loop playback setting n

58 IM ? Queries the RAM playback setting n

63 AL ? Queries status screen display updating n

64 SS ? Queries the broadcast system n

65 HDW ? Queries the HDD write mode c

66 FSV ? Queries the file server c

67 NAM ? Queries the file server name a

68 WGP ? Queries the workgroup name a

17

3.4.2 Program Code Details

This section will explain the program codes from section 3.4.1, “List of Program Codes”
that are unique to this option. For details on how to use GPIB and the program codes that
are shared with the LG 3810, see the LG 3810 instruction manual.

2 TS input (TS)

Function Sets or queries the TS that is inserted into the modulated wave
Syntax TS_n (,p,q,r) (setting and response)

TS_? (query)

n TS Input

0 PN

1 External ASI

2 External SPI

3 Internal

4 Reserved (not used)

5 Fixed Pattern

Depending on the value of n, the amount of data that follows it (the number of
parameters) varies.

• When n = 0 (PN)

3. DETAILED SETTINGS

p PN Pattern

0 PN23

1 PN15

q PN Polarity

0 Inverted (-)

1 Normal (+)

r PN Packet Type

0 Sync + PRBS

1 Header + PRBS

• When n = 3 (Internal); this can only be used for queries, not to set the LG 3810

p Drive That Is Being Used

0 Internal HDD

1 External USB device

2 No file selected

18

3. DETAILED SETTINGS

• When n = 5 (Fixed Pattern)

p Pattern

0 Colorbar

1 Ramp

2 Monoscope

q Screen Size

0 1920 × 1080i

1 1280 × 720p

2 704 × 480p (16:9)

3 704 × 480i (16:9)

4 704 × 480i (4:3)

r Audio Pattern

0 L: 1 kHz and R: 400 Hz

1 L and R: 1 kHz

2 L and R: 400 Hz

Examples: PN TS_0,0,1,0 (PN, PN23, Normal, Sync + PRBS)

ASI or SPI TS_1 (ASI)
Fixed Pattern TS_5,1,0,2 (Fixed Pattern, ramp, 1920×1080, 400 Hz)
Internal TS_3 (when performing a setting)
Response returned from TS_? 3,0 (internal HDD)

* If the amount of data that follows the n parameter does not match what is expected for the

specified n value, the program code will be ignored.

* If the LG 3810 receives a “TS” command instructing it to set the transport stream while a TS is

being played back from the internal HDD or an external USB device, the TS that is playing will
be stopped.

10 Modulation parameter (LA)

Function Sets or queries the modulation parameter
Syntax LA_n (setting and response)

LA_? (query)

n IQ SWAP

0 Normal

1 Inverted

23 BER measurement cycle (BI)

Function Sets or queries the BER measurement cycle
Syntax BI_i (setting and response)

BI_? (query)

i BER Measurement Cycle (Seconds)

0.1 to 86400.0 -

19

3. DETAILED SETTINGS

34 Frequency step (DF)

Function Sets or queries the step that is used to increment or decrement the RF

frequency

Syntax DF_n (setting and response)

DF_? (query)

n Frequency Step

0 0.001

1 0.01

2 0.1

3 Reserved (not used)

4 1.0

5 10.0

* If the LG 3810 is configured to use channels instead of frequencies, this program code will be

ignored.

35 Output level in dBm (LM)

Function Sets or queries the output level in dBm
Syntax LM_i (setting and response)

LM_? (query)

i Output Level in dBm

-110.0 to 13.0 -

36 Output level in dBμV (LV)

Function Sets or queries the output level in dBμV
Syntax LV_i (setting and response)

LV_? (query)

i Output Level in dBμV

-3.0 to 120.0 -

37 Output level in dBmV (LW)

Function Sets or queries the output level in dBmV
Syntax LW_i (setting and response)

LW_? (query)

i Output Level in dBmV

-63.0 to 60.0 -

20

3.5 Sample TS

The LG 3810 comes with a USB memory device that contains an original sample transport
stream for checking the LG 3810's operations.

3.5.1 Notes

This TS has been created by LEADER to check the LG 3810's operations. It is not
designed to be used for evaluating decoders or as a reference for evaluating videos, image
quality, audio, or audio quality.
While the operation of this transport stream has been confirmed on representative
receivers that are commercially available, this does not guarantee that it will operate on all
receivers.
Please note that the data that is stored on the USB memory device can be deleted easily.

About the sample transport stream

• LEADER ELECTRONICS CORP. holds all copyrights to the videos contained in this
stream.

• You are not permitted to:

• Copy, process, or edit this stream without LEADER's permission.

• Decode this stream into a PES or elementary stream.

• Broadcast this stream or make it public for commercial purposes.

• Broadcast this stream or make it available to the general public.

• Transfer this stream to another company or individual.

• Use this stream with a device that has not been manufactured by LEADER.

3. DETAILED SETTINGS

21

3.5.2 Specifications

File Name TS_ATSC_N1_AC_HD1_v10.mpg
File Size 1,163,531,812 bytes
Number of Packets 6,188,999
Packet Format 188 bytes
TS Format MPEG-TS
Bitrate 15.5 Mbps
Programs 1
Program Contents MPEG-2 (MP@HL) video × 1 and AC-3 audio × 1
Used PIDs

PAT 0x0000
PMT 0x0040
MPEG-2 Video/PCR 0x0041
AC-3 Audio 0x0044
EIT-0 0x0100
EIT-1 0x0101
EIT-2 0x0102
EIT-3 0x0103
MGT 0x1FFB
TVCT 0x1FFB
STT 0x1FFB

Descriptors

PMT Registration descriptor (program identifier)

TVCT Service location descriptor
Channel TS ID 0x0005
Program Number 0x0004
Short Name LG3810
Major Channel Number 0x004
Minor Channel Number 0x001
Source ID 0x0001

Table 3-8 Program information

3. DETAILED SETTINGS

Smoothing buffer descriptor
Data stream alignment descriptor
Registration descriptor (audio elementary stream
identifier)
AC-3 audio stream descriptor

Channel Name

4-1 LG3810

00:00 – 03:00 03:00 – 06:00 06:00 – 09:00 09:00 – 12:00

YOKOHAMA YOKOHAMA YOKOHAMA YOKOHAMA

Event ID: 1 Event ID: 2 Event ID: 3 Event ID: 4

2008/10/01 (UTC)

22

Index

Ａ

Audio ........................................................................... 5

Ｃ

CHANNEL ................................................................. 10

CODING ...................................................................... 9

Ｅ

External ....................................................................... 7

Ｆ

Fixed Pattern ............................................................... 4

Ｉ

Ｎ

Null Packet Filter ..........................................................8

Ｐ

Packet Type..................................................................6

Pattern......................................................................4, 5

PATTERN.....................................................................5

PCR Update .................................................................8

PN ................................................................................6

PN Pattern....................................................................6

PN Polarity ...................................................................6

Ｓ

Source ..........................................................................3

SOURCE ......................................................................3

I/Q Swap...................................................................... 9

Item Select................................................................... 6

Ｍ

Modulation ................................................................... 9

Ｔ

TS Setting.....................................................................7

TS SETTING ................................................................8

Ｖ

Video Format................................................................5

Following information is for Chinese RoHS only

所含有毒有害物质信息

部件号码:

此标志适用于在中国销售的电子信息产品,依据2006年2月28日公布的
《电子信息产品污染控制管理办法》以及SJ/T11364-2006《电子信息产品污染
控制标识要求》，表示该产品在使用完结后可再利用。数字表示的是环境保护使
用期限，只要遵守与本产品有关的安全和使用上的注意事项，从制造日算起在数
字所表示的年限内，产品不会产生环境污染和对人体、财产的影响。
产品适当使用后报废的方法请遵从电子信息产品的回收、再利用相关法令。
详细请咨询各级政府主管部门。

部件名称

Parts 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚

本体部 × ○ ○ ○ ○ ○

有毒有害物质或元素 Hazardous Substances in each Part

(Pb) (Hg) (Cd) (Cr(Ⅵ)) (PBB) (PBDE)

LG 38SER03

产品中有毒有害物质或元素的名称及含量

备注）

○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006 规定的限量要求以下。

×：表示该有毒有害物质或元素至少在该部件的某一均质材料中的含量超出SJ/T11363-2006

　　标准规定的限量要求。

Ver.1

LEADER ELECTRONICS CORP.

2-6-33 Tsunashima-Higashi, Kohoku-ku, Yokohama 223-8505, Japan

PHONE:[phone] FAX:[phone] http://www.leader.co.jp

May. 20, 2010 Ver.1 (OP Ver.1.0)
