Page 1
LG 38SER02
ISDB-T MODULATOR
INSTRUCTION MANUAL
Page 2
TABLE OF CONTENTS
1. INTRODUCTION ........................................................................................................ 1
1.1 About Licenses
1.2 Not
ations Used in This Manual ............................................................................................... 1
....................................................................................................................... 1
2. SPECIFICATIONS ...................................................................................................... 2
2.1 General
2.2 Features
2.3 S
2.3.1 T
2.3.2 External TS
2.3.3 RF Signal Generator
2.3.4 I/O and Signal Source
2.3.5 Internal Signal
2.3.6 General S
pecifications.......................................................................................................................... 2
................................................................................................................................... 2
.................................................................................................................................. 2
ransmission Encoder ..................................................................................................... 2
Input Specifications ...................................................................................... 3
........................................................................................................ 3
...................................................................................................... 3
.................................................................................................................. 4
pecifications ..................................................................................................... 4
3. DETAILED SETTINGS ............................................................................................... 5
3.1 SOURCE ................................................................................................................................5
3.1.1 TS SET
3.1.2 PSI MODIFY
3.1.3 Selecting the Fix
3.1.4 Selecting the PN
3.1.5 Selecting EX
3.1.6 PID SELECT
3.1.7 Ex
3.1.8 Multiplex
3.2 CODING
3.2.1 PRESET
3.2.2 MANUAL
3.2.3 LA
3.3 CHANNEL
3.3.1 Setting the Subchannel
3.3.2 CH SETTING
3.3.3 Channel T
3.4 GPIB
3.4.1 List of Program Codes
3.4.2 Program Code Det
3.5 Sample TS
3.5.1 Notes
3.5.2 S
..................................................................................................................................... 31
pecifications................................................................................................................. 44
TING.................................................................................................................... 6
.................................................................................................................... 8
ed Pattern............................................................................................ 10
............................................................................................................ 12
TERNAL SPI or ASI................................................................................... 13
.................................................................................................................. 14
ample of Performing Layer Modulation...................................................................... 15
ing PCR Packets ............................................................................................. 17
............................................................................................................................... 18
........................................................................................................................ 20
........................................................................................................................ 23
YER INFO.................................................................................................................. 24
............................................................................................................................. 25
.................................................................................................. 25
................................................................................................................. 26
able................................................................................................................ 28
................................................................................................... 31
ails ................................................................................................... 36
............................................................................................................................ 44
............................................................................................................................. 44
Page 3
1. INTRODUCTION
1. INTRODUCTION
Thank you for purchasing this LEADER instrument. To use this instrument safely, read this
instruction manual thoroughly, and make sure that you know how to use the instrument
1.1 About Licenses
1.2 Notations Used in This Manual
properly.
If some point about the operation of this instrument is still unclear after you have read this
instruction manual, refer to the contact information on the back cover of the manual to contact
LEADER, or contact your local LEADER agent.
After you have finished reading this manual, keep it in a convenient place so that you can refer
to it when necessary.
This add-in software's features are only enabled after you enter a correct license key into the
LG 3810 and the licence key is authenticated. For details on installing the software, see the
LG 3810 instruction manual.
You can only use the license key for this add-in software on one LG 3810. You cannot install
this software on multiple LG 3810s.
The act of pressing and holding an LG 3810 panel key (operation button) for one second or
longer is referred to as “press and hold.”
In function key explanations, items enclosed in [] are options, and underlined items are
factory default settings.
1
Page 4
2. SPECIFICATIONS
2.1 General
This add-in software adds ISDB-T modulation functionality to the LG 3810.
2.2 Features
This software enables the LG 3810 to modulate signals as outlined in the ISDB-T/Tsb
standard.
2.3 Specifications
2.3.1 Transmission Encoder
Broadcast System
Digital Terrestrial Television Broadcasting ISDB-T (ARIB-STD-B31)
Digital Terrestrial Audio Broadcasting ISDB-Tsb (ARIB-STD-B29)
Transmission Parameters
Layers
ISDB-T 13seg A, B, C
ISDB-Tsb 3seg, 8-3seg A, B
ISDB-Tsb 1seg, 8-1seg A only
Mode MODE1, MODE2, MODE3
Guard Interval 1/4, 1/8, 1/16, 1/32
Carrier Modulation DQPSK, QPSK, 16QAM, 64QAM
Convolutional Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Time Interleaving Length 0 to 32 (differs based on the broadcast
Number of Segments
ISDB-T 13seg The number of segments can be specified for
ISDB-Tsb 3seg, 8-3seg The number of segments can be specified for
ISDB-Tsb 1seg, 8-1seg 1 segment
Sequential Transmission 8-segment, pseudo-random sequential
Partial Reception Can be specified
*1 The segment configuration is specified by the range of the subchannels that are occupied and the
subchannels.
*2 If the PCR packets in the TS are not independent, you cannot update the partial receiver's PCR.
2. SPECIFICATIONS
system and the mode)
each layer, but the total number of segments
cannot exceed 13.
each layer, but the total number of segments
cannot exceed 3.
transmission
*1
*2
2
Page 5
2. SPECIFICATIONS
2.3.2 External TS Input Specifications
Input Connector DVB-ASI, DVB-SPI
Input Packet Format 188 or 204 bytes
Supported Stream MPEG-2 TS (ISO/IEC13818-1)
*1
Input Data Rate
ISDB-T 13seg 23.234700 Mbps
ISDB-Tsb 3seg, 8-3seg 5.36185 Mbps
ISDB-Tsb 1seg, 8-1seg 1.787285 Mbps
Number of PCRs That Can Be Updated Up to 8
Seamless Playback Only possible when an internal TS is being
Update Parameter PCR
*1 Example when the guard interval is 1/32, carrier modulation is 64QAM, and the code rate is 7/8.
The maximum input data rate varies depending on the modulation parameter.
*2 Only when using the standard-equipped internal TS (still images and videos) or TS data that is saved
to the HDD.
2.3.3 RF Signal Generator
used
*2
Output Channel
VHF, UHF See Table 3-5
CATV See Table 3-6
Subchannels
ISDB-Tsb 1seg Channels 3 to 40
ISDB-Tsb 3seg Channels 6 to 37
ISDB-Tsb 8-3seg, 8-1seg See Table 3-4
Output Range
ISDB-T 13seg, ISDB-Tsb 8-3, 8-1seg -110.0 to +13.0 dBm (50 Ω termination)
ISDB-Tsb 3seg -115.0 to +8.0 dBm (50 Ω termination)
ISDB-Tsb 1seg -120.0 to +3.0 dBm (50 Ω termination)
2.3.4 I/O and Signal Source
-63.0 to +60.0 dBmV (50 Ω termination)
-3.0 to +120.0 dBμV (50 Ω termination)
-68.0 to +55.0 dBmV (50 Ω termination)
-8.0 to +115.0 dBμV (50 Ω termination)
-73.0 to +50.0 dBmV (50 Ω termination)
-13.0 to +110.0 dBμV (50 Ω termination)
IF Output
Output Level -22 dBm (ISDB-T 13seg, ISDB-Tsb 8-3,
8-1seg)
-27 dBm (ISDB-Tsb 3seg)
-32 dBm (ISDB-Tsb 1seg)
3
Page 6

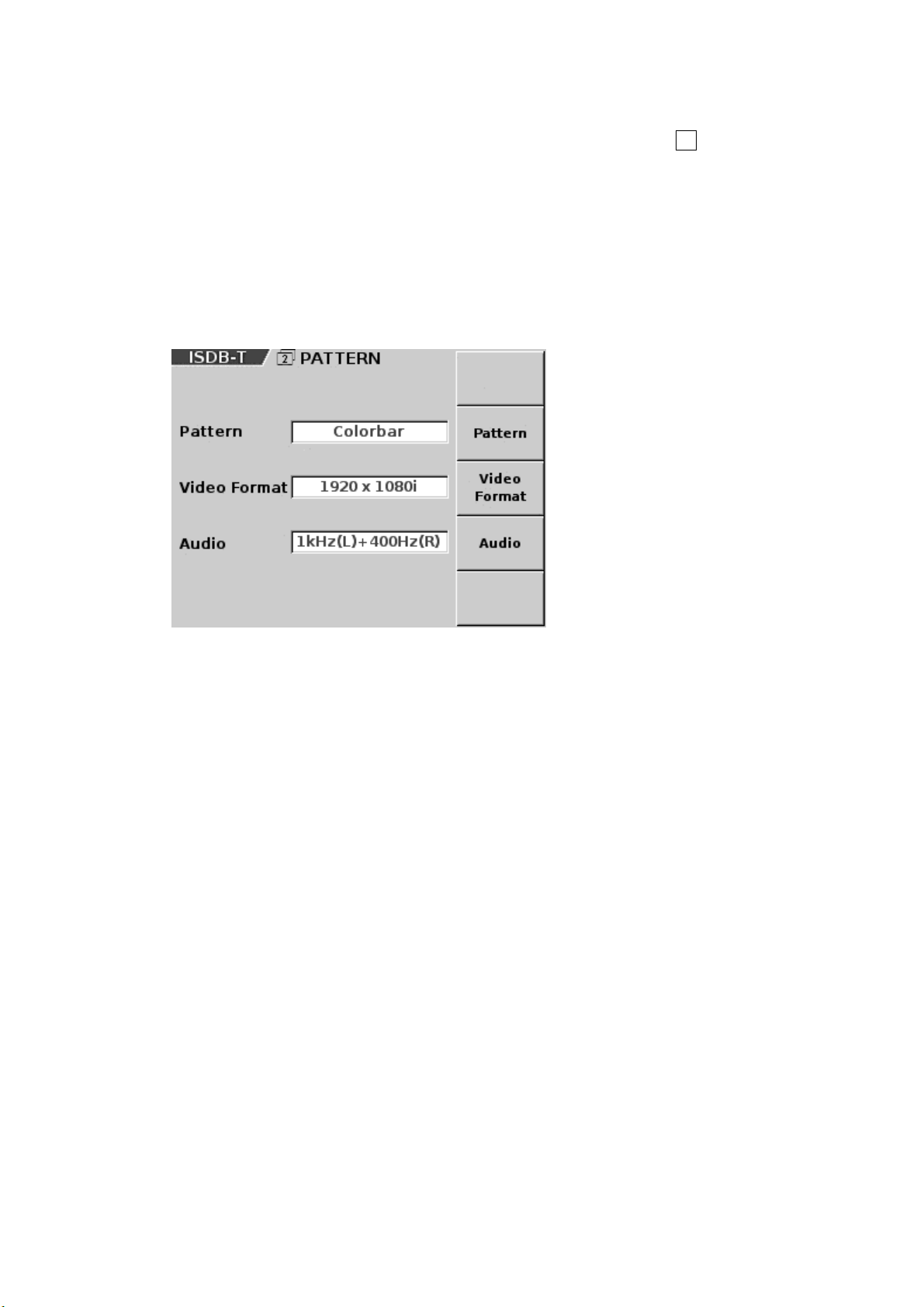

2.3.5 Internal Signal
Fixed Pattern*1 Colorbar, ramp, monoscope*2
PSI/SI Information Representative terrestrial broadcast values
*1
Video Format
1920×1080i, 1440×1080i, 720×480i (16:9),
Audio 1 kHz (LR), 400 Hz (LR), 1 kHz (L) + 400 Hz
*1 The fixed patterns and video formats may be changed.
*2 The LG 38SER02 does not have a 1440x1080i monoscope pattern.
2.3.6 General Specifications
Environmental Conditions Same as the LG 3810
Contents License Key ........................................ 1
2. SPECIFICATIONS
are stored for the ISDB-T specification.
720×480i (4:3)
(R)
USB Memory Device (Sample TS) ..... 1
Instruction Manual .............................. 1
4
Page 7
3. DETAILED SETTINGS
For details on the STATUS, NOISE, LEVEL, BER, UTILITY, and SYSTEM settings, see the LG
3810 instruction manual.
3.1 SOURCE
For details on the TS FILE settings when Source is set to Internal, see the LG 3810
instruction manual.
Press SOURCE under MENU to display the SOURCE screen.
3. DETAILED SETTINGS
Figure 3-1 SOURCE screen
● Explanation of function keys
• F2 TS Setting
Press to configure the TS input settings shown below.
If you use F3 Source to set the TS input to PN, you cannot enter this setup screen.
• Null Packet Filter
• PCR Update
• PCR on Partial
• PSI Modify
• TOT Overwrite
See section 3.1.1, “TS SETTING.”
• F3 Source
Select the TS input that you want to use.
Fixed Pattern Videos and audio that are stored in the LG 3810 are modulated
and generated (factory default).
PN PN23 or PN15 random signals are used.
External<Input:SPI> The TS that is applied to the rear panel SPI input connector is
used.
External<Input:ASI> The TS that is applied to the rear panel ASI input connector is
used.
Internal A TS from the internal HDD or an external USB device is used.
5
Page 8
Notes regarding switching the source
• When the TS input is switched (between each fixed pattern, PN, SPI, ASI, and Internal),
the receiver lock is released momentarily to reset the encoding circuit.
• The LG 3810 cannot receive data if an external TS (SPI or ASI) is selected and the TS IN
alarm is lit on the top screen or a TS that exceeds the allowable rate for encoding is
applied.
3.1.1 TS SETTING
3. DETAILED SETTINGS
On the SOURCE screen, press F2 TS Setting to display the following setup screen.

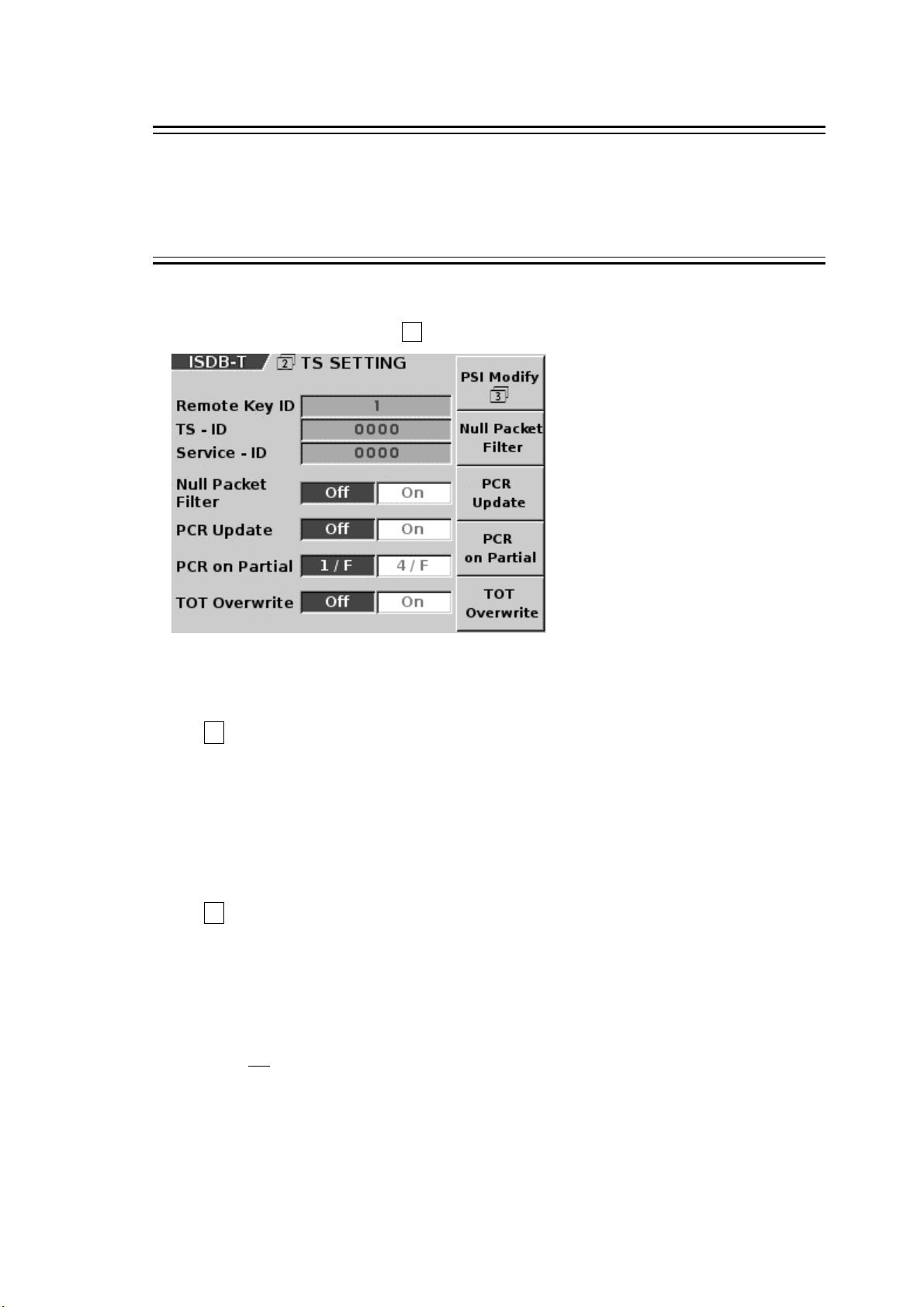

Figure 3-2 TS SETTING screen
● Explanation of function keys
• F1 PSI Modify
Press to overwrite the following parameters that are specified in the PAT, PMT, and
NIT.
• Remote Key ID
• TS-ID
• Service-ID
See section 3.1.2, “PSI MODIFY.”
• F2 Null Packet Filter
This setting is only available when you select an external TS (SPI or ASI) or the
Internal TS (MPEG-TS format). When turned ON, the Null Packet Filter filters packets
that contain the 0x1FFF PID from the TS that is applied to the LG 3810 input connector.
Removing unnecessary null packets provides you with an increased number of carrier
modulation choices. This feature is not available for broadcast transport streams.
[ Off / On
]
6
Page 9
3. DETAILED SETTINGS
• F3 PCR Update
Converts the external TS to a broadcast TS for broadcast encoding. Because the LG
3810 rearranges the packet order and inserts null packets during the conversion
process, the PCRs must be overwritten. Therefore, normally turn this setting ON. For
each external TS, the LG 3810 can overwrite up to 8 types of PCRs. This feature is not
available for broadcast transport streams.
[ Off / On
]
• F4 PCR on Partial
Set the partial receiver's PCR interval for each set of 1 OFDM frames.
1/F One time for each 1 OFDM frames
4/F Four times for each 1 OFDM frames (factory default)
This setting is available when F3 PCR Update is set to On and Partial Reception is set
to On on the MANUAL screen that is accessed from the CODING screen.
If Partial Reception is set to Off, the LG 3810 performs normal PCR correction.
This setting is not available if a broadcast TS is selected as the TS input.
• F5 TOT Overwrite
Set TOT Overwrite to On to overwrite the TOT (Time Offset Table) that is included in
the TS that is being applied according to the LG 3810's time settings. Set TOT
Overwrite to Off to generate the transport stream's TOT as is.
This setting is available when external ASI or SPI or Internal is selected.
When Fixed Pattern is selected, the TOT is normally set to the time settings based on
the LG 3810's clock.
For details on the LG 3810's time settings, see the LG 3810 instruction manual.
/ On ]
[ Off
Notes regarding overwriting the TOT
• This setting is not available if there is no TOT in the TS input.
• MPEG-2 and broadcast transport streams are supported.
7
Page 10
3.1.2 PSI MODIFY
3. DETAILED SETTINGS
To display the PSI MODIFY screen, on the TS SETTING screen, press F1 PSI Modify.
You can change specific parameters in PSI tables so that the LG 3810 can receive signals
on other channels. If you are using multiple LG 3810 signal generators to construct a
centralized signal source, you can set different PSIs and channels for each signal
generator to construct multiple transmission channels (the number of channels that you
construct is equal to the number of signal generators).
Figure 3-3 PSI MODIFY screen
● Explanation of function keys
• F1 DEC→HEX or HEX→DEC
Switches the format of the numeric keypad's direct input between decimal and
hexadecimal.
If F1 shows DEC→HEX, you can use the numeric keypad to input decimal numbers
(factory default).
If F1 shows HEX→DEC, you can use the numeric keypad to input hexadecimal
numbers.
• F2 Input Item
Select the item that you want to edit.
Each time that you press this function key, the item that is being edited switches in the
following order: Remote Key ID, TS-ID, Service-ID.
Remote Key ID Use the numeric keypad to specify the value, and then press
ENTER to confirm it.
The selectable range is from 1 to 12 (factory default: 1).
TS-ID Use the numeric keypad to specify the value, and then press
ENTER to confirm it. Press F1 DEC→HEX and HEX→DEC to
switch between decimal and hexadecimal input.
The selectable range is from 0x0000 to 0xFFFF (factory default:
0x0000).
8
Page 11
3. DETAILED SETTINGS
Service-ID Use the numeric keypad to specify the value, and then press
ENTER to confirm it. Press F1 DEC→HEX and HEX→DEC to
switch between decimal and hexadecimal input.
The selectable range is from 0x0000 to 0xFFFF (factory default:
0x0000).
• F4 PSI Modify
Enables or disables the PSI modify function. If set to Off, signals are transmitted
without any modifications.
If set to On, you can edit the parameters.
/ On ]
[ Off
Notes regarding overwriting PSIs
• This feature has been confirmed to work with the internal fixed patterns and the
supplied video files. The operation of this feature is not guaranteed for other streams.
• The tables that the parameters listed above modify are the PAT, NIT, and PMT. Other
tables (such as EIT, SDT, and BIT) are transmitted without modifications.
• This feature cannot properly update tables whose section length exceeds 183 bytes
(tables that spans over multiple packets). Turn the feature OFF when dealing with these
kinds of tables.
• This feature cannot properly update tables whose pointer field contains a non-zero
value. Turn the feature OFF when dealing with these kinds of tables.
• The LG 3810 may not be able to properly receive a TS that contains multiple services
depending on the contents of the PAT and NIT. If the LG 3810 is unable to properly
receive a TS, turn this feature OFF.
• Part of the PAT that can be overwritten: The service ID of the first program loop that
does not have TS-ID and NIT descriptors.
• Part of the PMT that can be overwritten: The service ID of the PMT that has a PID
whose service ID has been overwritten in the PAT.
• Parts of the NIT that can be overwritten: The NetworkID, TS-ID, OriginalNetworkID, the
service ID that is written at the beginning of the service list descriptor, the TS
information descriptor's RemoteKeyID, and the first service ID that is written.
• When a signal is applied to a receiver that has scanned for real broadcasts, the
broadcast studio name or program name may be overwritten.
9
Page 12
3.1.3 Selecting the Fixed Pattern
On the SOURCE screen, set Source to Fixed Pattern, and then press F1 Pattern to select
the video pattern, screen size, and audio pattern.
The LG 3810's internal fixed pattern TS signals support 1seg and 12seg (1+12seg). The
Fixed Pattern setting is only available when you have selected ISDB-T(13seg)
You can specify any combination that you want for the pattern, screen size, and audio. The
12seg monoscope becomes different specific patterns depending on the screen size.
However, the LG 3810 is not equipped with a monoscope pattern for a screen size of
1440×1080i. (This combination cannot be selected from the front panel.)
3. DETAILED SETTINGS
Figure 3-4 PATTERN screen
10
Page 13
3. DETAILED SETTINGS
● Explanation of function keys
• F2 Pattern
Select the video pattern.
Colorbar An eight-color, full-field color bar is used (factory default).
Ramp A full-field ramp is used.
Monoscope A monoscope is used.
• F3 Video Format
Select the screen size for 12seg.
The 1seg screen size is fixed to 320×180 (16:9), regardless of the setting.
12seg 1920×1080i (16:9; factory default)
1440×1080i (16:9)
720×480i (16:9)
720×480i (4:3)
1seg 320×180 (16:9)
• F4 Audio
Select the audio pattern.
1kHz(L,R) A tone signal (left and right both 1 kHz) is used.
400Hz(L,R) A tone signal (left and right both 400 Hz) is used.
1kHz(L)+400Hz(R) A tone signal (left: 1 kHz and right: 400 Hz) is used (factory
default).
About the 1seg monoscope patterns
• The 1seg monoscope is derived by reducing the 720×480 (16:9) image. Scales and
charts are not adjusted to the 320×180 screen size, so this monoscope pattern cannot
be used to perform operations such as checking the original resolution. Only use the
1seg monoscope to check patterns.
When Fixed Pattern is selected, regardless of the settings that are described in section
3.2.2, “MANUAL,” the modulation p
arameters are fixed to the following settings.
Mode 3
Guard Interval 1/8
Partial Reception On
Layer-A Layer-B
Modulation QPSK 64QAM
Code Rate 2/3 3/4
Time IL 4 2
Segments 1 12
11
Page 14
3.1.4 Selecting the PN
On the SOURCE screen, if you set Source to PN, the LG 3810 generates a random signal
(PN23 or PN15).
Figure 3-5 PN selection screen
● Explanation of function keys
3. DETAILED SETTINGS
• F4 PN Pattern
Select the PN pattern.
PN23 PN23 (factory default)
PN15 PN15
• F4 PN Polarity
Select the polarity of the random signal.
Inverted The polarity is inverted.
Normal Error measurement using a general purpose BER measurement
instrument is possible (factory default).
• F4 Packet Type
Select the packet type.
Sync+PRBS Sync (47hex) + 187-byte PN (factory default)
Header+PRBS Sync (47 hex) + 1FFF (hex) + 10 (hex) + 184-byte PN
• F5 Item Select
Select the item that you want use F4 to set.
Depending on the selected item, the string displayed by F4 changes.
PN Pattern The PN pattern will be set (factory default).
PN Polarity The polarity of the random signal will be set.
Packet Type The packet type will be set.
If you have specified multiple layers as shown in section 3.2.2, “MANUAL,” an indep
endent
PN is generated for each layer.
For details on the modulation settings, see 3.2.2, “MANUAL.”
12
Page 15
3. DETAILED SETTINGS
3.1.5 Selecting EXTERNAL SPI or ASI
On the SOURCE screen, set Source to External to use the TS that is applied to the SPI or
ASI connector.
Figure 3-6 External selection screen
● Explanation of function keys
• F4 PID Select
Press to select the PIDs to assign to each of the PN's layers
See section 3.1.6, “PID SELECT.”
• F5 Format
Select the format of the TS that you will apply.
MPEG-TS Use this setting for normal TS signals (factory default).
Depending on the carrier modulation settings, the upper limit of the TS
rate that can be applied varies. Use a TS that conforms to the settings
that you have made. For an MPEG TS, both a TS conversion that occurs
because of the encoding and a data rate conversion are carried out, so
there is no problem even if you apply an asynchronous signal to the LG
3810.
Also, the “Null Packet Filter” and “PCR Update” features are enabled. See
section 3.1.1, “TS SETTING.”
ISDB-T
Use this setting when you want to apply a broadcast TS that is defined in
ARIB STD-B31.
For a broadcast TS, note that there are the following conditions.
• Because there is no broadcast TS specification in ARIB STD-B29, only
the current television settings are used.
• Apply the signal to the SPI connector. The LG 3810 cannot handle
broadcast transport streams that are applied to the ASI connector.
• The modulation settings depend on the IIP packets within the TS.
• Apply a 32.507937 Mbps TS signal that is synchronized to the LG 3810.
If you apply an asynchronous signal, a correct signal will not be
generated.
• PID settings are ignored.
13
Page 16
3.1.6 PID SELECT
On the SOURCE screen, set Source to External, and then press F4 PID Select to assign
PIDs to each layer.
This setting is available when you set Format to MPEG-TS on the SOURCE screen.
3. DETAILED SETTINGS
Figure 3-7 PID SELECT screen
● Explanation of function keys
• F1 DEC→HEX or HEX→DEC
Use the numeric keypad to set the PID. This function key switches the format of the
numeric keypad's direct input between decimal and hexadecimal. Press ALL CLEAR
to clear the input value.
If F1 shows DEC→HEX, you can use the numeric keypad to input decimal numbers
(factory default).
If F1 shows HEX→DEC, you can use the numeric keypad to input hexadecimal
numbers.
• F2 ↑
Select the number. Each time you press this function key, the cursor that is highlighting
the number moves up a row.
• F3 Layer
Specify the layer that the packet that has the specified PID value is assigned to.
This setting is available when there are multiple layers.
/ B / C ]
[ A
• F4 ↓
Select the number. Each time you press this function key, the cursor that is highlighting
the number moves down a row.
• F5 Undef.PID Layer
Select the layer that packets that have a PID value other than those specified are
assigned to.
When there is one modulation layer: [ A
When there are two modulation layers: [ A
When there are three modulation layers: [ A
]
/ B ]
/ B / C ]
14
Page 17
3. DETAILED SETTINGS
* If you have selected layer C (when there are three modulation layers), and then you change the
number of modulation layers to two layers or one layer, Undefined PID is set to layer A. In the same
manner, if you have selected layer B (when there are two or three modulation layers), and then you
change the number of modulation layers to one layer, Undefined PID is set to layer A.
3.1.7 Example of Performing Layer Modulation
In this example, an external SPI TS is applied to the LG 3810, modulated into layers, and
then generated.
Modulation settings Layer A: QPSK 1/2 1 segment
Layer B: 16QAM 1/2 2 segments
Layer C: 64QAM 3/4 10 segments
Layer assignment PAT (0x0000): Layer B
NIT (0x0010): Layer B
Program 1 (service 1): Layer C
Program 2 (service 2): Layer B
Program 3 (service 3): Layer A
SDT, TOT, CAT, and other packets: Layer B
TS Input
0x0000 (PAT)
0x0010 (NIT)
0x0001 (CAT)
0x0011 (SDT)
0x0014 (TOT)
0x0024 (BIT)
Service 1
0x01F0 (PMT1)
0x0100 (Video1)
0x0200 (Audio1)
0x0300 (PCR1)
0x0012 (H-EIT)
Service 2
0x02F0 (PMT2)
0x0120 (Video2)
0x0220 (Audio2)
0x0320 (PCR2)
0x0026 (M-EIT)
Service 3
0x03F0 (PMT3)
0x0130 (Video3)
0x0230 (Audio3-1)
0x0231 (Audio3-2)
0x0330 (PCR3)
0x0530 (Data3)
0x0027 (L-EIT)
0x1FFF (Null)
Layer A
0x03F0
0x0130
0x0230
0x0231
0x0330
0x0530
0x0027
Layer B
0x0000
0x0010
0x02F0
0x0120
0x0220
0x0320
0x0026
Other packets
Layer C
0x01F0
0x0100
0x0200
0x0300
0x0012
0x1FFF
Figure 3-8 Layer assignment
15
Page 18
3. DETAILED SETTINGS
To assign the layers, follow the procedure below.
1. On the SOURCE screen, set Source to External and Format to MPEG-TS.
2. On the CODING screen, configure the modulation settings.
See section 3.2, “CODING.”
3. On the SOURCE screen, press F4 PID Select, and then specify PID number 1.
4. Enter the PID value as described in section 3.1.6, “PID SELECT.”
Enter the top PID value that is shown in Figure 3-8, 0x03F0.
Press F3 Layer to select A for the layer that this PID is assigned to.
5.
This completes the settings for PID number 1.
6. Specify PID number 2, and assign 0x0130 to layer A.
7. Repeat these steps to assign the remaining 11 PIDs that are shown in the figure to
layer A and C.
8. Press F5 Undefined PID Layer to select B.
All packets that you have not assigned by following this procedure up to step 7 will be
assigned to layer B.
9. To enable the settings that you have made, press UP MENU to return to the previous
screen or press and hold UP MENU to return to the top screen.
Notes regarding layer settings
• Use a TS whose PID tree structure is already known when you configure the LG 3810
with the above settings. The LG 3810 does not have TS tree analysis or display
features.
• The information rate that can be applied to each layer depends on the modulation
settings (guard interval, modulation method, code rate, and number of segments). If a
packet load that exceeds these settings is received, the internal buffer overflows, and
this causes the LG 3810 to generate an incorrect signal.
• You can assign up to 32 PIDs to a layer.
• Descriptor insertion and PSI editing are not supported.
16
Page 19
3.1.8 Multiplexing PCR Packets
The LG 3810 supports the features discussed in the section titled “Multiplexing PCR
packets at the partial-reception hierarchical layer” in ARIB STD-B29 and B31. Use the LG
3810 under the following conditions.
Supported layers Partial-reception hierarchy (when used for television
PCR multiplexing position From the start of the first OFDM frame to the first
Number of multiplexed PCR packets One packet per OFDM frame (Mode 1)
Important notes regarding PCR multiplexing
• PCR multiplexing is only supported at the partial-reception hierarchical layer.
• If partial reception is enabled in the modulation settings, and PCR Update is turned ON,
the LG 3810 performs PCR packet multiplexing at the partial-reception hierarchical
layer.
• Do not use this feature with PCR packets whose adaptation field control is not “10”
(adaptation field only). If you do, payload data will be lost.
• Partial-reception hierarchical layer PCR packets that are multiplexed into a TS are
discarded.
• Only assign a single PCR packet to the partial-reception hierarchical layer. Assignment
of multiple PCRs is not supported.
• You cannot change the PCR packet multiplexing position.
• If the insertion interval exceeds the multiplexing interval (58 ms or higher in Mode 3,
GI1/8), this feature increases the number of layer A PCR packets, so be careful of the
layer overflowing.
3. DETAILED SETTINGS
or 3 segments)
Layer A (when used for 1 segment)
layer A packet
Two packets per OFDM frame (Mode 2)
Four packets per OFDM frame (Mode 3)
17
Page 20
3.2 CODING
Press CODING under MENU to display the CODING screen. Use this screen to configure the
modulation parameters.
If one of the following sets of settings are made on the SOURCE screen, you can configure
the settings on the CODING screen as shown in the following figure (left side).
• Source is set to External <Input:SPI> or External <Input:ASI> and Format is set to MPEG-2
TS
• Source is set to PN
• Source is set to Internal and Format is set to MPEG-2 TS
For other cases, you can only display the modulation information and switch the Segment, as
shown in the following figure (right side).
To finish configuring the settings, press a key other than CODING under MENU, or press and
hold UP MENU to return to the top screen (status screen).
When settings can be changed When settings cannot be changed
3. DETAILED SETTINGS
Figure 3-9 Modulation settings screen
● Explanation of function keys
• F1 Preset
Five preset modulation patterns are available. On the PRESET screen, press F5 Preset
No. to select the preset.
See section 3.2.1, “PRESET.”
• F2 Manual
Press to configure the modulation parameters.
See section 3.2.2, “MANUAL.”
• F3 Segment
Select the broadcast system.
ISDB-T(13seg.) An RF signal for terrestrial digital television broadcast, as
defined in ARIB STD-B31, is generated (factory default).
ISDB-Tsb(3seg.) An RF signal for terrestrial digital audio broadcast (3 segments),
as defined in ARIB STD-B29, is generated independently.
ISDB-Tsb(1seg.) An RF signal for terrestrial digital audio broadcast (1 segment),
as defined in ARIB STD-B29, is generated independently.
18
Page 21
3. DETAILED SETTINGS
ISDB-Tsb(8-3seg.) An RF signal for terrestrial digital audio broadcast (3 segments),
as defined in ARIB STD-B29, is assigned to the specified
sequential transmission segments and is generated.
ISDB-Tsb(8-1seg.) An RF signal for terrestrial digital audio broadcast (1 segment),
as defined in ARIB STD-B29, is assigned to the specified
sequential transmission segment and is generated.
• F4 Info.
Select the modulation information that is displayed on this screen.
This setting is available when you have used F5 Item Select to select Info.
Current The current information (factory default)
Next The next information
• F4 Next Info.
Select how the next information is set.
This setting is available when you have used F5 Item Select to select Next Info.
No Use Select this setting when you do not need the next information (factory
default).
Modify Select this setting when you want to modify the next information manually.
• F4 EMG Bit
Turns the start flag for the emergency broadcast system ON or OFF.
This setting is available when you have used F5 Item Select to select EMG Bit.
[ Off / On ]
• F5 Item Select
Select the item that you want use F4 to set. Depending on the selected item, the string
displayed by F4 changes.
Info. Use this setting to select the modulation information that is displayed on
this screen (factory default).
Next Info. Use this setting to select how to set the next information.
EMG Bit Use this setting to turn the start flag for the emergency broadcast system
ON and OFF.
Notes regarding selecting the broadcast system
• Depending on the broadcast system that you select, other features will be limited.
• If you select ISDB-Tsb (3seg, 1seg, 8-3seg, or 8-1seg) and then specify Fixed Pattern for
the input source, the Segment setting will be changed to ISDB-T(13seg.).
• If you select ISDB-Tsb (3seg or 8-3seg), the number of layers and the number of
segments in the CODING settings will be fixed as follows: two layers and one segment +
two segments. Also, partial reception is fixed to On.
• If you select ISDB-Tsb (1seg or 8-1seg), the number of layers and the number of
segments in the CODING settings will be fixed as follows: one layer and one segment.
19
Page 22
3.2.1 PRESET
To display the PRESET screen, on the CODING screen, press F1 Preset.
To apply the settings that you have made on this screen, press UP MENU to return to the
CODING screen or the top screen, or press a key under MENU to switch to the
corresponding screen.
3. DETAILED SETTINGS
Figure 3-10 PRESET screen
● Explanation of function keys
• F4 Info.
Select the modulation information that is displayed on this screen.
Current The current information (factory default)
Next The next information
• F5 Preset No.
You can select from the five preset modulation patterns. (These presets cannot be
overwritten.)
For details on the presets, see Table 3-1 to Table 3-3.
to 5 ]
[ 1
20
Page 23
3. DETAILED SETTINGS
Table 3-1 List of ISDB-T (13seg) modulation presets
Setting
No. 1 No. 2 No. 3 No. 4 No. 5
Current Mode 3 3 2 3 3
GI 1/8 1/8 1/8 1/8 1/8
Partial reception OFF ON OFF ON ON
LA modulation 64QAM QPSK 16QAM QPSK QPSK
LA code rate 3/4 2/3 1/2 2/3 2/3
LA time IL 2 4 4 4 4
LA segments 13 1 13 1 1
LB modulation 64QAM 16QAM 16QAM
LB code rate 3/4 2/3 1/2
LB time IL 2 4 2
LB segments 12 12 3
LC modulation 64QAM
LC code rate 3/4
LC time IL 2
LC segments 9
Next Mode 3 3
GI 1/8 1/8
Partial reception ON OFF
LA modulation QPSK 64QAM
LA code rate 2/3 3/4
LA time IL 4 2
LA segments 1 13
LB modulation 16QAM
LB code rate 1/2
LB time IL 2
LB segments 3
LC modulation 64QAM
LC code rate 3/4
LC time IL 2
LC segments 9
Preset Number
21
Page 24
3. DETAILED SETTINGS
Table 3-2 List of ISDB-Tsb (3seg) and ISDB-Tsb (8-3seg) modulation presets
Setting
No. 1 No. 2 No. 3 No. 4 No. 5
Current Mode 3 3 3 3 3
GI 1/16 1/8 1/16 1/16 1/8
Partial reception ON ON ON ON ON
LA modulation QPSK QPSK QPSK QPSK QPSK
LA code rate 1/2 1/2 2/3 2/3 1/2
LA time IL 4 4 4 4 8
LA segments 1 1 1 1 1
LB modulation QPSK QPSK QPSK 16QAM QPSK
LB code rate 1/2 1/2 2/3 1/2 1/2
LB time IL 4 4 4 4 8
LB segments 2 2 2 2 2
Next Mode 3 3
GI 1/8 1/8
Partial reception ON ON
LA modulation QPSK QPSK
LA code rate 1/2 1/2
LA time IL 8 4
LA segments 1 1
LB modulation 16QAM 16QAM
LB code rate 1/2 1/2
LB time IL 8 4
LB segments 2 2
Preset Number
* The sequential transmission phase correction bits are all set to 0.
Table 3-3 List of ISDB-Tsb (1seg) and ISDB-Tsb (8-1seg) modulation presets
Setting
No. 1 No. 2 No. 3 No. 4 No. 5
Current Mode 3 3 3 3 2
GI 1/16 1/8 1/16 1/16 1/8
LA modulation QPSK QPSK QPSK 16QAM QPSK
LA code rate 1/2 1/2 2/3 1/2 1/2
LA time IL 4 4 4 4 8
LA segments 1 1 1 1 1
Next Mode 2 3
GI 1/8 1/16
LA modulation QPSK QPSK
LA code rate 1/2 1/2
LA time IL 8 4
LA segments 1 1
Preset Number
* The sequential transmission phase correction bits are all set to 0.
22
Page 25
3.2.2 MANUAL
3. DETAILED SETTINGS
To display the MANUAL screen, on the CODING screen, press F2 Manual.
You can use this screen to change the modulation parameters for the modulation
information that you selected on the CODING screen.
However, if you are specifying the Next modulation parameters, this screen only appears if
you have set Next Info. to Modify on the CODING screen.
The settings are the same for Current and Next, so this section will only explain the Current
settings.
To apply the settings that you have made on this screen, press UP MENU to return to the
CODING screen or the top screen, or press SOURCE under MENU to switch to the
SOURCE screen.
Normal screen sequential transmission
Figure 3-11 MANUAL screen
● Explanation of function keys
• F1 Layer Info.
Press to configure the modulation parameters for each layer.
See section 3.2.3, “LAYER INFO.”
• F2 Mode
Select the mode.
[ Mode1
/ Mode2 / Mode3 ]
• F3 Guard Interval
Select the guard interval.
[ 1/4 / 1/8 / 1/16 / 1/32
]
• F4 Partial Reception
Turns the partial reception flag ON or OFF. This setting is only available when you
have selected ISDB-T(13seg).
/ On ]
[ Off
• F5 Phase
Specify the sequential phase correction value. This setting is only available when you
have selected ISDB-Tsb sequential transmission (8-3seg or 8-1seg).
[ -7/8 / -6/8 / -5/8 / -4/8 / -3/8 / -2/8 / -1/8 / 0
]
23
Page 26
3.2.3 LAYER INFO.
To display the LAYER INFO screen, on the MANUAL screen, press F1 Layer Info.
Use this screen to configure each layer's modulation parameters.
Normal screen When incorrect settings have been made
3. DETAILED SETTINGS
Figure 3-12 LAYER INFO screen
● Explanation of function keys
• F1 Layer
Select the layer that you want to set.
/ B / C ]
[ A
• F2 Modulation
Select the carrier modulation method.
[ DQPSK
/ QPSK / 16QAM / 64QAM ]
• F3 Code Rate
Select the code rate.
/ 2/3 / 3/4 / 5/6 / 7/8 ]
[ 1/2
• F4 Time IL.
Select the time interleaving length. (The settings that are enclosed in parentheses are
only available when Segment is set to ISDB-Tsb.)
When Mode is set to Mode1 [ 0
When Mode is set to Mode2 [ 0
When Mode is set to Mode3 [ 0
/ 4 / 8 / 16 / (32) ]
/ 2 / 4 / 8 / (16) ]
/ 1 / 2 / 4 / (8) ]
• Segment
Use the numeric keypad to enter the number of segments. If you specify 13 segments,
only layer A is used. If you specify 12 segments or less, layer B can be specified.
Additionally, if the sum of layers A and B is 12 or less, layer C can be specified. If
partial reception is enabled, the layer A segment display shows “P,” and the number of
segments is fixed to 1.
24
Page 27
Notes regarding setting the layer information
• If the TS Source is set to Fixed Pattern, regardless of the settings that you make on this
screen, the layer information will be fixed to the settings explained in section 3.1.3,
“Selecting the Fixed Pattern.”
If you set Time IL. to a value other than 0, because the LG 3810 stores and processes
•
the encoded data in the internal memory, it takes from several seconds to several tens
of seconds for the LG 3810 to generate a valid signal.
3.3 CHANNEL
For details on the common settings that are not explained below, see the LG 3810 instruction
manual.
3.3.1 Setting the Subchannel
When Segment is set to a value other than ISDB-T(13seg) on the CODING screen, press
CHANNEL under MENU to display the following setup screen.
Segment: ISDB-Tsb(3seg) or ISDB-Tsb(1seg) Segment: ISDB-Tsb(8-3seg) or ISDB-Tsb(8-1seg)
3. DETAILED SETTINGS
Figure 3-13 CHANNEL screen when Segment is set to a value other than ISDB-T(13seg)
● Explanation of function keys
• F1 Table No.
Select the channel table.
(When Input Item is set to Frequency, pressing this key has no effect.)
• F1 CH Setting
Select the channel table, and select the subchannel that the sequential transmission
will occupy.
(When Input Item is set to Frequency, pressing this key has no effect.)
See section 3.3.2, “CH SETTING.”
• F2 ↑
Increments the channel or frequency by the step size. The channel or frequency
changes within the valid range.
25
Page 28
• F3 Step Size
When Input Item is set to VHF,UHF or CATV, this switches between channels and
subchannels.
/ SUB CH ]
[ CH
When Input Item is set to Frequency, specify the step that the value will change by
when you press F2 ↑ or F4 ↓.
[ 0.001 / 0.01 / 0.1 / 1/7 / 1.0 / 10.0 ]
• F4 ↓
Decrements the channel or frequency by the step size. The channel or frequency
changes within the valid range.
• F5 Input Item
Select the RF frequency's setting range and how the RF frequency is set. To specify a
value, use the numeric keypad, the ▲, ▼,
VHF,UHF Select this to specify a VHF or UHF channel directly (factory default).
CATV Select this to specify the CATV channel directly.
Frequency Select this to specify the frequency directly.
3.3.2 CH SETTING
3. DETAILED SETTINGS
▲
, and ▼ keys, or F2 ↑ and F4 ↓.
When Segment is set to ISDB-Tsb(8-3seg) or ISDB-Tsb(8-1seg) on the CODING screen,
press F1 CH Setting on the CHANNEL screen to display the CH SETTING screen.
You can use the CH SETTING screen to specify the start number of the subchannels that
are occupied during sequential transmission.
Figure 3-14 CH SETTING screen
● Explanation of the CH SETTING screen
• Occupied CH
This displays the subchannels that are occupied during sequential transmission.
This setting is available when:
• Segment is set to ISDB-Tsb(8-3seg) or ISDB-Tsb(8-1seg) on the CODING screen.
• Input Item is set to VHF,UHF or CATV.
26
Page 29
3. DETAILED SETTINGS
You can set the start number of the subchannels that are occupied during sequential
transmission to a value from 2 to 18.
The factory default value is 2.
When you specify the start number, the subchannels that can be specified on the
CHANNEL screen are displayed in the middle of the CH SETTING screen. The
subchannels that can be specified are listed in Table 3-4.
● Explanation of function key
• F1 Table No.
Select the channel table (factory default: Japan).
Table 3-4 Specifiable subchannels
Specifiable Subchannels Occupied
Subchannels
2 to 25 3, 6, 19, 12, 15, 18, 21, 24 6, 9, 12, 15, 18, 21
3 to 26 4, 7, 10, 13, 16, 19, 22, 25 7, 10, 13, 16, 19, 22
4 to 27 5, 8, 11, 14, 17, 20, 23, 26 8, 11, 14, 17, 20, 23
5 to 28 6, 9, 12, 15, 18, 21, 24, 27 9, 12, 15, 18, 21, 24
6 to 29 7, 10, 13, 16, 19, 22, 25, 28 10, 13, 16, 19, 22, 25
7 to 30 8, 11, 14, 17, 20, 23, 26, 29 11, 14, 17, 20, 23, 26
8 to 31 9, 12, 15, 18, 21, 24, 27, 30 12, 15, 18, 21, 24, 27
9 to 32 10, 13, 16, 19, 22, 25, 28, 31 13, 16, 19, 22, 25, 28
10 to 33 11, 14, 17, 20, 23, 26, 29, 32 14, 17, 20, 23, 26, 29
11 to 34 12, 15, 18, 21, 24, 27, 30, 33 15, 18, 21, 24, 27, 30
12 to 35 13, 16, 19, 22, 25, 28, 31, 34 16, 19, 22, 25, 28, 31
13 to 36 14, 17, 20, 23, 26, 29, 32, 35 17, 20, 23, 26, 29, 32
14 to 37 15, 18, 21, 24, 27, 30, 33, 36 18, 21, 24, 27, 30, 33
15 to 38 16, 19, 22, 25, 28, 31, 34, 37 19, 22, 25, 28, 31, 34
16 to 39 17, 20, 23, 26, 29, 32, 35, 38 20, 23, 26, 29, 32, 35
17 to 40 18, 21, 24, 27, 30, 33, 36, 39 21, 24, 27, 30, 33, 36
18 to 41 19, 22, 25, 28, 31, 34, 37, 40 22, 25, 28, 31, 34, 37
ISDB-Tsb (8-1seg) ISDB-Tsb (8-3seg)
About other segments during sequential transmission
• During sequential transmission, the LG 3810 uses dummy data to modulate and
generate the segments other than those specified above—the other seven segments
for ISDB-Tsb (8-1seg) and the other five segments for ISDB-Tsb (8-3seg). This means
that these segments may not be properly received. Even if these segments are
received, because they are random TS data, they cannot be used for tests such as BER
measurements.
27
Page 30
3.3.3 Channel Table
Table 3-5 VHF and UHF channel table
CH Frequency CH Frequency CH Frequency CH Frequency
1 93.143 40 635.143 7 177.143 46 665.143
2 99.143 41 641.143 8 183.143 47 671.143
3 105.143 42 647.143 9 189.143 48 677.143
4 173.143 43 653.143 10 195.143 49 683.143
5 179.143 44 659.143 11 201.143 50 689.143
6 185.143 45 665.143 12 207.143 51 695.143
7 191.143 46 671.143 13 213.143 52 701.143
8 195.143 47 677.143 14 473.143 53 707.143
9 201.143 48 683.143 15 479.143 54 713.143
10 207.143 49 689.143 16 485.143 55 719.143
11 213.143 50 695.143 17 491.143 56 725.143
12 219.143 51 701.143 18 497.143 57 731.143
13 473.143 52 707.143 19 503.143 58 737.143
14 479.143 53 713.143 20 509.143 59 743.143
15 485.143 54 719.143 21 515.143 60 749.143
16 491.143 55 725.143 22 521.143 61 755.143
17 497.143 56 731.143 23 527.143 62 761.143
18 503.143 57 737.143 24 533.143 63 767.143
19 509.143 58 743.143 25 539.143 64 773.143
20 515.143 59 749.143 26 545.143 65 779.143
21 521.143 60 755.143 27 551.143 66 785.143
22 527.143 61 761.143 28 557.143 67 791.143
23 533.143 62 767.143 29 563.143 68 797.143
24 539.143 30 569.143 69 803.143
25 545.143 31 575.143
26 551.143 32 581.143
27 557.143 33 587.143
28 563.143 34 593.143
29 569.143 35 599.143
30 575.143 36 605.143
31 581.143 37 611.143
32 587.143 38 617.143
33 593.143 39 623.143
34 599.143 40 629.143
35 605.143 41 635.143
36 611.143 42 641.143
37 617.143 43 647.143
38 623.143 44 653.143
39 629.143 45 659.143
3. DETAILED SETTINGS
No.1 Japan No.2 Brazil
28
Page 31
3. DETAILED SETTINGS
Table 3-6 CATV channel table
No.1 Japan
CH Frequency CH Frequency
C13 111.143 C52 399.143
C14 117.143 C53 405.143
C15 123.143 C54 411.143
C16 129.143 C55 417.143
C17 135.143 C56 423.143
C18 141.143 C57 429.143
C19 147.143 C58 435.143
C20 153.143 C59 441.143
C21 159.143 C60 447.143
C22 167.143 C61 453.143
C23 225.143 C62 459.143
C24 231.143 C63 465.143
C25 237.143
C26 243.143
C27 249.143
C28 255.143
C29 261.143
C30 267.143
C31 273.143
C32 279.143
C33 285.143
C34 291.143
C35 297.143
C36 303.143
C37 309.143
C38 315.143
C39 321.143
C40 327.143
C41 333.143
C42 339.143
C43 345.143
C44 351.143
C45 357.143
C46 363.143
C47 369.143
C48 375.143
C49 381.143
C50 387.143
C51 393.143
29
Page 32
3. DETAILED SETTINGS
Channel table specifications
• When you load channel table data from the UTILITY screen, load files that conform to
the following specifications. For other channel table specifications, see the LG 3810
Instruction Manual.
Table No.1 /lg3810/ser02/channel/CH_0001.dat
Table No.2 /lg3810/ser02/channel/CH_0002.dat
Table No.3 /lg3810/ser02/channel/CH_0003.dat
Table No.4 /lg3810/ser02/channel/CH_0004.dat
Table No.5 /lg3810/ser02/channel/CH_0005.dat
30
Page 33
3.4 GPIB
For details on using GPIB to control the LG 3810, see the LG 3810 Instruction Manual.
3.4.1 List of Program Codes
Table 3-7 List of setting codes
No. Header Data Description Unit
1 SY n 0 to 4 Selects the segment -
n 0 to 5 Selects the TS input -
2 TS
3 PD
4 UD n 1 to 3 Layer to assign undefined PIDs to -
5 TR n 1 to 5 Sets the TMCC preset pattern -
6 EM n 0 or 1 Sets the EMG bit -
7 MD
8 GI
9 PH n 0 to 7 Sets the phase correction (Tsb) -
10 LA
11 L B
12 LC
13 CO n 0 or 1 C/N addition; ON (1) or OFF (0) -
14 CN i 0.0 to 40.0 Sets the C/N value dB
15 CU - - Increments the C/N value -
16 CD - - Decrements the C/N value -
17 CL n 0 to 2 Sets the digit to change -
p 0 to 2 TS input type or fixed video pattern -
q 0 to 3 Fixed screen size or PN polarity -
r 0 to 2 Fixed audio pattern or PN packet type -
n 1 to 32 Sets the PID assignment to the layer -
p 0 to 3 Layer to assign the PID to -
q 0 to 1FFF PID value
n 0 or 1 Selects current or next -
p 1 to 4 Sets the mode -
n 0 or 1 Selects current or next -
p 0 to 3 Sets the guard interval -
n 0 to 4 Layer A carrier modulation -
p 0 to 5 Layer A code rate -
q 0 to 5 Layer A time interleave length -
r P, 1 to 13 Number of layer A segments -
n 0 to 4 Layer B carrier modulation -
p 0 to 5 Layer B code rate -
q 0 to 5 Layer B time interleave length -
r 1 to 12 Number of layer B segments -
n 0 to 4 Layer C carrier modulation -
p 0 to 5 Layer C code rate -
q 0 to 5 Layer C time interleave length -
r 1 to 11 Number of layer C segments -
3. DETAILED SETTINGS
Hexa
decimal
31
Page 34
3. DETAILED SETTINGS
No. Header Data Description Unit
18 BO n 0 to 1 BER measurement; ON (1) or OFF (0) -
21 BU ne 0.00E-0 to 9.99E-1 Sets the BER upper limit -
22 BL ne 0.00E-0 to 9.99E-1 Sets the BER lower limit -
23 BI n 0.1 to 86400.0 Sets the BER measurement cycle Seconds
24 BH t
25 BM n 1 to 3 Sets the BER measurement layer -
26 BF n 0 or 1 Sets the BER measurement mode -
27 BS - - Resets the BER measurement -
30 CH n 1 to 62 or C13 to C63 Sets the channel -
31 RF i 30.000 to 960.000 Sets the RF frequency MHz
32 FU - - Increments the frequency -
33 FD - - Decrements the frequency -
34 DF n 0 to 5 Sets the digit to change -
35 LM i
36 LV i
37 LW i
38 DU - - Increments the output level -
39 DD - - Decrements the output level -
40 DL n 0 to 2 Sets the digit to change -
41 CK n 0 or 1 Selects the reference signal -
42 ST n 0 to 99 Saves to the specified memory address -
43 RC n 0 to 99 Loads the specified memory address -
44 RU - - Increments the address -
45 RD - - Decrements the address -
46 RR - - Returns the preset number to the start address -
47 GR n 0 to 9 Selects the group -
48 GS
49 CW n 0 or 1 Selects modulation or CW -
50 RO n 0 or 1 Turns RF output ON or OFF -
00h00m00.1s to
24h00m00.0s
-110.0 to 13.0
-115.0 to 8.0
-120.0 to 3.0
-3.0 to 120.0
-8.0 to 115.0
-13.0 to 110.0
-63.0 to 60.0
-68.0 to 55.0
-73.0 to 50.0
n 0 to 9
*2
*3
*1
*2
*1
*2
*3
Sets the BER measurement cycle Time
*1
Sets the output level dBm
Sets the output level dBmV
*3
Sets the output level dBuV
Sets the group whose start and stop addresses
you want to specify
p 0 to 98 Sets the start address -
q 1 to 99 Sets the stop address -
-
32
Page 35
3. DETAILED SETTINGS
No. Header Data Description Unit
51 IP n 0 or 1 TS playback control -
53 IR i
54 IS t
55 IE t
0.200000 to
40.000000
000h00m00.0s to
999h59m59.9s
000h00m00.0s to
999h59m59.9s
TS bitrate -
Playback start time -
Playback stop time -
56 IB n 0 or 1 Turns range playback ON or OFF -
57 IL n 0 or 1 Controls loop playback -
58 IM n 0 or 1 Controls RAM playback -
59 TT n 0 or 1 Controls TOT overwrite -
n 0 or 1 TS parameter overwrite -
p 0000 to FFFF TS-ID
60 PI
q 0000 to FFFF Service ID
Hexa
decimal
Hexa
decimal
r 1 to 12 Remote key ID -
*2
61 SC n
6 to 37
3 to 40
See Table
*3
3-4
Sets the subchannel -
*4
62 OC n 2 to 18 Occupied start subchannel -
63 AL n 0 or 1 Status screen display updating -
64 SS n 1 to 5 Selects the broadcast system -
65 HDW c ENABLE or DISABLE HDD write mode -
66 FSV c ENABLE or DISABLE Sets the file server -
67 NAM a
68 WGP a
Up to 16 characters
in ASCII code
Up to 16 characters
in ASCII code
Sets the file server name -
Sets the workgroup -
*1 When ISDB-T (13seg), ISDB-Tsb (8-3seg), or ISDB-Tsb (8-1seg) is selected.
*2 When ISDB-Tsb (3seg) is selected.
*3 When ISDB-Tsb (1seg) is selected.
*4 When ISDB-Tsb (8-3seg) or ISDB-Tsb (8-1seg) is selected.
33
Page 36
3. DETAILED SETTINGS
Table 3-8 List of query codes
No. Header Data Description Response
1 SY ? Reads the selected segment n
2 TS ? Reads the selected TS input n,p,q,r
3 PD n ? Reads the specified layer's PID assignment n,p,q
4 UD ? Reads the layer that undefined PIDs are assigned to n
6 EM ? Reads the EMG bit n
7 MD n ? Reads the mode (C, N) n,p
8 GI n ? Reads the guard interval (C, N) n,p
9 PH ? Reads the phase correction (Tsb) n
10 LA ? Reads the layer A modulation parameters n,p,q,r
11 LB ? Reads the layer B modulation parameters n,p,q,r
12 LC ? Reads the layer C modulation parameters n,p,q,r
13 CO ? Reads the C/N addition setting; ON (1) or OFF (0) n
14 CN ? Reads the C/N value i
17 CL ? Reads the step digit to change n
18 BO ? Reads the BER measurement setting; ON (1) or OFF (0) n
19 BR ? Reads the BER value ne
20 BJ ? Reads the test result n
21 BU ? Reads the BER upper limit ne
22 BL ? Reads the BER lower limit ne
23 BI n ? Reads the BER measurement cycle (seconds) n
24 BH ? Reads the BER measurement cycle (time) t
25 BM ? Reads the BER measurement layer n
26 BF ? Reads the BER measurement mode n
28 BT ? Reads the BER calculation period t
29 BW ? Reads the number of BER error bits n
30 CH ? Reads the channel n
31 RF ? Reads the RF frequency i
34 DF ? Reads the digit to change n
35 LM ? Reads the output level in dBm i
36 LV ? Reads the output level in dBmV i
37 LW ? Reads the output level in dBuV i
40 DL ? Reads the digit to change n
41 CK ? Reads the selected reference signal n
47 GR ? Reads the selected group n
48 GS n ? Reads the start and stop addresses for the specified group n,p,q
49 CW ? Reads the modulation/CW selection n
34
Page 37
3. DETAILED SETTINGS
No. Header Data Description Response
50 RO ? Reads the RF output setting (ON or OFF) n
51 IP ? Reads the TS playback control n
52 II ? Reads the TS file information n,p,t
53 IR ? Reads the TS bitrate i
54 IS ? Reads the playback start time t
55 IE ? Reads the playback stop time t
56 IB ? Reads the range playback setting n
57 IL ? Reads the loop playback control n
58 IM ? Reads the RAM playback control n
59 TT ? Reads the TOT overwrite control n
60 PI ? Reads the TS parameter overwrite control n,p,q,r
61 SC ? Reads the subchannel n
62 OC ? Reads the occupied start subchannel n,p
63 AL ? Reads the status screen display updating setting n
64 SS ? Reads the broadcast system selection n
65 HDW ? Reads the HDD write mode c
66 FSV ? Reads the file server setting c
67 NAM ? Reads the file server name a
68 WGP ? Reads the workgroup a
58 IM ? Reads the RAM playback control n
59 TT ? Reads the TOT overwrite control n
60 PI ? Reads the TS parameter overwrite control n,p,q,r
61 SC ? Reads the subchannel n
62 OC ? Reads the occupied start subchannel n,p
63 AL ? Reads the status screen display updating setting n
64 SS ? Reads the broadcast system selection n
65 HDW ? Reads the HDD write mode c
66 FSV ? Reads the file server setting c
67 NAM ? Reads the file server name a
68 WGP ? Reads the workgroup a
35
Page 38
3.4.2 Program Code Details
This section will explain the program codes from section 3.4.1, “List of Program Codes”
that are unique to this option. For details on the program codes that are shared with the LG
3810, see the LG 3810 instruction manual.
1 Broadcast system (SY)
Function Selects or queries the broadcast system
Syntax SY_n (setting and response)
SY_? (query)
n Broadcast System Selection
0 ISDB-T (13seg)
1 ISDB-Tsb (3seg)
2 ISDB-Tsb (1seg)
3 ISDB-Tsb (sequential transmission 3seg)
4 ISDB-Tsb (sequential transmission 1seg)
2 TS input (TS)
3. DETAILED SETTINGS
Function Selects or queries the TS that is inserted into the modulated wave
Syntax TS_n (,p,q,r) (setting and response)
TS_? (query)
n TS Input Selection
0 PN
1 External ASI
2 External SPI
3 Internal
4 Reserved (not used)
5 Fixed Pattern
Depending on the value of n, the amount of data that follows it (the number of
parameters) varies.
•When n = 0 (PN)
p PN Pattern Selection
0 PN23
1 PN15
q PN Polarity Selection
0 Inverted (-)
1 Normal (+)
r PN Packet Type Selection
0 Sync + PRBS
1 Header + PRBS
36
Page 39
3. DETAILED SETTINGS
•When n = 1 (external ASI) or n = 2 (external SPI)
p TS Format Selection
0 MPEG-2 TS
1 ISDB-T TS
•When n = 3 (Internal); this can only be used for queries, not to set the LG 3810
p Drive That Is Being Used
0 Internal HDD
1 External USB device
2 Not used
•When n = 5 (Fixed Pattern)
p Pattern Selection
0 Colorbar
1 Ramp
2 Monoscope
q Screen Size Selection
0 1920 × 1080 (16:9)
1 1440 × 1080 (16:9)
2 720 × 480 (16:9)
3 720 × 480 (4:3)
r Audio Pattern
0 L: 1 kHz and R: 400 Hz
1 L and R: 1 kHz
2 L and R: 400 Hz
Examples PN TS_0,0,1,0 (PN, PN23, Normal, Sync + PRBS)
ASI or SPI TS_1,0 (ASI, MPEG-2 TS)
Fixed Pattern TS_5,1,0,2
(Fixed Pattern, ramp, 1920×1080, 400 Hz)
Internal TS_3 (when performing a setting)
Response returned from TS_? 3,0 (internal HDD)
* For Fixed Pattern, refer to each option's instruction manual to select the pattern.
* You cannot specify a monoscope pattern with a screen size of 1440×1080. This setting
combination will be ignored.
* If the amount of data that follows the n parameter does not match what is expected for the
specified n value, the program code will be ignored.
* If the LG 3810 receives a “TS” command instructing it to set the transport stream while a TS is
being played back from the internal HDD or an external USB device, the TS that is playing will
be stopped.
37
Page 40
3. DETAILED SETTINGS
3 PID layer (PD)
Function Sets or queries the PID for each layer when the LG 3810 is using ASI or
SPI external input
Syntax PD_n,p(,q) (setting and response)
PD_n_? (query)
n PID Number Selection
1 to 32 ID number within the LG 3810
p Layer Setting
0 Not specified (deletes the PID value)
1 Layer A
2 Layer B
3 Layer C
q PID Value
0 to 1FFF Enter the PID in hexadecimal format
* To delete the PID value that is specified by n, only send parameters n and p, and send 0 for p.
* The LG 3810 ignores this program code unless an MPEG-2 TS is being applied to its ASI or
SPI connector.
4 Undefined PID layer (UD)
Function Sets or queries the PID assignment for PIDs other than those specified by
program code 3, which specifies PIDs for each layer.
Syntax UD_n (setting and response)
UD_? (query)
n Undefined PID Layer Setting
1 Layer A
2 Layer B
3 Layer C
* If the following conditions are not met, this program code will be ignored.
• ASI or SPI must be selected.
• MPEG-2 TS must be selected.
• If this program code specifies layer B or layer C, the same layer must be specified for the
Modulation setting.
38
Page 41
3. DETAILED SETTINGS
7 Mode (MD)
Function Sets or queries the encoding mode
Syntax MD_n,p (setting and response)
MD_n_? (query)
n Current or Next
0 Current
1 Next
p Mode
1 MODE1
2 MODE2
3 MODE3
4 Not used
* Only specify 4 for p (not used) when you specify next for n. If you specify current, the LG 3810
will not be able to generate a correct signal.
* Do not use this program code if you are applying a broadcast TS to the ASI or SPI connector or
if you have selected Fixed Pattern.
* Do not use this program code if you have selected an Internal broadcast TS.
8 Guard interval (GI)
Function Sets or queries the encoding guard interval
Syntax GI_n,p (setting and response)
GI_n_? (query)
n Current or Next
0 Current
1 Next
p Mode
0 1/4 or not used
1 1/8
2 1/16
3 1/32
* Do not use this program code if you are applying a broadcast TS to the ASI or SPI connector or
if you have selected Fixed Pattern.
* Do not use this program code if you have selected an Internal broadcast TS.
39
Page 42
3. DETAILED SETTINGS
10 Modulation parameters (LA)
Function Sets the layer A modulation parameters
Syntax LA_n,p,q,r (setting and response)
LA_? (query)
n Carrier Modulation
0 DQPSK
1 QPSK
2 16QAM
3 64QAM
4 Not used
p Code Rate
0 1/2
1 2/3
2 3/4
3 5/6
4 7/8
5 Not used
Time Interleaving Length q
MODE3 MODE2 MODE1
0 0 0 0
1 1 2 4
2 2 4 8
3 4 8 16
4*1 8 16 32
5 Not used Not used Not used
r Number of Segments
1 to 13 Number of segments (when using 13seg)
P,2 Number of segments (when using 3seg or
8-3seg)
1 Number of segments (when using 1seg or
8-1seg)
P*2 When using partial reception (1seg)
14 Not used
*1 Only for audio broadcasts.
*2 If you specify P (partial reception) for the number of segments, this setting will only be applied
to layer A.
40
Page 43
3. DETAILED SETTINGS
23 BER measurement cycle (seconds) (BI)
Function Sets or queries the BER measurement cycle
Syntax BI_n,p (setting and response)
BI_n_? (query)
n Layer Setting
1 Layer A
2 Layer B
3 Layer C
p BER Measurement Cycle (Seconds)
0.1 to 86400.0 -
25 BER measurement layer (BM)
Function Sets or queries the layer that is used for the BER measurement
Syntax BM_n (setting and response)
BM_? (query)
n Layer Setting
1 Layer A
2 Layer B
3 Layer C
* If you specify a layer that does not match the Coding settings, the LG 3810 will ignore the
program code.
34 Frequency step (DF)
Function Sets or queries the step that is used to increment or decrement the RF
frequency
Syntax DF_n (setting and response)
DF_? (query)
n Frequency Step
0 0.001
1 0.01
2 0.1
3 1/7
4 1.0
5 10.0
* If the LG 3810 is configured to use channels instead of frequencies, this program code will be
ignored.
41
Page 44
3. DETAILED SETTINGS
35 Output level in dBm (LM)
Function Sets or queries the output level in dBm
Syntax LM_i (setting and response)
LM_? (query)
i Notes
-110.0 to 13.0 When ISDB-T (13seg), ISDB-Tsb (8-3seg), or ISDB-Tsb (8-1seg) is selected
-115.0 to 8.0 When ISDB-Tsb (3seg) is selected
-120.0 to 3.0 When ISDB-Tsb (1seg) is selected
36 Output level in dBμV (LV)
Function Sets or queries the output level in dBμV
Syntax LV_i (setting and response)
LV_? (query)
i Notes
-3.0 to 120.0 When ISDB-T (13seg), ISDB-Tsb (8-3seg), or ISDB-Tsb (8-1seg) is selected
-8.0 to 115.0 When ISDB-Tsb (3seg) is selected
-13.0 to 110.0 When ISDB-Tsb (1seg) is selected
37 Output level in dBmV (LW)
Function Sets or queries the output level in dBmV
Syntax LW_i (setting and response)
LW_? (query)
i Notes
-63.0 to 60.0 When ISDB-T (13seg), ISDB-Tsb (8-3seg), or ISDB-Tsb (8-1seg) is selected
-68.0 to 55.0 When ISDB-Tsb (3seg) is selected
-73.0 to 50.0 When ISDB-Tsb (1seg) is selected
61 Subchannel (SC)
Function Sets or queries the subchannel
Syntax SC_n (setting and response)
SC_? (query)
n Notes
3 to 40 When ISDB-Tsb (1seg) is selected
6 to 37 When ISDB-Tsb (3seg) is selected
See Table 3-4
When ISDB-Tsb (8-3seg) or ISDB-Tsb (8-1seg) is selected
* For details on subchannels, see section 3.3.1, “Setting the Subchannel.”
* This program code is only valid when the selected broadcast system is not ISDB-T (13seg) and
the LG 3810 is configured to use VHF/UHF or CATV channels. At all other times, this program
code is ignored.
* When the LG 3810 is configured to use RF frequency, this program code is invalid, both for
setting and querying.
42
Page 45
3. DETAILED SETTINGS
62 Occupied start subchannel (OC)
Function Sets or queries the occupied start subchannel
Syntax OC_n (setting and response)
OC_? (query)
n Notes
2 to 18 When ISDB-Tsb (8-3seg) or ISDB-Tsb (8-1seg) is selected
* This program code is only valid when the selected segment is ISDB-Tsb (8-1seg) or ISDB-Tsb
(8-3seg) and the LG 3810 is configured to use VHF/UHF or CATV channels. At all other times,
this program code is ignored.
* When the LG 3810 is configured to use RF frequency, this program code is invalid, both for
setting and querying.
* When you set the occupied start subchannel, the broadcast segment numbers in the following
table are set to the fourth subchannel.
Table 3-9 List of set subchannels
Occupied Broadcast Segment Number
Start ISDB-Tsb (8-1seg) ISDB-Tsb (8-3seg)
Subchannel 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
2 3 6 9 12 15 18 21 24 - 6 9 12 15 18 21 -
3 4 7 10 13 16 19 22 25 - 7 10 13 16 19 22 -
4 5 8 11 14 17 20 23 26 - 8 11 14 17 20 23 -
5 6 9 12 15 18 21 24 27 - 9 12 15 18 21 24 -
6 7 10 13 16 19 22 25 28 - 10 13 16 19 22 25 -
7 8 11 14 17 20 23 26 29 - 11 14 17 20 23 26 -
8 9 12 15 18 21 24 27 30 - 12 15 18 21 24 27 -
9 10 13 16 19 22 25 28 31 - 13 16 19 22 25 28 -
10 11 14 17 20 23 26 29 32 - 14 17 20 23 26 29 -
11 12 15 18 21 24 27 30 33 - 15 18 21 24 27 30 -
12 13 16 19 22 25 28 31 34 - 16 19 22 25 28 31 -
13 14 17 20 23 26 29 32 35 - 17 20 23 26 29 32 -
14 15 18 21 24 27 30 33 36 - 18 21 24 27 30 33 -
15 16 19 22 25 28 31 34 37 - 19 22 25 28 31 34 -
16 17 20 23 26 29 32 35 38 - 20 23 26 29 32 35 -
17 18 21 24 27 30 33 36 39 - 21 24 27 30 33 36 -
18 19 22 25 28 31 34 37 40 - 22 25 28 31 34 37 -
43
Page 46
3.5 Sample TS
The LG 3810 comes with a USB memory device that contains an original sample TS for
checking the LG 3810's operations.
3.5.1 Notes
This TS has been created by LEADER to check the LG 3810's operations. It is not
designed to be used for evaluating decoders or as a reference for evaluating videos, image
quality, audio, or audio quality.
While this transport stream's operation has been confirmed on representative receivers
that are commercially available, this does not guarantee that it will operate on all receivers.
Please note that the data that is stored on the USB memory device can be deleted easily.
About the sample TS
• LEADER ELECTRONICS CORP. holds all copyrights to this stream's video.
• You are not permitted to:
• Copy, process, or edit this stream without LEADER's permission.
• Decode the stream into a PES or elementary stream.
• Broadcast this stream or make it public for commercial purposes.
• Broadcast this stream or make it available to the general public.
• Transfer this stream to another company or individual.
• Use this stream with a device that has not been manufactured by LEADER.
3. DETAILED SETTINGS
3.5.2 Specifications
File Name TS_ISDBT_N1_AA_HD1_v10.trp
File Size 2,442,203,136 bytes; 600.7 seconds (10
Number of Packets 11,971,584
Packet Format 204 bytes
TS Classification ISDB-T TS
Bitrate 32.507937 Mbps
Programs 2
Program Contents HDTV video + AAC stereo audio
TS-ID 0x7FE1
Network ID 0x7FE1
Service ID 0x0408
Remote ID 2
TS Name TestStream
Network Name Network
minutes)
1seg video + AAC stereo audio
44
Page 47
3. DETAILED SETTINGS
Used PIDs and Multiplexed Layers
PAT 0x0000 (Layer B)
NIT 0x0010 (Layer A)
SDT 0x0011 (Layer A)
TOT 0x0014 (Layer A)
BIT 0x0024 (Layer A)
PMT (12seg) 0x0050 (Layer B)
Video (12seg) 0x0100 (Layer B)
Audio (12seg) 0x0200 (Layer B)
PCR (12seg) 0x0300 (Layer B)
Video (1seg) 0x0400 (Layer A)
Audio (1seg) 0x0500 (Layer A)
PCR (1seg) 0x0600 (Layer A)
PMT (1seg) 0x1FC8 (Layer A)
IIP 0x1FF0 (Invalid layer)
Descriptors Network name, system management,
service list, terrestrial delivery system, TS
information (NIT), stream identifier, video
decode control (PMT)
(Mode3, GI1/8, and Frequency26ch are
written in the terrestrial delivery system
descriptor that is included in the NIT)
IIP Modulation Parameter Settings
MODE 3
GI 1/8
Partial Reception ON
Modulation (A) QPSK
Code Rate (A) 2/3
Time IL (A) 4
Segments (A) 1
Modulation (B) 64QAM
Code Rate (B) 3/4
Time IL (B) 2
Segments (B) 12
45
Page 48
Following information is for Chinese RoHS only
所含有毒有害物质信息
部件号码:
此标志适用于在中国销售的电子信息产品,依据2006年2月28日公布的
《电子信息产品污染控制管理办法》以及SJ/T11364-2006《电子信息产品污染
控制标识要求》，表示该产品在使用完结后可再利用。数字表示的是环境保护使
用期限，只要遵守与本产品有关的安全和使用上的注意事项，从制造日算起在数
字所表示的年限内，产品不会产生环境污染和对人体、财产的影响。
产品适当使用后报废的方法请遵从电子信息产品的回收、再利用相关法令。
详细请咨询各级政府主管部门。
部件名称
Parts 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚
本体部 × ○ ○ ○ ○ ○
有毒有害物质或元素 Hazardous Substances in each Part
(Pb) (Hg) (Cd) (Cr(Ⅵ)) (PBB) (PBDE)
LG 38SER02
产品中有毒有害物质或元素的名称及含量
备注）
○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006 规定的限量要求以下。
×：表示该有毒有害物质或元素至少在该部件的某一均质材料中的含量超出SJ/T11363-2006
标准规定的限量要求。
Ver.1
Page 49
LEADER ELECTRONICS CORP.
2-6-33 Tsunashima-Higashi, Kohoku-ku, Yokohama 223-8505, Japan
PHONE:81-45-541-2123 FAX:81-45-541-2823 http://www.leader.co.jp
Oct. 19, 2010 Ver.3 (OP Ver.1.4)
Loading...
