Page 1
IES Series
Industrial Ethernet Switch
User Guide
Models: IES-MCG-S F P, IES-2205, IES-2206,
IES-2208, IES-2210, IES-2212, IES-2216 &
IES-2220
June, 2019
Version: 2.0
IES Series User Manual V. 2.0
Page 2
ii
NOTICE
L-com reserves the right to make changes in specifications and other information contained in this
document and its web site without prior notice. The reader should in all cases consult L-com Global Connectivity to determine
whether any such changes have been made. The hardware, firmware, or software described in this document is subject to
change without notice.
IN NO EVENT SHALL L-COM BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL,
OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS)
ARISING OUT OF OR RELATED TO THIS DOCUMENT, WEB SITE, OR THE INFORMATION CONTAINED IN
THEM, EVEN IF L-COM GLOBAL CONNECTIVITY HAS BEEN ADVISED OF, KNEW OF, OR SHOULD HAVE KNOWN
OF, THE POSSIBILITY OF SUCH DAMAGES.
L-com, Inc.
50 High Street, West Mill, 3
North Andover, MA 01845
2019 L-com Global Connectivity, Inc. All rights reserved.
rd
Floor, Suite 30
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment uses, generates, and can radiate radio frequency
energy and if not installed in accordance with the operator’s manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at their own expense.
WARNING: Changes or modifications made to this device which are not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IES Series User Manual V. 2.0
Page 3
iii
SAFETY PROVISIONS
Please read this user manual thoroughly before installing the IES switch
Do not place equipment in or around water
Keep power line connections clear
Do not let power lines touch or contact each other
Verify power requirements of all attached devices prior to installation
Keep optical fiber ports clear of debris
Do not attempt to open and service this product yourself
Some fiber switches use laser powered optical transceivers that can cause permanent eye damage if directly viewed with the
naked eye or with optical instruments. DO NOT view the optical fiber ports when the product is in use.
IES Series User Manual V. 2.0
Page 4
Contents
Chapter 1: Introduction 5
1.1 Intro 5
1.2 Features 5
1.3 Product Packing List 5
1.4 System Parameters 6
Chapter 2: Hardware Functionality 8
2.1 Main Functions 8
2.1.1 Power Input Interface and Installation 8
2.1.2 Relay Option 9
2.1.3 LED Indicator Lights 10
Chapter 3: Hardware Installation 11
3.1 DIN-rail Installation 11
Chapter 4: Support and Warranty 12
4.1 Support 12
4.2 Warranty 12
IES Series User Manual V. 2.0
Page 5
5
Chapter 1 Introduction
1.1 10/100TX, 10/100/1000TX, 100FX & 1000FX Ethernet Switches
The IES series Industrial Ethernet switches provide 10/100TX, 10/100/1000TX, 100FX and/or 1000FX
(model depending) Full Duplex Ethernet connectivity to Ethernet enabled devices in harsh environments. All
switches in this series are DIN rail mountable using standard 35mm DIN rail and require 24V DC power for
operation. The IES series is perfect for designing and building new industrial IP networks or adding to existing
Industrial LAN infrastructure. These unmanaged switches utilize standards based Ethernet and are
compatible with all other IEEE 803.3/802.3u/803.3ab compliant devices such as PLC’s and media converters
as well as IP enabled, meters, valves, and drives.
1.2 Features (port options vary by model)
• 10Base-T/100Base-TX adaptive port（Full/Half duplex) – RJ45
• 10Base-T/100Base-TX/1000Base-TX adaptive port (Full/Half duplex) – RJ45
• Auto connection with MDI/MDI-X
• 100Base-FX Full duplex Single mode or Multimode fiber – SC
• 1000Base-FX Full duplex SFP port
• Broadcast Storm Protection
• Redundant 24V DC power inputs (except IES-MCG-SFP & IES-2205)
• Reliable protection from EMC and against over-current / over-voltage
• IP40 protection with aluminum alloy shell
• Ribbed heat-removal case design satisfies harsh environment and industrial requirements
• Wide temperature range of -40°C to +85°C with 5% to 95% ambient humidity
• Fan-less design extends mean time between failures (MTBF)
• DIN-Rail mounting with standard 35mm DIN rail
• LED indicator lights
• Plug & play design
• Supports power-down status relay alarm
1.3 Product packing list
IES series switches includes the following items:
• IES series Ethernet Switch
• User Manual
IES Series User Manual V. 2.0
Page 6
6
IES-MCG-SFP
IES-2220-S80 16x 10/100TX (RJ45), 4x duplex 100FX Single mode 80km (SC)
Switch Delay: <5µs
20～80Km(Single mode fiber) <5Km(Multi mode fiber)
Baud rate: 1000Base-FX (Gigabit)
Voltage passing：Inside
1.4 System Parameters
2x 10/100/1000TX (RJ45), 1x 1000FX (SFP)
IES-2205 5x 10/100TX (RJ45)
IES-2206-M2 4x 10/100TX (RJ45), 2x duplex 100FX Multimode 2km (SC)
IES-2206-S20 4x 10/100TX (RJ45), 2x duplex 100FX Single mode 20km (SC)
IES-2206-S40 4x 10/100TX (RJ45), 2x duplex 100FX Single mode 40km (SC)
IES-2206-S60 4x 10/100TX (RJ45), 2x duplex 100FX Single mode 60km (SC)
IES-2206G-SFP 4x 10/100/1000TX (RJ45), 2x 1000FX (SFP)
IES-2208 8x 10/100TX (RJ45)
IES-2208G 8x 10/100/1000TX (RJ45)
IES-2210-M2 8x 10/100TX (RJ45), 2x duplex 100FX Multimode 2km (SC)
IES-2210-S20 8x 10/100TX (RJ45), 2x duplex 100FX Single mode 20km (SC)
IES-2210-S40 8x 10/100TX (RJ45), 2x duplex 100FX Single mode 40km (SC)
Configurations
IES-2210-S60 8x 10/100TX (RJ45), 2x duplex 100FX Single mode 60km (SC)
IES-2210-S80 8x 10/100TX (RJ45), 2x duplex 100FX Single mode 80km (SC)
IES-2210-SFP 8x 10/100TX (RJ45), 2x 1000FX (SFP)
IES-2210-M2-SFP 4x 10/100TX (RJ45), 4x duplex 100FX Multimode 2km (SC), 2x 1000FX (SFP)
IES-2210-S20-SFP 4x 10/100TX (RJ45), 4x duplex 100FX Single mode 20km (SC), 2x 1000FX (SFP)
IES-2210G 8x 10/100TX (RJ45), 2x 10/100/1000TX (RJ45)
IES-2210G-SFP 8x 10/100/1000TX (RJ45), 2x 1000FX (SFP)
IES-2212G-SFP 8x 10/100/1000TX (RJ45), 4x 1000FX (SFP)
IES-2216 16x 10/100TX (RJ45)
IES-2220-M2 16x 10/100TX (RJ45), 4x duplex 100FX Multimode 2km (SC)
IES-2220-S20 16x 10/100TX (RJ45), 4x duplex 100FX Single mode 20km (SC)
IES-2220-S40 16x 10/100TX (RJ45), 4x duplex 100FX Single mode 40km (SC)
IES-2220-S60 16x 10/100TX (RJ45), 4x duplex 100FX Single mode 60km (SC)
Switch parameters
RJ45 port parameters
100Base-FX
Optical port parameters
Gigabit FX port
parameters
Standards：IEEE 802.3 (Ethernet), IEEE 802.3u (100Base-TX & 100Base-FX), IEEE 802.3x
(Flow Control), IEEE 802.3z (1000Base-LX), IEEE 802.3ab (1000Base-T)
Store-and-Forward mode rate：148,880pps
MAC address table size：1K to 8K
Bridging method：Store-and-forward mode
Physical：RJ45 Jack (shielded)
Speed: 10Base-T/100Base-TX or
Gigabit/Triple-Speed 10Base-T/100Base-TX/1000Base-Tx: auto-negotiation
Standards: IEEE 802.3/802.3u/802.3ab
Communication distance：<100m over Category 5e/6/6a/7 twisted pair cable
Optical port type： Duplex SC
Transport rate： 125Mbps
Link Budget：
>-12dBm(Single mode fiber) >-17dBm(Multimode fiber)
RX Sensitivity：
<-38dBm(Single mode fiber) <-35dBm(Multimode fiber)
Wavelength：
1310nm(Single mode fiber) 1550nm(Single mode fiber 60km and 80km)
1310 nm(Multimode fiber)
Typical Distance：
Optical port type: SFP port for duplex LC interface, single mode or multimode (SFP module
sold separately)
Input Voltage：24V DC
Power parameters
IES Series User Manual V. 2.0
Input expend: IES-2205 series, IES-2206 series, IES-2208 series <5W
IES-2210 series, IES-2212 series, IES-2216 series, IES-2220 series <15W
Page 7
7
IES-2216, IES-2220 series 2.8”W x 4.3”D x 5.7”H
IES-2216 & IES-2220 series: 2.00 lbs
Ambient Relative Humidity：5～95%(non-condensing)
EN61000-4-8,Level 5
Certifications: CE/FCC/RoHS
IES-MCG-SFP, IES-2205 series 1.3”W x 3.2”D x 4.5”H
IES-2208, IES-2206 series 1.3” W x 3.9” D x 5.7”H
Dimensions
Weight
Temperature
IES-2210 series 2.1”W x 4.4”D x 5.7”H
IES-2212 series 2.8”W x 4.7” D x 6.1” H
IES-MCG-SFP, IES-2205 series: 0.75 lbs
IES-2206 & IES-2208 series: 0.95 lbs
IES-2210 series: 1.40 lbs
IES-2212 series: 1.89 lbs
Operating Temp：-40℃～+85℃
Storage Temp：-45℃～+85℃
EN61000-4-2（ESD）, Level 4
EN61000-4-3（RS）, Level 4
Industry Standards
EMC
EN61000-4-4（EFT）, Level 4
EN61000-4-5（Surge）, Level 4
EN61000-4-6（CS）, Level 4
Impact: IEC60068–2-27
Industry Standards
Other
Falling: IEC60068-2-32
Shock: IEC60068-2-6
IES Series User Manual V. 2.0
Page 8
8
Chapter 2 Hardware functionality
2.1 Main functions

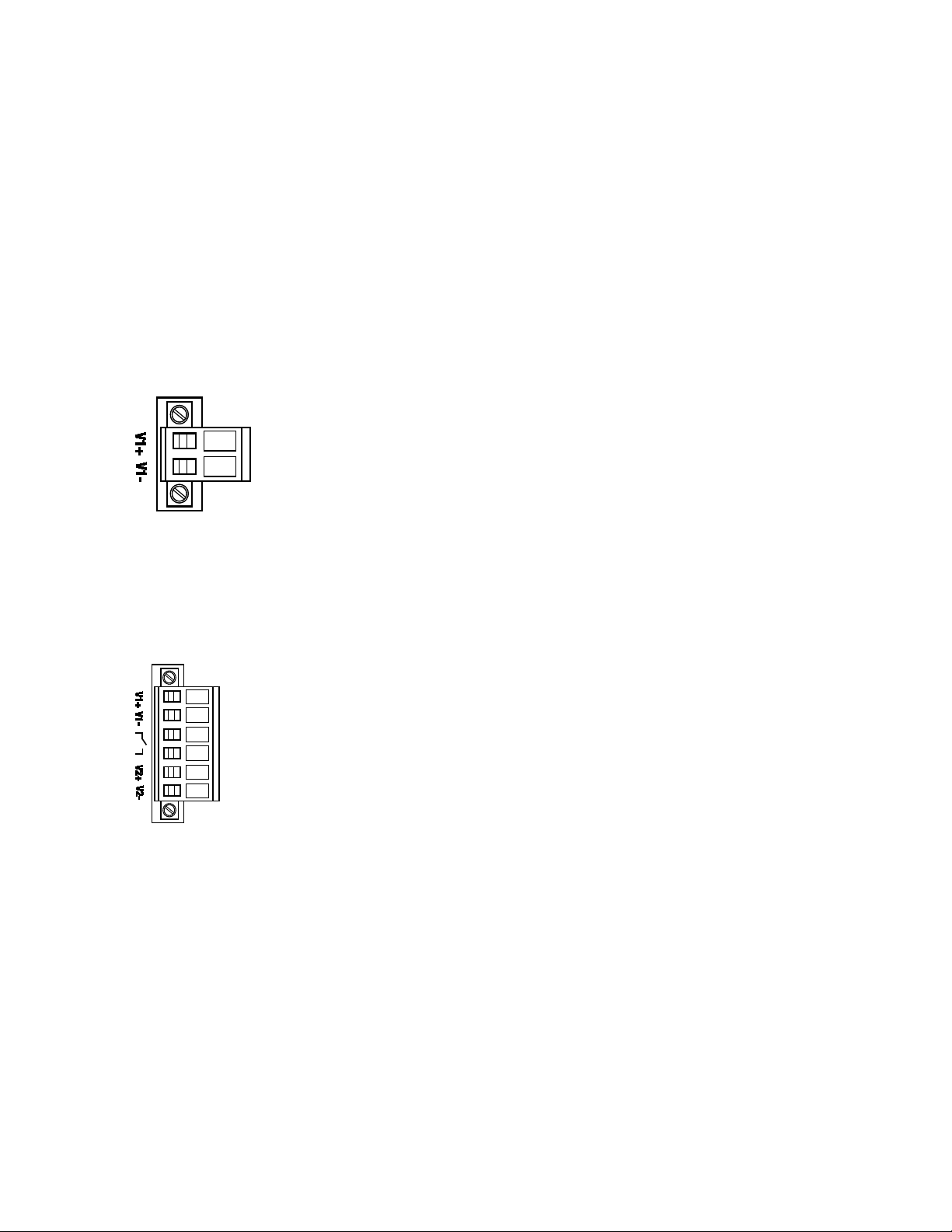

2.1.1 Power Input Interface and Installation
Power Terminal Block
The IES-MCG-SFP & IES-2205 features a single 24V DC power input with one V+ power anode and one Vpower cathode.
See
Figure 2-2.
Fig. 2-2
The IES-2206, IES-2208, IES-2210, IES-2212, IES-2216, and IES-2220 all feature redundant power connectors
with dual
Fig. 2-3
When using only one power supply make sure to connect the supply to the V1+ and V1- terminals.
Power conductor diameter should be less than 1.5mm to fit the screw terminals.
V+ power anodes and V- power cathodes. See Figure 2-3.
IES Series User Manual V. 2.0
Page 9
9

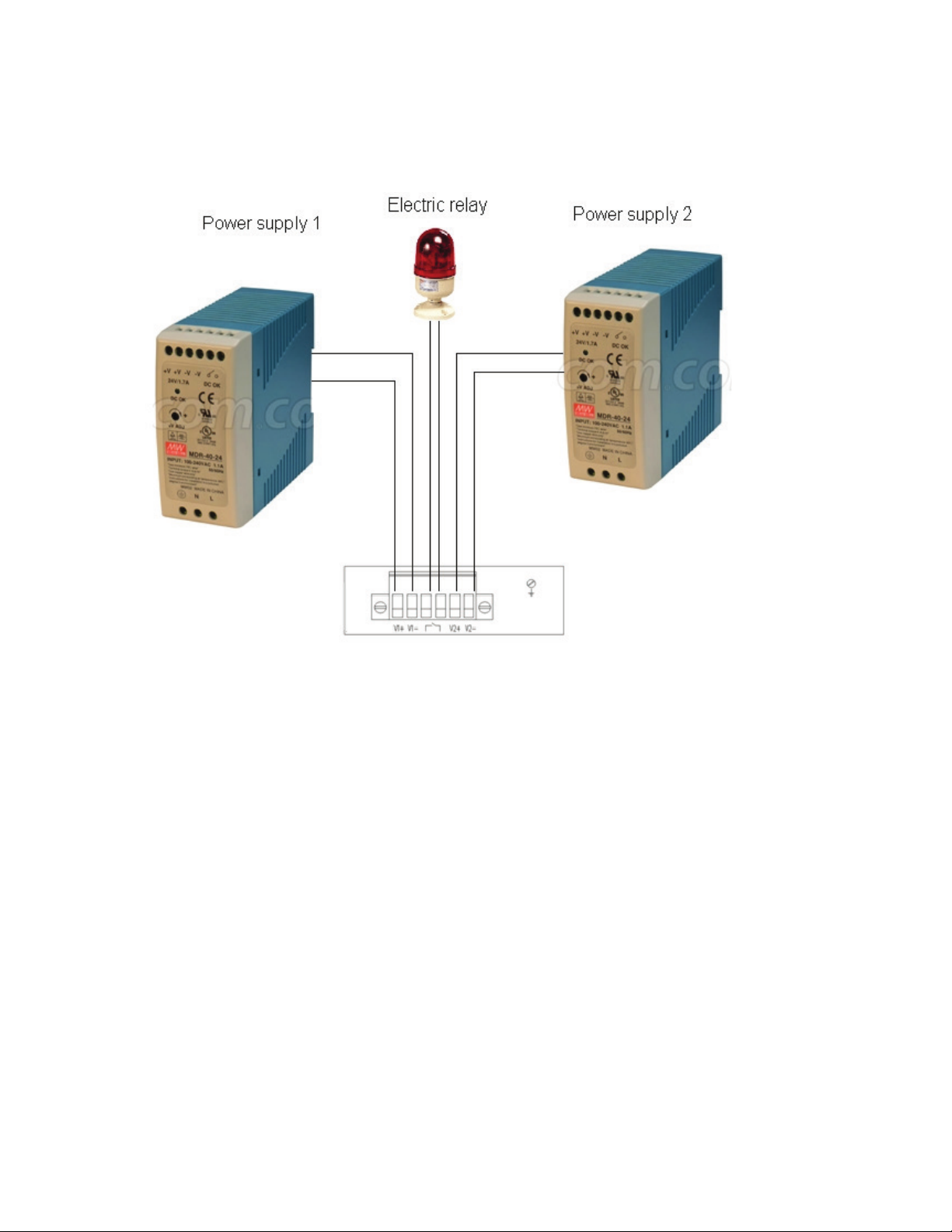

2.1.2 Relay option
Additionally, a dry contact relay connection is available. In the event of a power supply failure, you can attach
an audible or visual alarm such as a Klaxon to the relay to alert plant personnel a power supply has failed.
This feature works with a single or dual power supply configuration. See Figure 2-4.
Fig. 2-4
To connect power to the switch first make sure the AC/DC power supply is NOT connected to an AC power
outlet. Connect the + and – conductors from the AC/DC power supply to the V1+ and V1- terminals
respectively. If a redundant DC power configuration is to be used connect the second set of conductors to
V2+ and V2- respectively.
Grounding
Be sure to properly ground the IES switch. Failure to properly ground the switch may result in damage or
destruction of the switch or attached devices.
IES Series User Manual V. 2.0
Page 10
10
LED
Lights
Status
Interface LED Status
The switch is operational and functioning
properly
applied)
Optical Port LED Status
On
FX port’s link is active
Blinking
Data is being transmitted
Off
Port’s link is inactive
RJ45 Port LED Status
On
On
RJ45 port’s link is active
Off
RJ45 port’s link is inactive
Yellow
On
1000Mbps Operation (1000Base-TX）
On
RJ45 port’s link is active
Blinking
Data is being transmitted
Off
RJ45 port’s link is inactive
2.1.3 LED indication lights
The front panels of the IES series Industrial Ethernet Switches feature LED indicators which aid in
troubleshooting and viewing the system status at a glance. See Figure 2-5.
On Power is being supplied to the switch
PWR
RUN
Off Power is not being supplied to the switch
On
Off
The switch has a malfunction(after power is
................................. Fig. 2-5
LINK
10M/
100M
（Yellow）
LNK/ACT
（Green）
10M/
100M/
1000M
（
LNK/ACT
（Green）
）
Off
Blinking
Off
100Mbps Operation (100Base-TX）
10Mbps Operation (10Base-T）
Data is being transmitted
10Mbps Operation (10Base-T）
IES Series User Manual V. 2.0
Page 11
11
Chapter 3 Hardware installation

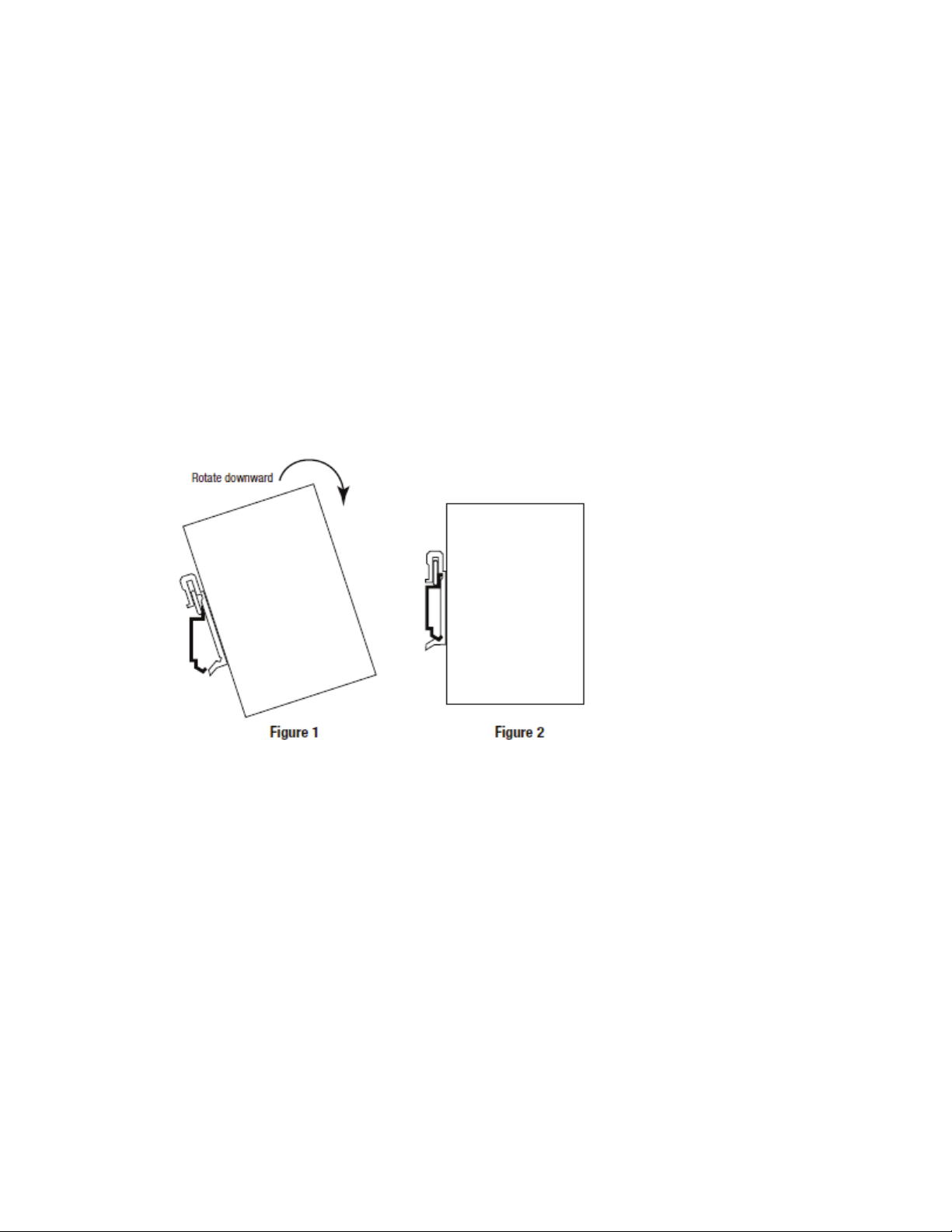

3.1 DIN-Rail installation
Most industrial areas choose 35mm DIN-Rail installation. The DIN-Rail attachment plate is fixed to the rear panel
of the IES Switch when you take it out of the box. If you need remove it and re-attach the plate to the switch, make
sure the DIN-Rail bracket is situated towards the top as shown in figure 3-1.
• Insert DIN-Rail into the DIN-Rail slot of the IES Switch and rotate
Downward, compressing the internal spring, as shown in Figure 1 below.
• The IES Switch should be locked firmly into place onto the DIN-Rail as shown in Figure 2 below.
Fig. 3-1
IES Series User Manual V. 2.0
Page 12
12
Chapter 4 Support and Warranty
4.1 Support
Should you require support for your IES switch please contact the L-com Product Support team via one of the following
methods.
__________________________________________________________________________________________
Phone
1-978-682-6936 Toll Free 1-800-341-5266
E-mail [email protected]
4.2 Warranty
We warrant these IES Industrial Ethernet Switches for a period of three years from time of purchase. These products are
warranted against defects in workmanship or materials under normal use. We cannot warranty our products in case of misuse,
acts of God, or consequential damage. Alteration of product cancels all warranties. Under no circumstances will we be
responsible for any damage beyond the replacement cost of the defective merchandise. We reserve the right to repair or
replace any products that are returned under warranty. Products distributed by us carry the warranty of the respective
manufacturer only. This warranty applies to the original purchaser only and is not transferable. This limited warranty covers
normal use. The limited warranty does not cover damage incurred during shipment, caused by impact with other objects,
dropping, immersion in liquid; service by anyone other than us, use not in accordance with instructions, accident, abuse, misuse,
natural disasters such as flood, fire, earthquake or lightning, power surges and problems caused by use of power supplies not
supplied by us. Warranty coverage will not apply in the event the serial number or brand-name has been removed, altered or
defaced. EXCEPT AND TO THE EXTENT EXPRESSLY SET FORTH ABOVE, THERE ARE NO WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE AND WE EXPRESSLY DISCLAIM ALL WARRANTIES NOT STATED HEREIN. Some states do
not allow the exclusion of implied warranties or limitations on how long an implied warranty lasts, so the above limitation may
not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
IES Series User Manual V. 2.0
Loading...
