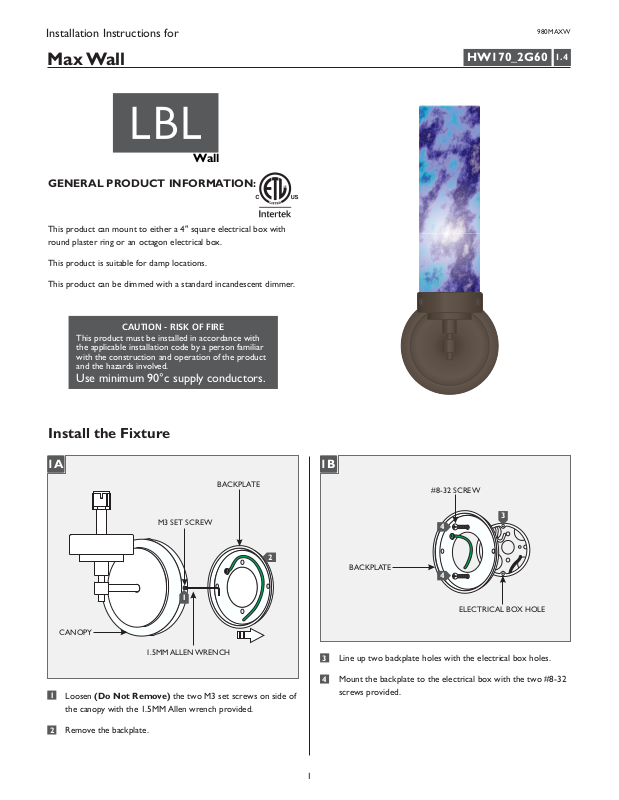

Installation Instructions for
980MAXW
Max Wall
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
HW170_2G60
1.4
Install the Fixture
1A 1B
BACKPLATE
M3 SET SCREW
2
1
CANOPY
1.5MM ALLEN WRENCH
1
Loosen the two M3 set screws on side of(Do Not Remove)
the canopy with the 1.5MM Allen wrench provided.
3
4
#8-32 SCREW
3
4
BACKPLATE
Line up two backplate holes with the electrical box holes.
Mount the backplate to the electrical box with the two #8-32
screws provided.
4
ELECTRICAL BOX HOLE
2
Remove the backplate.
1
Install the Lamp & Shade
1C
7
6
5
Connect the backplate to a suitable ground in accordance with
local electrical codes.
6
Connect the fixture white wire to the neutral power line wire
with a wire nut.
7
Connect the fixture black wire to the hot power line wire with
a wire nut.
2A
LAMP
SOCKET
NOTE:Use only your fingers and a soft cloth to install
the lamp.
Use 120 Volt, WattTypeT4,MAX 60
G9 Base, Bi-Pin Halogen Lamp.
1
Push the lamp pins completely into the socket holes.
1
1D
M3 SET SCREW
9
CANOPY
1.5MM ALLEN WRENCH
8
Place all wires and wire nut connections properly inside the
electrical box.
9
Place the fixture canopy onto the backplate. Level the fixture
vertically and tighten the two M3 set screws with the 1.5MM
Allen wrench to secure the fixture in place.
2
