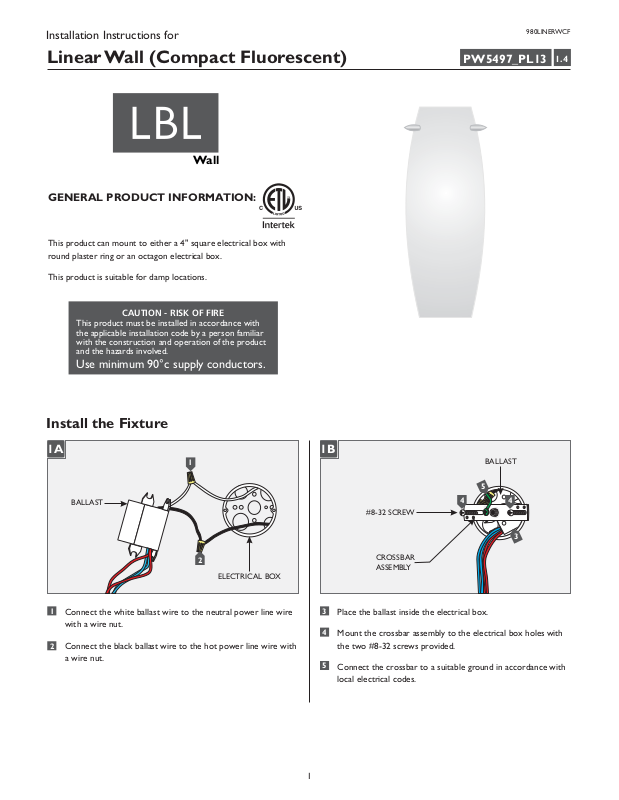

Installation Instructions for
980LINERWCF
Linear (Compact Fluorescent)Wall
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW5497_PL13
1.4
Install the Fixture
1A 1B
1
BALLAST
2
ELECTRICAL BOX
1
Connect the white ballast wire to the neutral power line wire
with a wire nut.
2
Connect the black ballast wire to the hot power line wire with
a wire nut.
3
4
5
BALLAST
5
4
#8-32 SCREW
CROSSBAR
ASSEMBLY
Place the ballast inside the electrical box.
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
Connect the crossbar to a suitable ground in accordance with
local electrical codes.
4
3
1
1C
CAP
2B
THUMB
SCREW
7
5
6
THREADED
NIPPLE
2
2
6
Place all wires and wire nut connections properly inside the
electrical box.
Slide the mounting plate center hole onto the exposed
7
threaded nipple. Secure the mounting plate in place by
tightening the cap to threaded nipple.
Install the Lamp & Shade
2A
LAMP
MOUNTING
PLATE
GLASS
SHADE
NOTE:Do not over tighten the thumb screws.
Overtightening may break the glass and result in injury.
2
Place the glass shade onto the mounting plate. Align the glass
shade holes with the mounting plate holes and tighten (Do
Not OverTighten) the thumb screws to secure the glass
shade in place.
1
SOCKET
Use WattTwin TubeMAX 13
2GX7 Base Compact Fluorescent Lamp.
1
Push the lamp pins completely into the socket holes.
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
