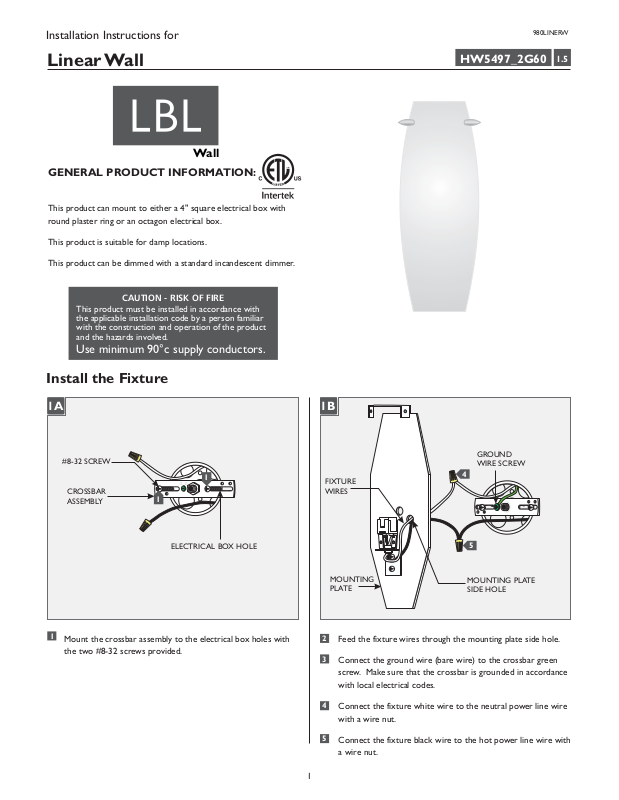

Installation Instructions for
980LINERW
Linear Wall
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
HW5497_2G60
1.5
Install the Fixture
1A 1B
#8-32 SCREW
1
CROSSBAR
ASSEMBLY
1
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
1
ELECTRICAL BOX HOLE
FIXTURE
WIRES
2
3
GROUND
WIRE SCREW
4
5
MOUNTING
PLATE
Feed the fixture wires through the mounting plate side hole.
Connect the ground wire (bare wire) to the crossbar green
screw. Make sure that the crossbar is grounded in accordance
with local electrical codes.
MOUNTING PLATE
SIDE HOLE
4
Connect the fixture white wire to the neutral power line wire
with a wire nut.
5
Connect the fixture black wire to the hot power line wire with
a wire nut.
1
1C
MOUNTING
PLATE
7
6
Place all wires and wire nut connections properly inside the
electrical box.
7
Slide the mounting plate center hole onto the exposed
threaded nipple. Secure the mounting plate in place by
tightening the cap to threaded nipple.
CAP
EXPOSED THREADED
NIPPLE
2B
2
GLASS
SHADE
2
Place the glass shade onto the mounting plate. Align the glass
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
2
THUMB
SCREW
MOUNTING
PLATE
Install the Lamp & Shade
2A
1
PIN
SOCKET
NOTE:The G9 lamp has an integral glass envelope and is
thus safe to be used without a lamp shield.
NOTE:Do not over tighten the thumb screws which may
cause the glass shade to break.
LAMP
SAVETHESE INSTRUCTIONS!
Use 120 Volt, WattTypeT4,MAX 60
G9 Base, Bi-Pin Halogen Lamp.
1
Push the lamp completely into the socket.
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
