LBL Lighting LED Illum MO 4 Round Dual Feed Canopy User Manual
Installation Instructions for
980MRLA4PFC-LED
4" Flexible Power Feed Canopy
LED-Illuminated Monorail
GP I :ENERAL RODUCT NFORMATION
This product is suitable for indoor dry locations only.
Minimum volume of the electrical box must be 6 cubic inches
(98 cubic centimeter).
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
REMOTECNPY-_-LED
1.1
Adjust the Fixture Height
1A
1A 1A1B
CANOPY
(H)
POWER FEED
HOUSING
NOTE: It is recommended to adjust the power feed
height before installing the canopy.
1
The overall fixture height (H) is measured from top of the
canopy to the bottom of the power feed. Leave an additional
4” of the coaxial cable for connecting to power.
3
4
4”
INNER WIRE
3
COAXIAL CABLE
Strip the last 4” of the coaxial outer mesh to expose the inner
insulated wire.
Slide the metal sleeve down the wire to the edge of the coaxial
cable.
4
METAL SLEEVE
2
Once the height is determined, cut the excess coaxial cable.
1

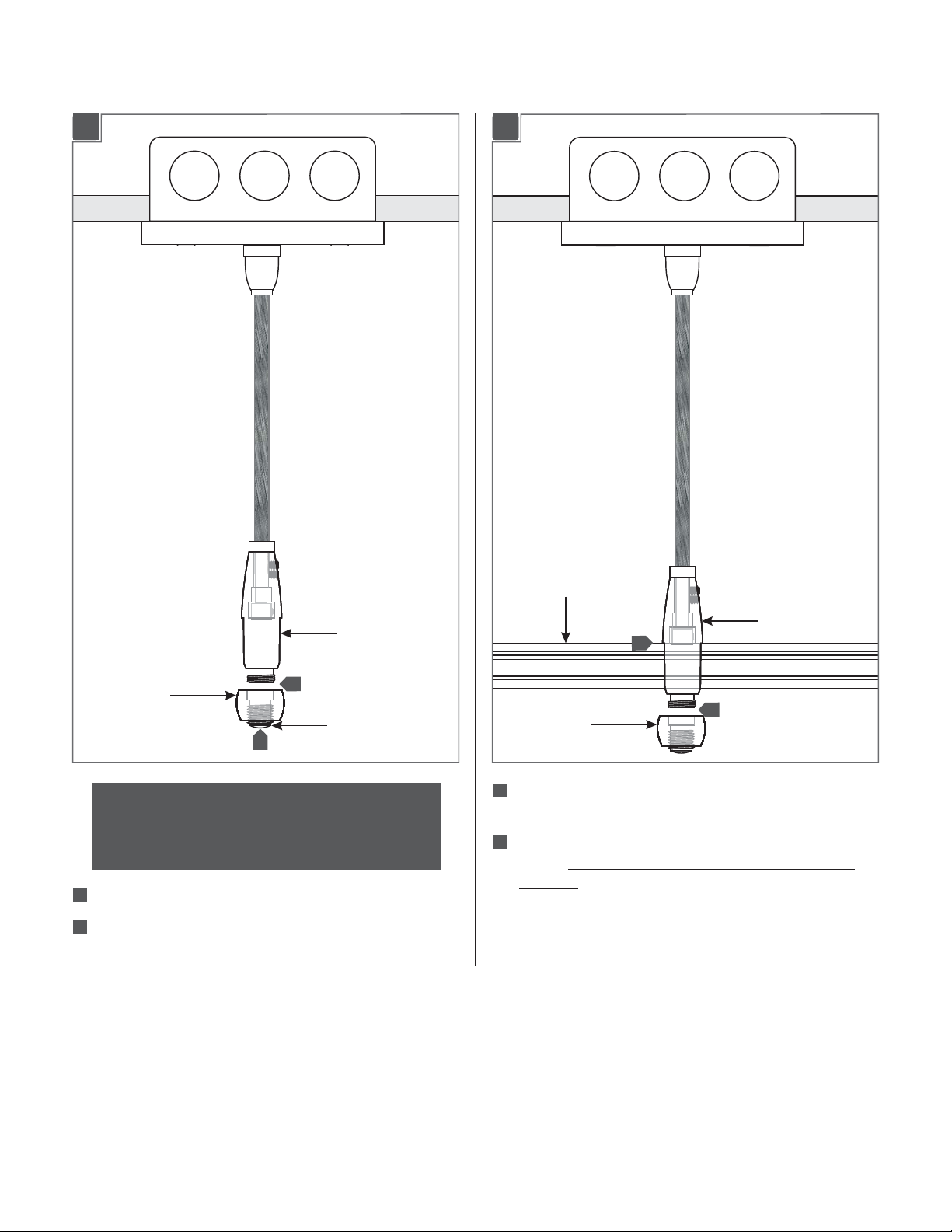

Install the Power Feed Canopy
1A1C 1A2A
CANOPY POST
METAL SLEEVE
5
Feed the coaxial cable up and into the canopy post.
6
Slide the metal sleeve up into the canopy post and secure by
6
5
M4 SET SCREW
COAXIAL CABLE
2MM ALLEN
WRENCH
tightening the M4 set screw with the provided 2MMAllen
wrench.
7
For dual power feed canopies: Repeat steps 1-7 for the second
power feed cable.
1
CANOPY
2
NOTE:The low voltage wires should be present in the
electrical box prior to these steps. Refer to the instructions
provided with the remote transformer to install the remote
transformer and low voltage wires.
NOTE: Use the provided universal round crossbar when
the canopy holes do not line up with the electrical box
holes.
1
Connect the inner cable wire to one low voltage wire with a
wire nut.
2
Connect the other canopy wire to the other low voltage wire
with a wire nut.
3
For dual power feed canopies: Repeat steps 1-2 for the second
power feed cable.
1A2B
#8-32 FLAT
HEAD SCREW
4
5
2
5
5
3/32 ALLEN
WRENCH
Place all wires and wire nut connections inside the electrical
box.
Tighten the two provided #8-32 flat head screws to the
electrical box holes with the 3/32 Allen wrench to secure the
canopy in place.
