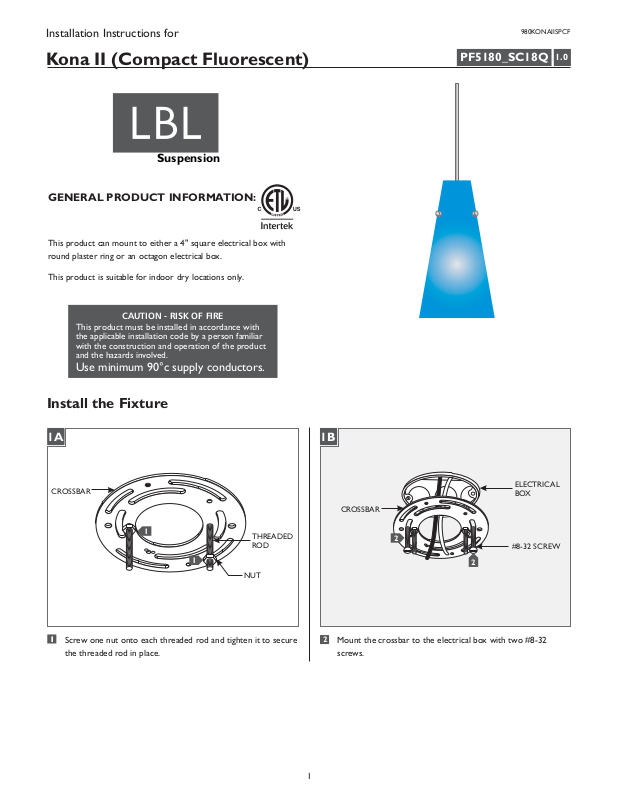

Installation Instructions for
980KONAIISPCF
Kona II (Compact Fluorescent)
Suspension
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for indoor dry locations only.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PF5180_SC18Q
1.0
Install the Fixture
CROSSBAR
1
1
NUT
11
Screw one nut onto each threaded rod and tighten it to secure
the threaded rod in place.
THREADED
ROD
1B1A
CROSSBAR
2
2
2
Mount the crossbar to the electrical box with two #8-32
screws.
ELECTRICAL
BOX
#8-32 SCREW
1
1C
CANOPY
1E
7
7
PLASTIC STRAIN
RELIEF
(H)
GLASS SHADE
3
Determine the desired fixture height (From the bottom of
glass shade to the top of canopy).
MARKED LINE
6
Feed the cord inside the canopy so that the marked line is
1"
exposed behind the canopy.
7
Hold the plastic strain relief 1" above the marked line and
tighten the set screw.
1F
1D
4
5
PLASTIC STRAIN RELIEF
CANOPY
BUSHING
CORD
CAP
8
Slide the canopy up against the plastic strain relief and tighten
8
M4 SET
SCREW
2 MM ALLEN
WRENCH
the M4 set screw snugly on the cap with 2 MMAllen wrench.
4
Feed the cord into the canopy and plastic strain relief.
5
Adjust the fixture height and mark the cord below the canopy
bushing.
2
