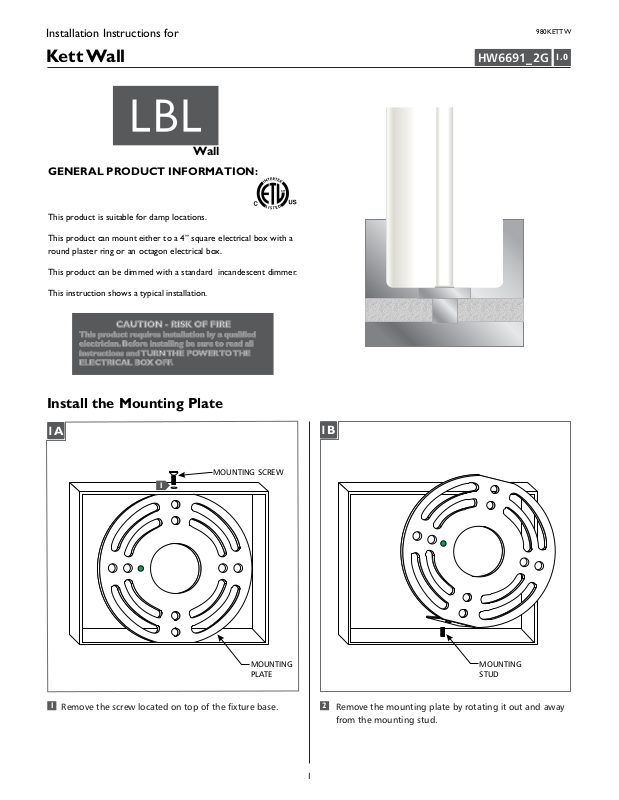

LBL Lighting Kett User Manual
Installation Instructions for
980KETTW
Kett Wall
Wall
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
This product requires installation by a qualified
electrician. Before installing be sure to read all
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
ELECTRICAL BOX OFF.
CAUTION - RISK OF FIRE
HW6691_2G
1.0
Install the Mounting Plate
1A
MOUNTING SCREW
1
MOUNTING
PLATE
1B
MOUNTING
STUD
1 2
Remove the screw located on top of the fixture base.
1
Remove the mounting plate by rotating it out and away
from the mounting stud.
1C
2B
1
#8-32 SCREW
MOUNTING
PLATE
3
Attach the mounting plate to the electrical box using
3
3
the two #8-32 screws provided.
WHITE SPACER
GLASS SHADE
STEM BASE
2
Install the glass shade by placing it on the stem base.
3
Reinstall the white spacer.
3
2
Assemble the Fixture
2A
COLLARED NUT
WHITE SPACER
1
Unscrew the collared nut and remove both the collared
nut and white spacer.
2C
1
SOCKET ASSEMBLY
4
Secure the lamp shade assembly by re-installing the
collared nut on the socket assembly and tighten it using
the special tool.
SPECIAL TOOL
COLLARED NUT
2
