LBL Lighting Juniper WCF8 User Manual

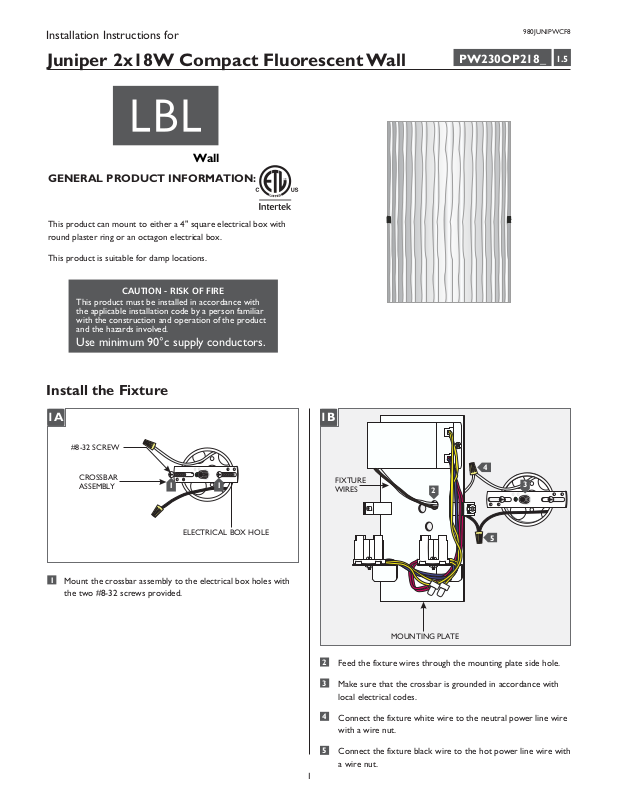

Installation Instructions for
980JUNIPWCF8
Juniper 2x18W Compact Fluorescent Wall
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW230OP218_
1.5
Install the Fixture
1A
#8-32 SCREW
CROSSBAR
ASSEMBLY
1
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
1
ELECTRICAL BOX HOLE
1
1B
4
FIXTURE
WIRES
MOUNTING PLATE
2
Feed the fixture wires through the mounting plate side hole.
3
Make sure that the crossbar is grounded in accordance with
local electrical codes.
2
5
3
4
Connect the fixture white wire to the neutral power line wire
with a wire nut.
5
Connect the fixture black wire to the hot power line wire with
a wire nut.
1
1C
NUT
2B
GLASS SHADE
WASHER
6
Place all wires and wire nut connections properly inside the
7
THREADED
NIPPLE
MOUNTING
PLATE
electrical box.
7
Slide the mounting plate center hole onto the exposed
threaded nipple. Secure the mounting plate in place by tighten
the provided nut and washer to threaded nipple.
Install the Lamp & Shade
2A
LAMP
THUMB
SCREW
2
MOUNTING PLATE
2
Place the glass shade onto the mounting plate. Align the glass
2
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
NOTE:Do not over tighten the thumb screws which may
cause the glass shade to break.
LAMP PIN
SOCKET
Use WattType QuadTubeMAX 18
G24q-2 Base Compact Fluorescent
Lamp With Each Socket.
1
Install each lamp by pushing the lamp pins completely into the
socket holes.
SAVETHESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
2
