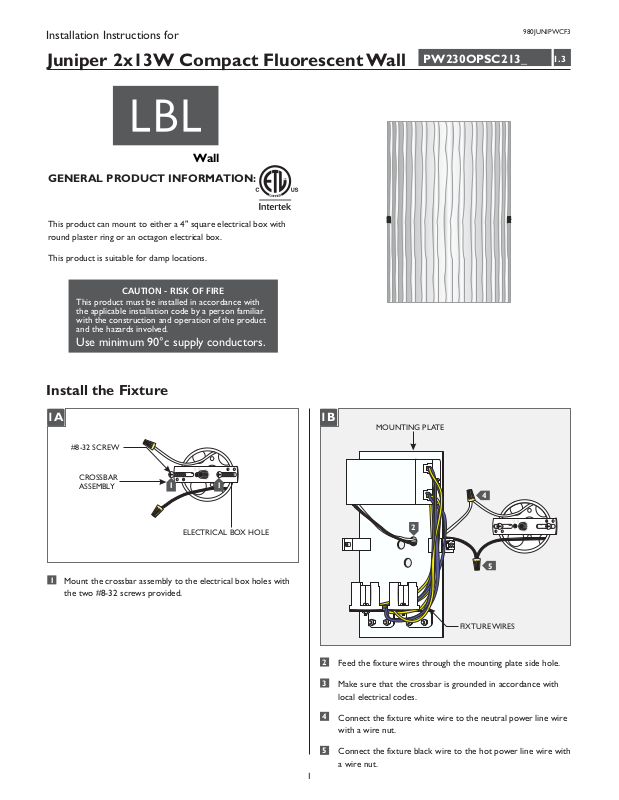

Installation Instructions for
980JUNIPWCF3
Juniper 2x13W Compact Fluorescent Wall
Wall
GP I :ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
PW230OPSC213_
1.3
Install the Fixture
1A
#8-32 SCREW
CROSSBAR
ASSEMBLY
1
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
1
ELECTRICAL BOX HOLE
1
1B
MOUNTING PLATE
4
2
2
5
FIXTURE WIRES
2
Feed the fixture wires through the mounting plate side hole.
3
Make sure that the crossbar is grounded in accordance with
local electrical codes.
4
Connect the fixture white wire to the neutral power line wire
with a wire nut.
5
Connect the fixture black wire to the hot power line wire with
a wire nut.
1
1C
2B
GLASS SHADE
NUT
WASHER
MOUNTING
PLATE
6
Place all wires and wire nut connections properly inside the
7
6
electrical box.
7
Slide the mounting plate center hole onto the exposed
threaded nipple. Secure the mounting plate in place by
tightening the provided nut and washer to threaded nipple.
Install the Lamp & Shade
2A
THREADED
NIPPLE
THUMB
SCREW
2
MOUNTING PLATE
2
Place the glass shade onto the mounting plate. Align the glass
2
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
NOTE:Do not over tighten the thumb screws which may
cause the glass shade to break.
LAMP
LAMP PIN
SOCKET
For The Fixtures With Magnetic Ballast,
MAX 13
Use WattType Quad Tube
GX23-2 Base Compact Fluorescent Lamp,
With Each Socket.
For The Fixtures With Electronic Ballast,
MAX 13
Use WattType Quad Tube G24q-1
Base Compact Fluorescent Lamp With Each Socket.
1
Install each lamp by pushing the lamp pins completely into the
socket holes.
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
