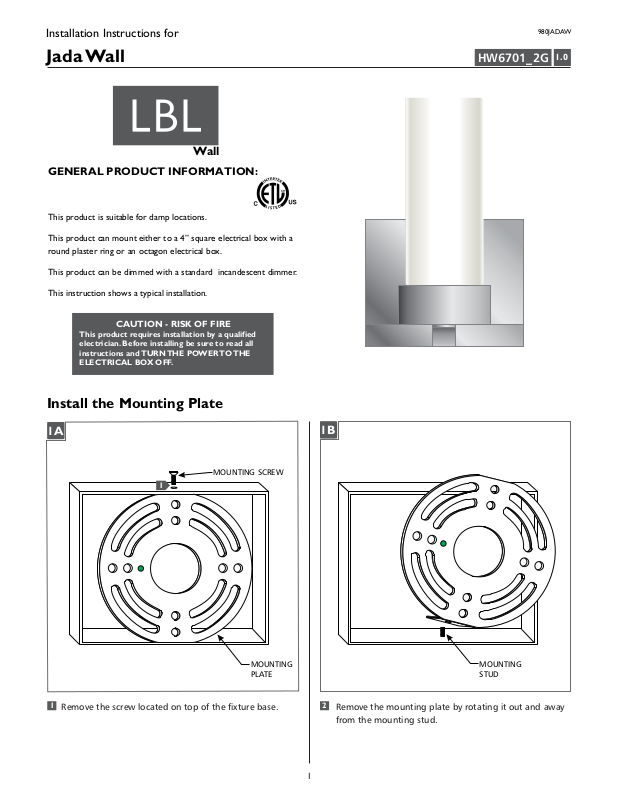

Installation Instructions for
980JADAW
Jada Wall
Wall
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
HW6701_2G
1.0
Install the Mounting Plate
1A
MOUNTING SCREW
1
MOUNTING
PLATE
1B
MOUNTING
STUD
1 2
Remove the screw located on top of the fixture base.
1
Remove the mounting plate by rotating it out and away
from the mounting stud.
1C
#8-32 SCREW
2B
GLASS SHADE
3
MOUNTING
PLATE
3
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
3
Assemble the Fixture
2A
LAMP
2
Install the glass shade by pushing it onto the socket
assembly until it is firmly in place.
SOCKET
Use Volt, type T4, G9 base
MAX 60120 Watt
bi-pin halogen lamp in each socket.
NOTE: Use only your fingers and a soft cloth to
replace the lamp.
1
With a soft cloth, push the new lamp firmly all the way
into the socket.
2
