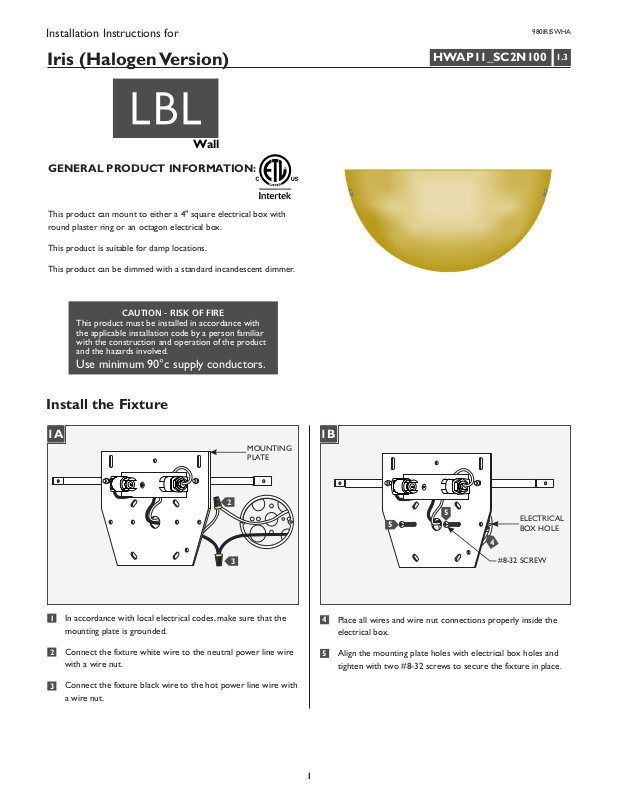

Installation Instructions for
980IRISWHA
Iris (Halogen Version)
Wall
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
HWAP11_SC2N100
1.3
Install the Fixture
MOUNTING
4
1
In accordance with local electrical codes, make sure that the
mounting plate is grounded.
Connect the fixture white wire to the neutral power line wire
2
with a wire nut.
Connect the fixture black wire to the hot power line wire with
3
a wire nut.
PLATE
2
3
1B1A
4
5
5
5
5
4
Place all wires and wire nut connections properly inside the
5
electrical box.
5
Align the mounting plate holes with electrical box holes and
tighten with two #8-32 screws to secure the fixture in place.
ELECTRICAL
BOX HOLE
4
#8-32 SCREW
1
1
Install the Lamp & Shade
2A
1
LAMP
1
SOCKET
NOTE: To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
NOTE: Use only your fingers and a soft cloth to install
the lamp.
Use MAX 100 Watt Type
T3-78mm, Double End Halogen Lamp.
2C
LAMP
SHIELD
CLIP
3
Install the lamp shield, by snapping the lamp shield clips onto
the sockets.
LAMP
SHIELD
SOCKET
2D
4 4
1
Place one end of the lamp onto one socket pin, while pushing
the lamp against that socket pin slide the other end onto the
other socket pin.
2B
LAMP SHIELD CLIP
2
LAMP SHIELD
2
Snap the lamp shield clips onto the lamp shield ends.
2
THUMB
SCREW
GLASS
SHADE
4
Place the glass shade onto the mounting plate. Align the glass
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
NOTE: Do not over tighten the thumb screw which may
cause the glass shade to break.
2
IMPORTANT SAFETY INSTRUCTIONS
Halogen Lamp General Information
To reduce the risk of fire, electrical shock, exposure to
excessive UV radiation, or injury to person:
– Use this fixture indoors only.
– Do not look directly at the lighted lamp.
– Do not remain in light if skin feels warm.
– Risk of fire: Use only the type of lamp and maximum
wattage indicated in this instruction manual.
– Never cover the halogen lamp with anything other than a
Tech Lighting lamp shield and never place flammable
material close to your fixture.
– Do not touch the fixture shades or lamp shield while the
fixture is on. These surfaces may be HOT.
– To avoid glare in child's eyes, hang the fixture at least 18”
above a table.
– It is normal for a new halogen lamp to smoke slightly
on first use. The protective coating is being vaporized.
Prolonging Halogen Lamp Life
– Do not touch the lamp with bare hands. Any contaminant,
even the oil from your hands can deteriorate the lamp.
Handle the lamp with a soft, clean cloth. Rubbing alcohol
can be used to remove any contaminant from the lamp.
– Do not run the lamps at full power when you do
not need to. However, if dimming the fixture for an
extended period of time, occasionally bring the light up to
full brightness for a few minutes to complete the halogen
cycle.
3
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting. All rights reserved. The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
