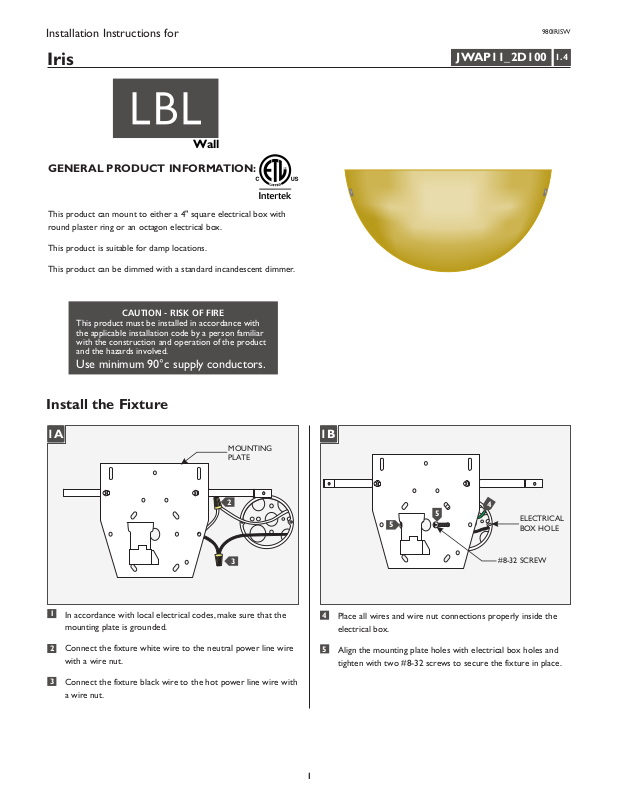

Installation Instructions for

980IRISW

Iris

Wall

GENERAL PRODUCT INFORMATION:

This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.

This product is suitable for damp locations.

This product can be dimmed with a standard incandescent dimmer.

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

JWAP11_2D100

1.4

Install the Fixture

MOUNTING
PLATE

2

3

1

In accordance with local electrical codes, make sure that the
mounting plate is grounded.

2

Connect the fixture white wire to the neutral power line wire
with a wire nut.

3

Connect the fixture black wire to the hot power line wire with
a wire nut.

1B1A

5

5

4

Place all wires and wire nut connections properly inside the
electrical box.

5

Align the mounting plate holes with electrical box holes and
tighten with two #8-32 screws to secure the fixture in place.

5

4

ELECTRICAL
BOX HOLE

#8-32 SCREW

1

1

Install the Lamp & Shade

2A

1

SOCKET

Use MAX 120 Volt, 100 Watt Type A19
Medium Base Lamp.

Screw the lamp into the socket.

1

2B

LAMP

SAVE THESE INSTRUCTIONS!

2

THUMB
SCREW

2

Place the glass shade onto the mounting plate. Align the glass

GLASS
SHADE

shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.

NOTE: Do not over tighten the thumb screws which may

cause the glass shade to break.

2
