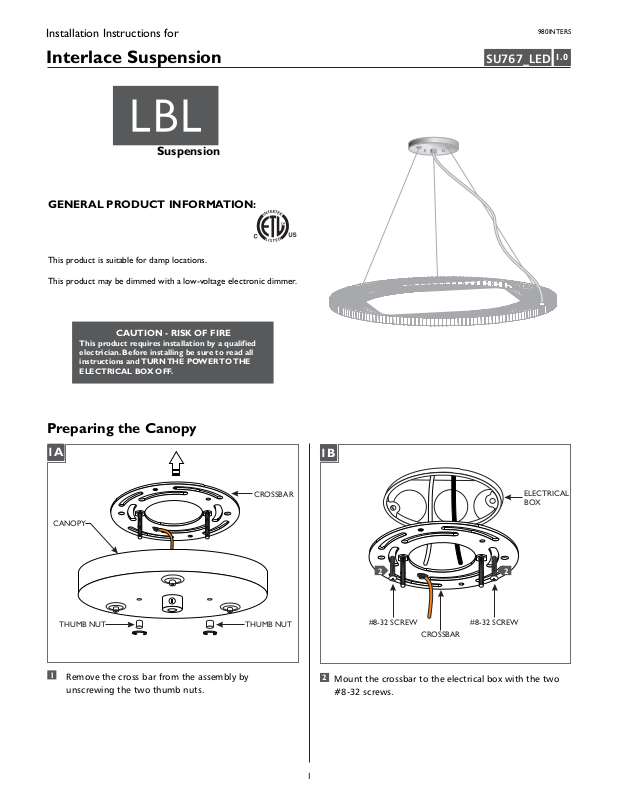

LBL Lighting Interlace S User Manual
Installation Instructions for
980INTERS
Interlace Suspension
Suspension
GP I :ENERAL RODUCT NFORMATION
This product is suitable for damp locations.
This product may be dimmed with a low-voltage electronic dimmer.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURNTHE POWER TO THE
ELECTRICAL BOX OFF.
SU767_LED
1.0
Preparing the Canopy
1A
CANOPY
1
Remove the cross bar from the assembly by
unscrewing the two thumb nuts.
CROSSBAR
THUMB NUTTHUMB NUT
1B
2 2
#8-32 SCREW #8-32 SCREW
CROSSBAR
2
Mount the crossbar to the electrical box with the two
#8-32 screws.
ELECTRICAL
BOX
1
Install the fixture
Install the Canopy
Note:If shortening the power cord, take note of the
fixture’s wire connection configuration before
removing the wire nuts. The same connection to
driver is necessary for the fixture to work correctly.
NOTE: Make sure to support the fixture while
adjusting the aircraft cables. An assistant is
recommended to complete the remaining steps.
2A
STRAIN RELIEF
3
CABLE
CLUTCH
21
Feed the aircraft cables through the cable clutches in
1
4
POWER CORD
SET
SCREW
the canopy.
CANOPY
AIRCRAFT
CABLE
3A
4"
71
Leave 6" of the cord behind the canopy for power
connections. Cut the excess cord.
72
From the end of the cord, strip the insulation 4" using a
sharp knife. .Make sure not to nick the inner wires
73
Strip the end of the wires.
3B
2
2
Evenly pull the aircraft cables up through the canopy to
raise the fixture to the desired length.
Cut off the excess aircraft cable leaving enough for fine
2
3
leveling later.
4
2
If necessary loosen the set screw in the strain relief and
feed the power cord from the fixture into the canopy
port.
2B
5
CORD
NOTE: The power cord does not support the fixture.
For a casual “lazy cord” look, cut the power cord
several inches longer that the drop height of the
fixture.
4
5
TAB
24
10
Install the secondary strain relief by first feeding the
power cord through it.
25
Snap the strain relief tab into place.
6
6
25
Once the desired look is determined, tighten the set
screw on the strain relief.
Mark the cord underneath the strain relief.
26
26
Pull the cord to take up the slack and fit the rest of the
cord in the strain relief’s openings.
2
