LBL Lighting Fusion Jack Canopy 5 Light Round LED User Manual
Installation Instructions for
980FSJLPRC
3,5, & 7 Round Fusion Jack Canopy
Fusion Jack
GP I :ENERAL RODUCT NFORMATION
This product is suitable for indoor dry locations only.
This product can be dimmed with a standard incandescent dimmer.
LED versions are dimmable with a low-voltage electronic dimmer.
This instruction is for the following models:
7 Port Round Canopy (CK007B-FJ-_)
5 Port Round Canopy (CK005B-FJ-_)
3 Port Round Canopy (CK003B-FJ-_)
3 Port Round Canopy (CK003D-_-FJ)

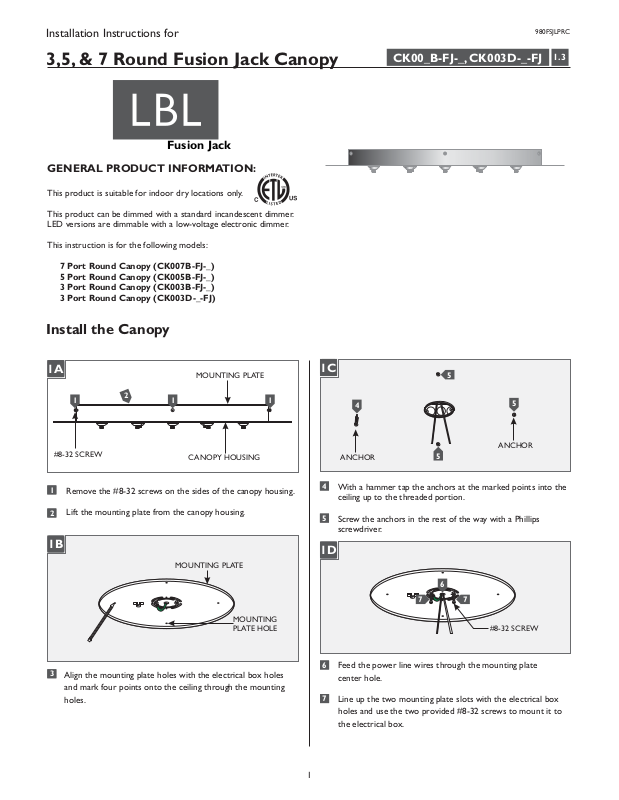

Install the Canopy
CK00_B-FJ-_, CK003D-_-FJ
1.3
1A
1 1 1
#8-32 SCREW
1
Remove the #8-32 screws on the sides of the canopy housing.
Lift the mounting plate from the canopy housing.
2
2
MOUNTING PLATE
CANOPY HOUSING
1B
MOUNTING PLATE
MOUNTING
PLATE HOLE
1C
4
ANCHOR
4
With a hammer tap the anchors at the marked points into the
ceiling up to the threaded portion.
5
Screw the anchors in the rest of the way with a Phillips
screwdriver.
5
5
ANCHOR
5
1D
6
7
77
7
#8-32 SCREW
3
Align the mounting plate holes with the electrical box holes
and mark four points onto the ceiling through the mounting
holes.
6
Feed the power line wires through the mounting plate
center hole.
7
Line up the two mounting plate slots with the electrical box
holes and use the two provided #8-32 screws to mount it to
the electrical box.
1
1G1E
8
8
8
#8 SCREW
8
Secure the mounting plate to the anchors with the provided
#8 screws.
1F
MOUNTING
SAFETY
BRACKET
9
PLATE
10
8
12
13
10
Make sure the mounting plate is grounded in accordance with
local electrical codes.
11
Connect the housing white wire to the neutral power line wire
with a wire nut.
SAFETY CABLE
9
HOUSING
9
Insert one end of the safety cable into the mounting plate
safety bracket and insert the other end into the housing safety
bracket.
12
Connect the housing black wire to the hot power line wire
with a wire nut.
13
Place all wires and wire nut connections properly inside
the housing.
1H
MOUNTING PLATE
15
#8-32 SCREW
14
Slide the housing onto the mounting plate and line up the
housing holes with the mounting plate holes.
15
Replace and tighten the #8-32 screws to secure the housing in
place.
15
CANOPY HOUSING
15
2
