Installation Instructions for
980FSJ4RC
Fusion Jack 4" Square and Round Flush Canopy
Fusion Jack
GP I :ENERAL RODUCT NFORMATION
This product is suitable for indoor dry locations only.
Minimum volume of the electrical box must be 6 cubic inches (98
cubic centimeters).
Model numbers ending in “-LED” or “-LED277” can be dimmed
with a low-voltage electronic dimmer, have a rated maximum output
of 60 watts, and are compatible with LED elements.
All other model numbers can be dimmed with a standard
incandescent dimmer, have a rated maximum output of 60 watts,
and are not compatible with LED elements.
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
CAUTION - RISK OF FIRE
CK001_-FJ
1.6

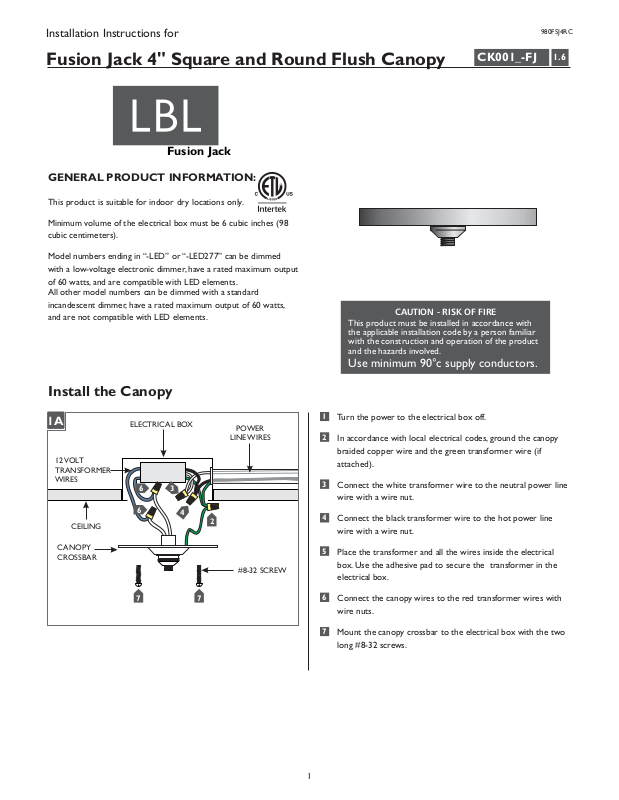

Install the Canopy
1A
12 VOLT
TRANSFORMER
WIRES
CEILING
CANOPY
CROSSBAR
ELECTRICAL BOX
6
6
7 7
1
Turn the power to the electrical box off.
POWER
LINE WIRES
3
4
2
#8-32 SCREW
2
In accordance with local electrical codes, ground the canopy
braided copper wire and the green transformer wire (if
attached).
3
Connect the white transformer wire to the neutral power line
wire with a wire nut.
4
Connect the black transformer wire to the hot power line
wire with a wire nut.
5
Place the transformer and all the wires inside the electrical
box. Use the adhesive pad to secure the transformer in the
electrical box.
6
Connect the canopy wires to the red transformer wires with
wire nuts.
7
Mount the canopy crossbar to the electrical box with the two
long #8-32 screws.
1
1B 1C
THREADED POST
CAP
8
Place the canopy cover over the crossbar and screw the cap
8
CANOPY
COVER
onto the threaded crossbar post.
CEILING
FUSION JACK PORT
9
9
Screw the fixture Fusion Jack into the Fusion Jack port.
10
Turn the power on.
FIXTURE
FUSION JACK
SAVETHESE INSTRUCTIONS!
