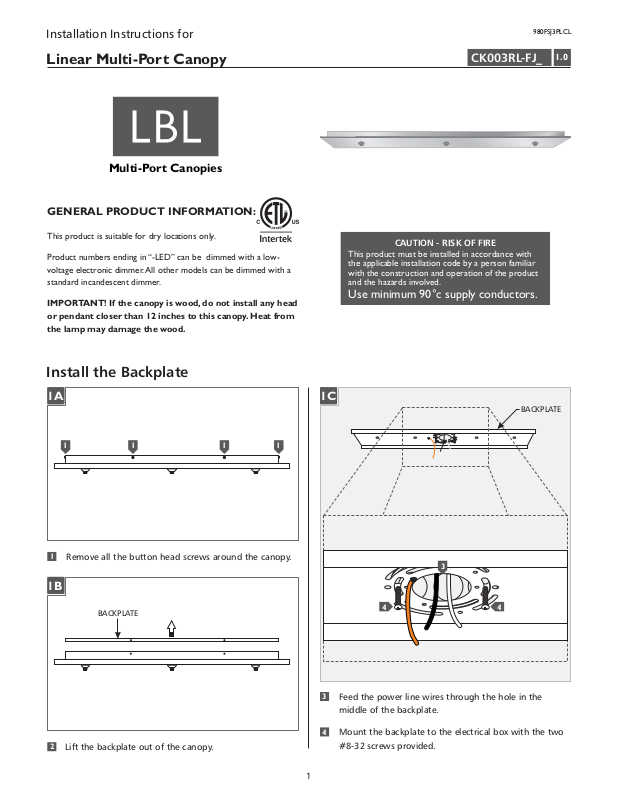

Installation Instructions for
980FSJ3PLCL
Linear Multi-Port Canopy
Multi-Port Canopies
GP I :ENERAL RODUCT NFORMATION
This product is suitable for dry locations only.
Product numbers ending in “-LED” can be dimmed with a low­voltage electronic dimmer.All other models can be dimmed with a standard incandescent dimmer.
IMPORTANT! If the canopy is wood, do not install any head
the lamp may damage the wood.
CK003RL-FJ_
CAUTION - RISK OF FIRE
This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Use minimum 90°c supply conductors.
1.0
Install the Backplate
1A
1
1
Remove all the button head screws around the canopy.
1B
BACKPLATE
1 1 1
1C
BACKPLATE
3
4
4
2
Lift the backplate out of the canopy.
3
Feed the power line wires through the hole in the middle of the backplate.
4
Mount the backplate to the electrical box with the two #8-32 screws provided.
1
Install the Canopy
2A1D
5
7
5
Line up an anchor with the center of a backplate hole and push the anchor in up to the threads.
1
1
SAFETY
BRACKETS
1
SAFETY CABLE
6
Screw the anchor the rest of the way in with a screwdriver.
7
Secure the backplate to the anchor with a screw and washer.
8
Repeat steps 5-7 for all of the anchor holes.
1
Hook a safety cable through the safety brackets on each end of the canopy and backplate.
2
Install the Fixtures
2B 3A
FREEJACK PORT
3
2
4
1
Screw a FreeJack connector into each FreeJack port.
1
FREEJACK CONNECTOR
2
Connect the black fixture wire to the hot power line wire with a wire nut.
3
Connect the white fixture wire to the neutral power line wire with a wire nut.
4
Connect the canopy to a suitable ground in accordance with local electrical codes.
2C
5 5 5 5
5
Line up the canopy to the backplate and reinstall all the button head screws.
3
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
847.410.4400
www.techlighting.com
© 2014 Tech Lighting, L.L.C. All rights reserved. The "Tech Lighting" graphic is a registered trademark of Tech Lighting, L.L.C. Tech Lighting reserves the right to change specifications for product improvements without notification.
A Generation Brands Company
4
