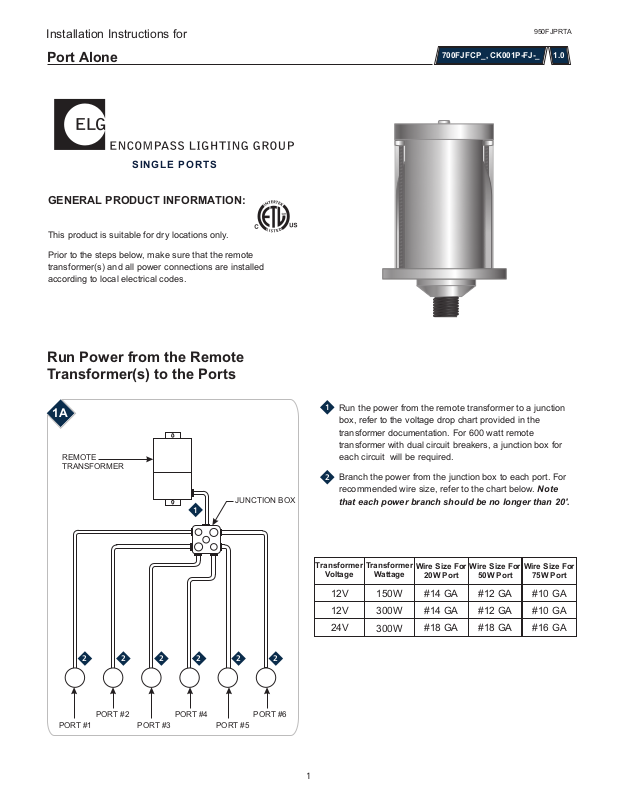

Installation Instructions for
950FJPRTA
Port Alone
SINGLE PORTS
GENERAL PRODUCT INFORMATION:
This product is suitable for dry locations only.
Prior to the steps below, make sure that the remote
transformer(s) and all power connections are installed
according to local electrical codes.
700FJFCP_, CK001P-FJ-_
1.0
Run Power from the Remote
Transformer(s) to the Ports
1A
REMOTE
TRANSFORMER
JUNCTION BOX
1
1
Run the power from the remote transformer to a junction
box, refer to the voltage drop chart provided in the
transformer documentation. For 600 watt remote
transformer with dual circuit breakers, a junction box for
each circuit will be required.
2
Branch the power from the junction box to each port. For
recommended wire size, refer to the chart below. Note
that each power branch should be no longer than 20'.
Transformer
Voltage
12V
12V
24V
Transformer
Wattage
150W
300W
300W
Wire Size For
20W Port
#14 GA
#14 GA
#18 GA
Wire Size For
50W Port
#12 GA #10 GA
#12 GA #10 GA
#18 GA #16 GA
Wire Size For
75W Port
PORT #2 PORT #4 PORT #6
PORT #1 PORT #3 PORT #5
222222
1
1B
2B
POWER FEED
CONNECTOR
2
4
2
1
1
Using a split bolt connector, connect the low voltage hot
wire coming from the remote transformer to each hot wire
going to the ports.
2
Connect the low voltage common wire coming from the
remote transformer to each common wire going to the
ports.
#6-32 SCREW
CAP
2
Bring the power out of the opening.
3
Unscrew the #6-32 screws to remove the back ring.
Screw the back ring (from the face with two holes) to the
4
3
BACK RING
5
power feed connector.
Unscrew the cap from the port.
5
Make sure that the split bolt connectors are properly
2
insulated.
Install the Single Port Alone
2A
CEILING OR WALL
1-9/16"
1
Use a 1-9/16" hole saw to cut out the ceiling or wall where
1
the ports are going to be installed.
2C
LOW VOLTAGE
WIRE
PORT WIRE
YELLOW
WIRE NUT
6
Cut the port wires so that 1-1/2" of it is exposed.
7
Strip the port wires and connect them to the low voltage
wires with the provided yellow wire nuts.
2
